20" Wheels Specs:

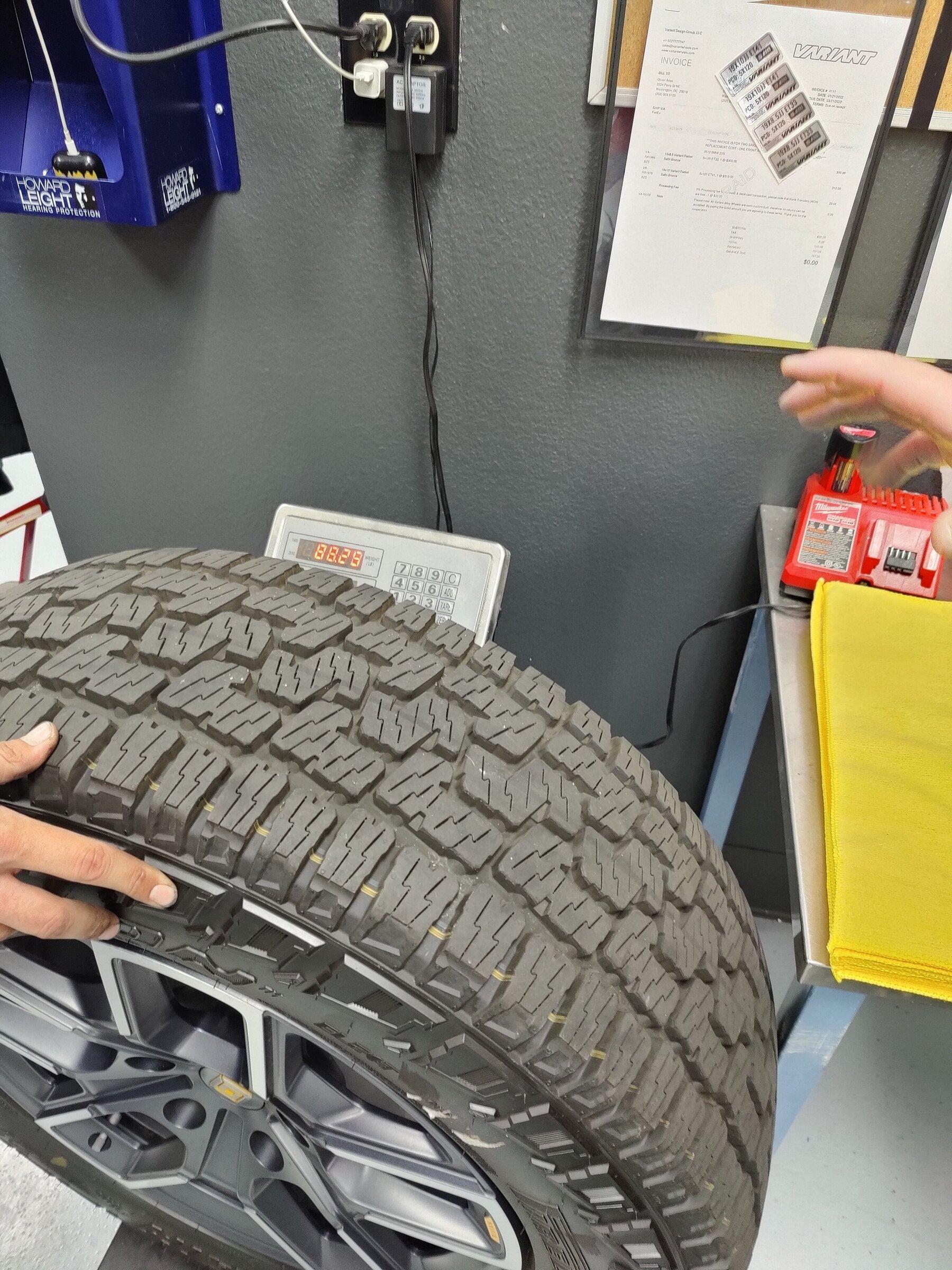

Weight: 88 lbs (with tires mounted)
Size: 20x8.5,
Offset: +48mm
Bolt pattern: 5 x 5.5

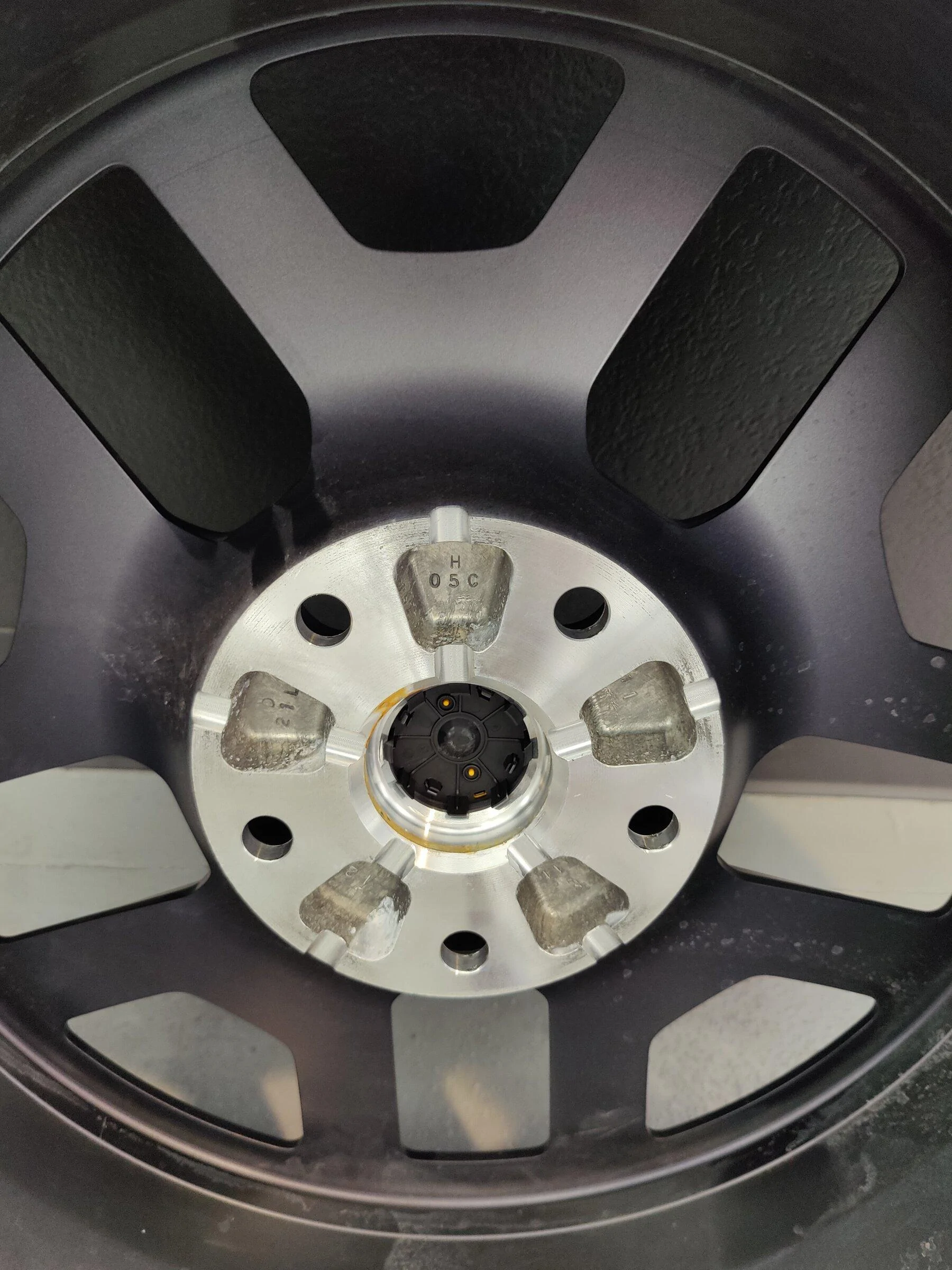

Construction: 20" wheels are forged. 21" and 22" wheels are all cast.

Working with my aftermarket wheel manufacturer on some forged designs for the R1T. At present because of the +48mm offset and massive OEM calipers, there are no options available off the shelf, so a custom forged wheel is in the works (whatever design I desire, but off road style and in a bronze or gunmetal for me)......Interesting to note is a complete R1T 20/AT with Pirellis weighs in at 88lbs, which is light for a 275 (34" tall) off road AT tire and wheel.

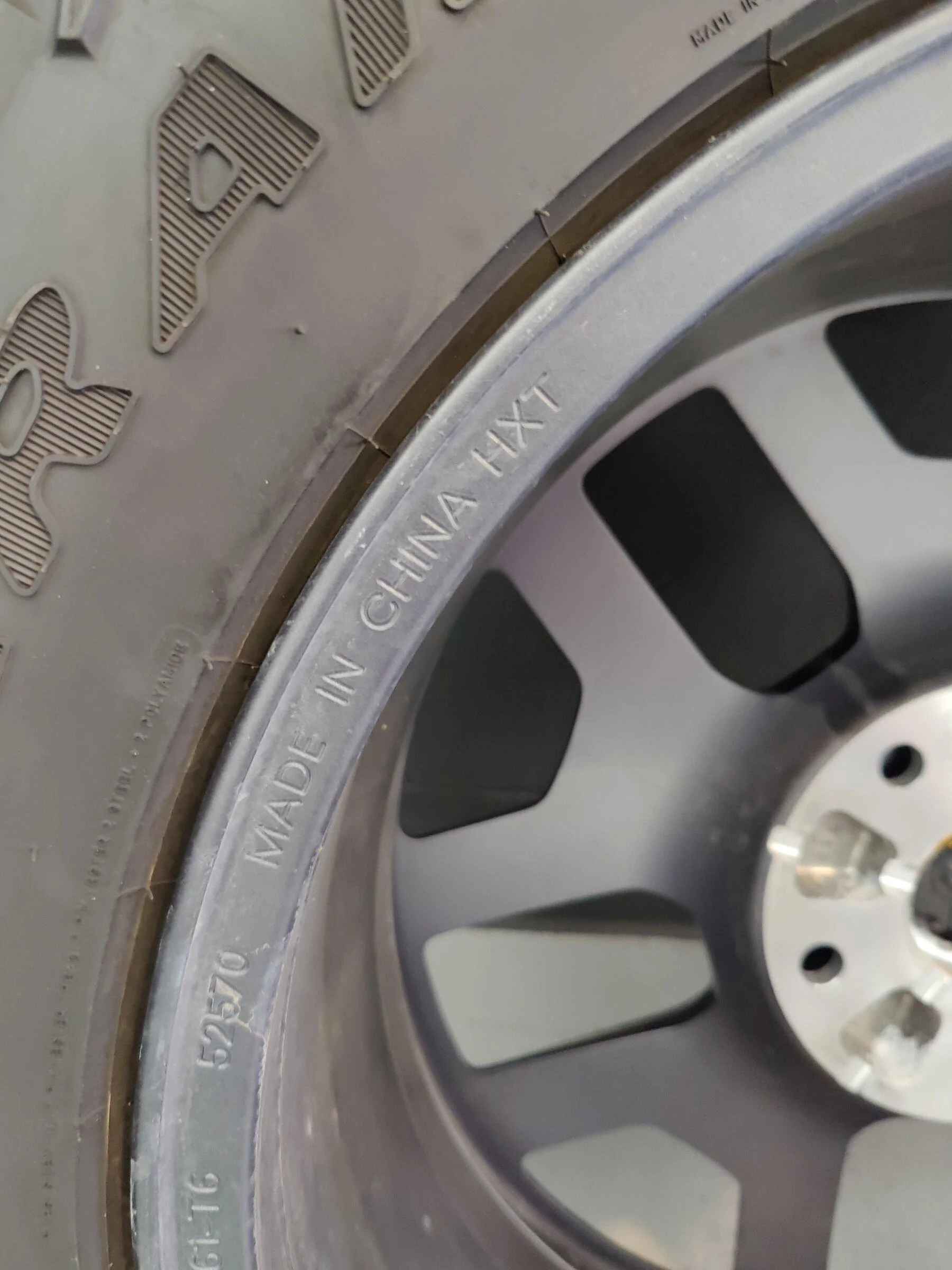

Forged OEM wheels are made in China....

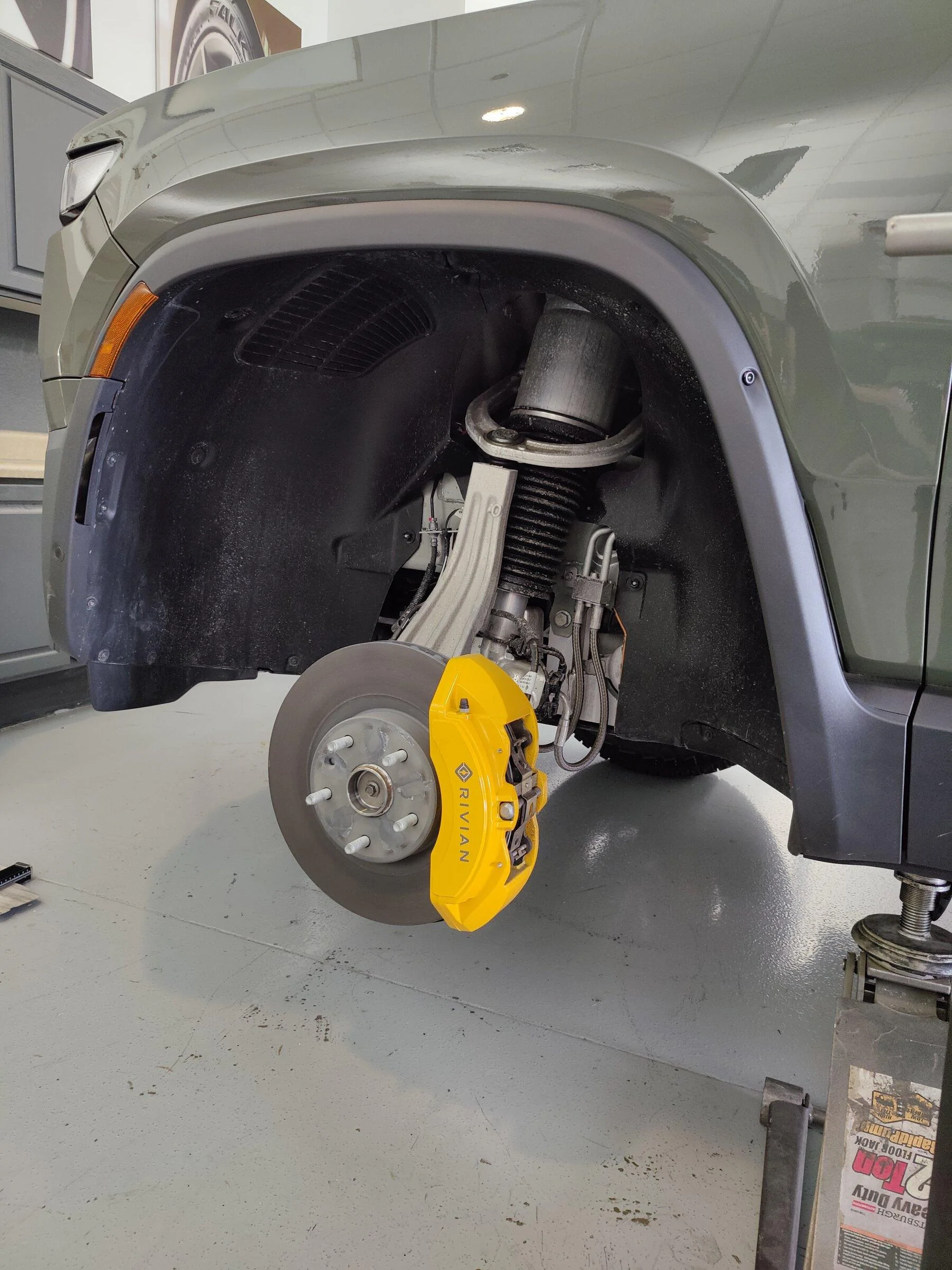

The amount of drop/suspension travel front and rear is quite high as noted by how much we had to keep pumping the floor jack up. The jack points on the R1T are under four little round plastic doors, which means you are required a small diameter 2.5" metal lift point for the jack. Love this truck!!!









Sponsored


Last edited:

Ladiver

Well-Known Member
First Name
Jeff
Joined
Jan 23, 2021
Threads
39
Messages
852
Reaction score
1,638
Location
Ca
Vehicles
GMC 3500, Honda CR-V, Corvette Z06
Where are the other wheels made? That may change my wheel choice.


SeaGeo

Well-Known Member
First Name
Brice
Joined
Jan 12, 2021
Threads
45
Messages
4,633
Reaction score
8,816
Location
Seattle
Vehicles
Xc60 T8
Occupation
Engineer
Working with my aftermarket wheel manufacturer on some forged designs for the R1T.
so a custom forged wheel is in the works (whatever design I desire, but off road style and in a bronze or gunmetal for me).
How does one go about finding a custom wheel manufacturer? This seems like one of the more unique humble brags I've heard in awhile. I'd love to see what you come up with!

OP
OP
Mark_AZR1T

Mark_AZR1T

Well-Known Member
Site Sponsor
First Name
Mark
Joined
May 28, 2021
Threads
14
Messages
553
Reaction score
916
Location
Gilbert, AZ
Website
jackpucks.com
Vehicles
R1T Launch Edition
How does one go about finding a custom wheel manufacturer? This seems like one of the more unique humble brags I've heard in awhile. I'd love to see what you come up with!
My business (automotive aftermarket performance) works with a few companies in this world of custom wheels and this one is in my personal backyard and are friendly people.

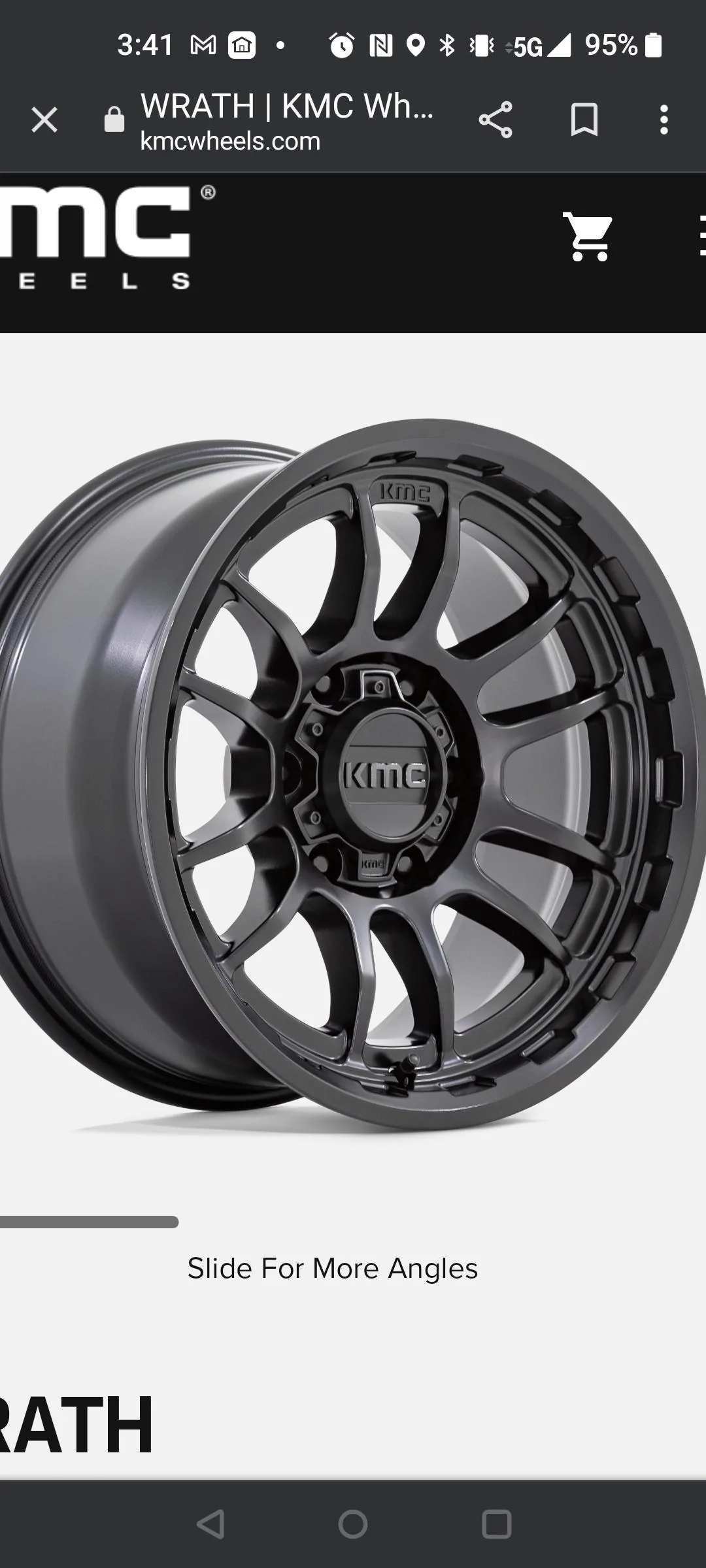

You could have HRE, Forgeline and a host of others build custom wheels, but that's a bit beyond what I'd like to spend for the R1T. I personally like the pure off road look even with some standard designs from Method Race Wheels or even KMC. KMC style design would look great in black, titanium or even bronze.

Having said this, I really like the factory wheels.....



Sponsored

astonius

Well-Known Member
First Name
Ryan
Joined
Oct 5, 2021
Threads
42
Messages
1,299
Reaction score
2,690
Location
Nashville
Vehicles
'22 R1T Adv
This is great detail, thank you. Are there any aftermarket 22” wheels that would be a good fit for the R1T today?


JeremyP

Well-Known Member
Joined
Feb 27, 2021
Threads
4
Messages
191
Reaction score
328
Location
Grand Junction, CO
Vehicles
Toyota 4runner, BMW I3, preordered R1S
Occupation
Engineer
Is there any chance that a custom 18" wheel could be made to fit over the calipers?


scooter

Well-Known Member
Joined
May 21, 2021
Threads
2
Messages
81
Reaction score
121
Location
WI
Vehicles
BMW 1250GS
Really glad to see this post and I'll be tracking this going forward. Given production constraints at Rivian I'm unsure if we will even have the ability to buy a second set of wheels in the next couple of years and having a verified alternative will be great to have. Thanks for digging into this for us!


FirstStateR1T

Well-Known Member
First Name
Eric
Joined
Mar 31, 2022
Threads
8
Messages
142
Reaction score
191
Location
Newark, DE
Vehicles
Too many to list, I have a problem!
Occupation
Mech. E/GM/COO
@Mark_AZR1T what width and bolt pattern did Rivian spec? 20x? 5x? et48mm


moosehead

Well-Known Member
Joined
Sep 16, 2021
Threads
36
Messages
1,340
Reaction score
2,791
Location
Denver, CO
Vehicles
‘22 Ioniq 5, ‘78 Jeep Wagoneer
Thanks @Mark_AZR1T. Much appreciate getting the aftermarket wheel effort going so s00n. +1 to bronze and gunmetal.

I’d also please be interested in learning how they fit hubcentric specs and how customized that effort is vs standardized fitment.

Would also love to see more pics of your El Cam.

Last edited:

Sponsored

ATL_R1S

Well-Known Member
Joined
Feb 17, 2022
Threads
1
Messages
117
Reaction score
268
Location
Atlanta
Vehicles
'15 Leaf, '13 Tiguan, '13 BRZ
1EV is a company that just 3D scanned a local's R1T wheel well yesterday, with the intention of developing aftermarket wheels. Here is the video of them doing so:

OP
OP
Mark_AZR1T

Mark_AZR1T

Well-Known Member
Site Sponsor
First Name
Mark
Joined
May 28, 2021
Threads
14
Messages
553
Reaction score
916
Location
Gilbert, AZ
Website
jackpucks.com
Vehicles
R1T Launch Edition
This is great detail, thank you. Are there any aftermarket 22” wheels that would be a good fit for the R1T today?
No. The +48mm offset on the wheels and massive calipers is the challenge. All wheels will be either new castings or forged.

OP
OP
Mark_AZR1T

Mark_AZR1T

Well-Known Member
Site Sponsor
First Name
Mark
Joined
May 28, 2021
Threads
14
Messages
553
Reaction score
916
Location
Gilbert, AZ
Website
jackpucks.com
Vehicles
R1T Launch Edition
OP
OP
Mark_AZR1T

Mark_AZR1T

Well-Known Member
Site Sponsor
First Name
Mark
Joined
May 28, 2021
Threads
14
Messages
553
Reaction score
916
Location
Gilbert, AZ
Website
jackpucks.com
Vehicles
R1T Launch Edition
Is there any chance that a custom 18" wheel could be made to fit over the calipers?
Good question...I would guess no because of the monster truck calipers....but TBD


Forager1

Well-Known Member
First Name
W
Joined
Jul 21, 2021
Threads
7
Messages
465
Reaction score
821
Location
Seattle
Vehicles
R1S
Occupation
Engineer
Lol. Only Rivian would chose the most popular truck wheel bolt pattern (5x5.5) and then design with a one-of offset. That offset matches the new Land Rover Defender, but then they use a different bolt pattern *sigh*.

Are you going to stick to 8.5” width? I’d like to look into narrower tire options for a slight range boost.
