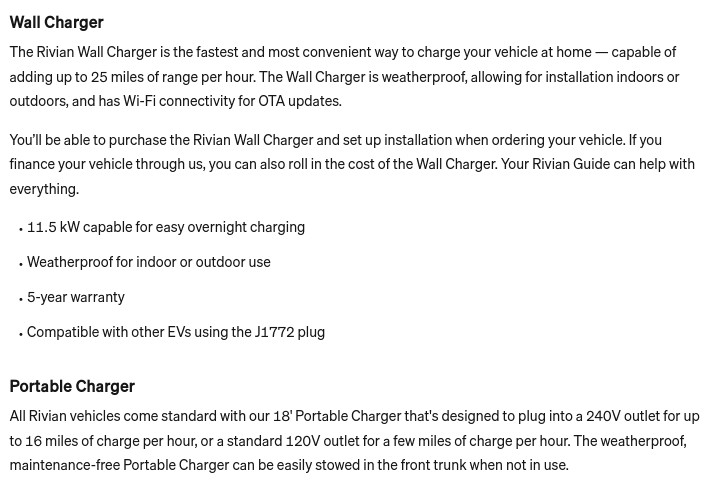

Anyone buying the $500 Rivian Wall Charger?

Jyeh74

Member
Joined
Mar 13, 2021
Messages
16
Reaction score
6
Location
Orange County
Vehicles
BMW
Is anyone buying the $500 wall charger? Does that charge faster than the standard charging wire that comes with the car?
Advertisement



messinator

Member
Joined
Dec 20, 2021
Messages
19
Reaction score
18
Location
Seattle
Vehicles
Model 3
Occupation
Tech bro
IIRC from the delivery window surveys just about everyone is.

Charging my Model 3 on a normal 120V plug is 1 kW. So, 0 -> 100 would be 100H. You can fully charge a model 3 in about 6 hours on a level 2 wall charger. It'll be even more significant on a Rivian since they're 130 kWh batteries.

OP
OP

Jyeh74

Member
Joined
Mar 13, 2021
Messages
16
Reaction score
6
Location
Orange County
Vehicles
BMW
I thought the standard chargers that come with the car are the same 240V as the ones for appliances? They are slow but still charge the car in 8-10 hrs which would be fine overnight.


astonius

Well-Known Member
First Name
Ryan
Joined
Oct 5, 2021
Messages
160
Reaction score
313
Location
Nashville
First Name
Ryan
Vehicles
2020 BMW X5 M50i, 2018 Range Rover Velar P380
If this is thread-hijacking I apologize and welcome a deletion, but I think it's related to OP's question:

If I have the Rivian charger installed by an electrician how simple would it be to switch to a different brand in the future (Tesla, for example)?


messinator

Member
Joined
Dec 20, 2021
Messages
19
Reaction score
18
Location
Seattle
Vehicles
Model 3
Occupation
Tech bro
If this is thread-hijacking I apologize and welcome a deletion, but I think it's related to OP's question:

If I have the Rivian charger installed by an electrician how simple would it be to switch to a different brand in the future (Tesla, for example)?
Teslas come with a J-1772 -> Tesla adapter, you use this when using a run-of-the-mill charger in the wild. So it's drop in.


Mcfly Rivian

Well-Known Member
First Name
Billy
Joined
Jul 9, 2021
Messages
86
Reaction score
186
Location
90504
First Name
Billy
Vehicles
Tacoma trd off road
Occupation
Realtor
My house came with a telsa level 2 wall charger installed by the previous owner in the garage. I currently have the rivian wall charger in my configuration but might remove it and use a telsa adapter. Waiting to see some feedback from early deliveries that use the telsa charger.


astonius

Well-Known Member
First Name
Ryan
Joined
Oct 5, 2021
Messages
160
Reaction score
313
Location
Nashville
First Name
Ryan
Vehicles
2020 BMW X5 M50i, 2018 Range Rover Velar P380
Teslas come with a J-1772 -> Tesla adapter, you use this when using a run-of-the-mill charger in the wild. So it's drop in.
Oh yeah, I'm familiar with the adapter, but what about the whole charger itself? Maybe put another way, let's say I moved out of my house and wanted to take my Rivian wall charger with me, and the new owner had a Tesla wall charger they wanted to install. Would this be "simple" to do (meaning a non-electrician could do it)?


BrayBay

Well-Known Member
First Name
Paul
Joined
Aug 22, 2021
Messages
69
Reaction score
115
Location
Texas
First Name
Paul
Vehicles
Launch Edition R1S
Oh yeah, I'm familiar with the adapter, but what about the whole charger itself? Maybe put another way, let's say I moved out of my house and wanted to take my Rivian wall charger with me, and the new owner had a Tesla wall charger they wanted to install. Would this be "simple" to do (meaning a non-electrician could do it)?
Shout out to @CommodoreAmiga for teaching me something in a different thread. The Rivian charger is configured for hardwire installations only. However, it is apparently possible to "hardwire" the Rivian charger to a NEMA pigtail that you can then plug into a NEMA receptacle. That way, if you move out, you should just be able to unplug the Rivian charger and take it with you, and then the new owner could plug in whatever EVSE is compatible.

Edit: Striking out my post. I got excited about "modding" a Rivian charger without knowing much about electrical codes, and that was spreading misguided information. Going through the thread, there are much more knowledgeable people (i.e., @ajdelange) and any future readers should read over their posts instead.

Last edited:

Bigeasy70075

Active Member
Joined
Aug 15, 2021
Messages
38
Reaction score
47
Location
Louisiana
Vehicles
Model 3, Tundra, Wrangler
Oh yeah, I'm familiar with the adapter, but what about the whole charger itself? Maybe put another way, let's say I moved out of my house and wanted to take my Rivian wall charger with me, and the new owner had a Tesla wall charger they wanted to install. Would this be "simple" to do (meaning a non-electrician could do it)?
Should be simple. All of the wiring and circuits should already be installed. Should just have to take down the Tesla charger and install Rivian with the existing wiring. (Side note: would still have a licensed electrician do the install. 240v is no joke if you get it wrong)


astonius

Well-Known Member
First Name
Ryan
Joined
Oct 5, 2021
Messages
160
Reaction score
313
Location
Nashville
First Name
Ryan
Vehicles
2020 BMW X5 M50i, 2018 Range Rover Velar P380
Shout out to @CommodoreAmiga for teaching me something in a different thread. The Rivian charger is configured for hardwire installations only. However, it is apparently possible to "hardwire" the Rivian charger to a NEMA pigtail that you can then plug into a NEMA receptacle. That way, if you move out, you should just be able to unplug the Rivian charger and take it with you, and then the new owner could plug in whatever EVSE is compatible.
This sounds awesome. Would this limit the amperage at all?


SeaGeo

Well-Known Member
First Name
Brice
Joined
Jan 12, 2021
Messages
2,725
Reaction score
4,841
Location
Seattle
First Name
Brice
Vehicles
Xc60 T8
Occupation
Engineer
If this is thread-hijacking I apologize and welcome a deletion, but I think it's related to OP's question:

If I have the Rivian charger installed by an electrician how simple would it be to switch to a different brand in the future (Tesla, for example)?
It's not hard. I pulled a hardwired EVSE down to replace it (warranty replacement) and the hardest part was just figuring out how to get the thing open to pull it off the mounting bracket. Which was explained in the manual. Each EVSE will be a little different, but they should all be pretty straightforward.


lostpacket

Well-Known Member
Joined
Dec 4, 2021
Messages
79
Reaction score
163
Location
Vermont
Vehicles
Crosstrek
Occupation
Software Engineer
For anyone considering buying a charger I'd suggest checking with your electric company and state for EV rebates/programs. My electric co offers a free L2 charger as long as they get access to slow it down during peak hours.


SANZC02

Well-Known Member
First Name
Bob
Joined
Feb 11, 2021
Messages
1,048
Reaction score
2,222
Location
California
First Name
Bob
Vehicles
Tesla Model S, Jeep Grand Cherokee; (LE - R1S)
Occupation
IT
This sounds awesome. Would this limit the amperage at all?
Yes, you would have to set the dip switches on the charger to limit the draw based on your plug. If it is a Nema 50 depending on the wire and breaker it would be a 40 or 50 amp circuit so would be limited to 80% of that so 32 or 40 amp draw.

That would be the same though if hardwired if you are planning on using the same circuit.


astonius

Well-Known Member
First Name
Ryan
Joined
Oct 5, 2021
Messages
160
Reaction score
313
Location
Nashville
First Name
Ryan
Vehicles
2020 BMW X5 M50i, 2018 Range Rover Velar P380
Yes, you would have to set the dip switches on the charger to limit the draw based on your plug. If it is a Nema 50 depending on the wire and breaker it would be a 40 or 50 amp circuit so would be limited to 80% of that so 32 or 40 amp draw.

That would be the same though if hardwired if you are planning on using the same circuit.
Can NEMA 50 (with an adequate circuit) hit the peak of this unit? If not is there a NEMA plug/circuit combination that could safely draw the max current you could achieve with a hardwired connection on the same unit?
