12v battery tech

Tim-in-CA

Well-Known Member
Joined
Sep 30, 2021
Threads
32
Messages
1,316
Reaction score
2,494
Location
So Cal
Vehicles
🌲🌲R1S, Lucid Air, T-Bird
Are the jump points accessible from the outside of the vehicle? On Tesla its a PITA to jump the vehicle (at least in my 18 MS) if the 12V battery dies as you need to gain access to the trunk. Luckily service just replaced mine (unprompted) last time I brought it in for a warranty issue.
Sponsored



godfodder0901

Well-Known Member
First Name
Jared
Joined
Mar 12, 2019
Threads
24
Messages
3,320
Reaction score
6,267
Location
Washington
Vehicles
2004 Honda Civic EX, 2022 Rivian R1T LE
Are the jump points accessible from the outside of the vehicle? On Tesla its a PITA to jump the vehicle (at least in my 18 MS) if the 12V battery dies as you need to gain access to the trunk. Luckily service just replaced mine (unprompted) last time I brought it in for a warranty issue.

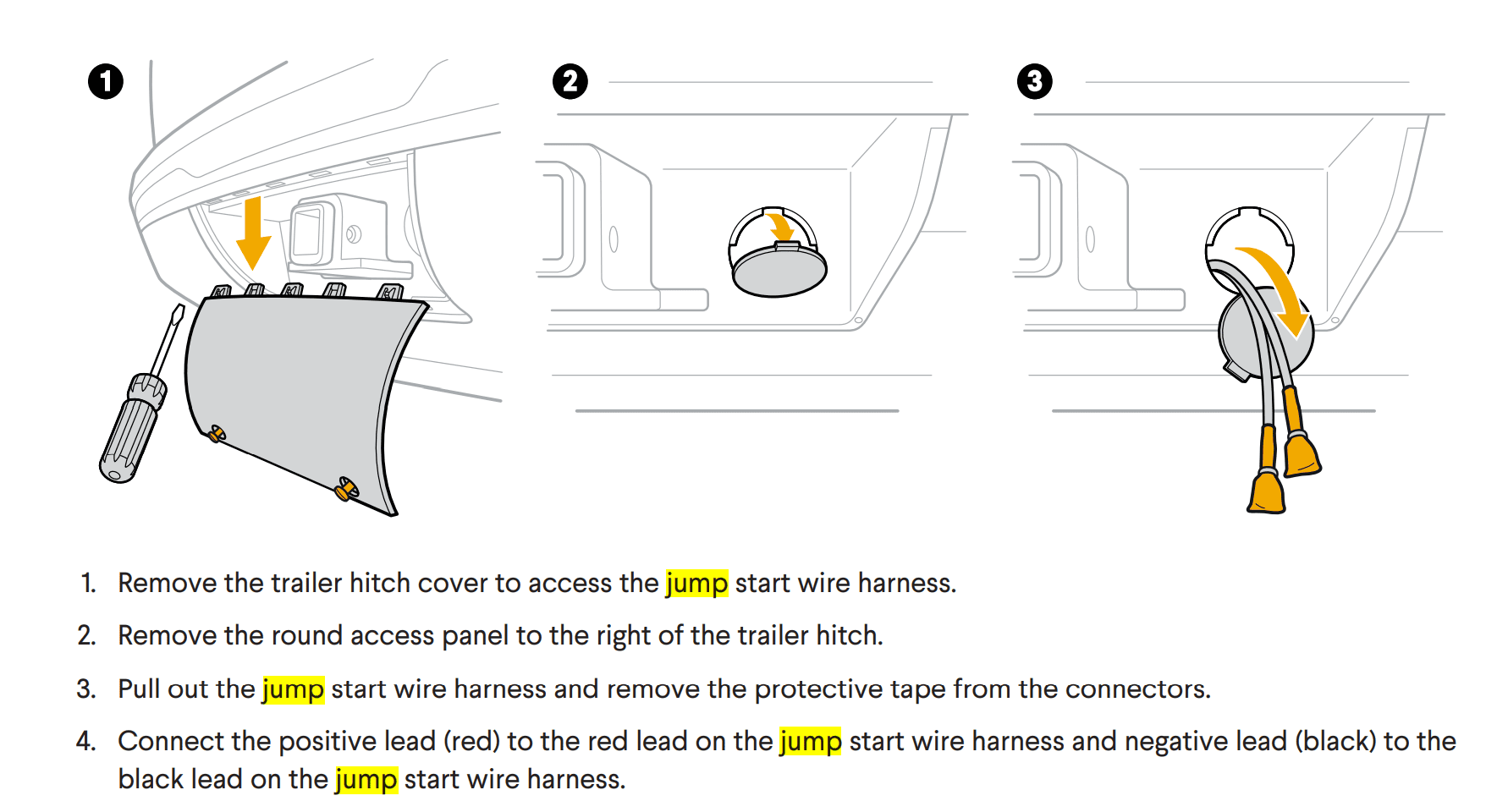

Easy peezy. No hood access required.
Rivian R1T R1S 12v battery tech 1646938302657


Tim-in-CA

Well-Known Member
Joined
Sep 30, 2021
Threads
32
Messages
1,316
Reaction score
2,494
Location
So Cal
Vehicles
🌲🌲R1S, Lucid Air, T-Bird

Zoidz

Well-Known Member
First Name
Gil
Joined
Feb 28, 2021
Threads
105
Messages
3,126
Reaction score
6,876
Location
PA
Vehicles
23 R1S Adv, Avalanche, BMWs-X3,330cic,K1200RS bike
Occupation
Engineer
Disappointing that they went with primary (12V) batteries at all. No need for those with modern 90%+ efficient buck converters that can draw off the huge traction battery till the cows come home and would never need replacing.
I suspect it has to do more with safety/redundancy. If the fusible link blows on the traction battery at 70 mph at night, it would be nice to still have headlights, steering, etc,. to control the car safely and come to a stop.


NY_Rob

Well-Known Member
First Name
Rob
Joined
Feb 9, 2022
Threads
18
Messages
3,664
Reaction score
5,066
Location
long island
Vehicles
2021 Model 3 LR AWD, 2017 BMW i3 REX, 2023 R1T
Occupation
IT
I suspect it has to do more with safety/redundancy. If the fusible link blows on the traction battery at 70 mph at night, it would be nice to still have headlights, steering, etc,. to control the car safely and come to a stop.
Agreed, but even that can be accounted for with a secondary circuit and small backup buck converter.

AFAIK, the Rivian isn't drive by wire and the brakes are still hydraulic so each will still work without electric power (albeit with more force required).


Sponsored

Zoidz

Well-Known Member
First Name
Gil
Joined
Feb 28, 2021
Threads
105
Messages
3,126
Reaction score
6,876
Location
PA
Vehicles
23 R1S Adv, Avalanche, BMWs-X3,330cic,K1200RS bike
Occupation
Engineer
Agreed, but even that can be accounted for with a secondary circuit and small backup buck converter.

AFAIK, the Rivian isn't drive by wire and the brakes are still hydraulic so each will still work without electric power (albeit with more force required).
Agree that they could, but that still doesn't provide optimum safety for occupants and first responders in the event of a crash. Hyundai engineers give their opinion here, I'll defer to their expertise.

"We asked Hyundai's EV engineers why the 12-volt battery persists, and Ryan Miller, manager of electrified powertrain development, responded. "All the ECUs in the vehicle are powered from the low voltage, as well as the power relays that separate power from the high-voltage battery pack and the rest of the high-voltage network in the car," he said. "That separation allows us to safely disconnect the high voltage from the low voltage when the vehicle is not being driven or in the event of a crash."


zefram47

Well-Known Member
First Name
Aaron
Joined
Feb 6, 2022
Threads
13
Messages
2,019
Reaction score
3,159
Location
Denver, CO
Vehicles
R1T, C6 Corvette GS
Occupation
Software Engineer
Clubs

Disappointing that they went with primary (12V) batteries at all. No need for those with modern 90%+ efficient buck converters that can draw off the huge traction battery till the cows come home and would never need replacing.
The idea is that when you power down the vehicle the contactors disconnect the HV battery so there shouldn't be any high voltage energized anywhere. So you need the low voltage, 12V, system to re-energize the system. It's kind of a safety thing. But I wondered the same when I got my first EV. Funny enough, I heard recently that the Ford Mach-E apparently stops charging the 12V battery below 15% SoC, which seemed odd.


crashmtb

Well-Known Member
Joined
Jul 11, 2021
Threads
0
Messages
4,642
Reaction score
7,117
Location
Man oh Manitoba
Vehicles
2002 aluminium garden shed TD5
Just got a call back from Rivian about this question. They are two 6v sealed AGM batteries wired in series.
Sounds like they couldn’t source a 12v battery the right size/shape for where it needed to go


Sponsored

crashmtb

Well-Known Member
Joined
Jul 11, 2021
Threads
0
Messages
4,642
Reaction score
7,117
Location
Man oh Manitoba
Vehicles
2002 aluminium garden shed TD5
My guess too. Packaging!
Hopefully my only interaction with those batteries is when mobile service has to come replace them in 5 or 6 years after initial delivery ?


IPTV65

Well-Known Member
Joined
May 19, 2020
Threads
10
Messages
254
Reaction score
374
Location
Mount Pleasant SC
Vehicles
Jeep JLU Sahara,Jeep JKU, Infiniti G37X, R1S
Occupation
Engineering Exec
Clubs

Disappointing that they went with primary (12V) batteries at all. No need for those with modern 90%+ efficient buck converters that can draw off the huge traction battery till the cows come home and would never need replacing.
That surprises me as well...you could even put a buck on the "back side" of the 12V battery if they were really hell bent on putting a 12v battery in. Maybe for maybe redundancy? Would suck if you ran the main battery to 0%(something close to it) and the doors would not open. Efficiency on a buck is quite high, as you note, and cost for a single unit is ~$200. If I can buy one for $200 I am sure they can do it cheaper.
An AGM battery can cost about $200 and sounds like Rivian may have 2? I am assuming they are AGM but who knows. Even replacing one with a buck would seems to be a good decision from weight, economic, and real estate perspective. I am sure they had their reasons...just thinking out loud. Would be cool to try but not sure I am too keen on tapping the 400V system myself.


Zoidz

Well-Known Member
First Name
Gil
Joined
Feb 28, 2021
Threads
105
Messages
3,126
Reaction score
6,876
Location
PA
Vehicles
23 R1S Adv, Avalanche, BMWs-X3,330cic,K1200RS bike
Occupation
Engineer
The Owners Manual vs. Customer Service - different information - so which is correct?


crashmtb

Well-Known Member
Joined
Jul 11, 2021
Threads
0
Messages
4,642
Reaction score
7,117
Location
Man oh Manitoba
Vehicles
2002 aluminium garden shed TD5
The Owners Manual vs. Customer Service - different information - so which is correct?
Technical writer gets: ”the 12v system is two 6V batteries in series”

technical writer outputs: “there are two 12v batteries“


?‍♂


Ladiver

Well-Known Member
First Name
Jeff
Joined
Jan 23, 2021
Threads
48
Messages
926
Reaction score
1,785
Location
Ca
Vehicles
GMC 3500, Corvette Z06, Rivian R1T, Rivian R1S
Clubs

I have an open e-mail with Rivian CS regarding the 12v system. I will add that question and let you know if I hear anything.
Unfortunately, from CS, all I got was a fluff non-answer.
