3D printed ball mount remodeling help needed

ATX_R1S

Member
First Name
Michael
Joined
Nov 23, 2021
Threads
0
Messages
15
Reaction score
21
Location
ATX
Vehicles
2007 4runner
Nice work @ATX_R1S !!

What program did you use to modify the original file... looks very professional and no "this is not a manifold" errors.
Thanks! I used Fusion360 to modify it (converted mesh to object, made my edits, glued it all back into a single body and exported).



WattTruckMatt

Well-Known Member
First Name
Matt
Joined
Oct 4, 2021
Threads
0
Messages
57
Reaction score
48
Location
Austin
Vehicles
2022 Rivian R1T
Wish I had a 3D printer... wouldn't mind a little more height on the otherwise perfect 17mm Pro mount.

EDIT: Ordering it from Craftcloud. Did ABS with 60% infill... hope I chose properly, I have almost zero idea how this stuff works. Thanks for the file!

Last edited:

RWerksman

Well-Known Member
Site Sponsor
First Name
Rob
Joined
Nov 13, 2020
Threads
21
Messages
804
Reaction score
1,939
Location
Pittsburgh
Vehicles
Jeep & R1T
Ball centered, and slightly redesigned the riser. Can tweak it more if you want.
https://www.dropbox.com/s/herydlio4f83h6c/phone-mount-v2.stl?dl=0
I just landed back in Pittsburgh and I saw this. Instead of 3D printing this, I would strongly recommend something like: https://www.ebay.com/itm/394024145564 as it gives you more flexibility as to where you can place the mount. (plus it's like $6, delivered)

I'm happy to work on something like this in the future if there is enough demand.

Also, I would recommend uploading that STL to a site like Thingiverse if you want to continue distributing it. Marking it as a remix of my design would also be helpful should people want to find it. Dropbox (and other file sharing platforms) works well for right now, but there will inevitably be people who want to print it years down the line and hosting it there will help them out.

Finally, just a reminder for folks to please respect the Creative Commons license that I've attached to the upload. EVERYONE is free to distribute and share these as long as there is attribution and non-commercial intent. You can read more about it here: https://creativecommons.org/licenses/by-nc/4.0/


ATX_R1S

Member
First Name
Michael
Joined
Nov 23, 2021
Threads
0
Messages
15
Reaction score
21
Location
ATX
Vehicles
2007 4runner
I just landed back in Pittsburgh and I saw this. Instead of 3D printing this, I would strongly recommend something like: https://www.ebay.com/itm/394024145564 as it gives you more flexibility as to where you can place the mount. (plus it's like $6, delivered)

I'm happy to work on something like this in the future if there is enough demand.

Also, I would recommend uploading that STL to a site like Thingiverse if you want to continue distributing it. Marking it as a remix of my design would also be helpful should people want to find it. Dropbox (and other file sharing platforms) works well for right now, but there will inevitably be people who want to print it years down the line and hosting it there will help them out.

Finally, just a reminder for folks to please respect the Creative Commons license that I've attached to the upload. EVERYONE is free to distribute and share these as long as there is attribution and non-commercial intent. You can read more about it here: https://creativecommons.org/licenses/by-nc/4.0/
Thanks for your work on the original!

https://www.thingiverse.com/thing:5631532



OP
OP
jebinc

jebinc

Well-Known Member
First Name
John
Joined
Oct 5, 2022
Threads
23
Messages
540
Reaction score
437
Location
Seattle, WA
Vehicles
2021 Tesla MS Plaid, 2021 MY, and R1T on order
Occupation
Retired
Thanks for your work on the original!

https://www.thingiverse.com/thing:5631532

UPDATE:

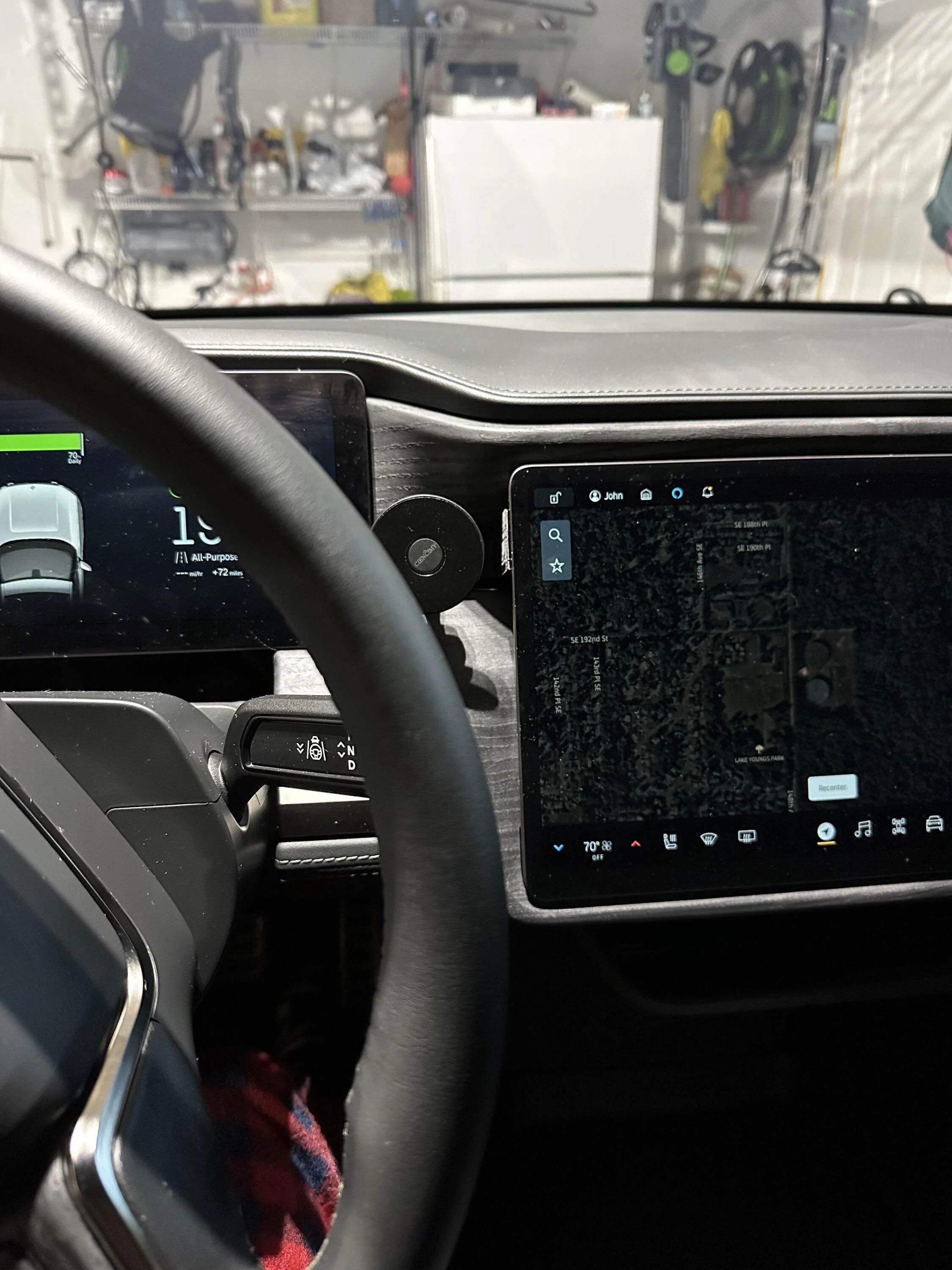

My error for not checking the geometry of the dash location... It turns out that the ASH wood trim jets out as you move higher and interferes with the extension I asked @ATX_R1S to add for me. You just can't extend the ball straight up.

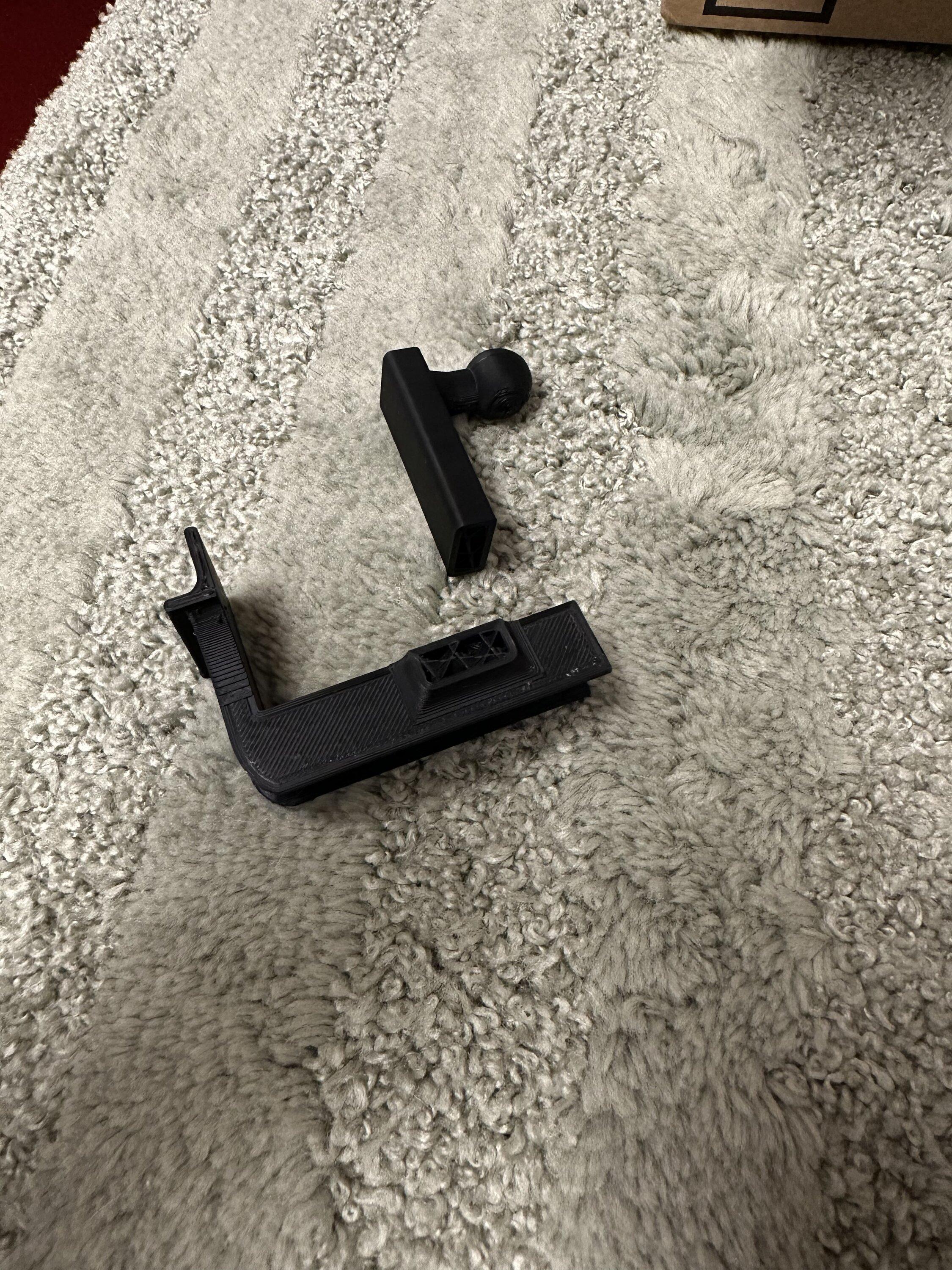

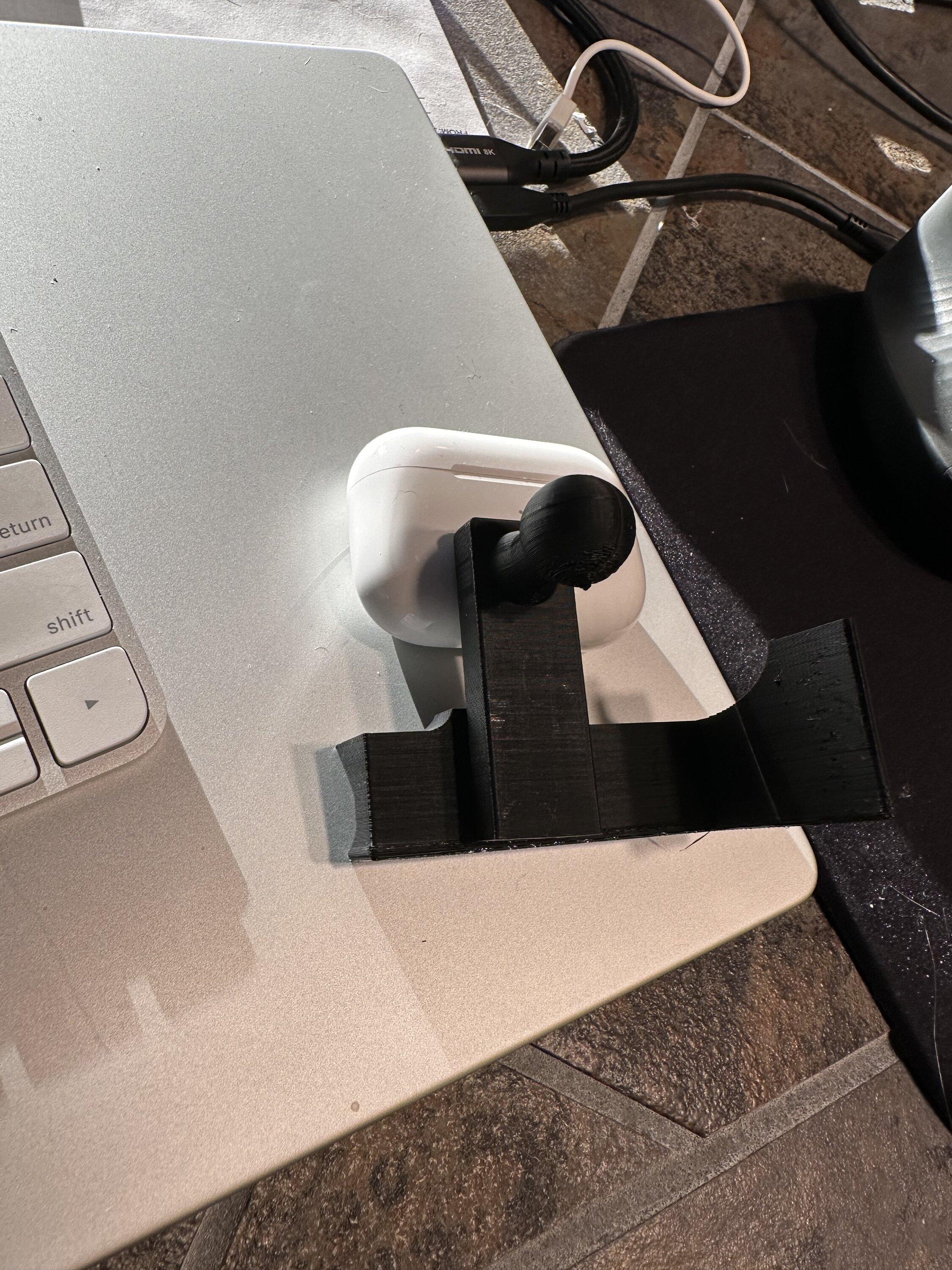

The joint between the original body and the added extension is too weak as well - easily snapped off. Seems like the extension arm needs to be affixed to the face of the original, and not the top. That would address both issues, me thinks. See attached photos.



So, this model can be scrapped and removed from the cloud.


Last edited:

WattTruckMatt

Well-Known Member
First Name
Matt
Joined
Oct 4, 2021
Threads
0
Messages
57
Reaction score
48
Location
Austin
Vehicles
2022 Rivian R1T
UPDATE:

My error for not checking the geometry of the dash location... It turns out that the ASH wood trim jets out as you move higher and interferes with the extension I asked @ATX_R1S to add for me. You just can't extend the ball straight up.

The joint between the original body and the added extension is too weak as well - easily snapped off. Seems like the extension arm needs to be affixed to the face of the original, and not the top. That would address both issues, me thinks. See attached photos.



So, this model can be scrapped and removed from the cloud.

Noted. I actually thought about the dash interfering, but too late, my order is in production. I will mess around with it when I receive it and see what angle works best. I will try sanding it down if it doesn't need all that much clearance from the dash.


AustinWheeler45

Well-Known Member
Joined
Jul 6, 2021
Threads
3
Messages
65
Reaction score
65
Location
Laguna Beach
Vehicles
GW/OC R1T | Model Y Performance | Wrangler TJ
Occupation
Software Engineer

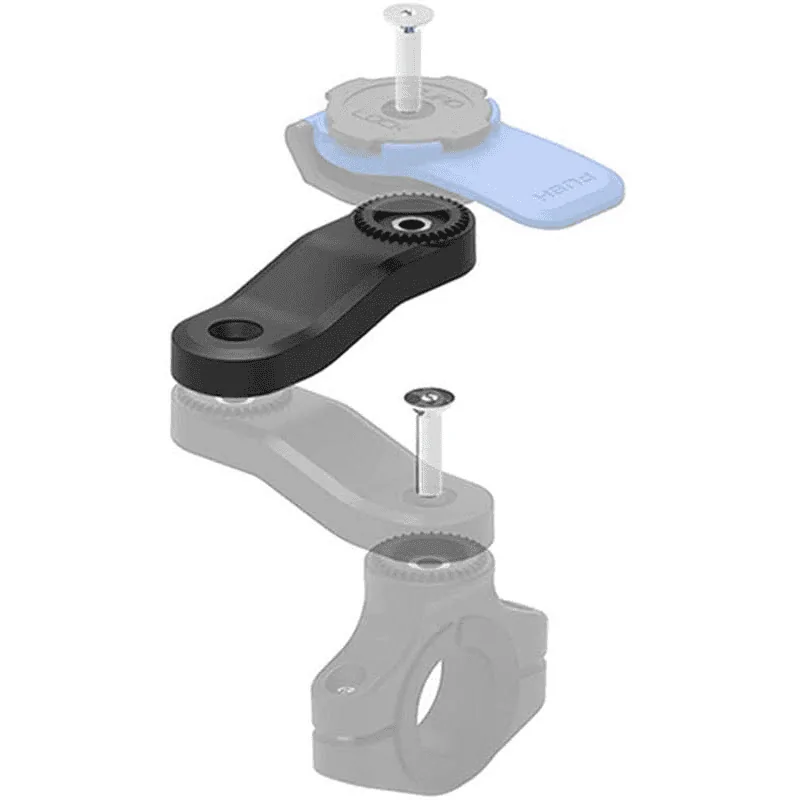

I don't have much input on the software support side but if the fixed arm is an issue it may be useful changing the ball mount to a threaded socket and mating it to an arm like this:



SilverGhost

New Member
First Name
Marc
Joined
Nov 20, 2022
Threads
0
Messages
4
Reaction score
1
Location
Detroit
Vehicles
2022 Rivian R1T
Occupation
Systems Engineering Manager - Veh Data Acquisition Software
Wish I had a 3D printer... wouldn't mind a little more height on the otherwise perfect 17mm Pro mount.

EDIT: Ordering it from Craftcloud. Did ABS with 60% infill... hope I chose properly, I have almost zero idea how this stuff works. Thanks for the file!
I wanted it higher too. Check out what I did redesigning that 3D printer model.
