I got my CarPlay unit from EV Sportline yesterday. There are other threads, but just wanted to provide my perspective. I had a couple of twists that may make it a bit of a different install 1) I hid the wires under the dash panel (similar to the mount for the unit) across to the driver’s side door so the wire is completely hidden and 2) I split the power from the fuse tap to also power a MagSafe phone mount.

I previously owned an Ottocast CarPlay unit, but had some issues with it with inconsistent connection (not always connect to my phone on its own without playing with Bluetooth settings) and sound would primarily go to the CarPlay unit’s own speaker instead of the Rivian speakers through Bluetooth. I also had a Garmin OBD powering the unit and would cause the unit to stay on at least 30 minutes after shutdown.

With the EV Sportline here are the main observations:

1) The connection is very snappy and reliable
2) The sound always goes to the Rivian speakers even when I summon Siri (which didn’t happen with the Ottocast)
3) The mounting location and mount itself make the install look professional
4) I was able to tap power for both CarPlay and my phone and know it shuts down once the car is off or goes to sleep without worry of extra draw from the battery.
5) I was able to hide all wires for a clean / professional look

Very happy and highly recommended.

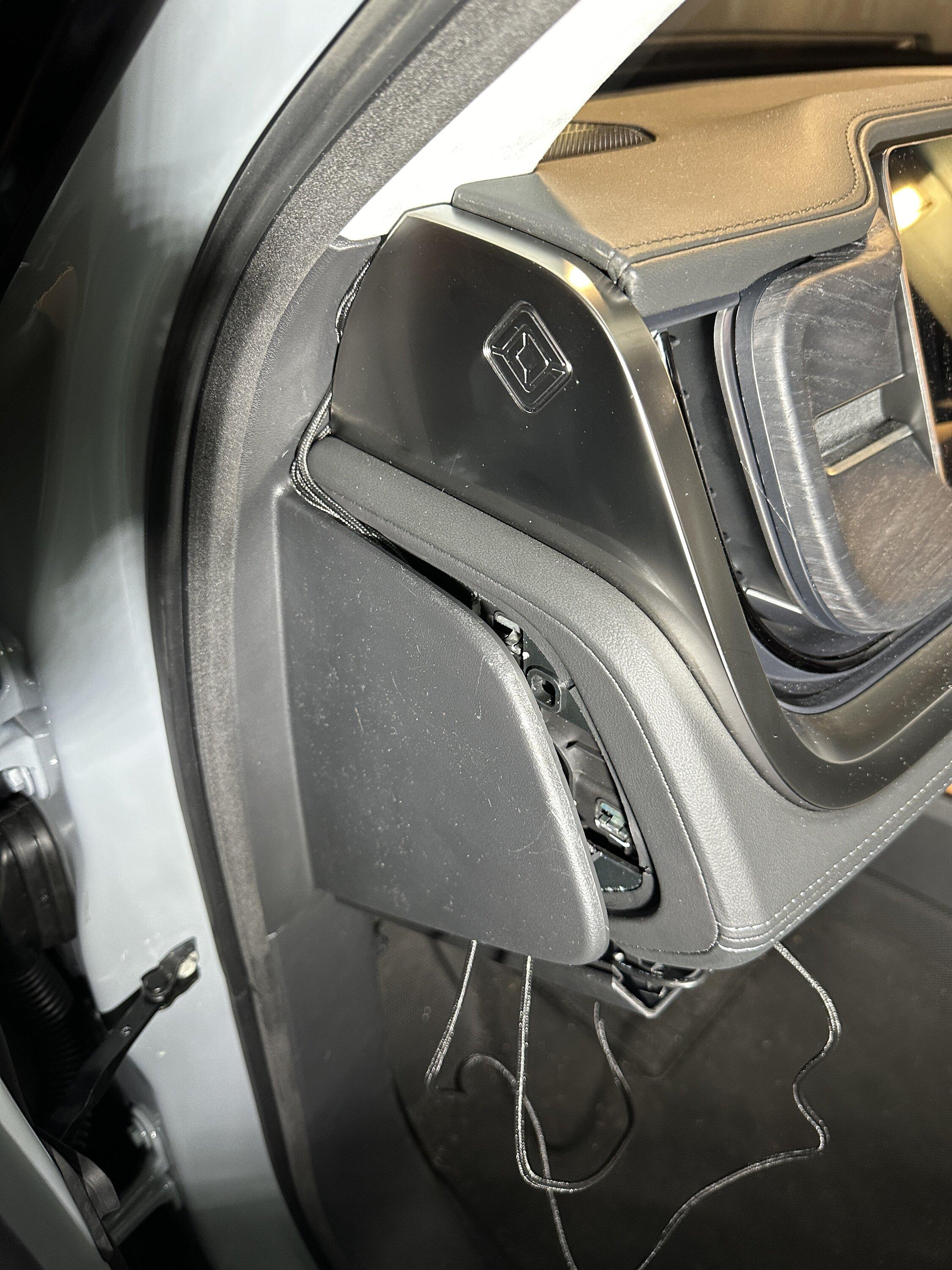

In order to hide all wires I had to open up a couple more panels one under the dash and one to the side on the driver’s side.

Please make sure that the fuse tap wire is moved away from the steering wheel column. At one point I heard the wire catching as I turned the steering wheel so I needed to adjust.

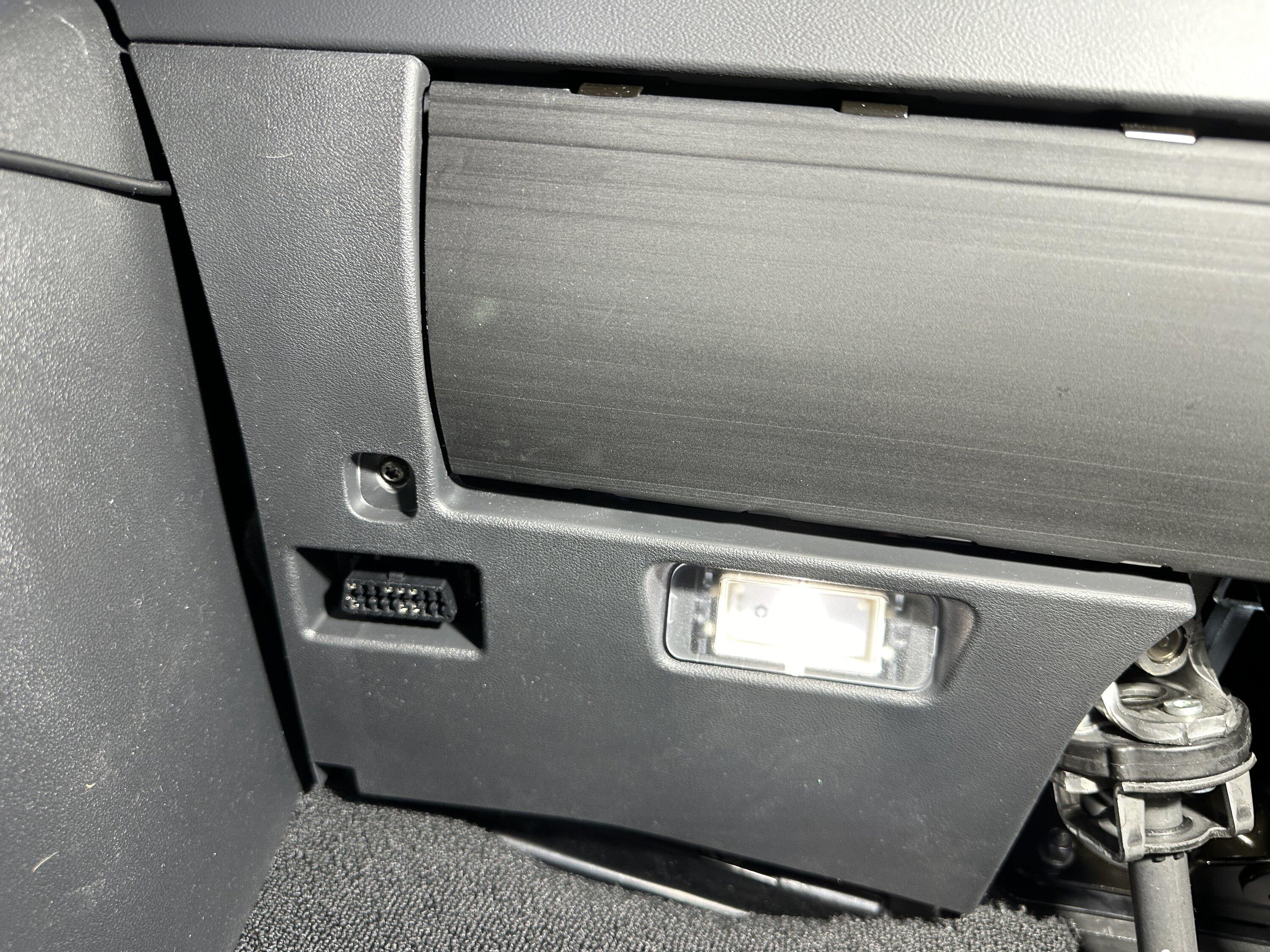

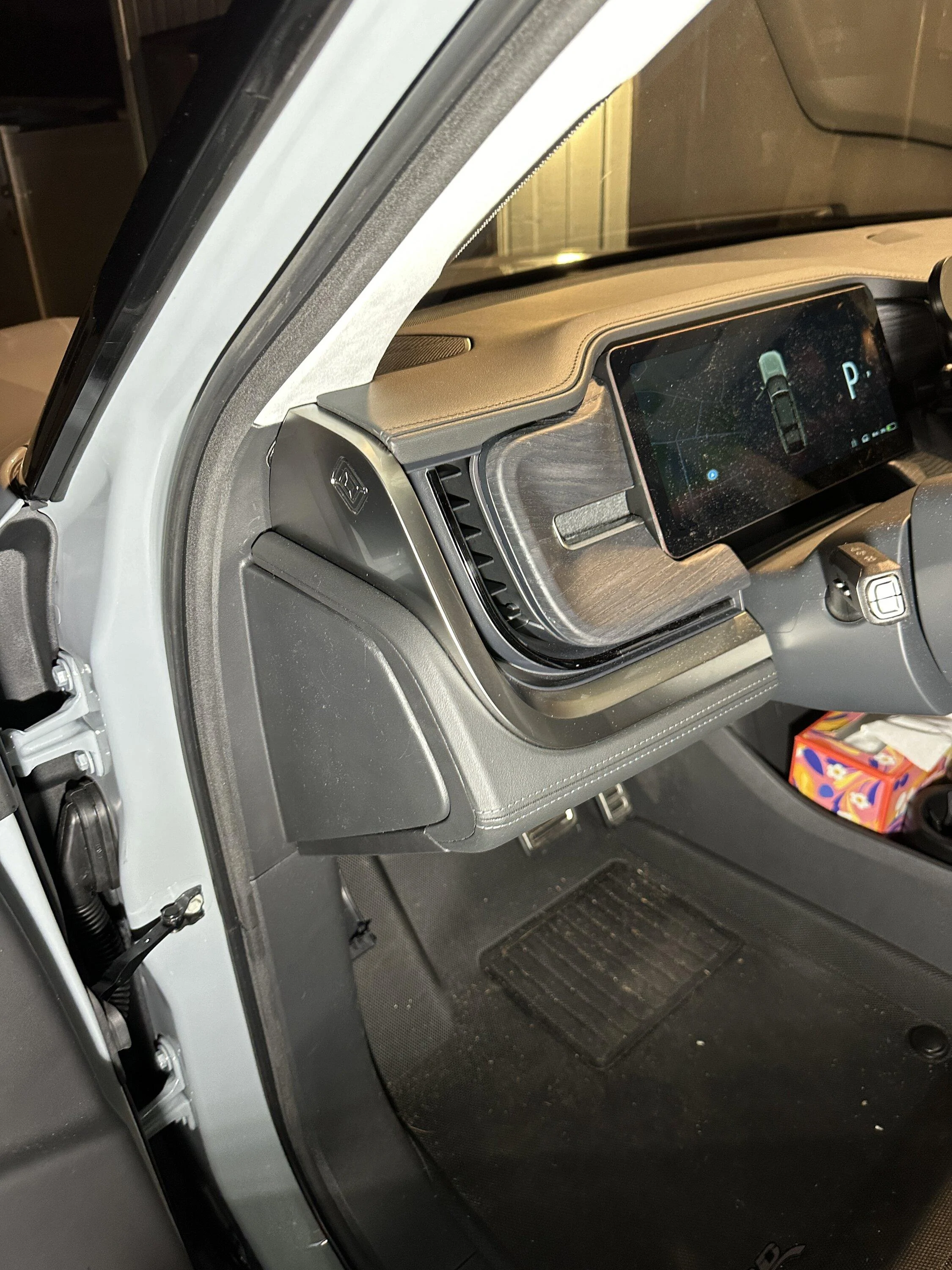

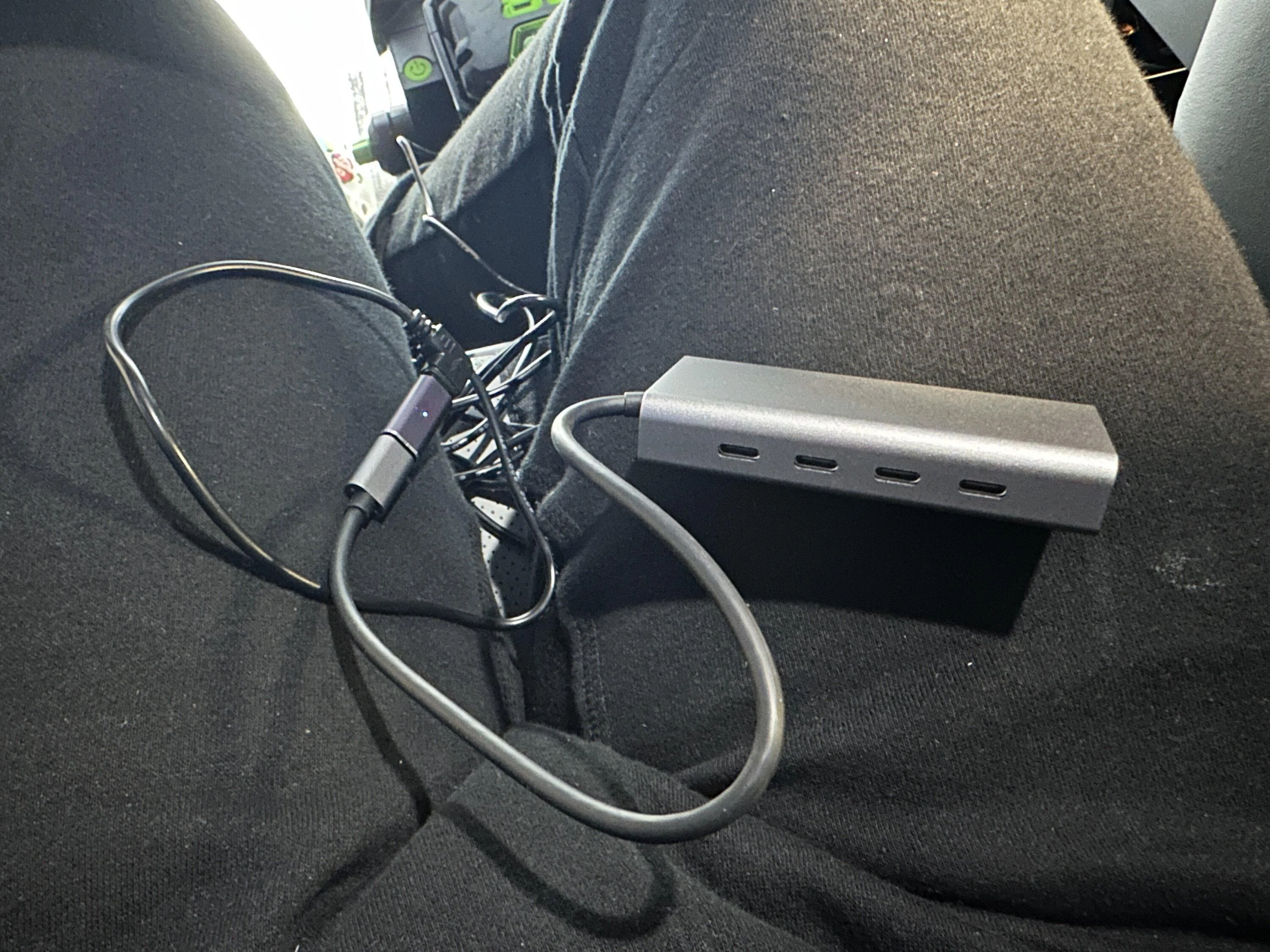

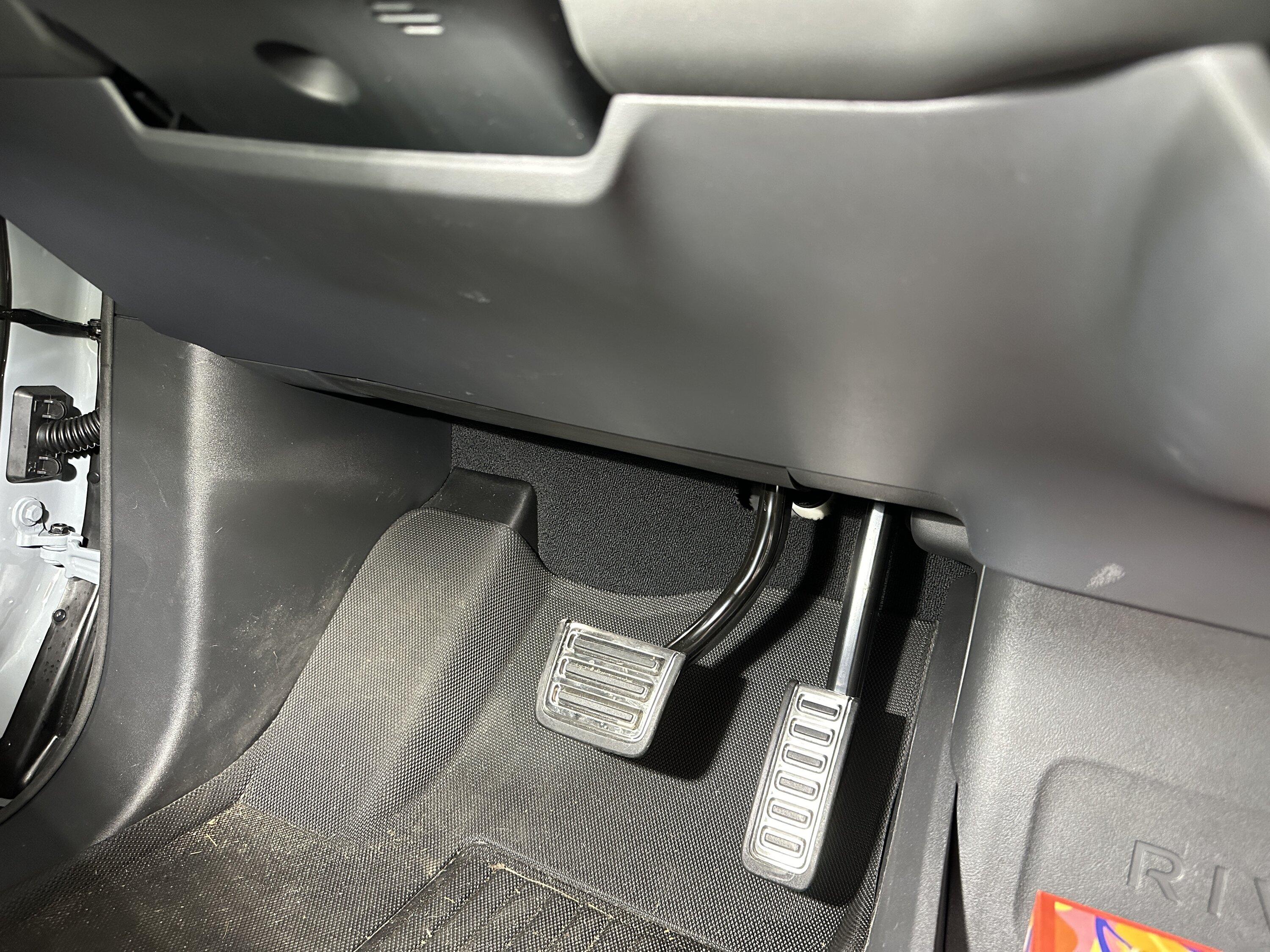

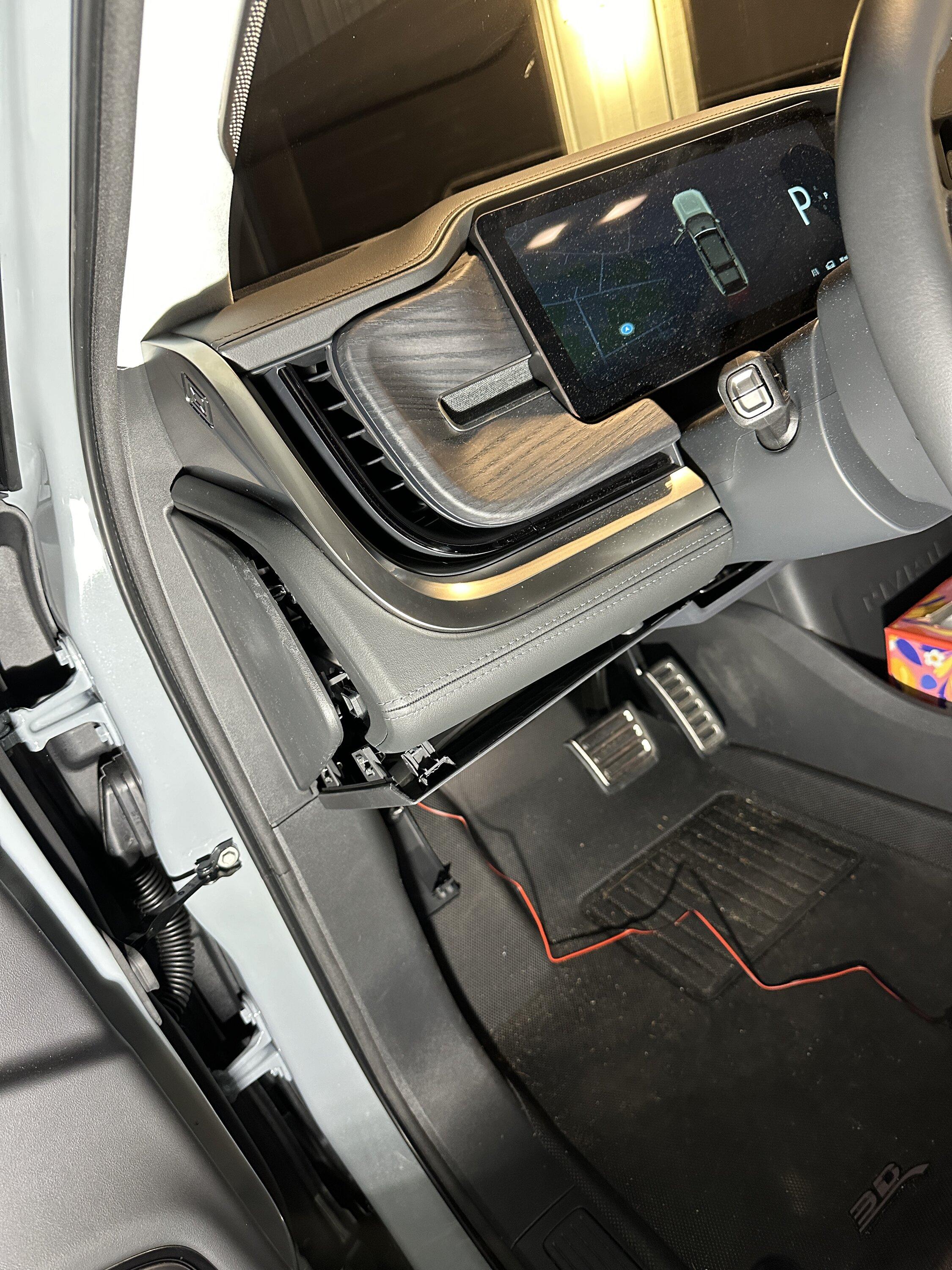

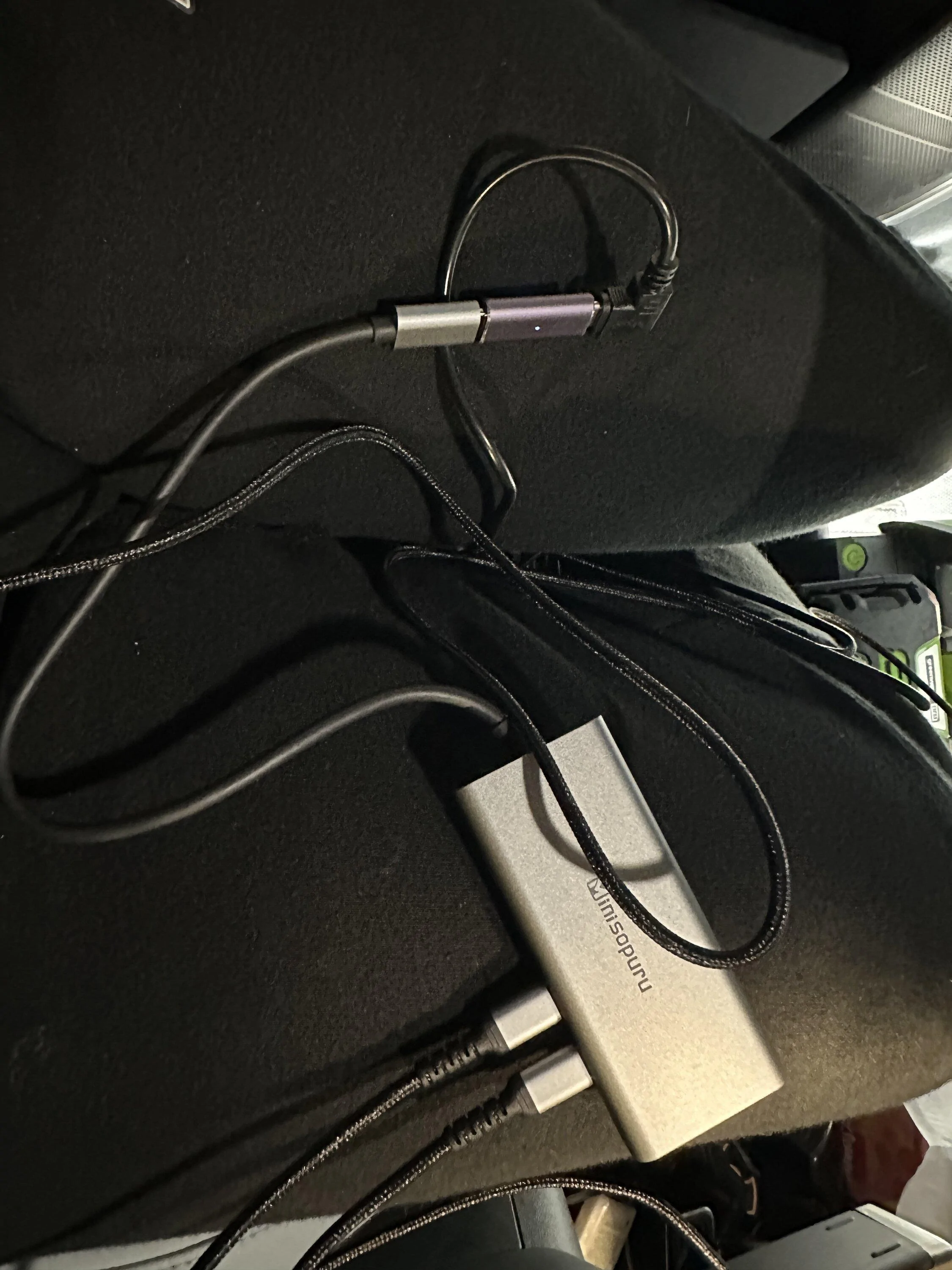

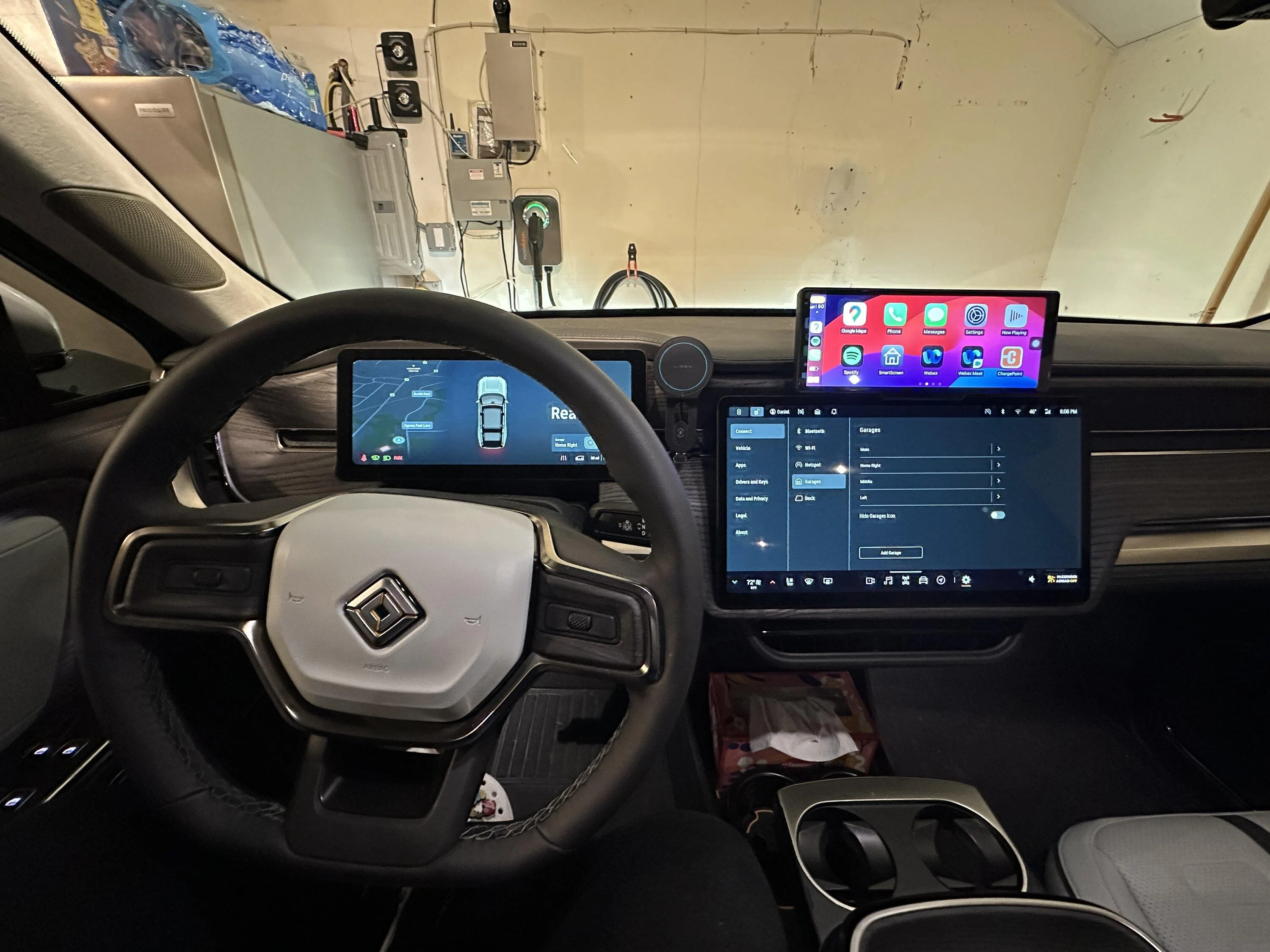

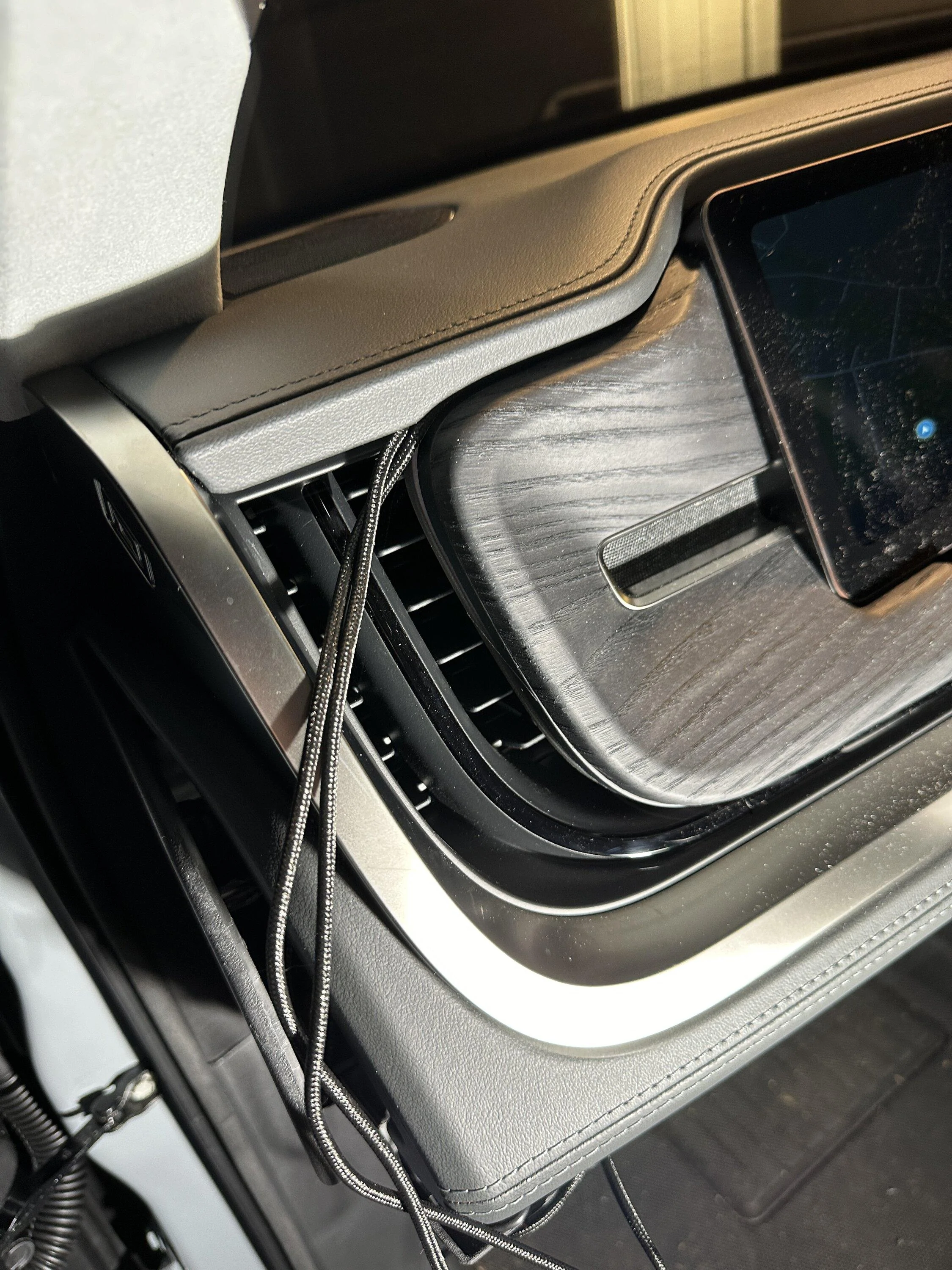

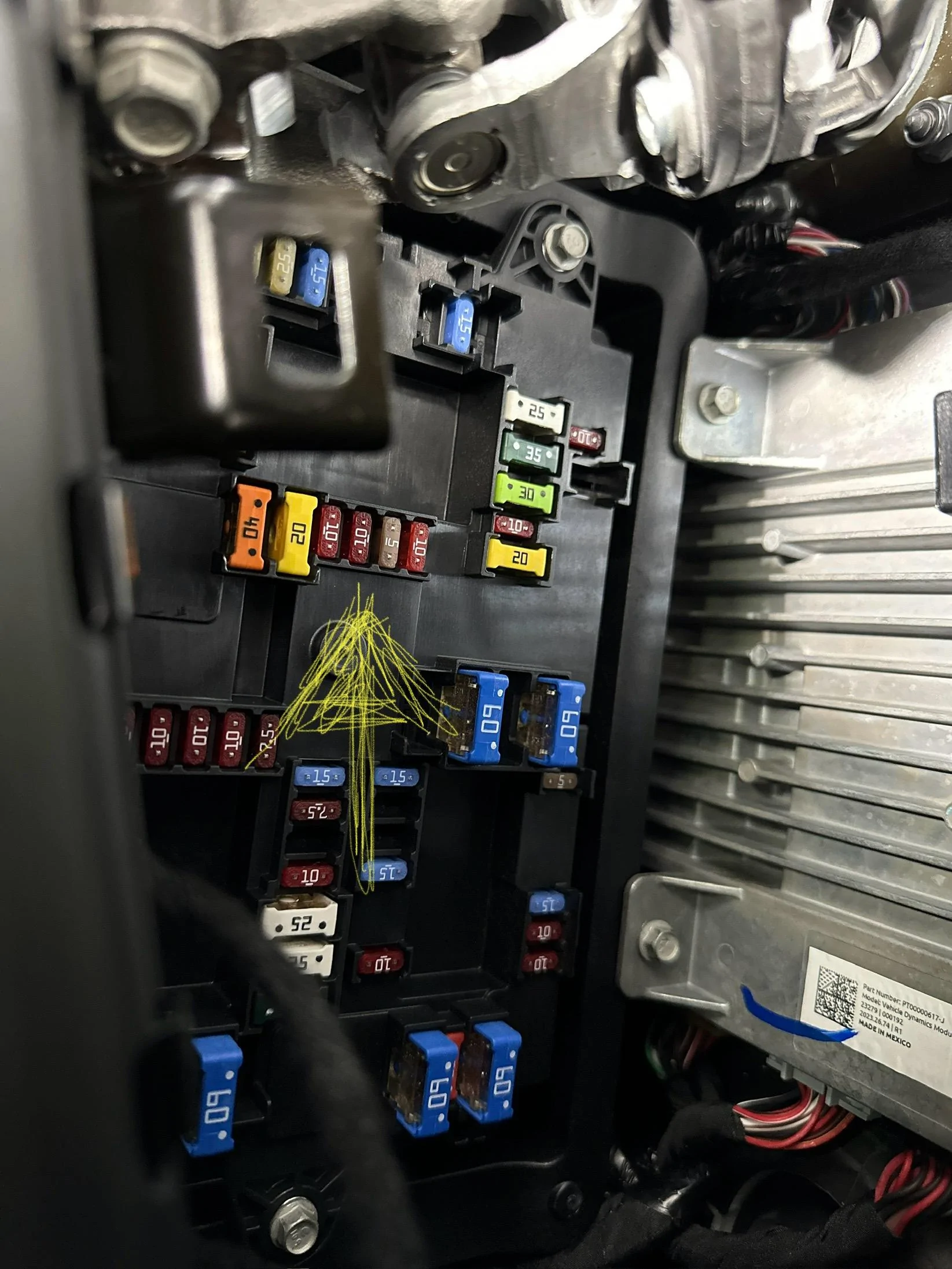

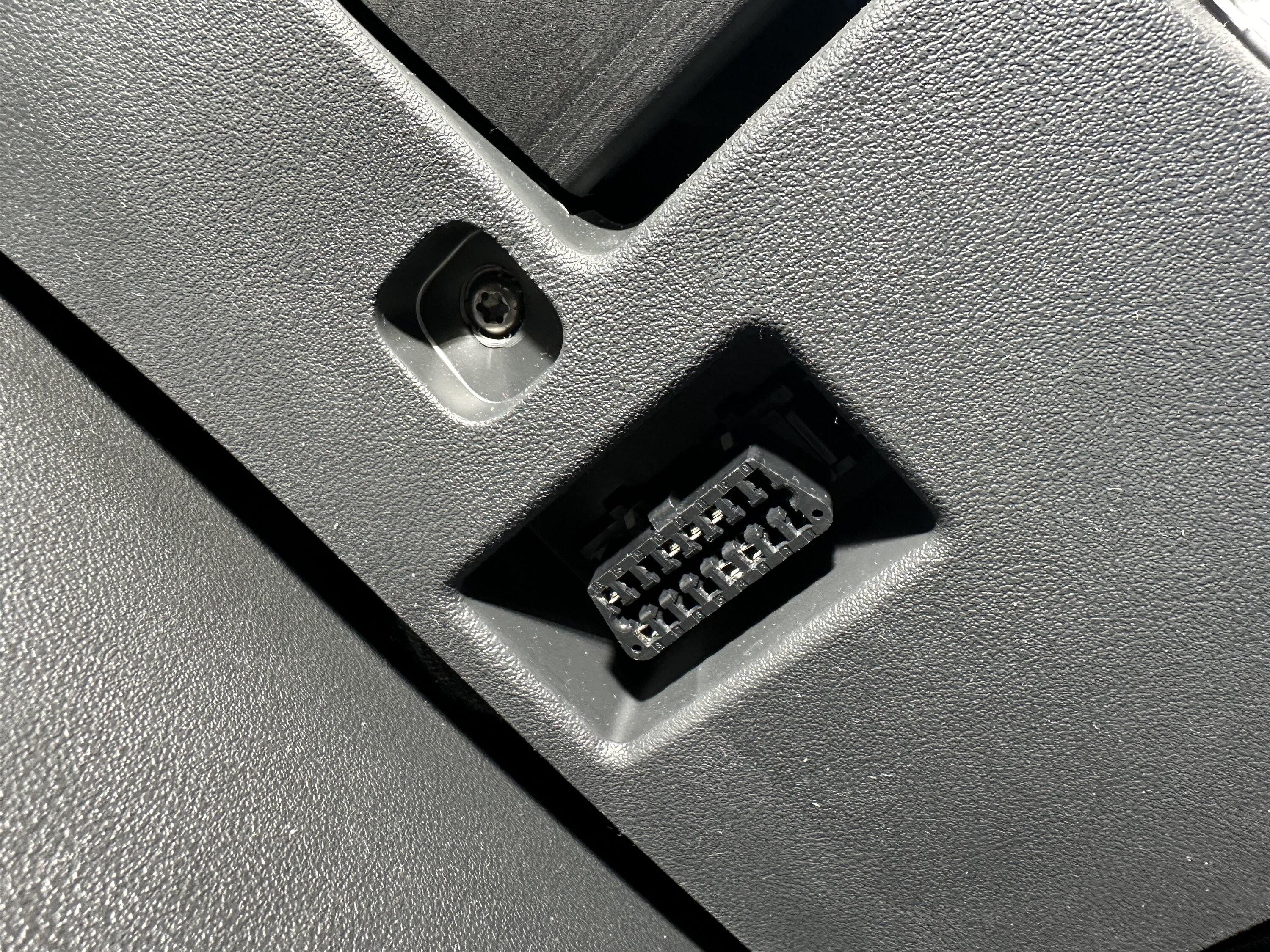

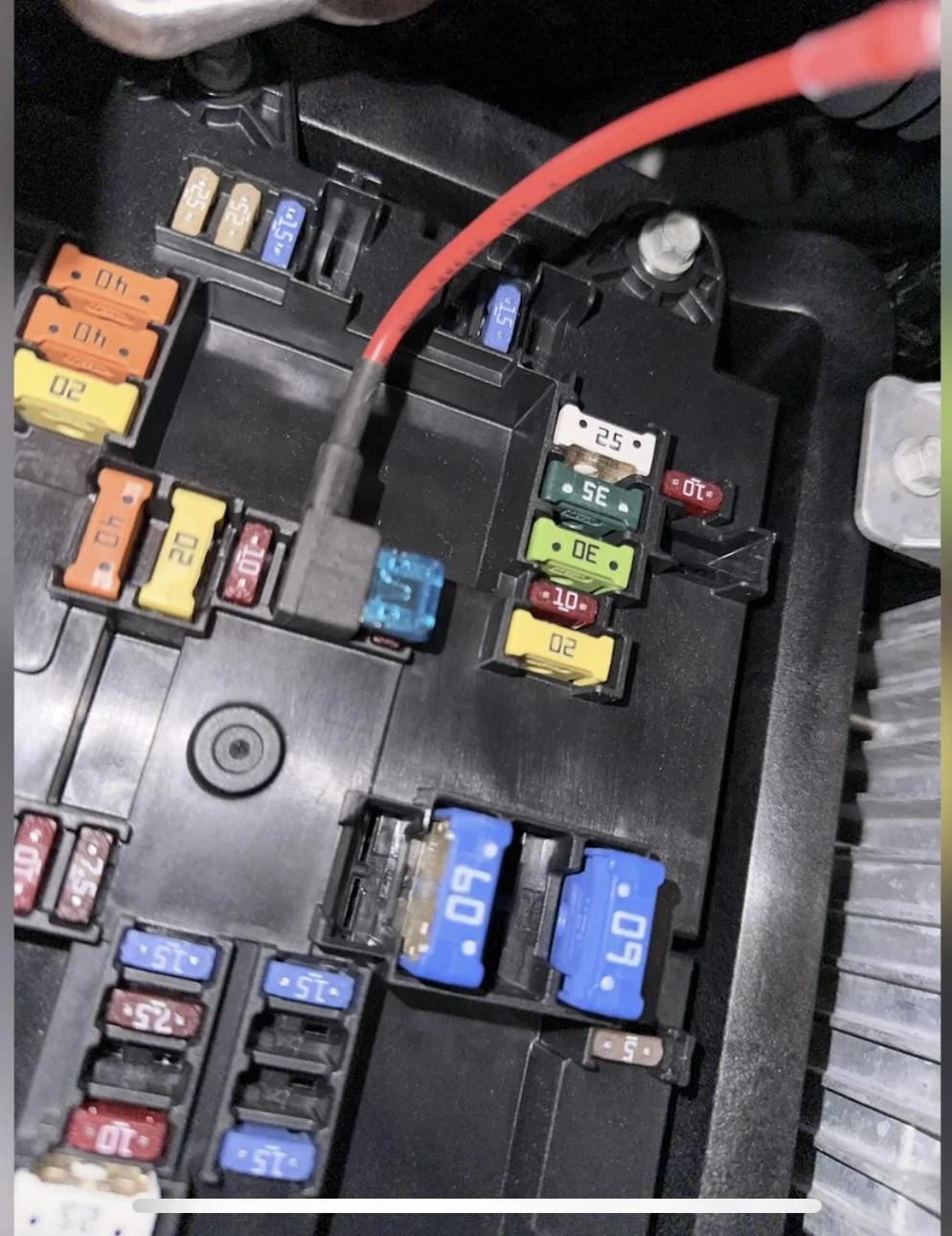

Please see the pictures. I have a few extra pictures that help supplement what is already in the video and I show the picture of the panel with the T20 Torx scre, how I set up a USB-C hub for dual power and how I routed the wires.

It was late in the day so I’ll take some more pics during the day.

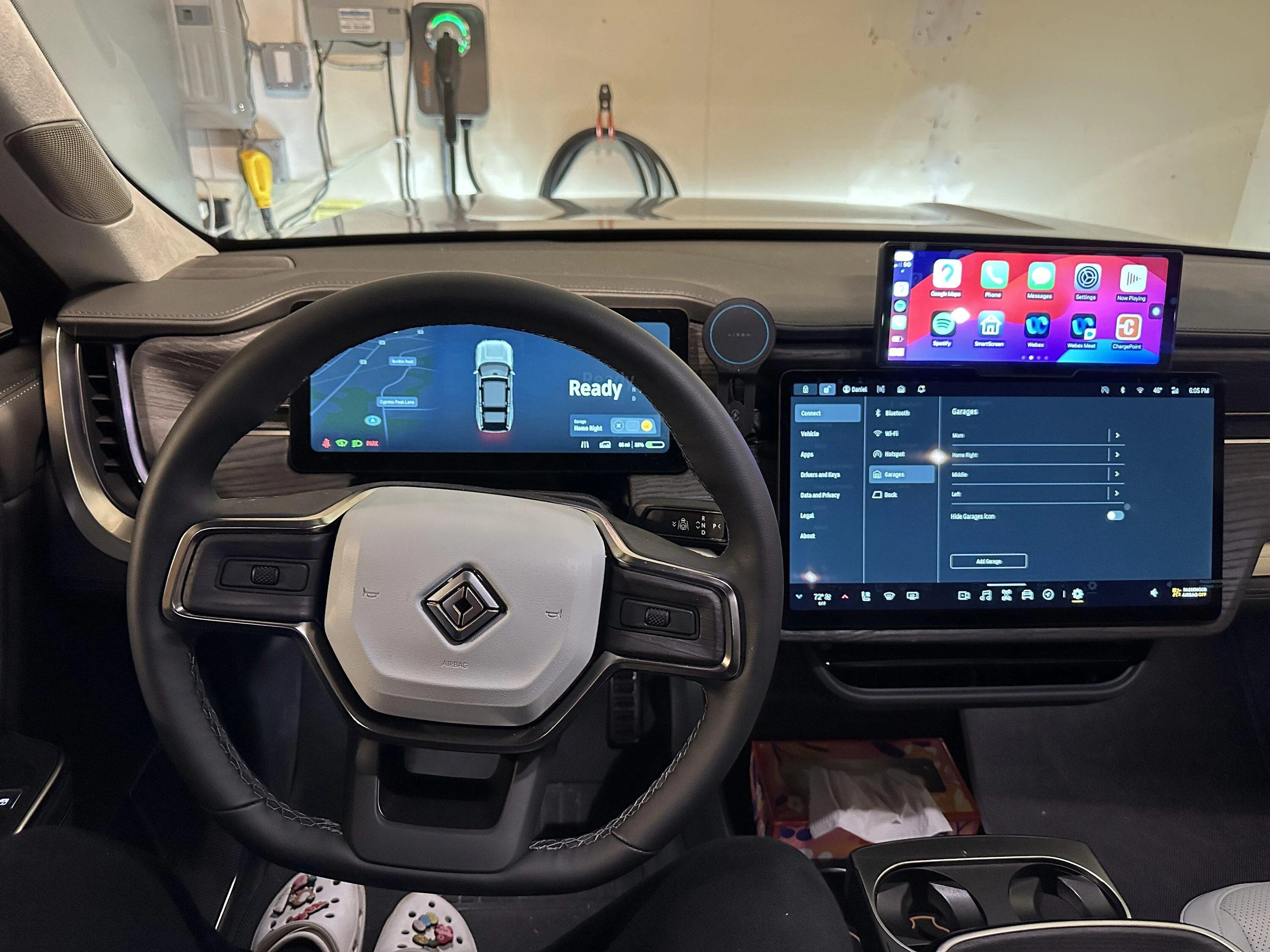

The last picture shows no exposed wires.

Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8886


Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8890


Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8891


Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8892


Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8893


Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8895


Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8896


Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8897


Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8899


Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8901


Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8902


Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8909


Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8907


Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8908


Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8906
Sponsored


Last edited:

Polar

Well-Known Member
First Name
Scott
Joined
Feb 16, 2022
Threads
15
Messages
391
Reaction score
548
Location
WA
Vehicles
C40, LE CY R1S
Occupation
IT
Clubs

Smooth install - well done mate.


Sponsored

OP
OP
pangpang77

pangpang77

Well-Known Member
First Name
Dan
Joined
Feb 22, 2022
Threads
16
Messages
146
Reaction score
236
Location
New Jersey
Vehicles
2022 Hyundai Ioniq 5, 2023 Chevy Bolt EUV Premier
Occupation
Systems Exec

EV Sportline

Well-Known Member
Site Sponsor
Joined
May 31, 2022
Threads
57
Messages
1,223
Reaction score
2,837
Location
Los Angeles
Website
evsportline.com
Vehicles
Rivian R1T, Tesla S, 3, X, Y, Porsche & More
Occupation
Upgrading Electric Vehicles
Clubs

I got my CarPlay unit from EV Sportline yesterday. There are other threads, but just wanted to provide my perspective. I had a couple of twists that may make it a bit of a different install 1) I hid the wires under the dash panel (similar to the mount for the unit) across to the driver’s side door so the wire is completely hidden and 2) I split the power from the fuse tap to also power a MagSafe phone mount.

I previously owned an Ottocast CarPlay unit, but had some issues with it with inconsistent connection (not always connect to my phone on its own without playing with Bluetooth settings) and sound would primarily go to the CarPlay unit’s own speaker instead of the Rivian speakers through Bluetooth. I also had a Garmin OBD powering the unit and would cause the unit to stay on at least 30 minutes after shutdown.

With the EV Sportline here are the main observations:

1) The connection is very snappy and reliable
2) The sound always goes to the Rivian speakers even when I summon Siri (which didn’t happen with the Ottocast)
3) The mounting location and mount itself make the install look professional
4) I was able to tap power for both CarPlay and my phone and know it shuts down once the car is off or goes to sleep without worry of extra draw from the battery.
5) I was able to hide all wires for a clean / professional look

Very happy and highly recommended.

In order to hide all wires I had to open up a couple more panels one under the dash and one to the side on the driver’s side.

Please make sure that the fuse tap wire is moved away from the steering wheel column. At one point I heard the wire catching as I turned the steering wheel so I needed to adjust.

Please see the pictures. I have a few extra pictures that help supplement what is already in the video and I show the picture of the panel with the T20 Torx scre, how I set up a USB-C hub for dual power and how I routed the wires.

It was late in the day so I’ll take some more pics during the day.

The last picture shows no exposed wires.





























Wow, this is great - thanks for the share, pro-grade install!

OP
OP
pangpang77

pangpang77

Well-Known Member
First Name
Dan
Joined
Feb 22, 2022
Threads
16
Messages
146
Reaction score
236
Location
New Jersey
Vehicles
2022 Hyundai Ioniq 5, 2023 Chevy Bolt EUV Premier
Occupation
Systems Exec
Wow, this is great - thanks for the share, pro-grade install!
Thanks @EV Sportline, you made it easy. The bracket and fuse tap are super plug-n-play and the sound prioritization and zippy response are such subtle but critical features for a great user interface.

OP
OP
pangpang77

pangpang77

Well-Known Member
First Name
Dan
Joined
Feb 22, 2022
Threads
16
Messages
146
Reaction score
236
Location
New Jersey
Vehicles
2022 Hyundai Ioniq 5, 2023 Chevy Bolt EUV Premier
Occupation
Systems Exec

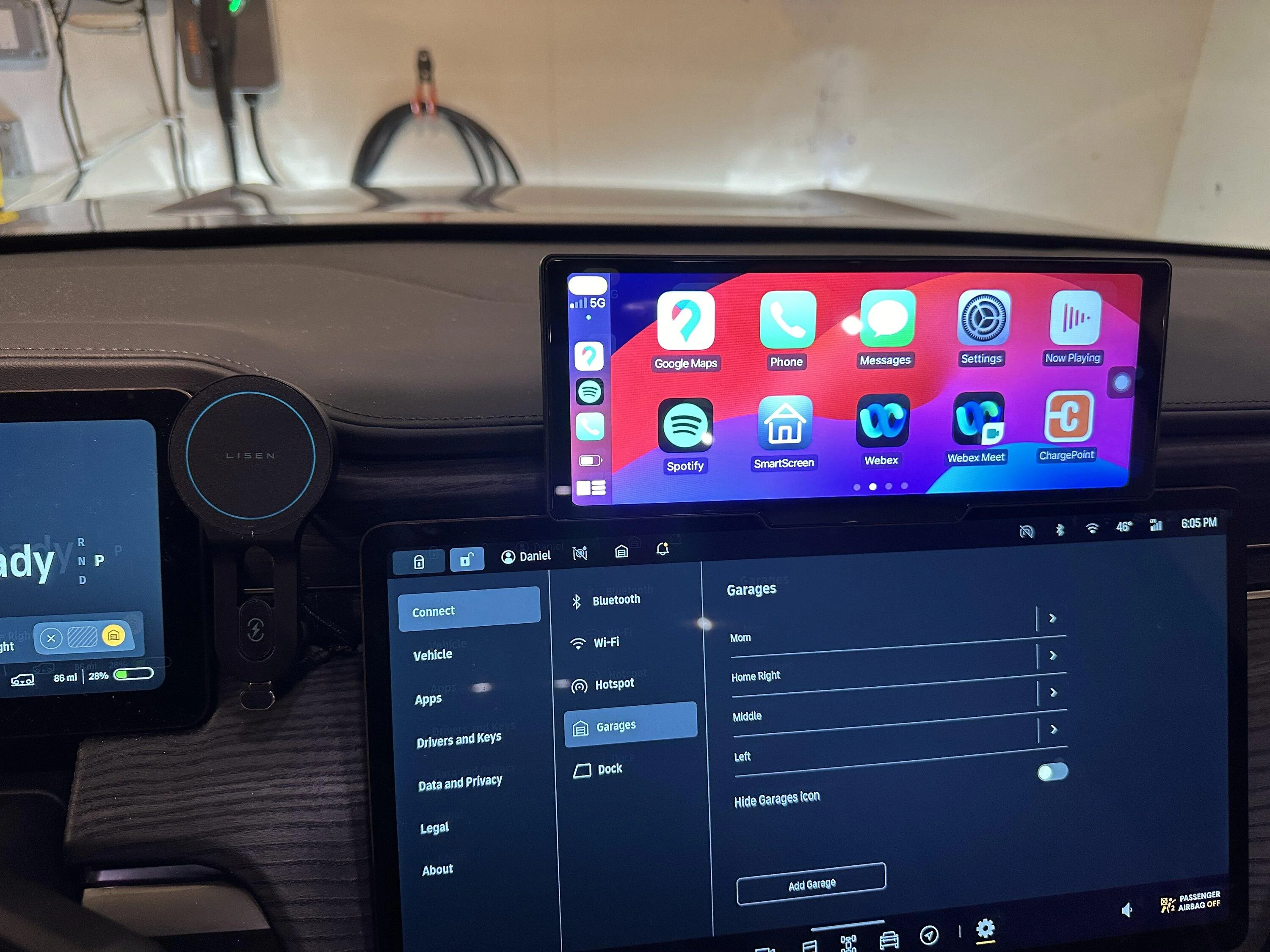

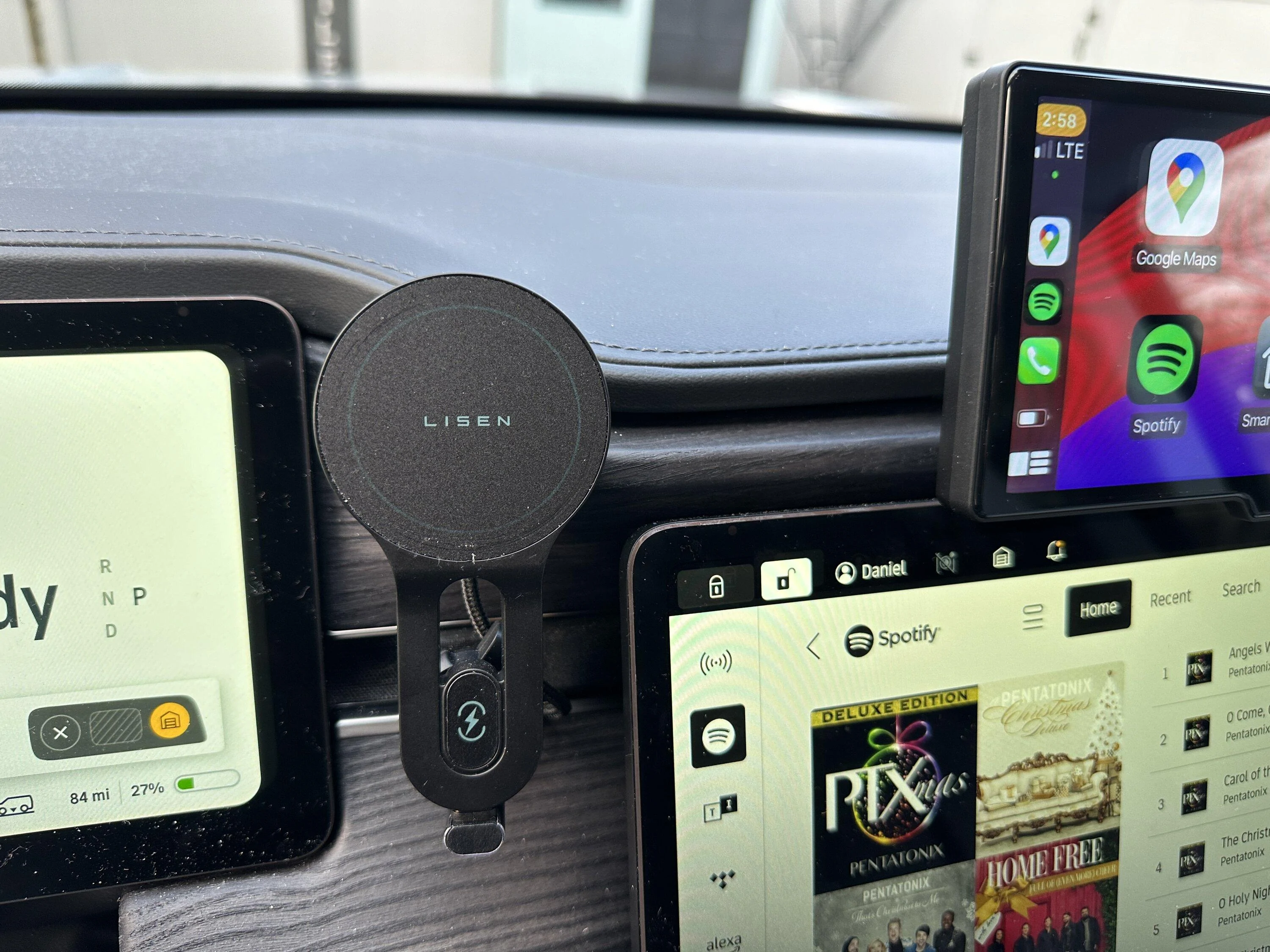

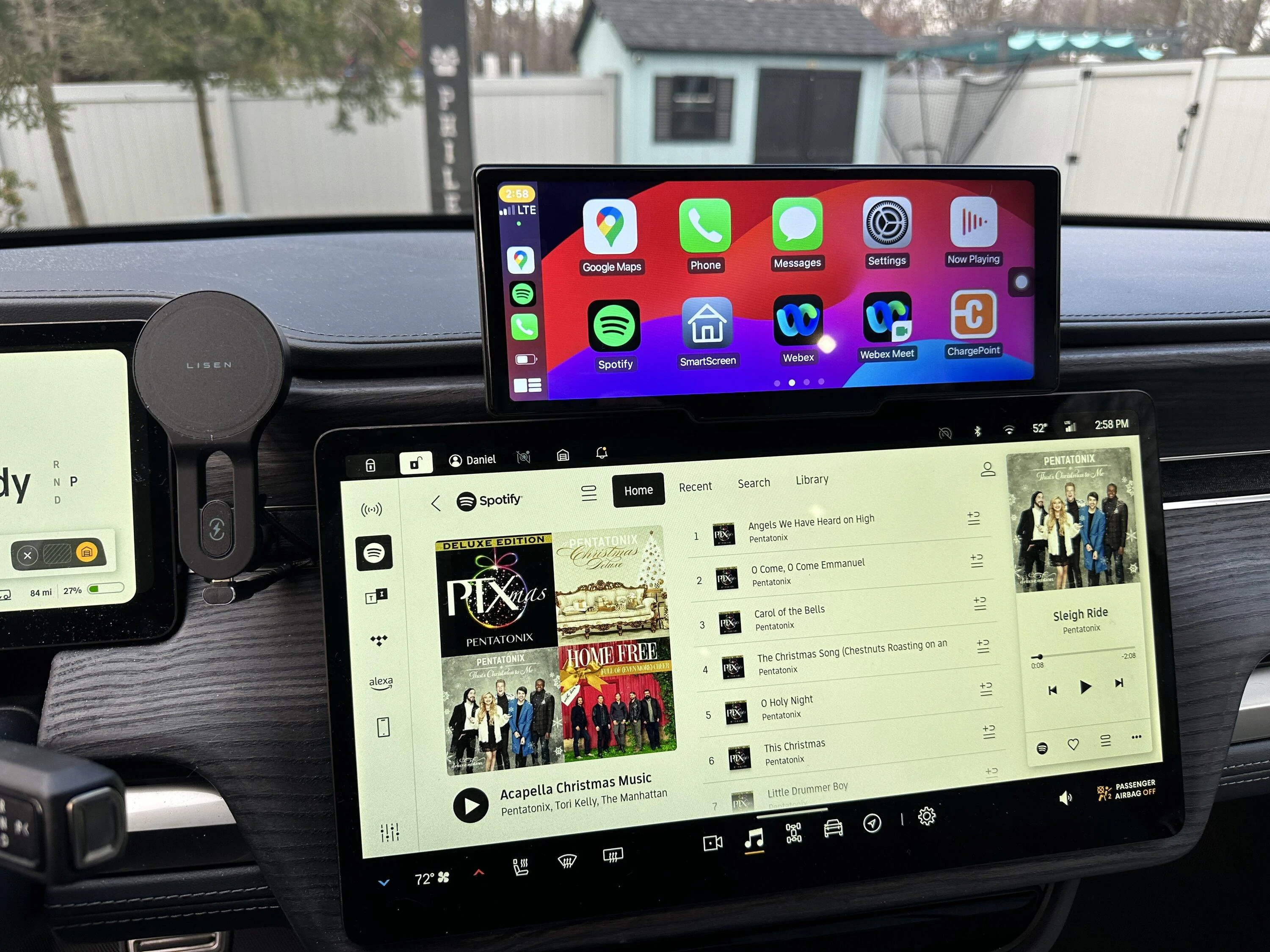

Here are just a few more daytime pics.

So much cleaner compared with my previous Ottocast.

Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8923


Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8921


Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8922


Rivian R1T R1S My EV Sportline CarPlay Display Hidden Wires Install IMG_8920

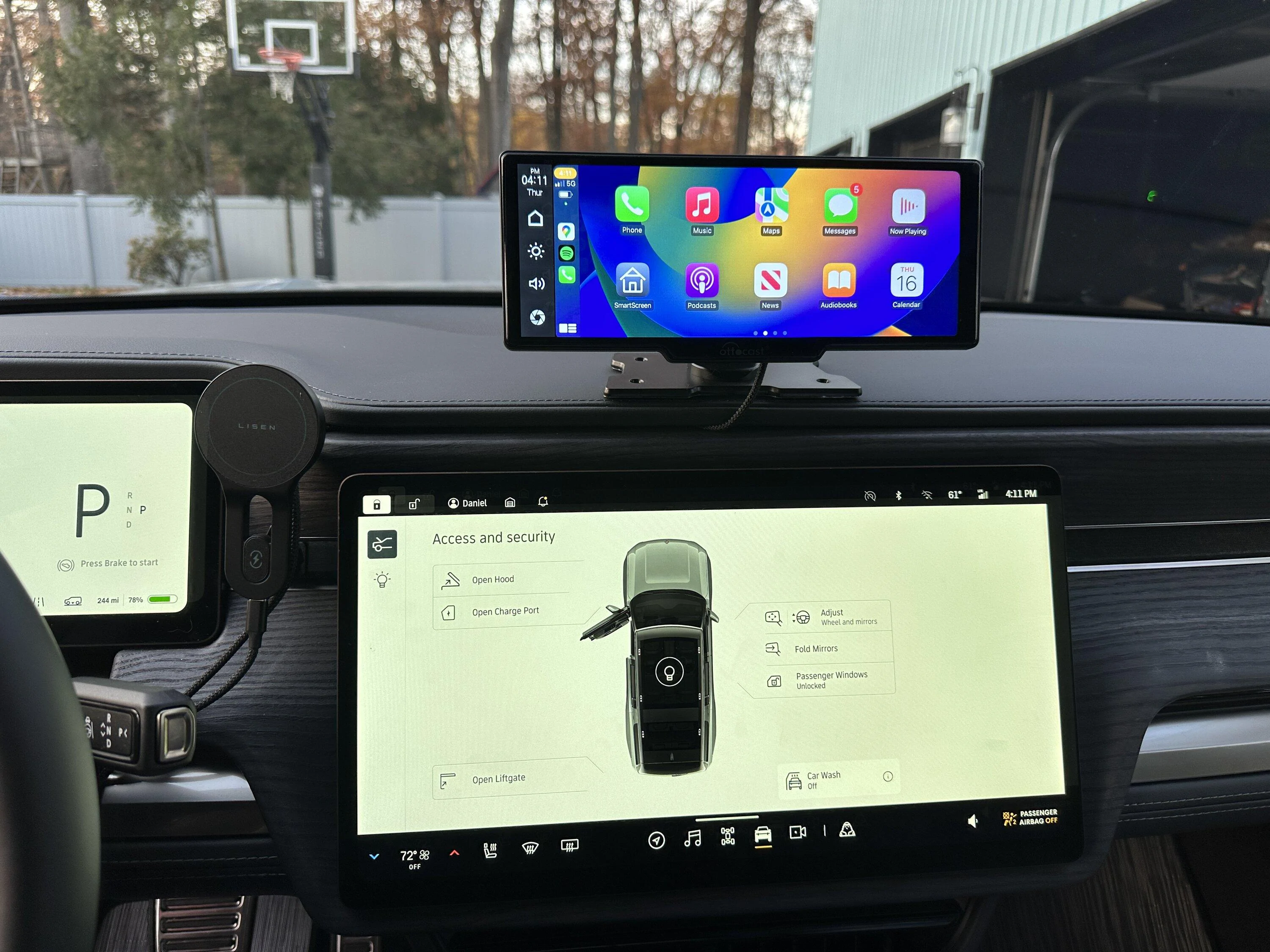

My previous Ottocast display using the Garmin OBD USB power. Returning this one.
