Hitch Pin length

dduffey

Well-Known Member
First Name
David
Joined
Apr 1, 2022
Threads
8
Messages
240
Reaction score
235
Location
Texas
First Name
David
Vehicles
R1T, Tesla M3, Tesla MY
Same, none of the pins I had were long enough, but the following one worked (just barely):

2.5" receiver pin

I think the key here is to look for pins that fit 2.5"+ receivers.


Last edited:

CO-rayman

Member
First Name
Ray
Joined
Jun 9, 2022
Threads
0
Messages
14
Reaction score
6
Location
Highlands Ranch, Colorado
First Name
Ray
Vehicles
Volvo XC40 Recharge, Porsche 911, BMWi3, RAM 3500
They may not have it yet. I ordered the same and from the dimensions I suspect it'll be fine and in most cases used in the "drop" position to achieve proper tongue weight. BTW, the price through Costco is a steal versus most as $160 - $200 for the same setup.

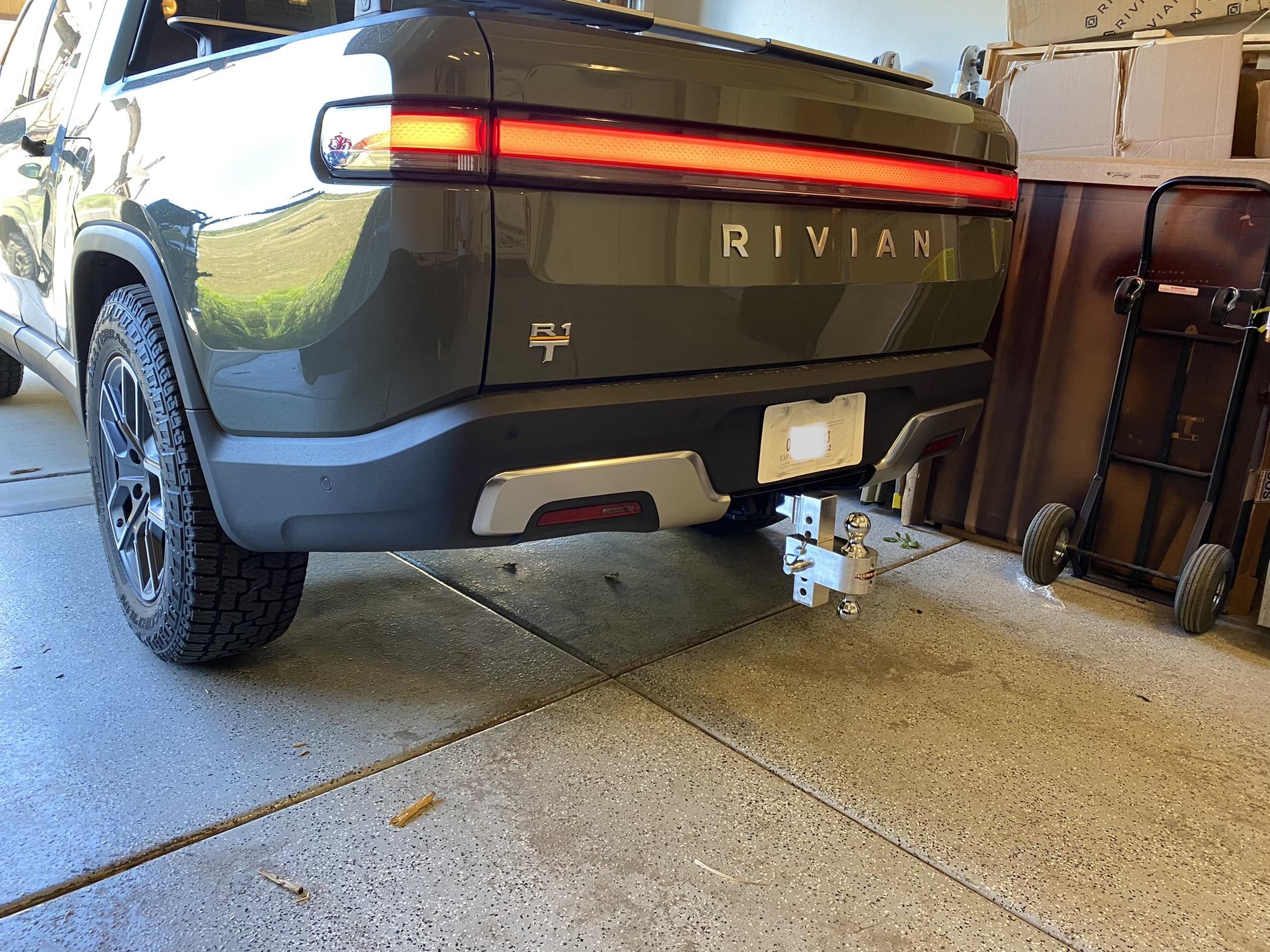

Aluma Hitch.JPG
Thanks for the info. I worry about the space between the pin hole and the down shaft. In another post on a different forum, somebody mentioned that the 3 1/8" should really be a 4 1/2" space.

They used a Weigh Safe with a 4" drop successfully. The Weigh Safe one doesn't have that tapering support shown in the picture that shortens the spacing.

Please let us know once you receive the Costco one whether it fits. It is a steal and I would order one only if I knew it would actually fit.


FirstStateR1T

Well-Known Member
First Name
Eric
Joined
Mar 31, 2022
Threads
7
Messages
122
Reaction score
160
Location
Newark, DE
First Name
Eric
Vehicles
Too many to list, I have a problem!
Occupation
Mech. E/GM/COO
Thanks for the info. I worry about the space between the pin hole and the down shaft. In another post on a different forum, somebody mentioned that the 3 1/8" should really be a 4 1/2" space.

They used a Weigh Safe with a 4" drop successfully. The Weigh Safe one doesn't have that tapering support shown in the picture that shortens the spacing.

Please let us know once you receive the Costco one whether it fits. It is a steal and I would order one only if I knew it would actually fit.

I will report back once I have it.


Gshenderson

Well-Known Member
First Name
Greg
Joined
Sep 28, 2019
Threads
11
Messages
1,214
Reaction score
2,672
Location
Park City, UT / Kemmerer, WY
First Name
Greg
Vehicles
2015 Tesla S 85D, 2019 4Runner TRD Offroad, R1T
I ordered this today on sale from Costco. Hopefully it fits and the pins are long enough. I liked that it’s aluminum, adjustable and comes with 3 different sized balls. Seemed like a decent deal.


https://www.costco.com/uriah-aluma-tow-12,000-lbs-capacity-adjustable-aluminum-drop-hitch,-6"-drop,-6-34"-rise.product.100989282.html
Replying to my own post with an update. Hitch arrived yesterday from Costco. Installed it this morning and the locking pin is plenty long enough to get through the Rivian receiver with about 1/2” to spare.

Seems to be plenty of clearance around the bumper as well; however, it will NOT work in the inverse position where the vertical shaft is providing rise vs drop. It does not extend out far enough for that.



jewwithguitar

Member
First Name
Josh
Joined
Aug 8, 2022
Threads
1
Messages
12
Reaction score
4
Location
Telecaster123!
First Name
Josh
Vehicles
R1T
I tried several different pins and I am confirming that using a pin for a 2.5” receiver is required due to the extra length. I also tried several anti-rattle clamps. This did not reauire a clamp for a 2.5” hitch-the 2” hitch model fit.



nirvanaman

Member
First Name
Erik
Joined
Aug 17, 2021
Threads
1
Messages
13
Reaction score
5
Location
Long Beach/Big Bear, CA
First Name
Erik
Vehicles
Model 3,DeLorean,Lightning,Saleen Mustang,BoxsterS
Replying to my own post with an update. Hitch arrived yesterday from Costco. Installed it this morning and the locking pin is plenty long enough to get through the Rivian receiver with about 1/2” to spare.

Seems to be plenty of clearance around the bumper as well; however, it will NOT work in the inverse position where the vertical shaft is providing rise vs drop. It does not extend out far enough for that.
So what do you think? Better to go with something that has a bit more length to it instead?


Gshenderson

Well-Known Member
First Name
Greg
Joined
Sep 28, 2019
Threads
11
Messages
1,214
Reaction score
2,672
Location
Park City, UT / Kemmerer, WY
First Name
Greg
Vehicles
2015 Tesla S 85D, 2019 4Runner TRD Offroad, R1T
So what do you think? Better to go with something that has a bit more length to it instead?
I guess it really depends on what you’re planning to tow and the “level” tongue height for the trailer. I primarily tow a flatbed utility trailer that has a pretty low level tongue height, so not being able to invert the hitch isn’t really an issue for me.


astonius

Well-Known Member
First Name
Ryan
Joined
Oct 5, 2021
Threads
29
Messages
891
Reaction score
1,923
Location
Nashville
First Name
Ryan
Vehicles
2022 Rivian R1T Adventure
Is it possible to have the hitch receiver cover installed with the pin inserted? Could be nice to have a longer pin always in position and at-the-ready rather than having to store it inside the truck.
