Dirty_B
Well-Known Member
- Thread starter
- #1
Dig mode looks to be a way to make turn radius smaller....mentions tank turn in the patent verbiage.
https://patft.uspto.gov/netacgi/nph-Parser?Sect1=PTO2&Sect2=HITOFF&p=1&u=/netahtml/PTO/search-bool.html&r=9&f=G&l=50&co1=AND&d=PTXT&s1=rivian&OS=rivian&RS=rivian

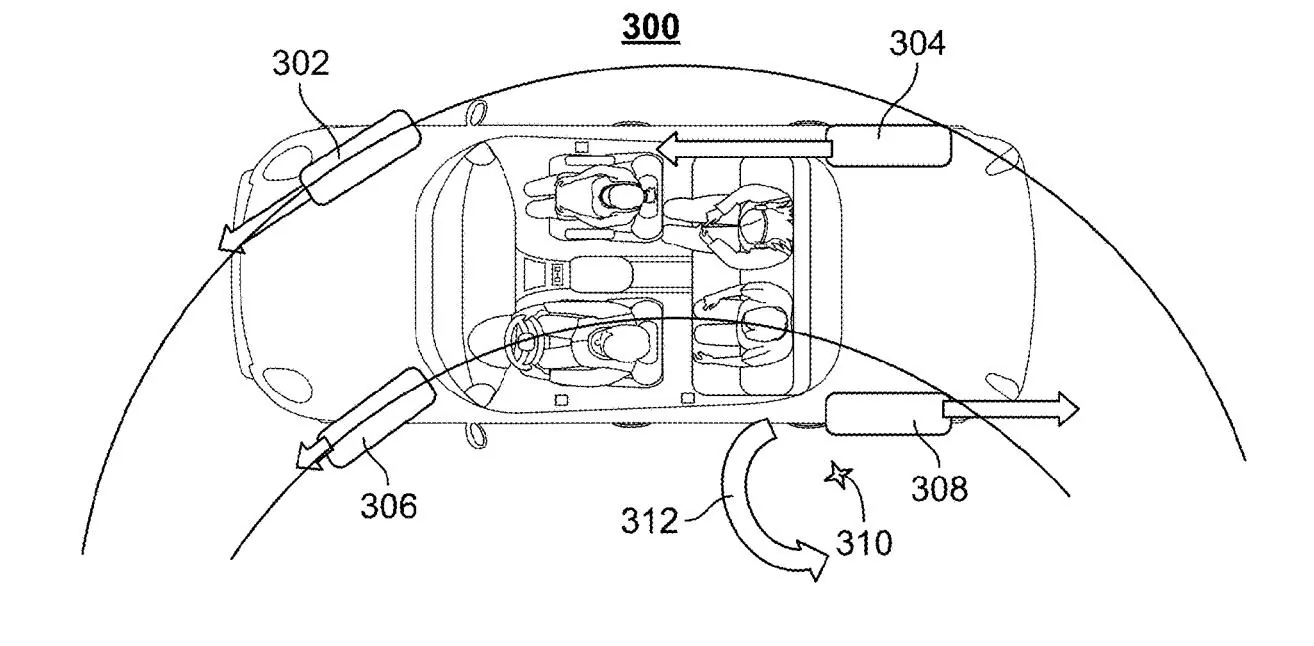

Abstract: "Systems and methods are provided herein for operating a vehicle in a front dig mode. The front dig mode is engaged in response to determining that speed of the vehicle is below a speed threshold and determining that the amount that at least one of the front wheels of the vehicle is turned exceeds a turn threshold. While operating in the front dig mode, forward torque is provided to the front wheels of the vehicle. Further, resistance is applied to forward rotation of the inner back wheel of the vehicle. Yet further, forward torque is provided to the outer back wheel of the vehicle. "
https://patft.uspto.gov/netacgi/nph-Parser?Sect1=PTO2&Sect2=HITOFF&p=1&u=/netahtml/PTO/search-bool.html&r=9&f=G&l=50&co1=AND&d=PTXT&s1=rivian&OS=rivian&RS=rivian
