3D Print Center Console Organizer - installed photos & design files

[ksujeff99]

Seeing the fine work that @RWerksman has been doing, I was inspired to create a center console organizer. It's a series of three trays with the top two designed to be removable. The center console has a slight "v" shape which allows the top tray to be about 20mm longer while still leaving room for me to remove it by grabbing the front.

I'm not 100% satisfied (is any maker ever?), but I'll live with it for a while and see how it goes. I may add more organization in the top two trays in V2.

A couple of specifics

• Printed in PETG, using most of a new spool to print three trays
• Tray heights
  • Bottom - 134mm (to end up right below the USB C ports)
  • Middle - 80mm
  • Top - 70mm
  • This leaves about 6mm of space between the top tray and the lid
• Tray L x W
  • Bottom and middle - 154mm x 164mm
  • Top - 175mm x 164mm
• The top and middle trays have a 2mm thick inset extension to help with stacking (see picture below)

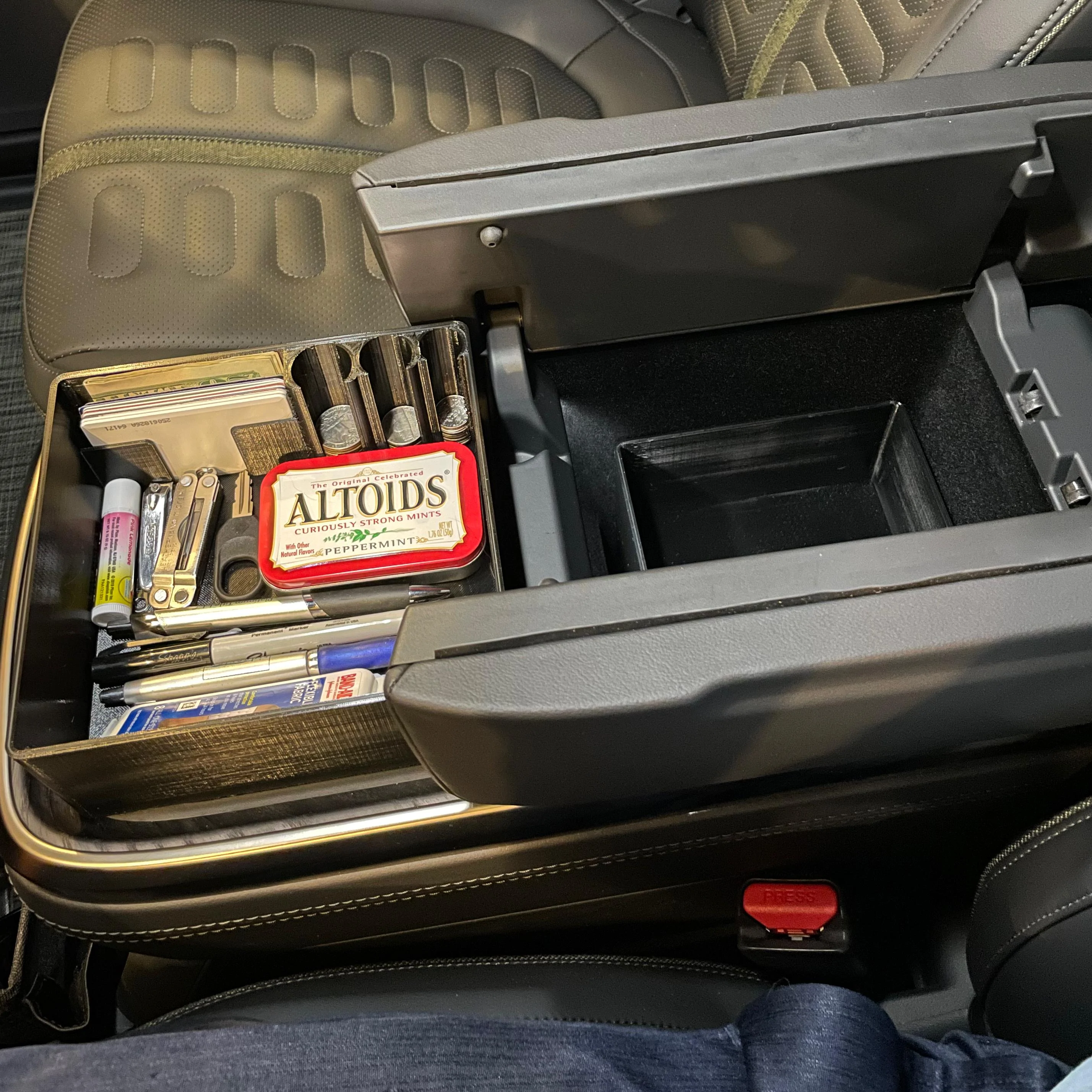

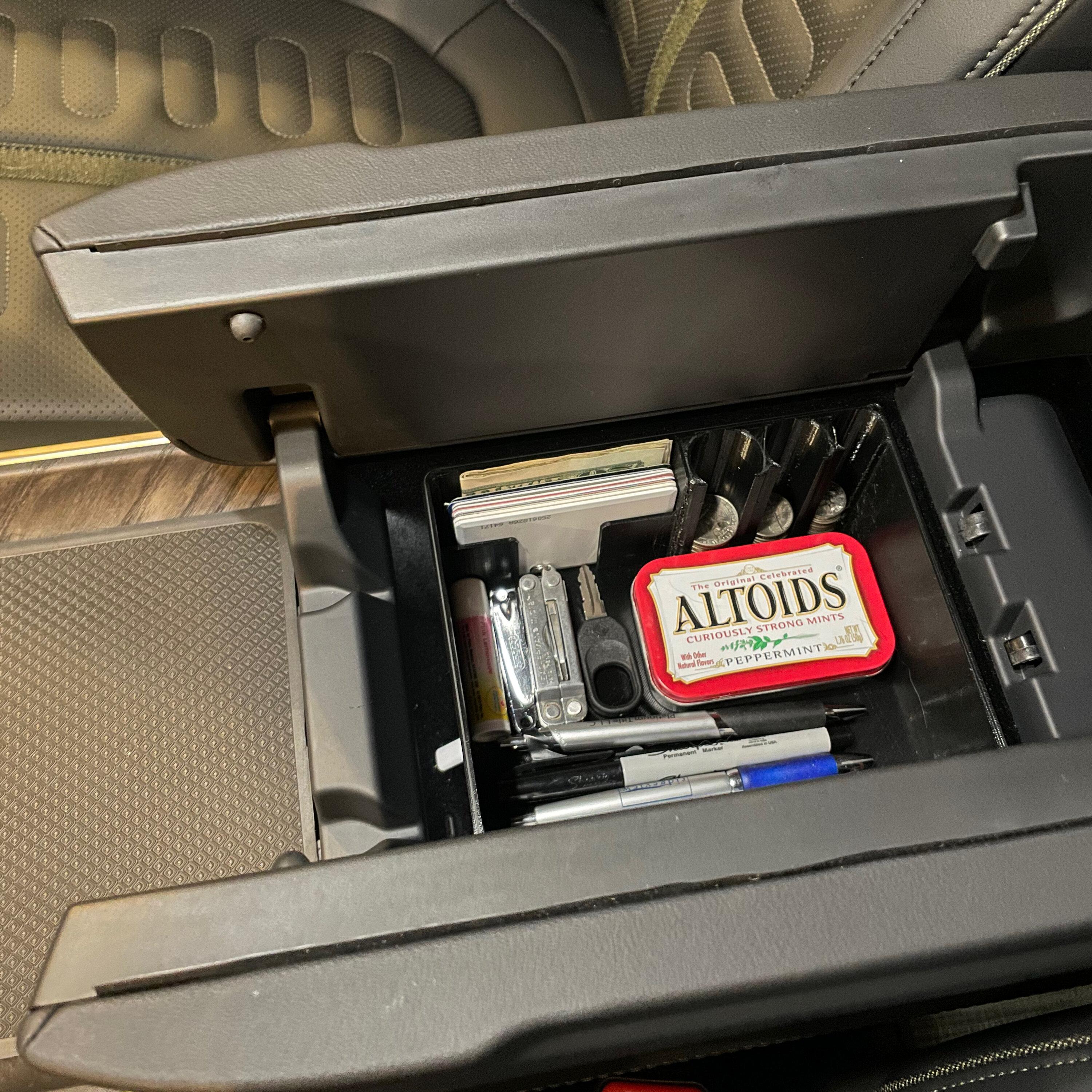

• The top tray has a change holder and a place to store cards
• There is room for the USB C cables
• I need to find something to put on the bottom of each tray to keep stuff from sliding around
• PETG is a PITA, though I'm new to 3D printing within the last 3 months
• Printing time for me (i3 Mega S) was around 24-30 hours per tray

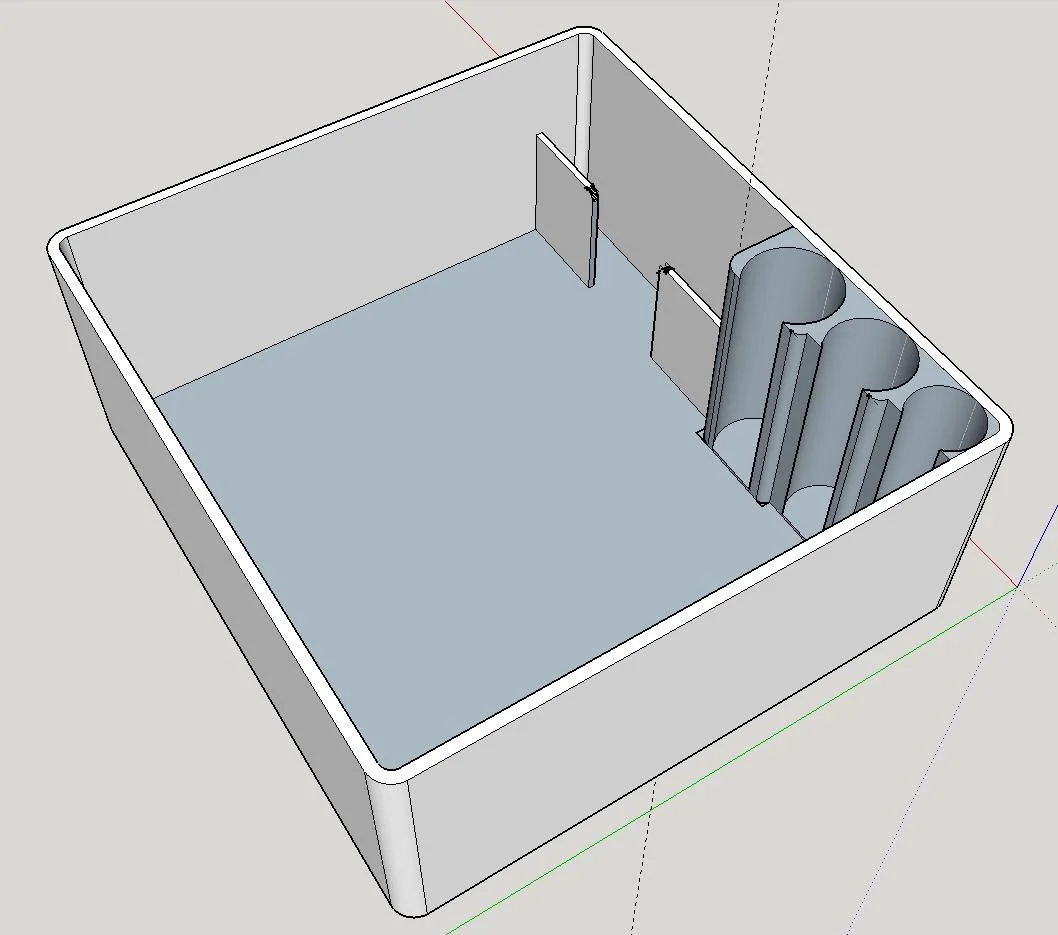

All designed in Sketchup Make 2017. Printables link to STL files

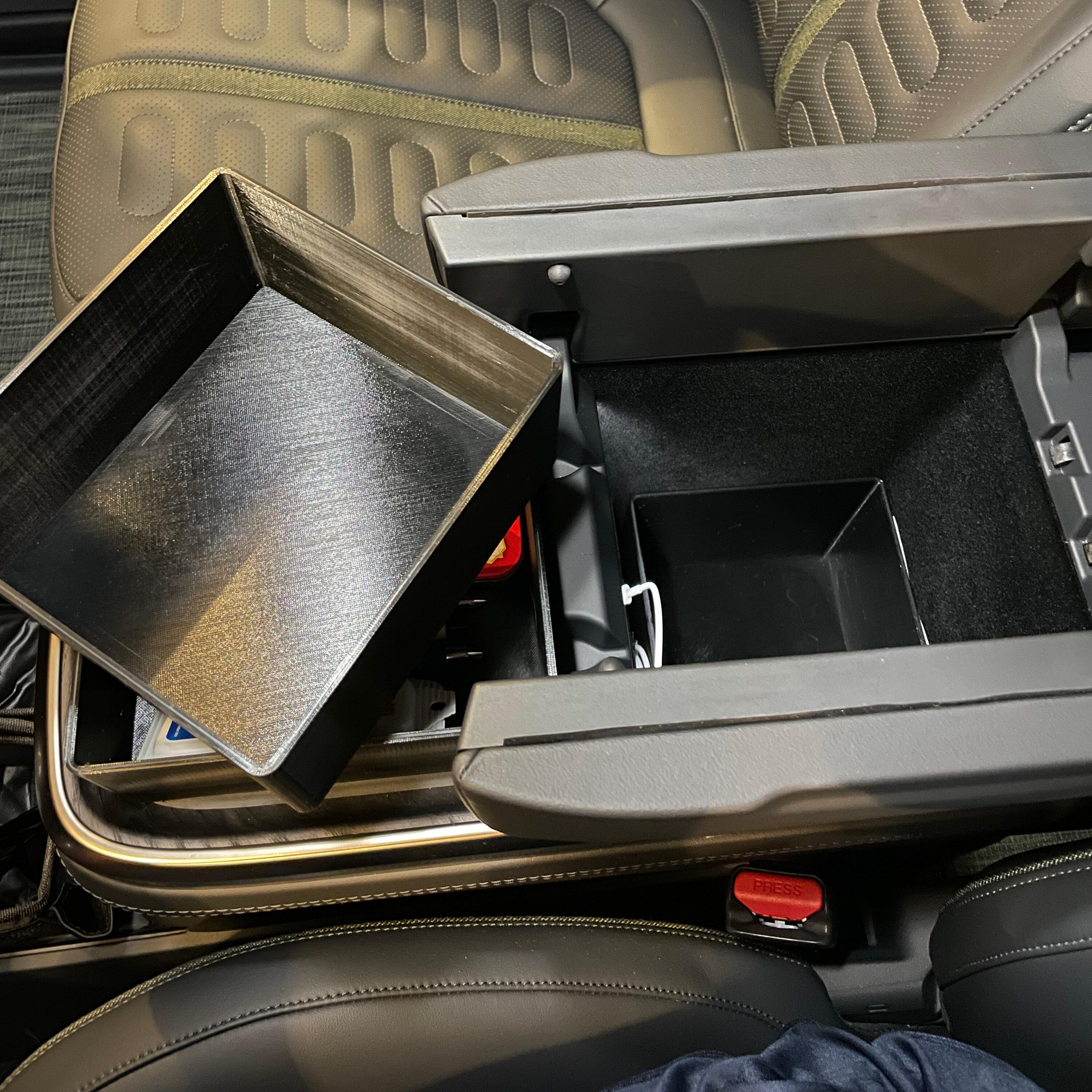

1st tray removed and 2nd tray visible

2nd tray removed and 3rd tray visible

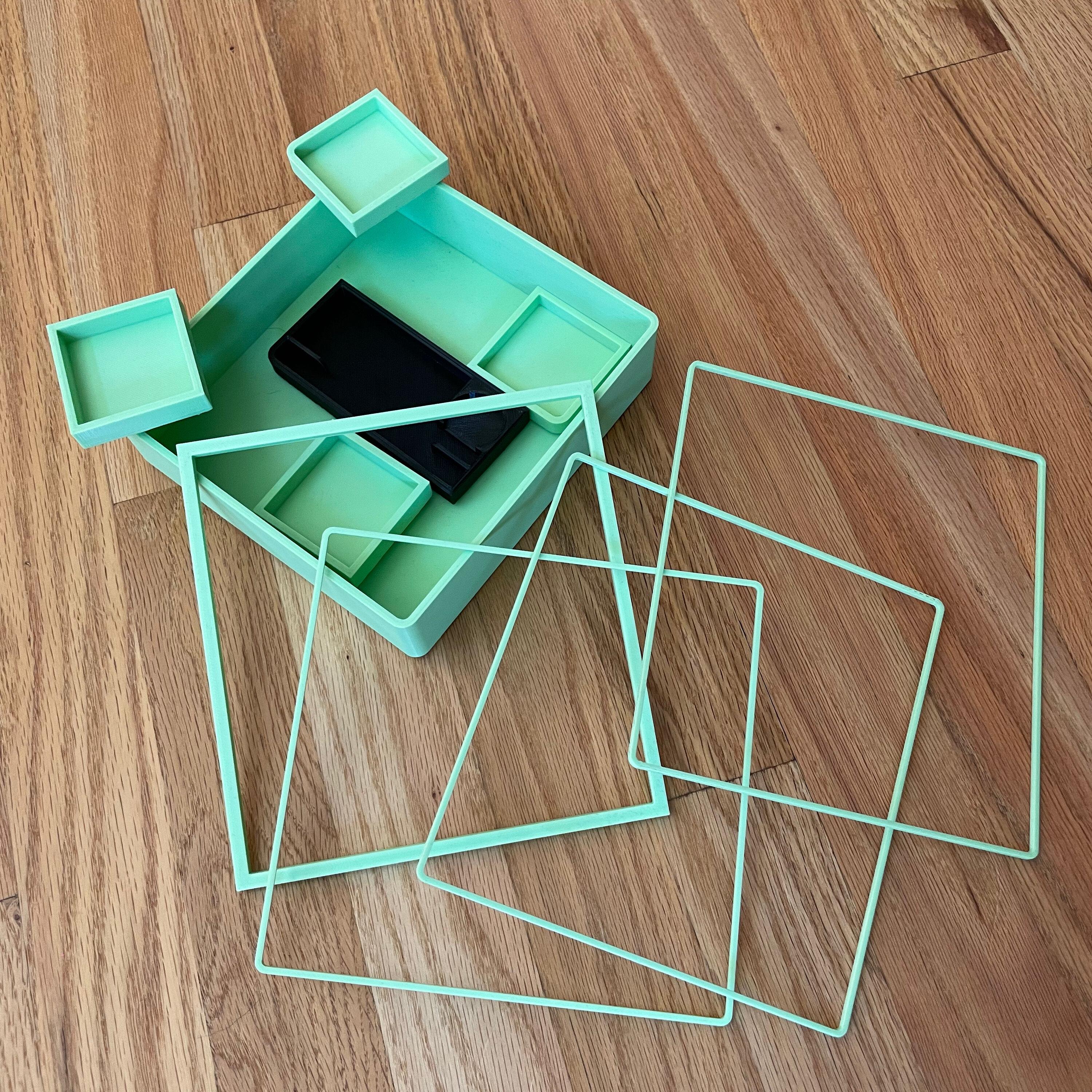

Here is all three removed from the center console. The bottom tray would normally never come out. I tried printing legs with a border on top to receive the middle tray instead of a complete bottom tray but it was not sturdy enough.

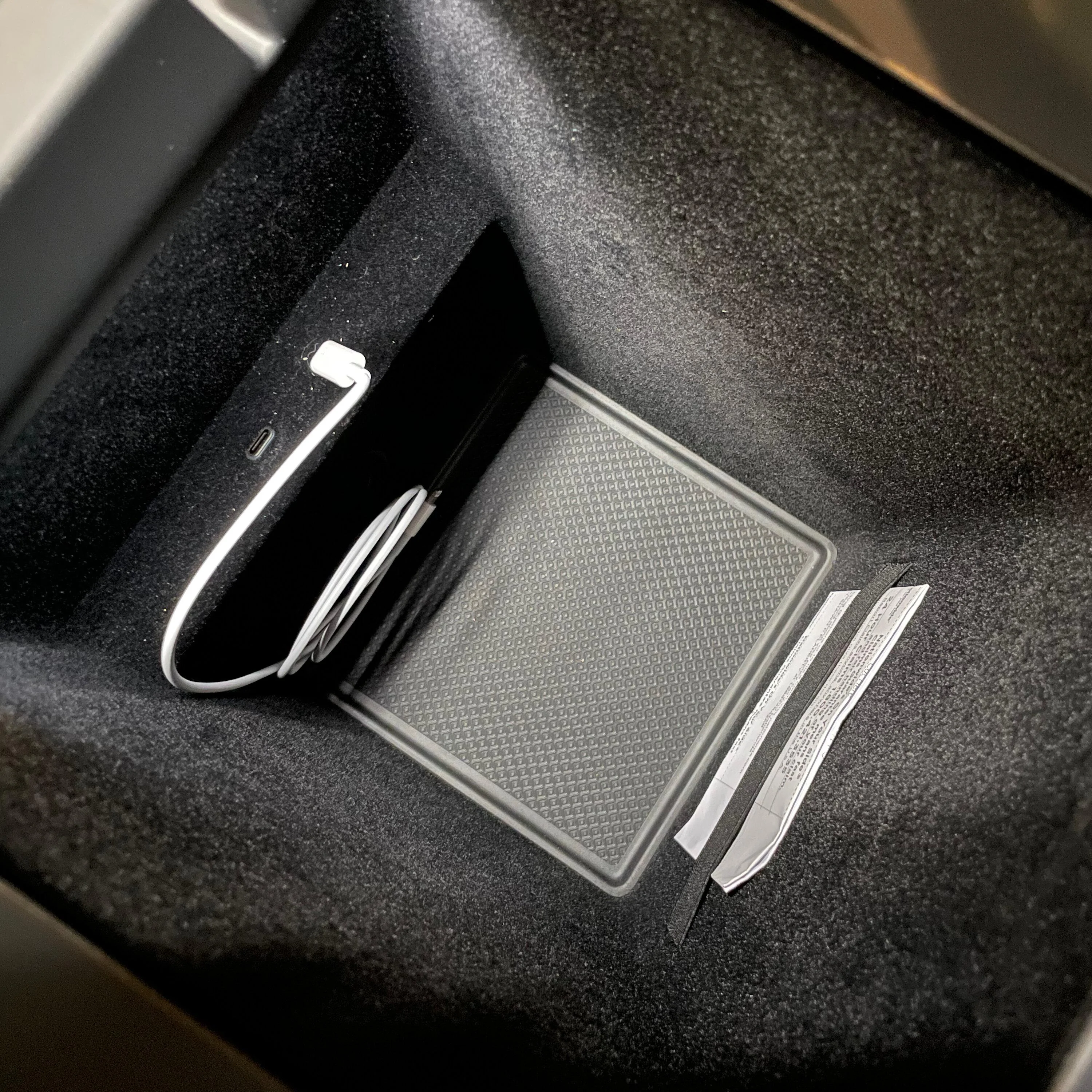

I did not remove the flexible insert at the bottom. There is plenty of room for the USB C cables to plug in and feed through the cable passageways

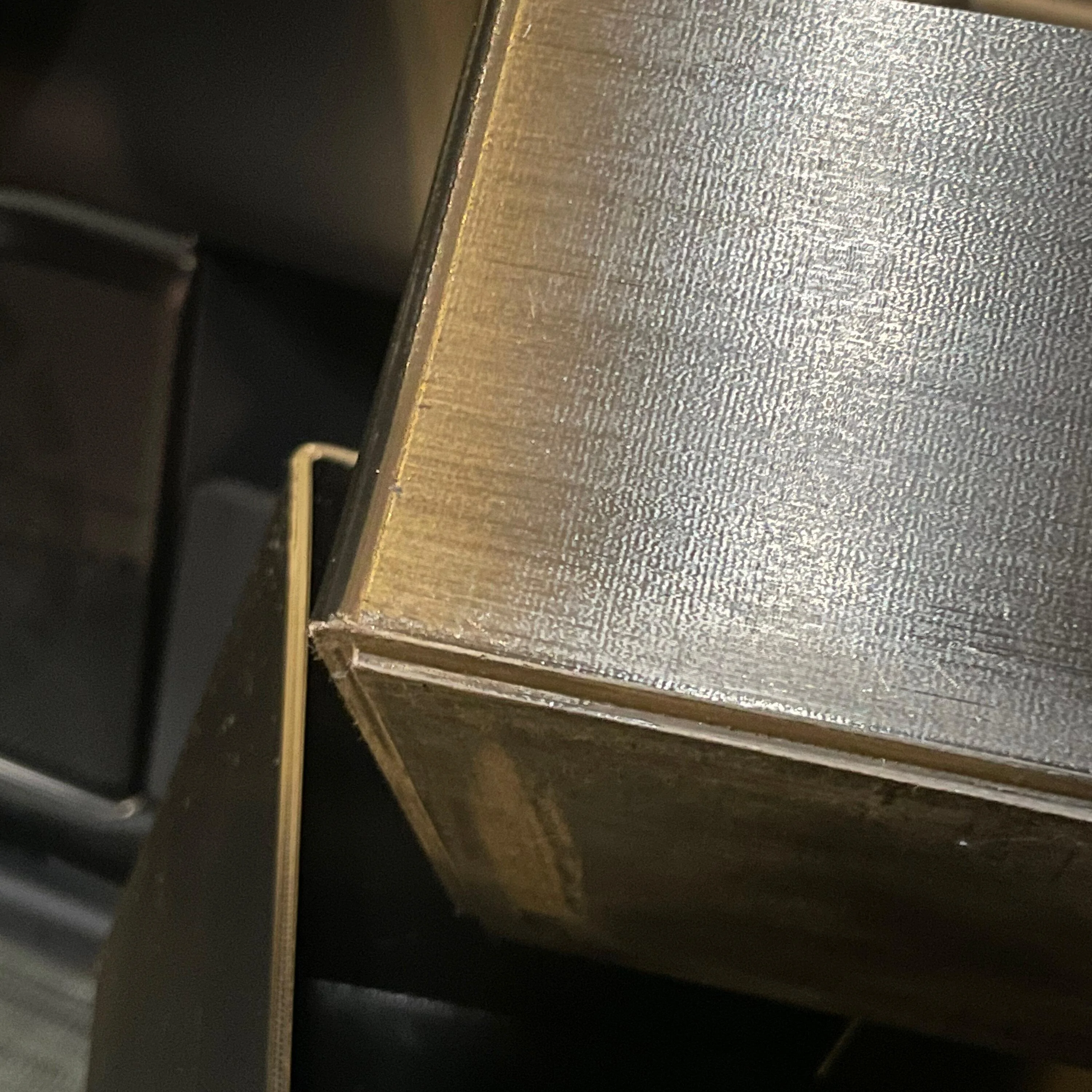

Closeup of how the top two trays stack on top of the one below

Prototypes and testing!

Edited to switch link from Thingiverse to Printables. I cannot get Thingiverse to show my models when searching or in my profile.
