R1T and Mountain Biking

OP
OP

MReda

Well-Known Member
First Name
Mike
Joined
Oct 16, 2020
Threads
14
Messages
488
Reaction score
818
Location
Colorado Springs, CO
Vehicles
Audi S4, Lexus LX470
Nice IBIS! MIght start a thread "show us your MTB" so we can see what other Rivian owners own in terms of bikes.

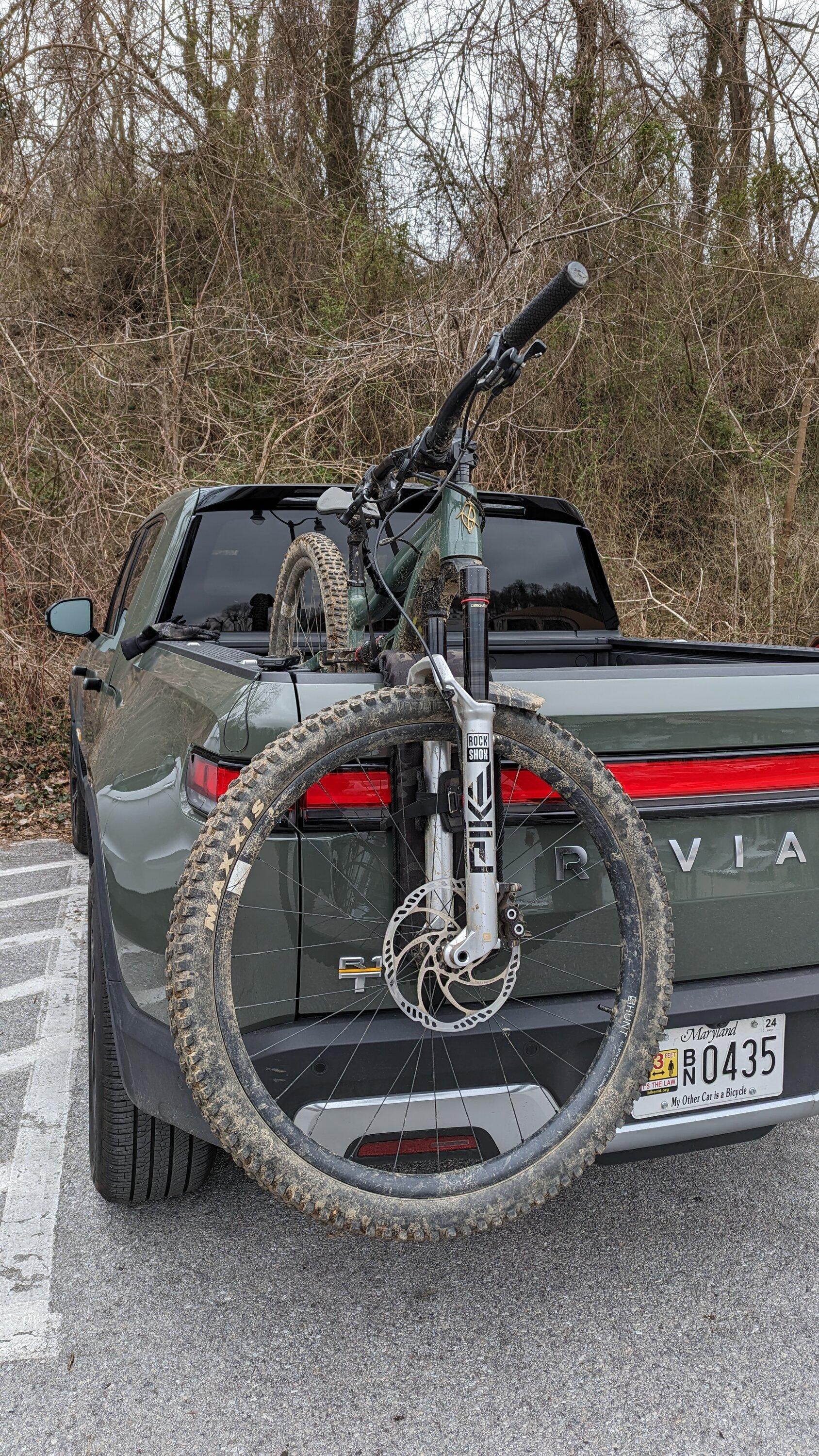

I just ordered this one: CyclingDeal Tailgate Bike Pad - Mountain Bike Carrier Bicycle Rack Cover Protection Mats for Pickup Truck - 52" Wide Fits up to 5 Bikes (amazon.com)

My friend has it on his F-150 and it's a great, high quality pad at a great price. What I have never understood about all the high end pads is there is no padding on the downtube which is the part that ultimately straps in - even in yours, the fork is strapped in. This one has little "cradles" that your downtube fits into and keeps the bike very secure - hoping it fits well on the Rivian. Will report back soon, I take delivery Saturday.
I'm sure there are name-brand pads out there that don't have the padding you're talking about, but I can confirm that the RaceFace T2 absolutely has padding on the downtube - both underneath it and on both sides of it.
Sponsored



DTown3011

Well-Known Member
Joined
Jun 7, 2022
Threads
28
Messages
1,666
Reaction score
2,227
Location
Denver, CO
Vehicles
Rivian R1T

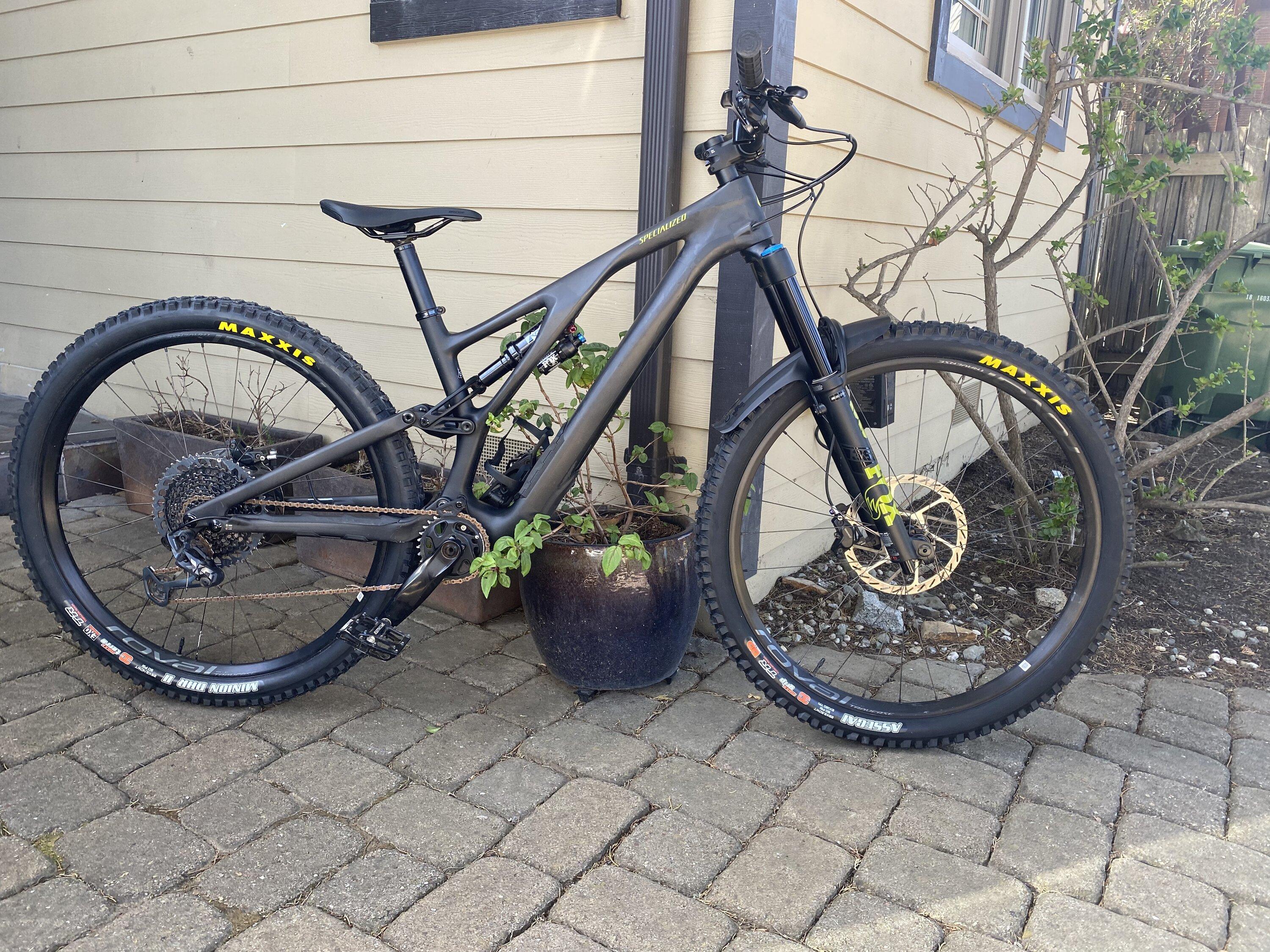

Stumpy Evo for me. This is pre-build - it received a set of HSR discs, XTR brakes, and a (bright orange!) cascade link. I think I put the XX1 cassette on after this picture, too.

I can’t wait to get back on mine after the plate in my shoulder comes out in a few weeks … snapped distal end of collarbone. 0/10, do not recommend.

Post it here, just started a thread:

(1) Show us your Mountain/Gravel/Road Bike MTB - Rivian Style! | Rivian Forums - R1T R1S R2 Owners, News, Discussions, RIVN Stock


DTown3011

Well-Known Member
Joined
Jun 7, 2022
Threads
28
Messages
1,666
Reaction score
2,227
Location
Denver, CO
Vehicles
Rivian R1T
I'm sure there are name-brand pads out there that don't have the padding you're talking about, but I can confirm that the RaceFace T2 absolutely has padding on the downtube - both underneath it and on both sides of it.

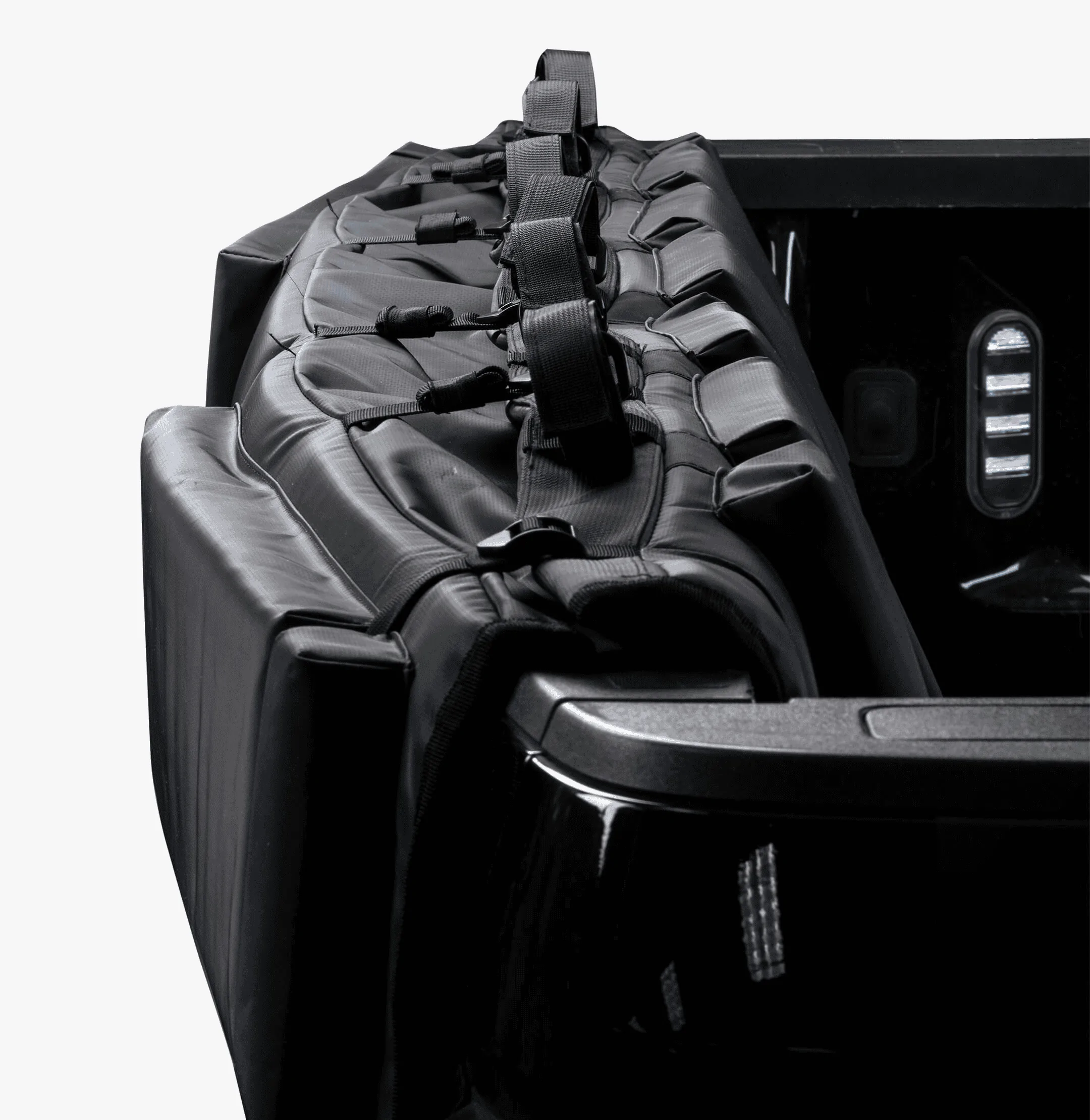

Great, so with this photo of the T2 the downtubes fit in-between the padded sections so they don't move around which I get. Is there padding UNDER the area as well?

Rivian R1T R1S R1T and Mountain Biking 1677533305482


SurlyBurris

Well-Known Member
First Name
Michael
Joined
Apr 11, 2019
Threads
2
Messages
53
Reaction score
122
Location
Littleton, CO
Vehicles
2018 Tesla Model 3, 2001 Land Rover Disco II, R1T
Stumpy Evo for me. This is pre-build - it received a set of HSR discs, XTR brakes, and a (bright orange!) cascade link. I think I put the XX1 cassette on after this picture, too.

I can’t wait to get back on mine after the plate in my shoulder comes out in a few weeks … snapped distal end of collarbone. 0/10, do not recommend.

Ouch! The Mike's clearly had a bad year last year. Washed out on the inside of a berm and broke my left collarbone in 2 places in Sept. One plate and six screws later....can't wait to get back on my ride :)


Rivian635

Well-Known Member
Joined
Feb 24, 2022
Threads
2
Messages
64
Reaction score
23
Location
MN
Vehicles
BMW X5, Acura MDX Hybrid, Honda CRV

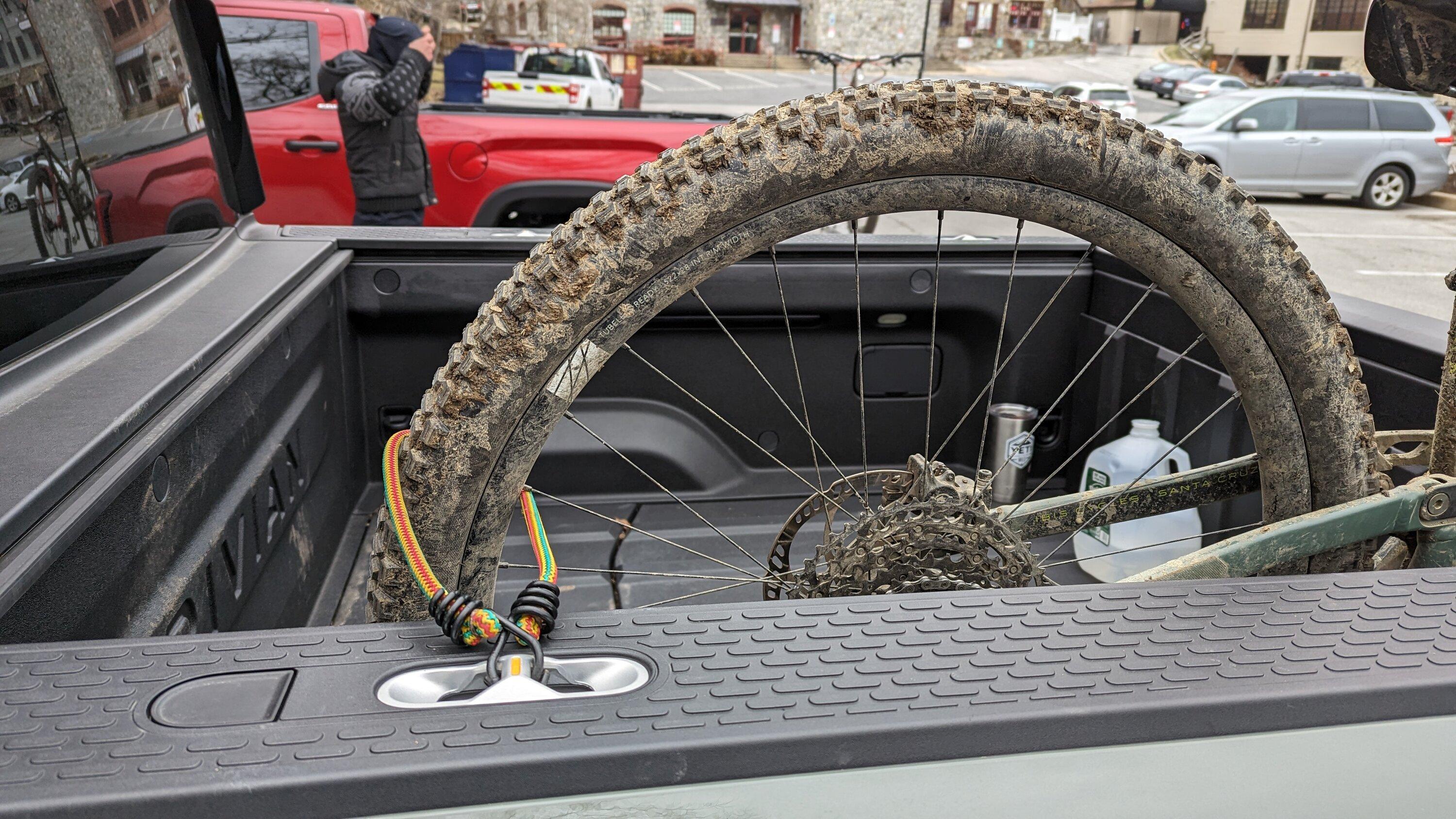

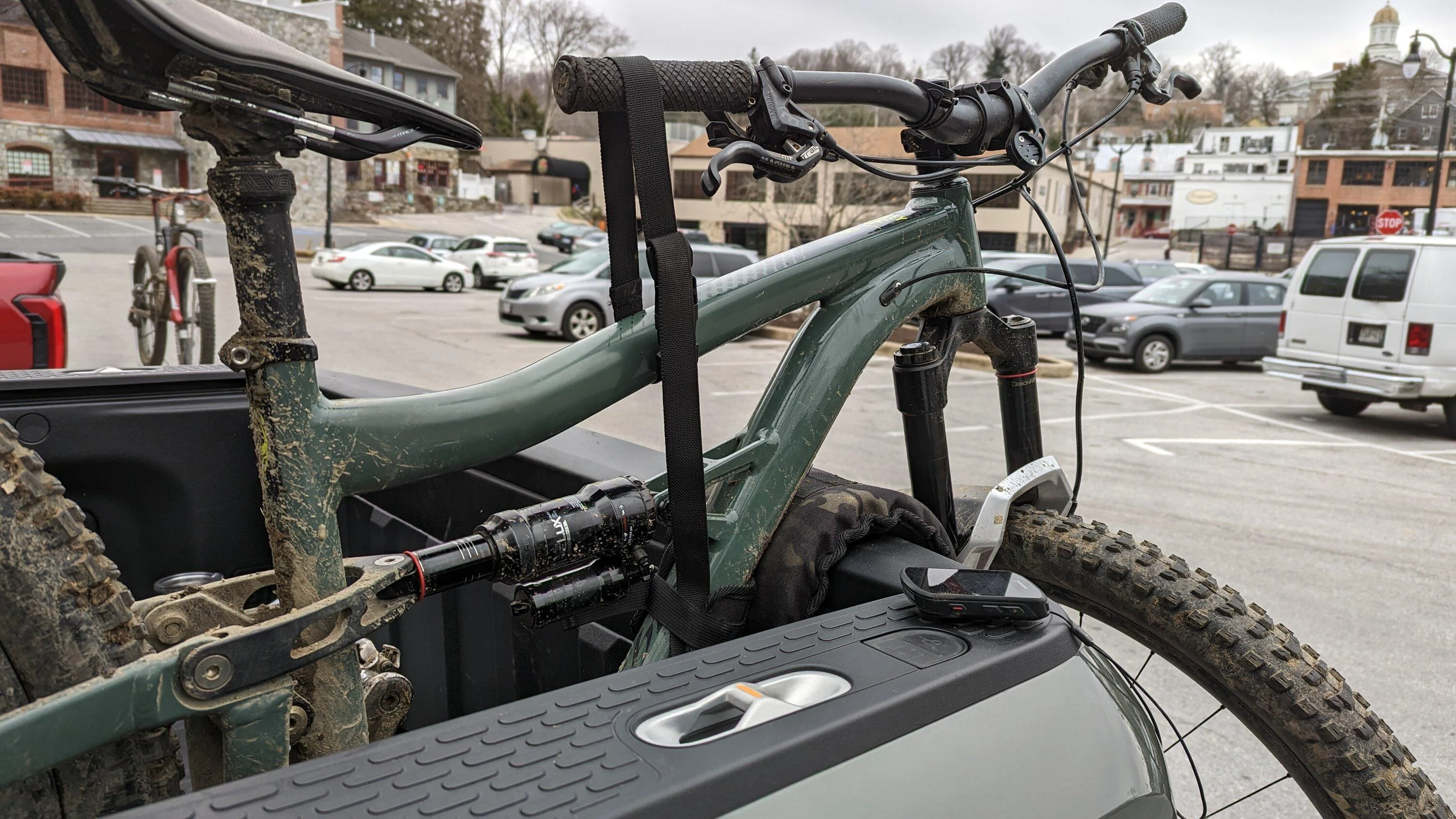

Just an update on this. I've been using the bomber for my mtb and Gravel bikes for the last 4 months. Experience has been essentially flawless and since it doesn't take much room, I just leave it on the truck (quite minimalist). It requires two mini straps that click in and one strap from top tube to handlebar to keep it turned. I've used a bungee on the rear wheel to minimize movement but it's not needed for on road use.

Overall it's a nice option for a single adult bike which is my primary use case. I also just throw my kids three bikes (20-24") in the bed alongside it for short trips to local trails. Use a full pad for multiple adult bikes.

Edit : I have recently checked underneath the pad and tailgate shows no signs of scratches. Also, when installing the pad and using tailgate with pad installed, I need to hold the gooseneck flap to prevent it from loosening the buckle. Not a biggie but if you use tailgate 5x per day, could be a nuisance.





This will be my solution... Little to no impact on range (if traveling any distance), and the bike is using the bed. So many other solutions have the bike everywhere, except in the bed, which seems to me a waste.


Sponsored

josephponline

Well-Known Member
Joined
Jan 23, 2023
Threads
3
Messages
60
Reaction score
75
Location
Colorado
Vehicles
Rivian R1T

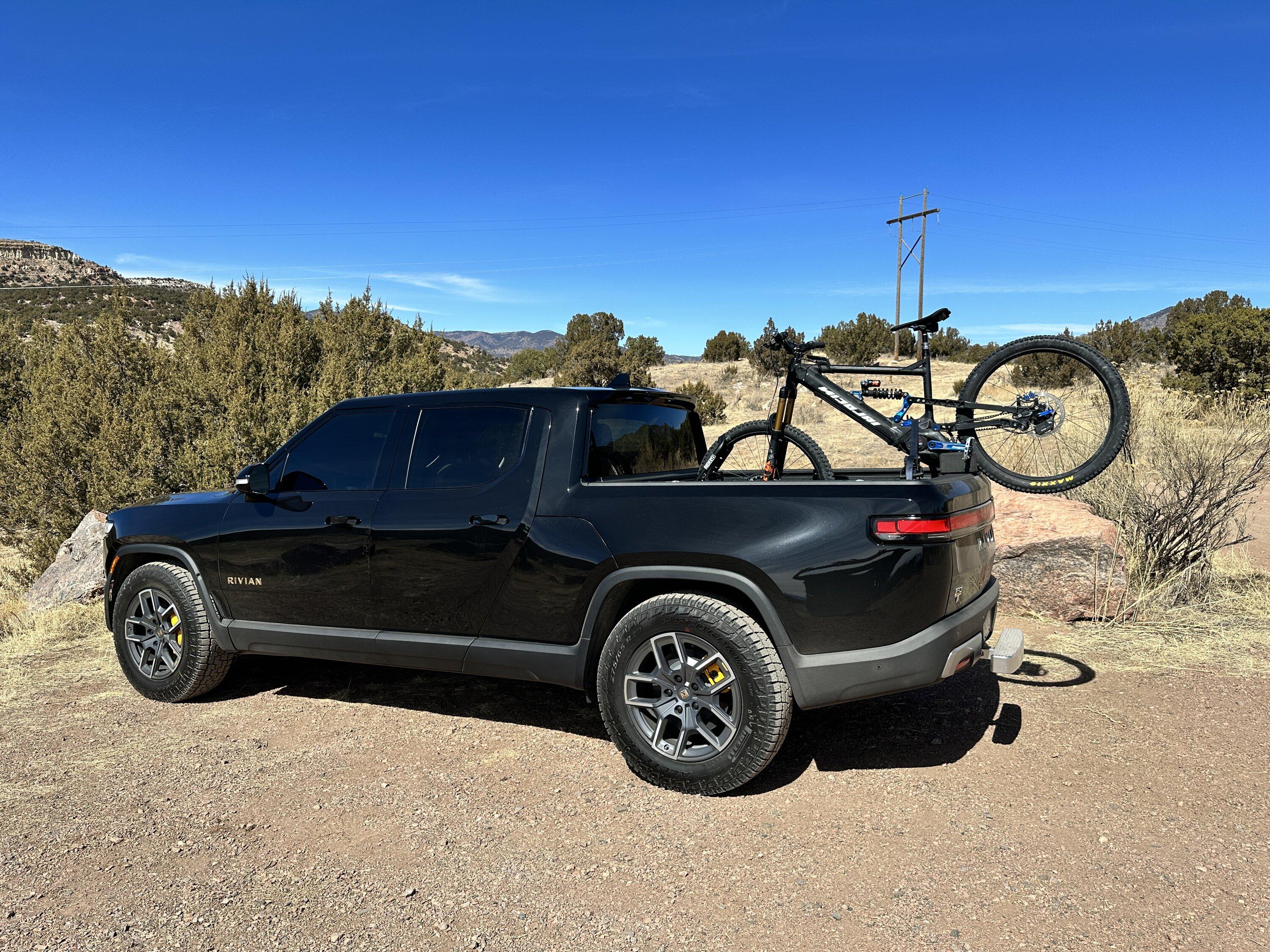

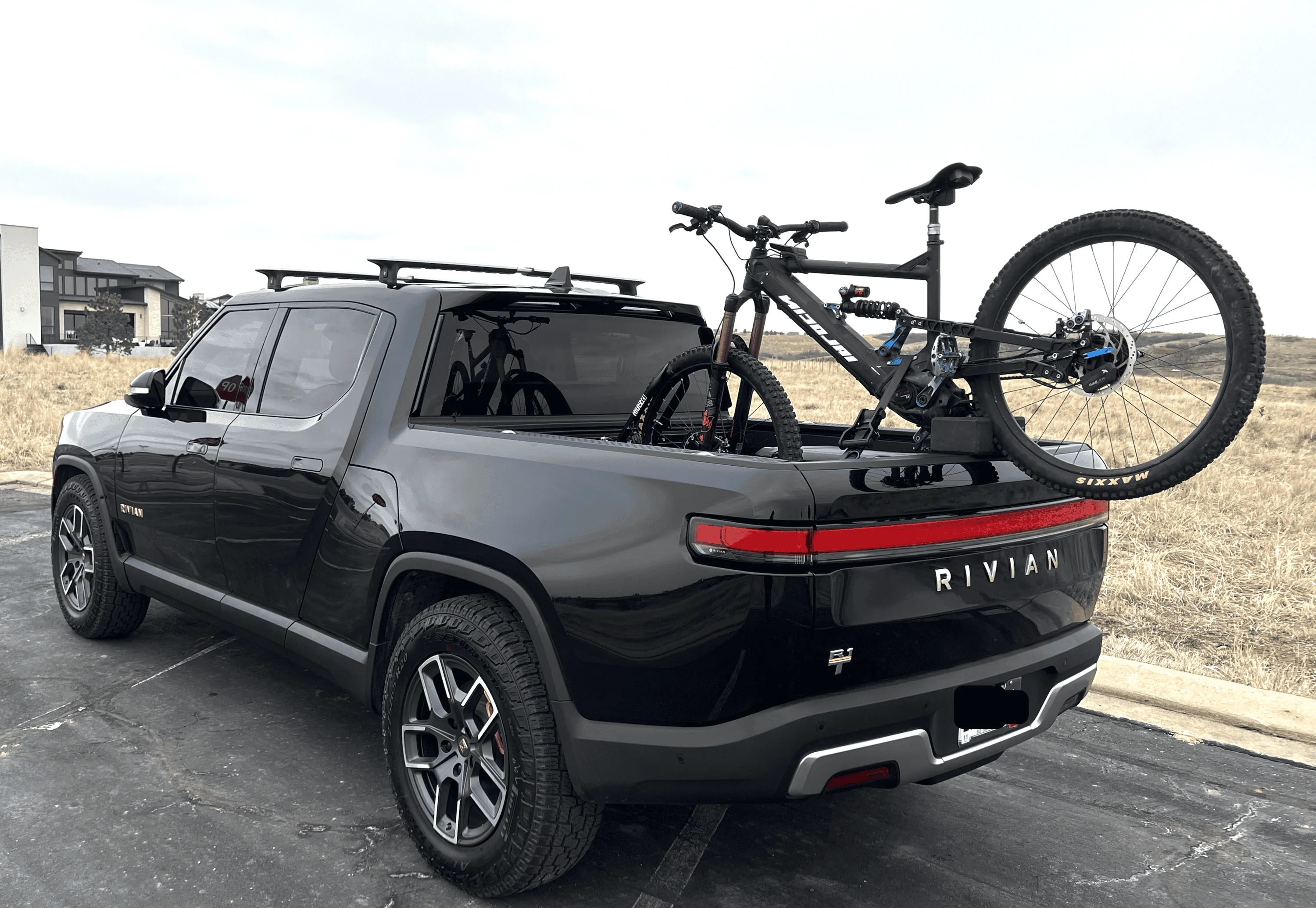

Picked up my R1T Tuesday and have been driving it relentlessly and playing the "where do I store all my stuff now that I have so many options" game.

BUT the most important thing I had to sort out was how to haul my skis and my bike.

On my Model X I ran a customized 1-UP hitch rack that could fit my skis and my MTB without a seasonal conversion. One of the primary reasons going with the R1T was for a more permanent ski and bike mount solution that didn't require me to unload between trips.

After copious amounts of research I settled on what you see here.

It's a Ride88 with a customized back-end mount. I hate driving with the tailgate down, for both visibility, stuff shifting in the bed, and candidly I like the look of the truck with the tailgate up. So basically I customized a hard-foam (yoga) mount for cutouts for my crankcase and wheel, and it sits permanently in the bed of my truck. I ratchet the rear end down so it doesn't move.

Did some local test runs the last few days, and ventured out today with a 240 mile round trip from Denver to Canon City to run the Oil Well Flats trails today and it didn't move the whole trip (despite serious cross-winds).

On a tangent note, when I did this trip with my Model X I always ... ALWAYS ... has to stop for a charge somewhere. Not with the Rivian (and I'm running the 20's), just stuck it in Conserve mode on the I-25 and actually came back with more range than originally estimated, and that includes the northbound entrance into Lone Tree where traffic starts cranking along at 85mph.

Love this truck.

Rivian R1T R1S R1T and Mountain Biking IMG_0636.JPG


Rivian R1T R1S R1T and Mountain Biking Screenshot 2023-03-09 at 19.05.01


jcreviston

Member
First Name
Jake
Joined
Dec 2, 2022
Threads
1
Messages
9
Reaction score
4
Location
Portland, OR
Vehicles
2017 Tacoma TRD Sport
Occupation
Psychiatry

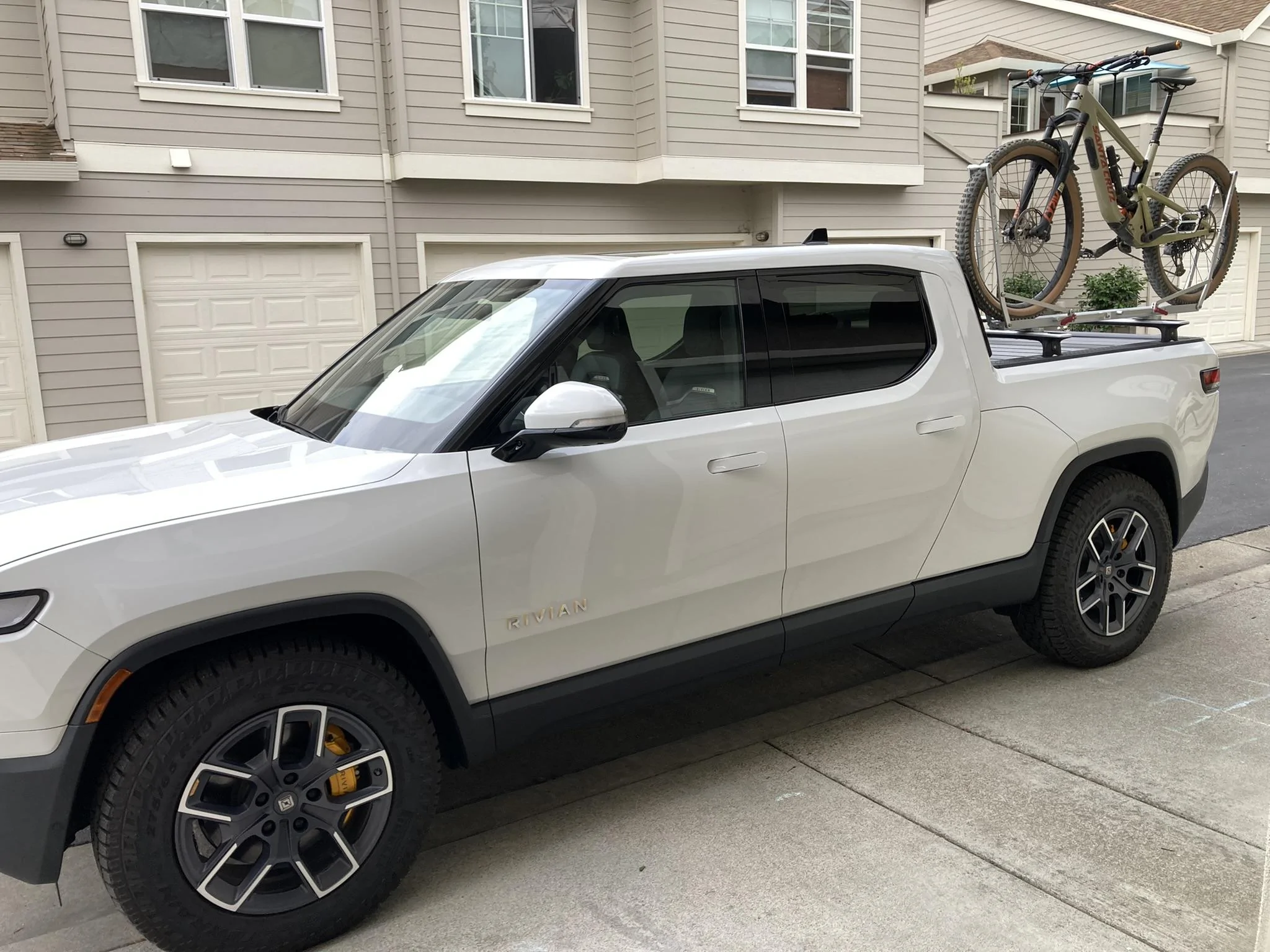

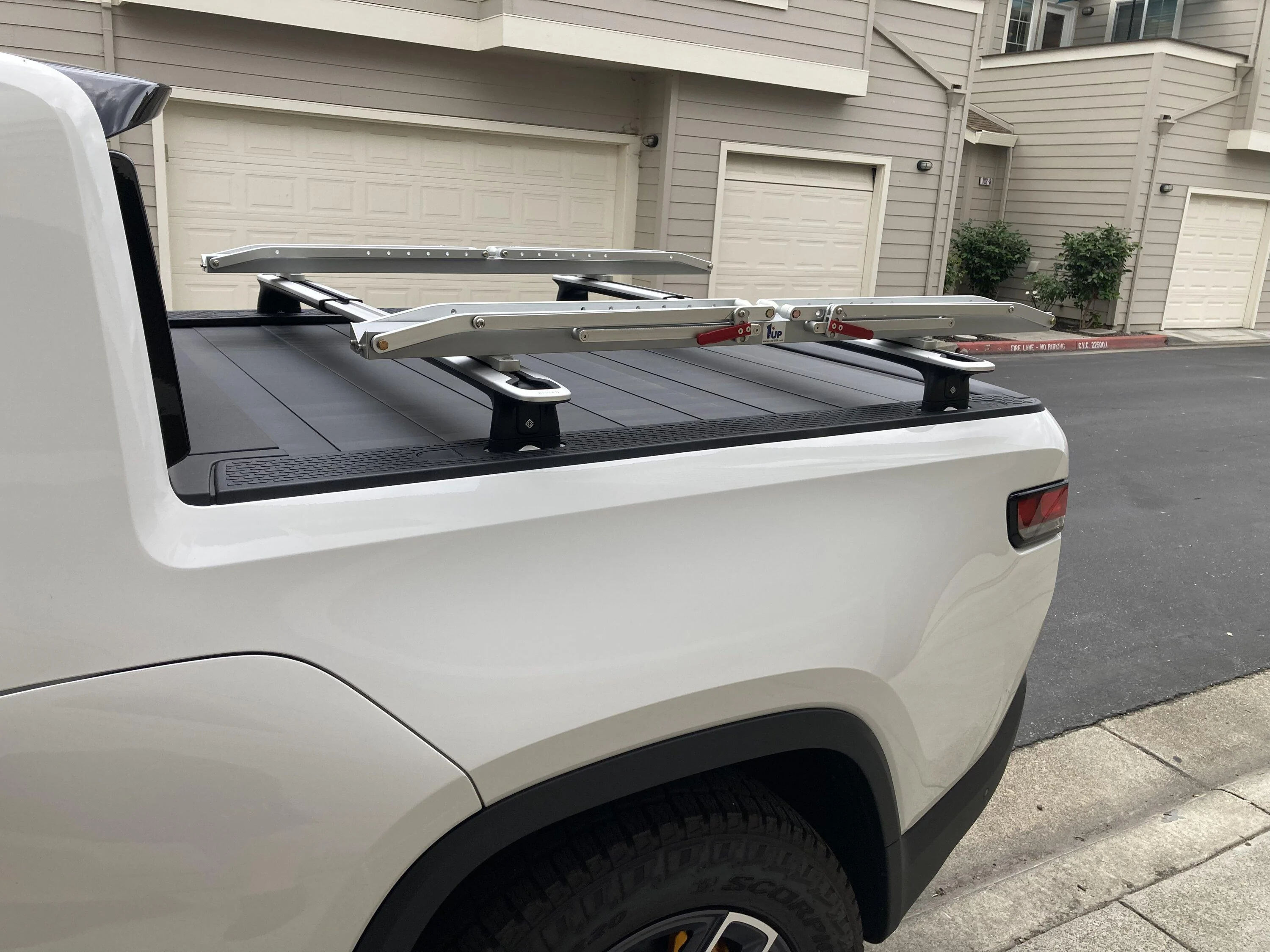

I’m running the 1UP roof racks, over the bed, and they work like a dream!
Looks great! Working on my set up now. What size is the Santa Cruz? 29er? Can't tell from the photo. Does the front tire bar bang/damage the truck's spoiler?


ipadl

Active Member
First Name
Seth
Joined
Apr 3, 2022
Threads
3
Messages
40
Reaction score
57
Location
Montana
Vehicles
Rivian R1T
Occupation
R&D
Picked up my R1T Tuesday and have been driving it relentlessly and playing the "where do I store all my stuff now that I have so many options" game.

BUT the most important thing I had to sort out was how to haul my skis and my bike.

On my Model X I ran a customized 1-UP hitch rack that could fit my skis and my MTB without a seasonal conversion. One of the primary reasons going with the R1T was for a more permanent ski and bike mount solution that didn't require me to unload between trips.

After copious amounts of research I settled on what you see here.

It's a Ride88 with a customized back-end mount. I hate driving with the tailgate down, for both visibility, stuff shifting in the bed, and candidly I like the look of the truck with the tailgate up. So basically I customized a hard-foam (yoga) mount for cutouts for my crankcase and wheel, and it sits permanently in the bed of my truck. I ratchet the rear end down so it doesn't move.

Did some local test runs the last few days, and ventured out today with a 240 mile round trip from Denver to Canon City to run the Oil Well Flats trails today and it didn't move the whole trip (despite serious cross-winds).

On a tangent note, when I did this trip with my Model X I always ... ALWAYS ... has to stop for a charge somewhere. Not with the Rivian (and I'm running the 20's), just stuck it in Conserve mode on the I-25 and actually came back with more range than originally estimated, and that includes the northbound entrance into Lone Tree where traffic starts cranking along at 85mph.

Love this truck.



Screenshot 2023-03-09 at 19.05.01.png
Can you take a few more pictures of the block and how it attaches? Slick!


DTown3011

Well-Known Member
Joined
Jun 7, 2022
Threads
28
Messages
1,666
Reaction score
2,227
Location
Denver, CO
Vehicles
Rivian R1T

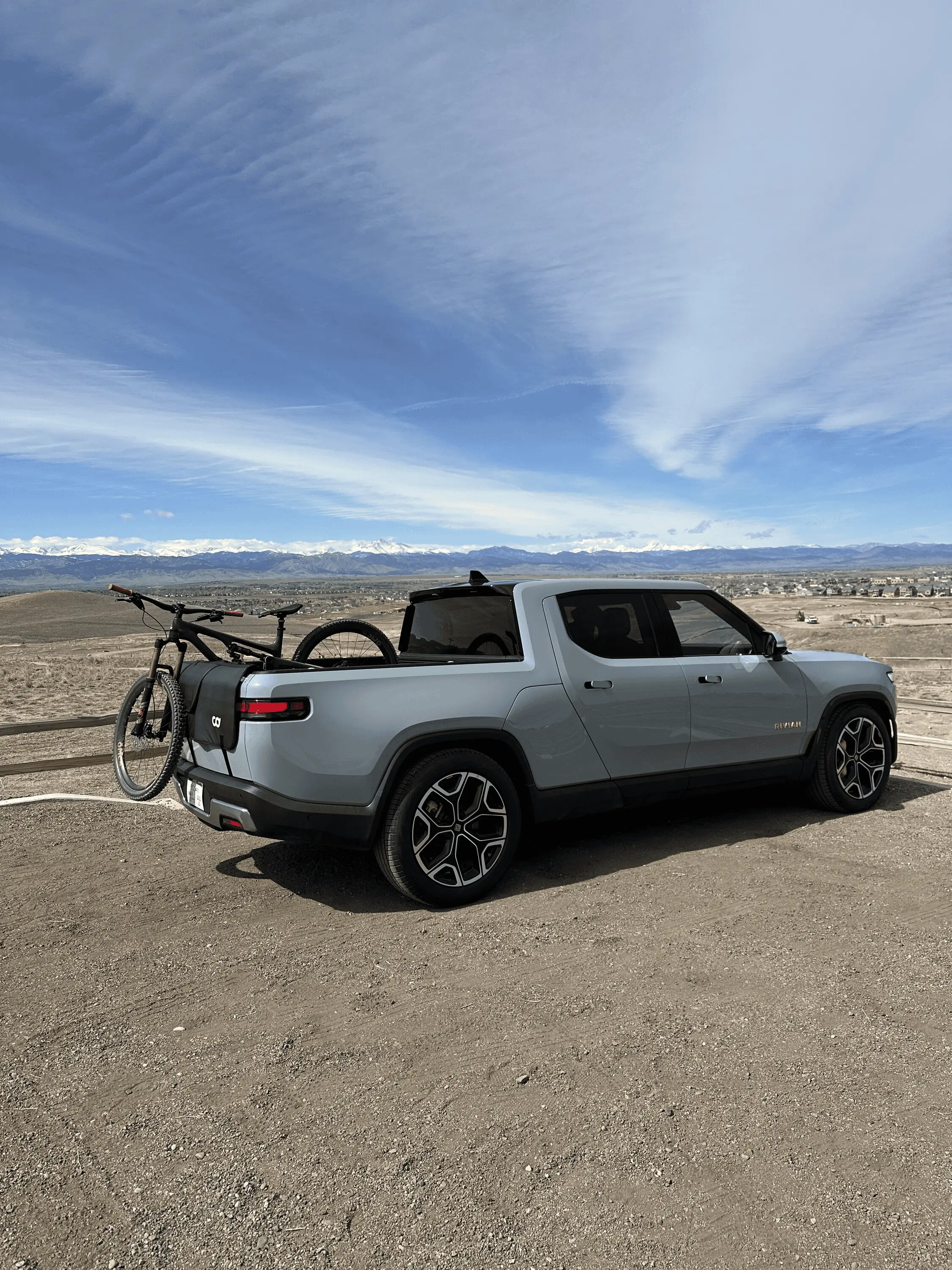

I ordered the RaceFace T2 and the CyclingDeal 52" pad from Amazon and, I think we've found a winner. The T2 had too much extra at the top to fit the tailgate well, this one fits much better and the cradles for the downtubes are nice and fit just above the tailgate insert piece that moves when you open it. This one is clean and the price is right. The only "quirk" is it's best if you hold up the tailgate insert piece when opening/closing the tailgate. I'd highly recommend:

CyclingDeal Tailgate Bike Pad - Mountain Bike Carrier Bicycle Rack Cover Protection Mats for Pickup Truck - 52" Wide Fits up to 5 Bikes (amazon.com)








Rivian R1T R1S R1T and Mountain Biking 1678830408161


Sponsored

kylealden

Well-Known Member
First Name
Kyle
Joined
Feb 25, 2021
Threads
20
Messages
1,403
Reaction score
4,282
Location
Seattle
Vehicles
2022 Rivian R1T LE (QM/L), 2024 Zero DSR/X
Occupation
Product Management
Looks great! Working on my set up now. What size is the Santa Cruz? 29er? Can't tell from the photo. Does the front tire bar bang/damage the truck's spoiler?
I have a similar setup. With an XL 29er, you do have to be careful to make sure you don't open the front tire bar too far or it will hit the spoiler. But it's easy enough to eyeball while you loosen it, and then just open the rear tire bar all the way. You can choose to move the racks back and forth quite a bit on the crossbars, so you can give yourself more room to play with, at the extent of the bikes protruding more over the rear of the truck.

I've seen some folks add a mark or block of some kind to the ratchet mechanism as insurance against opening the front too far. In practice unless you're letting kids do it or opening it with your eyes closed, it's not really an issue.


josephponline

Well-Known Member
Joined
Jan 23, 2023
Threads
3
Messages
60
Reaction score
75
Location
Colorado
Vehicles
Rivian R1T
Can you take a few more pictures of the block and how it attaches? Slick!

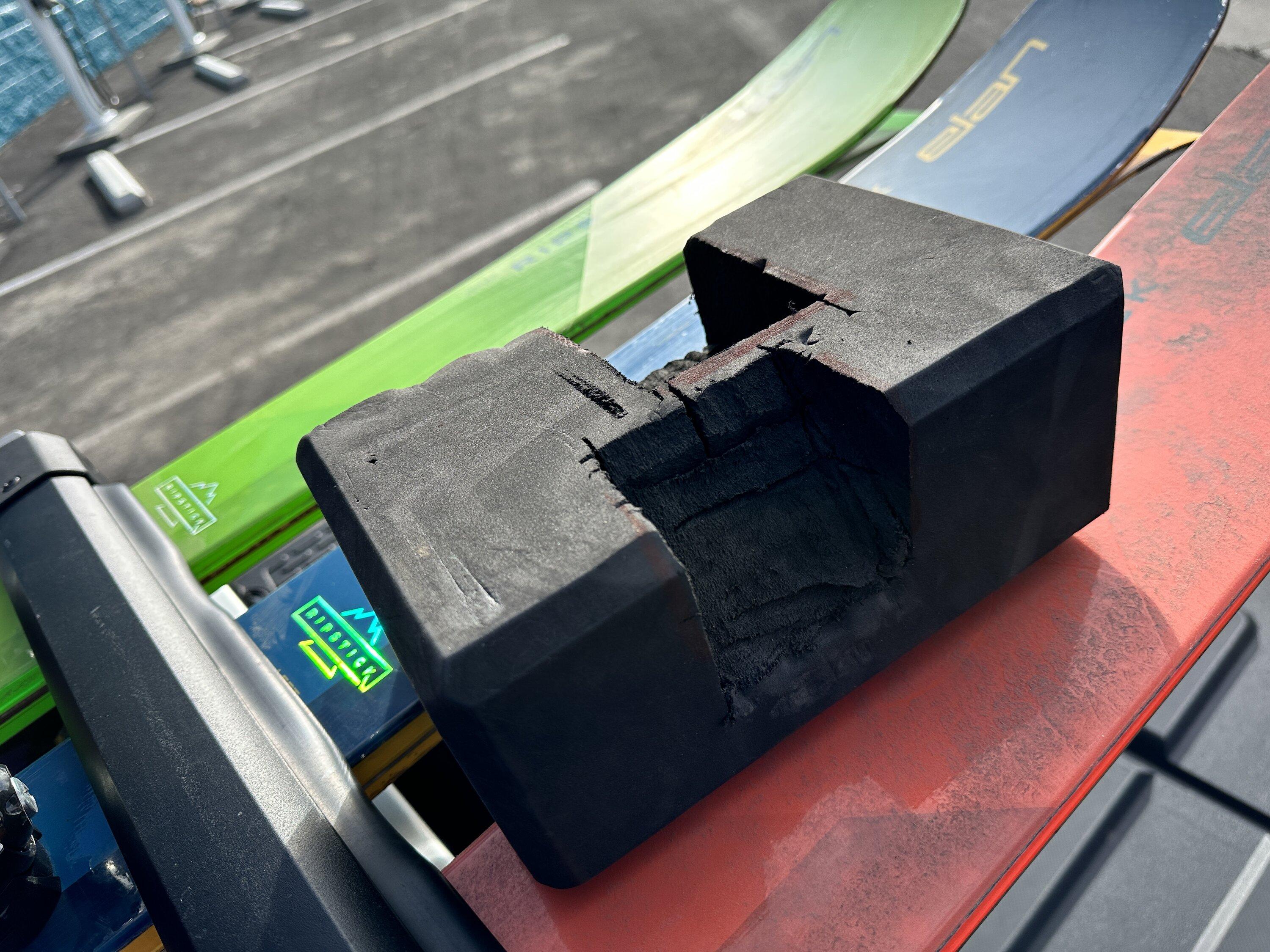

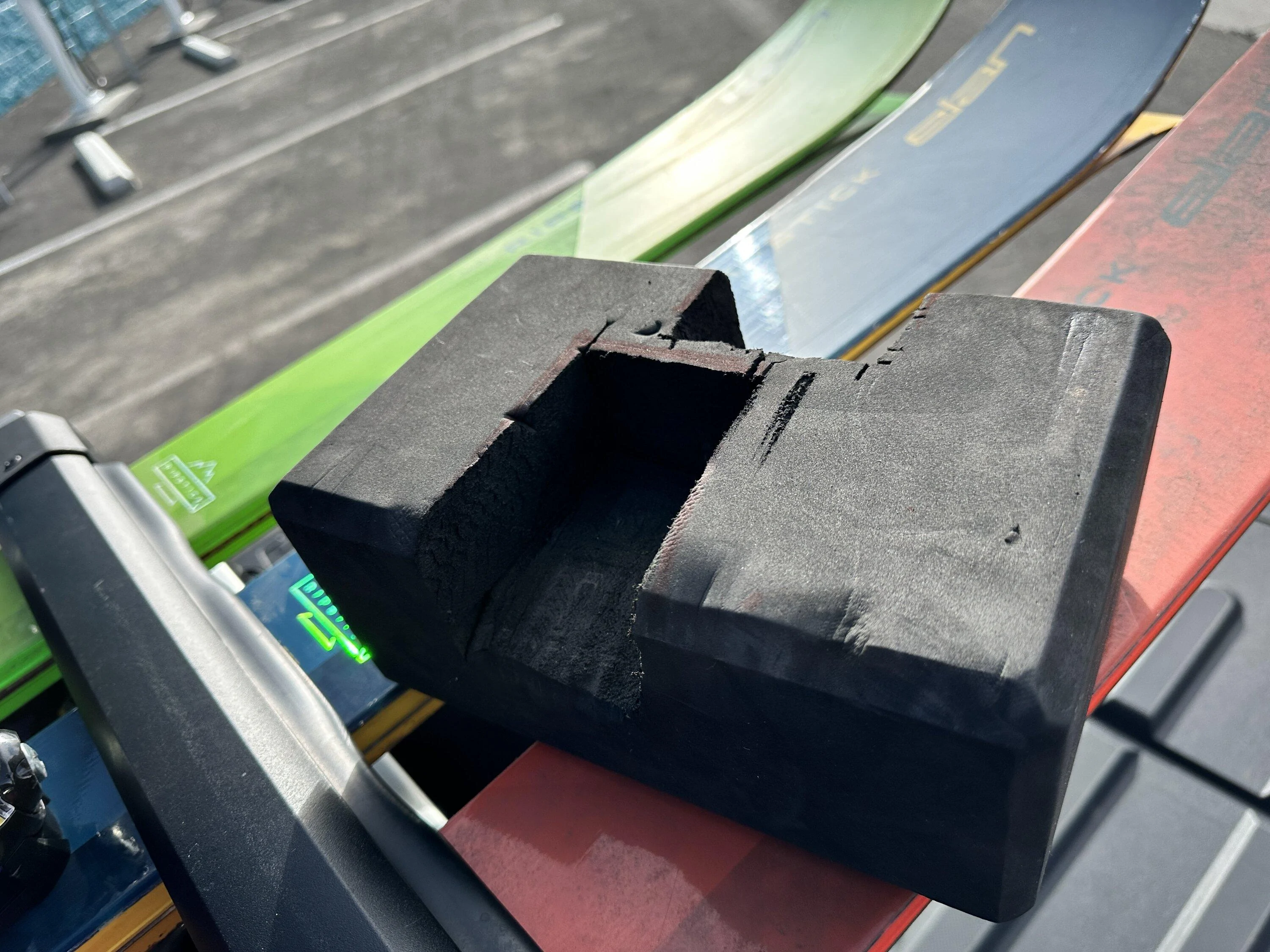

I’m actually on a ski trip at the moment so I’ve only got a photo of my first rough cut yoga block. I think when you see it you’ll get the idea. Here’s the link to what I bought.

https://www.amazon.com/dp/B00O5YIHWA?ref=ppx_pop_mob_ap_share

Basically I attach my bike to the front of my Ride88, I then close the tailgate, and as I do the rear wheel rolls up the tailgate from the inside. Either your crank case or your wheel will rest on the tailgate or a bit of both like mine does.

I then lift or roll the back wheel onto my shoulder, put the foam block on the lip of the tailgate and rest the bike on the block on the tailgate.

I then ratchet the bike down using the tie straps at the back end of the bed, and the bike does not move at all.

To create my block I used a marker pen to mark out where my crank case and wheel were resting and then used a bit of trial and error and science to work out how deep each cut needed to be. I did think about an attachment mechanism to keep the yoga block attached to the lip of the tailgate, but ultimately, I decided for both aesthetics and aerodynamics it wasn’t worth it.

Once the bike is resting on the block, and it is tied down the block nor bike moves at all.

Interestingly enough on my first try it worked really really well. The cut outs don’t look great here because this is my rough block, however, it still functions perfectly. You can see the wide cutout is for my crank case and the narrow sculpted angled cut is for my wheel.

Hopefully that makes sense. Happy to take further questions, when I get back to Denver early next week I’ll take some more photos if you need them.

Rivian R1T R1S R1T and Mountain Biking 0BE689B5-4CD2-447C-8A79-889206E6A547


Rivian R1T R1S R1T and Mountain Biking 68A84EA7-6CAF-4320-8DEF-05ED9B5457E4


Rhbecker3

New Member
First Name
Ryan
Joined
Oct 4, 2021
Threads
0
Messages
3
Reaction score
7
Location
Livermore, CA
Vehicles
Jeep Wrangler Rubicon ‘09
Looks great! Working on my set up now. What size is the Santa Cruz? 29er? Can't tell from the photo. Does the front tire bar bang/damage the truck's spoiler?

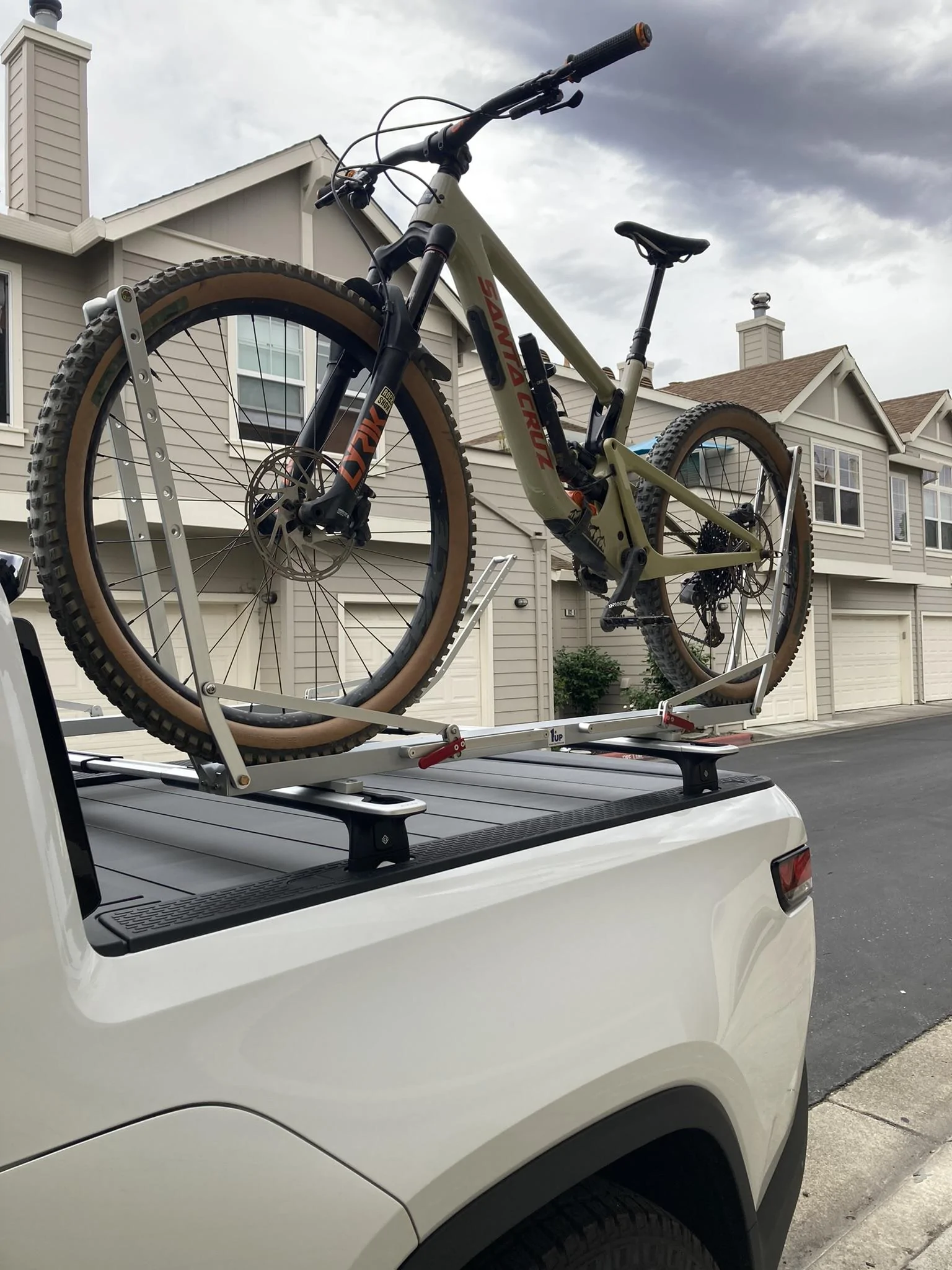

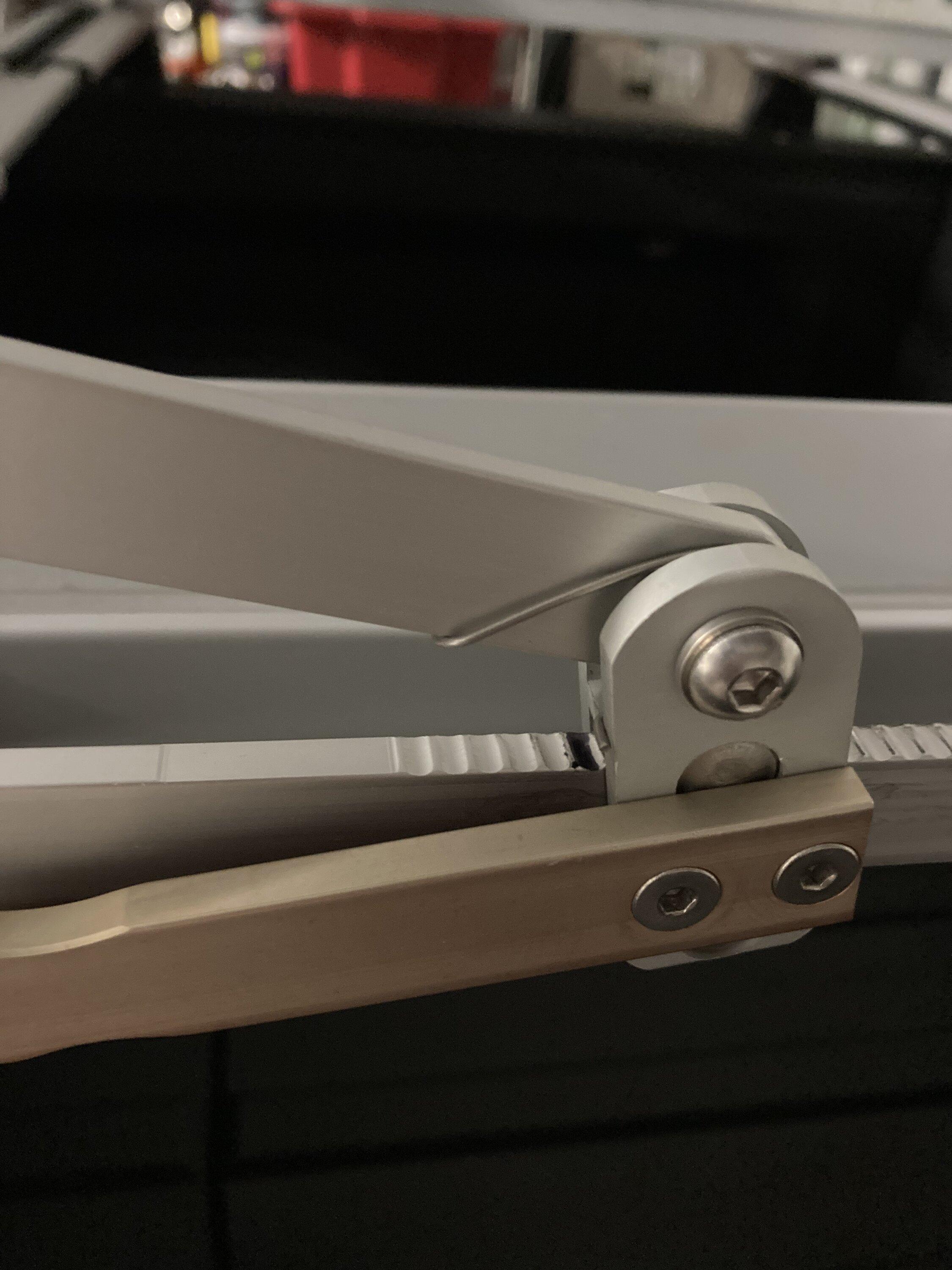

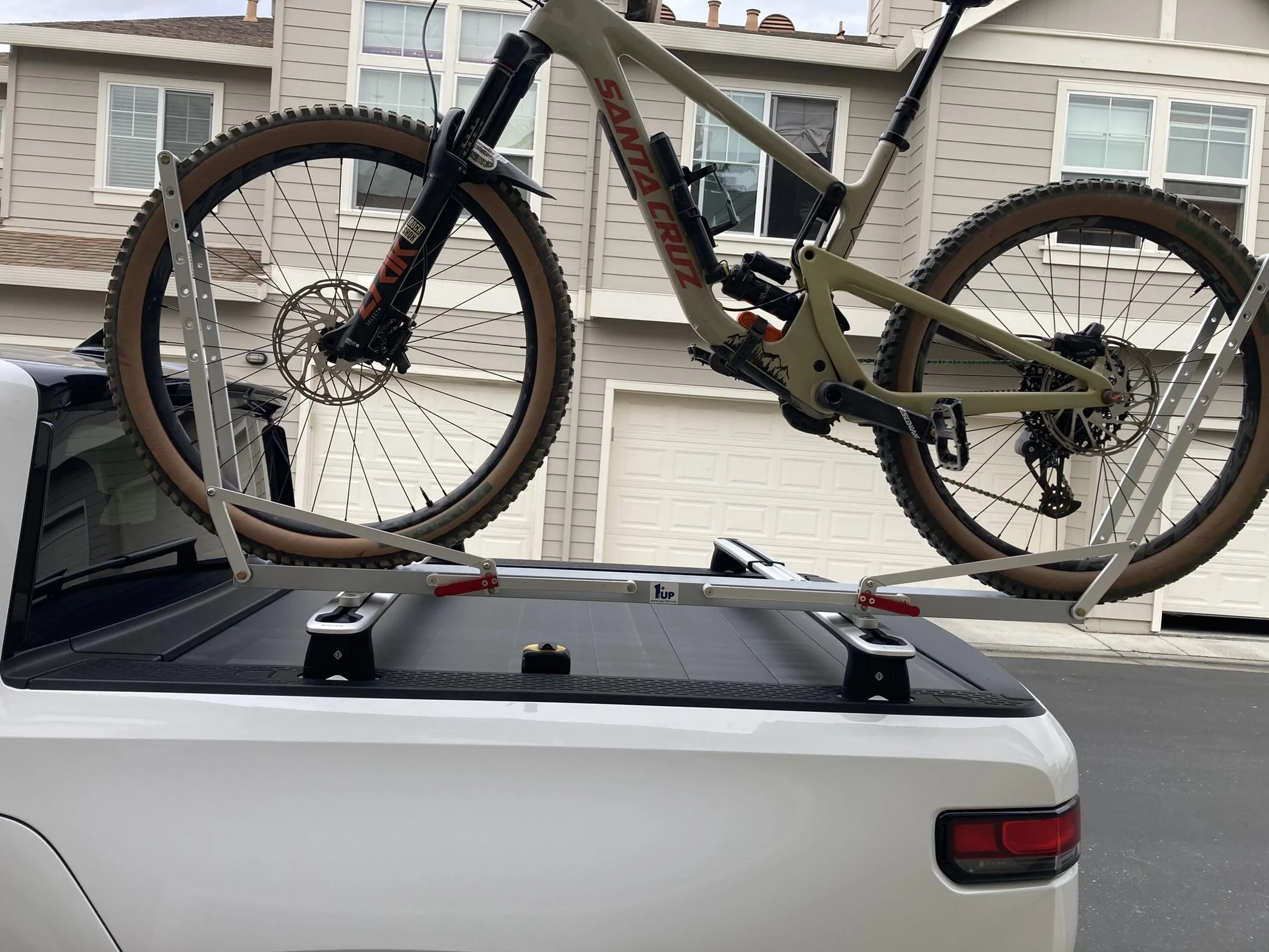

Thanks @jcreviston . It is a large Hightower set up mullet but the rack can fit full 29er. The front tire carrier/bar never comes close to hitting the spoiler but could if you really extended it. As for the front tire, I marked the glide bar so I know the correct spot for the tire carrier to be in order to not hit the spoiler (here is a photo). The key is also to set the rack at far ends of the crossbars so the front tire is positioned where the spoiler starts to taper. I can post some dimensions of the how I located my racks if that will be helpful.
Rivian R1T R1S R1T and Mountain Biking C1C39794-5670-4A23-97D7-A8A149F30006


Uber Wagon

Member
Joined
Nov 11, 2022
Threads
1
Messages
8
Reaction score
3
Location
Boulder, CO
Vehicles
Rivian R1T (Limestone)
I’m actually on a ski trip at the moment so I’ve only got a photo of my first rough cut yoga block. I think when you see it you’ll get the idea. Here’s the link to what I bought.

https://www.amazon.com/dp/B00O5YIHWA?ref=ppx_pop_mob_ap_share

Basically I attach my bike to the front of my Ride88, I then close the tailgate, and as I do the rear wheel rolls up the tailgate from the inside. Either your crank case or your wheel will rest on the tailgate or a bit of both like mine does.

I then lift or roll the back wheel onto my shoulder, put the foam block on the lip of the tailgate and rest the bike on the block on the tailgate.

I then ratchet the bike down using the tie straps at the back end of the bed, and the bike does not move at all.

To create my block I used a marker pen to mark out where my crank case and wheel were resting and then used a bit of trial and error and science to work out how deep each cut needed to be. I did think about an attachment mechanism to keep the yoga block attached to the lip of the tailgate, but ultimately, I decided for both aesthetics and aerodynamics it wasn’t worth it.

Once the bike is resting on the block, and it is tied down the block nor bike moves at all.

Interestingly enough on my first try it worked really really well. The cut outs don’t look great here because this is my rough block, however, it still functions perfectly. You can see the wide cutout is for my crank case and the narrow sculpted angled cut is for my wheel.

Hopefully that makes sense. Happy to take further questions, when I get back to Denver early next week I’ll take some more photos if you need them.



That's a neat idea. What did you settle on for ski mounting? Our nordic skis are too long for the tunnel or bed.


josephponline

Well-Known Member
Joined
Jan 23, 2023
Threads
3
Messages
60
Reaction score
75
Location
Colorado
Vehicles
Rivian R1T
That's a neat idea. What did you settle on for ski mounting? Our nordic skis are too long for the tunnel or bed.

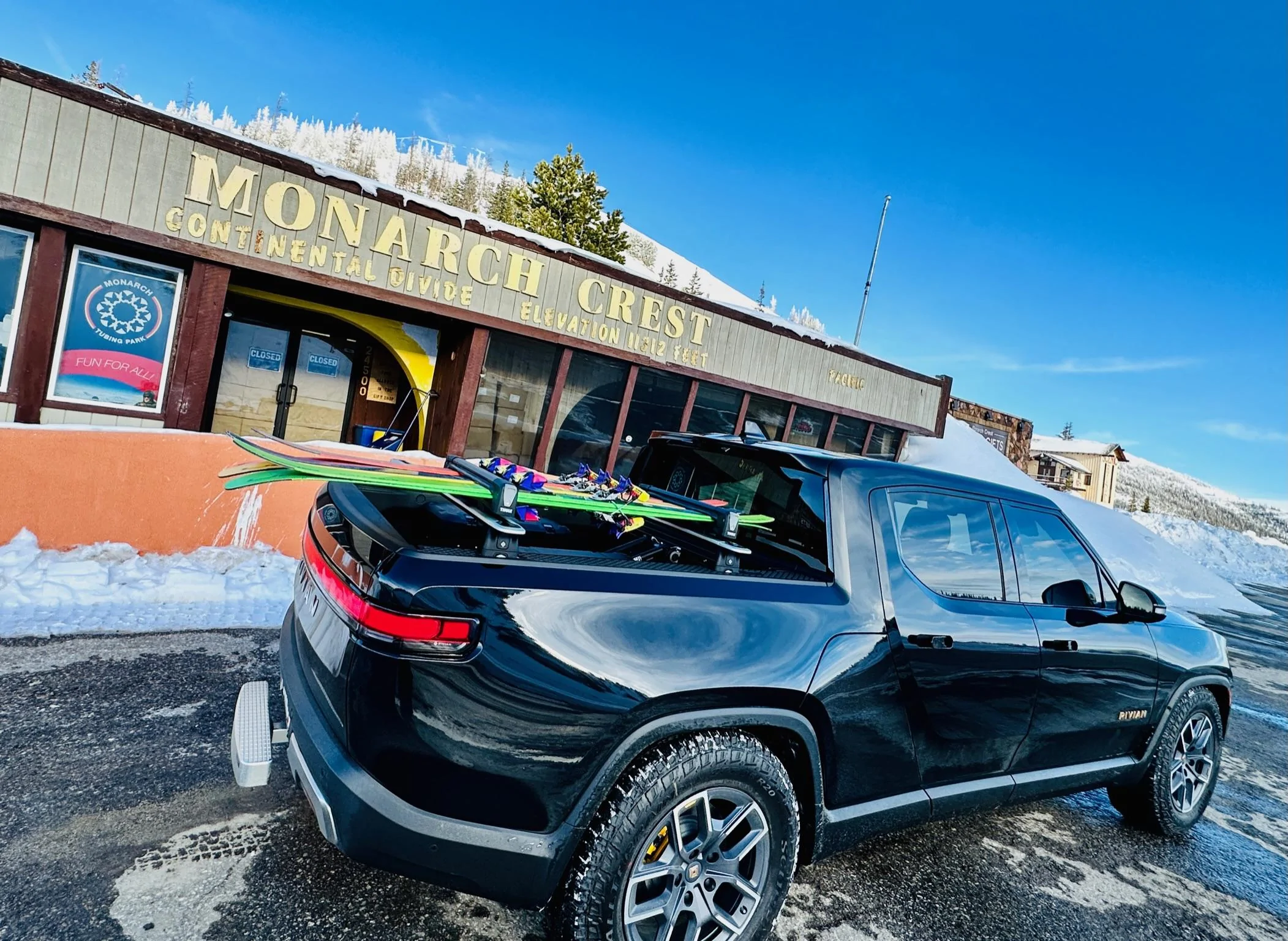

I had an old Thule Snowpack ski rack. I just slid the T bolts in and off I went. It’s certainly not as aerodynamic as the Yakima.

Regarding skis … I had the same problem, gear tunnel to small, and bed to short. I ride 188s so had to mount them tail forward on the Thule rack to fit right on the crossbar spacing given where the bindings sit. The tips hang off the back quite a bit as you can see from the photo.

Just did a 200 mile trip to Crested Butte in snow and slush and didn’t notice any grime buildup, so happy with both my “summer” and “winter” configurations now.

Rivian R1T R1S R1T and Mountain Biking 30C0B130-35A1-4BB2-A482-78A6BFC57D94
