R2 Sub-Trunk : Measurements (Dimensions Added)

[Doogl]

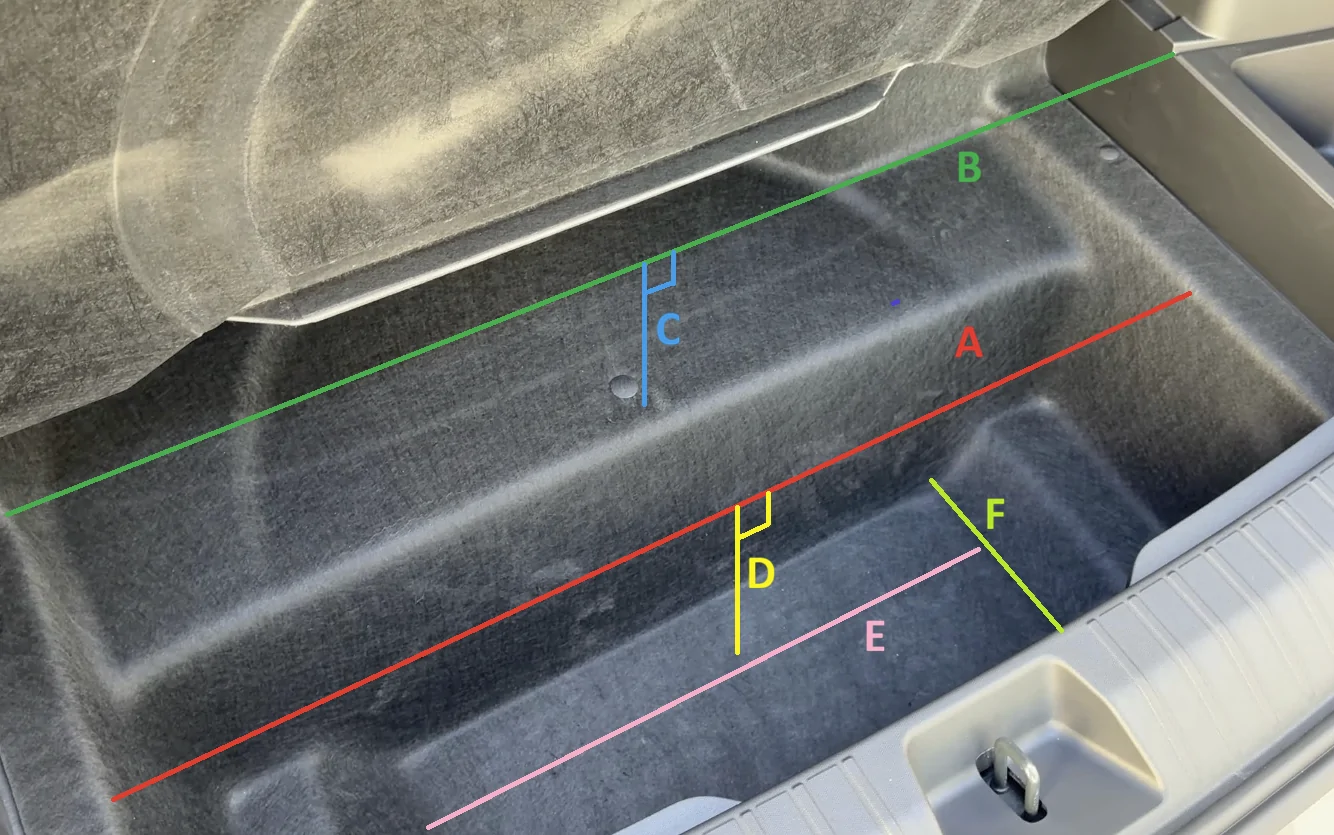

Hi all! I've turned over every rock and looked behind every tree, but I haven't been able to find anything specific. This question has been asked before, but now that we've got a lot more folks who've taken delivery, could I bother someone to take a few measurements of the Sub-Trunk? I'm looking to build out a "kit" to fit into this space and need to understand the dimensions better. Metric or Imperial are fine, and anything within 1cm/0.5 in should be fine.

Thank you so much in advance!

(I realize as I upload this that "B" seems a big ambiguous, I'm looking for the full measurement between the plastic "edges" of the compartment.)

Sponsored



[KBabione]

We pick up our R2 on Monday, but I did take my tape measure to my test drive and have a couple of the measurements you requested:

C - 2.5"
D - 13"
E - 21"
F - 8.5"

Here are my photos (my tape measure is 2" in case you want to check my readings). My purpose was to start looking for a portable fridge that could live there (we use the one in our R1S subtrunk often) but it's not looking so good...It's an oddly shaped space and isn't nearly as large as the R1S subtrunk. I don't think I'd recommend cutting anything based on my measurements, but perhaps you can at least do your drawings. I'll get you A & B next week if someone doesn't beat me to it.

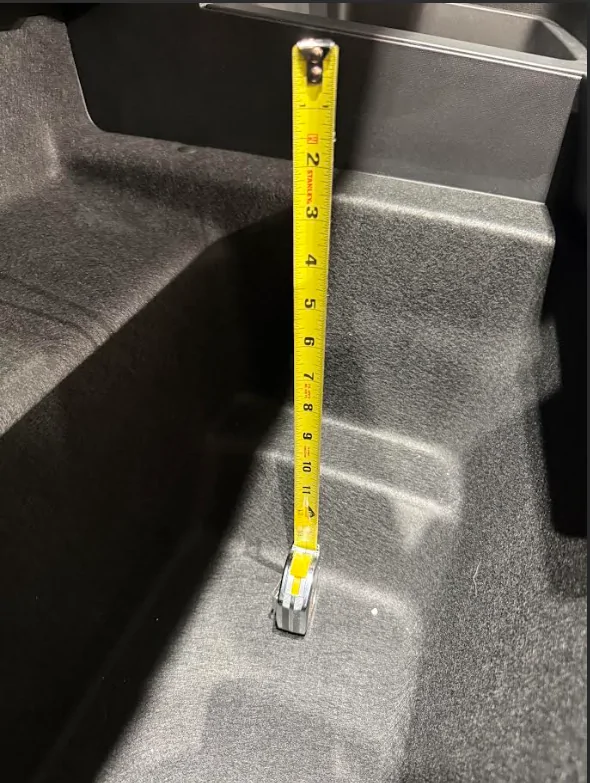

C&D

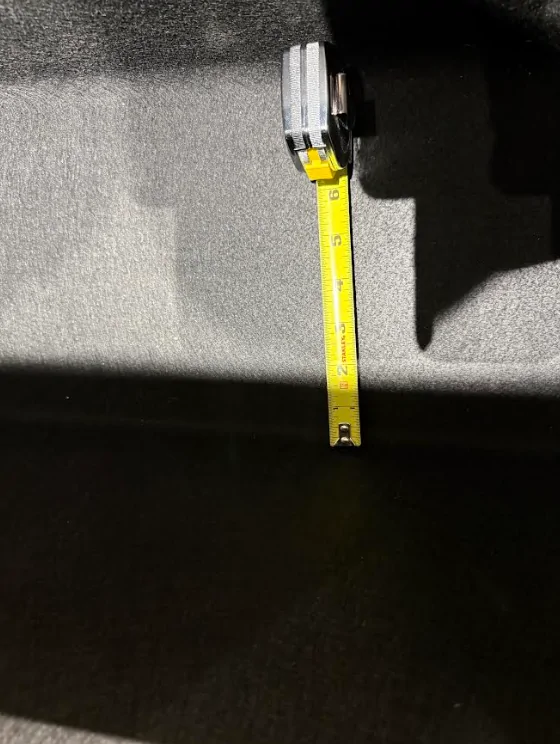

E

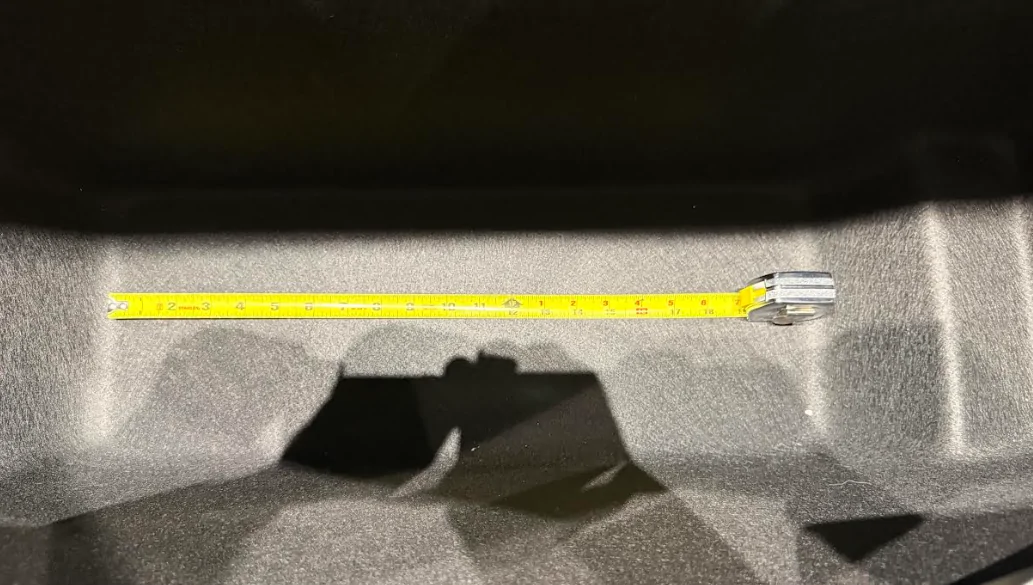

F



[Doogl]

I did take my tape measure to my test drive and have a couple of the measurements you requested:

Hugely helpful, you rock! Thank you!
