Completed my RMaxx Running Board install (R1S)

[R1Sky Business]

I am happy to report that after reading all the posts about the EV Sportline running boards on here, I was able to complete my DIY install and am very happy with the outcome. I will confirm what others have said, that the product is very well constructed and high quality. I was a bit nervous about doing my own install, but it was actually pretty effortless and came out great (took about 5 hrs).

I used the option to cut out the L and T slots per the template as I wanted a cleaner look and wanted to retain the panels under the vehicle. I also used the @jebinc tip for Gorilla Patch Tape to close it off and make it even cleaner looking.

Tips learned from my process:
1) Don't forget to put the vehicle in Off Road mode for extra height (I initially only used High in All Purpose mode which is not full height)
2) Watch the videos on the EV Sportline site about dealing with the clips. A little patience getting them off helps.
3) We cut out the L and T slots from the paper template as well as the panel bolt reference holes and then used a sharpie to draw the L and T slots on the panels so there was no issue with paper shifting during the cutting process
4) Using an oscillating saw with a D shaped plastic cutting blade, was easy like cutting butter and resulted in clean cuts.

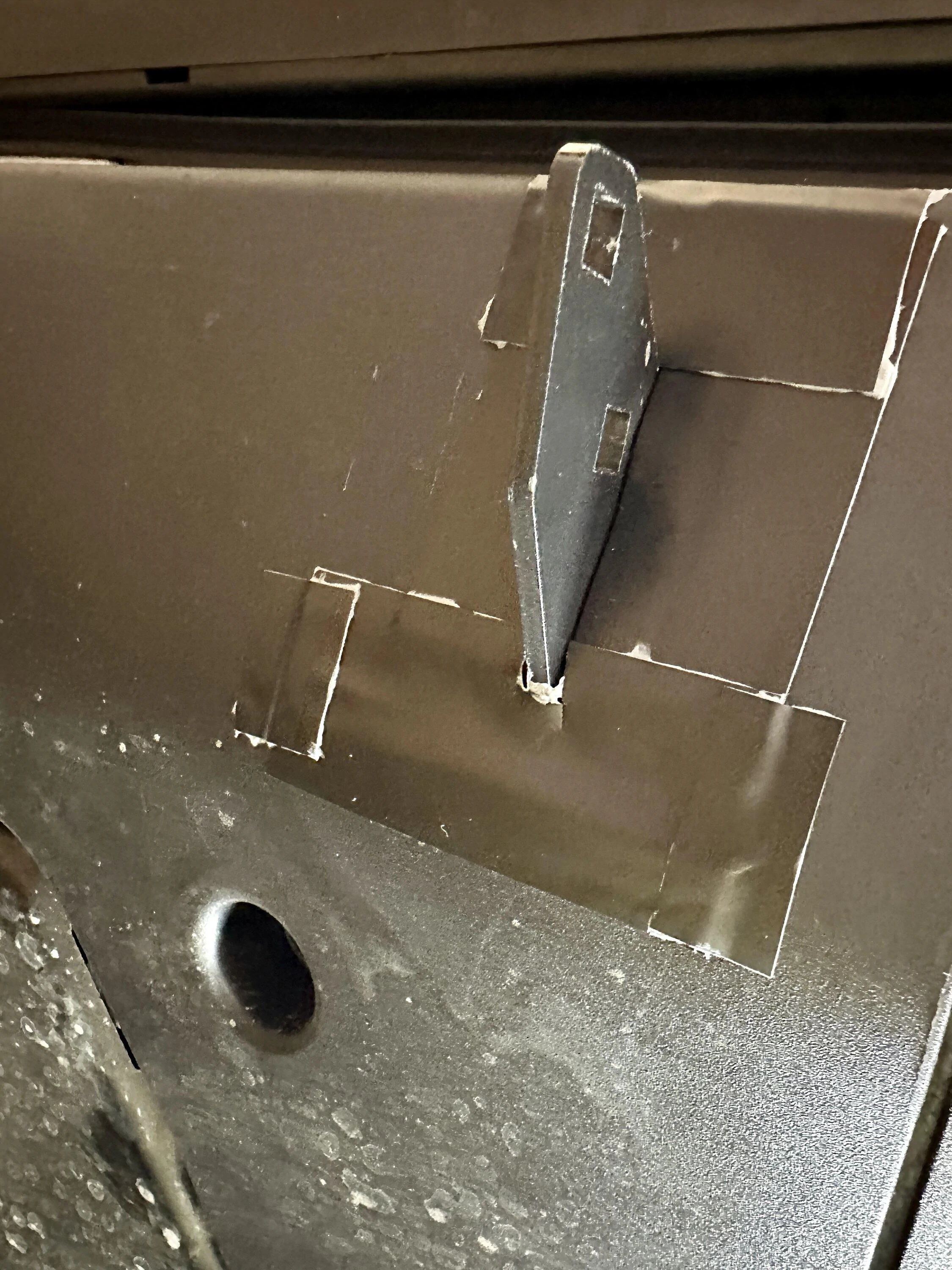

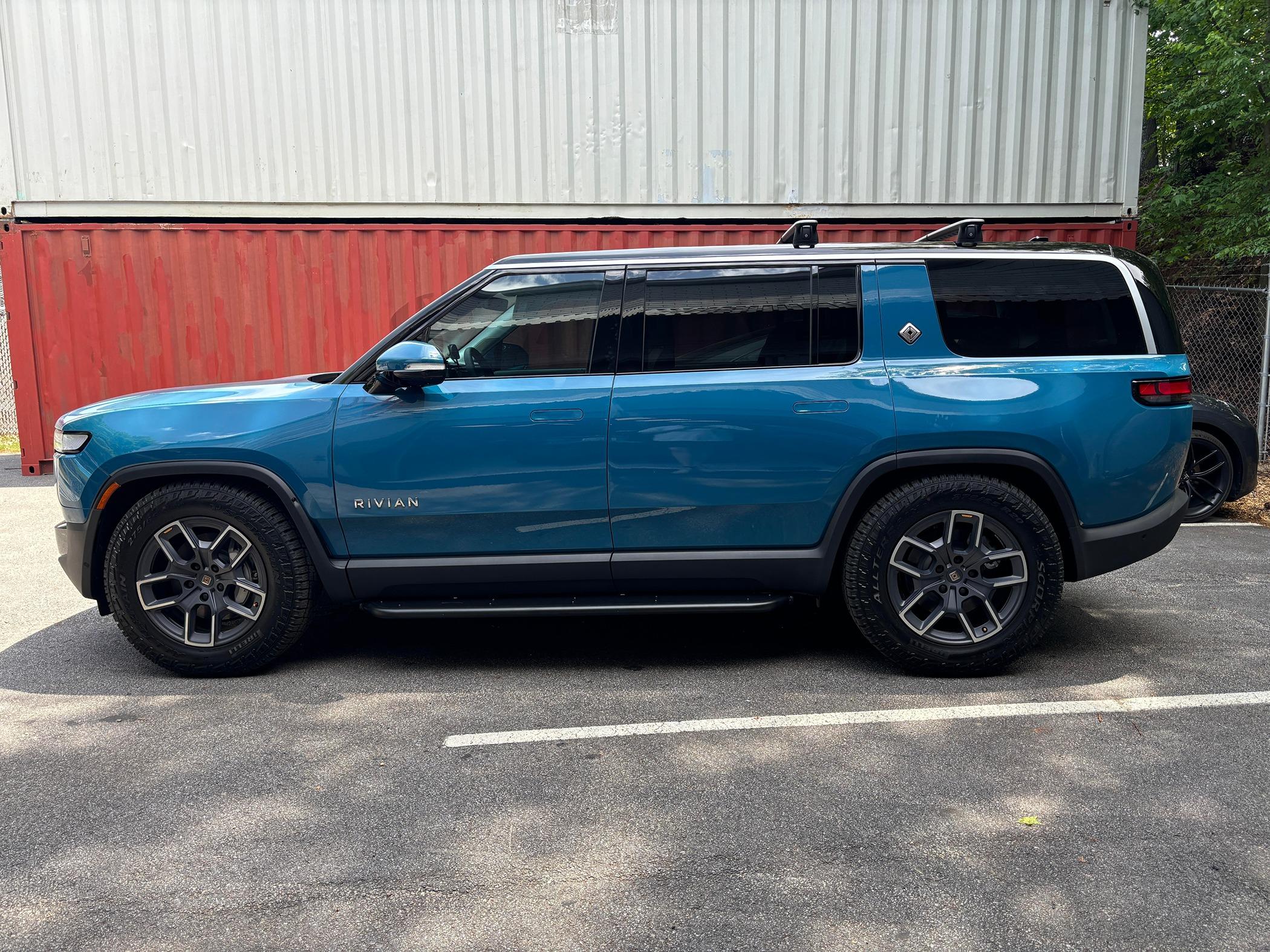

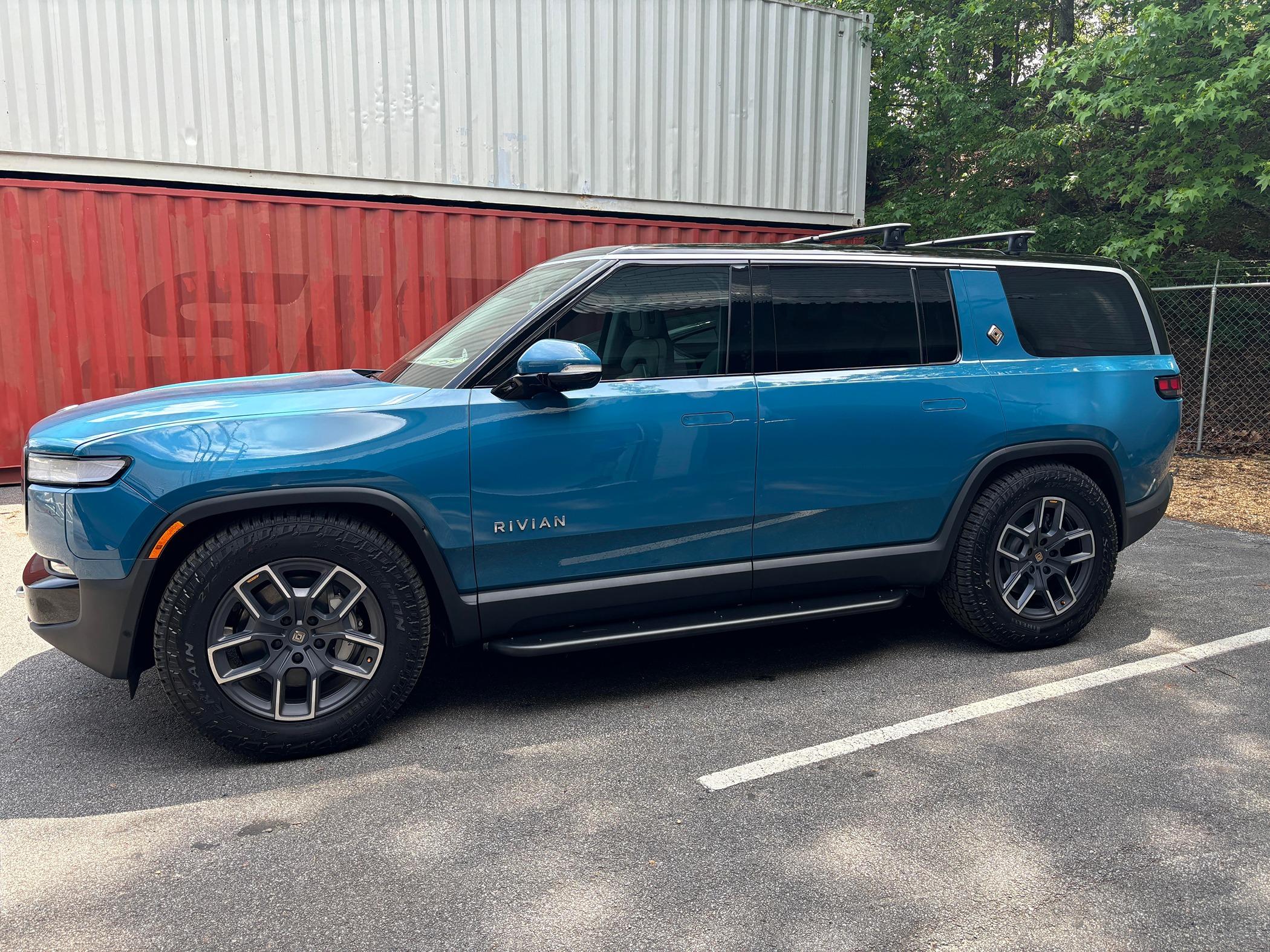

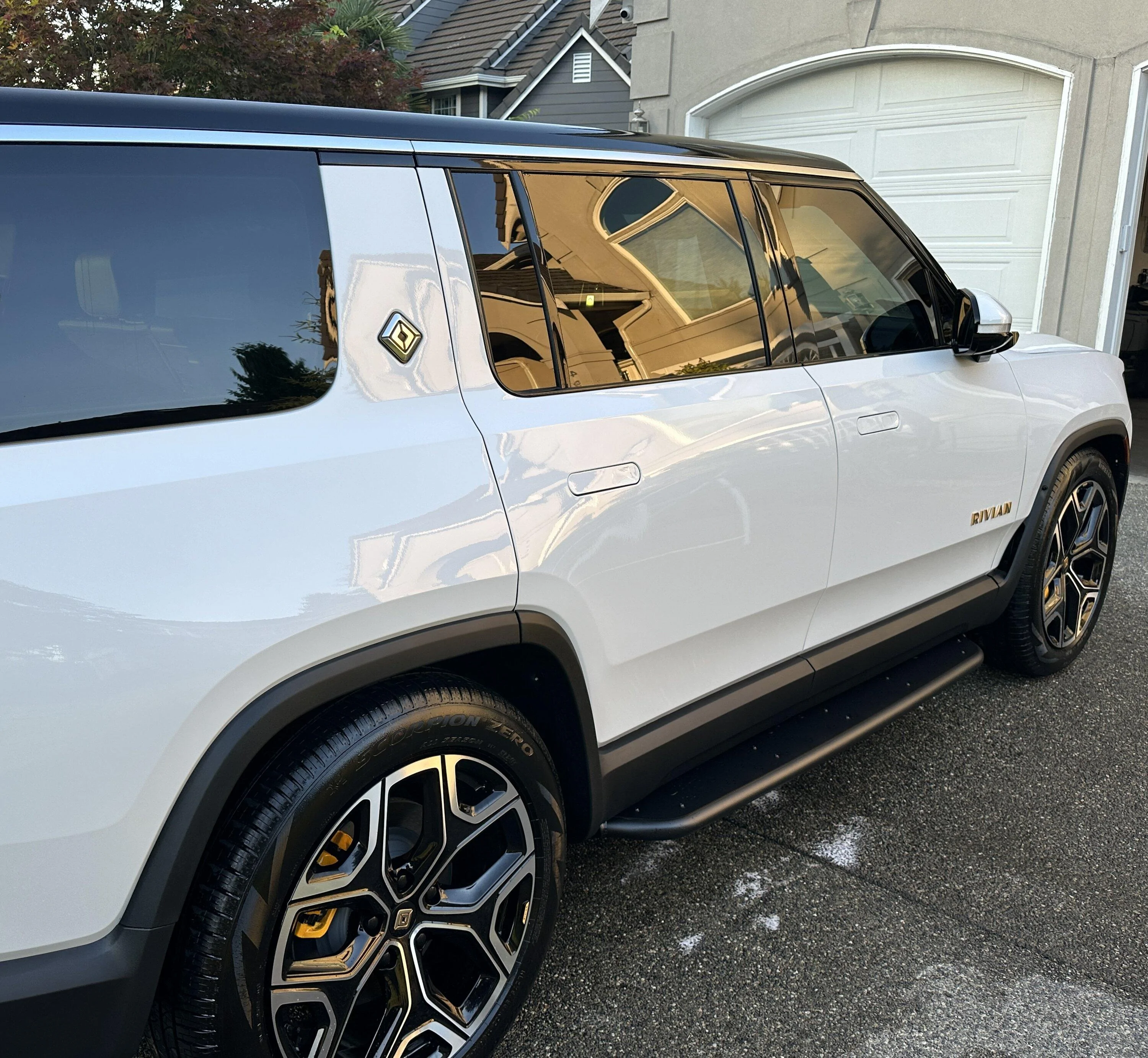

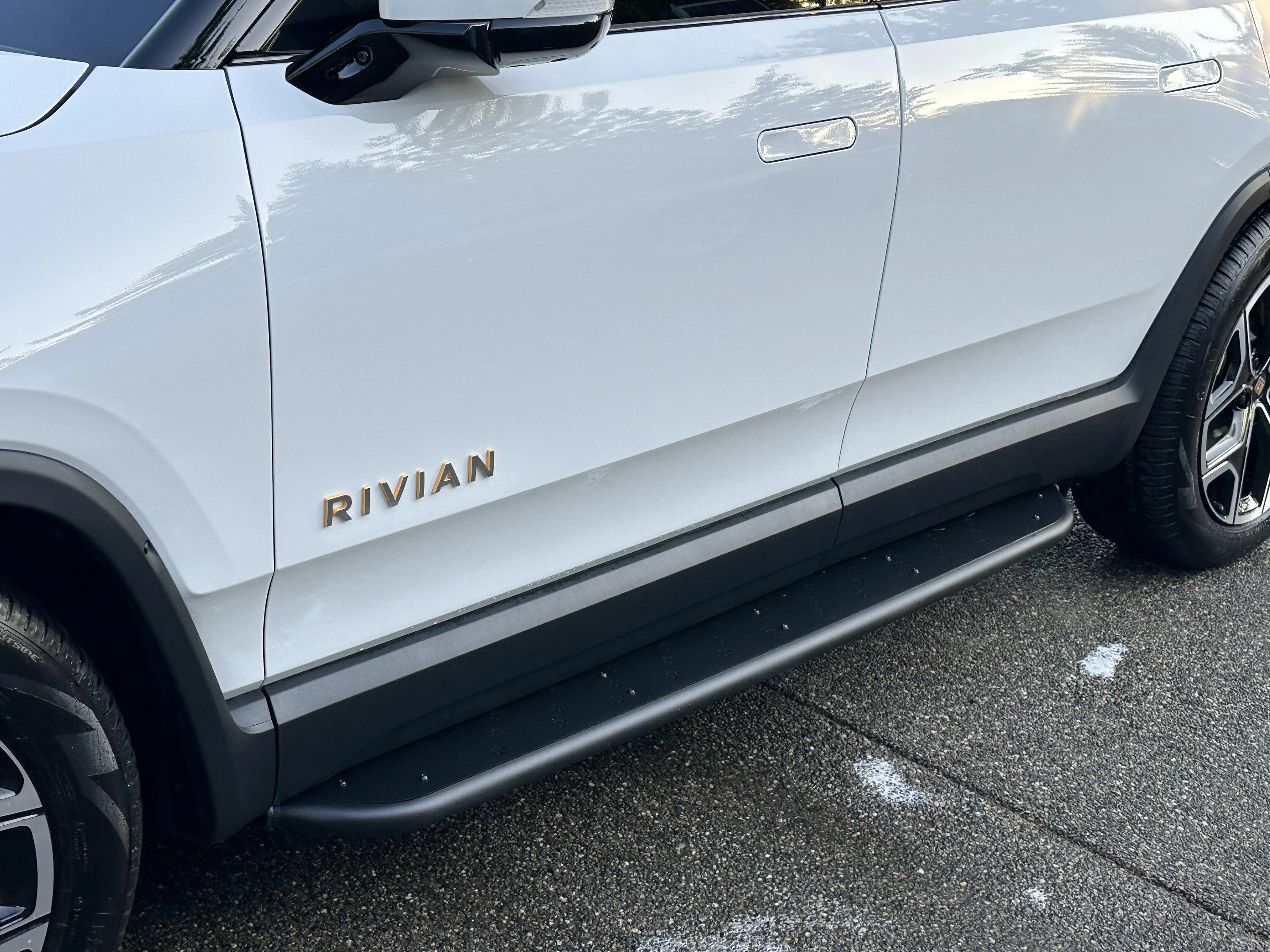

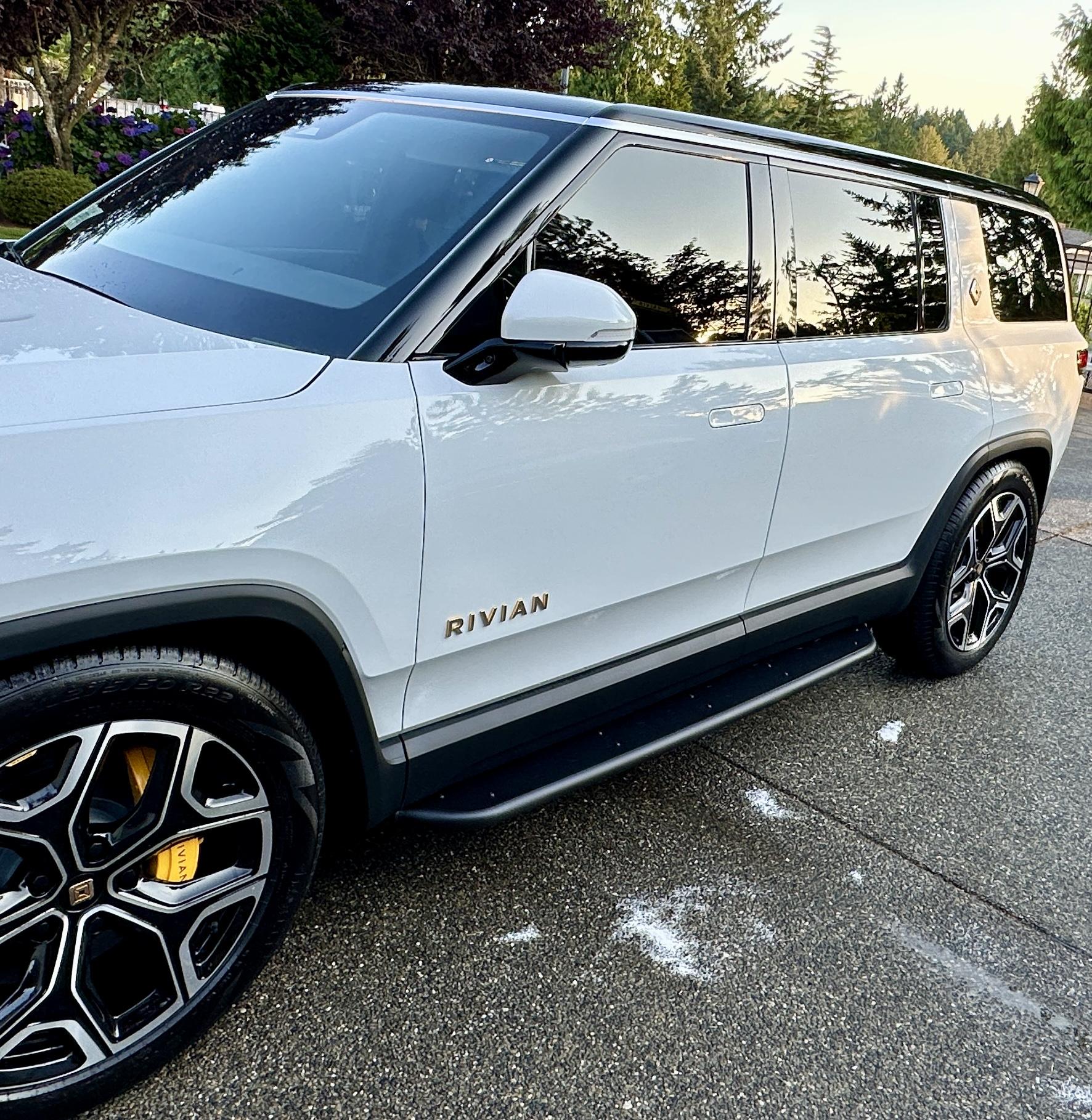

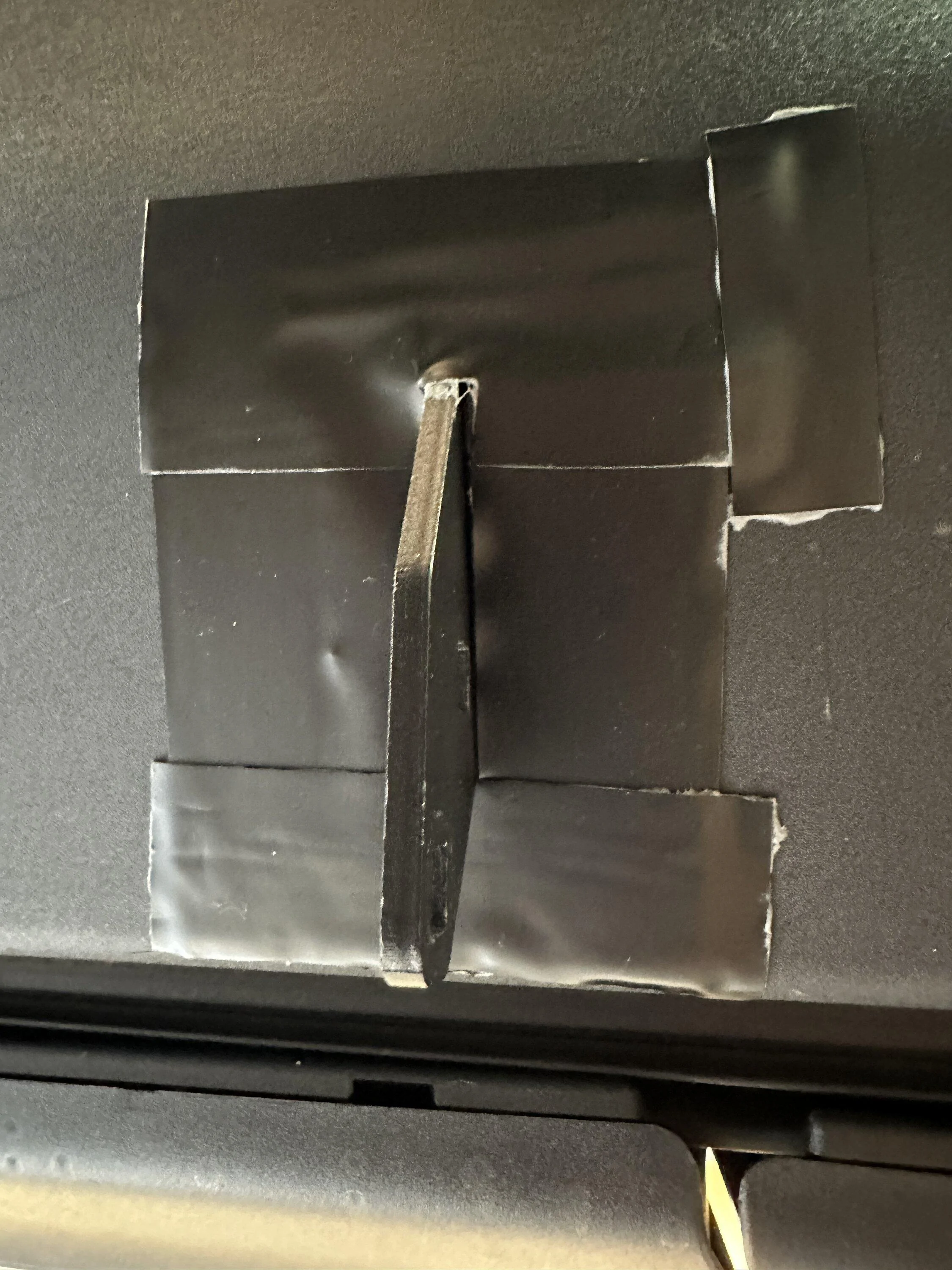

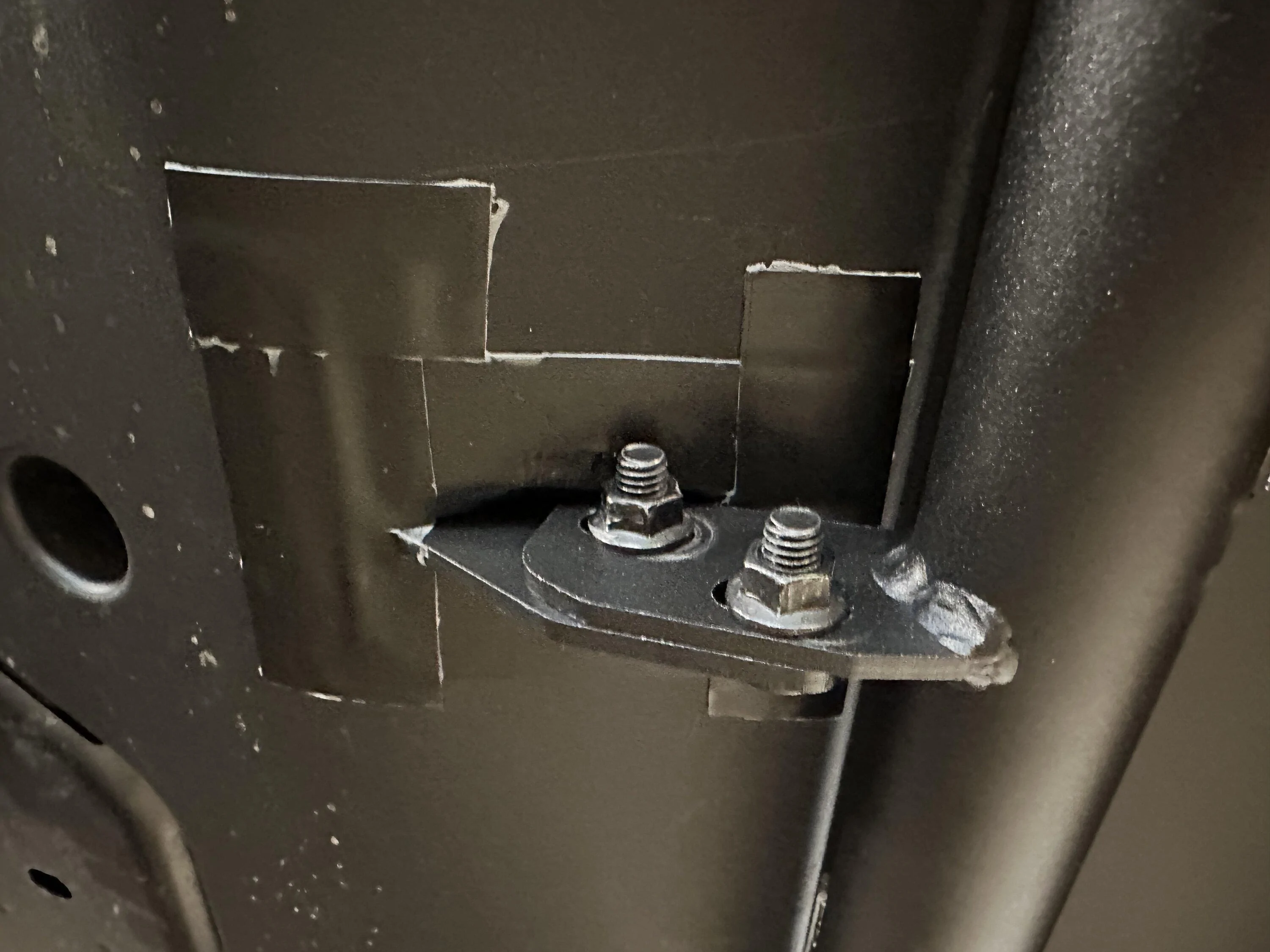

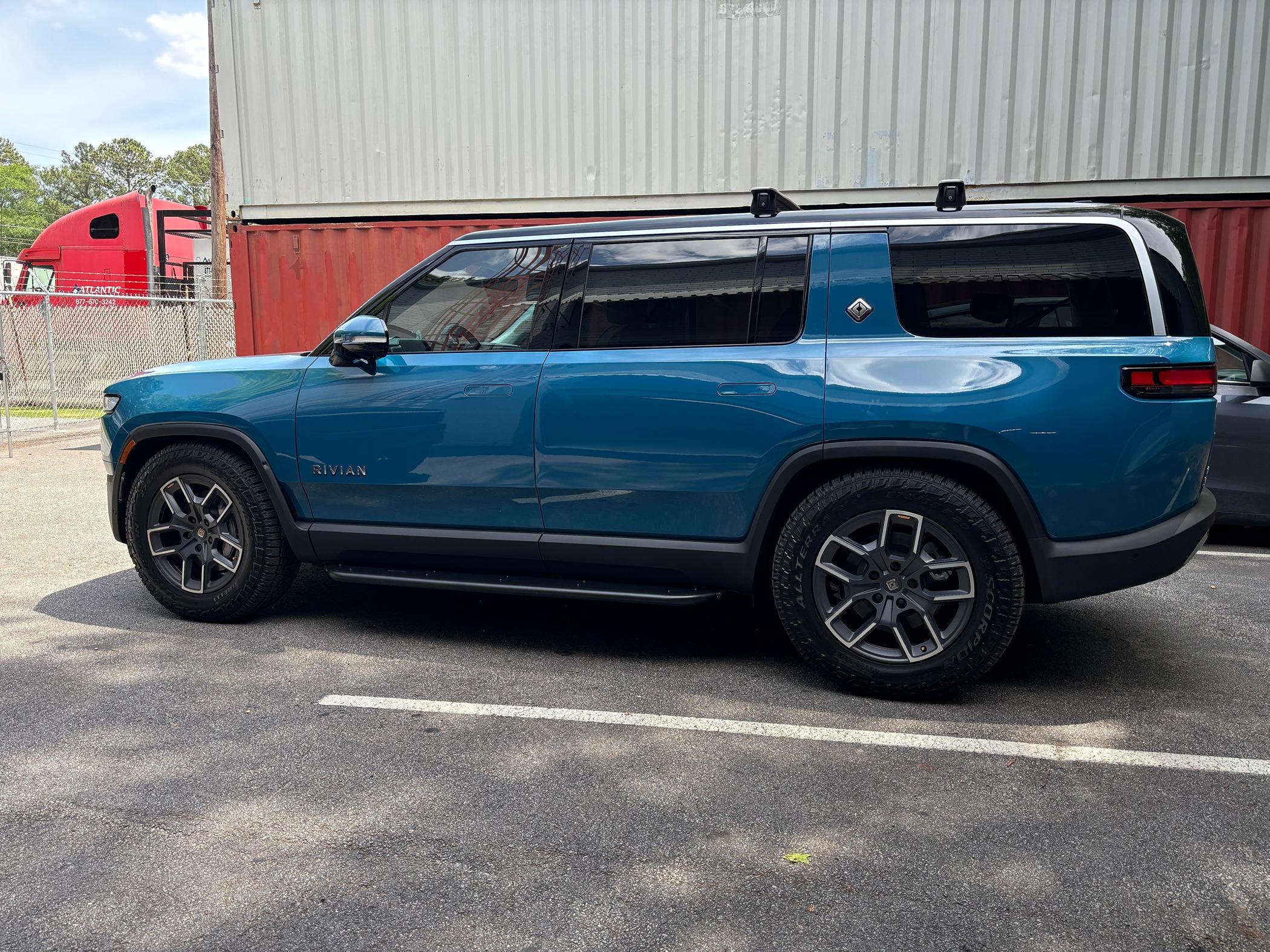

Here are some pics of the end results and the tape method to cover the gaps between the brackets and Panels.

Thanks @EV Sportline for putting out a great product.

McGrubber!!!!

Sponsored



[madtownbred]

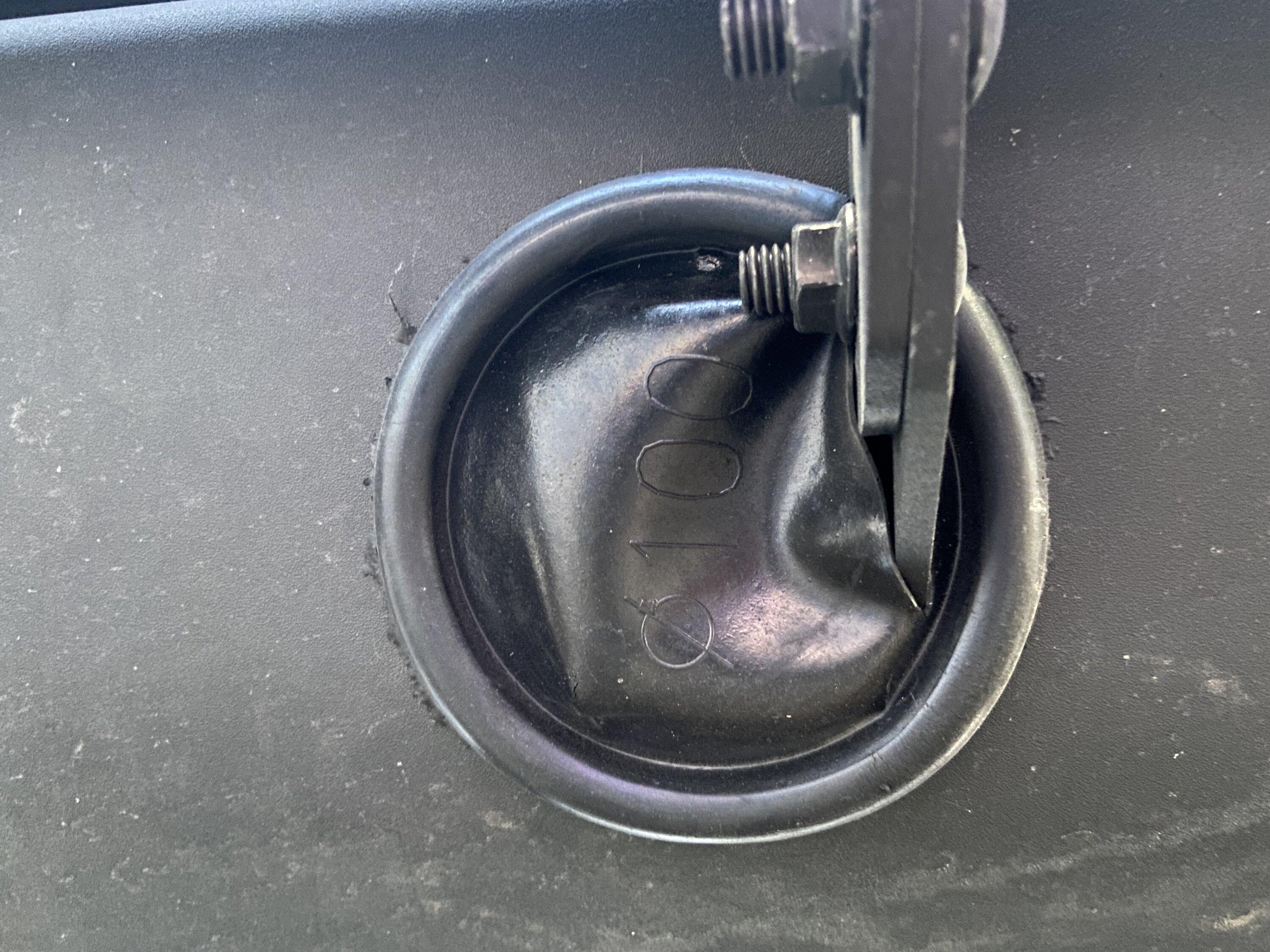

nice. but is that really cleaner than the round cuts? maybe depends on how we define clean

I wanted to do the round cuts for simplicity and ease, please share how to made it so squeaky clean as well.



[eDad_R1S]

I have been debating adding these to my R1S. Have you noticed any impact to the highway range?



[kozak79]

I have been debating adding these to my R1S. Have you noticed any impact to the highway range?

I took a long road trip and didn't notice any range impact on my R1T.



[Robotpedlr]

I have been debating adding these to my R1S. Have you noticed any impact to the highway range?

I would image the impact is very low (to nothing) since they are flat and have very limited horizontal surface area.



[cashcollector]

I am happy to report that after reading all the posts about the EV Sportline running boards on here, I was able to complete my DIY install and am very happy with the outcome. I will confirm what others have said, that the product is very well constructed and high quality. I was a bit nervous about doing my own install, but it was actually pretty effortless and came out great (took about 5 hrs).

I used the option to cut out the L and T slots per the template as I wanted a cleaner look and wanted to retain the panels under the vehicle. I also used the @jebinc tip for Gorilla Patch Tape to close it off and make it even cleaner looking.

Tips learned from my process:
1) Don't forget to put the vehicle in Off Road mode for extra height (I initially only used High in All Purpose mode which is not full height)
2) Watch the videos on the EV Sportline site about dealing with the clips. A little patience getting them off helps.
3) We cut out the L and T slots from the paper template as well as the panel bolt reference holes and then used a sharpie to draw the L and T slots on the panels so there was no issue with paper shifting during the cutting process
4) Using an oscillating saw with a D shaped plastic cutting blade, was easy like cutting butter and resulted in clean cuts.

Here are some pics of the end results and the tape method to cover the gaps between the brackets and Panels.

Thanks @EV Sportline for putting out a great product.

Did you remove the panels for L and T cut?



[Robotpedlr]

Did you remove the panels for L and T cut?

Yes, removed both in order to make the cuts.
