Don't think I've seen this yet on the forum but thought folks might be interested. Here are the details on interior specs (per email from Rivian):

Name SAE Code Unit R1T 5-Passenger R1S 5-Passenger R1S 7-Passenger
Effective Leg Room - DriverL34mm105210521052
Effective Leg Room - SecondL51-2mm931931931
Effective Leg Room - ThirdL51-3mmN/AN/A832
Couple Distance - First to SecondL50-2mm880880880
Couple Distance - Second to ThirdL50-3mmN/AN/A750
Shoulder Room - FirstW3-1mm153915391539
Shoulder Room - SecondW3-2mm149614961496
Shoulder Room - ThirdW3-3mmN/AN/A1298
Hip Room - FirstW5-1mm139413941394
Hip Room - SecondW5-2mm137713771377
Hip Room - ThirdW5-3mmN/AN/A1086
Elbow Room - FirstW31-1mm154815481548
Elbow Room - SecondW31-2mm151515151515
Elbow Room - ThirdW31-3mmN/AN/A1296
Seat Height - FirstH30-1mm315315315
Seat Height - SecondH30-2mm350350350
Seat Height - ThirdH30-3mmN/AN/A310
Effective Head Room - First (Glass Roof)H61-1-Gmm104510451045
Effective Head Room - Second (Glass Roof)H61-2-Gmm97010081008
Effective Head Room - Third (Glass Roof)H61-3-GmmN/AN/A981
My brain is stuck in the US Customary system, so I converted these to inches.

NameSAE CodeUnitR1T 5-PassengerR1S 5-PassengerR1S 7-Passenger
Effective Leg Room - DriverL34Inches41.441.441.1
Effective Leg Room - SecondL51-2Inches36.736.736.7
Effective Leg Room - ThirdL51-3InchesN/AN/A32.8
Couple Distance - First to SecondL50-2Inches34.634.634.6
Couple Distance - Second to ThirdL50-3InchesN/AN/A29.5
Shoulder Room - FirstW3-1Inches60.660.660.6
Shoulder Room - SecondW3-2Inches58.958.958.9
Shoulder Room - ThirdW3-3InchesN/AN/A51.1
Hip Room - FirstW5-1Inches54.954.954.9
Hip Room - SecondW5-2Inches54.254.254.2
Hip Room - ThirdW5-3InchesN/AN/A42.8
Elbow Room - FirstW31-1Inches60.960.960.9
Elbow Room - SecondW31-2Inches59.659.659.6
Elbow Room - ThirdW31-3InchesN/AN/A51.0
Seat Height - FirstH30-1Inches12.412.412.4
Seat Height - SecondH30-2Inches13.813.813.8
Seat Height - ThirdH30-3InchesN/AN/A12.2
Effective Head Room - First (Glass Roof)H61-1-GInches41.141.141.1
Effective Head Room - Second (Glass Roof)H61-2-GInches38.239.739.7
Effective Head Room - Third (Glass Roof)H61-3-GInchesN/AN/A38.6


smiesguy

Member
First Name
Steve
Joined
Nov 11, 2020
Messages
12
Reaction score
12
Location
USA
First Name
Steve
Vehicles
Tesla 3P GMC Yukon
Occupation
Planner
This quote, from the website, seems to verify what you’re hoping @skyote.

“Sound feels three-dimensional through the use of cabin correction technologies and acute frequency control.”
Hello fellow buckeye. Odds are we will be giving each other a Rivian wave at some point since I live in Delaware!


superdavePA

Member
First Name
Dave
Joined
Oct 19, 2019
Messages
11
Reaction score
17
Location
Macungie, PA
First Name
Dave
Vehicles
'18 Jeep GC, '06 Mini JCW, '16 Harley Ultra, '17 VW AllTrack
Occupation
Help to split atoms safety
User @azbill posted this in another thread on Thus 11/19, regarding the RIT payload and tongue weight:

"Chat started: 8:15 AM
Hello and thanks for contacting Rivian! My name is Martin. How can I help today?

Customer Service Specialist
The web site no longer shows data for maximum payload for the R1T, I am interested in what the maximum payload is. I also want to know the maximum tongue weight for trailer towing.
Sure thing! Let me get this info for you. Just one moment. 1,764 lbs for that payload.
Let me get the tongue weight.

The trailer hitch receiver and vehicle structure are rated for a tongue weight of 1,470 lbs."

I didn't see these figures updated in the 1st post (I think I saw 800+ lbs for tongue weight)...just wanted to be sure it was captured in this thread.


cwinters

Member
First Name
Clay
Joined
Nov 13, 2020
Messages
12
Reaction score
4
Location
NOVA
First Name
Clay
Vehicles
Pacifica Hybrid

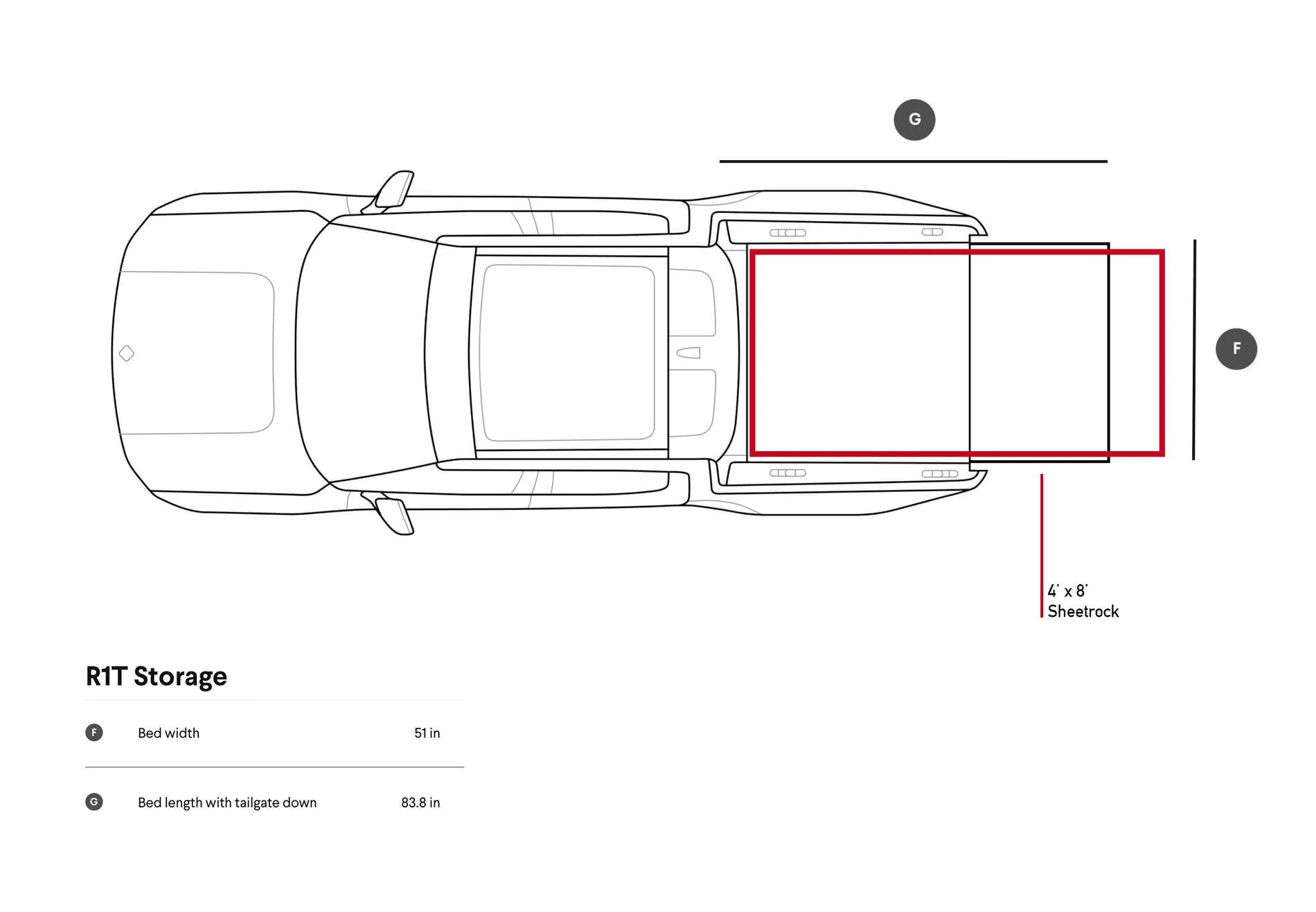

So this means a 4*8 sheet of plywood isn't fitting in the back of the R1S (unless maybe you can put the mini tailgate down separate of the glass hatch. How far will a 4*8 hang out of the R1T?


who764

New Member
Joined
Nov 23, 2020
Messages
1
Reaction score
2
Location
Delaware
Vehicles
Honda Ridgeline - (RS1 Preorder)
I saw some information on the R1T spare tire but not much mentioned on the R1S. It is kind of the same in the fact that it will only be provided if the state requires it, however, it will not be a full size. I just finished a chat with Christina who said this:

Hello, will the RS1 have a spare tire?

A compact spare tire will soon be available for purchase for the R1S. In some states, this may be included based on local regulations.

So it will not be standard unless the state requires it?

That's correct.

Ok thanks. Also, where will the spare tire be located on the R1S with a 3rd row?

My pleasure. In the R1S, the spare tire will go under the cargo floor accessible behind the 3rd row seat.


Babbuino

Well-Known Member
First Name
Manuel
Joined
Aug 1, 2020
Messages
419
Reaction score
471
Location
Florida
First Name
Manuel
Vehicles
Audi A3
Occupation
DESIGN engineer
I saw some information on the R1T spare tire but not much mentioned on the R1S. It is kind of the same in the fact that it will only be provided if the state requires it, however, it will not be a full size. I just finished a chat with Christina who said this:

Hello, will the RS1 have a spare tire?

A compact spare tire will soon be available for purchase for the R1S. In some states, this may be included based on local regulations.

So it will not be standard unless the state requires it?

That's correct.

Ok thanks. Also, where will the spare tire be located on the R1S with a 3rd row?

My pleasure. In the R1S, the spare tire will go under the cargo floor accessible behind the 3rd row seat.
Lolz should've asked her how will my adventure vehicle be able to carry a full size spare tire for my adventures. I'm OK with the 3rd party solution, but Rivian should address this in some way.
I saw some information on the R1T spare tire but not much mentioned on the R1S. It is kind of the same in the fact that it will only be provided if the state requires it, however, it will not be a full size. I just finished a chat with Christina who said this:

Hello, will the RS1 have a spare tire?

A compact spare tire will soon be available for purchase for the R1S. In some states, this may be included based on local regulations.

So it will not be standard unless the state requires it?

That's correct.

Ok thanks. Also, where will the spare tire be located on the R1S with a 3rd row?

My pleasure. In the R1S, the spare tire will go under the cargo floor accessible behind the 3rd row seat.
Yeah I asked them if they'll have an accessory to carry a full size tire for the adventures, and they said nope. Also, Martin said that he's sure 3rd parties will come up with an exterior accessory [I've seen in other threads and they don't look bad]


Babbuino

Well-Known Member
First Name
Manuel
Joined
Aug 1, 2020
Messages
419
Reaction score
471
Location
Florida
First Name
Manuel
Vehicles
Audi A3
Occupation
DESIGN engineer
Short video from Rivian and their configurator


electruck

Well-Known Member
Joined
Oct 6, 2019
Messages
682
Reaction score
785
Location
Dallas, TX
Vehicles
2018 Volvo XC60
D
does that video look like it has a roof shade? I guess it's just the lighting.
No shade but also not the lighting. If you watch the video in slo-mo, you will notice that the video incorporates an animation that is "uncropping" (for lack of a better term) both the top and bottom of the image. It's just more apparent at the top due to the bright sky vs the dark interior at the bottom.


E-lectric

Member
First Name
Bob
Joined
Sep 2, 2019
Messages
7
Reaction score
8
Location
Brevard, NC
First Name
Bob
Vehicles
20 Tesla M3P, 19 Edge ST, 10 Ford Ranger Sport 4x4, 17 Citicar golf cart
I got this from my questions thru an email. I was especially interested in finding out the size tire for the 22" wheels to see how much sidewall would be on it. Sara answered and got that for me.

• The 22” option are all-season tires. They are the Pirelli Scorpion Zero All Season, which are designed for max performance, max grip and stability while still offering the low rolling resistance benefits with a tire size of 275/50R22. At this time we do not have the exact information about the differences in the range between the tire options. More information will be available coming soon about that! The most efficient tire is the 21” option, with the 22” following closely behind.

• A full-sized spare tire is available for purchase for the R1T. In some states, the spare tire may be included based on local regulations.

• Currently, we are only offering the panoramic glass roof. The tinting has been carefully optimized to deliver high transparency while keeping UV out. Though, the glass is not for everyone—we totally get that! An open-air removable roof option will be offered for both vehicles in mid-2022. The pricing you see now is reflecting the panoramic glass roof.

• We are working on ways for our community to be able to see all the colors available in person, which has been challenging because of Covid restrictions and wanting to ensure everyone stays safe. We will announce more about that in the coming months.

• The current trim color is based on our logo color. For now, that is the standard color—but we never really know what the future may hold!

• Anytime we make updates we will notify you via email and social media!

• There are a few factors that determine the order for delivery:
  • The order in the preorder line, when your preorder deposit was originally placed
  • The vehicle modifications, the trim and add-ons
  • The delivery location.


AltaTruck

Member
First Name
Al
Joined
Nov 8, 2020
Messages
8
Reaction score
16
Location
Pittsburgh
First Name
Al
Vehicles
Mazda RX8, Subaru Baja, Alta EXR
Occupation
Retired Science teacher
Several days ago I asked; #1 If the truck had a bms and if leaving it plugged in for long periods of time would degrade the battery. #2 Hauling my electric dirt bike around I would need to have the rear wheel on the tailgate and would it cause harm. This was the response I got;

Hi Alan!

Thanks for reaching out to Rivian and for your patience! That is awesome that you have two electric motorcycles! My professor converted a Harley to an electric motorcycle—it was awesome!

In all Rivian vehicles, our batteries do have a battery management system (BMS) that ensures that no matter the fullness of the battery, it is utilizing the battery efficiently. Also, the BMS protects the battery from any damage that may occur from charging for long periods of time. Leaving it plugged in and not driving it for several months would have a negligible effect on the battery life.

As for the tailgate, the weight limit is 1000 pounds—I think your bike should be just fine!

Feel free to reach out anytime with any additional questions.


Your fellow adventurer,
Sara


loucetios

Member
Joined
Jul 30, 2020
Messages
12
Reaction score
9
Location
Charlotte, NC
Vehicles
Toyota FJ, Toyota Spyder, Honda CRV
Occupation
Investor
I sent the following email to Rivian Customer Support on 11/19, and I have not received a response. Does anyone have an answer to my email question below?

Can you provide me with a complete list of safety features for the R1T? I have seen articles on Driver+ features, but nothing on the lower Tec features like the number and placement of airbags and other lower Tec safety features.

Thanks :clap:

Received the following email back from Customer Support:

Hi Russ,

Thank you for reaching out to Rivian Customer Service, we'll be sharing more details around Rivian's safety features including airbags soon.

Feel free to reach out anytime with any additional questions.


Your fellow adventurer,
Adam
8 a.m. to 8 p.m. CT - M-F
Closed - Sa-Su
