Lucky guy gets a ride with his neighbor who works at Rivian. Pictures of the UI screenshotted by @lg3103 and @Autolycus














.
Screenshots by @lg3103

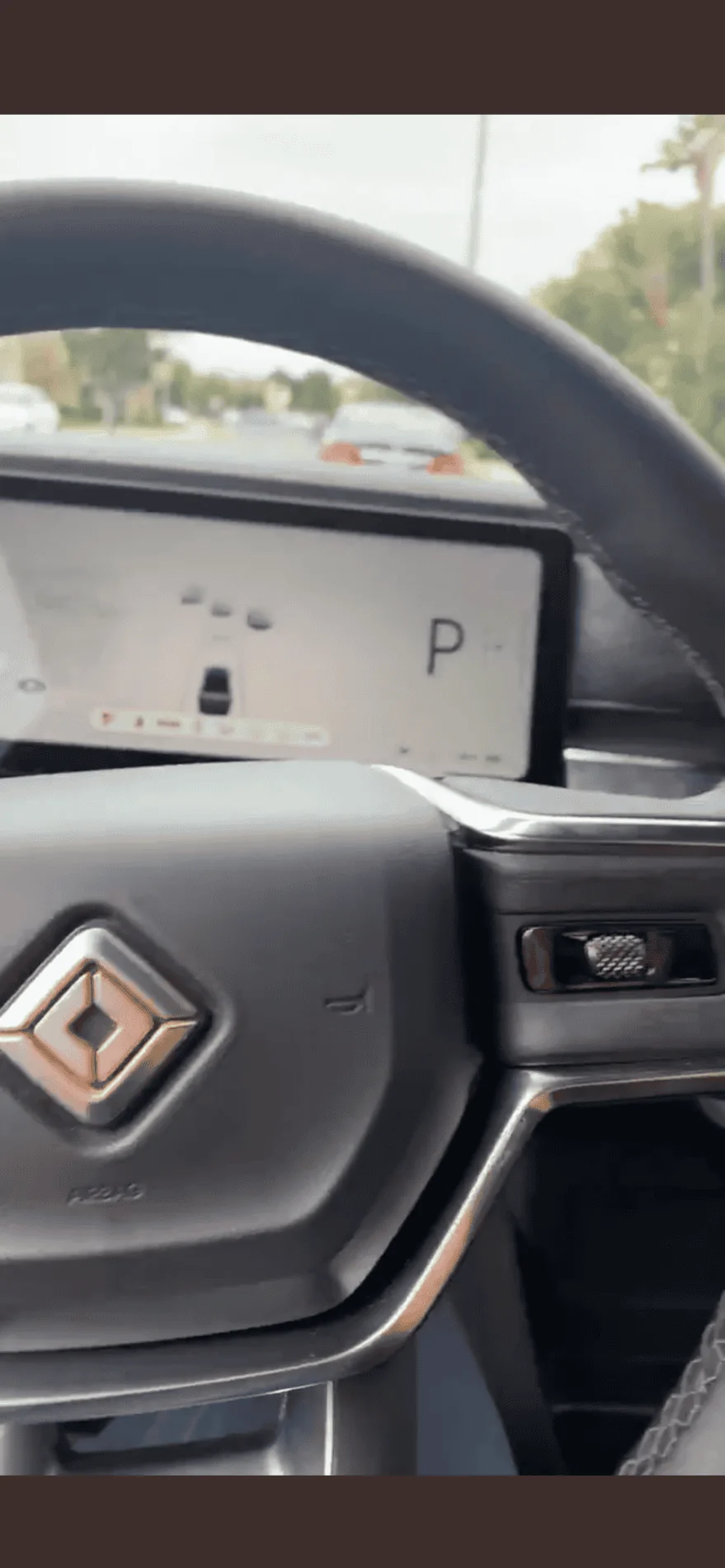

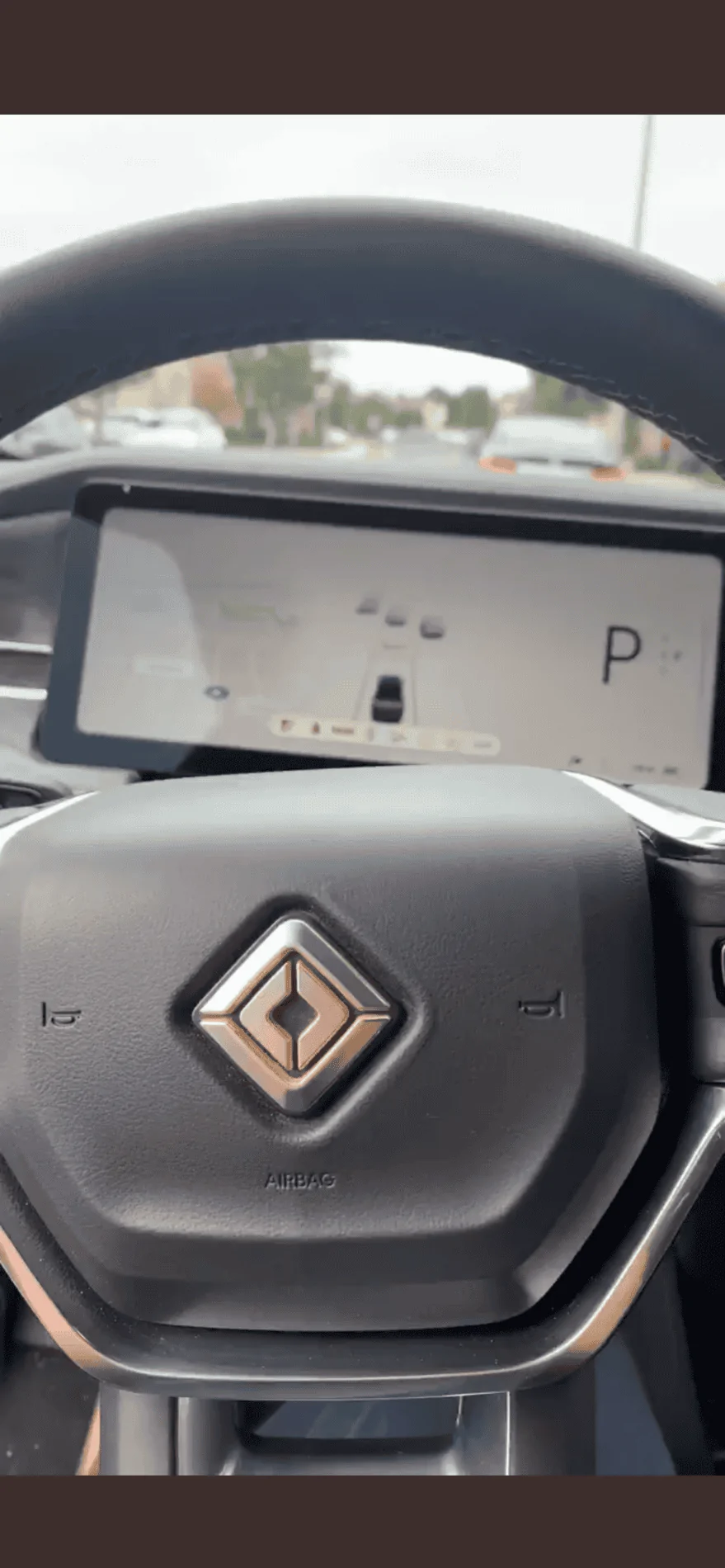

First time seeing the controls on the steering wheel in detail. Tried to get the best picture from the Twitter video. The other frames are mostly blurry.

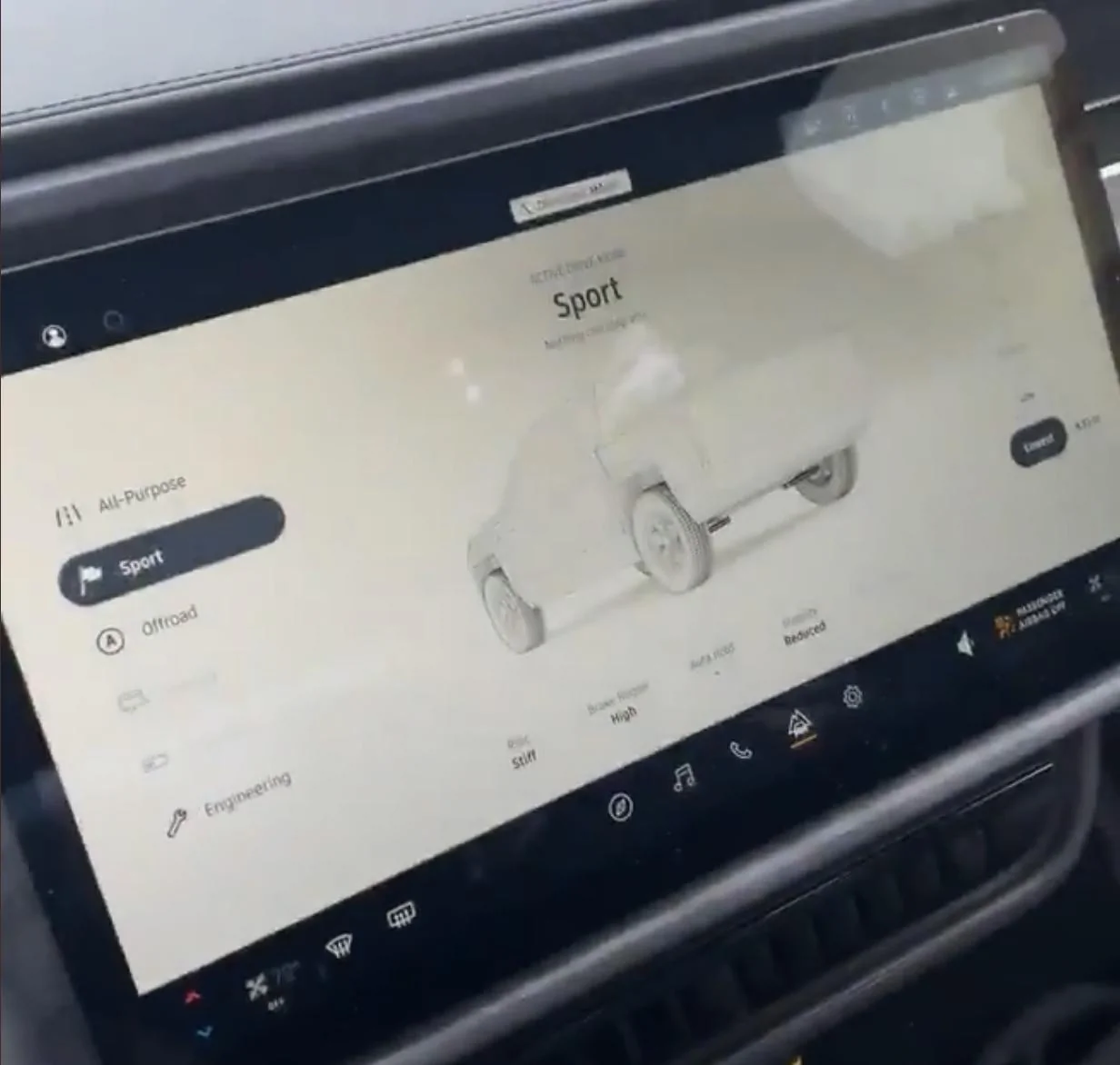

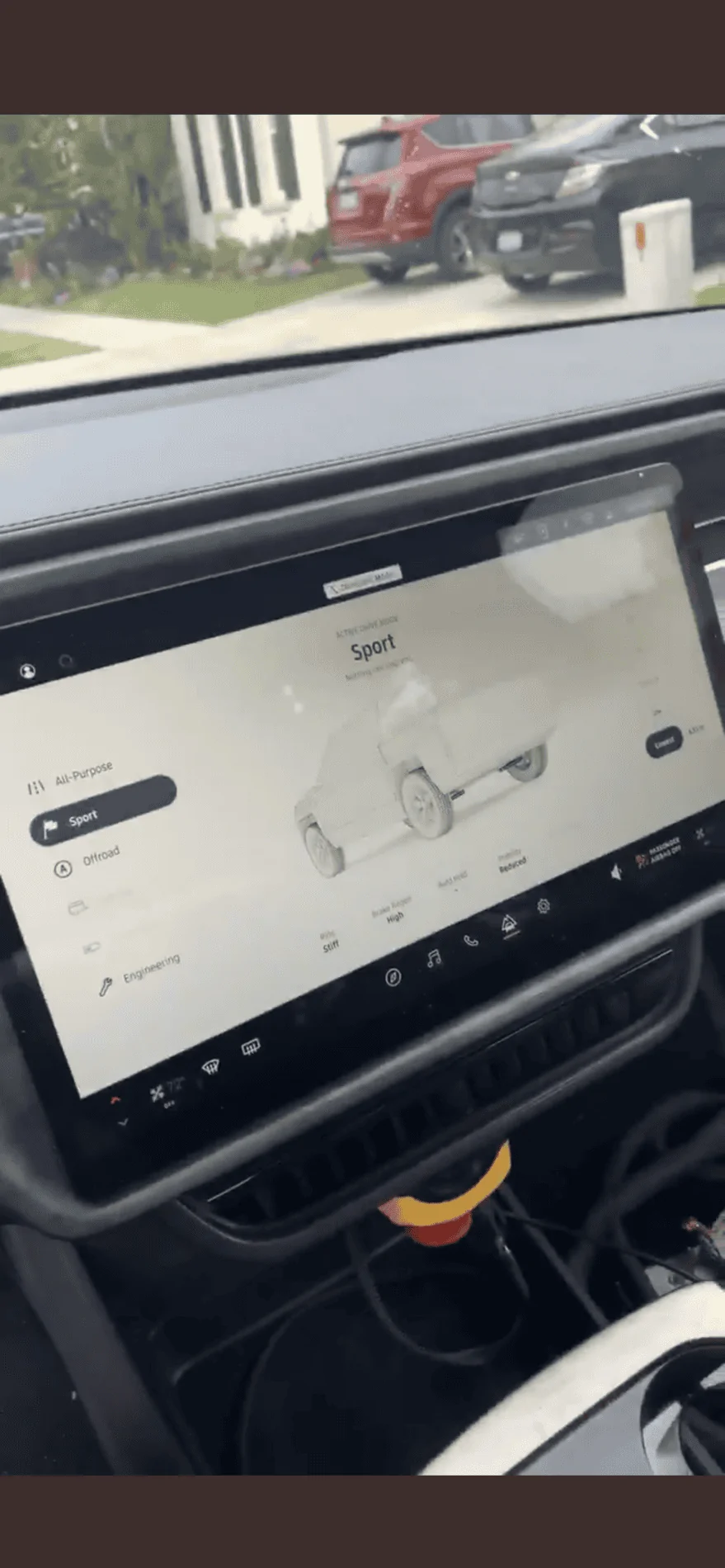

some details visible in the UI, large display is vehicle settings. Seems RIDE is set to stiff, Break Regen to High and Stability on reduced. The other setting seems to be auto hold.













Screenshots by @Autolycus

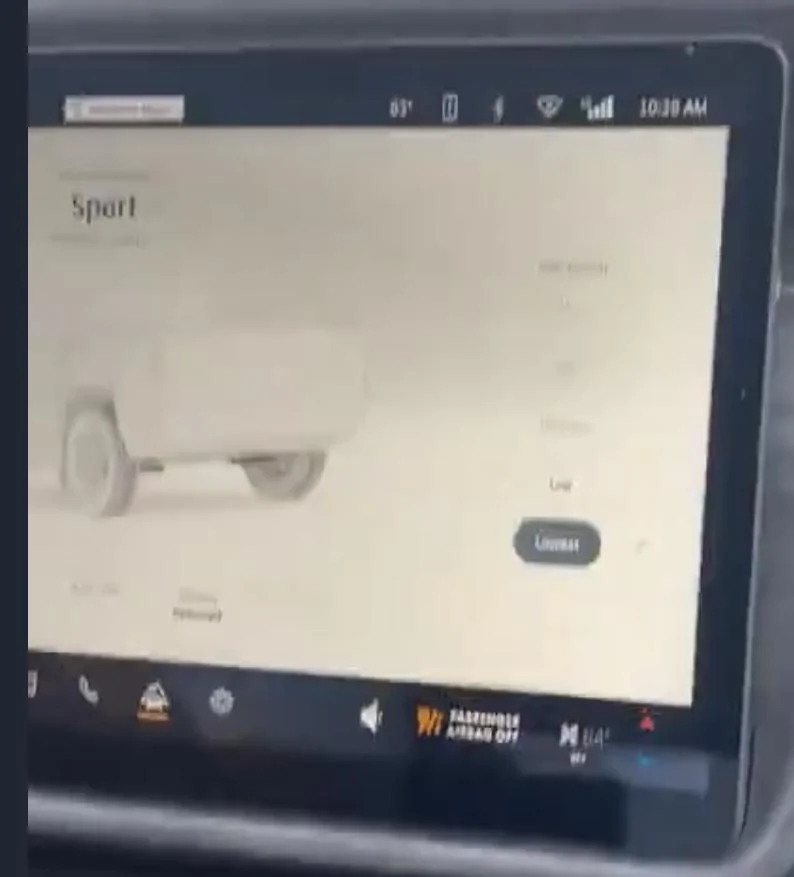

I grabbed a couple screenshots now as well, but I couldn’t really pick out any that were clearer. Here’s one from the passenger seat that shows the top bar a little better, but it’s still pretty poor quality. You’ll see if after the rest of my text.

Anybody got guesses on the different elements across the top and bottom? Or on what scale might be on the right side? “Lowest” seems to be selected. Perhaps the suspension height?

It looks like there are some modes, including “All purpose”, “sport”, “off road”, “engineering” (which could be just a test mode that end users can’t access), and 2 others I can’t make out. The other 2 are greyed out. The lower one looks like maybe a battery icon? Maybe that’s an eco mode?










Advertisement



Autolycus

Well-Known Member
Joined
May 2, 2021
Messages
230
Reaction score
339
Location
ATL
Vehicles
ICE only :(
Someone needs to make some good screenshots of the UI elements and interior details before those videos get pulled! :D


Ladiver

Well-Known Member
First Name
Jeff
Joined
Jan 23, 2021
Messages
150
Reaction score
234
Location
Ca
First Name
Jeff
Vehicles
GMC 3500, Honda CR-V, Corvette Z06
Watching the "0-60" video is funny. If he truly did 0-60 in 3 seconds while getting on the freeway from a curved on ramp, much respect! He has bigger cajones than I.

But, like so many of these internet videos...not possible. No way can you do 0-60 in 3 seconds while turning.


lg3103

Well-Known Member
First Name
Lars
Joined
Nov 16, 2020
Messages
84
Reaction score
181
Location
Denver, CO
First Name
Lars
Vehicles
VW Atlas, Min Countryman SE
Occupation
Director
First time seeing the controls on the steering wheel in detail. Tried to get the best picture from the Twitter video. The other frames are mostly blurry.
some details visible in the UI, large display is vehicle settings. Seems RIDE is set to stiff, Break Regen to High and Stability on reduced. The other setting seems to be auto hold.









Autolycus

Well-Known Member
Joined
May 2, 2021
Messages
230
Reaction score
339
Location
ATL
Vehicles
ICE only :(
I grabbed a couple screenshots now as well, but I couldn’t really pick out any that were clearer. Here’s one from the passenger seat that shows the top bar a little better, but it’s still pretty poor quality. You’ll see if after the rest of my text.

Anybody got guesses on the different elements across the top and bottom? Or on what scale might be on the right side? “Lowest” seems to be selected. Perhaps the suspension height?

It looks like there are some modes, including “All purpose”, “sport”, “off road”, “engineering” (which could be just a test mode that end users can’t access), and 2 others I can’t make out. The other 2 are greyed out. The lower one looks like maybe a battery icon? Maybe that’s an eco mode?





skyote

Well-Known Member
Joined
Mar 12, 2019
Messages
2,333
Reaction score
4,239
Location
Austin, TX
Vehicles
Jeeps, 2500HD Duramax, R1S Preorder (Dec 2018)
The other 2 are greyed out. The lower one looks like maybe a battery icon? Maybe that’s an eco mode?
I think the one below off road is towing, and the icon looks like a trailer.


MisterTea

Well-Known Member
Joined
Nov 17, 2020
Messages
224
Reaction score
645
Location
New Jersey
Vehicles
BMW 745e
While I love the screenshots of the UI, I really just find it sad that we don't have any details of what the screen can do or what apps can run on it, and were two months out from deliveries...


CommodoreAmiga

Well-Known Member
Joined
Dec 30, 2020
Messages
1,121
Reaction score
1,804
Location
USA
Vehicles
N/A
While I love the screenshots of the UI, I really just find it sad that we don't have any details of what the screen can do or what apps can run on it, and were two months out from deliveries...
I would accept a "this is beta and things are subject to change" video.

I find it more alarming that we don't even have a list of basic features that Rivian will commit to provide via infotainment. For example, we've see evidence of Spotify support, which probably makes someone happy... But I hate Spotify and I want to use Apple Music. Rivian refuses to say whether they will or will not support my preference for music service. Why? Even if the software isn't ready, yet, shouldn't they at least know what features they're planning for? Even if it was a disappointing answer, such as "we have no plans to support Apple Music at this time" they could give that information.


STLBlues76

Member
First Name
Tommy
Joined
May 7, 2021
Messages
8
Reaction score
18
Location
USA
First Name
Tommy
Vehicles
Toyota Sienna, Mazda CX-9
Occupation
Attorney
I would accept a "this is beta and things are subject to change" video.

I find it more alarming that we don't even have a list of basic features that Rivian will commit to provide via infotainment. For example, we've see evidence of Spotify support, which probably makes someone happy... But I hate Spotify and I want to use Apple Music. Rivian refuses to say whether they will or will not support my preference for music service. Why? Even if the software isn't ready, yet, shouldn't they at least know what features they're planning for? Even if it was a disappointing answer, such as "we have no plans to support Apple Music at this time" they could give that information.
I am with you. Given the lack of CarPlay, I am not hopeful.


monzarottie

Well-Known Member
First Name
Roger
Joined
Sep 11, 2020
Messages
100
Reaction score
135
Location
Bend, Oregon
First Name
Roger
Vehicles
Tesla Model 3, Jeep Grand Cherokee Summit
Occupation
Retired
What is plugged into the 12v outlet under the center screen?


Khaneric

Active Member
First Name
Eric
Joined
Nov 11, 2020
Messages
27
Reaction score
126
Location
Simi Valley, CA
First Name
Eric
Vehicles
Volvo V60, Plymouth Roadrunner
Occupation
IT
Sad that this close to launch this is what we have to look at...
