Pedritho

Well-Known Member
First Name
Peter
Joined
Oct 14, 2020
Messages
54
Reaction score
59
Location
San Francisco Bay Area (East Bay)
First Name
Peter
Vehicles
2016 Toyota Prius 2000 Toyota 4Runner

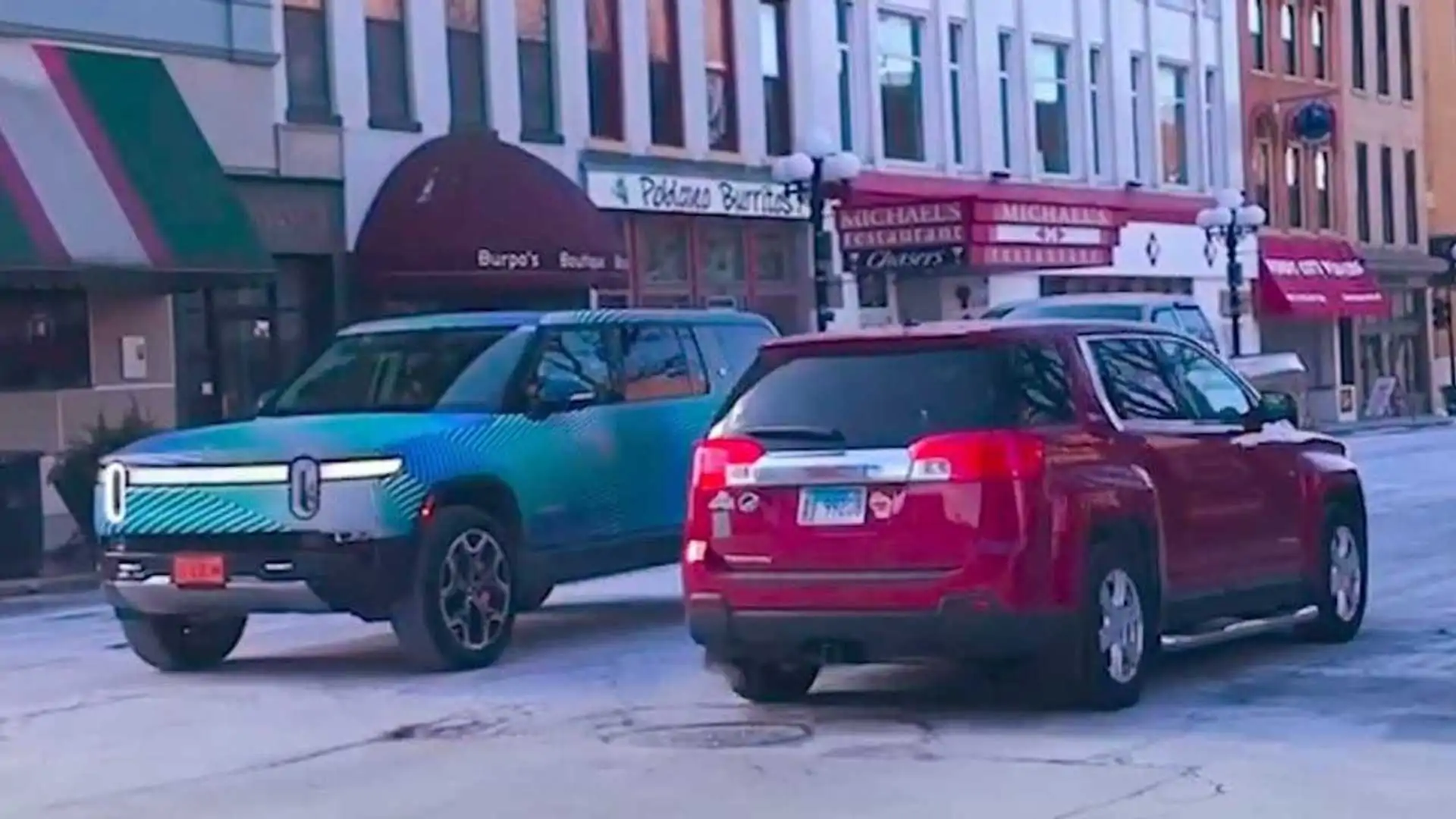

From a video shot in downtown Bloomington. Not side by side unfortunately, so have to keep in mind the different distances/perspectives of the vehicles.





Screenshots

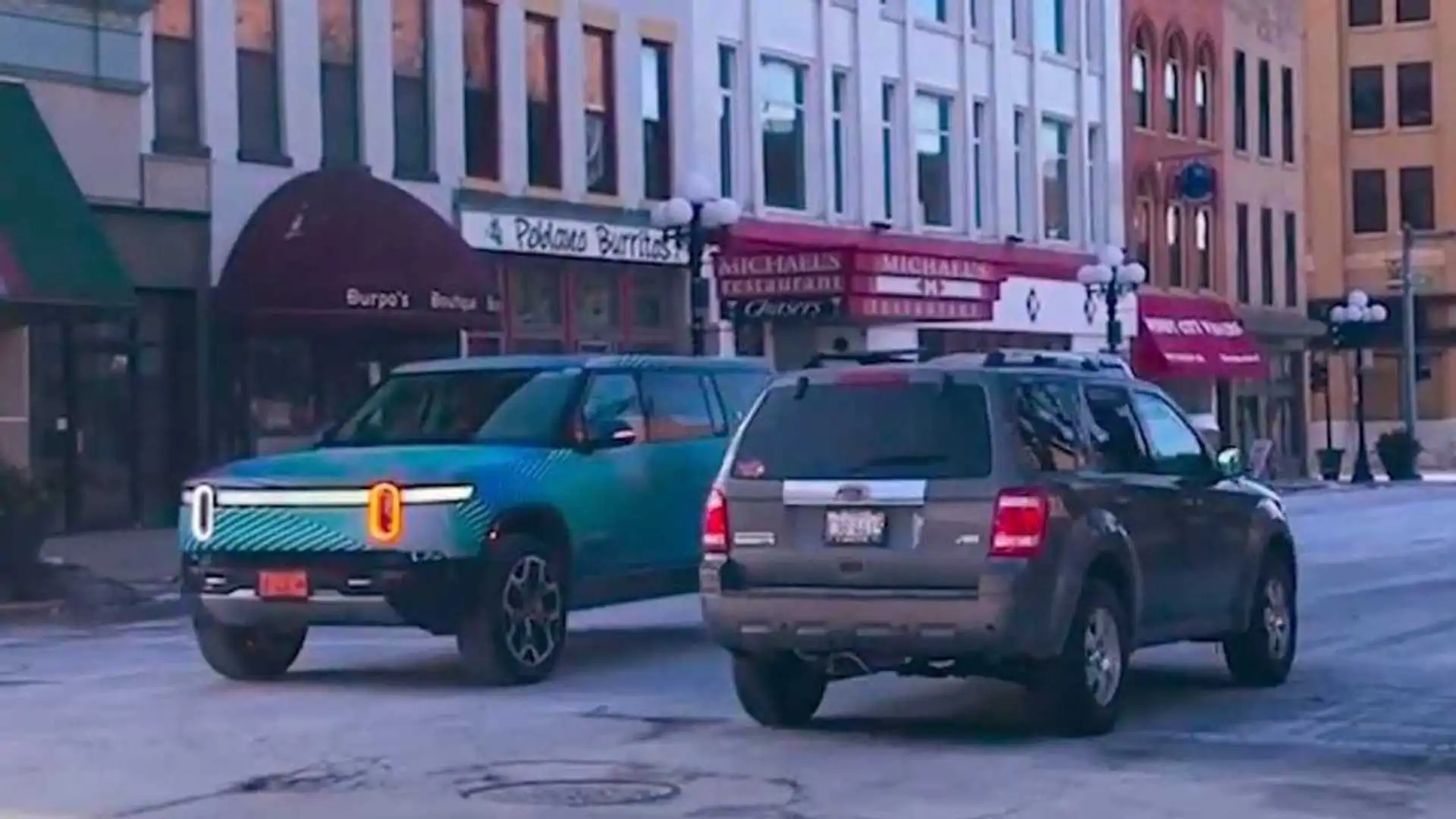

Hmm, that turn indicator again surrounding the stadium light shows up again, hoping it makes its way back to the end caps of the light bar.


RforRivian

Well-Known Member
Joined
Jun 30, 2020
Messages
73
Reaction score
300
Location
Birmingham, AL
Vehicles
2012 4Runner, 2014 Equinox
Second observation after breaking away from the trance inducing wrap... I notice that the headlights double as the turn signal (which look awesome). However, I believe in the states that there is a requirement that a portion of it be visible from the side. I thought that the light on the wheel well would also blink so that this requirement would be met but from the video that is not the case. I guess the light on the mirror serves that purpose? This makes me wonder what the purpose of those wheel well lights are...


skyote

Well-Known Member
Joined
Mar 12, 2019
Messages
1,805
Reaction score
2,748
Location
Austin, TX
Vehicles
Jeeps, 2500HD Duramax, R1S Preorder (Dec 2018)

MisterTea

Well-Known Member
Joined
Nov 17, 2020
Messages
166
Reaction score
425
Location
New Jersey
Vehicles
BMW 745e
I'm very happy about the size as well as how the blinker works. Nothing bothers me more than cars that shut off the Day Time Running lights to put on the blinker. I have no issue when the Day Time Running lights become the blinker.


Gearhead500

Well-Known Member
First Name
John
Joined
Dec 10, 2020
Messages
116
Reaction score
172
Location
Phoenixville
First Name
John
Vehicles
Ford F-150 XLT
Occupation
Director of Marketing & Ecommerce
Not a fan of the change to the stadium light being the turn signal. I thought it looked better the other way.


LoneStar

Well-Known Member
Joined
Aug 2, 2020
Messages
264
Reaction score
628
Location
San Diego
Vehicles
'20 Honda Clarity PHEV, Rivian R1T Launch Edition
Occupation
Engineer
Personally, I wish they kept that outer portion of the main LED light bar as the flashing turn-signal. Having that last foot or so flash yellow would be much more likely viewed or noticeable from the side turning into. Flashing the stadium lamp will not be visible at all from the sides.

Rivian LED side turn lamps.PNG


Gearhead500

Well-Known Member
First Name
John
Joined
Dec 10, 2020
Messages
116
Reaction score
172
Location
Phoenixville
First Name
John
Vehicles
Ford F-150 XLT
Occupation
Director of Marketing & Ecommerce
Personally, I wish they kept that outer portion of the main LED light bar as the flashing turn-signal. Having that last foot or so flash yellow would be much more likely viewed or noticeable from the side turning into. Flashing the stadium lamp will not be visible at all from the sides.

Rivian LED side turn lamps.PNG
This times 1000 and better explained my thoughts exactly.


CommodoreAmiga

Well-Known Member
Joined
Dec 30, 2020
Messages
651
Reaction score
776
Location
USA
Vehicles
N/A
Personally, I wish they kept that outer portion of the main LED light bar as the flashing turn-signal. Having that last foot or so flash yellow would be much more likely viewed or noticeable from the side turning into. Flashing the stadium lamp will not be visible at all from the sides.

Rivian LED side turn lamps.PNG
I like the stadium lamp flashing. It looks more quirky.

In the prototypes they didn't have a side light on the fender, so they HAD to flash that part of the light bar to comply with DOT restrictions. Since they've now added a side light on the fender, they will likely use that as part of the turn signal.


Rivian-WI

Well-Known Member
Joined
Jan 2, 2021
Messages
120
Reaction score
135
Location
WI
Vehicles
Volvo XC60
I'm very happy about the size as well as how the blinker works. Nothing bothers me more than cars that shut off the Day Time Running lights to put on the blinker. I have no issue when the Day Time Running lights become the blinker.
I don't remember the exact details, but I think there is some law that says the day time running lights must go off when the turn signals are on. On the hand this could all be a dream. :)


timf

Well-Known Member
First Name
Tim
Joined
May 3, 2019
Messages
146
Reaction score
160
Location
Plymouth, MI
First Name
Tim
Vehicles
Tesla Model X
Personally, I wish they kept that outer portion of the main LED light bar as the flashing turn-signal. Having that last foot or so flash yellow would be much more likely viewed or noticeable from the side turning into. Flashing the stadium lamp will not be visible at all from the sides.

Rivian LED side turn lamps.PNG
While I would prefer this approach, there are turn signals in the mirrors which handle the side view.


tnawara

New Member
First Name
Tom
Joined
Nov 16, 2020
Messages
3
Reaction score
3
Location
Chicago, IL
First Name
Tom
Vehicles
Tesla Model 3 Performance

CommodoreAmiga

Well-Known Member
Joined
Dec 30, 2020
Messages
651
Reaction score
776
Location
USA
Vehicles
N/A
Actually, the standard isn’t that simple. You CAN have a DRL that remains on when the turn signal is on, if certain conditions are met.

It seems that Rivian would have complied with the first requirement using the old style, as the center of the turn signal was almost certainly at least 4“ (>100 mm) from the headlamp surround.

S7.10.10.1 Spacing to turn signal lamps. Each DRL not optically combined with a turn signal lamp must be located on the vehicle so that the distance from its lighted edge to the optical center of the nearest turn signal lamp is not less than 100 mm unless,

(a) The luminous intensity of the DRL is not more than 2,600 cd at any location in the beam and the turn signal lamp meets 2.5 times the base front turn signal photometric requirements, or

(b) The DRL is optically combined with a lower beam headlamp and the turn signal lamp meets 2.5 times the base front turn signal photometric requirements, or

(c) The DRL is deactivated when the turn signal or hazard warning signal lamp is activated.


skyote

Well-Known Member
Joined
Mar 12, 2019
Messages
1,805
Reaction score
2,748
Location
Austin, TX
Vehicles
Jeeps, 2500HD Duramax, R1S Preorder (Dec 2018)
