TT—30P (120v) to 14-50P (240v) adapter?

diranged

Member
First Name
Matt
Joined
Apr 10, 2022
Threads
6
Messages
12
Reaction score
16
Location
SF Bay Area, Ca
First Name
Matt
Vehicles
2022 Rivian R1T
Occupation
Engineer
https://www.evseadapters.com/products/tt-30p-to-nema-14-50r-ev-adapter/

Ok.. so fundamentally I understand you can’t get 240v out of a 120v plug. I get that. So what exactly happens if you plug the Rivian 14-50P plug into this adapter Dr a campground with a 30A TT-30P plug?

We just came back from a camping trip and found we could only charge at 1.5Mi/Hr on the 20A 120V outlet. There was a lovely TT-30A outlet just teasing us.

could this adapter let us at least charge at around 3Mi/Hr?



crashmtb

Well-Known Member
Joined
Jul 11, 2021
Threads
0
Messages
2,689
Reaction score
4,339
Location
Man oh Manitoba
Vehicles
2002 aluminium garden shed TD5
https://www.evseadapters.com/products/tt-30p-to-nema-14-50r-ev-adapter/

Ok.. so fundamentally I understand you can’t get 240v out of a 120v plug. I get that. So what exactly happens if you plug the Rivian 14-50P plug into this adapter Dr a campground with a 30A TT-30P plug?

We just came back from a camping trip and found we could only charge at 1.5Mi/Hr on the 20A 120V outlet. There was a lovely TT-30A outlet just teasing us.

could this adapter let us at least charge at around 3Mi/Hr?
Seems like a question for the vendor of the adapter.


staples

Well-Known Member
Joined
Jul 12, 2020
Threads
3
Messages
185
Reaction score
311
Location
Chicago, IL
Vehicles
R1T, Zero FXS, Tesla Y
If you physically adapted it and used the supplied 14-50 dongle, the portable EVSE would only see 120v and may or may not even work because it is expecting 240v based on the dongle plugged into it. My guess is that it would default to the 5-15 plug settings which would only give you 12 amps continuous.

You could physically adapt it to the 5-15 dongle, but it'd still run at the same 12 amps.

If they made other dongles for the portable EVSE, a TT-30 would be a good one for campgrounds. On a 30 amp circuit like that you could get 24 amps continuous. Twice the amps, twice the MPH, so yes you could get 3 MPH. But they don't supply that dongle. Hopefully the EVSE supports other dongles and they show up in the gear shop s00n.


ajdelange

Well-Known Member
First Name
A. J.
Joined
Aug 1, 2019
Threads
7
Messages
2,424
Reaction score
1,965
Location
Virginia/Quebec
First Name
A. J.
Vehicles
Tesla X Extended Range Plus 2019, Lexus, Landcruiser, SR5
Occupation
EE Retired
So what exactly happens if you plug the Rivian 14-50P plug into this adapter Dr a campground with a 30A TT-30P plug?
I can't answer this exactly because I do not, alas, have a Rivian but I can tell you in general what happens. The portable EVSE needs to see some voltage greater than some minimum voltage (I'd guess about 90V) between its L1 (X) and L2 (Y) pins and at least that between L1 (X) and earth so the adapter wires the TT-30 black (hot) to the 14-50 black (X), TT-30 white (neutral) to the 14-50 (Y), nothing to the 14-50 (W) and TT-30 ground to the 14-50 ground. Looking at the 14-50R with the round pin (earth/ground) at 6 o'clock X, Y and W are, respectively, the pins at 9, 3 and 12 o'clock. This puts 120 between L1 and L2 and connects ground as required for 120V charging. This works with a Tesla UMC using the 14-50 plug. The Rivian "UMC" may have logic that says "NO" to 120V with the 14-50 adapter.

[Edit] If it does not shut down because the voltage is appreciably less than the 208 - 240 normally associated with the 14-50 adapter it should allow that adapter's rated 32A and, thus, the full 30A of the campground receptacle.

Last edited:

pc500

Well-Known Member
Joined
Jun 22, 2021
Threads
4
Messages
256
Reaction score
175
Location
US
Vehicles
dodge ram
Just get a 16 amp 120v evse. I do not know if the car will accept 20/24 amp at 120v but you can try. Mostly, this is a poor outlet to use for EV charging.

I know 16 amp works and 24 is really not that much faster, sadly.


Kunzene

Active Member
First Name
Nathan
Joined
Mar 21, 2021
Threads
2
Messages
33
Reaction score
64
Location
Kentucky
First Name
Nathan
Vehicles
2022 Tesla Model 3, 2013 Toyota Sequoia
https://www.evseadapters.com/products/tt-30p-to-nema-14-50r-ev-adapter/

Ok.. so fundamentally I understand you can’t get 240v out of a 120v plug. I get that. So what exactly happens if you plug the Rivian 14-50P plug into this adapter Dr a campground with a 30A TT-30P plug?

We just came back from a camping trip and found we could only charge at 1.5Mi/Hr on the 20A 120V outlet. There was a lovely TT-30A outlet just teasing us.

could this adapter let us at least charge at around 3Mi/Hr?
I am in a similar situation - facing a camping trip in 5 days with minimal charging infrastructure along the way. We are staying at a campground with only TT-30 RV outlets. I found a similar product on Amazon and am going to try it, first manually reducing to 24 amps in the rivian.


pc500

Well-Known Member
Joined
Jun 22, 2021
Threads
4
Messages
256
Reaction score
175
Location
US
Vehicles
dodge ram
I am in a similar situation - facing a camping trip in 5 days with minimal charging infrastructure along the way. We are staying at a campground with only TT-30 RV outlets. I found a similar product on Amazon and am going to try it, first manually reducing to 24 amps in the rivian.
Please report back if the Rivian accepts 24amp pilot on L1 charging. You will need to also buy a EVSE (the Rivian one won't do > 12 amp @ 120v).

OP
OP

diranged

Member
First Name
Matt
Joined
Apr 10, 2022
Threads
6
Messages
12
Reaction score
16
Location
SF Bay Area, Ca
First Name
Matt
Vehicles
2022 Rivian R1T
Occupation
Engineer
Please report back if the Rivian accepts 24amp pilot on L1 charging. You will need to also buy a EVSE (the Rivian one won't do > 12 amp @ 120v).
So I was willing to try to do that - but I haven‘t yet found a non-Rivian EVSE charger that claims it will support that. Do you have any you know of?


pc500

Well-Known Member
Joined
Jun 22, 2021
Threads
4
Messages
256
Reaction score
175
Location
US
Vehicles
dodge ram
So I was willing to try to do that - but I haven‘t yet found a non-Rivian EVSE charger that claims it will support that. Do you have any you know of?
Some say this works, with their TT-30 adapter, but YMMV. Don't but it unless you don't mind just having a good second travel adapter handy :)



This website is blocking amazon links. Just go google for "
MUSTART TRAVELMASTER Level 2 Portable EV Charger, 25ft Cable, Intelligent Plug Identification Auto-Adjusts Maximum Safe Current 15A/25A/32A Electric Vehicle Plug-in Charging Station (2-Gen)

"

I did charger 120v @ 16 amp successfully with my 16 amp 15-20 adapter, so ignore the Rivian manual which says the truck limits to 12 amp.


Lesyo64

Member
First Name
Les
Joined
Apr 28, 2022
Threads
2
Messages
7
Reaction score
1
Location
92019
First Name
Les
Vehicles
Accord hybrid
Occupation
Retired

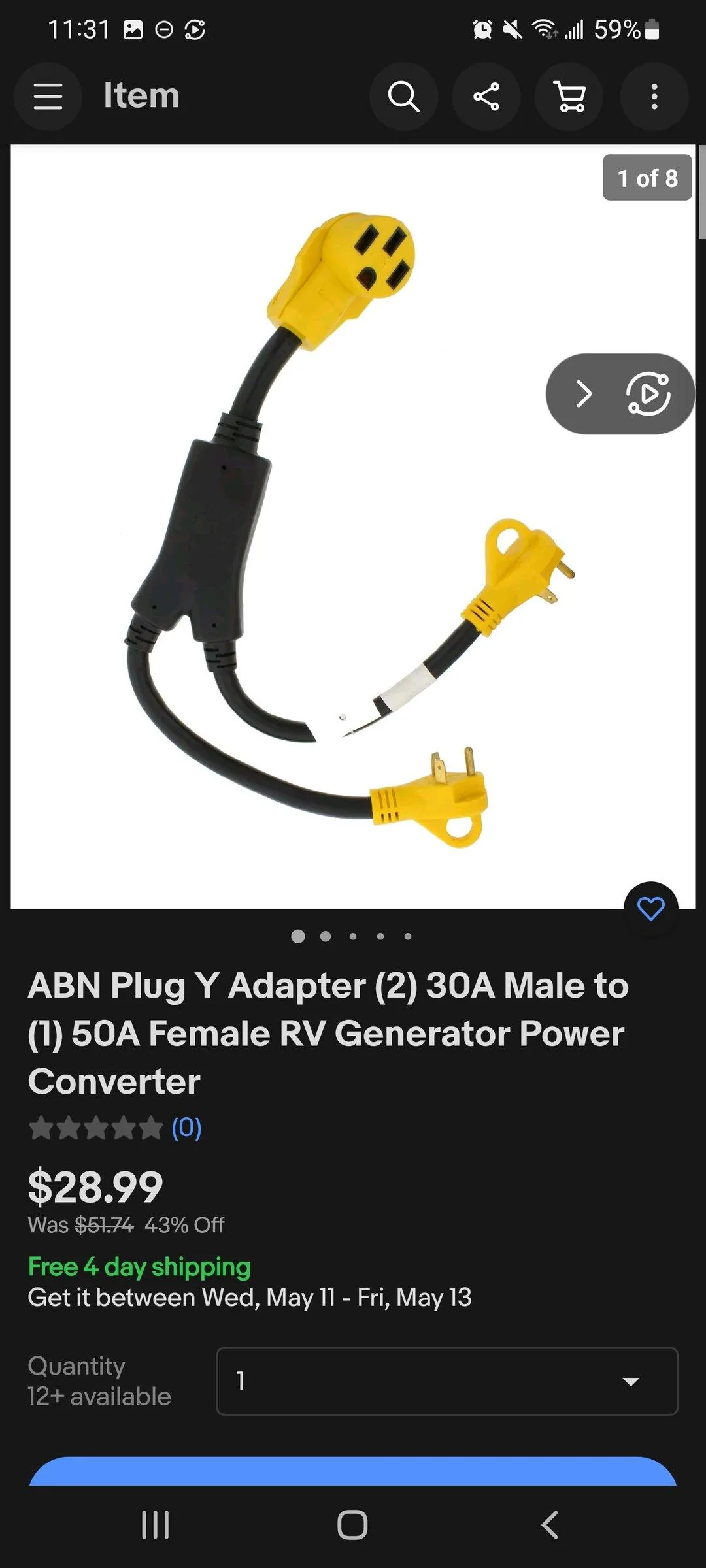

I have a 50 amp RV. I use 30 to 50 amp "dogbone" adapter in camp grounds. I also use a Y adapter that combines 2 30 amp plugs into a 50 amp plug. Works well! Should work with the charger. Just have to select the right amperage that doesn't trip the breaker and follows NEC guidelines for a continuous circuit. Search Amazon for these.


pc500

Well-Known Member
Joined
Jun 22, 2021
Threads
4
Messages
256
Reaction score
175
Location
US
Vehicles
dodge ram
I have a 50 amp RV. I use 30 to 50 amp "dogbone" adapter in camp grounds. I also use a Y adapter that combines 2 30 amp plugs into a 50 amp plug. Works well! Should work with the charger. Just have to select the right amperage that doesn't trip the breaker and follows NEC guidelines for a continuous circuit. Search Amazon for these.
Perhaps some clarity before somebody gets themselves in trouble. It puts it on a 50 amp plug but you still have 240 volt 30 amp service. This does require two two plugs which will probably require two campsites. Not always practical.


Lesyo64

Member
First Name
Les
Joined
Apr 28, 2022
Threads
2
Messages
7
Reaction score
1
Location
92019
First Name
Les
Vehicles
Accord hybrid
Occupation
Retired
Perhaps some clarity before somebody gets themselves in trouble. It puts it on a 50 amp plug but you still have 240 volt 30 amp service. This does require two two plugs which will probably require two campsites. Not always practical.
Many Rv pedestals are back to back. Where you have 2 30amp plugs (one on each side). I have also used a pedestal with a 30 and a 20 (another adapter) on the same pedestal or a 30a extention cord to another pedistal. Basically, you are getting L1 voltage from one plug and L2 from another. Since my coach splits this onto 2 legs of 120v, I'm not worried about being unbalanced in amperage. Your charger will utilize 220v and to be safe, you should set the charge amperage to 20% less than the smallest amperage. So, if you have one leg of the adapter plugged into a 20 amp (non gfci) circuit, you can charge at 15a @ 220v (twice the charging speed of just plugging into the 110v). Any questions, consult an electrician.
P=IE

Last edited:

Dark-Fx

Well-Known Member
First Name
Brian
Joined
Jul 15, 2020
Threads
26
Messages
1,084
Reaction score
1,872
Location
Michigan
First Name
Brian
Vehicles
Polestar 2, Volt, R1T
Occupation
Engineering
J1772 spec limits 120v charging to 16A. I would be surprised if the Rivian would accept more than that.


Kunzene

Active Member
First Name
Nathan
Joined
Mar 21, 2021
Threads
2
Messages
33
Reaction score
64
Location
Kentucky
First Name
Nathan
Vehicles
2022 Tesla Model 3, 2013 Toyota Sequoia
J1772 spec limits 120v charging to 16A. I would be surprised if the Rivian would accept more than that.
My understanding is the adapter in OP’s original post “tricks” the vehicle into thinking it is receiving low voltage charging through the 14-50 evse. As @ajdelange mentioned I think the question is whether the truck will accept it or not.
So my question - do we think it’s safe to try and/or can I screw anything up on the truck by trying it?
