I wanted to start a thread for our week camping trip. Traveling with family and two other similar trailers (funny thing is mine is the heaviest by far)

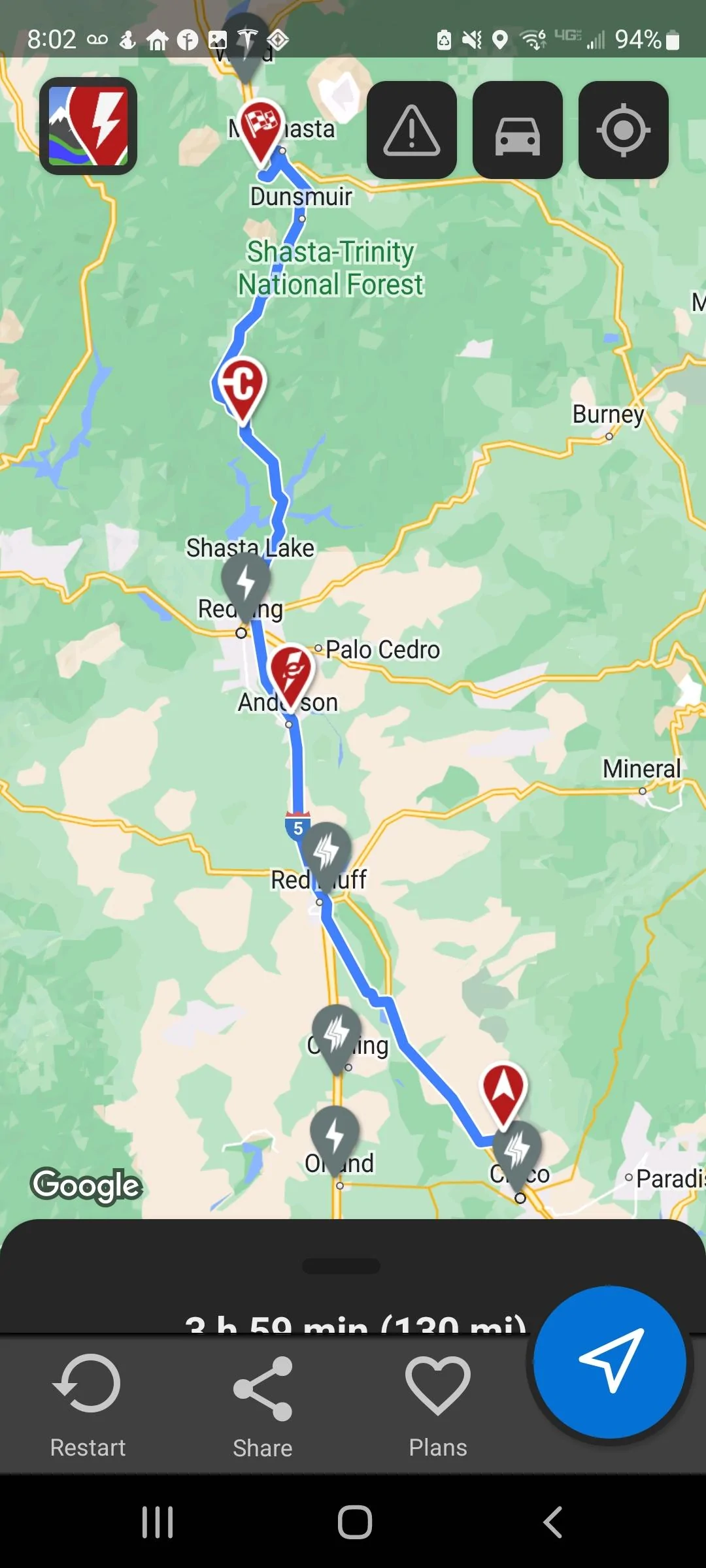

Distance:
Chico to Lake of the Siskyous ~130 miles

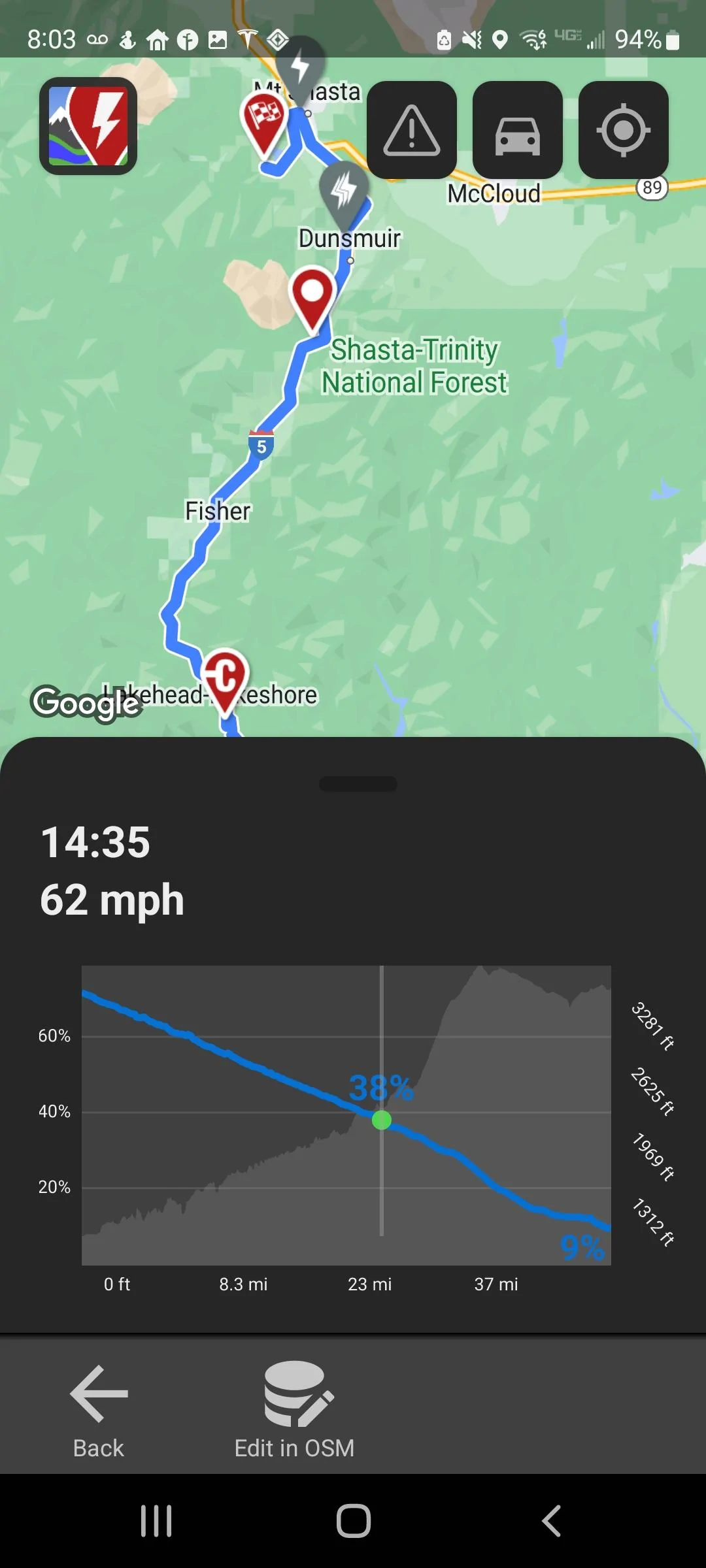

Elevation Change : ~3500' ft

To get these numbers I've driven a bit on the highway on flat ground round trip to get an idea for wind factor.

Assumptions:
1100 watts per mile @ 65, Driving at 95% Speed
Added Wieght ~ 8000lbs

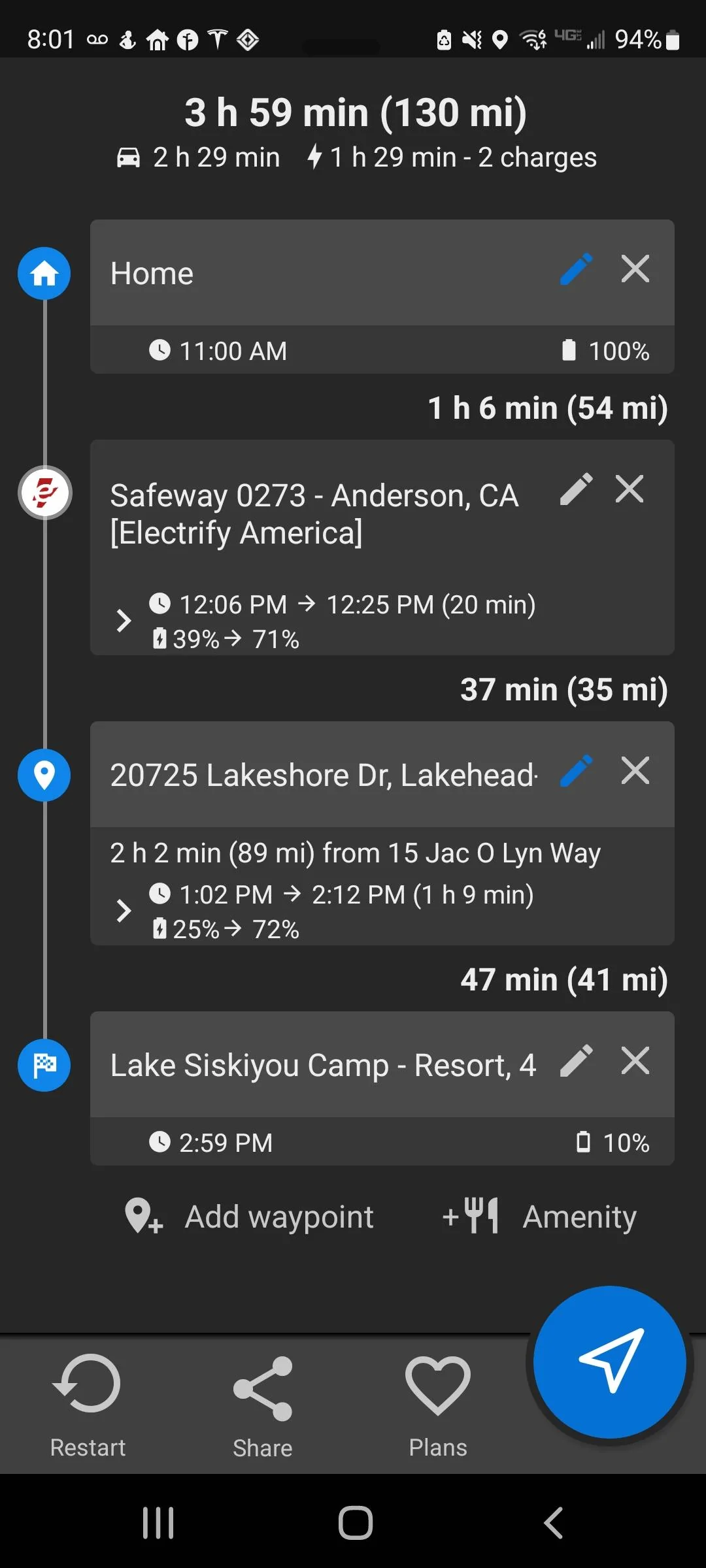

Stop 1:
Anderson EA charger arrive with 39% Charge to 71% ( Depending on my arrival %, this may need to be adjusted)
Stop 2:
Lakehead Chargepoint
Arrive 25%, Charge to 72%.
( Stopping here for long lunch and slow charge) again, may need to make adjustments.

The second and 3rd leg has me a little worried, it's a long grade up to Dunsmier, so I'll be very careful to make needed adjustments after the first stop.


Arrive at Lake of the Siskyous with 10%, Charge up at the RV camp :)

Wish me luck!




Riviot

Well-Known Member
Joined
Mar 29, 2021
Threads
22
Messages
990
Reaction score
2,097
Location
Banner, WA
Vehicles
2022 Rivian R1T LE/LG/BM/AT
GOOD LUCK 🙈

I'm curious what the regen will be like with a trailer.


moosehead

Well-Known Member
Joined
Sep 16, 2021
Threads
22
Messages
818
Reaction score
1,756
Location
Denver, CO
Vehicles
Audi S7, ‘02 Land Rover, ‘78 Jeep Wagoneer
Subscribed. Have a great trip.


av8or

Well-Known Member
First Name
Randall
Joined
Mar 1, 2022
Threads
6
Messages
105
Reaction score
164
Location
Oregon
First Name
Randall
Vehicles
2020 Jeep Wrangler
Occupation
FedEx Retired
Sounds solid. You got this.


Iwannarivian

Well-Known Member
First Name
Mark
Joined
Jun 27, 2021
Threads
3
Messages
78
Reaction score
61
Location
Edmond, OK
First Name
Mark
Vehicles
R1T, Panamera 4, Wrangler, MB C250, Civic Sport
Occupation
pretending to be retired
I wanted to start a thread for our week camping trip. Traveling with family and two other similar trailers (funny thing is mine is the heaviest by far)


Distance:
Chico to Lake of the Siskyous ~130 miles
Elevation Change : ~3500' ft

To get these numbers I've driven a bit on the highway on flat ground round trip to get an idea for wind factor.

Assumptions:
1100 watts per mile @ 65, Driving at 95% Speed
Added Wieght ~ 8000lbs

Stop 1:
Anderson EA charger arrive with 39% Charge to 71% ( Depending on my arrival %, this may need to be adjusted)
Stop 2:
Lakehead Chargepoint
Arrive 25%, Charge to 72%.
( Stopping here for long lunch and slow charge) again, may need to make adjustments.

The second and 3rd leg has me a little worried, it's a long grade up to Dunsmier, so I'll be very careful to make needed adjustments after the first stop.


Arrive at Lake of the Siskyous with 10%, Charge up at the RV camp :)

Wish me luck!

Question…I’ve seen a few YT vids talking about charging using RV site/plugs…so is there an adapter or surge protector needed to charge truck? Or is that just something needed for camper?



MikeySea

Member
Joined
Apr 11, 2022
Threads
0
Messages
12
Reaction score
16
Location
Seattle
Vehicles
Model X, ML 550, Tahoe
Occupation
Chronically unemployed (by choice)
Awesome, thanks for posting. Will be curious to hear how the charging stops go. My big fear of hauling the trailer is having to unhook every time I need a charge because getting in/out of the stalls can be challenging depending on the location.


dduffey

Well-Known Member
First Name
David
Joined
Apr 1, 2022
Threads
7
Messages
195
Reaction score
203
Location
Texas
First Name
David
Vehicles
R1T, Tesla M3, Tesla MY
Question…I’ve seen a few YT vids talking about charging using RV site/plugs…so is there an adapter or surge protector needed to charge truck? Or is that just something needed for camper?
Many campsites use a standard 14-50 ([email protected]
) that will work with the existing mobile charger.

You can also get a TT-30 adapter (1[email protected]) but you have to make sure the Rivian only pulls 24a max.

I have a few other adapters for camping convince as well (14-50 to TT-30 splitter).

Then a separate 6-50 kit to use as an extension (but haven't ever had to use it).

OP
OP

HA-Opec

Member
First Name
Wyatt
Joined
Nov 14, 2021
Threads
2
Messages
22
Reaction score
50
Location
Chico, Ca
First Name
Wyatt
Vehicles
Tesla MS, Maserati, Nissan Titan
Occupation
Project Manager
Many campsites use a standard 14-50 ([email protected]
) that will work with the existing mobile charger.

You can also get a TT-30 adapter ([email protected]) but you have to make sure the Rivian only pulls 24a max.

I have a few other adapters for camping convince as well (14-50 to TT-30 splitter).
Then a separate 6-50 kit to use as an extension (but haven't ever had to use it).
I bought a 14-50 to 30 amp adapter but the rivian won't except it. It seems like it is expecting 240v. I think I'll need a native Rivian adapter to plug into a 120/30amp, which doesn't look like they sell yet?
Luckily my in-laws site has a 14-50, so charging the truck at thier site. I would be kind of screwed otherwise, limited to 120/12 amp which would take DAYS!


dduffey

Well-Known Member
First Name
David
Joined
Apr 1, 2022
Threads
7
Messages
195
Reaction score
203
Location
Texas
First Name
David
Vehicles
R1T, Tesla M3, Tesla MY
I bought a 14-50 to 30 amp adapter but the rivian won't except it. It seems like it is expecting 240v. I think I'll need a native Rivian adapter to plug into a 120/30amp, which doesn't look like they sell yet?
Luckily my in-laws site has a 14-50, so charging the truck at thier site. I would be kind of screwed otherwise, limited to 120/12 amp which would take DAYS!
Interesting, I have a couple of EV specific TT-30 adapters, but haven't tried on the R1T, I will try them and let you know.


AdamUCF

Well-Known Member
First Name
Adam
Joined
Apr 3, 2022
Threads
10
Messages
231
Reaction score
329
Location
Orlando, FL
First Name
Adam
Vehicles
2017 Corvette
I bought a 14-50 to 30 amp adapter but the rivian won't except it. It seems like it is expecting 240v. I think I'll need a native Rivian adapter to plug into a 120/30amp, which doesn't look like they sell yet?
Luckily my in-laws site has a 14-50, so charging the truck at thier site. I would be kind of screwed otherwise, limited to 120/12 amp which would take DAYS!
I don't think an adapter will help. The AC charger is onboard the truck and is likely hard-limited to 15amp at 120v.



Runs_4_beer

Member
First Name
Carl
Joined
Nov 21, 2020
Threads
1
Messages
17
Reaction score
51
Location
Reno
First Name
Carl
Vehicles
BMW i3, Audi Q7, F350
I live in Reno and frequently head over Donner pass with my 25' Airstream, curious to see how the hills impact the range while towing. I'm scheduled for delivery this Friday, so I'll play around a bit.


No.92

Well-Known Member
Joined
Oct 9, 2021
Threads
0
Messages
139
Reaction score
122
Location
California
Vehicles
Jeep Wrangler
I live in Reno and frequently head over Donner pass with my 25' Airstream, curious to see how the hills impact the range while towing. I'm scheduled for delivery this Friday, so I'll play around a bit.
I'd be very interested to know the range as well in an Airstream. We've been eyeing an Airstream for a while.


dduffey

Well-Known Member
First Name
David
Joined
Apr 1, 2022
Threads
7
Messages
195
Reaction score
203
Location
Texas
First Name
David
Vehicles
R1T, Tesla M3, Tesla MY
I bought a 14-50 to 30 amp adapter but the rivian won't except it. It seems like it is expecting 240v. I think I'll need a native Rivian adapter to plug into a 120/30amp, which doesn't look like they sell yet?
Luckily my in-laws site has a 14-50, so charging the truck at thier site. I would be kind of screwed otherwise, limited to 120/12 amp which would take DAYS!
Following up as promised, confirmed both of my TT-30 adapters work with Rivian mobile charger. Putting a disclaimer here that you need to set the amperage to 24a in the vehicle every time. Just unplugging the mobile adapter to try another TT-30 adapters the vehicle went back to 48 amps and started pulling more than 24 amps. That concerns me in case of power outages, etc. I will do some more testing to see if that is also because I unplugged the cable from the vehicle.

Safer bet would be to is the regular 120v plug, or find a 50a circuit.

Here is the link to the one I think is best as it fits in the charging bag and the matching Rivian yellow is icing: https://www.amazon.com/gp/aw/d/B07XNSXWM4


CUBldr97

Active Member
First Name
KEith
Joined
Aug 2, 2020
Threads
0
Messages
43
Reaction score
46
Location
USA Colorado
First Name
KEith
Vehicles
TESLA MS85 RIVIAN reservation holder
Following up as promised, confirmed both of my TT-30 adapters work with Rivian mobile charger. Putting a disclaimer here that you need to set the amperage to 24a in the vehicle every time. Just unplugging the mobile adapter to try another TT-30 adapters the vehicle went back to 48 amps and started pulling more than 24 amps. That concerns me in case of power outages, etc. I will do some more testing to see if that is also because I unplugged the cable from the vehicle.

Safer bet would be to is the regular 120v plug, or find a 50a circuit.

Here is the link to the one I think is best as it fits in the charging bag and the matching Rivian yellow is icing: https://www.amazon.com/gp/aw/d/B07XNSXWM4

here's a great source for adapters as well. EVSE Adapters – Electric vehicle charging solutions, adapter cords for EV, RV, welders, and more. Charge anywhere.

in the early days of tesla prior to SC network expansion we learned how to use/carry several adapters, and extension cords. i have a 30ft 240 and a 50 foot 115 heavy duty cords in my frunk along with 5 or 6 adapters.

OP
OP

HA-Opec

Member
First Name
Wyatt
Joined
Nov 14, 2021
Threads
2
Messages
22
Reaction score
50
Location
Chico, Ca
First Name
Wyatt
Vehicles
Tesla MS, Maserati, Nissan Titan
Occupation
Project Manager
I wanted to start a thread for our week camping trip. Traveling with family and two other similar trailers (funny thing is mine is the heaviest by far)


Distance:
Chico to Lake of the Siskyous ~130 miles
Elevation Change : ~3500' ft

To get these numbers I've driven a bit on the highway on flat ground round trip to get an idea for wind factor.

Assumptions:
1100 watts per mile @ 65, Driving at 95% Speed
Added Wieght ~ 8000lbs

Stop 1:
Anderson EA charger arrive with 39% Charge to 71% ( Depending on my arrival %, this may need to be adjusted)
Stop 2:
Lakehead Chargepoint
Arrive 25%, Charge to 72%.
( Stopping here for long lunch and slow charge) again, may need to make adjustments.

The second and 3rd leg has me a little worried, it's a long grade up to Dunsmier, so I'll be very careful to make needed adjustments after the first stop.


Arrive at Lake of the Siskyous with 10%, Charge up at the RV camp :)

Wish me luck!

Well, sadly the R1T didn't make it home.. Major failures coming home down the moutain out of Anderson in 100 deg Temps. First low battery voltage failure, then low coolant warning, battery warm warning and then the truck went Into an emergency shutdown procedure and I couldn't get off the highway so I'm stuck attached to the trailer, with now way to unbrick the truck so I can at least get the trailer home (only about 30 miles from home).
At this point Rivian said they have never dealt with this situation (no way to move vehicle, or release E brake.)
It was all going so well.. this was the easy part coming downhill..

I'm currently waiting ( 3 hours so far) on a busy I5 truck highway, waiting on a tow truck and a CHP vehicle so we can get my trailer and truck home, then off to the service center..
Ugg
