Tow Eye Threads- Anyone know the size?

SSteveEV

Well-Known Member
First Name
Spencer
Joined
Nov 3, 2022
Threads
7
Messages
1,118
Reaction score
1,421
Location
Michigan
Vehicles
R1T, etc
Clubs

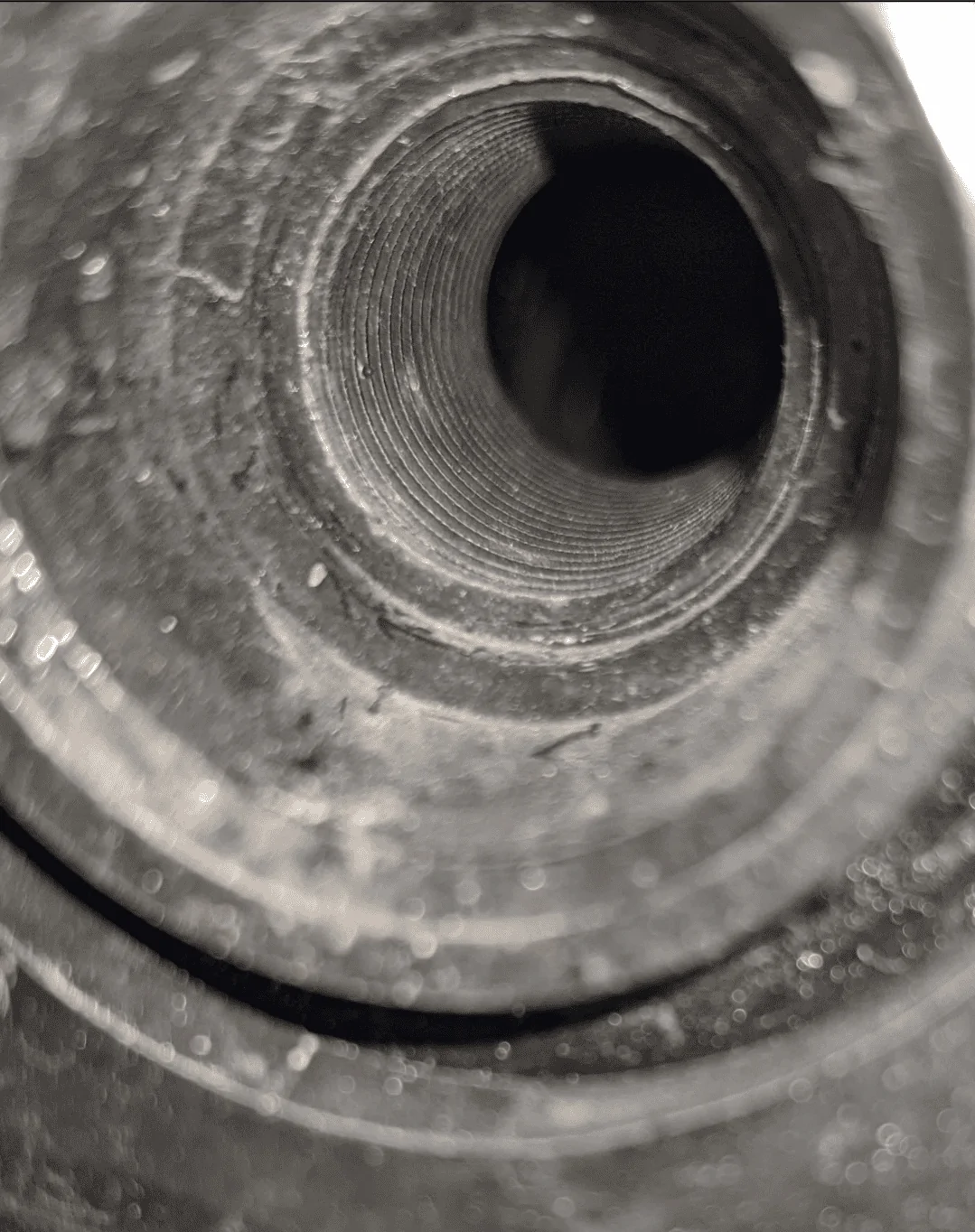

Does anyone know the size of the tow eye threads? Talking about the mostly useless one hidden behind the passenger tow hook rubber flaps. Investigating using it for a tie in point for an ORV flag. Looks like it is a Left Hand thread but I don't have a set of thread gauges to figure out the rest. Any help is appreciated!
Rivian R1T R1S Tow Eye Threads- Anyone know the size? Screenshot_20221114-113501

(I know it would be easier to have a U-bolt or pipe clamp solution as shown in the forums but I'd like something that is hidden and easier to remove since the first mount I bought was pretty loose and required shims/4 screws to attach. And always fun to have a little project.
Concept is to have 2 parts, the screw in part past the rubber flaps and the exterior part bent down and around the hook on the outside. Then join them in the middle with one bolt so I can connect/disconnect there.)
Sponsored



Sattman69

Well-Known Member
First Name
John
Joined
Apr 1, 2022
Threads
0
Messages
92
Reaction score
78
Location
Denver
Vehicles
‘19 4Runner Limited, toytec lift & power brakes
Occupation
Consult/Project Manager
Found this post/thread while searching for a different place to mount the front license plate. I don’t have my truck yet so flying blind.

I want to avoid the OEM version putting holes the the bumper and the other DIY mounts on tow hook don’t seem sturdy enough for splash back snow and slush.

If you get the threads figured out please post. Thanks and good luck!

Rivian R1T R1S Tow Eye Threads- Anyone know the size? Screenshot 2024-03-07 at 7.04.14 AM


Rivian R1T R1S Tow Eye Threads- Anyone know the size? Screenshot 2024-03-07 at 7.10.34 AM

Last edited by a moderator:
OP
OP
SSteveEV

SSteveEV

Well-Known Member
First Name
Spencer
Joined
Nov 3, 2022
Threads
7
Messages
1,118
Reaction score
1,421
Location
Michigan
Vehicles
R1T, etc
Clubs

Per MI Service the thread pattern for the hidden tow eye is:
M22x2.5 LH, M22x2.5 "LH" 61.5mm thread depth from front face

Now to start my hunt for something that fits in that space...

@Sattman69

Last edited:

Narya

Member
Joined
Feb 7, 2022
Threads
2
Messages
14
Reaction score
10
Location
California
Vehicles
Rivian R1S, Kia Sorento, Tesla Model 3 LR
@SSteveEV did you ever find a mount for this? If so, did it interfere with any of the sensors? I recently got an R1S Dual Standard, so it doesn't come with the tow hooks, so I am looking for a license plate mount that uses the tow eye.

OP
OP
SSteveEV

SSteveEV

Well-Known Member
First Name
Spencer
Joined
Nov 3, 2022
Threads
7
Messages
1,118
Reaction score
1,421
Location
Michigan
Vehicles
R1T, etc
Clubs

@SSteveEV did you ever find a mount for this? If so, did it interfere with any of the sensors? I recently got an R1S Dual Standard, so it doesn't come with the tow hooks, so I am looking for a license plate mount that uses the tow eye.
No, I was looking for a dune flag whip so I can't speak to the license plate locations but I think there are a couple other threads out there discussing good options. I used a clamp on mount after all anyways.
Good luck!
