We are headed out on a round trip from CA to Telluride and back. We might be crazy but we are going to try it in the R1S. Camping along the way.

We have 4 humans and 2 dogs (lab and golden) so we will only have use of the frunk.
To ensure we have enough storage I wanted to put our roof box and a Yakima SkinnyWarrior cage on top.

I wasn't able to get the necessary width with the Rivian bars and decided to get the Thule set up. I am very impressed with their fit kit and overall build quality. Mounts are super solid.
I used the rear most mount points which works well and is not very noisy on the highway. I'll do some range tests and post a follow-up.

What I installed:
Thule Evo Fixpoint
Thule Wingbar Evo - length 150
Fit kit 187139
Thule Motion XT XL roof box
Yakima SkinnyWarrior cage

Hope this helps someone who needs to take a lot of gear.

Rivian R1T R1S Thule roof rack, box and cage installed on R1S for road trip IMG_2628.JPG

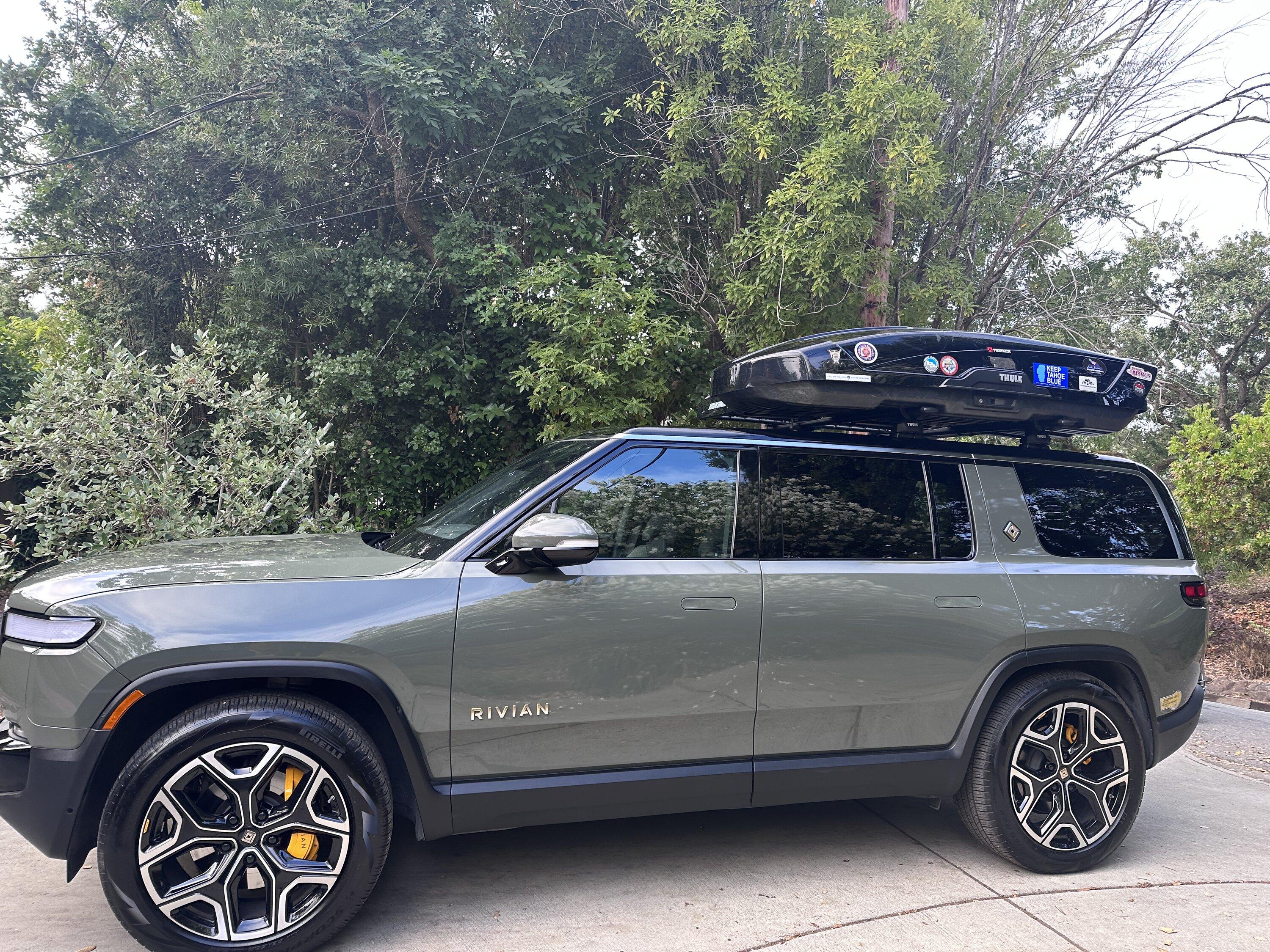

Rivian R1T R1S Thule roof rack, box and cage installed on R1S for road trip IMG_2629.JPG


Rivian R1T R1S Thule roof rack, box and cage installed on R1S for road trip IMG_2622.JPG


Rivian R1T R1S Thule roof rack, box and cage installed on R1S for road trip IMG_2625.JPG


Rivian R1T R1S Thule roof rack, box and cage installed on R1S for road trip IMG_2624.JPG


Rivian R1T R1S Thule roof rack, box and cage installed on R1S for road trip IMG_2630.JPG
Sponsored



wicked2112

Well-Known Member
First Name
Kenny
Joined
Jun 5, 2021
Threads
4
Messages
388
Reaction score
412
Location
Salem Oregon
Vehicles
Subaru Outback & CrossTrek
Occupation
Warranty & Product Integrity Manager - Yakima Racks.
Clubs

Does Thule even have a fit for the Riian R1S???? If they don't. be Extremely careful!!!


Dark-Fx

Well-Known Member
First Name
Brian
Joined
Jul 15, 2020
Threads
120
Messages
11,222
Reaction score
22,094
Location
Michigan
Vehicles
R1T, R1S, Livewire One, Fisker Ocean, Sierra EV
Occupation
Engineering
Clubs

Does Thule even have a fit for the Riian R1S???? If they don't. be Extremely careful!!!
The mounting points are exactly the same between vehicles. This probably just means they haven't gotten an R1S to test the fit on.

OP
OP
StefanB

StefanB

Well-Known Member
First Name
Stefan
Joined
Feb 26, 2021
Threads
5
Messages
58
Reaction score
97
Location
Portola Valley and Tahoe City CA, USA
Vehicles
R1S
Occupation
Sales and BD
Thule has a fit kit for the R1T. Which I also confirmed with them. Since it is the exact same mount between the R1T and R1S I don't see an issue. The Thule mounts and bars are more solid than the Rivian OEM bars are. They are also quieter with just the bars. The Rivian bars are very easy to take on and off though so I plan to use both depending on the mission.


Dark-Fx

Well-Known Member
First Name
Brian
Joined
Jul 15, 2020
Threads
120
Messages
11,222
Reaction score
22,094
Location
Michigan
Vehicles
R1T, R1S, Livewire One, Fisker Ocean, Sierra EV
Occupation
Engineering
Clubs

Have you taken them off yet? Curious if the attachment design ends up causing damage to the top of the roof mounts.


Sponsored

OP
OP
StefanB

StefanB

Well-Known Member
First Name
Stefan
Joined
Feb 26, 2021
Threads
5
Messages
58
Reaction score
97
Location
Portola Valley and Tahoe City CA, USA
Vehicles
R1S
Occupation
Sales and BD
Have you taken them off yet? Curious if the attachment design ends up causing damage to the top of the roof mounts.
I haven't, just put them on the other day. I'd be surprised if there is damage. I'm not a Thule fanboy but after having had to adjust my Rivian (Yakima) bars many times this is a more familiar setup process from my past vehicles. And seems pretty straight forward and well thought out by Thule.

Thekit works by hooking onto the mount point and has a custom rubber foot to make contact with the roof. You then tighten the foot onto the hook and Thule includes a torque wrench so you don't under or over tighten. Then the bar mount is attached to the now tightened foot. Overall a rather impressive set up.

After we get back in mid August I'll take everything off and send photos of how it looks.


Dark-Fx

Well-Known Member
First Name
Brian
Joined
Jul 15, 2020
Threads
120
Messages
11,222
Reaction score
22,094
Location
Michigan
Vehicles
R1T, R1S, Livewire One, Fisker Ocean, Sierra EV
Occupation
Engineering
Clubs

I haven't, just put them on the other day. I'd be surprised if there is damage. I'm not a Thule fanboy but after having had to adjust my Rivian (Yakima) bars many times this is a more familiar setup process from my past vehicles. And seems pretty straight forward and well thought out by Thule.

Thekit works by hooking onto the mount point and has a custom rubber foot to make contact with the roof. You then tighten the foot onto the hook and Thule includes a torque wrench so you don't under or over tighten. Then the bar mount is attached to the now tightened foot. Overall a rather impressive set up.

After we get back in mid August I'll take everything off and send photos of how it looks.
I've seen photos of how the hook works from Reddit. Steel pushing into what feels like aluminum is always going to make a depression into the aluminum. Of course there is also the chance that the reddit person didn't follow the instructions properly, but it certainly looks to jive with what the instructions say.


Ripped

Well-Known Member
Joined
Nov 24, 2020
Threads
24
Messages
299
Reaction score
268
Location
Somewhere
Vehicles
R1T Dual Max
Occupation
-
I'd definitely like to see a close-up of the mounting with the Thule setup. Makes sense that Rivian would have some cross-compatibility. Certainly make it easy for the outdoorsy people


wicked2112

Well-Known Member
First Name
Kenny
Joined
Jun 5, 2021
Threads
4
Messages
388
Reaction score
412
Location
Salem Oregon
Vehicles
Subaru Outback & CrossTrek
Occupation
Warranty & Product Integrity Manager - Yakima Racks.
Clubs

The mounting points are exactly the same between vehicles. This probably just means they haven't gotten an R1S to test the fit on.
Just be careful as Thule could come back and say we never tested this on this vehcle. If they have and it works, AWESOME!


Sponsored

Yossarian

Well-Known Member
Joined
Oct 20, 2020
Threads
30
Messages
711
Reaction score
684
Location
SE Pennsylvania
Vehicles
R1T,Telluride, Wee-Strom, Lynskey Cooper
Good stuff @StefanB, and thanks for posting. We will also be traveling with two dogs, and will be looking to mount a Thule Force top box on our R1S (when we get it). It's good to know that the noise level is tolerable with a top box in place, but what about the impact on range?

OP
OP
StefanB

StefanB

Well-Known Member
First Name
Stefan
Joined
Feb 26, 2021
Threads
5
Messages
58
Reaction score
97
Location
Portola Valley and Tahoe City CA, USA
Vehicles
R1S
Occupation
Sales and BD
Good stuff @StefanB, and thanks for posting. We will also be traveling with two dogs, and will be looking to mount a Thule Force top box on our R1S (when we get it). It's good to know that the noise level is tolerable with a top box in place, but what about the impact on range?
@Yossarian With the Rivian bars I was able to get just the roof box on top without a space issue. We used that over the winter to drive to Tahoe a few times. My normal efficiency (no roof box or bars) is about 2.1 mile / kwh driving at 75 mph. WIth just the roof box we would be roughly 1.8 mile / kwh.

Yesterday I did a few test runs setting the cruise control at 70 mph on the highway. Was only 8 mile stretch but I was getting 1.7 miles / kwh. So I'm guessing this will be about a 20% range hit on highway driving.

Around town driving 20-40 mph there is no effect. I am averaging 2.1-2.3 miles / kwh.

OP
OP
StefanB

StefanB

Well-Known Member
First Name
Stefan
Joined
Feb 26, 2021
Threads
5
Messages
58
Reaction score
97
Location
Portola Valley and Tahoe City CA, USA
Vehicles
R1S
Occupation
Sales and BD
Following-up to see if removing everything had any issues. Also, the link above is for 150 length bars, but Thule in their bundle for the R1S lists 135 length, can you confirm the correct length please?

https://www.thule.com/en-us/roof-rack/car-roof-racks/thule-wingbar-evo-_-am711xxx

I'm ordering the same setup
I went with the 150 bars as they allowed me to get the roofbox and cage on the rack. My measurements were that the 135s would not allow that. If just getting a cage OR the box 135 should work just fine. I don't have any issues with the 150s but if I used the front and middle mounts they might hit tall people in the head. They do not extend past the mirrors.

Taking them off is akin to a normal vehicle, it was about a 5-10 minute job total. The feet are in 2 pieces so that took the most time.

Overall I use the Rivian bars if I need bars quickly, like for my surfboards, and the Thule for longer term usage, like ski season roof box or road trips.

Hope this helps


MPBR1S

New Member
First Name
Mike
Joined
Nov 30, 2023
Threads
1
Messages
3
Reaction score
4
Location
GA
Vehicles
Rivian R1S
Occupation
Dude of Things
Clubs

We are headed out on a round trip from CA to Telluride and back. We might be crazy but we are going to try it in the R1S. Camping along the way.

We have 4 humans and 2 dogs (lab and golden) so we will only have use of the frunk.
To ensure we have enough storage I wanted to put our roof box and a Yakima SkinnyWarrior cage on top.

I wasn't able to get the necessary width with the Rivian bars and decided to get the Thule set up. I am very impressed with their fit kit and overall build quality. Mounts are super solid.
I used the rear most mount points which works well and is not very noisy on the highway. I'll do some range tests and post a follow-up.

What I installed:
Thule Evo Fixpoint
Thule Wingbar Evo - length 150
Fit kit 187139
Thule Motion XT XL roof box
Yakima SkinnyWarrior cage

Hope this helps someone who needs to take a lot of gear.
