I got my Quad Motor Large Pack R1T in July, 2022. VIN in the 8000 range. Been driving the heck out of it and loving every mile. I have the 21" road tires.

Yesterday I attempted a battery degradation test for the first time. My procedure was as follows;

1. Fill battery to 100% as indicated on main GUI screen in the Rivian cockpit
2. Reset the "Trip A" odometer
3. Drove on a mixture of 70 mph interstate and 60 mph rural highways.
4. Monitored the state of charge on the main screen and at every 5% interval we recorded the miles drive and consumption data in the "Trip A" odometer
5. Pulled into my garage with 9% remaining on the battery. (didn't really want to run it down to zero.....)
6. Charged to 100% again and recorded the energy added to the battery.

This gave me two estimates of the energy in my battery at 100% state of charge.

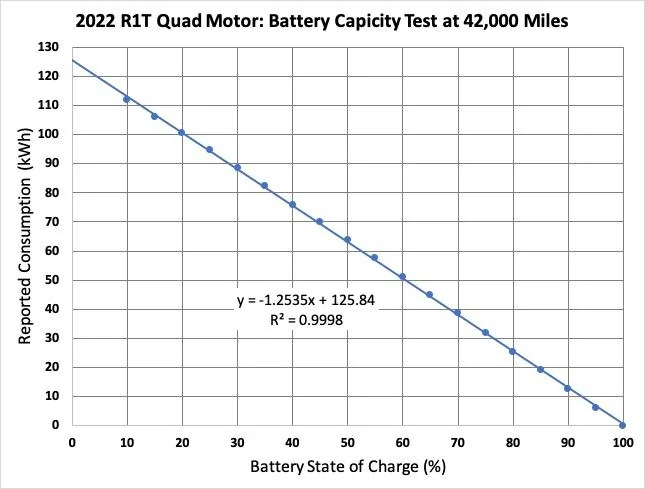

The first estimate is from the consumption data recorded at every 5% SOC interval from 100% to 10%. I fitted a linear line to the data points and then extrapolated this to 0% state of charge as shown in the graph below. This indicates 125.84 kWh would have been used from 100% to 0%. Rivian says the original usable battery capacity is 131 kWh. 131/125.84 = 0.9606 which says 125.84 is 96.06% of the original capacity of the battery or about a 4% degradation.

Rivian R1T R1S Test Result:  Battery Degradation at 42,000 miles Just ~3% Degradation (2022 R1T Quad Motor) 42k battery test

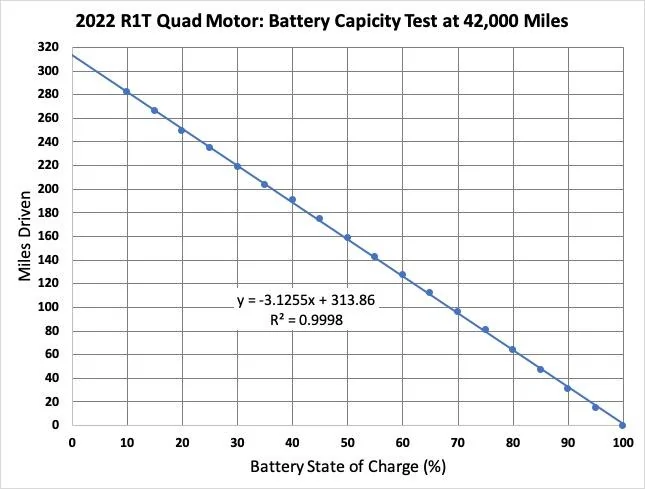

The miles covered at each 5% SOC increment in this test is shown below. Again extrapolating to 0% says my full pack range would have been ~314 miles. At the start of the test the vehicle computer said my range would be 315 miles! Almost exactly right!
Rivian R1T R1S Test Result:  Battery Degradation at 42,000 miles Just ~3% Degradation (2022 R1T Quad Motor) 42k battery test miles driven

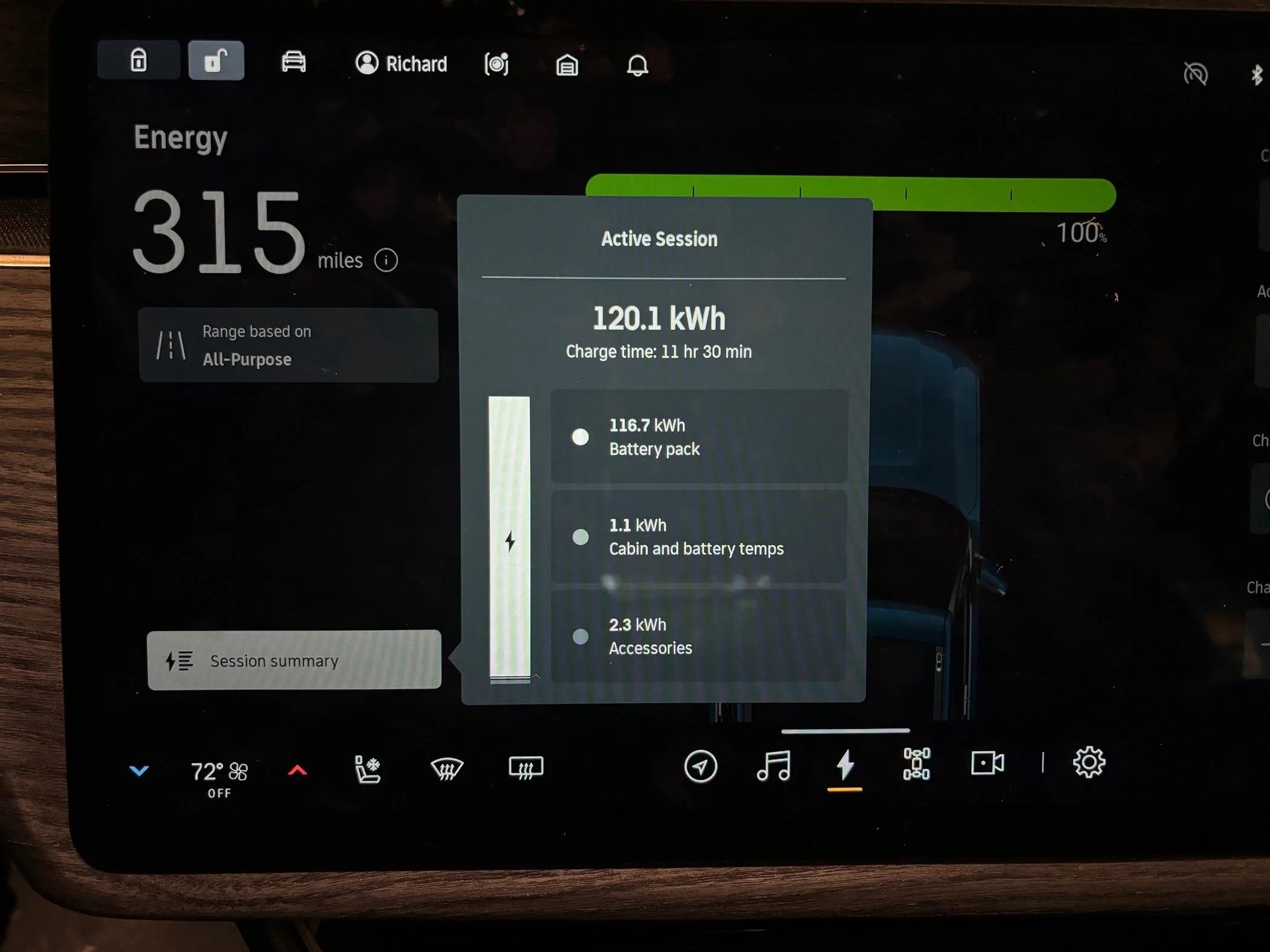

Method two comes from the reported energy put back into the battery when I charge back up from 9% to 100%. The Rivian user interface says 116.7 kWh were added to the pack. Dividing 116.7 by 0.91 gives the estimated energy that would have been added if starting from 0%. 116.7/0.91 = 128.24 kWh. This is 97.89% of the 131 original usable capacity. Or about 2.1% degradation.
Rivian R1T R1S Test Result:  Battery Degradation at 42,000 miles Just ~3% Degradation (2022 R1T Quad Motor) Recharging Summary 42k battery test


The second method is probably more accurate but if we average the two methods the degradation is around 3% after 1 year and 10 months and 42,000 miles. Pretty good result in my opinion.

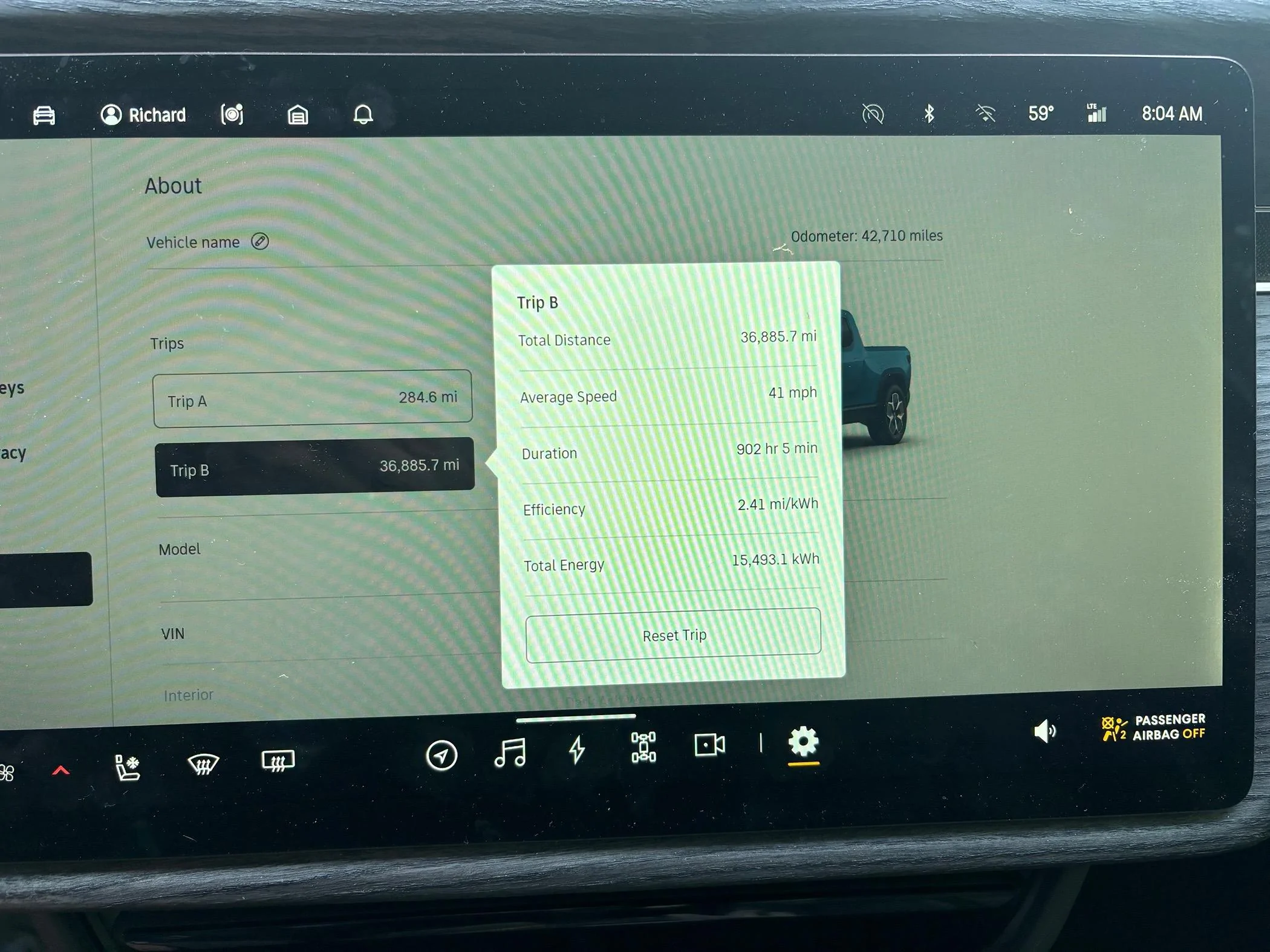

My Trip B odometer has almost 37,000 miles on it and my efficiency over that distance has been 2.41 miles/kWh
Rivian R1T R1S Test Result:  Battery Degradation at 42,000 miles Just ~3% Degradation (2022 R1T Quad Motor) Lifetime efficiancy at 42k




Very happy with these results. 3% or so degradation and the range estimate being spot on.

Overall I have had a very good experience with my R1T. Got 37,000 miles from my first set of tires. My powered tonneau has always and continues to work fine. The only issue I've had is a sticky charge port door which was fixed under warranty by replacing the actuator motor. I give my sincere compliments and thanks to the entire Rivian team.
Sponsored



COdogman

Well-Known Member
First Name
Brian
Joined
Jan 21, 2022
Threads
30
Messages
7,778
Reaction score
21,143
Location
Colorado
Vehicles
2023 R1T
Occupation
Dog Wrangler
Thanks for sharing those results. I would be happy with that as well!


defcon888

Well-Known Member
First Name
Keith
Joined
May 23, 2023
Threads
3
Messages
936
Reaction score
683
Location
Auburn, Ca
Vehicles
2023 R1T, 2021 Toyota RAV4 Prime
Occupation
Making money
Clubs

That is a lot of data

Rivian R1T R1S Test Result:  Battery Degradation at 42,000 miles Just ~3% Degradation (2022 R1T Quad Motor) doug-maclean-nhl

OP
OP
Budman

Budman

Well-Known Member
First Name
Rick
Joined
Oct 22, 2021
Threads
35
Messages
359
Reaction score
1,002
Location
Minnesota
Vehicles
Honda CRV
Clubs

What did you routinely charge to?
Ah, yes. I forgot to include that.

Typically 70% but we make frequent trips to our cabin 165 miles away so then I often do 80% to 90%. I try hard to not leave the truck sit for long periods below 50% or above 75%.

We live in MN so not much time sitting in hot, sunny parking lots. I’ve done around 30 or so fast charging sessions with chargers rated at 120 kW or


Sponsored

Wowme22

Active Member
First Name
A
Joined
Sep 15, 2022
Threads
6
Messages
38
Reaction score
54
Location
Chicago
Vehicles
BMW
Excellent summary, OP. However, isn't a 3% degradation considered significant, especially when the average degradation rate is typically cited as 1-2% per year in various sources? Would love to get educated a little. My R1T was also delivered around same time as yours.

Meanwhile I was able to get 32k miles on 21”.

  • Like
Reactions: Rod
OP
OP
Budman

Budman

Well-Known Member
First Name
Rick
Joined
Oct 22, 2021
Threads
35
Messages
359
Reaction score
1,002
Location
Minnesota
Vehicles
Honda CRV
Clubs

It is also reported that there is an initially higher rate the first year or so then it slows down to that 1% per year. Also, i have a much higher that average mileage accumulation so I’m happy with the 3% I measured.

Thanks for the question. Open to any others thoughts.


zymolysis

Well-Known Member
First Name
Ross
Joined
May 9, 2022
Threads
1
Messages
510
Reaction score
315
Location
Phoenix Arizona
Vehicles
2022 R1T [RUS, PTC (upgraded), 20"] 2008 Ford E350
Occupation
third party service
Clubs

isn't a 3% degradation considered significant, especially when the average degradation rate is typically cited as 1-2% per year
Since OP has owned his Rivian over 1.5 years (~1.8), 3% would be in line with the "1-2% per year." Even so, I doubt that there is an EV maker on the planet who would call "3% degradation...significant."


DuoRivian

Well-Known Member
Joined
Sep 3, 2023
Threads
1
Messages
270
Reaction score
280
Location
California
Vehicles
Rivian R1T and an R1S
Occupation
IT
Excellent summary, OP. However, isn't a 3% degradation considered significant, especially when the average degradation rate is typically cited as 1-2% per year in various sources? Would love to get educated a little. My R1T was also delivered around same time as yours.

Meanwhile I was able to get 32k miles on 21”.
3% is not significant. The warranty kicks in after 30% degradation in the first 8 years so this is very little given the mileage.


Supratachophobia

Well-Known Member
Joined
Apr 8, 2023
Threads
1
Messages
995
Reaction score
1,345
Location
Ohio
Vehicles
S
Clubs

I got my Quad Motor Large Pack R1T in July, 2022. VIN in the 8000 range. Been driving the heck out of it and loving every mile. I have the 21" road tires.

Yesterday I attempted a battery degradation test for the first time. My procedure was as follows;

1. Fill battery to 100% as indicated on main GUI screen in the Rivian cockpit
2. Reset the "Trip A" odometer
3. Drove on a mixture of 70 mph interstate and 60 mph rural highways.
4. Monitored the state of charge on the main screen and at every 5% interval we recorded the miles drive and consumption data in the "Trip A" odometer
5. Pulled into my garage with 9% remaining on the battery. (didn't really want to run it down to zero.....)
6. Charged to 100% again and recorded the energy added to the battery.

This gave me two estimates of the energy in my battery at 100% state of charge.

The first estimate is from the consumption data recorded at every 5% SOC interval from 100% to 10%. I fitted a linear line to the data points and then extrapolated this to 0% state of charge as shown in the graph below. This indicates 125.84 kWh would have been used from 100% to 0%. Rivian says the original usable battery capacity is 131 kWh. 131/125.84 = 0.9606 which says 125.84 is 96.06% of the original capacity of the battery or about a 4% degradation.

42k battery test.jpg


The miles covered at each 5% SOC increment in this test is shown below. Again extrapolating to 0% says my full pack range would have been ~314 miles. At the start of the test the vehicle computer said my range would be 315 miles! Almost exactly right!
42k battery test miles driven.jpg


Method two comes from the reported energy put back into the battery when I charge back up from 9% to 100%. The Rivian user interface says 116.7 kWh were added to the pack. Dividing 116.7 by 0.91 gives the estimated energy that would have been added if starting from 0%. 116.7/0.91 = 128.24 kWh. This is 97.89% of the 131 original usable capacity. Or about 2.1% degradation.
Recharging Summary 42k battery test.jpg


The second method is probably more accurate but if we average the two methods the degradation is around 3% after 1 year and 10 months and 42,000 miles. Pretty good result in my opinion.

My Trip B odometer has almost 37,000 miles on it and my efficiency over that distance has been 2.41 miles/kWh
Lifetime efficiancy at 42k.jpg




Very happy with these results. 3% or so degradation and the range estimate being spot on.

Overall I have had a very good experience with my R1T. Got 37,000 miles from my first set of tires. My powered tonneau has always and continues to work fine. The only issue I've had is a sticky charge port door which was fixed under warranty by replacing the actuator motor. I give my sincere compliments and thanks to the entire Rivian team.
Call me scarred by Tesla, but unless we have access to the BMS data, I don't think these tests can be trusted. I appreciate how much science and control you were able to put in though.

Also, I don't see any adjustment for charging efficiency losses.


Sponsored

HaveBlue

Well-Known Member
Joined
Nov 22, 2022
Threads
21
Messages
1,324
Reaction score
1,000
Location
91107
Vehicles
R1S DMP Max, Lifted GX470, APR Audi A7, BMW 325Ci
Clubs

I think service mode reports battery health

OP
OP
Budman

Budman

Well-Known Member
First Name
Rick
Joined
Oct 22, 2021
Threads
35
Messages
359
Reaction score
1,002
Location
Minnesota
Vehicles
Honda CRV
Clubs

Call me scarred by Tesla, but unless we have access to the BMS data, I don't think these tests can be trusted. I appreciate how much science and control you were able to put in though.

Also, I don't see any adjustment for charging efficiency losses.
In retrospect, I wish I had done this when the truck was new to establish a baseline with these methods. That would have helped underpin the degradation over time.


doggkruse

Member
Joined
Jun 11, 2023
Threads
0
Messages
6
Reaction score
4
Location
Ca
Vehicles
R1T
Call me scarred by Tesla, but unless we have access to the BMS data, I don't think these tests can be trusted. I appreciate how much science and control you were able to put in though.

Also, I don't see any adjustment for charging efficiency losses.
I added the ability to see SOH as reported by Rivian to the Rivian home assistant intégration a couple of days ago. Most people are seeing 129-130+ with a bunch of miles

Rivian R1T R1S Test Result:  Battery Degradation at 42,000 miles Just ~3% Degradation (2022 R1T Quad Motor) IMG_4232


AYAYRON

Well-Known Member
First Name
Aaron
Joined
Nov 17, 2022
Threads
4
Messages
305
Reaction score
287
Location
Dallas Tx
Vehicles
r1t
There’s a service menu that shows your Max battery capacity which would eliminate the potential errors in testing, I think the last time the access sequence was leaked I was at like 92% (it’s been a long time so my memory could be wrong).


HeyEllwood

Well-Known Member
First Name
Keith
Joined
Jan 24, 2023
Threads
4
Messages
207
Reaction score
195
Location
Bay Area
Vehicles
Model Y R1S
Occupation
Operations Analyst
I believe also that degradation will slow down from here on out too. If I remember correctly reading about older Model S’s. They typically saw a 3-5% or whatever and than from there they barely saw any or like ~1% over years time. Maybe I’m getting the info wrong. But I’m pretty sure that was the case..
