Telematics Control Module Stops by the FCC

kanundrum

Well-Known Member
Joined
May 2, 2020
Threads
217
Messages
3,976
Reaction score
12,107
Location
Washington, DC
Vehicles
Giulia QV, R1S (S00N)
Occupation
IT
Clubs

NO Confidence markings have been screencaptured as a FYI. Those pieces of information are available via link below but do not contain any photos of the actual unit as they are under lock until a November Date.

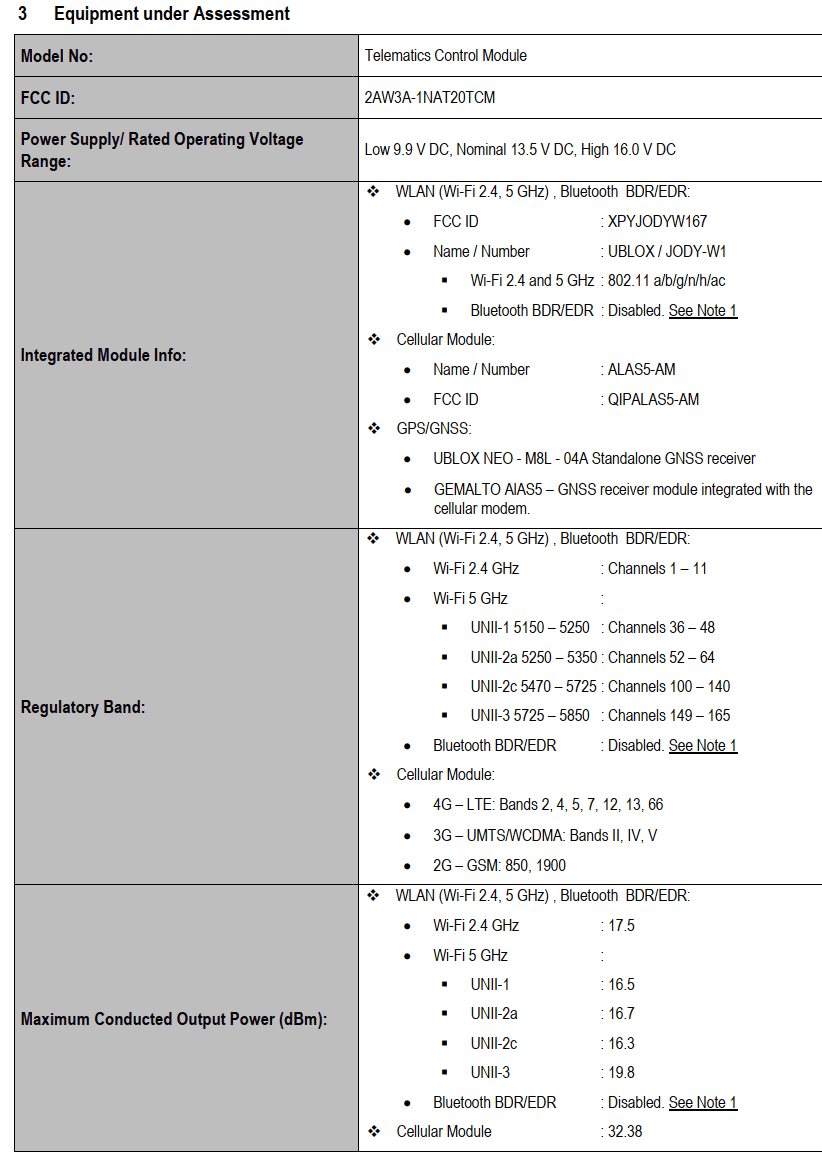

The Telematics Control Module stops by the FCC for approval: https://fccid.io/2AW3A-1NAT20TCM Some key features are their Communication Bands used to talk with the "ON-STAR" Like services.

The Telematics Control Module (TCM) is a connectivity module integrated into a vehicular application.


Rivian R1T R1S Telematics Control Module Stops by the FCC 1622553853080


Rivian R1T R1S Telematics Control Module Stops by the FCC 1622553945216




From Phone Arena in terms of Bands: Looks like the Service Provider could be Verizon based on the WCDMA as only Verizon and Sprint use CDMA and none of Sprints frequencies (although now they are T-Mobile) have been listed.

Rivian R1T R1S Telematics Control Module Stops by the FCC 1622554103687

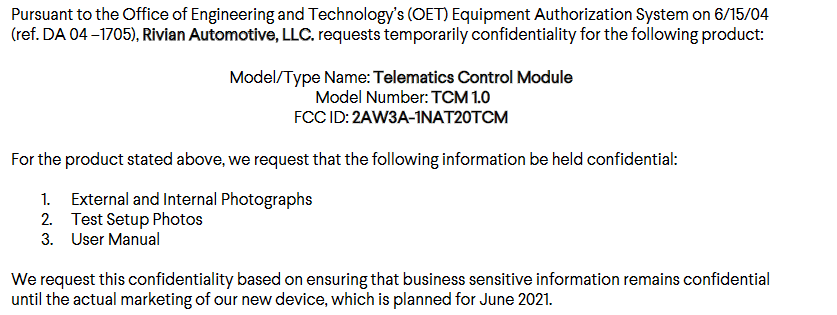

Here is the main tidbit I saw

Rivian R1T R1S Telematics Control Module Stops by the FCC 1622554984219
Sponsored


Last edited:

RWerksman

Well-Known Member
Site Sponsor
First Name
Rob
Joined
Nov 13, 2020
Threads
57
Messages
1,391
Reaction score
3,119
Location
Pittsburgh
Vehicles
Jeep & R1T
OP
OP
kanundrum

kanundrum

Well-Known Member
Joined
May 2, 2020
Threads
217
Messages
3,976
Reaction score
12,107
Location
Washington, DC
Vehicles
Giulia QV, R1S (S00N)
Occupation
IT
Clubs

A little bit of digging seems to indicate that the modem component of this SOC implementation is only 4G capable, not 5G. Beyond an integrated hotspot, I'm not sure how much that impact that will have - likely none.

https://www.globalcertificationforum.org/pub_product/8255.html
If its verizon I am totally alright with that, have done some speed tests in almost all parts of the USA verizon hands down has the best network especially in places that are co-located with a RAN charger.


Blueassassin

Well-Known Member
First Name
Allen
Joined
Apr 5, 2021
Threads
30
Messages
1,432
Reaction score
2,636
Location
il
Vehicles
LE R1T, Hummer H1, Lotus Elise
Occupation
Equipment Manager
Clubs

The new Ford trucks already have 5G


Sponsored

electruck

Well-Known Member
Joined
Oct 6, 2019
Threads
69
Messages
3,496
Reaction score
6,460
Location
Dallas, TX
Vehicles
2023 Rivian R1S

cohall

Well-Known Member
Joined
Mar 30, 2020
Threads
56
Messages
1,295
Reaction score
4,458
Location
Denver
Vehicles
2022 Rivian R1T
What does the part at the very end mean? What are they marketing 1 year from now?

...until the actual marketing of our new device, which is planned for June 2021

OP
OP
kanundrum

kanundrum

Well-Known Member
Joined
May 2, 2020
Threads
217
Messages
3,976
Reaction score
12,107
Location
Washington, DC
Vehicles
Giulia QV, R1S (S00N)
Occupation
IT
Clubs

What does the part at the very end mean? What are they marketing 1 year from now?

TLDR they want to keep the documentation secret until this month when they unveil the product officially apparently.


Smithery

Well-Known Member
Joined
Oct 16, 2020
Threads
4
Messages
404
Reaction score
737
Location
California
Vehicles
MX 100D, XC70, Cooper S JCW, R1T Large
OP
OP
kanundrum

kanundrum

Well-Known Member
Joined
May 2, 2020
Threads
217
Messages
3,976
Reaction score
12,107
Location
Washington, DC
Vehicles
Giulia QV, R1S (S00N)
Occupation
IT
Clubs

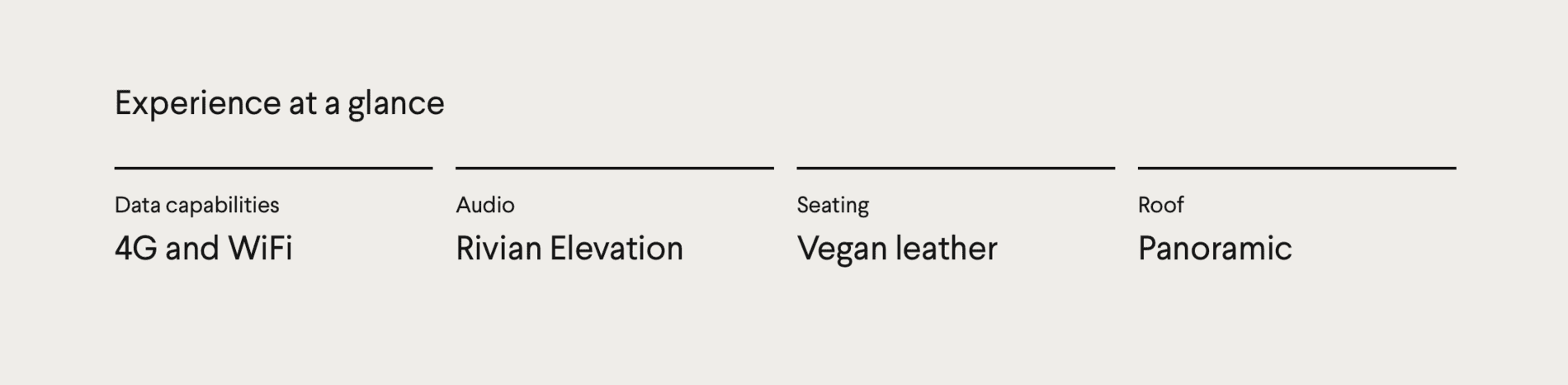

This information could've been gleaned before this FCC Easter egg because Rivian has told us quite clearly it is the case on their website

Screen Shot 2021-06-01 at 9.39.15 AM.png

Correct, they have always stated this, I simply put its actually happening for approval overall at the FCC and the bands tell us who their CSP maybe!


Sponsored

OP
OP
kanundrum

kanundrum

Well-Known Member
Joined
May 2, 2020
Threads
217
Messages
3,976
Reaction score
12,107
Location
Washington, DC
Vehicles
Giulia QV, R1S (S00N)
Occupation
IT
Clubs

Wow. I'm an idiot. Legit was thinking next year was 2021.

Tuesdays, am I right?

Its cool I completely forgot 2020 was last year and thought it was 2019 LOL.


RWerksman

Well-Known Member
Site Sponsor
First Name
Rob
Joined
Nov 13, 2020
Threads
57
Messages
1,391
Reaction score
3,119
Location
Pittsburgh
Vehicles
Jeep & R1T
If its verizon I am totally alright with that, have done some speed tests in almost all parts of the USA verizon hands down has the best network especially in places that are co-located with a RAN charger.
How about in 5 years? 5G only started to be piloted in 2019.

OP
OP
kanundrum

kanundrum

Well-Known Member
Joined
May 2, 2020
Threads
217
Messages
3,976
Reaction score
12,107
Location
Washington, DC
Vehicles
Giulia QV, R1S (S00N)
Occupation
IT
Clubs

How about in 5 years? 5G only started to be piloted in 2019.

How much do you know about 5g? Its broken down into MM wave technology with High Frequency and Low Frequency. Each provider has their own band, for example Low Frequency is on T-Mobile which has slightly higher data speeds at peak compared to T-Mobiles 4g LTE which is pretty slow comparatively to Verizons 4g. Verizon's 5g is High Frequency MM wave technology that requires you to be within a few hundred yards of their antennas (for now), last time I checked they didnt buy more of the spectrum but until they by the low end of things 4g will be at least the standard for another 5 years Id imagine before their infrastructure gets rebuilt.

In terms of the vehicle I wouldn't even care/worry as peak 4g LTE speeds have been very fast and fast enough to do what you need to do and then some (stream movies, data etc).


electruck

Well-Known Member
Joined
Oct 6, 2019
Threads
69
Messages
3,496
Reaction score
6,460
Location
Dallas, TX
Vehicles
2023 Rivian R1S
How about in 5 years? 5G only started to be piloted in 2019.
4G will still be relevant for at least another decade.
