Tank Turn Implementation Hints thru Road Monitoring

kanundrum

Well-Known Member
Joined
May 2, 2020
Messages
2,105
Reaction score
6,768
Location
Washington, DC
Vehicles
Sketch At most
Occupation
IT
https://patentscope.wipo.int/search/en/detail.jsf?docId=US344953450&_cid=P21-KXGYJ0-60827-1

US20210387627 - METHODS, SYSTEMS, AND MEDIA FOR DETERMINING CHARACTERISTICS OF ROADS

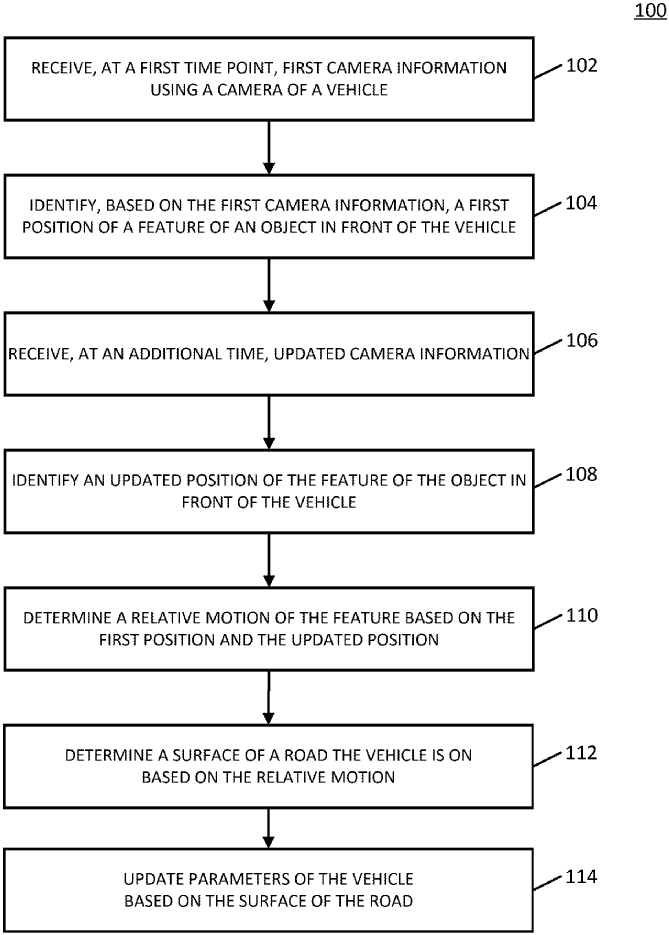

Methods, systems, and media for determining characteristics of roads are provided. In some embodiment, the method comprises: receiving, at a first time point, first camera information from a camera associated with a vehicle; identifying a first position of a feature of an object in front of the vehicle based on the first camera information; receiving, at an additional time point, additional camera information from the camera; identifying an updated position of the feature of the object in front of the vehicle based on the additional camera information; determining a relative motion of the feature of the object in front of the vehicle based on the first position and the updated position; and determining a characteristic of a road the vehicle is on based on the relative motion of the feature of the object in front of the vehicle.
