Rivian R1T R1S Show off your Level 2 Home Charger installs here C762B018-9F31-434E-9156-322E85F3AFA6

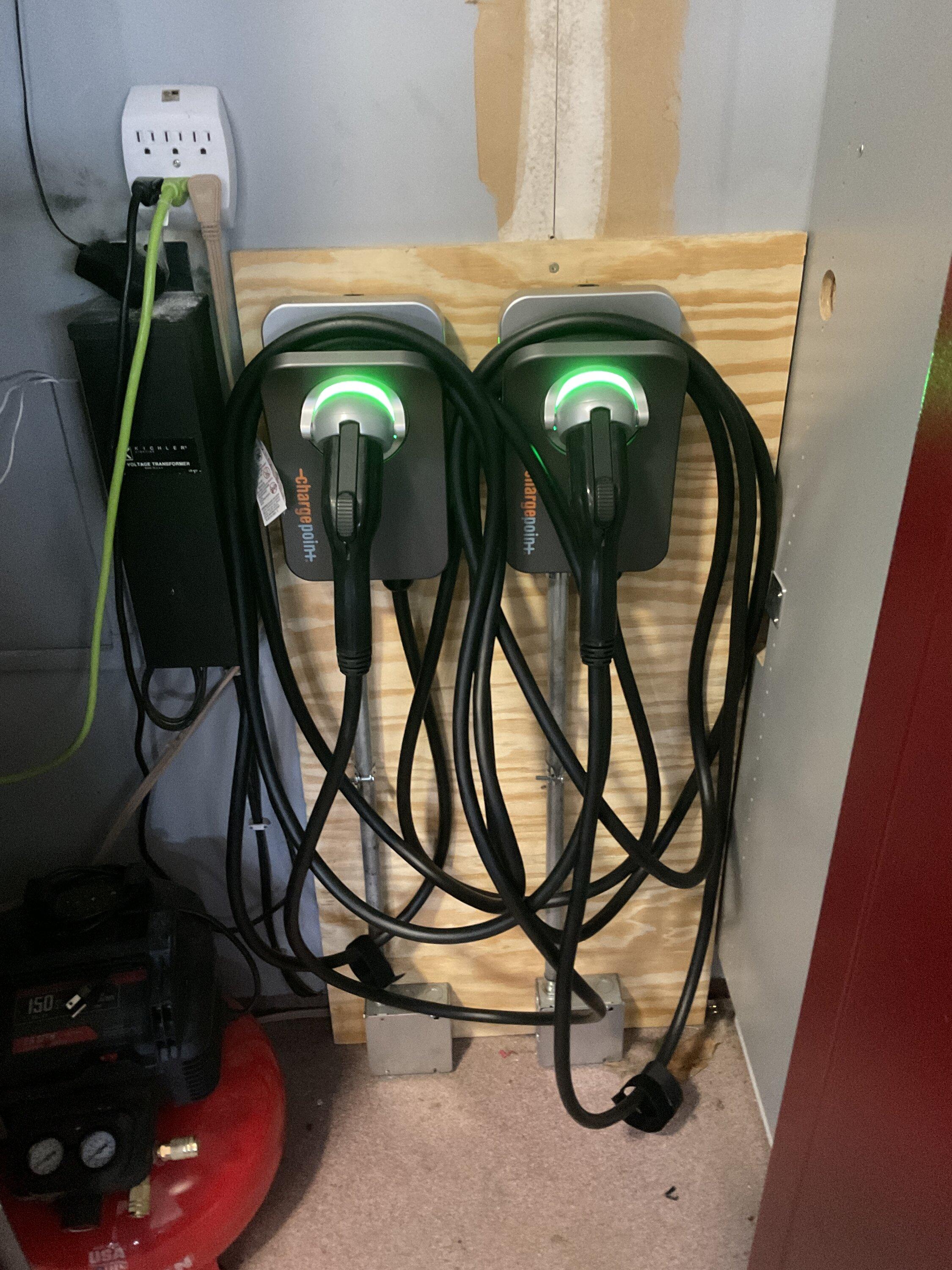

Two 48 A chargers. I had to trench about 100 feet of wire from our mains to this closet in the garage. So, trenching two 60 Amp circuits was about the same cost. Going to repaint the wall and the mounting board. I'm getting the R1T soon. R1S at the end of the year.
Sponsored



obababoy

Well-Known Member
First Name
Chilbo
Joined
May 1, 2021
Threads
3
Messages
86
Reaction score
82
Location
Virginia
Vehicles
2004 LR Discovery, 2011 WRX/STI, 2021 Palisade
Occupation
Cyber
Clubs


Two 48 A chargers. I had to trench about 100 feet of wire from our mains to this closet in the garage. So, trenching two 60 Amp circuits was about the same cost. Going to repaint the wall and the mounting board. I'm getting the R1T soon. R1S at the end of the year.
Nice setup, but is that to code? Junction boxes sitting on a floor? Idk where you live but cleaning out a garage or even heavy rainstorm would make that a dangerous location.


R1Sky Business

Well-Known Member
Joined
Mar 15, 2022
Threads
44
Messages
4,945
Reaction score
3,935
Location
CA
Vehicles
R1S
Clubs

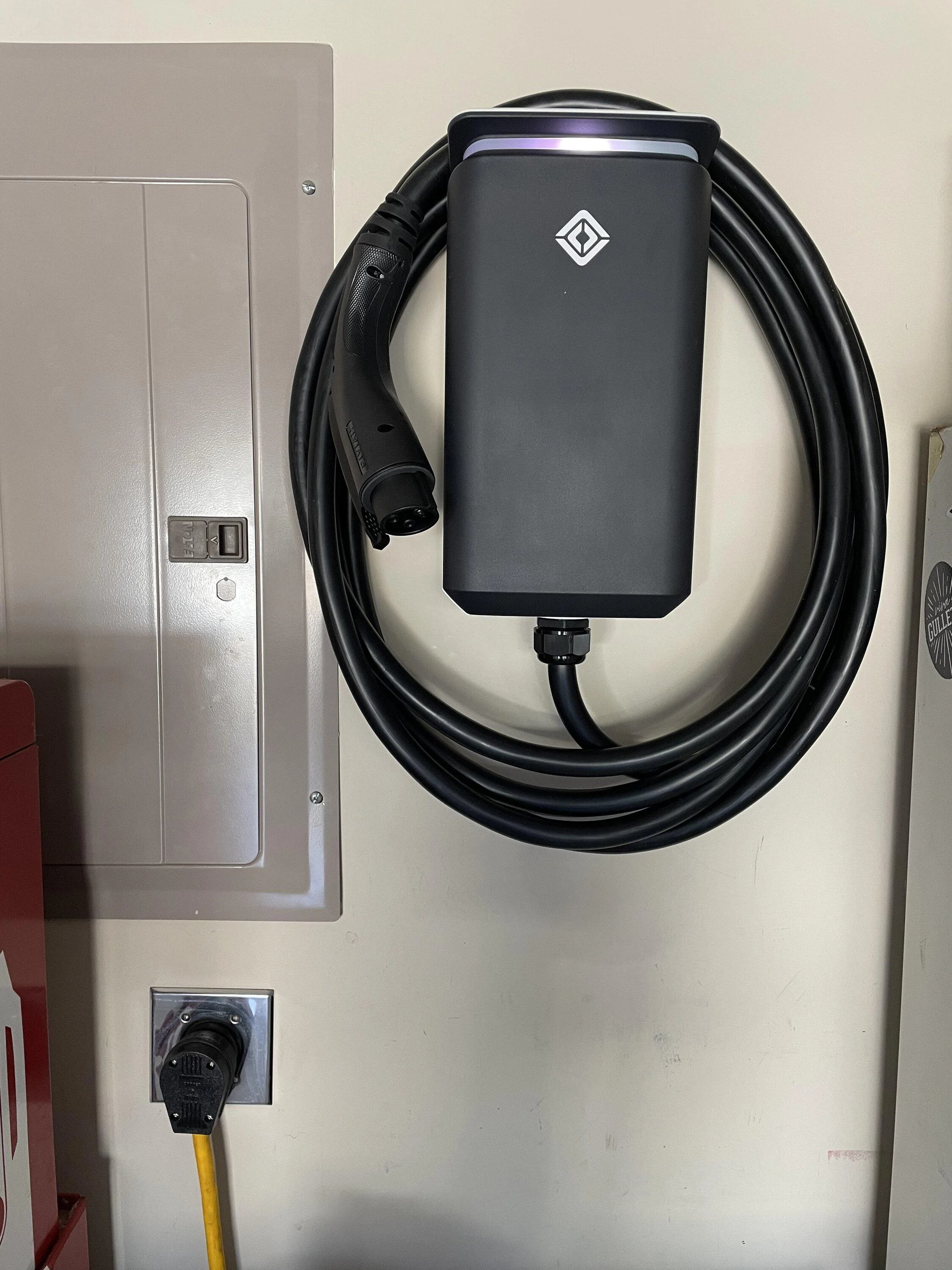

Installed and connected, had to go with a 50amp hard wire due to panel capacity (40amp charge dip config). All ready for my delivery on 12/28!


*note - itā€™s installed high due to being over a chest freezer, the 30amp plug on the lower left is a 60gal air compressor (and part of the reason I couldnā€™t do 60amp).
Thought the hardwired had to be on 60amp circuit...


R1Sky Business

Well-Known Member
Joined
Mar 15, 2022
Threads
44
Messages
4,945
Reaction score
3,935
Location
CA
Vehicles
R1S
Clubs

Installed and connected, had to go with a 50amp hard wire due to panel capacity (40amp charge dip config). All ready for my delivery on 12/28!


*note - itā€™s installed high due to being over a chest freezer, the 30amp plug on the lower left is a 60gal air compressor (and part of the reason I couldnā€™t do 60amp).
Very clean..


R1Sky Business

Well-Known Member
Joined
Mar 15, 2022
Threads
44
Messages
4,945
Reaction score
3,935
Location
CA
Vehicles
R1S
Clubs

My rivian charger cord is getting an indentation from the garage door being closed on it. How much should I be worried? How durable are these things?
Not meant to be squeezed by garage doors....


Sponsored

R1Sky Business

Well-Known Member
Joined
Mar 15, 2022
Threads
44
Messages
4,945
Reaction score
3,935
Location
CA
Vehicles
R1S
Clubs


Two 48 A chargers. I had to trench about 100 feet of wire from our mains to this closet in the garage. So, trenching two 60 Amp circuits was about the same cost. Going to repaint the wall and the mounting board. I'm getting the R1T soon. R1S at the end of the year.
For what's coming.....it'd be worth it even if u had to trench 1000 feet.....


R1Sky Business

Well-Known Member
Joined
Mar 15, 2022
Threads
44
Messages
4,945
Reaction score
3,935
Location
CA
Vehicles
R1S
Clubs

Nice setup, but is that to code? Junction boxes sitting on a floor? Idk where you live but cleaning out a garage or even heavy rainstorm would make that a dangerous location.
Danger is just part of the adventure


Sponsored

R1Sky Business

Well-Known Member
Joined
Mar 15, 2022
Threads
44
Messages
4,945
Reaction score
3,935
Location
CA
Vehicles
R1S
Clubs

Can be setup for 32/40/48A based on breaker.
I understand u can choose the amps going to vehicle...but a 60amp breaker is required for hard wire set up...not 50


SANZC02

Well-Known Member
First Name
Bob
Joined
Feb 11, 2021
Threads
29
Messages
5,259
Reaction score
8,860
Location
California
Vehicles
Tesla Model S, LE - R1S
Occupation
Retired
I understand u can choose the amps going to vehicle...but a 60amp breaker is required for hard wire set up...not 50
You can hardwire it to different wires, you just need to make sure the internal dip switches are properly set for the wire/breaker you are using.


DDay61

Active Member
First Name
Bill
Joined
Jan 1, 2023
Threads
3
Messages
37
Reaction score
23
Location
Minnesota
Vehicles
Rivian R1T, 2021 992 4S, 2019 Macan S
Nice setup, but is that to code? Junction boxes sitting on a floor? Idk where you live but cleaning out a garage or even heavy rainstorm would make that a dangerous location.
It's code. It wouldn't be if it was outside. I had my electrician do this.

Last edited:

Tucker74

Well-Known Member
First Name
Tucker
Joined
Sep 20, 2022
Threads
12
Messages
257
Reaction score
294
Location
Austin, TX
Vehicles
2023 R1T
Occupation
Engineer
You can hardwire it to different wires, you just need to make sure the internal dip switches are properly set for the wire/breaker you are using.
Correct - they actually donā€™t want it wired to a plug (in the manual anyway) though it would be perfectly safe.


DDay61

Active Member
First Name
Bill
Joined
Jan 1, 2023
Threads
3
Messages
37
Reaction score
23
Location
Minnesota
Vehicles
Rivian R1T, 2021 992 4S, 2019 Macan S
Correct - they actually donā€™t want it wired to a plug (in the manual anyway) though it would be perfectly safe.
It's code. It wouldn't be if it was outside. I had my electrician do this.
That's correct. 60 A breaker for 48 A service. Has to be hard wired.
