Show off your Level 2 Home Charger installs here

[Tucker74]

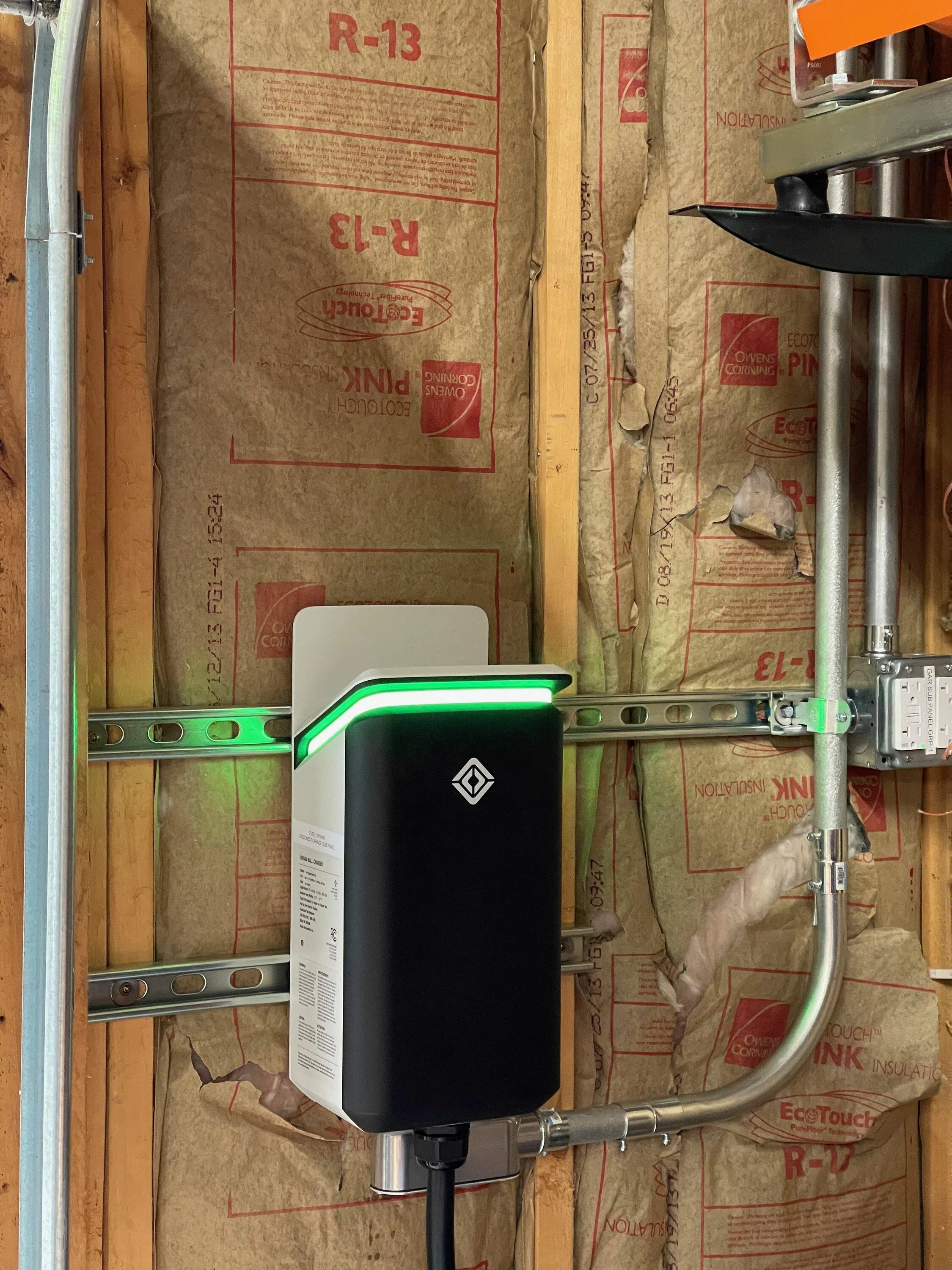

Installed and connected, had to go with a 50amp hard wire due to panel capacity (40amp charge dip config). All ready for my delivery on 12/28!

*note - it’s installed high due to being over a chest freezer, the 30amp plug on the lower left is a 60gal air compressor (and part of the reason I couldn’t do 60amp).

Sponsored



[Tim-in-CA]

Did you list parts for this? Would love to build the same

I'd love to know the parts list as well. Looks good and out of the way!



[goldburger]

My rivian charger cord is getting an indentation from the garage door being closed on it. How much should I be worried? How durable are these things?



[jebinc]

Can’t believe I just read all 18 pages….

Me? Two Tesla Gen2 load sharing wall connectors for the R1T and MS Plaid.



[jeeden]

My rivian charger cord is getting an indentation from the garage door being closed on it. How much should I be worried? How durable are these things?

I think eventually the insulation would break down. It's pretty durable, but repeated wear in the same spot can't be good. What if you cut a piece of PVC pipe about 6 inches long, split the side and slipped it on so it protects the wire?



[Fencer]

An outside installation at a remote airfield. Works perfectly.



[netcam]

Installed in the garage on a 60AMP circuit with a pass-thru to outside since we always park in the driveway.



[rkalbiar]

Where can us normal DIYrs get unistrut, longer than 10ft?



[goldburger]

Installed in the garage on a 60AMP circuit with a pass-thru to outside since we always park in the driveway.

Ohhhh I like the pass through. I just run mine under the garage which sucks!



[jeeden]

Installed in the garage on a 60AMP circuit with a pass-thru to outside since we always park in the driveway.

Ver clean install. I like it a lot



[schwartz83]

Nothing fancy - but just a couple of feet from the truck chargeport. And beats charging with 110!



[netcam]

Where can us normal DIYrs get unistrut, longer than 10ft?

Try an electrical supplier like Gray Bar, they might have it and most places will sell directly. Home Depot and Menards also sell "splice" kits.



[BobinIndy]

Installed mine today... 6 AWG / 60A breaker, pulling a solid 11 kW. Install was super easy, works great.



[Crosser3]

Installed by electrician. 6 AWG / 60A breaker.



[John G.]

My nephew, an electrician, connected the Rivian Charger to an existing 30 Amp hard wired subpanel in my garage. My garage was built during the 80's, and the garage subpanel offered only 8 AWG / 30A Breaker. So, I charge at 24A, but it works fine for me as I'm retired.
