So lucky I left some speaker wires in the wall and actually remembered where they were. Was able to use them to pull a wire snake through. Ran 6/2 copper in the wall without surface mounting conduit on the wall.



Very clean


Antonio

Well-Known Member
First Name
Antonio
Joined
Mar 17, 2022
Threads
8
Messages
48
Reaction score
34
Location
Kirkland
Vehicles
2018 Audi SQ5
Occupation
MD
Looks like you have a problem 🚲
He seems to be from Bend. You would be considered odd if you wouldn’t have as many bikes hanging around if you live there!


SteveHo

Member
First Name
Steve
Joined
Feb 2, 2022
Threads
0
Messages
18
Reaction score
36
Location
Minneapolis, MN
Vehicles
Model Y
Occupation
Real Estate Agent with RE/MAX Results
Here's my install. I took off the Tesla wall connector, and installed the Rivian one.
60A circuit, 6 GA THHN.


Sponsored

CharonPDX

Well-Known Member
First Name
Charon
Joined
Jul 12, 2021
Threads
9
Messages
450
Reaction score
595
Location
Cascadia
Vehicles
R1T LE, Mach-E, Arcimoto FUV, Going: F-250/Model S
Occupation
InfoSec Geek
He seems to be from Bend. You would be considered odd if you wouldn’t have as many bikes hanging around if you live there!
Truth. As a Portlander, we have to bring at least three bikes with us when we visit Bend, or we're looked at askance.


SteveHo

Member
First Name
Steve
Joined
Feb 2, 2022
Threads
0
Messages
18
Reaction score
36
Location
Minneapolis, MN
Vehicles
Model Y
Occupation
Real Estate Agent with RE/MAX Results
Here's my install. I took off the Tesla wall connector, and installed the Rivian one.
60A circuit, 6 GA THHN.
I had to pull out the old wiring, as it was 2 gauge to support 100A circuit / 80A charging. My prior tesla (Model X) was capable of 72A charging. Replaced with 6 gauge for 60A / 48A charging.


CommodoreAmiga

Well-Known Member
Joined
Dec 30, 2020
Threads
18
Messages
3,518
Reaction score
6,756
Location
USA
Vehicles
R1T
I had to pull out the old wiring, as it was 2 gauge to support 100A circuit / 80A charging. My prior tesla (Model X) was capable of 72A charging. Replaced with 6 gauge for 60A / 48A charging.
Why not leave the existing (expensive) 2awg wiring and just swap the breaker and use 6awg pigtails to the EVSE?


jebinc

Well-Known Member
First Name
John
Joined
Oct 5, 2022
Threads
26
Messages
868
Reaction score
768
Location
Seattle, WA
Vehicles
2021+ Tesla MS Plaid, R1T Adventure
Occupation
Retired
Two power sharing Telsa Wall connectors here. Plus and adapter for the Rivian.


Sponsored

SteveHo

Member
First Name
Steve
Joined
Feb 2, 2022
Threads
0
Messages
18
Reaction score
36
Location
Minneapolis, MN
Vehicles
Model Y
Occupation
Real Estate Agent with RE/MAX Results
Why not leave the existing (expensive) 2awg wiring and just swap the breaker and use 6awg pigtails to the EVSE?
60A breaker wouldn't hold the wire either. I could have pigtailed both ends, but that's also not as easy for me. Plus i'll probably not be going back to 100A charging, as there aren't cars that take that, nor chargers that deliver that.


Dgephri

Well-Known Member
First Name
Jeff
Joined
Nov 15, 2020
Threads
4
Messages
72
Reaction score
136
Location
Portland, OR
Vehicles
Toyota FJ Cruiser
Occupation
Finance-Real Estate

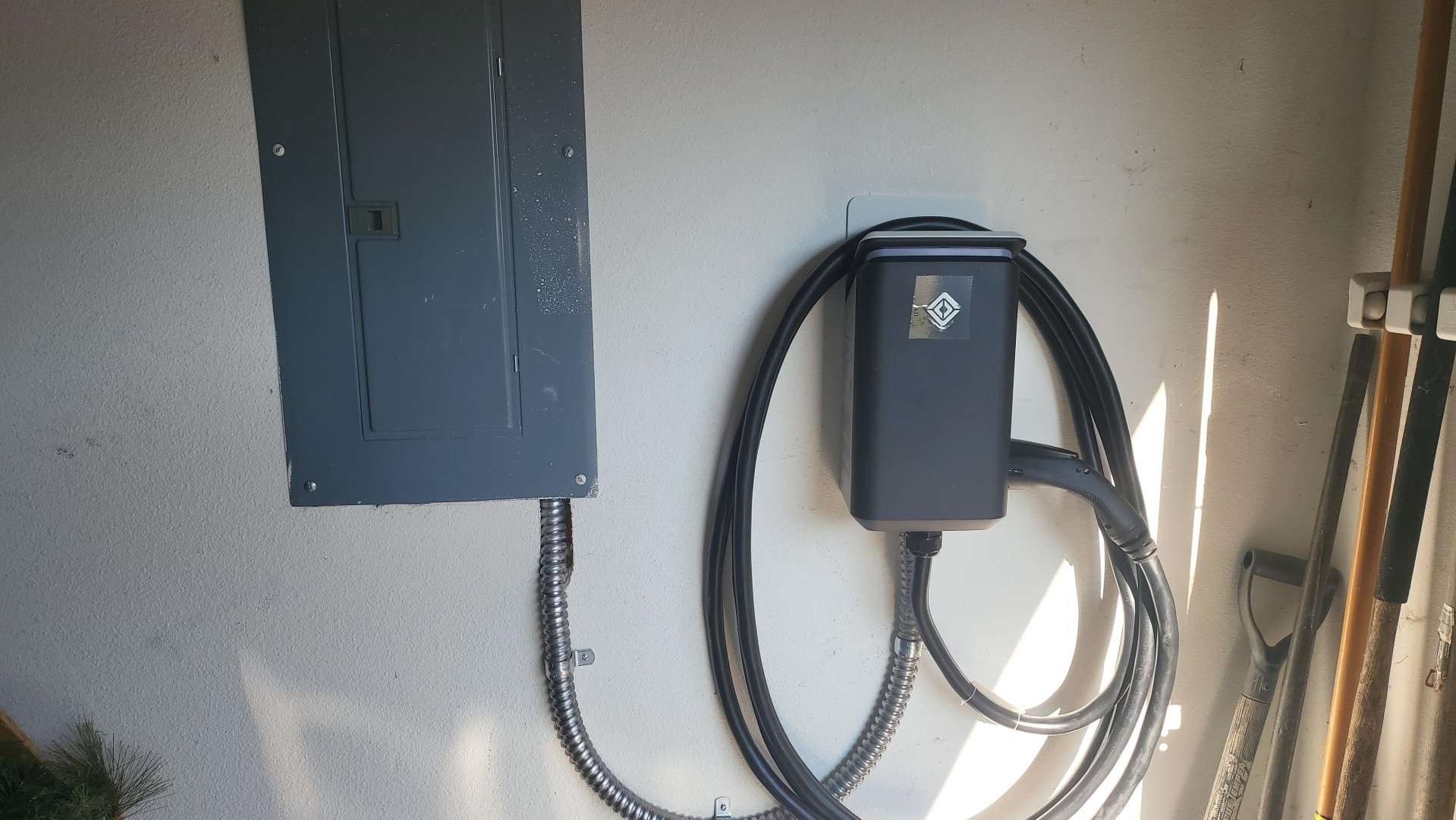

Nothing fancy but 60A breaker for 48A charging. Yes, my yard tools need a cleaning. If I ever used them, I would consider being bothered. ;)

Last edited:

Jac

Well-Known Member
First Name
Jacob
Joined
Mar 16, 2022
Threads
24
Messages
340
Reaction score
568
Location
Connecticut
Vehicles
Volvo XC70, Volvo XC40, Honda VFR1200X
Occupation
Sailing, motorcycling, travel (Retired)

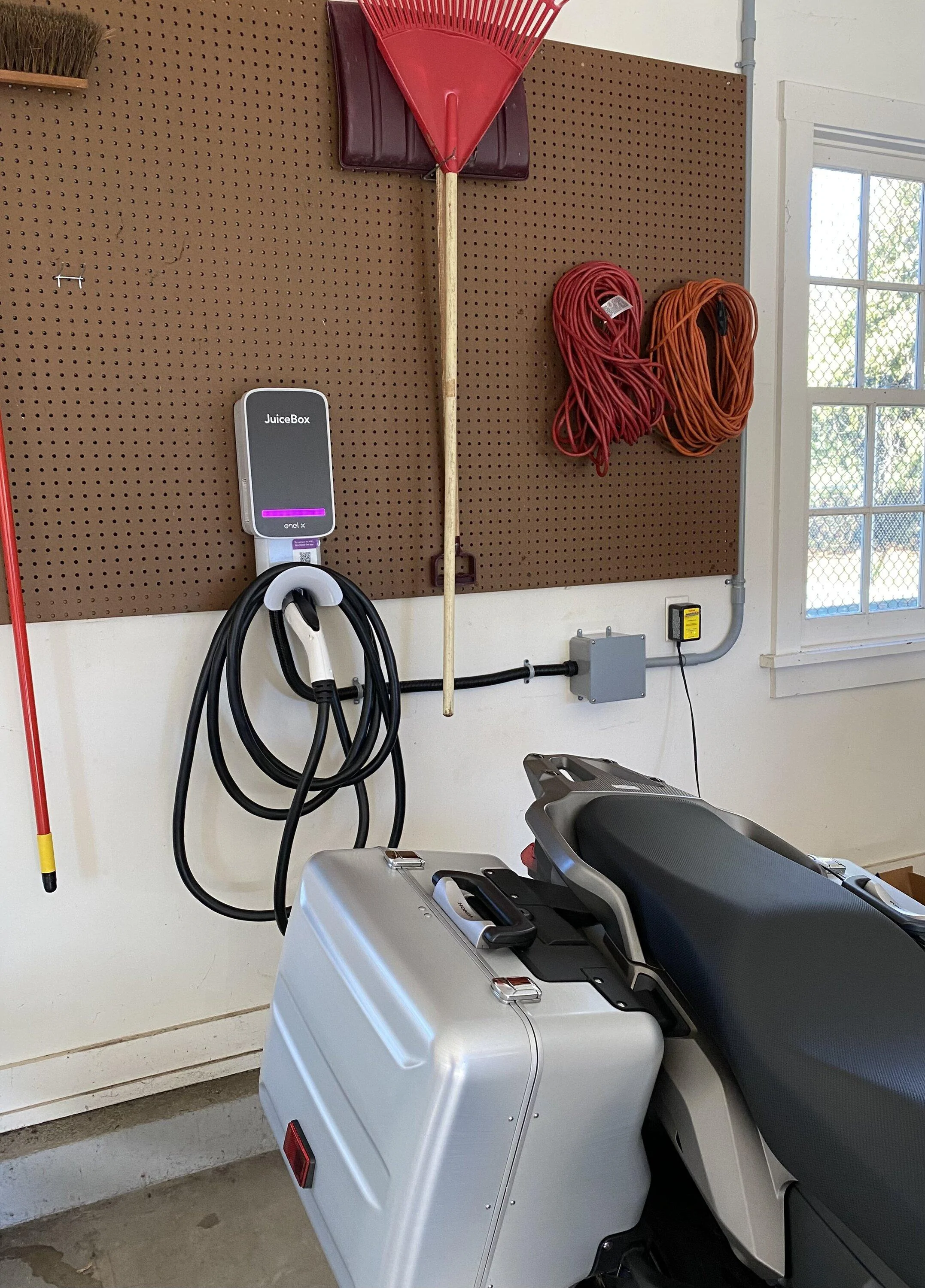

Juicebox 48 ready and waiting for my R1S to arrive some day. 😏



DTown3011

Well-Known Member
Joined
Jun 7, 2022
Threads
8
Messages
599
Reaction score
662
Location
Denver, CO
Vehicles
Tesla Model 3

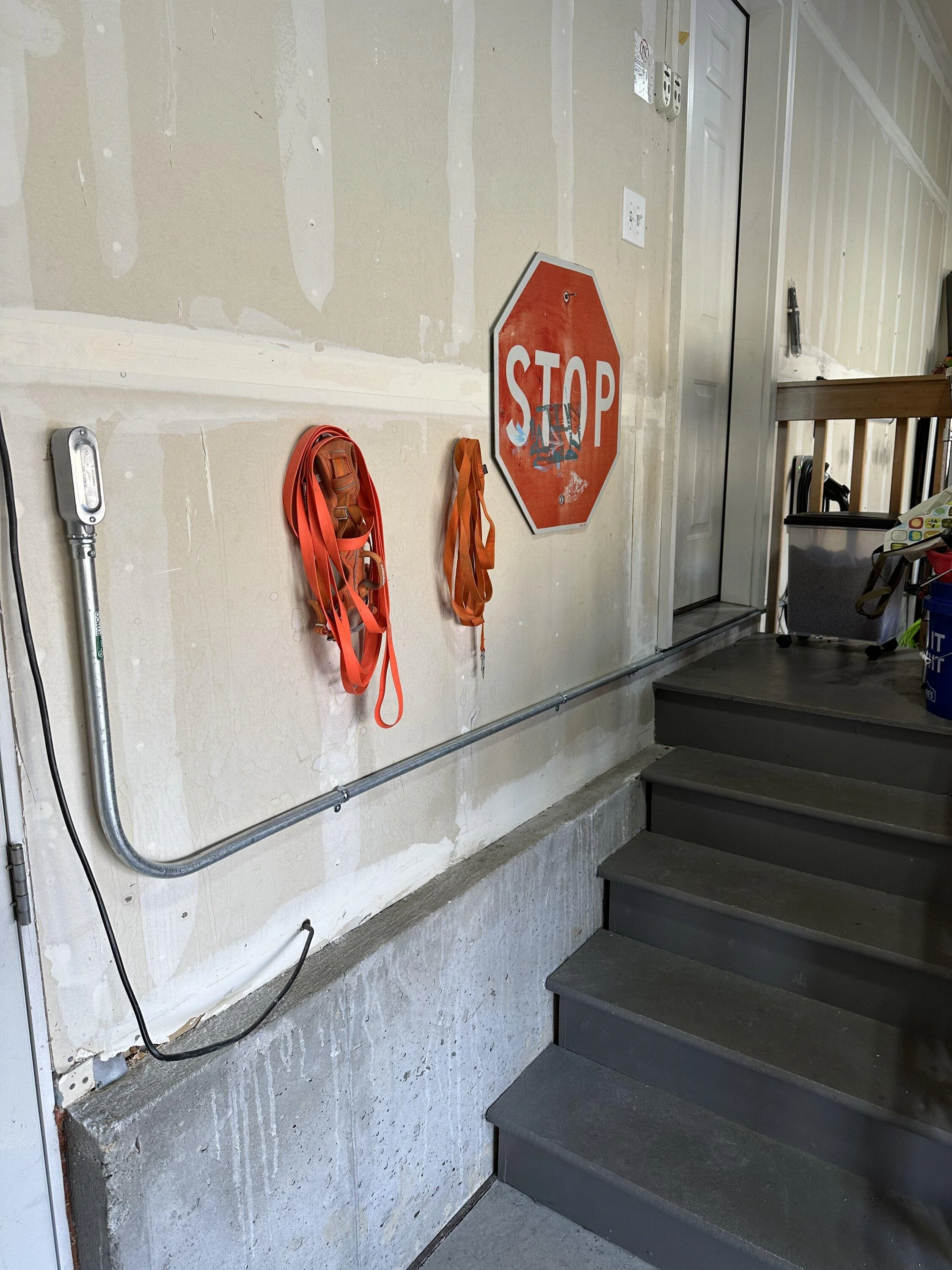

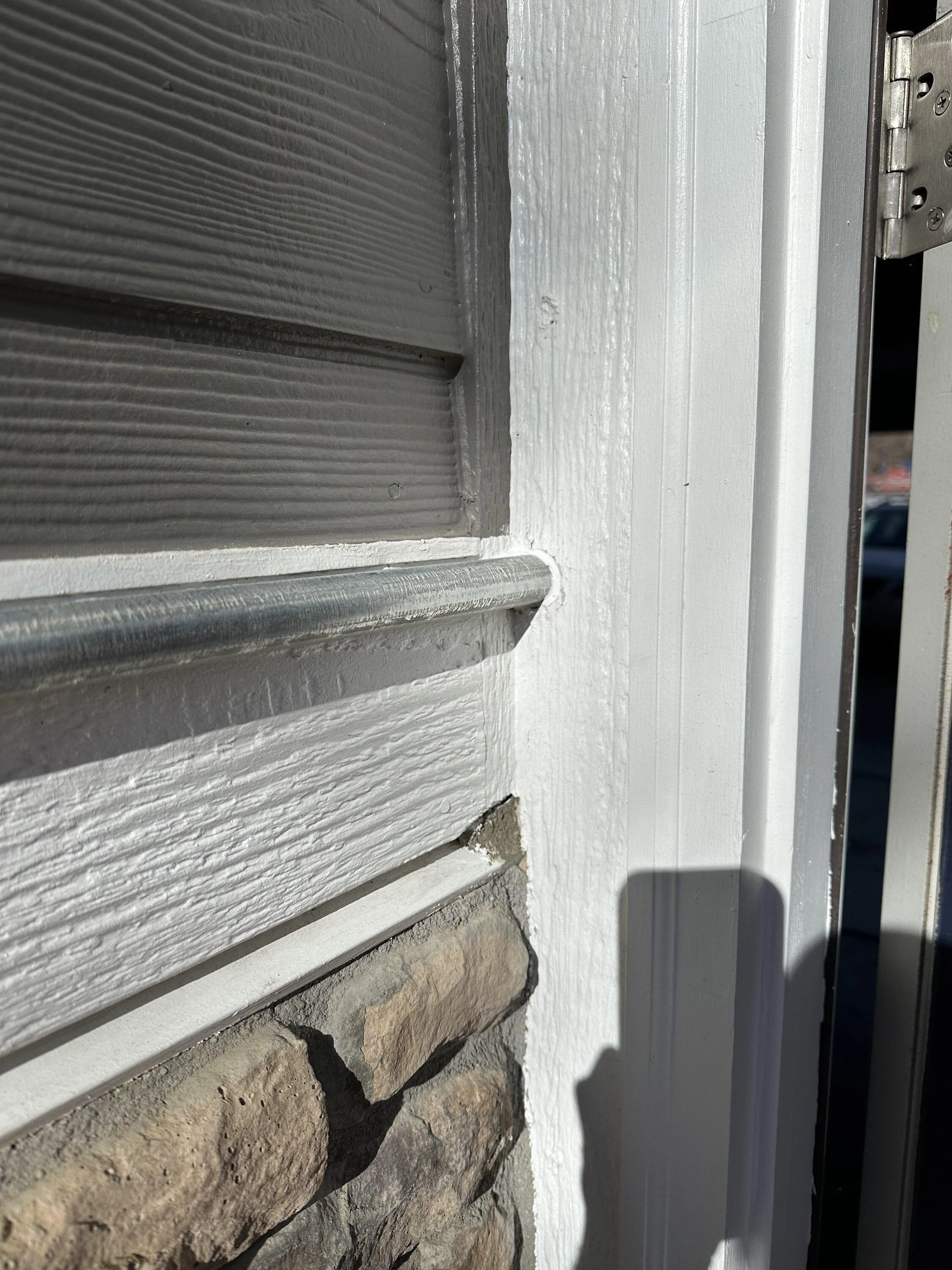

Great install by MAC electric here in North Denver Colorado today. Highly recommend! Had to run about 40ft of conduit from my breaker box but looks great!
