Should 20" Wheels be the standard wheel included

redantpile

Well-Known Member
First Name
Chris
Joined
May 10, 2020
Threads
6
Messages
121
Reaction score
163
Location
allen, tx
Vehicles
2018 EDGE, 2023 R1S red adventure 20"
Occupation
Retired telephone engineer
Clubs


elas9000

Member
First Name
Dale
Joined
Apr 1, 2021
Threads
1
Messages
13
Reaction score
8
Location
stuart FL
Vehicles
2019 Mercedes SLC & 2019 Mercedes GLA
Yeah, that scares me a lot. As others have mentioned, what happens when you get a flat on a road trip that can't be plugged or patched? You have to wait for a tire to be shipped to wherever the heck you are? What an oddball (stupid) decision to go with a completely unique tire size!
Or maybe you can carry a spare. If you blow two tires while on a road trip you might want to re-examine your destination. The 21s will most likely be readily available at the Rivian service centers. If the 21s are sooooo expensive why does Rivian charge $1800 extra for the other options? Maybe Rivian designed extra longevity into the 21s knowing their uniqueness? The rugged terrain and tire challenging driving owners of the ATs will frequent could lead to greater failures of those tires compared to the 21s.

Not trying to bash the 21 haters, just some counter arguments.


elas9000

Member
First Name
Dale
Joined
Apr 1, 2021
Threads
1
Messages
13
Reaction score
8
Location
stuart FL
Vehicles
2019 Mercedes SLC & 2019 Mercedes GLA
Also for those who are wondering getting the $1,800 for 20" option is a massive steal.

$1800 for forged 20's is an amazing bargain + the off road tires that you could easily seller compared to the odd size of 21's. Even if you don't want the off road tires, the forged wheels + a eco 20" tire would be a way smarter move and probably a lot easier than unloading some 21's.
The Rivian website says,

20" All-Terrain Bright
$1,800
Machined aluminum wheel with high gloss black pockets

Same as all wheel/tire options. Sorry to disappoint the forged fans.


elas9000

Member
First Name
Dale
Joined
Apr 1, 2021
Threads
1
Messages
13
Reaction score
8
Location
stuart FL
Vehicles
2019 Mercedes SLC & 2019 Mercedes GLA
It is cheaper for the 21" R1T spare wheel/tire. $600 instead of $800. Probably because it isn't forged and therefore is cheaper to manufacture. The "compact spare" for the R1S is the same price no matter which wheel you option.
The ATs are machined aluminum. Same as all wheel/tire options.


cohall

Well-Known Member
Joined
Mar 30, 2020
Threads
56
Messages
1,295
Reaction score
4,458
Location
Denver
Vehicles
2022 Rivian R1T
The ATs are machined aluminum. Same as all wheel/tire options.

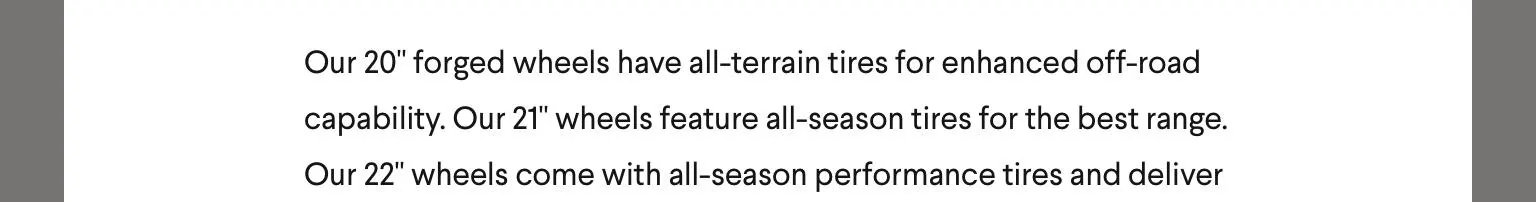

Nope. Clearly stated as forged on the website. The lips are a Machined finish. That’s what they’re referring to.

Rivian R1T R1S Should 20" Wheels be the standard wheel included C19141CF-10FE-4785-94F7-17AA15307A8F


Sponsored

elas9000

Member
First Name
Dale
Joined
Apr 1, 2021
Threads
1
Messages
13
Reaction score
8
Location
stuart FL
Vehicles
2019 Mercedes SLC & 2019 Mercedes GLA
Nope. Clearly stated as forged on the website. The lips are a Machined finish. That’s what they’re referring to.

Nope.

20" All-Terrain Dark
$3,500
Machined aluminum wheel with high gloss black pockets and a tinted clearcoat


cohall

Well-Known Member
Joined
Mar 30, 2020
Threads
56
Messages
1,295
Reaction score
4,458
Location
Denver
Vehicles
2022 Rivian R1T
Nope.

20" All-Terrain Dark
$3,500
Machined aluminum wheel with high gloss black pockets and a tinted clearcoat
Lol. Ok. I guess when they say FORGED 20” wheel they must mean something else.


elas9000

Member
First Name
Dale
Joined
Apr 1, 2021
Threads
1
Messages
13
Reaction score
8
Location
stuart FL
Vehicles
2019 Mercedes SLC & 2019 Mercedes GLA
Lol. Ok. I guess when they say FORGED 20” wheel they must mean something else.
There is a conflict between the configurator description and the performance section description. Time will clarify this.


Zoidz

Well-Known Member
First Name
Gil
Joined
Feb 28, 2021
Threads
105
Messages
3,121
Reaction score
6,864
Location
PA
Vehicles
23 R1S Adv, Avalanche, BMWs-X3,330cic,K1200RS bike
Occupation
Engineer
The ATs are machined aluminum. Same as all wheel/tire options.
"Machined" does not imply forged or cast. "Machined" is a downstream process that can be done on either cast or forged wheels.

Analogy - Pine and Oak are different types of wood. Both can be stained.


cohall

Well-Known Member
Joined
Mar 30, 2020
Threads
56
Messages
1,295
Reaction score
4,458
Location
Denver
Vehicles
2022 Rivian R1T
There is a conflict between the configurator description and the performance section description. Time will clarify this.
No there isn’t. Machining is a finishing process for wheels, and does not indicate any particular type of manufacturing.


Sponsored

Ventura

Well-Known Member
Joined
Sep 3, 2021
Threads
1
Messages
126
Reaction score
264
Location
Ventura County, California
Vehicles
R1T Red Canyon 20" / Prius

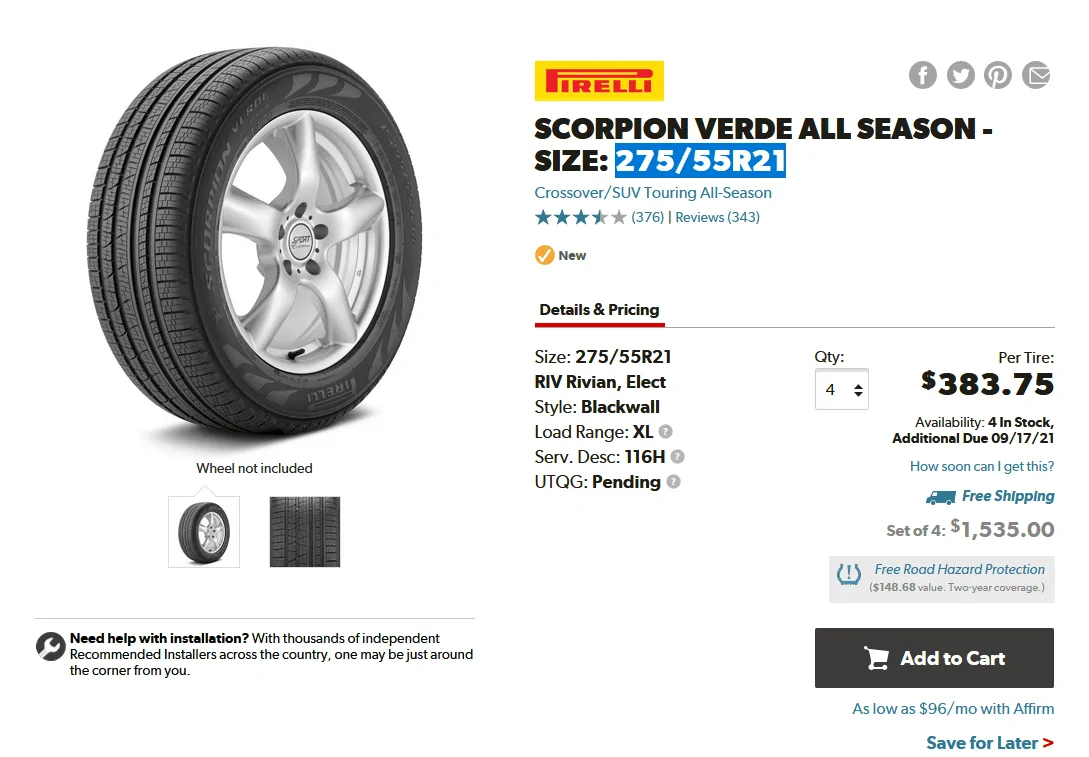

FYI. Tire Rack finally has a price on the 21".

275/55R21

$383.75


https://www.tirerack.com/tires/tire...wall=Blackwall&partnum=755HR1SVASXL&tab=Sizes


Listed at 38 lbs vs 57 lbs for the 20"AT.

It's hard to find an LT in that size less than 57 lbs, but here is a possible replacement for those looking for an LT on the 20" that is more focused on road driving and efficiency. It is still heavy so it is unlikely to rival the 21".
Michelin Defender - listed at 53 lbs

Last edited:

SANZC02

Well-Known Member
First Name
Bob
Joined
Feb 11, 2021
Threads
29
Messages
5,258
Reaction score
8,855
Location
California
Vehicles
Tesla Model S, LE - R1S
Occupation
Retired
Nope.

20" All-Terrain Dark
$3,500
Machined aluminum wheel with high gloss black pockets and a tinted clearcoat
You can verify with CS as I did, the 20s are forged and the 21/22s are "tilt cast/flow formed" so it is a hybrid between cast and forged


Zoidz

Well-Known Member
First Name
Gil
Joined
Feb 28, 2021
Threads
105
Messages
3,121
Reaction score
6,864
Location
PA
Vehicles
23 R1S Adv, Avalanche, BMWs-X3,330cic,K1200RS bike
Occupation
Engineer
You can verify with CS as I did, the 20s are forged and the 21/22s are "tilt cast/flow formed" so it is a hybrid between cast and forged
To dive a little deeper, a forged aluminum wheel (compared to simple cast aluminum wheel) is stronger in all areas due to the forging process aligning the grain of the metal and eliminating voids.

Tilt Cast/Flow Formed starts off as a simple cast aluminim wheel, and through heat and roller pressure, the rim area is reshaped and made stronger by the process, aligning the grain similiar to forging - but it's *not* forging. So the rim is stronger, but the hub is not. This type of wheel is great for the street, but not for serious track usage, for obvious reasons.

Detailed article


elas9000

Member
First Name
Dale
Joined
Apr 1, 2021
Threads
1
Messages
13
Reaction score
8
Location
stuart FL
Vehicles
2019 Mercedes SLC & 2019 Mercedes GLA
To dive a little deeper, a forged aluminum wheel (compared to simple cast aluminum wheel) is stronger in all areas due to the forging process aligning the grain of the metal and eliminating voids.

Tilt Cast/Flow Formed starts off as a simple cast aluminim wheel, and through heat and roller pressure, the rim area is reshaped and made stronger by the process, aligning the grain similiar to forging - but it's *not* forging. So the rim is stronger, but the hub is not. This type of wheel is great for the street, but not for serious track usage, for obvious reasons.

Detailed article
I concede. Was influenced by the identical wheel descriptions in the configurator. Seemed to me that one would would want a full and accurate wheel description in the configurator where one makes their wheel choice. Obviously it makes sense to have a stronger wheel in the ATs as more stresses are expected when off-roading.


Jamuso

Well-Known Member
First Name
Joe
Joined
Jul 9, 2021
Threads
0
Messages
252
Reaction score
330
Location
CT
Vehicles
Ridgeline
Occupation
Sr software engineer - manager
Nope.

20" All-Terrain Dark
$3,500
Machined aluminum wheel with high gloss black pockets and a tinted clearcoat
From CS

All three 20” wheel options are indeed forged! The 21” and 22” wheels are, on the other hand tilt cast and flow formed. To clarify, the 21” wheel is the “road” wheel, but this does is necessarily specific to the tire. Both the 21” and 22” wheels have all season tires as standard, while the 20” option comes with heavier-duty all terrain tires.
