Had we seen the crash testing yet?





Screenshots and some analysis by @kanundrum

Looks like Independent Lab/Facility with state of the art tech. From there we have the following crash scenarios:

- Head on
-Small Overlap
-Side Impact

Results: Kickass
0 Flex in the Drivers/Passengers Cell from Head On, Small overlap. as shown in 2nd pic.
Crumple Zones work really well at absorbing impact and deflecting from skateboard.




















Advertisement


Last edited by a moderator:

timf

Well-Known Member
First Name
Tim
Joined
May 3, 2019
Messages
246
Reaction score
343
Location
Plymouth, MI
First Name
Tim
Vehicles
Tesla Model X
That video was a good compilation of clips. Many of them have been shown before, but others were new such as showing the wrapping process on the R1S. Thanks for sharing!

OP
J

jeeden

Active Member
First Name
Jeremy
Joined
Oct 27, 2020
Messages
44
Reaction score
53
Location
Northern VA
First Name
Jeremy
Vehicles
2017 Ford Explorer Limited, 2015 Ford Mustang GT
Occupation
Project Manager
  • Thread starter
  • Thread Starter
  • #4
Yea, the wrap was interesting. I guess I had missed the crashes, I remember something about them in the past now it is mentioned.


kanundrum

Well-Known Member
Joined
May 2, 2020
Messages
1,250
Reaction score
3,487
Location
Washington, DC
Vehicles
Sketch At most
Occupation
IT
Here is my write up. Crash testing seems to have taken place here: https://www.calspan.com/services/tr...quipment/automotive-safety-testing/crash-lab/

Looks like Independent Lab/Facility with state of the art tech. From there we have the following crash scenarios:

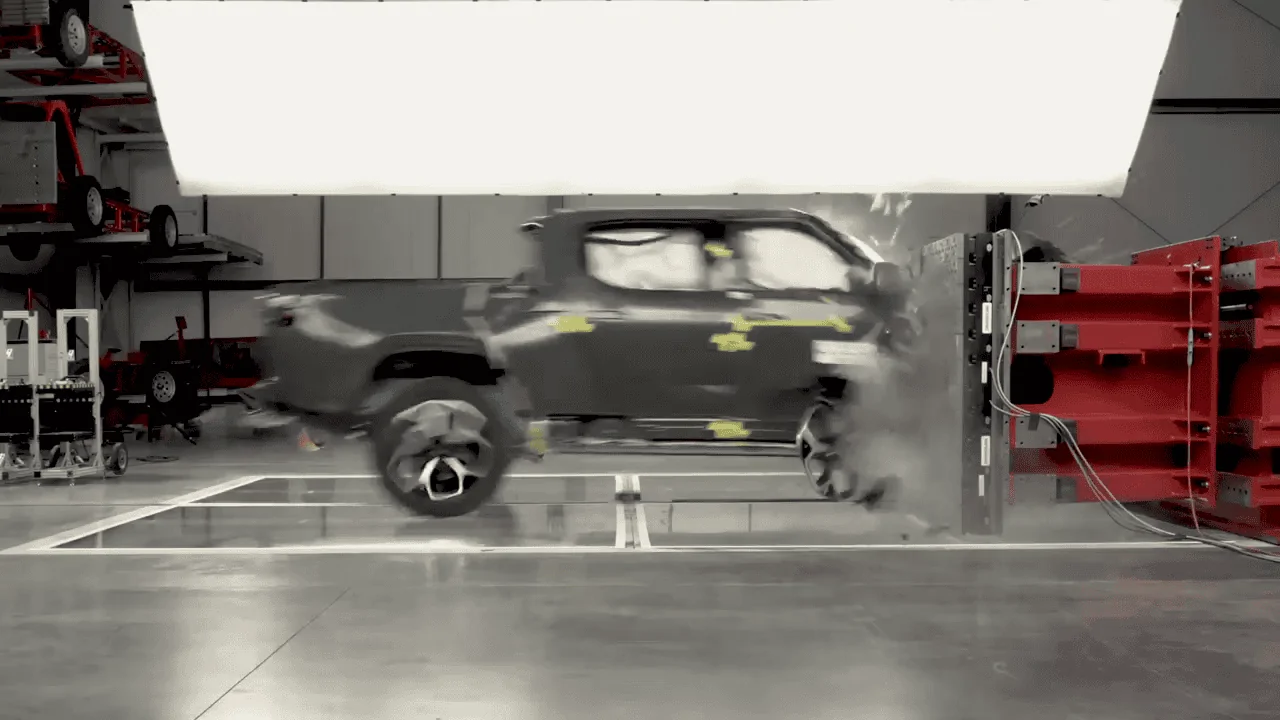

-Head on

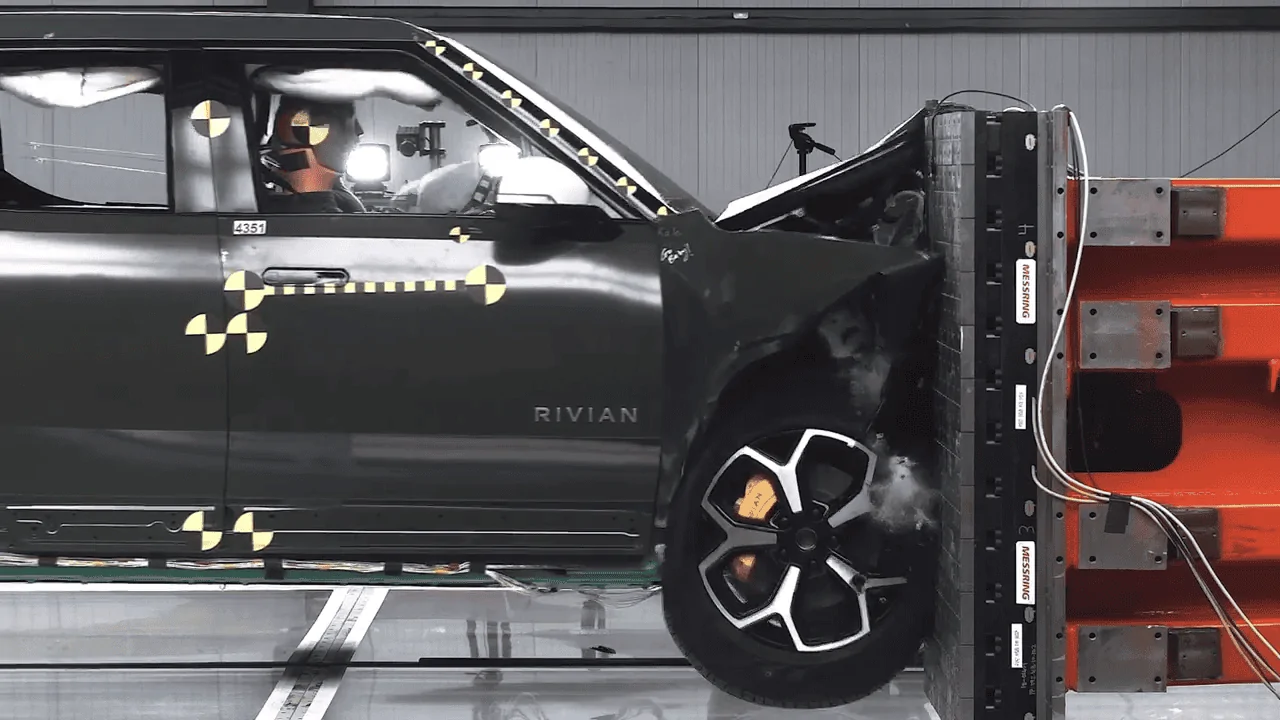

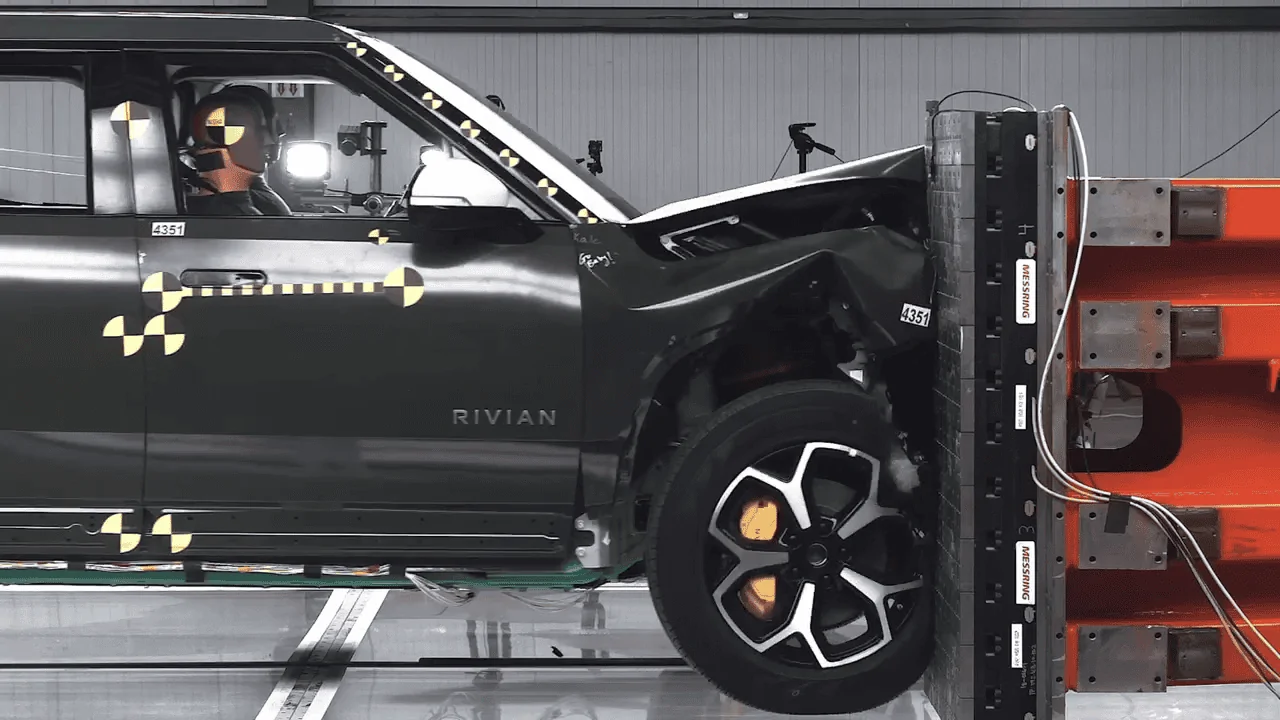

-IIHS Small Overlap left and right impacts.

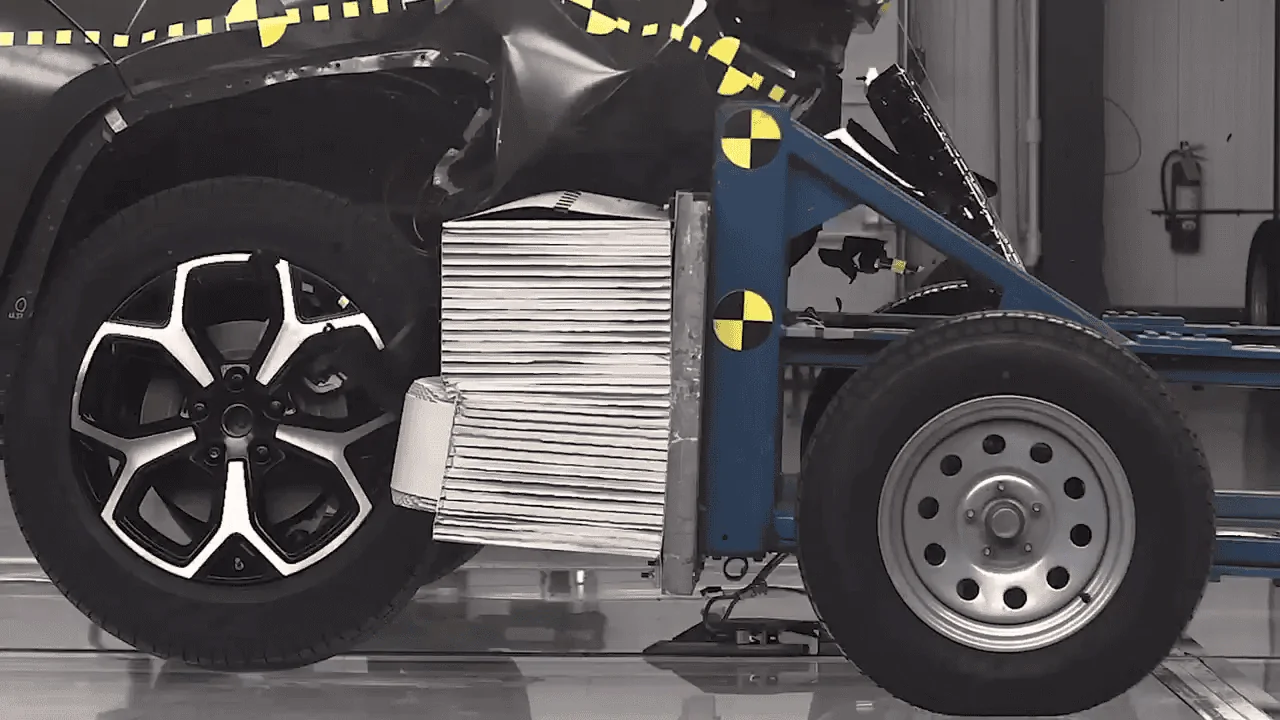

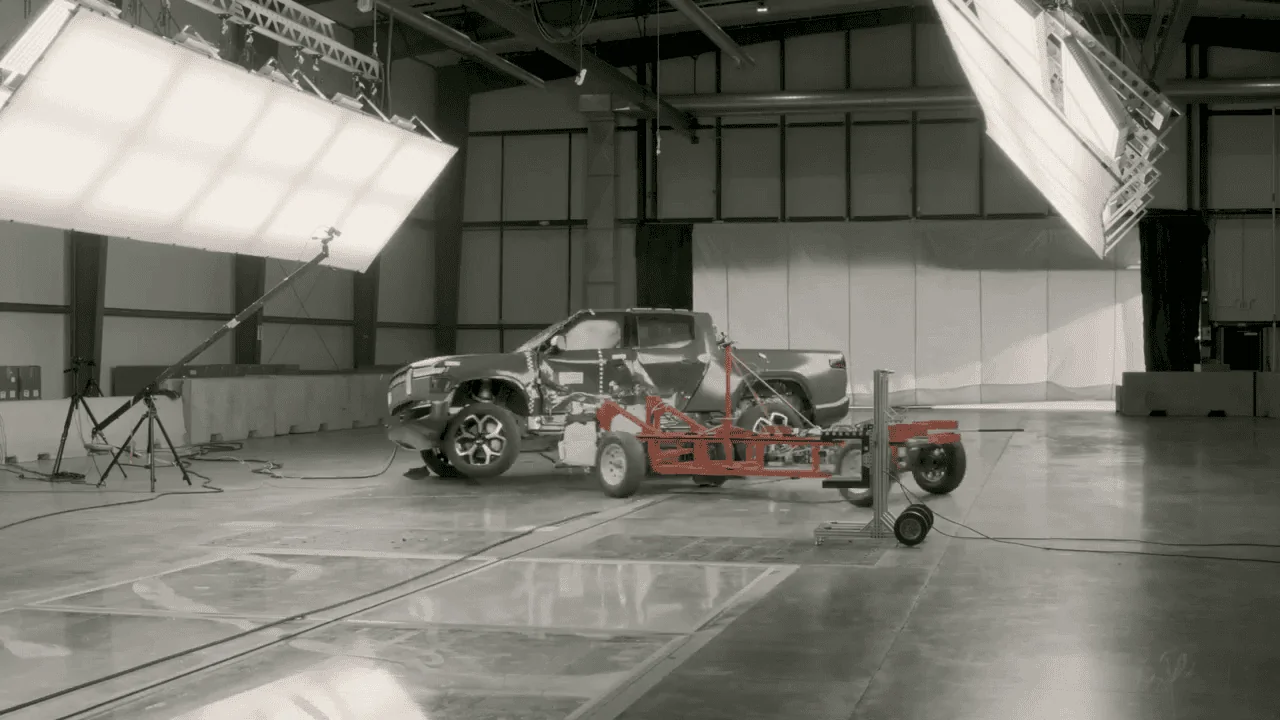

-Side Impact using IIHS 2.0 Moving Deformable Barrier


Results: Kickass

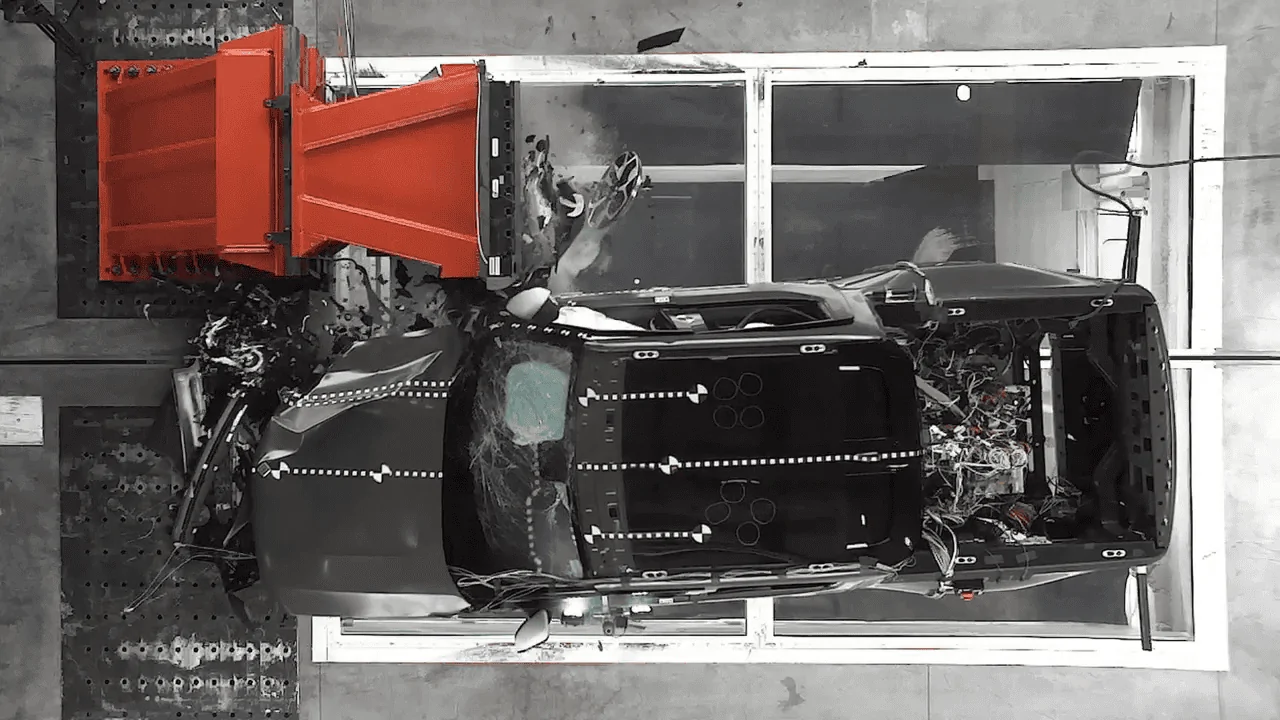

0 Flex in the Drivers/Passengers Cell from Head On, Small overlap. as shown in 2nd pic.
Crumple Zones work really well at absorbing impact and deflecting from skateboard.

Last edited:
OP
J

jeeden

Active Member
First Name
Jeremy
Joined
Oct 27, 2020
Messages
44
Reaction score
53
Location
Northern VA
First Name
Jeremy
Vehicles
2017 Ford Explorer Limited, 2015 Ford Mustang GT
Occupation
Project Manager
  • Thread starter
  • Thread Starter
  • #8
Those offset crashes are always the toughest and the ones the NHSTA always has a dateline or some other show on each year to knock down the star ratings on well known cars...glad to see it doing seemingly well


kanundrum

Well-Known Member
Joined
May 2, 2020
Messages
1,250
Reaction score
3,487
Location
Washington, DC
Vehicles
Sketch At most
Occupation
IT
That looks like a disappointing result. The windshield is smashed and the passenger A-pillar appears deformed. That is quite disappointing, to me.
Not sure if serious but these are IIHS Small Overlap left and right impacts which are weak points on mostly all cars as there is no crumple zone typically from this angle meaning compartment intrusion is most likely during a accident. As you can see clearly the driver and passenger safety cell has 0 intrusion. You can replace a windshield, not a leg/torso etc...


CommodoreAmiga

Well-Known Member
Joined
Dec 30, 2020
Messages
1,115
Reaction score
1,789
Location
USA
Vehicles
N/A
Not sure if serious but these are IIHS Small Overlap left and right impacts which are weak points on mostly all cars as there is no crumple zone typically from this angle meaning compartment intrusion is most likely during a accident. As you can see clearly the driver and passenger safety cell has 0 intrusion. You can replace a windshield, not a leg/torso etc...
Yes, I'm serious. There is clear deformation of the A-pillar, and that is disappointing to me.

I currently drive a Volvo. Safety is a big deal to me. Other manufacturers can pass this test without deformation in the A-Pillar.



DucRider

Well-Known Member
First Name
Gary
Joined
Oct 21, 2019
Messages
1,213
Reaction score
1,983
Location
rRegon
First Name
Gary
Vehicles
Clarity Electric
Yes, I'm serious. There is clear deformation of the A-pillar, and that is disappointing to me.

I currently drive a Volvo. Safety is a big deal to me. Other manufacturers can pass this test without deformation in the A-Pillar.
Apples to oranges.
The volvo video you show is of the moderate overlap, not the small overlap test. The small overlap is the one that give manufacturers fits.
The moderate has a 40% vehicle width overlap, the small 25%.

Small overlap (applies to 2016 to 2021 models):
