https://patentscope.wipo.int/search/en/detail.jsf?docId=US328941774&_cid=P21-KQTIFY-81976-1
US20210197820 - Systems and Methods for Providing a Vehicle with a Torque Vectored K-Turn Mode




Systems and methods are provided herein for operating a vehicle in a K-turn mode. The K-turn mode is engaged in response to determining that an amount that at least one of the front wheels of the vehicle is turned exceeds a turn threshold. While operating in the K-turn mode, forward torque is provided to the front wheels of the vehicle. Further, backward torque is provided to the rear wheels of the vehicle. Yet further, the rear wheels of the vehicle remain substantially in static contact with a ground while the front wheels slip in relation to the ground.





Advertisement


OP
OP
K

kanundrum

Well-Known Member
Joined
May 2, 2020
Messages
1,280
Reaction score
3,577
Location
Washington, DC
Vehicles
Sketch At most
Occupation
IT

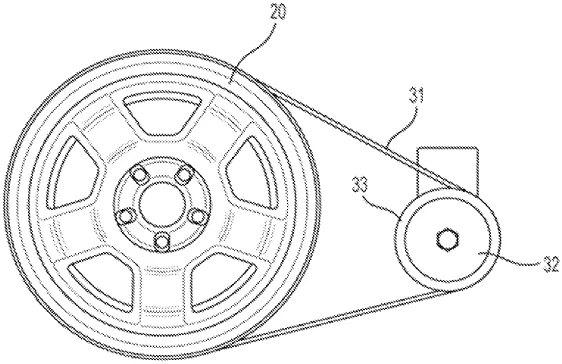

A Interesting patent is one that is a non Rivian Patent but mentions Rivian's Direct voltage requirements.
https://patentscope.wipo.int/search/en/detail.jsf?docId=US328383660&_cid=P21-KQTKD1-07587-1

Rivian® motor that requires 800-900 volt DC for a quick charger. Therefore, there is no need outside high voltage connections. Further, to reduce a generator's size and weigh about by 50% and increase conductivity, the generator has wires selected from one of a super conducting wire, a carbon CNT wire, graphene cooper composited wire or graphene film wire instead of conventional heavy weight cooper wires.



electruck

Well-Known Member
Joined
Oct 6, 2019
Messages
1,357
Reaction score
2,217
Location
Dallas, TX
Vehicles
2018 Volvo XC60
A Interesting patent is one that is a non Rivian Patent but mentions Rivian's Direct voltage requirements.

https://patentscope.wipo.int/search/en/detail.jsf?docId=US328941774&_cid=P21-KQTIFY-81976-1

Rivian® motor that requires 800-900 volt DC for a quick charger. Therefore, there is no need outside high voltage connections. Further, to reduce a generator's size and weigh about by 50% and increase conductivity, the generator has wires selected from one of a super conducting wire, a carbon CNT wire, graphene cooper composited wire or graphene film wire instead of conventional heavy weight cooper wires.

Looks like you accidentally copied the link for the K-turn patent. Can you update the link to the non-Rivian patent?


cohall

Well-Known Member
Joined
Mar 30, 2020
Messages
482
Reaction score
1,259
Location
Denver
Vehicles
Volvo XC60, Ducati SC1000
https://patentscope.wipo.int/search/en/detail.jsf?docId=US328941774&_cid=P21-KQTIFY-81976-1
US20210197820 - Systems and Methods for Providing a Vehicle with a Torque Vectored K-Turn Mode

Systems and methods are provided herein for operating a vehicle in a K-turn mode. The K-turn mode is engaged in response to determining that an amount that at least one of the front wheels of the vehicle is turned exceeds a turn threshold. While operating in the K-turn mode, forward torque is provided to the front wheels of the vehicle. Further, backward torque is provided to the rear wheels of the vehicle. Yet further, the rear wheels of the vehicle remain substantially in static contact with a ground while the front wheels slip in relation to the ground.
Can someone explain this to me like I'm a child? I mean, I can already K-turn in a car with no patented technology. This sounds different than tank turn, since wheels are spinning in opposite directions for that to happen. This just sounds like spinning the front wheels while dragging the rears. What does that accomplish?


DucRider

Well-Known Member
First Name
Gary
Joined
Oct 21, 2019
Messages
1,223
Reaction score
2,015
Location
rRegon
First Name
Gary
Vehicles
Clarity Electric
Can someone explain this to me like I'm a child? I mean, I can already K-turn in a car with no patented technology. This sounds different than tank turn, since wheels are spinning in opposite directions for that to happen. This just sounds like spinning the front wheels while dragging the rears. What does that accomplish?
Sounds like a low speed version of a J turn instead of a 3 point turn.


Eager2own

Well-Known Member
First Name
Dan
Joined
Nov 16, 2020
Messages
207
Reaction score
904
Location
Texas
First Name
Dan
Vehicles
Porsche Panamera S e-Hybrid
Can someone explain this to me like I'm a child? I mean, I can already K-turn in a car with no patented technology. This sounds different than tank turn, since wheels are spinning in opposite directions for that to happen. This just sounds like spinning the front wheels while dragging the rears. What does that accomplish?
Looking at the full application, the broadest claims (the claimed scope of the patent) are for a K-turn (which is described as a turn with a pivot point somewhere beneath the vehicle) being accomplished by applying forward torque to front wheels and reverse torque (through braking or motors) to rear wheels.
Not sure that’s good enough for a child but, in short, I think this would cover a tank turn as well as just braking the rear inside wheel while powering forward with the front wheels.


Dark-Fx

Well-Known Member
First Name
Brian
Joined
Jul 15, 2020
Messages
85
Reaction score
123
Location
Michigan
First Name
Brian
Vehicles
Bolt EV, Volt
Occupation
Engineering
Can someone explain this to me like I'm a child? I mean, I can already K-turn in a car with no patented technology. This sounds different than tank turn, since wheels are spinning in opposite directions for that to happen. This just sounds like spinning the front wheels while dragging the rears. What does that accomplish?

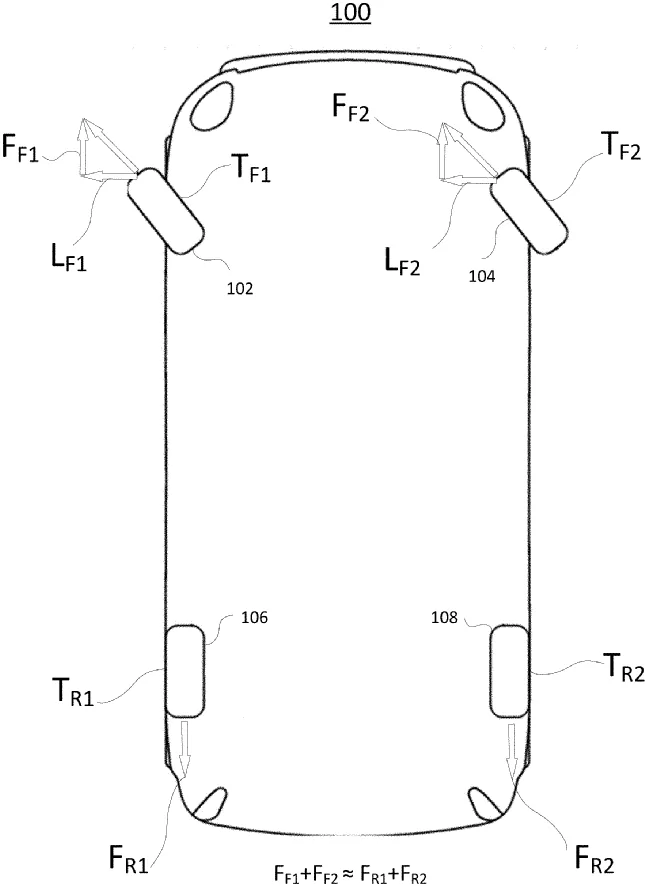

Changes where the central pivot of the vehicle is. Ends up making a much tighter turn. They helpfully include vector math on the patent figure showing that the forward motion from the front tires cancels out with the backwards motion of the rear tires. The front of the vehicle will basically move sideways instead of forward at an angle.


thrill

Well-Known Member
First Name
billy
Joined
Jan 14, 2020
Messages
336
Reaction score
558
Location
South Carolina
First Name
billy
Vehicles
i3s, z4m, hp4, (r1t)
Basically a tank turn plus steering. Think of coming up to a narrow trail point that is basically like a 90 degree turn that's too tight to make a turn into normally without scraping the sides. Now just shift the pivot point to between the rear wheels by rotating them backwards at the correct rate to maintain an "anchor", and steering the frontend around an arc to point the nose in the desired direction. Sure there's some sideways slippage of the tire, but you aren't making that turn without it. Handy. Works every time. Austin Powers - 3 point turn / maneuvering / parking Scene - YouTube


cwinters

Well-Known Member
First Name
Clay
Joined
Nov 13, 2020
Messages
69
Reaction score
61
Location
NOVA
First Name
Clay
Vehicles
Pacifica Hybrid
Doesn't the Bronco have this turn via one of the of road buttons? Tire drag turn or something?


jimcgov3

Well-Known Member
First Name
Jimmy
Joined
Apr 20, 2019
Messages
904
Reaction score
1,667
Location
Jacksonville, Florida // Satellite Beach, FL
First Name
Jimmy
Vehicles
2017 Tesla Model S 75, Rivian R1T Reservation Holder
Doesn't the Bronco have this turn via one of the of road buttons? Tire drag turn or something?
Trail Turn Assist, but it uses the inside brake to get the vehicle to pivot. The K turn uses the rear inside tire moving backwards faster than the rear outside tire...and I assume the opposite to be true when maneuvering forwards, just that the rear outside tire would move faster than the inside tire to complete the turn.


Eager2own

Well-Known Member
First Name
Dan
Joined
Nov 16, 2020
Messages
207
Reaction score
904
Location
Texas
First Name
Dan
Vehicles
Porsche Panamera S e-Hybrid
Doesn't the Bronco have this turn via one of the of road buttons? Tire drag turn or something?
I thought about that too. As Rivian’s application is written, the Bronco would infringe Rivian’s claimed patent. The Rivian application describes the turn being accomplished by having forward torque on the front wheels and a negative torque on at least one rear wheel. The rear wheel doesn’t have to spin backwards — in fact the patent application states it can be static in relation to the ground (not turning) to accomplish the K-turn.

Of course, keep in mind this is only Rivian’s application. It hasn’t issued as a patent. It is normal for an applicant to claim they’ve invented everything under the sun. The next phase involves Rivian negotiating with the patent examiner as to what they truly have invented, and this application may be much narrower when it actually issues as a patent.
