I've long wondered if RWD/FWD would be an option. CS told me several months ago that the Rivian will be full time AWD.
Much like how they've talked about a Tank Turn mode, I'm hoping for a Donut mode that will allow me to go RWD-only in certain circumstances. I see no reason or benefit to offering FWD.

We honestly don't even know what kind of motors Rivian is using.
Last I heard it was DC brushless. Not sure if that's changed?

I know the dual-motor Tesla Model S has a PMSR motor in the front, but an AC induction motor in the rear.
By naming the company Tesla, they pretty much forced themselves to include an AC motor, imo.

I suspect Rivian's quad-motor system might have the same sort of magic, and may be why the rear motors provide higher torque.
Probably bigger motors compared to the front.





Advertisement



DucRider

Well-Known Member
First Name
Gary
Joined
Oct 21, 2019
Messages
1,045
Reaction score
1,494
Location
rRegon
First Name
Gary
Vehicles
Clarity Electric
They are at least AC motors. The inverters must serve some purpose.
Inverters would be needed to charge from AC even with DC motors (but the use of DC motors is unlikely for a variety of reasons)


Rhidan

Well-Known Member
Joined
Nov 25, 2020
Messages
223
Reaction score
531
Location
Denver
Vehicles
R1T
Inverters would be needed to charge from AC even with DC motors (but the use of DC motors is unlikely for a variety of reasons)
Agree, but I thought we had pretty good confirmation that there were dual-power combined inverters in the drivetrain, one in the front and one in the rear. That helps keep things compact because they only need one inverter to power two motors.

I don't think we've ever had confirmation of what type of motors Rivian is using.


kanundrum

Well-Known Member
Joined
May 2, 2020
Messages
690
Reaction score
1,682
Location
Washington, DC
Vehicles
Saab 9-4x, Alfa Romeo Giulia Quad
Occupation
IT

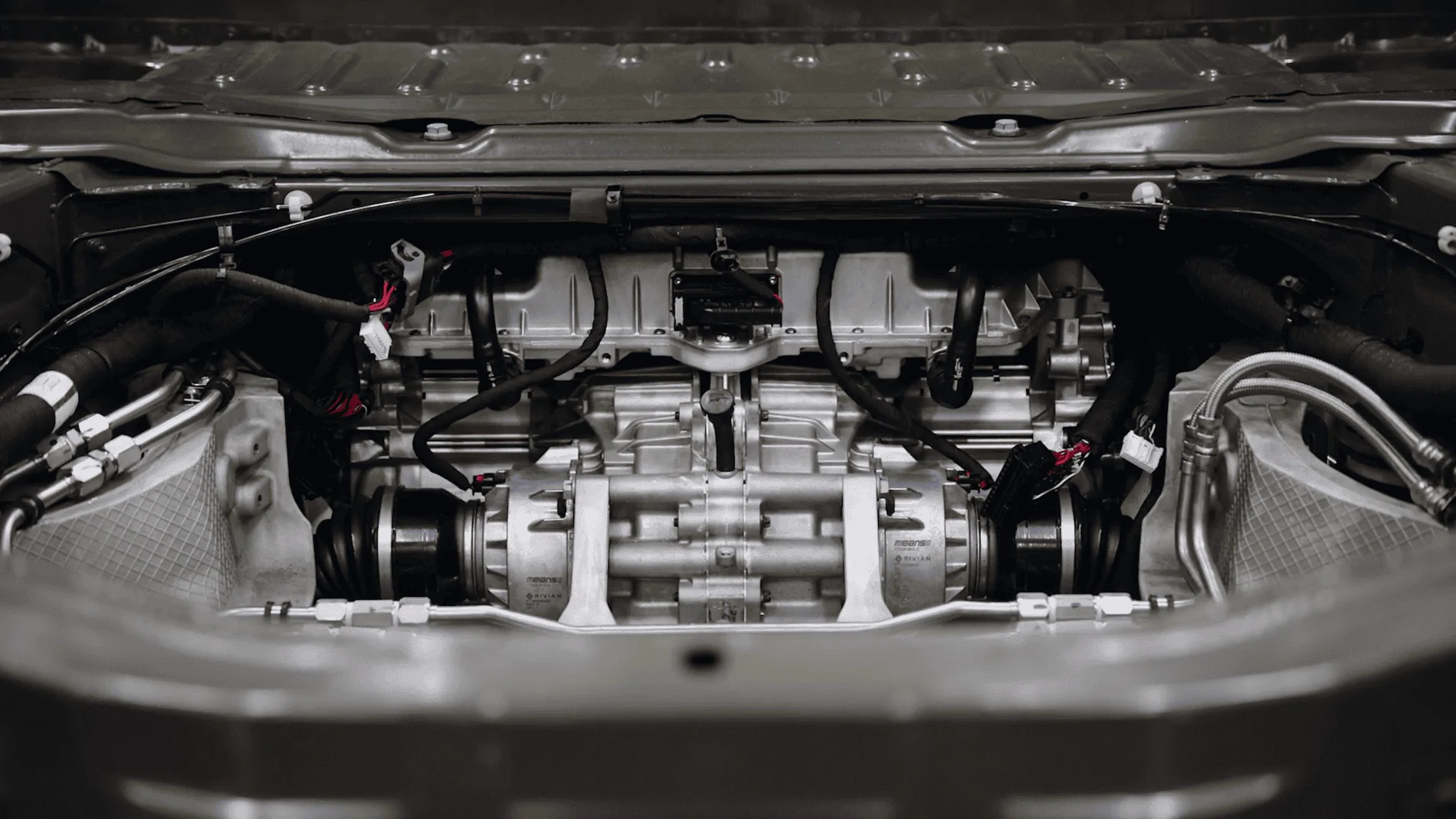

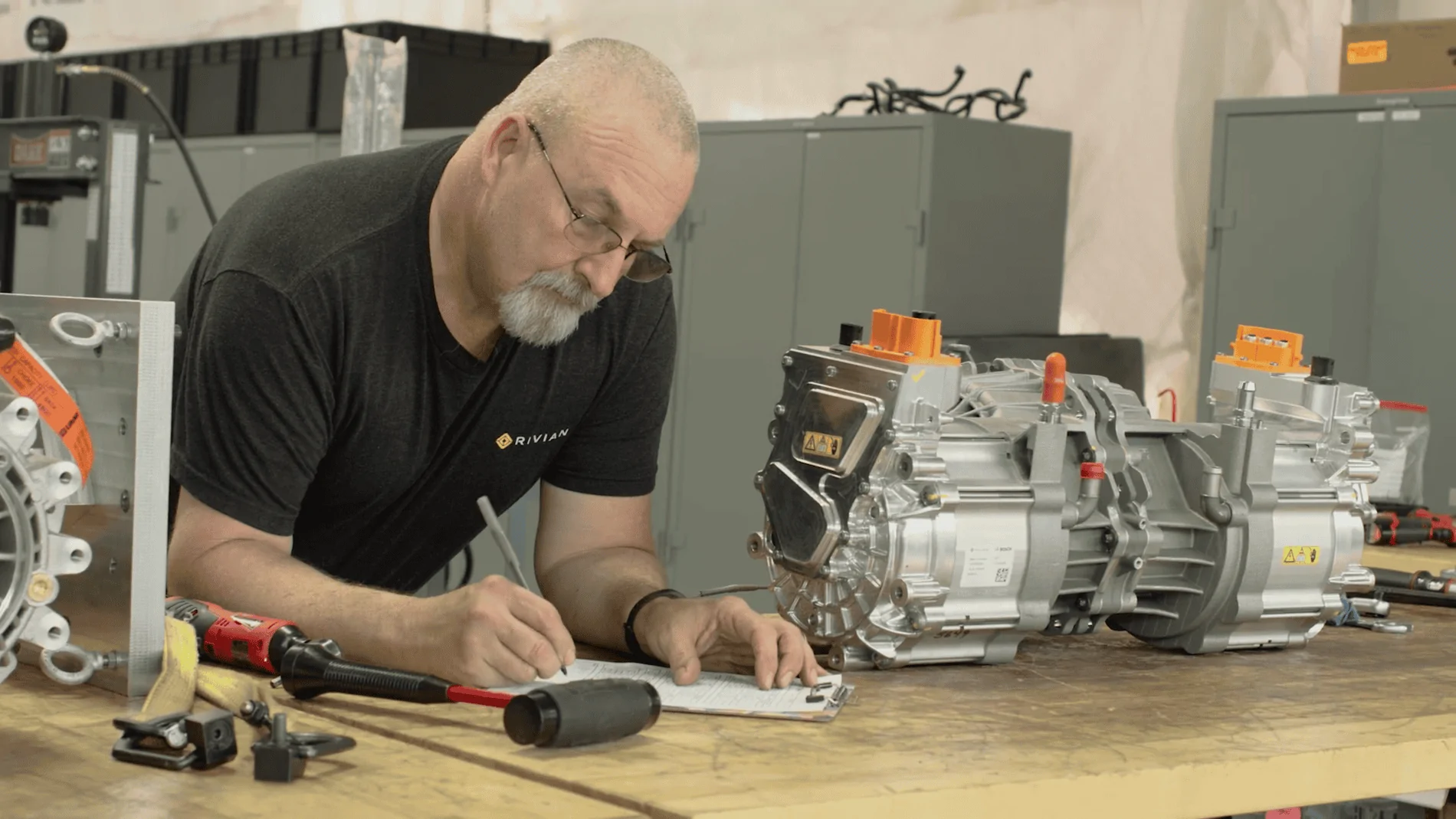

Unless they have changed heir supplier there was a nice screencap of it somewhere I took. Shots below.





CommodoreAmiga

Well-Known Member
Joined
Dec 30, 2020
Messages
724
Reaction score
899
Location
USA
Vehicles
N/A
They are at least AC motors. The inverters must serve some purpose.
You still need an inverter to handle charging at L1/L2.

Also, brushless DC motors can't run on straight DC... There is a controller involved that must pulse the power at the right rate and there's sensors (usually hall-effect) to provide feedback to the controller about rotor position.

Maybe they're using AC induction motors, now? As I said, previously, I don't know for sure. I have seen some patents and conversations with Rivian employees that indicate they were playing around with brushless DC, at least for a while.


DucRider

Well-Known Member
First Name
Gary
Joined
Oct 21, 2019
Messages
1,045
Reaction score
1,494
Location
rRegon
First Name
Gary
Vehicles
Clarity Electric
Agree, but I thought we had pretty good confirmation that there were dual-power combined inverters in the drivetrain, one in the front and one in the rear. That helps keep things compact because they only need one inverter to power two motors.

I don't think we've ever had confirmation of what type of motors Rivian is using.
It would surprise me a bit if they didn't use PMSM.

As a side note, had a fun discussion (actually he discussed - I listened) with the principal of a renowned race spec inverter/motor company (now part of Borg Warner). They market a "Dual Stack" motor - essentially 2 motors in one housing driving a single shaft - and that requires a dual inverter for a "single" motor. They offer those motor cores wound either serial or parallel (different power curves/characteristics), and they've even done mixed motors for some applications (one core SOM, the other DOM).


DuckTruck

Well-Known Member
First Name
Duck
Joined
Dec 23, 2020
Messages
637
Reaction score
1,164
Location
PNW
First Name
Duck
Vehicles
Corvair, BMW325, Acura Legend, XC60, '16 Caddy ELR

aAlpine

Well-Known Member
Joined
Apr 25, 2019
Messages
156
Reaction score
268
Location
Victoria, BC
Vehicles
2014 4Runner (R1T pre-order)
I don't think we've ever had confirmation of what type of motors Rivian is using.
What seems forever ago, at the Denver event I asked an engineer and he told me 4 permanent magnet of their own design, but manufactured by someone else. Of course anything could have changed since then.


Trandall

Well-Known Member
First Name
Travis
Joined
Jan 13, 2021
Messages
231
Reaction score
378
Location
Upstate NY
First Name
Travis
Vehicles
Subaru Ascent, Honda Accord hybrid
Occupation
Construction Management
It would surprise me a bit if they didn't use PMSM.

As a side note, had a fun discussion (actually he discussed - I listened) with the principal of a renowned race spec inverter/motor company (now part of Borg Warner). They market a "Dual Stack" motor - essentially 2 motors in one housing driving a single shaft - and that requires a dual inverter for a "single" motor. They offer those motor cores wound either serial or parallel (different power curves/characteristics), and they've even done mixed motors for some applications (one core SOM, the other DOM).
I wonder if this is similar to what Tesla is using in the 3 and refreshed S & X. I think it is a type of combo induction motor and reluctance motor? I'm also curious what Lucid is using, whatever it is is small, efficient, high torque, and large speed range.


Eager2own

Well-Known Member
First Name
Dan
Joined
Nov 16, 2020
Messages
135
Reaction score
555
Location
Texas
First Name
Dan
Vehicles
Porsche Panamera S e-Hybrid
Unless they have changed heir supplier there was a nice screencap of it somewhere I took. Shots below.



Looks like maybe just the primer, but this still gets my bet on the closest depiction to what Launch Green (/brown) will look like.


electruck

Well-Known Member
Joined
Oct 6, 2019
Messages
1,179
Reaction score
1,697
Location
Dallas, TX
Vehicles
2018 Volvo XC60
I don't think we've ever had confirmation of what type of motors Rivian is using.
Who knows what may have changed over time as original statements were that all 4 motors were identical which no longer appears to be the case. But at one point in time, Rivian had stated that permanent magnet motors were being used:


Trandall

Well-Known Member
First Name
Travis
Joined
Jan 13, 2021
Messages
231
Reaction score
378
Location
Upstate NY
First Name
Travis
Vehicles
Subaru Ascent, Honda Accord hybrid
Occupation
Construction Management
Who knows what may have changed over time as original statements were that all 4 motors were identical which no longer appears to be the case. But at one point in time, Rivian had stated that permanent magnet motors were being used:
https://www.engineering.com/story/the-many-types-of-ev-motors
Found this article which gives basic descriptions and comparison of a variety of electric motors used for EV's.
Sounds like the Interior mounted permanent magnet synchronous motor described in the link would be a good candidate for the R1's.
I'm excited to see what kind of additional performance and efficiency can be nursed out of electric motors. I think we will see substantial technological improvement that could be transferred to everything from power tools to building mechanical systems.
