Hadn't seen this posted, service asked me to do a tonneau cover calibration yesterday. Apparently it was added to one of the recent updates.

Press the external tonneau button 3 times quickly and then hold for 5-7 seconds. Next open fully and close fully the tonneau cover. When successful I got a notification inside that tonneau calibration was completed successfully.

Didn't' fix my issue but maybe it will help other people, it definitely did something though so in a pinch it's good to know.


Last edited:

timesinks

Well-Known Member
Joined
Sep 20, 2020
Threads
6
Messages
559
Reaction score
1,818
Location
Seattle
Vehicles
R1T, ID.4, Sprinter
Hadn't seen this posted, service asked me to do a tonneau cover calibration yesterday. Apparently it was added to one of the recent updates.

Press the external tonneau button 3 times quickly and then hold for 5-7 seconds. Next open fully and close fully the tonneau cover. When successful I got a notification inside that tonneau calibration was completed successfully.

Didn't' fix my issue but maybe it will help other people, it definitely did something though so in a pinch it's good to know.
Neat trick. Ours was about a half inch shy closing and this got it back into the proper position.

OP
OP
jjswan33

jjswan33

Well-Known Member
First Name
Joshua
Joined
Sep 17, 2021
Threads
42
Messages
1,133
Reaction score
2,220
Location
Sandy, OR
First Name
Joshua
Vehicles
Rivian R1T LE
Occupation
Engineer
Neat trick. Ours was about a half inch shy closing and this got it back into the proper position.
Yeah that was the same as mine and it did help with that but then it doesn't fully open, leaving 2-3in of cover sticking out when fully 'open'.


SeaGeo

Well-Known Member
First Name
Brice
Joined
Jan 12, 2021
Threads
43
Messages
4,259
Reaction score
8,313
Location
Seattle
First Name
Brice
Vehicles
Xc60 T8
Occupation
Engineer
This assumes you're brave enough to open/close the tonneau currently. :rolleyes:


ironpig

Well-Known Member
Joined
Nov 19, 2021
Threads
5
Messages
1,119
Reaction score
1,906
Location
Los Angeles, CA
Vehicles
2022 R1T LE, 2015 4Runner, 1975 FJ55 Land Cruiser
I will try this. Mine makes a nice cracking sound when it closes.



aw113sgte

Well-Known Member
Joined
May 11, 2021
Threads
8
Messages
153
Reaction score
267
Location
WI
Vehicles
22 R1t
I did this on mine, but now my tonneau closes all the way then reverses and opens about a quarter inch. The truck then thinks the tonneau is open so when I push the button inside the cab it tries to close it again then it just bounces back open. Seems to still need some work.


pfbz

Well-Known Member
Joined
Jun 13, 2022
Threads
2
Messages
60
Reaction score
69
Location
US
Vehicles
R1T (ordered), F150, Q5, 911 Turbo(s)
Yup. My 'service' person tried to have me do this on my truck yesterday... she didn't really seem to know exactly what the procedure is...

Didn't fix my issue (cover does not open/retract all the way, short by about 6") and created a new issue, as mentioned above, it now closes and then retracts a bit, leaving a gap.

I knew of the issue at delivery, not a deal breaker for me, and the service center said replacement is what is required, but I let the phone support person try the calibration procedure anyway.... As I said, no joy.


cmtaylor963

Active Member
First Name
Charles
Joined
Mar 15, 2021
Threads
1
Messages
35
Reaction score
45
Location
Springfield, MO
First Name
Charles
Vehicles
Mach E
Occupation
Engineer
This fixed my issue of my tonneau retracting about 6" after attempting to close, and it wouldn't open fully. It took me several attempts to get it right.


dduffey

Well-Known Member
First Name
David
Joined
Apr 1, 2022
Threads
7
Messages
190
Reaction score
197
Location
Texas
First Name
David
Vehicles
R1T, Tesla M3, Tesla MY
I did this calibration when mine would also "back" out after closing. It didn't solve the problem, but then one day it just started closing correctly again.

But still doesn't open all the way (leaves about 2" out).


Mike Hunt

Well-Known Member
First Name
Mike
Joined
May 3, 2022
Threads
3
Messages
101
Reaction score
159
Location
Carmel, CA
First Name
Mike
Vehicles
Tesla
When my tonneau cover doesn’t close all the way I hold the button down while it’s closing, so press and hold, and then release when it’s closed and sealed to my satisfaction.



crashmtb

Well-Known Member
Joined
Jul 11, 2021
Threads
0
Messages
3,193
Reaction score
5,053
Location
Man oh Manitoba
Vehicles
2002 aluminium garden shed TD5

AllInev

Well-Known Member
Joined
Nov 22, 2021
Threads
9
Messages
636
Reaction score
1,143
Location
Oakland, CA
Vehicles
Prius V
I stopped at a Wal-mart to charge and picked up some RV Slide out lube and it worked wonders on my tonneau cover.
I've been liberally using a silicon spray as well --a full spray of the tracks about once a week. It helped resolve the 2" stick-out when fully opening. Other than the cost, I can't think of any downside to using this stuff frequently.


FirstStateR1T

Well-Known Member
First Name
Eric
Joined
Mar 31, 2022
Threads
4
Messages
94
Reaction score
104
Location
Newark, DE
First Name
Eric
Vehicles
Too many to list, I have a problem!
Occupation
Mech. E/GM/COO
Neat trick. Ours was about a half inch shy closing and this got it back into the proper position.
Same issue with mine, going to do this shortly to see if its reset!


johnjohn

Well-Known Member
Joined
May 27, 2020
Threads
1
Messages
68
Reaction score
132
Location
Los Angeles
Vehicles
Rivian R1T
Occupation
Physical Therapist
Hadn't seen this posted, service asked me to do a tonneau cover calibration yesterday. Apparently it was added to one of the recent updates.

Press the external tonneau button 3 times quickly and then hold for 5-7 seconds. Next open fully and close fully the tonneau cover. When successful I got a notification inside that tonneau calibration was completed successfully.

Didn't' fix my issue but maybe it will help other people, it definitely did something though so in a pinch it's good to know.

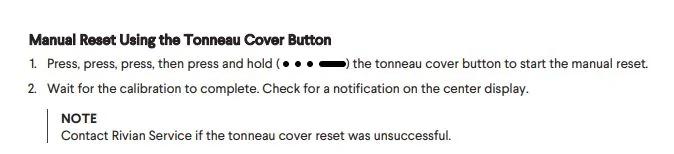

I had to do this 3-4x already and it only works for a day or so. The calibration is actually in the manual as well...pg 145
