Off-Road Tire Pressure?

EVTrukHog

Well-Known Member
First Name
Matt
Joined
Aug 31, 2021
Threads
31
Messages
507
Reaction score
765
Location
USA
Vehicles
F150, Explorer, Corvette C6
I have 20"AT on my R1T. Door panel label specifies 48psi for road use. What is recommended pressure for off-road? Rivian recommended minimum for 20" is 31 psi. What do you use while off-road?
Sponsored



Sgt Beavis

Well-Known Member
First Name
Rick
Joined
Sep 28, 2021
Threads
65
Messages
1,678
Reaction score
3,544
Location
Colorado
Vehicles
2022 Rivian R1T, 2021 Jeep Wrangler Rubicon
Occupation
Overpaid Computer Nerd
Clubs

Considering the lower amount of sidewall on those 20" tires, I'd go with the 31psi recommendation. You run a chance of popping a tire bead if you go too low. I've run my Jeep as low as 20psi but those are 37" tires on 17" wheels. There is A LOT of sidewall to work with on those tires.

There are two purposes for deflation. One is to increase the tire patch size for better traction and the other is to give you a more comfortable ride when off roading by letting the side walls have more pliability. Increasing traction is definitely a benefit in many situations but consider those situations carefully before proceeding. Do you really need increase traction? Are you crawling over rocks, loose dirt, shallow mud, or even water fording. Then perhaps this is beneficial.

On the ride improvement side of things, I simply wouldn't do it. The R1's independent suspension and air shocks already do a great job of improving the ride on most off road surfaces.

i'm not advising you one way or another. Make your decision based on the off-roading scenario, but I do think you should stick with the psi minimum Rivian outlined.


Inkedsphynx

Well-Known Member
Joined
May 27, 2021
Threads
4
Messages
1,021
Reaction score
2,031
Location
Washington
Vehicles
'22 LE R1T, '21 CB500FA, '21 CMX1100A
I'd agree with @Sgt Beavis but also reinforce the caveat that it really depends on conditions. On a well-worn forest service road, I'd only air down a little bit, maybe halfway between to 40psi. For any serious trail with big rocks/boulders, or any sort of slippery/watery situation I'd air down to the lowest I could go.


W1SE

Well-Known Member
First Name
Jake
Joined
Nov 28, 2021
Threads
37
Messages
455
Reaction score
966
Location
Vancouver, WA
Vehicles
2021 Ford Bronco, 2018 VW Atlas
Occupation
Branch manager
Clubs

There are two purposes for deflation. One is to increase the tire patch size for better traction and the other is to give you a more comfortable ride when off roading by letting the side walls have more pliability. Increasing traction is definitely a benefit in many situations but consider those situations carefully before proceeding. Do you really need increase traction? Are you crawling over rocks, loose dirt, shallow mud, or even water fording. Then perhaps this is beneficial.
Great post. I would even add a third reason to air down. I have had plenty of times when I have all the traction I need without airing down but I would pop a tire. By airing down you can protect your tires from punctures. Think of a balloon. When completely full it will pop much easier. But when you roll over sharp rocks you will be less likely to puncture the tire by letting it give a bit more. Slow or fast speeds.

This actually happened while going faster on a forest road. I didnā€™t air down and had highway pressure and hit a small 4-6ā€ rock that popped the tire. I think I may have been better to have even 10 PSI taken out.


Sgt Beavis

Well-Known Member
First Name
Rick
Joined
Sep 28, 2021
Threads
65
Messages
1,678
Reaction score
3,544
Location
Colorado
Vehicles
2022 Rivian R1T, 2021 Jeep Wrangler Rubicon
Occupation
Overpaid Computer Nerd
Clubs

Great post. I would even add a third reason to air down. I have had plenty of times when I have all the traction I need without airing down but I would pop a tire. By airing down you can protect your tires from punctures. Think of a balloon. When completely full it will pop much easier. But when you roll over sharp rocks you will be less likely to puncture the tire by letting it give a bit more. Slow or fast speeds.

This actually happened while going faster on a forest road. I didnā€™t air down and had highway pressure and hit a small 4-6ā€ rock that popped the tire. I think I may have been better to have even 10 PSI taken out.
I agree with this. Though Iā€™m not sure it will matter on the sidewalls of these Pirellis.


Sponsored

k3g

Well-Known Member
Joined
Mar 2, 2023
Threads
3
Messages
103
Reaction score
242
Location
USA
Vehicles
R1T
Occupation
Robotics

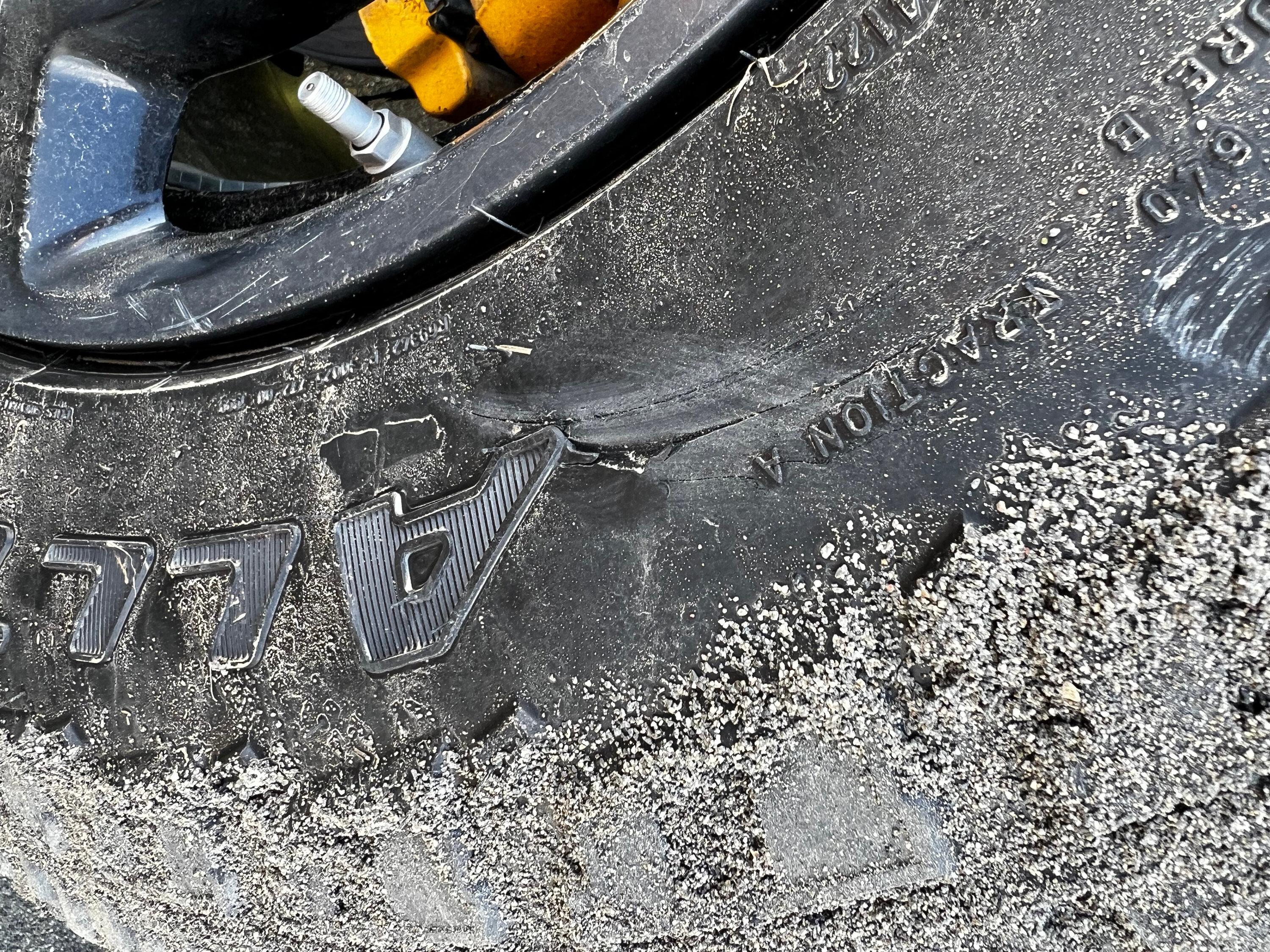

These sidewalls are pretty soft. This was at street pressure, in light sand with a few scattered rocks. Must have clipped one of them.
Rivian R1T R1S Off-Road Tire Pressure? IMG_3894


I aired down to 32psi after that, and stayed away from the sand that could hide more rocks like the one that gashed my tire. At 32 it feels perfect: The right amount of sidewall deflection, it dampens out the sharper impacts nicely.


FrictionlessLube

Well-Known Member
First Name
Dustin
Joined
Sep 28, 2022
Threads
3
Messages
55
Reaction score
76
Location
Littleton, CO
Vehicles
'11 WRX, ā€˜20 Forester
Clubs

Whatā€™s everyoneā€™s thoughts on the 21sā€ and off roading and a pressure to lower to? I plan on a somewhat moderate trail; Iā€™d say maybe a 5/10 with a mixture of rocks. If anyone in Colorado is familiar, the off road trail to Fall River Reservoir.

Right now they are at about 47-48PSI once warm.


mikehmb

Well-Known Member
First Name
Mike
Joined
Jan 12, 2022
Threads
92
Messages
1,298
Reaction score
2,671
Location
SF Bay Area
Vehicles
eGolf, i3, R1T
Whatā€™s everyoneā€™s thoughts on the 21sā€ and off roading and a pressure to lower to? I plan on a somewhat moderate trail; Iā€™d say maybe a 5/10 with a mixture of rocks. If anyone in Colorado is familiar, the off road trail to Fall River Reservoir.

Right now they are at about 47-48PSI once warm.
With the 21s, Iā€™d try to stick with standard pressure (around 50 psi) unless you really need the extra grip. The lack of sidewall makes reducing the air pressure a little more sketchy.

Iā€™ve got the 21s, and theyā€™re adequate (even pretty good) for light-duty work, but if youā€™re up against sharp rocks or in the mud, things might get interesting.


NashvilleR1S

Well-Known Member
First Name
Chris
Joined
Jan 11, 2021
Threads
16
Messages
337
Reaction score
491
Location
Nashville
Vehicles
2023 R1S, 2022 Pilot
Occupation
Cinematography
Dumb question, heading out today and realized I don't have a tire pressure gauge or anything to deflate the tires. Is there an easy way to deflate with the compressor kit to a specific PSI?


KeithPleas

Well-Known Member
First Name
Keith
Joined
Mar 9, 2019
Threads
14
Messages
330
Reaction score
544
Location
Mercer Island
Vehicles
Lexus GX, Porsche Boxster
Dumb question, heading out today and realized I don't have a tire pressure gauge or anything to deflate the tires. Is there an easy way to deflate with the compressor kit to a specific PSI?
I don't know about the compressor, but for my GX I use Staun deflators with speed clips. They won't help you with today's trip but nothing else comes close in terms of convenience.

Last edited:

Sponsored

Dark-Fx

Well-Known Member
First Name
Brian
Joined
Jul 15, 2020
Threads
96
Messages
9,355
Reaction score
17,740
Location
Michigan
Vehicles
Polestar 2, R1T, R1S, Livewire One, Fisker Ocean
Occupation
Engineering
Clubs

Dumb question, heading out today and realized I don't have a tire pressure gauge or anything to deflate the tires. Is there an easy way to deflate with the compressor kit to a specific PSI?
Deflate and then reinflate.


Sgt Beavis

Well-Known Member
First Name
Rick
Joined
Sep 28, 2021
Threads
65
Messages
1,678
Reaction score
3,544
Location
Colorado
Vehicles
2022 Rivian R1T, 2021 Jeep Wrangler Rubicon
Occupation
Overpaid Computer Nerd
Clubs

Dumb question, heading out today and realized I don't have a tire pressure gauge or anything to deflate the tires. Is there an easy way to deflate with the compressor kit to a specific PSI?
The kit doesā€™t have a deflator. IMO, the best one on the market is from ARB. I also recommend getting spare tire stem valves (easy to replace) if you do any significant off road driving.


Calvin2518

Well-Known Member
First Name
Calvin
Joined
Jan 5, 2023
Threads
7
Messages
128
Reaction score
420
Location
Arvada, CO
Vehicles
2023 R1T, 2023 Tesla Model 3 Performance
Occupation
Owner - Construction Media Specialist
Airing down to 30 PSI is perfect for off roading with the 20ā€ rims. Gives the tires just a hair more room to compress and makes the ride a lot more comfortable.

Biggest complaint is that when parked, the PSI gauge on the truck shuts off after about 5 minutes so if youā€™re airing down or up- be quick if you want to rely on the gauge on the dash.

also @Sgt Beavis I found that the chuck to air up with if you attach just the chuck to the tire works incredibly well to air down with! Just need to keep an eye on the gauge on the dash to make sure you donā€™t air down too much.


Zoidz

Well-Known Member
First Name
Gil
Joined
Feb 28, 2021
Threads
105
Messages
3,121
Reaction score
6,865
Location
PA
Vehicles
23 R1S Adv, Avalanche, BMWs-X3,330cic,K1200RS bike
Occupation
Engineer
Iā€™ve been experimenting with pressure the past few days. Running in dry sand with no stone/rock and 20ā€ ATs, I tried 35 psi one day and 40 psi the next day. Both had good traction, 35 psi was a bit smoother ride.


usulio

Well-Known Member
Joined
Jun 2, 2023
Threads
5
Messages
317
Reaction score
376
Location
CO
Vehicles
R1S
Clubs

also @Sgt Beavis I found that the chuck to air up with if you attach just the chuck to the tire works incredibly well to air down with! Just need to keep an eye on the gauge on the dash to make sure you donā€™t air down too much.
Yeah, here's a video where someone shows this:




To approximate 30 PSI on ATs, I'd air down until the tread is basically flat on the ground, but the sidewall is not really bending inward. Edit: that description is probably too low. Even at 30 PSI the sidewall is not getting close to the ground, actually, it's not easy to see that they're aired down at all.
