Just installed EVBase Running Boards. Tips on trimming the plastic panels?

First Name
Jeff
Joined
Dec 5, 2021
Threads
3
Messages
20
Reaction score
24
Location
Waterford, MI
Vehicles
2017 Jaguar Fpace, 2001 Corvette
Occupation
Commercial real estate finance
I plan to trim and reinstall the plastic pieces. Any tips are appreciated. Cheers!
Sponsored



Willyspu

Active Member
First Name
Jim
Joined
Sep 8, 2023
Threads
1
Messages
44
Reaction score
45
Location
Oregon
Vehicles
RS1
Occupation
Farmer
Clubs

I used a Dremel to cut a slit in them and wiggled in the bracket for the step. I then covered the slit with Gorilla tape. The tape has held fine since September 2023.

i will advise you not to use their included tools, they are not made from hardened steel. You might also need a cheater bar to get the OEM bolts out.


240vPlug

Well-Known Member
First Name
Ken
Joined
Jan 30, 2023
Threads
33
Messages
1,964
Reaction score
1,978
Location
Maryland
Website
ElectrifiedOutdoors.com
Vehicles
23 R1T (Limestone), 23 R1S (El Cap)
Clubs

I used aluminum/tin snips:
https://amzn.to/3TjHkNv

Not the prettiest but you can't see the slits unless your under the truck.

Liquid can still get in even before the running boards. The main reason I reinstalled them is to protect against road debris damaging the e coating on the underside.

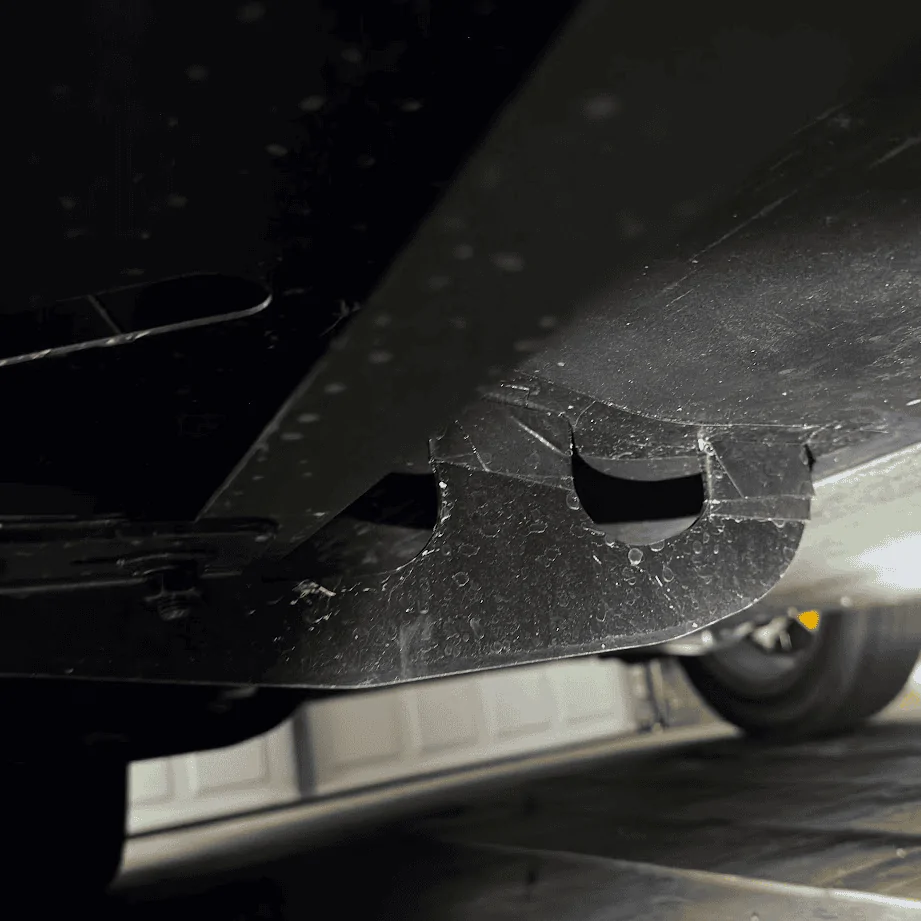

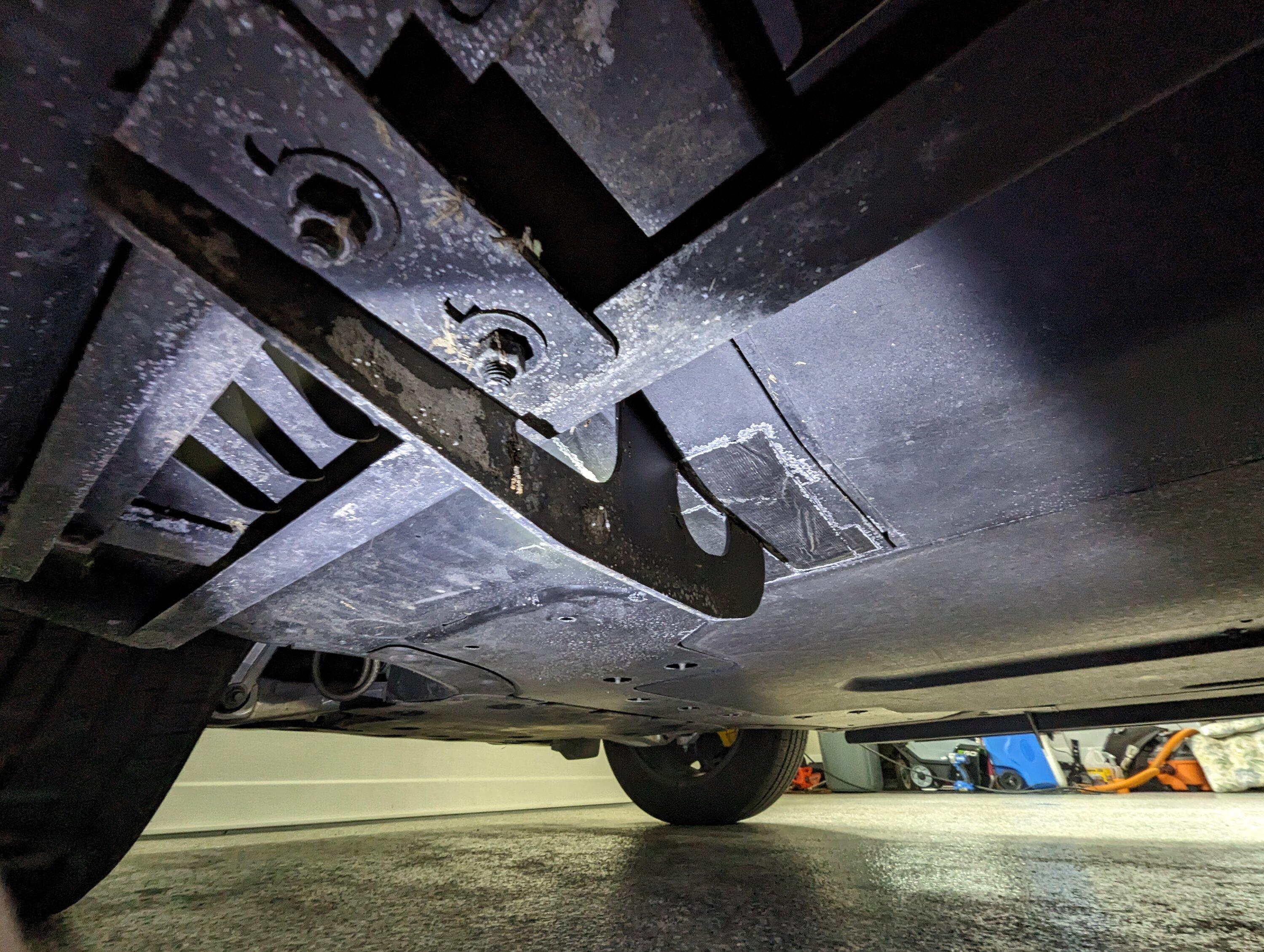

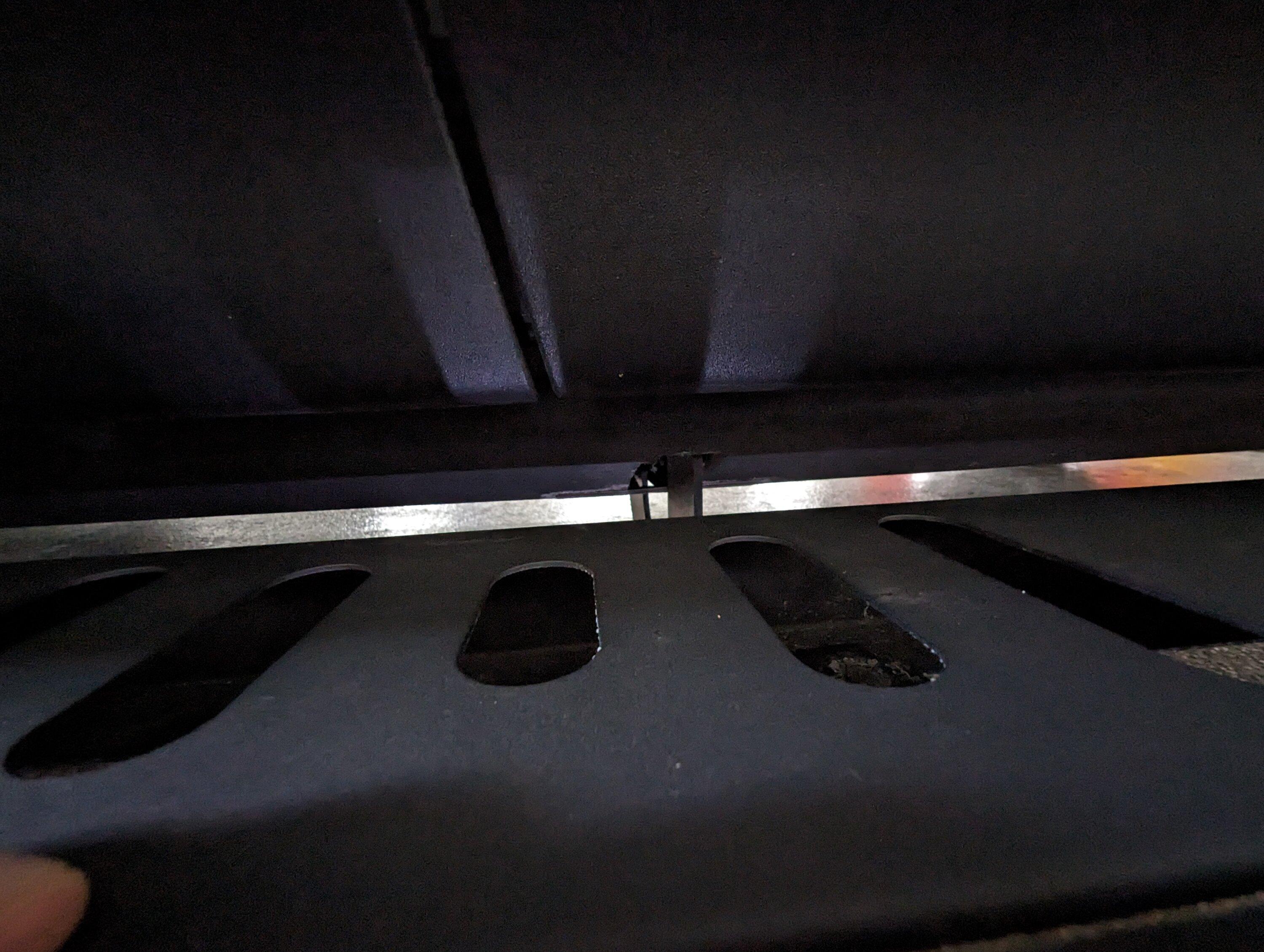

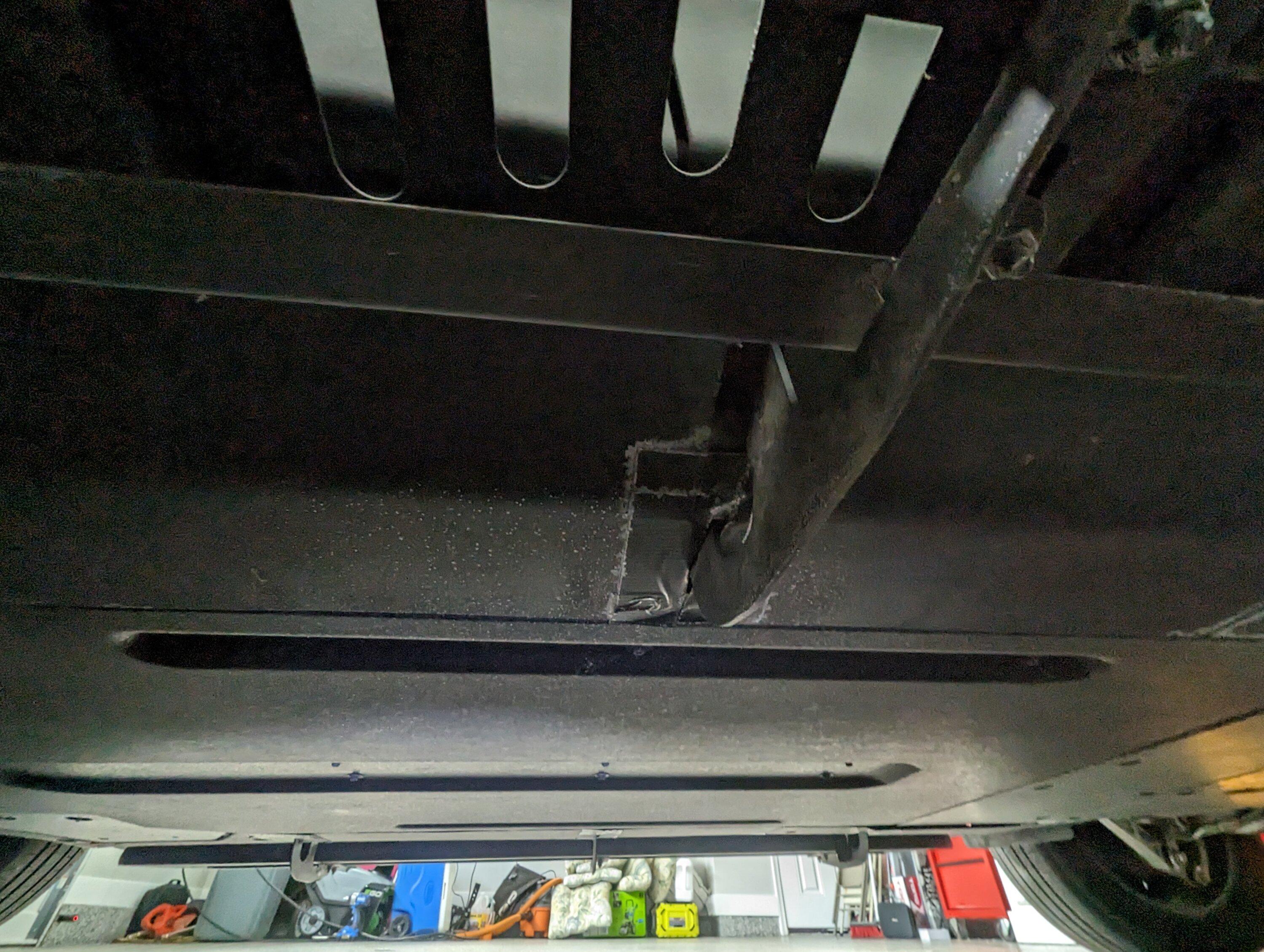

Here are rather poor pics of what mine looks like. Some have cut slots from the door in... The way I cut them is less visible but requires the runners to be off when you reinstall the panels.

Rivian R1T R1S Just installed EVBase Running Boards.  Tips on trimming the plastic panels? 1000003953


Rivian R1T R1S Just installed EVBase Running Boards.  Tips on trimming the plastic panels? 1000003955


Rivian R1T R1S Just installed EVBase Running Boards.  Tips on trimming the plastic panels? 1000003954

Last edited:
OP
OP
First Name
Jeff
Joined
Dec 5, 2021
Threads
3
Messages
20
Reaction score
24
Location
Waterford, MI
Vehicles
2017 Jaguar Fpace, 2001 Corvette
Occupation
Commercial real estate finance
I used a Dremel to cut a slit in them and wiggled in the bracket for the step. I then covered the slit with Gorilla tape. The tape has held fine since September 2023.

i will advise you not to use their included tools, they are not made from hardened steel. You might also need a cheater bar to get the OEM bolts out.
Thanks for the tips. Yes the tools are junk. So was the labeling of driver side/passenger side on the brackets. Boards are on.


ljx83

New Member
Joined
Nov 8, 2023
Threads
1
Messages
3
Reaction score
2
Location
San Francisco
Vehicles
Rivian R1S, Tesla Model 3
Thinking of getting these myself.
Do the boards affect the camera views? Do you still have unobstructed views of the wheels when backing up or do the boards get in the way?


Sponsored

OP
OP
First Name
Jeff
Joined
Dec 5, 2021
Threads
3
Messages
20
Reaction score
24
Location
Waterford, MI
Vehicles
2017 Jaguar Fpace, 2001 Corvette
Occupation
Commercial real estate finance
Thinking of getting these myself.
Do the boards affect the camera views? Do you still have unobstructed views of the wheels when backing up or do the boards get in the way?
No camera view obstructions. They look good and function well. Quality seems good. Install was a few hours. Nice product for $500.


topracer

Member
Joined
Oct 12, 2023
Threads
2
Messages
19
Reaction score
5
Location
MD
Vehicles
2023 Rivian R1S

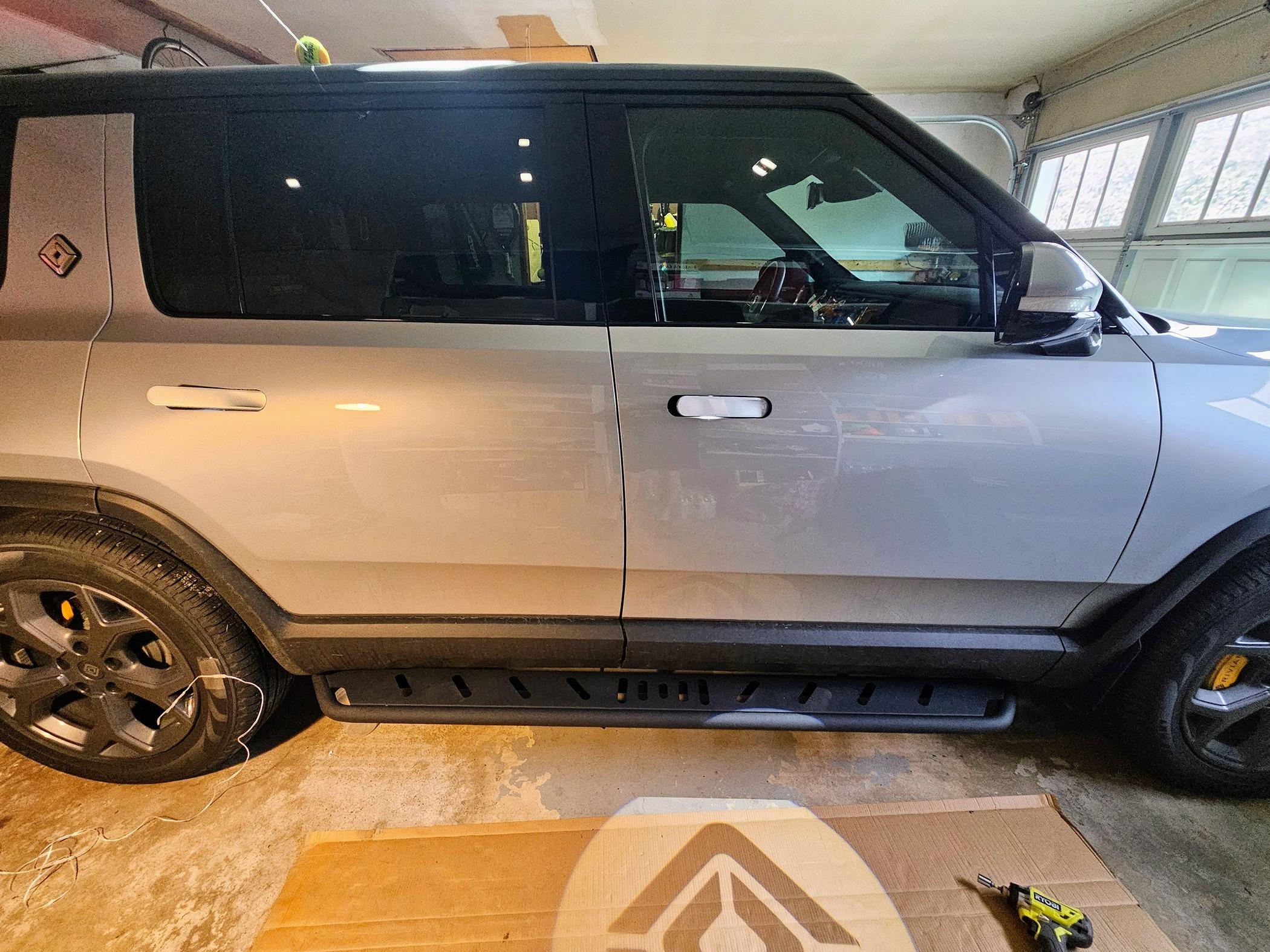

Just finished installing the EVBASE running boards. And I'm quite satisfy with the quality and outcome.

For a smoother installation, I was using the "TP55" bit and impact wrench. Despite using the impact wrench, 1 of the 6 bolts required extra effort to turn.

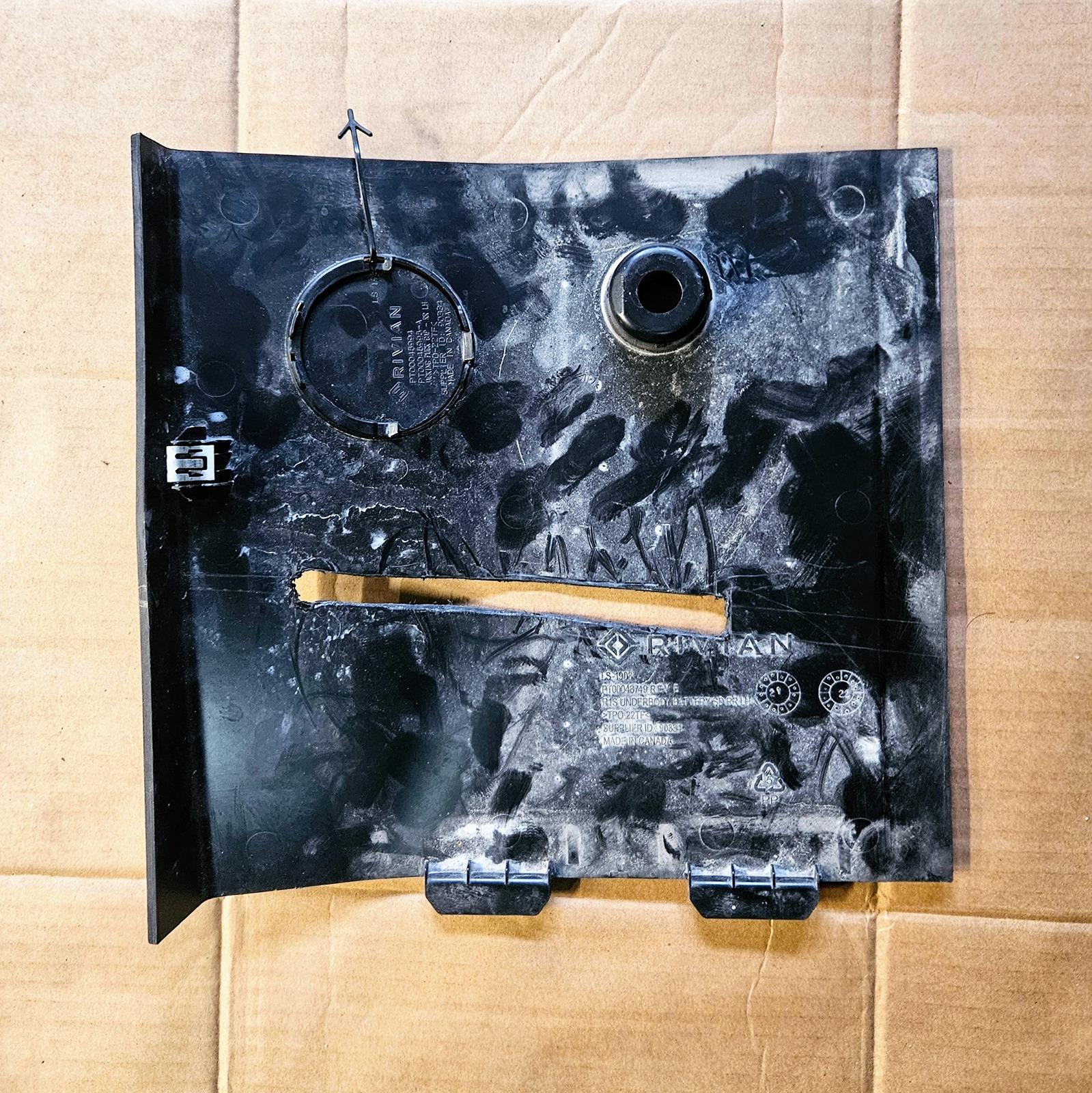

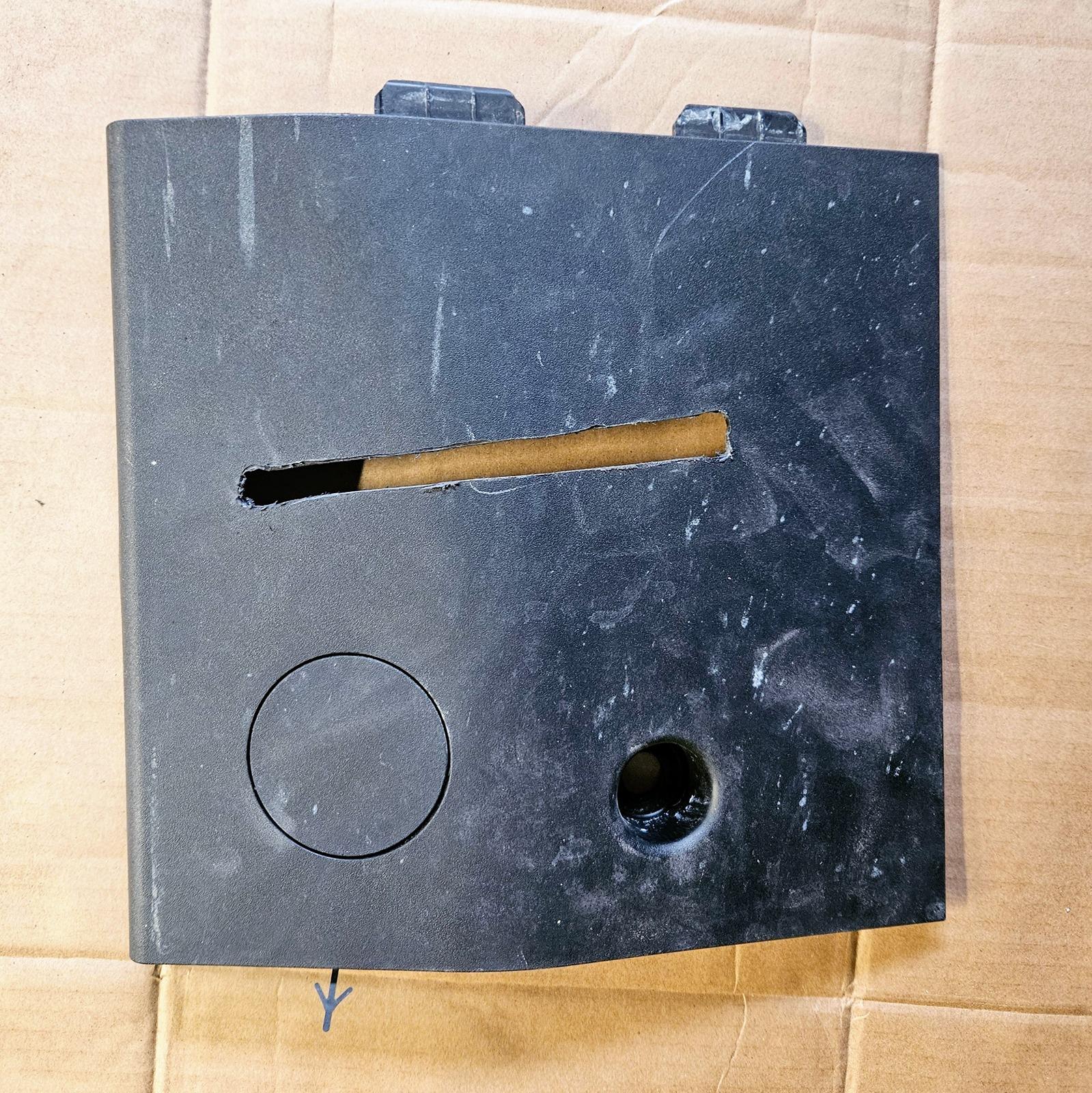

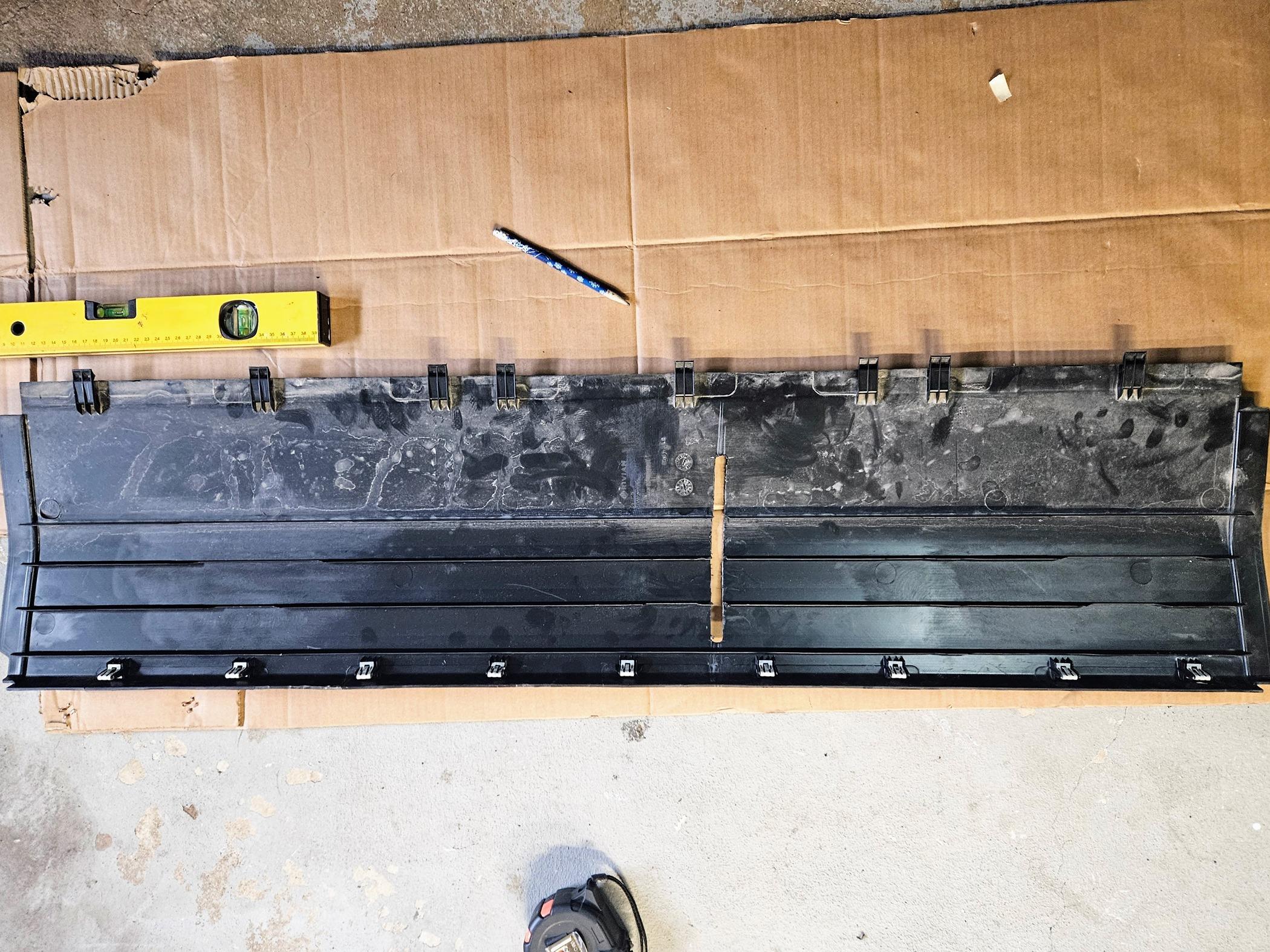

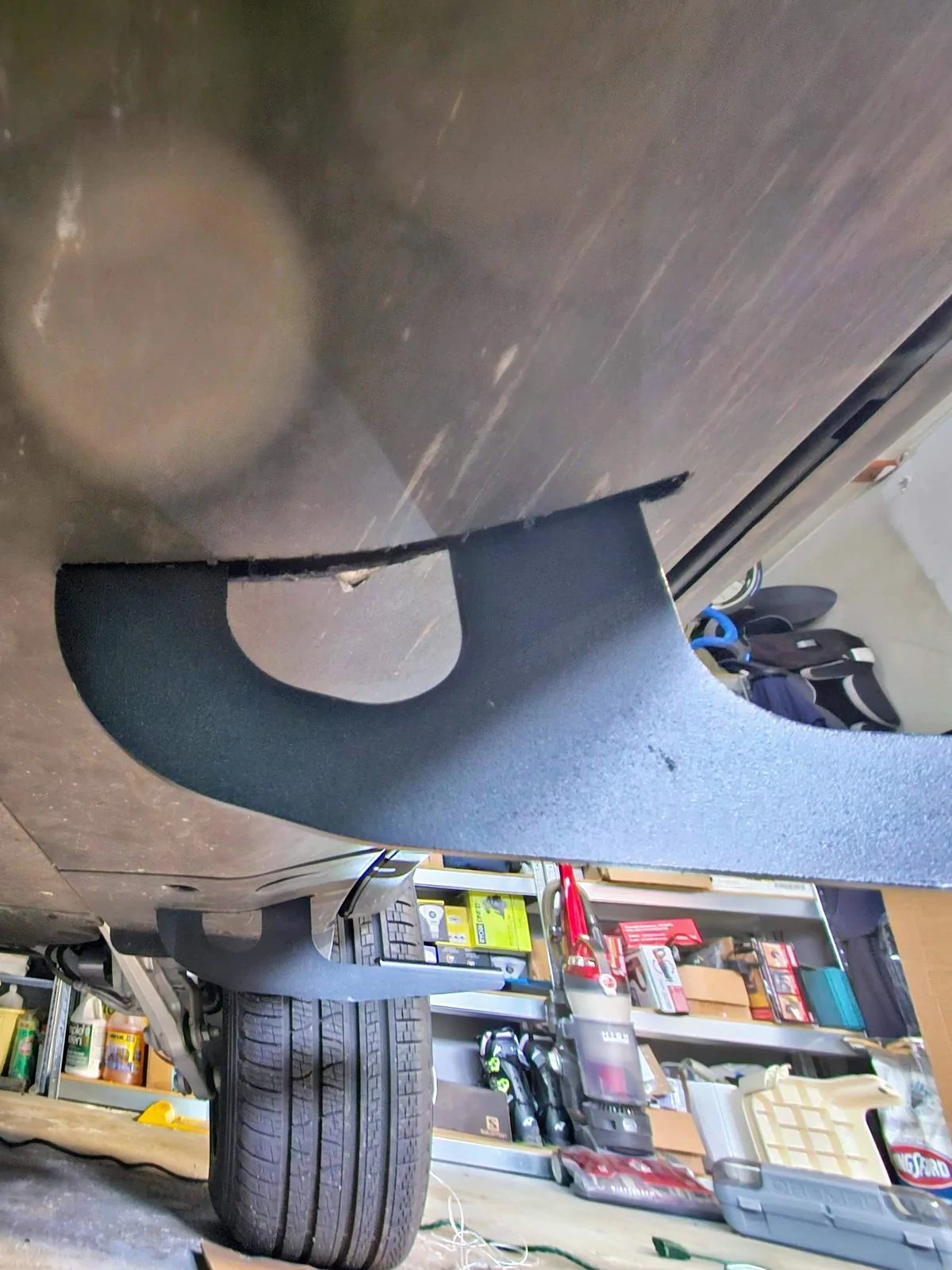

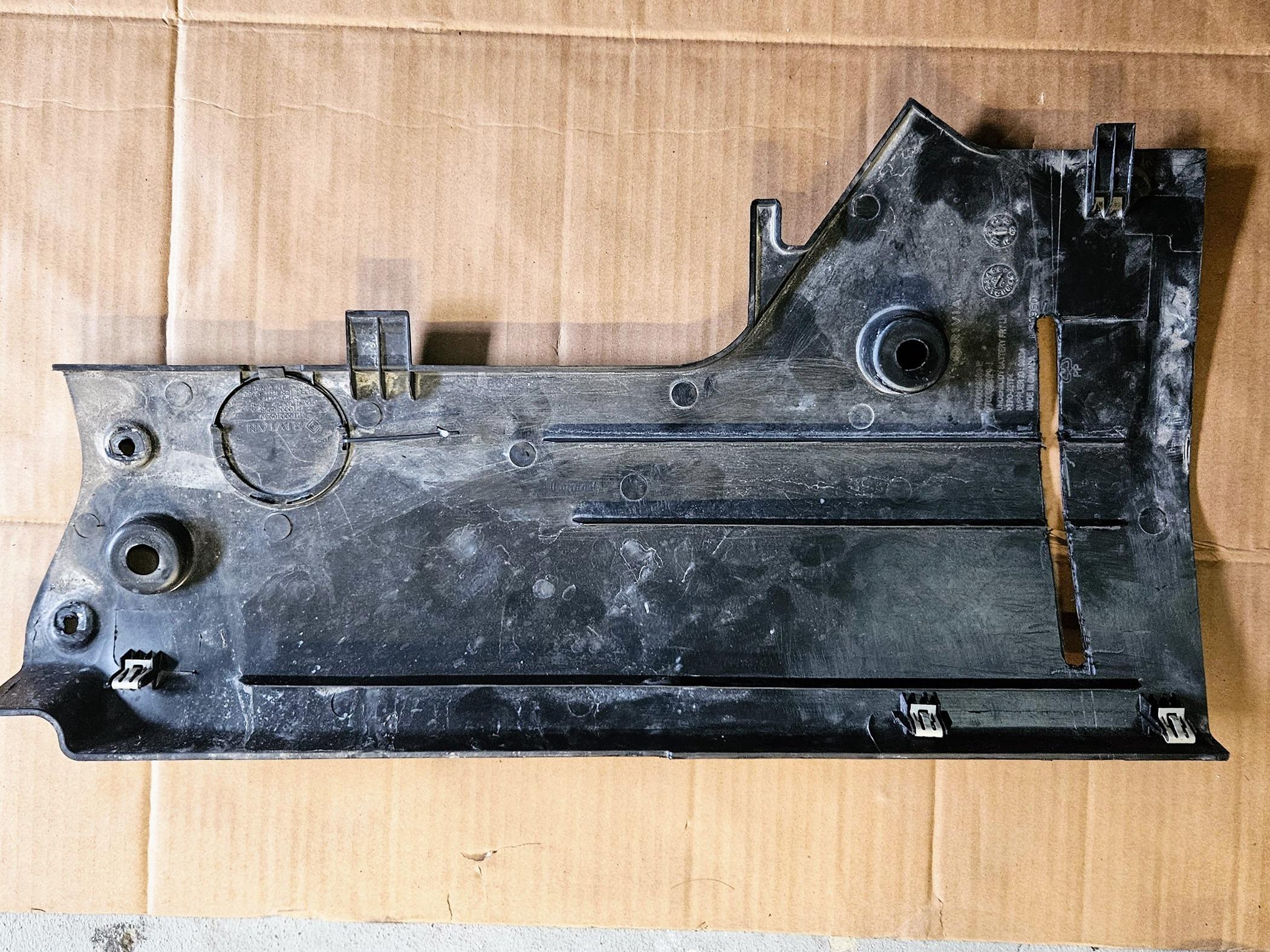

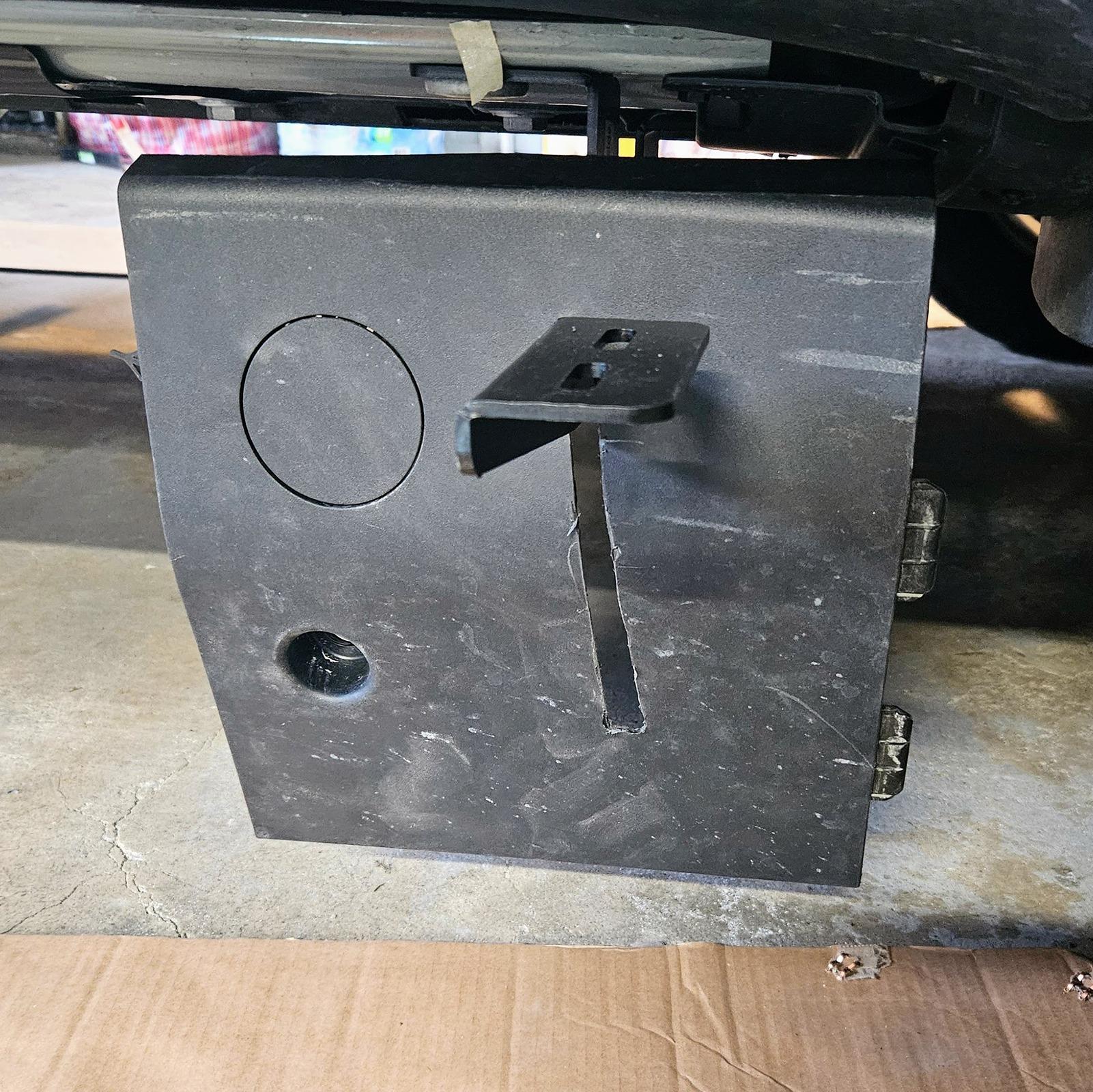

Additionally, I took the time cutting slots on the plastic covers and wiggling them back. (A standard template may not work, since each vehicle mounting brackets are angled slightly different.)

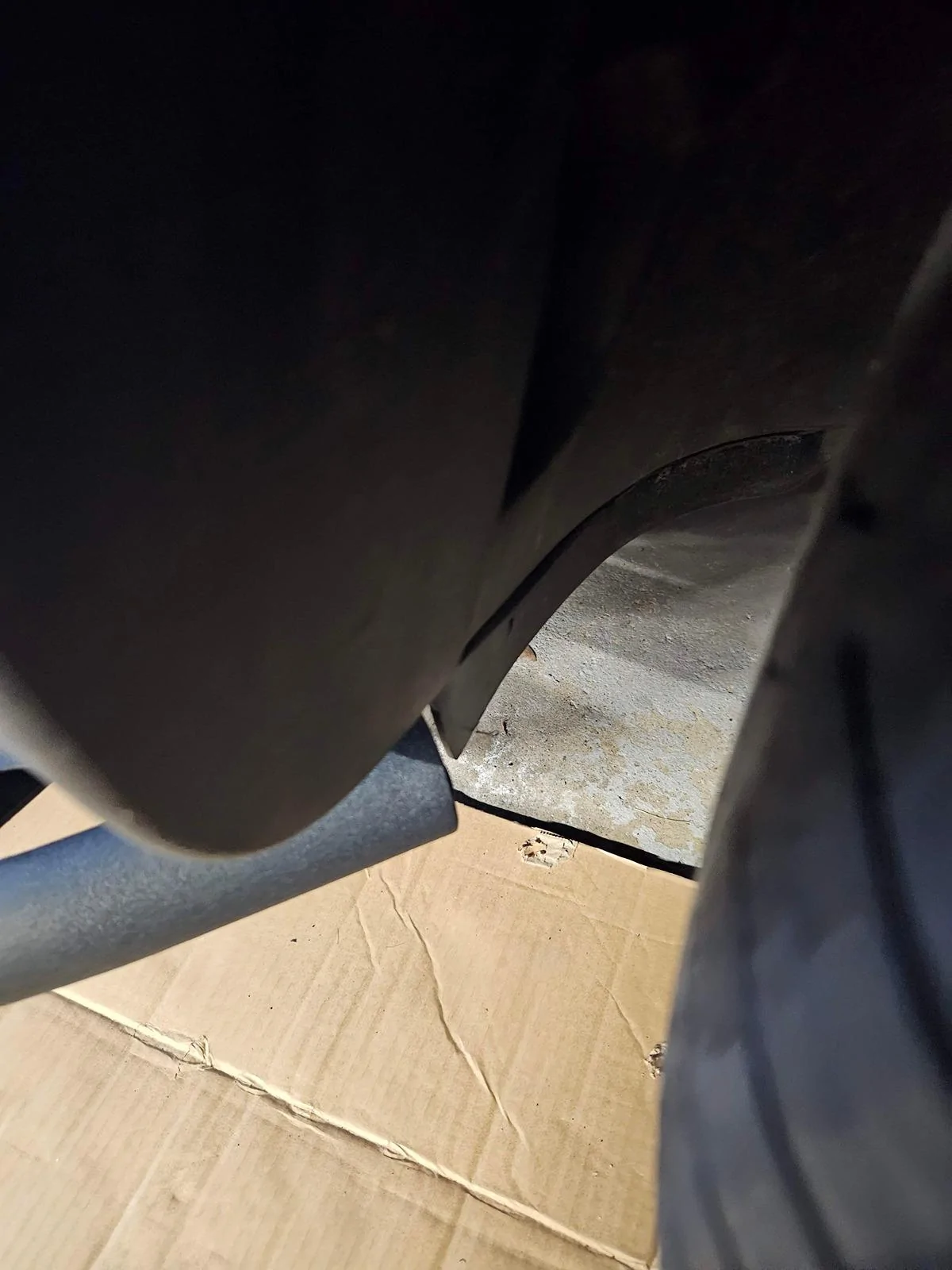

Also, I spent the time adjusting the rear so it doesn't stick out. I particularly like this Evbase extend all the way to the back, for rear passengers to get in and out, compare to the brands.

For longevity, time will tell if this is going to rust.

Rivian R1T R1S Just installed EVBase Running Boards.  Tips on trimming the plastic panels? 20240403_130114
Rivian R1T R1S Just installed EVBase Running Boards.  Tips on trimming the plastic panels? 20240403_130121
Rivian R1T R1S Just installed EVBase Running Boards.  Tips on trimming the plastic panels? 20240403_130230
Rivian R1T R1S Just installed EVBase Running Boards.  Tips on trimming the plastic panels? 20240403_154724
Rivian R1T R1S Just installed EVBase Running Boards.  Tips on trimming the plastic panels? 20240403_160733
Rivian R1T R1S Just installed EVBase Running Boards.  Tips on trimming the plastic panels? 20240403_132942
Rivian R1T R1S Just installed EVBase Running Boards.  Tips on trimming the plastic panels? 20240403_144520




Rivian R1T R1S Just installed EVBase Running Boards.  Tips on trimming the plastic panels? 20240403_154524
Rivian R1T R1S Just installed EVBase Running Boards.  Tips on trimming the plastic panels? 20240403_145133
