JEBINC’s bitchin’ no rails tie downs mod!

[jebinc]

Hello again, fellow Riviarians! In addition to completing my @EV Sportline running board tread plate welting mod, parts arrived this afternoon for my much needed tie down mod.

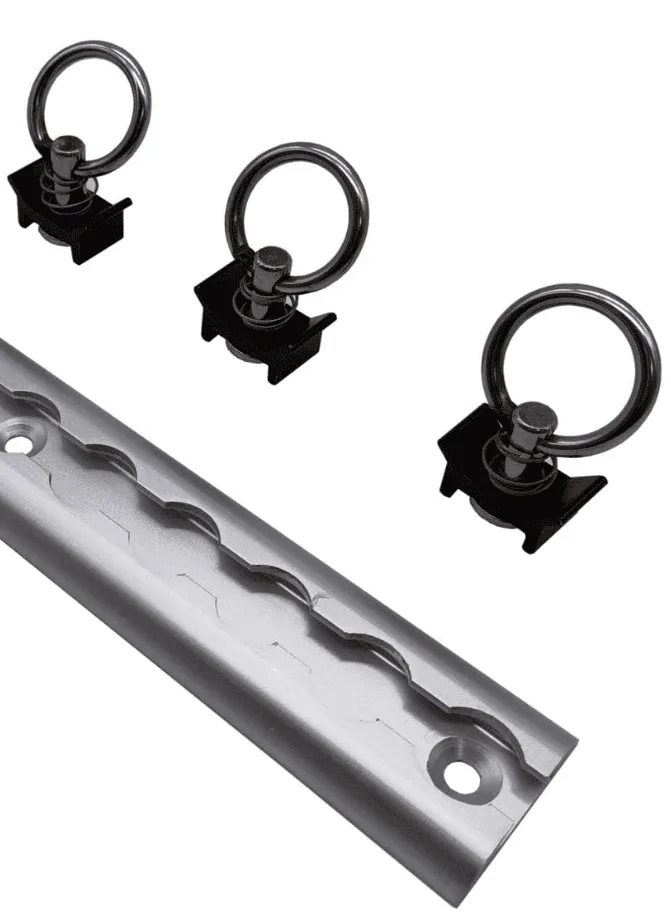

No modifications or drilling into the truck! And more importantly, no “weak between mounting points when using L track (perpendicular to track loads)”!

For those interested, I can post a BOM and instructions later, however, as they say, “a picture is worth a 1000 words”!

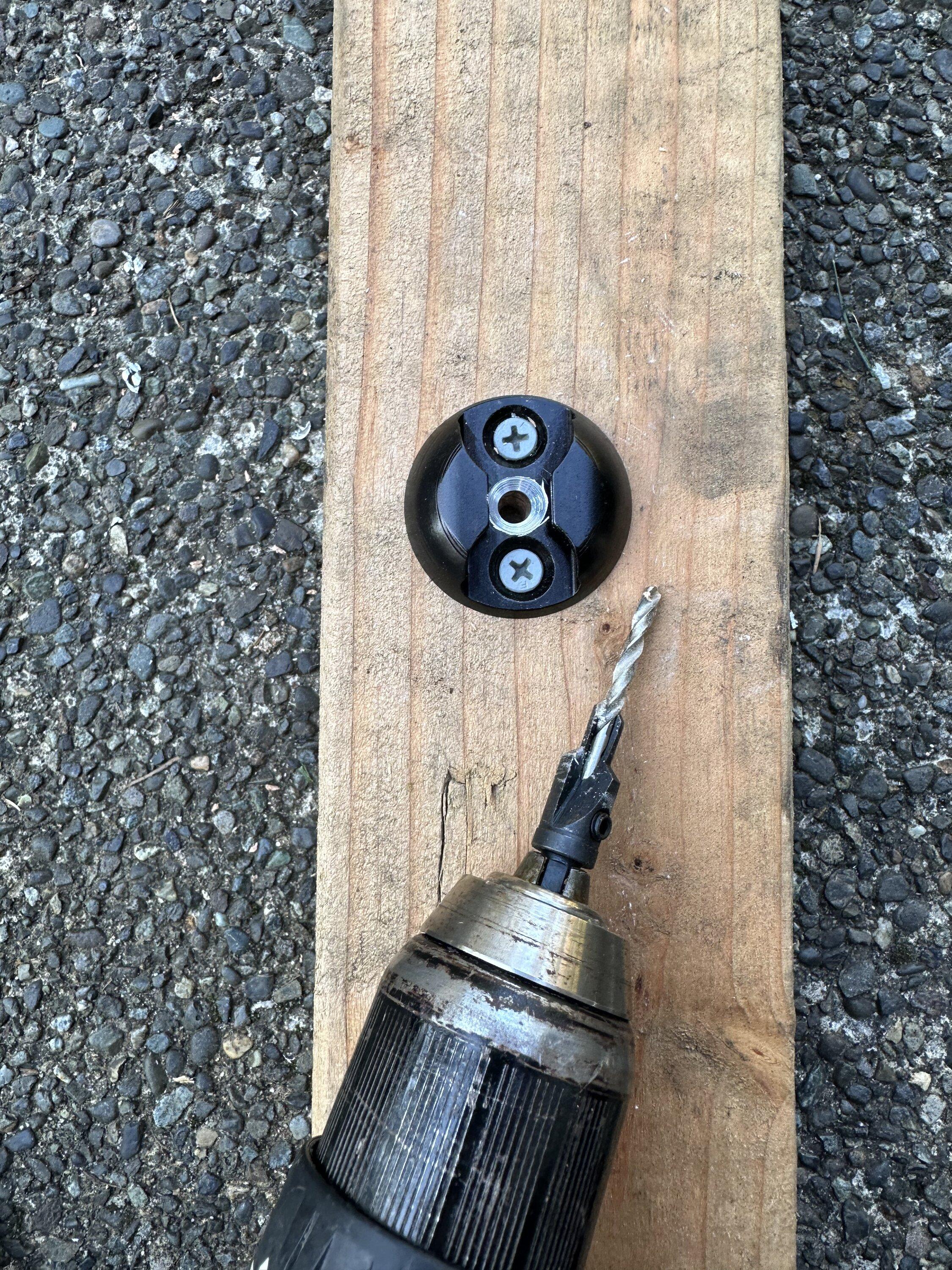

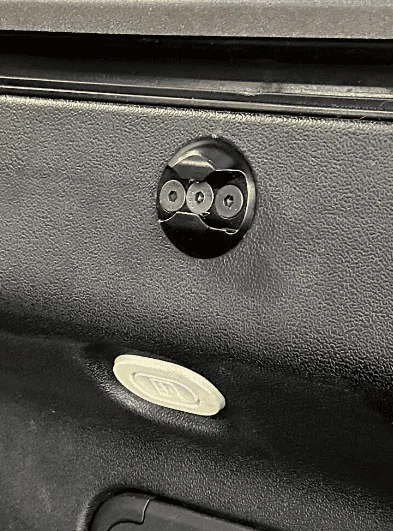

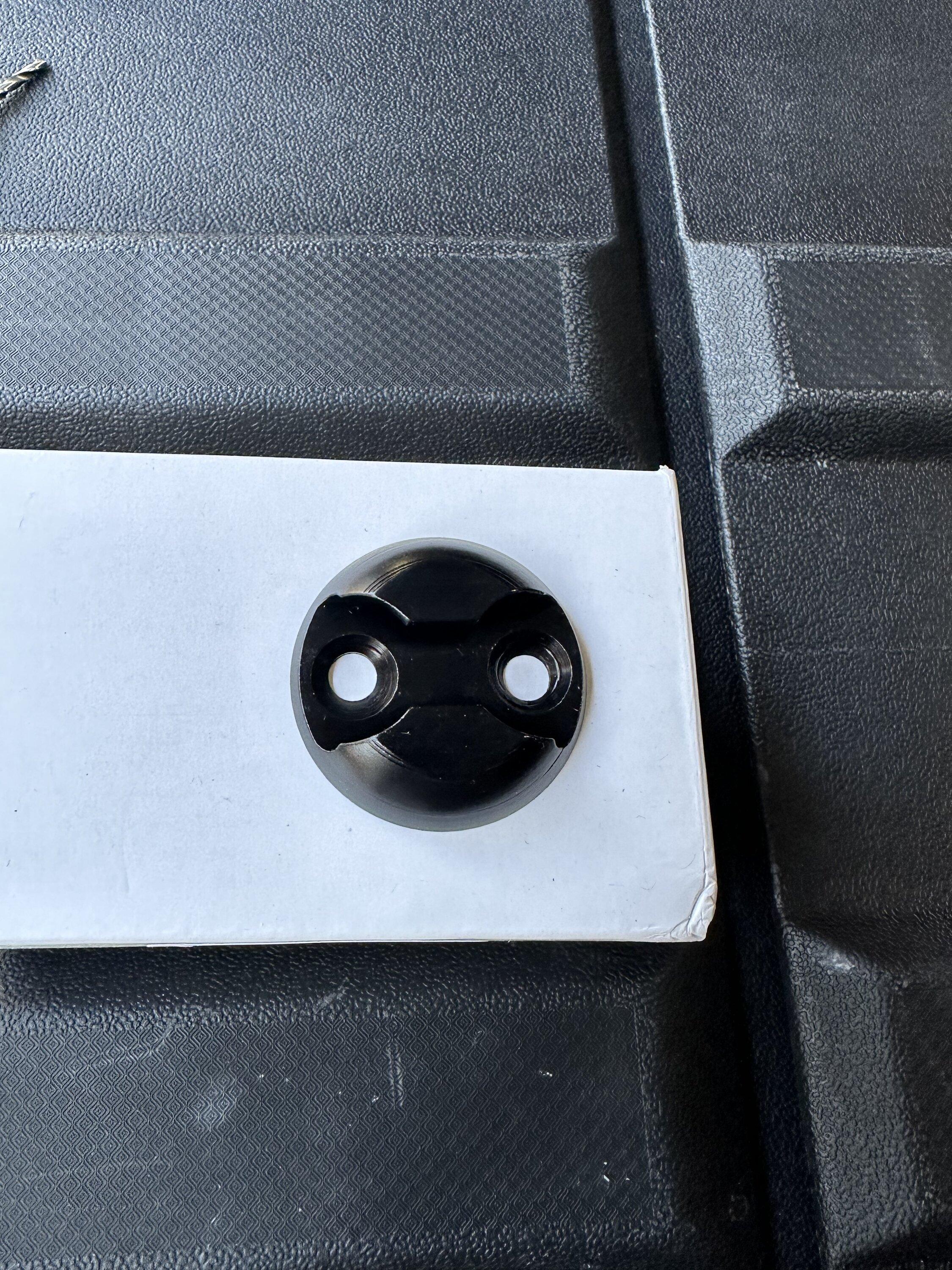

Edit: I know I need to clean up the center countersink; just wanted to get the post up.

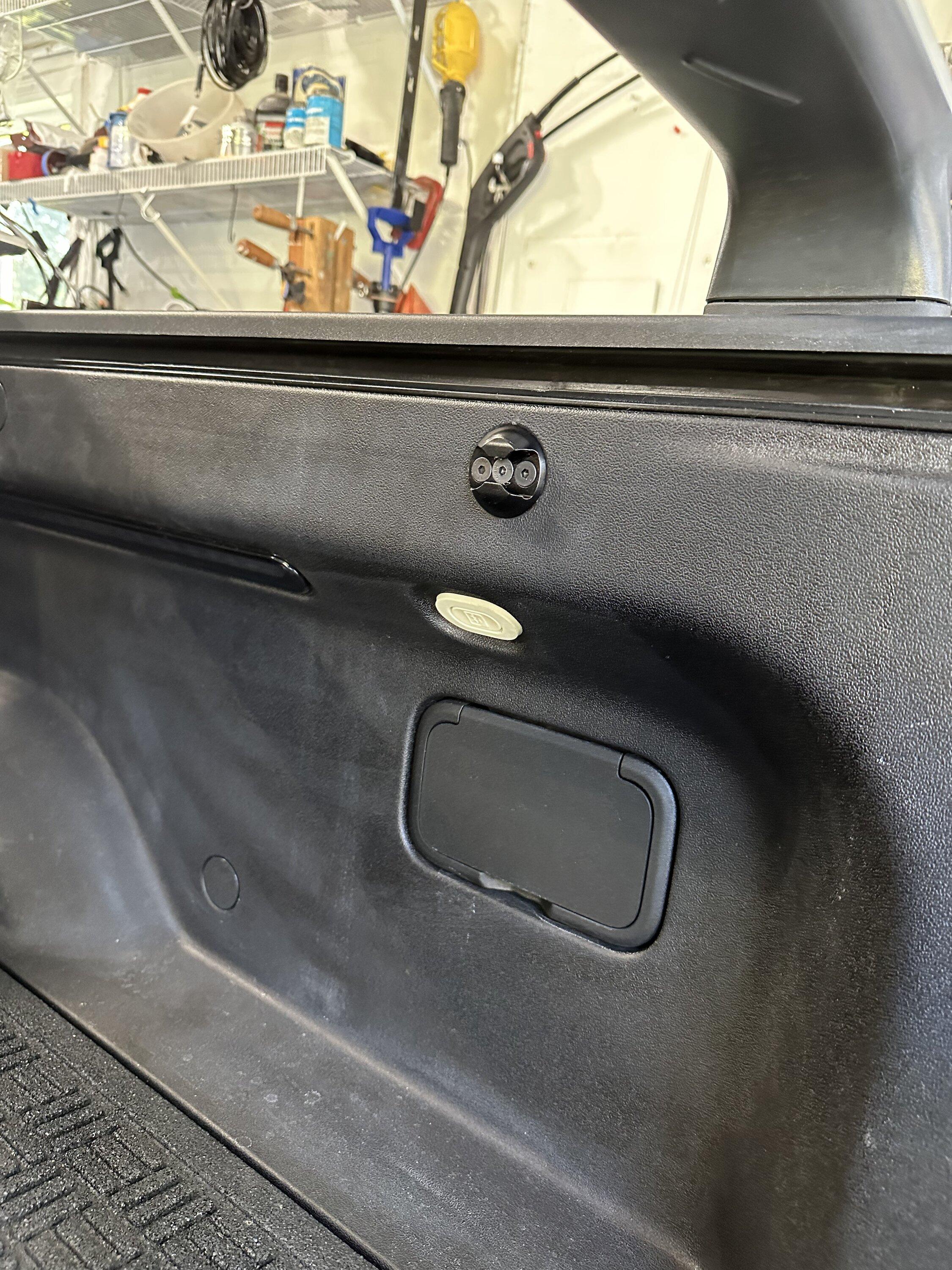

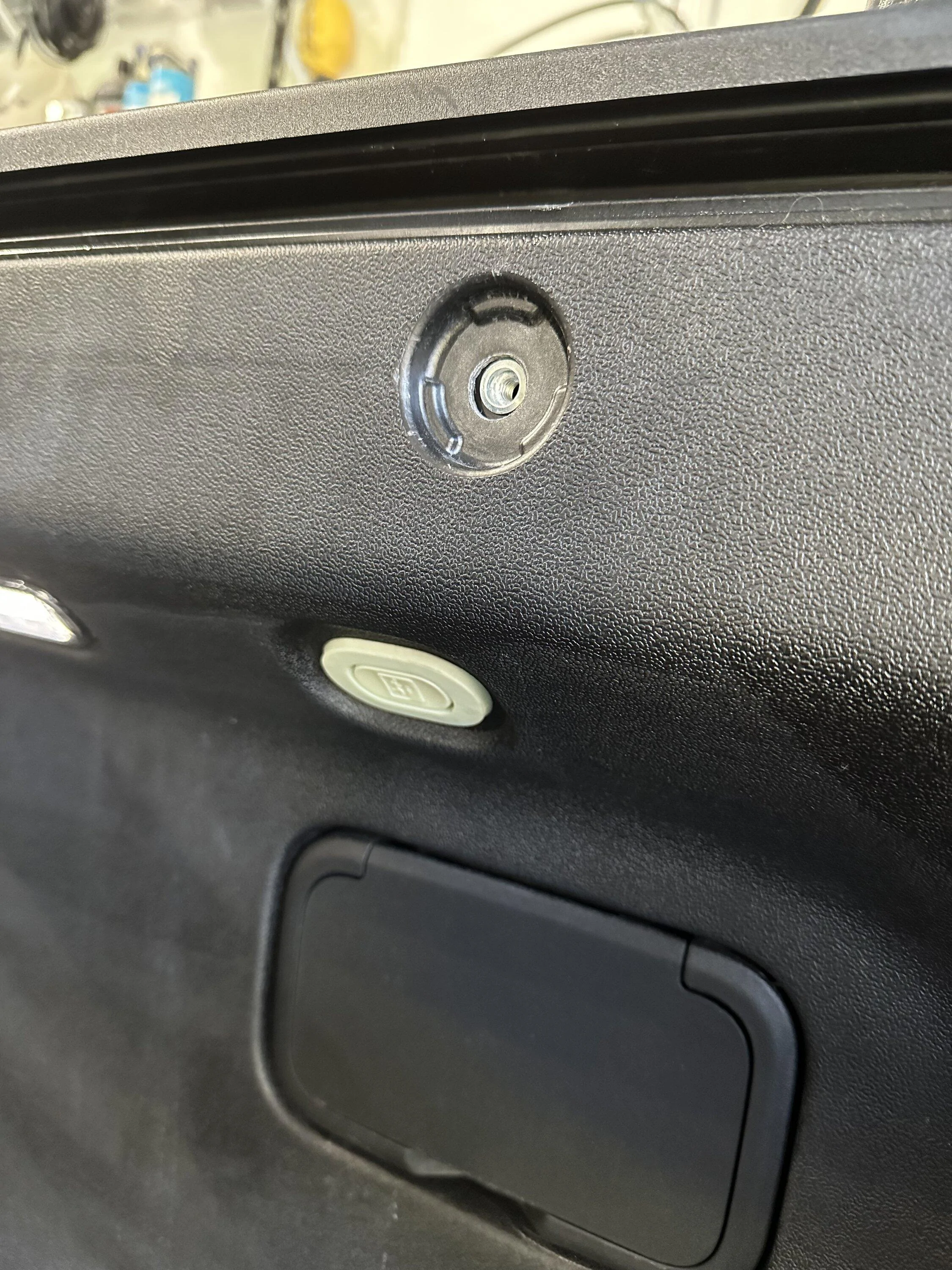

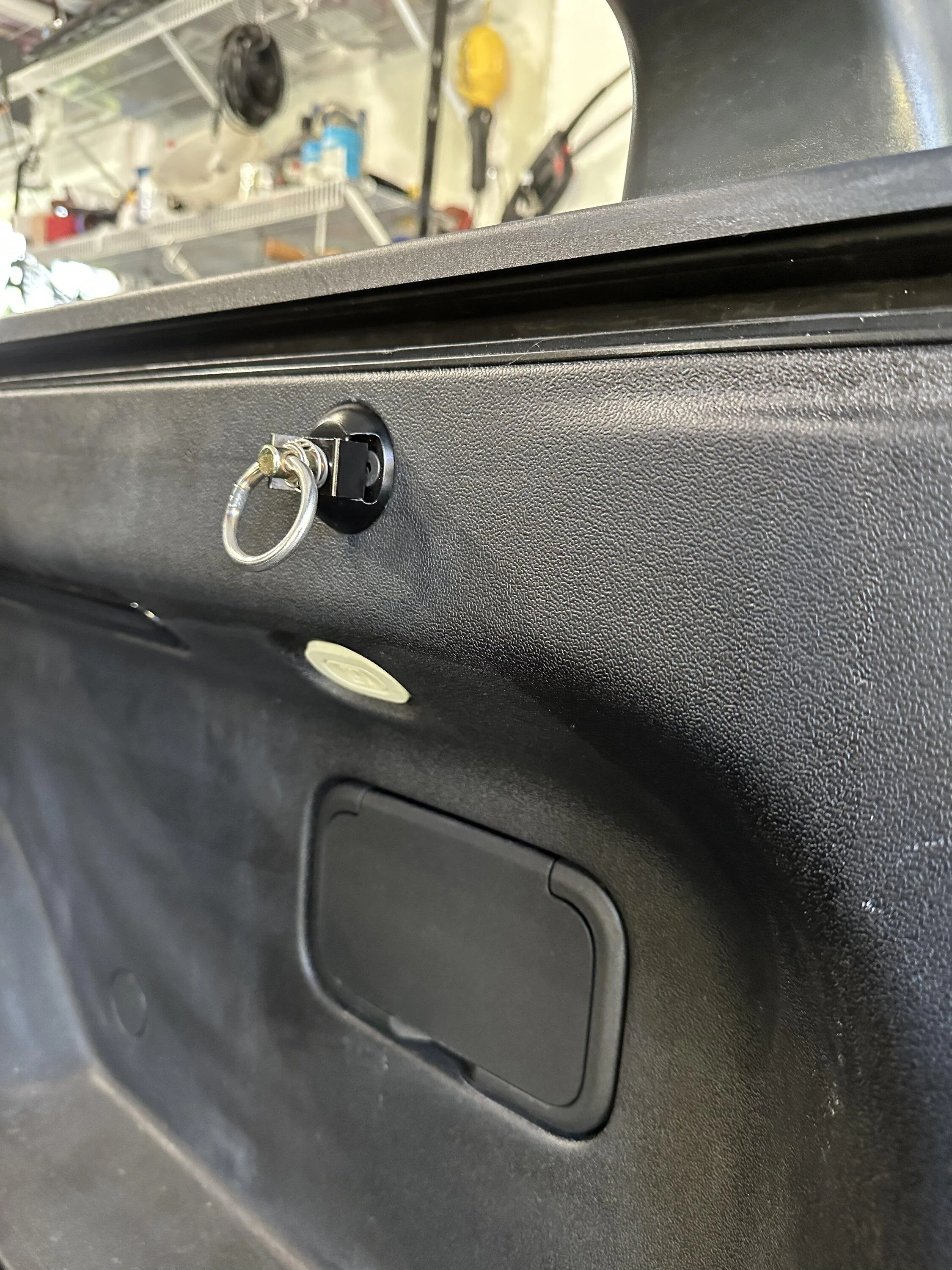

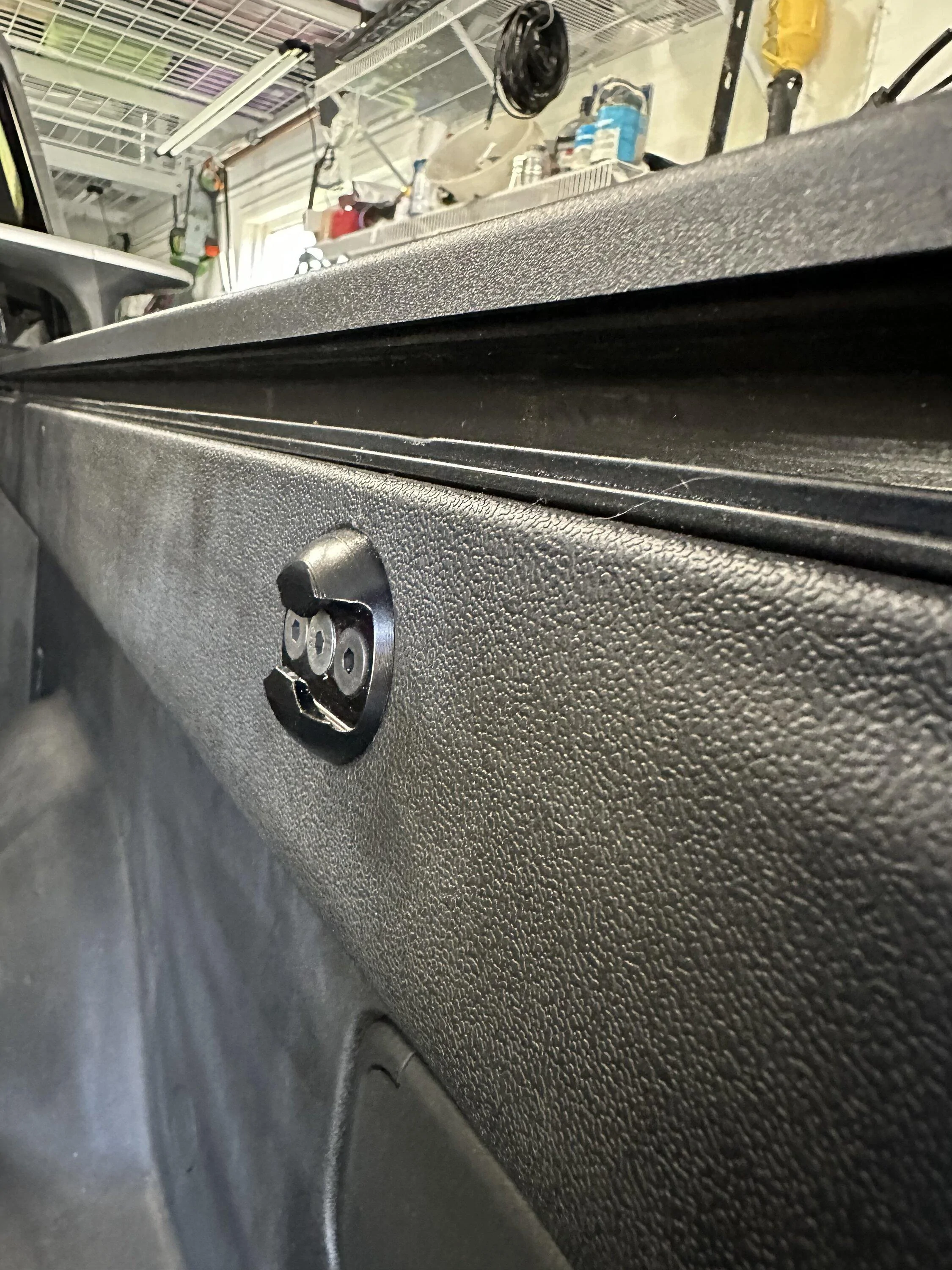

Eight added to existing recessed covered fasteners rear upper mounts for my cargo net!

Nope or dope? Vote in poll, please!

@twraps
@EV Sportline
@uthatch
@kizamybute'
@Belem
@madgrey

Sponsored



[COdogman]

It’s pretty bitchin!

Just pace yourself buddy…. I’m concerned that you are spending too much time in the garage.



[jebinc]

It’s pretty bitchin!

Just pace yourself buddy…. I’m concerned that you are spending too much time in the garage.

Nah, also put in a central vacuum system today!



[COdogman]

Nah, also put in a central vacuum system today!

Now THAT is bitchin!



[jebinc]

Now THAT is bitchin!

Yep, split my single system into two. One for all inside carpet and the other to service all the “crappy area” ports (I.e., litter box areas, pellet stove clean out, laundry/mud room and garage, cars and trucks). Next up, “Planes, trains and automobiles”!



[jebinc]

Yep, split my single system into two. One for all inside carpet and the other to service all the “crappy area” ports (I.e., litter box areas, pellet stove clean out, laundry/mud room and garage, cars and trucks). Next up, “Planes, trains and automobiles”!

Oh, and that involved spending time in the garage, driveway, house, attic and crawl space!

I’m kind of feeling my age as everything is sore!



[the long way downunder]

Hello fellow Riviarian! In addition to completing my running board tread plate welting mod, parts arrived this afternoon for my much needed tie down mod.

No modifications or drilling into the truck! And more importantly, no “weak between mounting points when using L track (perpendicular to track loads)”!

What?
I can only suggestion using separate sentences.
You have found tie-down hardware that fits the plastic bed liner where there's existing threads in the body.
You've drilled that hardware with a new hole to line up with the existing threads in the body.
A single threaded machine screw with a countersunk head connects the hardware to the body.
If wanted, someone could drill two more holes into the body and use self-tapping countersunk screws to add some alignment and perhaps strength.

I'd like to see Rivian offer bespoke hardware and I'd like a recessed, flush mount tie-down track along both bed sides with a load rating.

For that matter, there should also be full length lighting strips and "ram box" style locking boxes accessing the void space in the quarter panels around the wheel arches, at least as an option. I'd also want an option to stuff the gear tunnel full of battery rather than go without Max Pack in the quad motor.



[Riviot]

Hello again, fellow Riviarians!

The correct term is riviots. Please identify us correctly or we'll cancel you

Also, get the F out of your garage today! It's been so nice and warm!



[jebinc]

The correct term is riviots. Please identify us correctly or we'll cancel you

Also, get the F out of your garage today! It's been so nice and warm!

A Riviot is short for Rivian Idiot, no? . I prefer Rivarians, thank you very much!

I did spend a lot of F’n time outside today; mowed two acres with my Ego Z6, washed and vacuumed two cars as well. Also, did the welting mod in the sun!

So, don’t AssUMe!



[jebinc]

What?
I can only suggestion using separate sentences.
You have found tie-down hardware that fits the plastic bed liner where there's existing threads in the body.
You've drilled that hardware with a new hole to line up with the existing threads in the body.
A single threaded machine screw with a countersunk head connects the hardware to the body.
If wanted, someone could drill two more holes into the body and use self-tapping countersunk screws to add some alignment and perhaps strength.

I'd like to see Rivian offer bespoke hardware and I'd like a recessed, flush mount tie-down track along both bed sides with a load rating.

For that matter, there should also be full length lighting strips and "ram box" style locking boxes accessing the void space in the quarter panels around the wheel arches, at least as an option. I'd also want an option to stuff the gear tunnel full of battery rather than go without Max Pack in the quad motor.

Yeah, Rivian woulda, coulda, shoulda, but didn’t. And I needed upper rear downs for my bed extender cargo net, so there ya go - done.



[Riviot]

I did spend a lot of F’n time outside today; mowed two acres with my Ego Z6, washed and vacuumed two cars as well. Also, did the welting mod in the sun!

So, don’t AssUMe!

2 acres?! You definitely don't live in Seattle.



[jebinc]

2 acres?! You definitely don't live in Seattle.

Unincorporated King County



[Magnus042]

Where did you get these? I wanna do this asap



[jebinc]

Where did you get these? I wanna do this asap

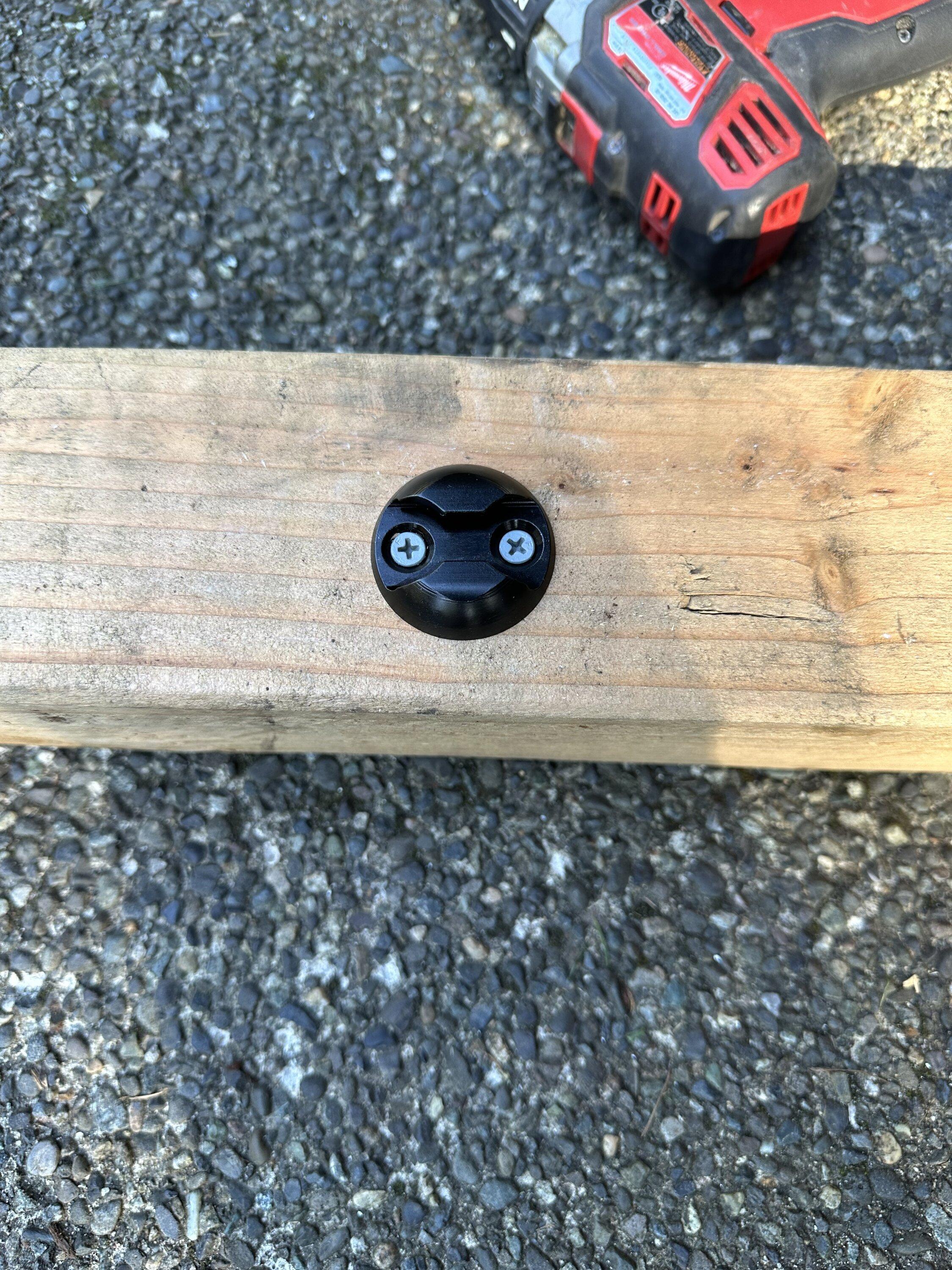

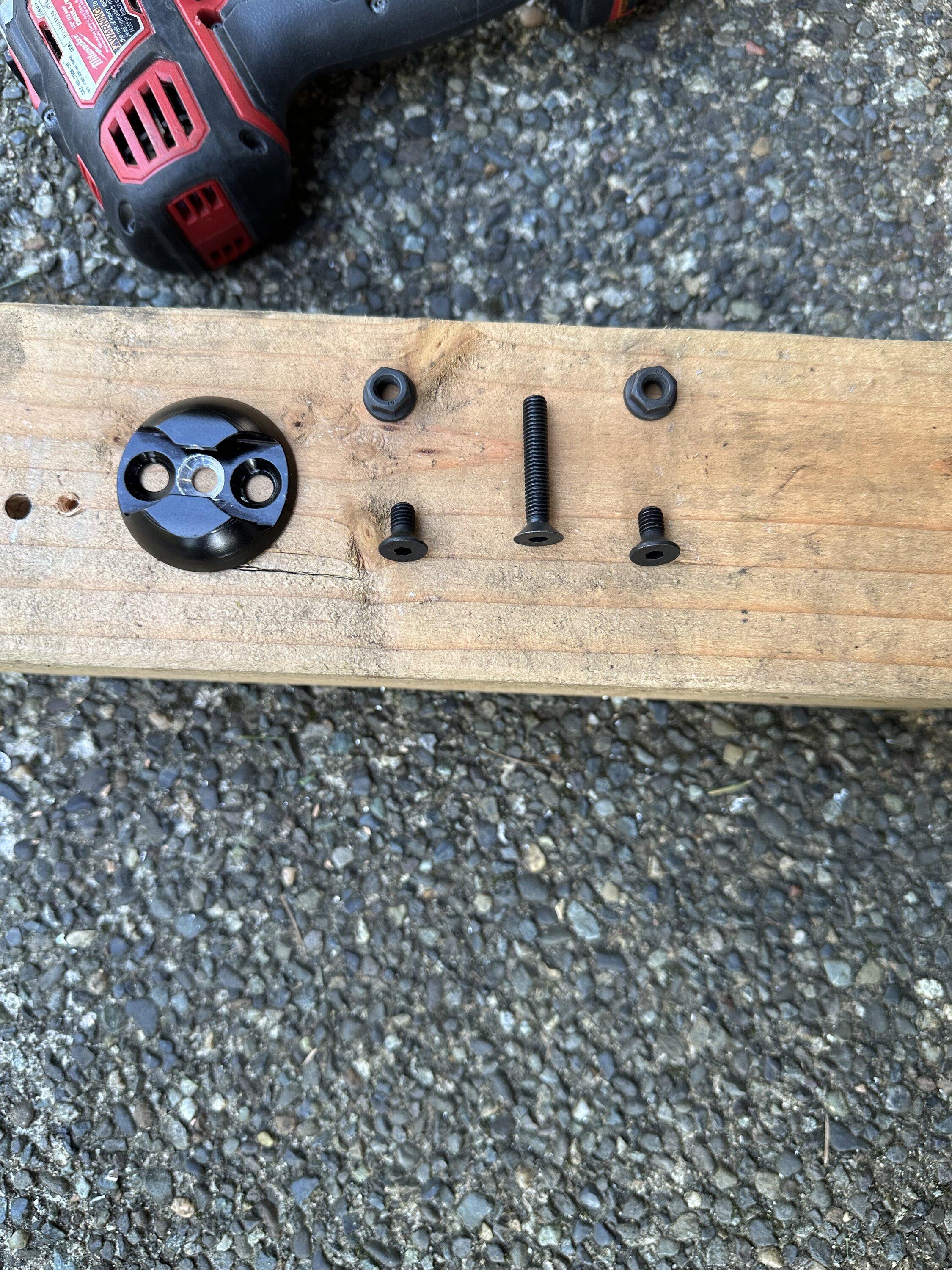

I ordered these for prototyping, because they were inexpensive and arrived over night. Turns out they are anodized black aluminum, vs. painted steel - and I wanted black anodized aluminum, so Inwill be keeping these. I got the M6 black bolts at my local fully stocked non big-box hardware store (Johnsons Hardware).

HERCOO Round Tie Down Anchor Point Kit Bolt on Track Fitting with Quick Release Compatible with Pickup Truck Motorcycles Snowmobiles https://a.co/d/7CL6ViS

Note: Many versions/variants are sold by many vendors, and they all have different dimensions. These just fit in the existing side panel depression, which is also what I wanted.



[Magnus042]

Thank you!
