Issues for Service: Anyone Have Luck Fixing These?

CarterGee

Well-Known Member
First Name
Carter
Joined
Jan 12, 2020
Threads
6
Messages
120
Reaction score
904
Location
San Francisco
First Name
Carter
Vehicles
Toyota 4Runner Limited '16
Hey everyone!

My truck is almost a month old and overall doing fantastic, but there are a series of issues that the Rivian Service Center will be taking a look at. I wanted to list them here to see if anyone else has had similar issues and, more important, if you've had any luck learning more / resolving them. For what it's worth, I'm on software version 2022.11.2 and am told that I should be getting an update soon-ish.

1) Squeaky Suspension: My suspension squeaks much more than I would have expected or experienced on test drives. It appears to be happening on the front left and right suspension exclusively. I have heard that some other people had an issue where a nut or bolt was missing and identified/resolved after a visual inspection.

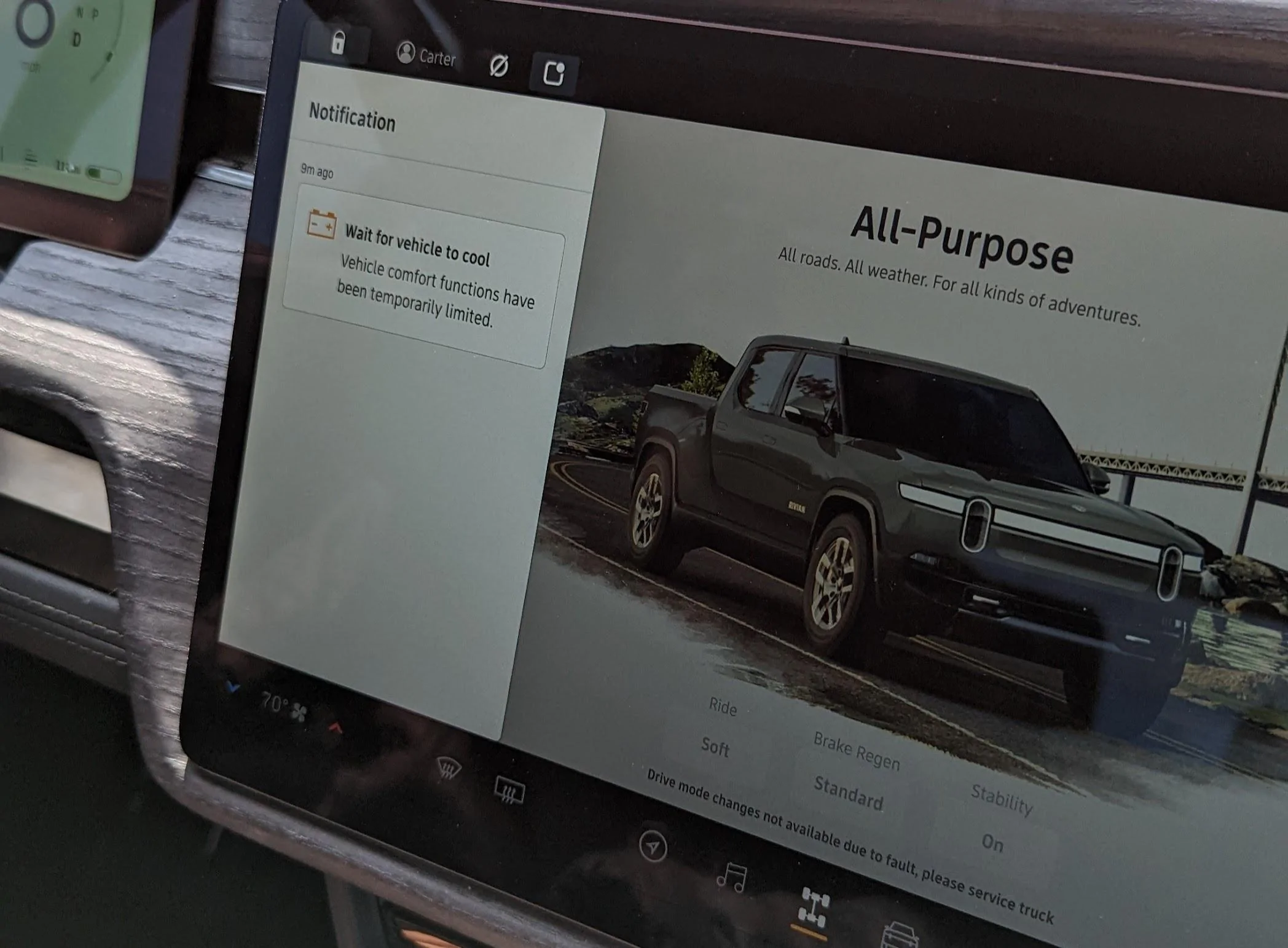

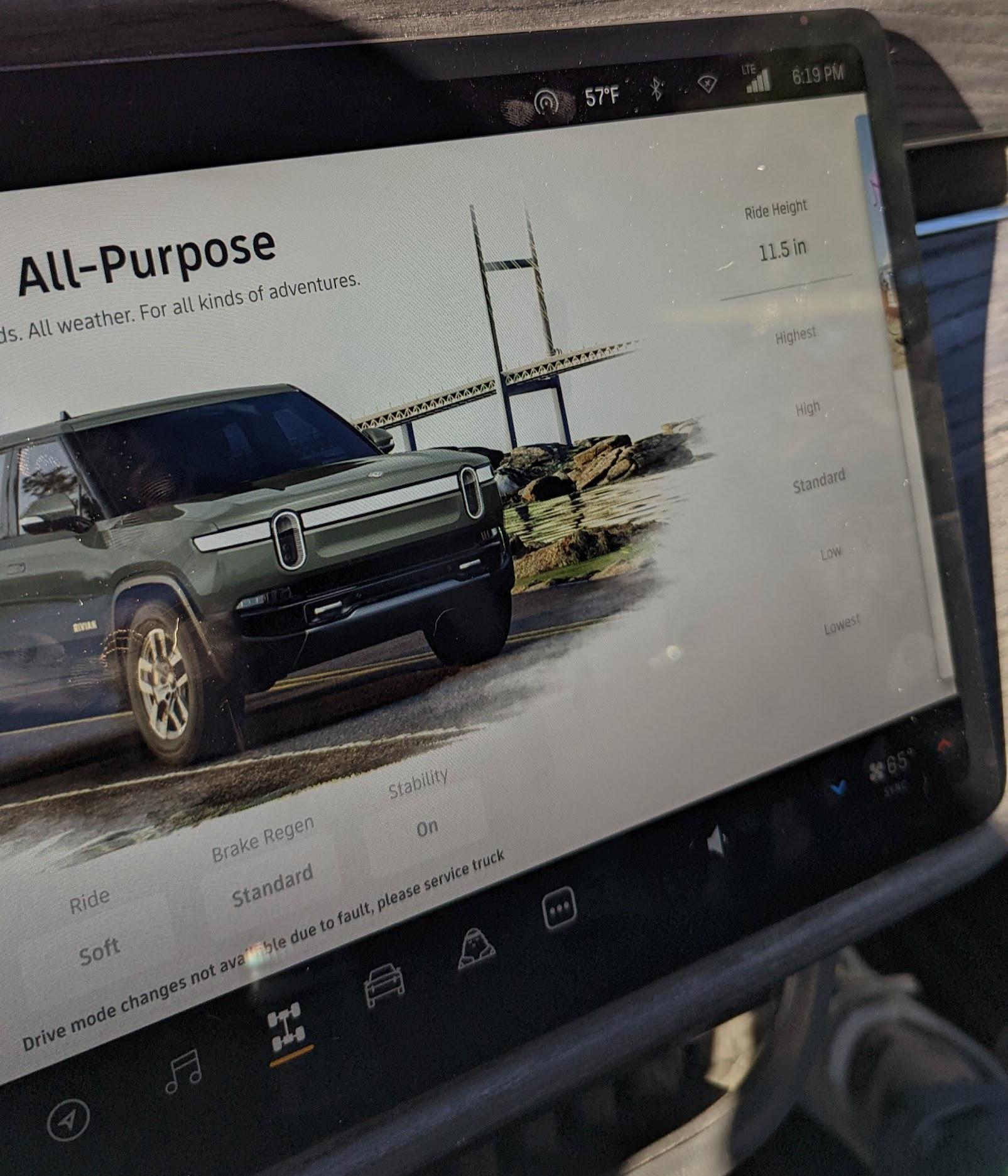

2) 'Drive mode changes not available due to fault, please service truck': At pretty random intervals, my truck is unable to shift drive modes. I tend to get a temperature warning when this happens. The temperature warning doesn't make a ton of sense to me given that it's 57 in San Francisco and we had been driving for just ~25mi or so. This warning does appear to go away once the truck cools down.

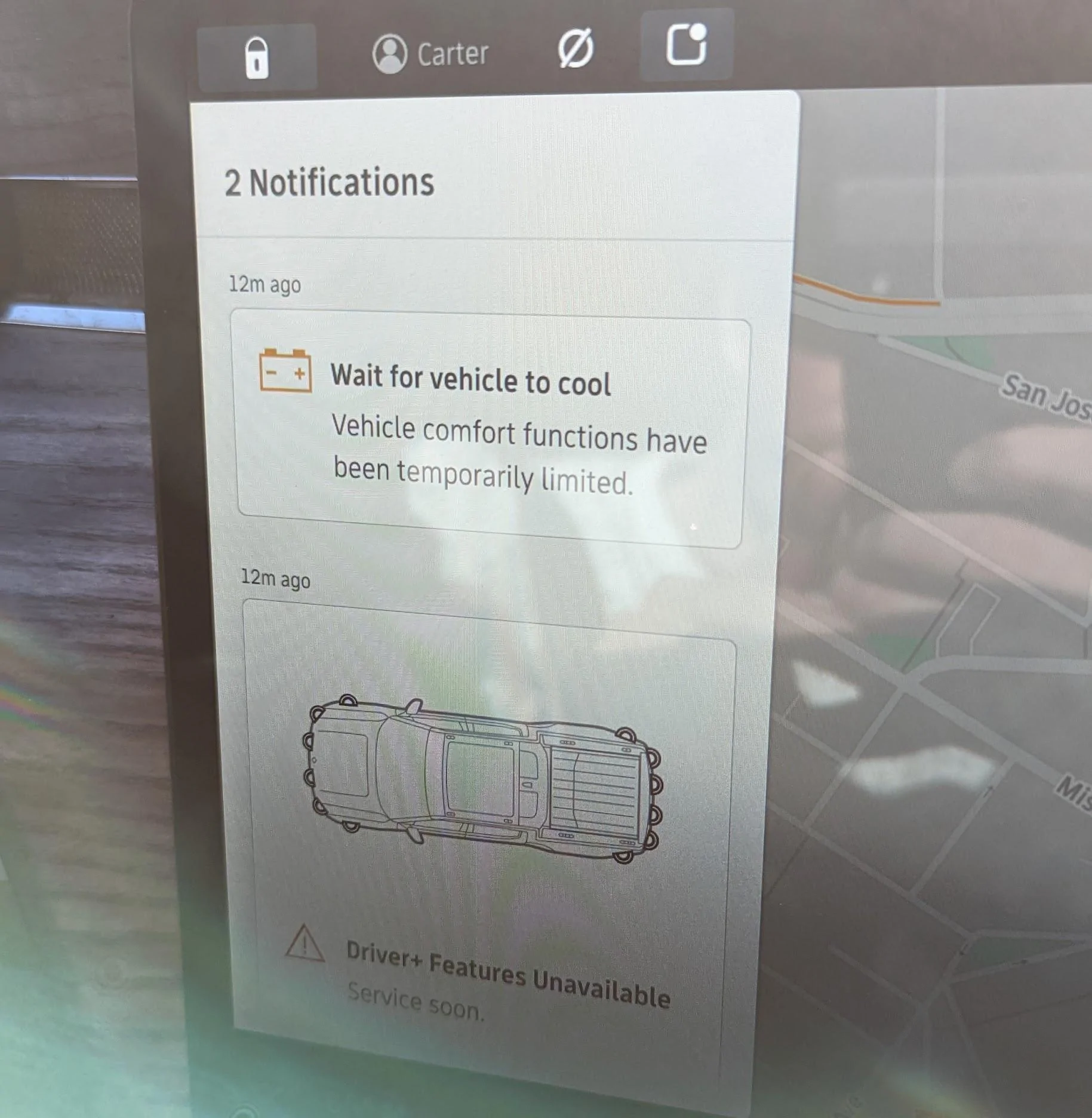

3) 'Wait for vehicle to cool': Related to the point above, but I also get these temperature warnings more often than I would have expected. I don't think it ALWAYS relates to the suspension issue, but here's a photo of the message another time I got the drive mode unavailable error as well:


4) 'Driver+ Features Unavailable': This happens with regular frequency when I start up my truck, but tends to go away by the time I make it to the highway. Yesterday, it stayed on for a long while as I was receiving a temperature warning as well.



5) AC Sounds: Randomly, the left side of my center AC unit will make... whirring thunking sounds? It sounds like the motor is struggling or confused. I can move the direction easily, but the sound continues. It stops completes when the AC fan is off and appears temperature agnostic, but I haven't had a reason to crank the heat yet. Link to video: https://photos.app.goo.gl/gfhnsEQZ6pQWVs9x6

6) Wind noise on right triangle window: Okay I wasn't previously having this issue, but I think I am now haha. It may be weather stripping which I noticed, but I also heard that people were having issues with the small triangular windows on the passenger and driver side doors. How was this resolved for y'all?

---

Okay! Phew! Grateful for whatever information you can provide so I can have a useful service center appointment. That appointment isn't available until 5/16 (which I scheduled last week and think is way too long). Thank you!



Zoidz

Well-Known Member
First Name
Gil
Joined
Feb 28, 2021
Threads
34
Messages
829
Reaction score
1,980
Location
PA
First Name
Gil
Vehicles
Chevy Avalanche, BMWs-X3,330cic,K1200RS bike
Occupation
Engineer
5) AC Sounds: Randomly, the left side of my center AC unit will make... whirring thunking sounds? It sounds like the motor is struggling or confused. I can move the direction easily, but the sound continues. It stops completes when the AC fan is off and appears temperature agnostic, but I haven't had a reason to crank the heat yet. Link to video: https://photos.app.goo.gl/gfhnsEQZ6pQWVs9x6
We don't know exactly how they work, but that repetitive sound is typical of a stepper or servo motor trying to move to home position to detect a home reference, and not being able to do so. I would expect that when that happens, you would not be able to control that vent properly in its full range of motion.

if those automated vents were an option, I would gladly delete that option and go with manual vents.

OP
OP
CarterGee

CarterGee

Well-Known Member
First Name
Carter
Joined
Jan 12, 2020
Threads
6
Messages
120
Reaction score
904
Location
San Francisco
First Name
Carter
Vehicles
Toyota 4Runner Limited '16
Intrigue. Very helpful, and sounds like a software issue?


omamatt

Well-Known Member
First Name
Matt
Joined
Dec 28, 2021
Threads
0
Messages
134
Reaction score
206
Location
Nebraska
First Name
Matt
Vehicles
2022 Rivian R1T Adventure; 2020 BMW X5
Hey everyone!

My truck is almost a month old and overall doing fantastic, but there are a series of issues that the Rivian Service Center will be taking a look at. I wanted to list them here to see if anyone else has had similar issues and, more important, if you've had any luck learning more / resolving them. For what it's worth, I'm on software version 2022.11.2 and am told that I should be getting an update soon-ish.

1) Squeaky Suspension: My suspension squeaks much more than I would have expected or experienced on test drives. It appears to be happening on the front left and right suspension exclusively. I have heard that some other people had an issue where a nut or bolt was missing and identified/resolved after a visual inspection.

2) 'Drive mode changes not available due to fault, please service truck': At pretty random intervals, my truck is unable to shift drive modes. I tend to get a temperature warning when this happens. The temperature warning doesn't make a ton of sense to me given that it's 57 in San Francisco and we had been driving for just ~25mi or so. This warning does appear to go away once the truck cools down.



3) 'Wait for vehicle to cool': Related to the point above, but I also get these temperature warnings more often than I would have expected. I don't think it ALWAYS relates to the suspension issue, but here's a photo of the message another time I got the drive mode unavailable error as well:


4) 'Driver+ Features Unavailable': This happens with regular frequency when I start up my truck, but tends to go away by the time I make it to the highway. Yesterday, it stayed on for a long while as I was receiving a temperature warning as well.



5) AC Sounds: Randomly, the left side of my center AC unit will make... whirring thunking sounds? It sounds like the motor is struggling or confused. I can move the direction easily, but the sound continues. It stops completes when the AC fan is off and appears temperature agnostic, but I haven't had a reason to crank the heat yet. Link to video: https://photos.app.goo.gl/gfhnsEQZ6pQWVs9x6

6) Wind noise on right triangle window: Okay I wasn't previously having this issue, but I think I am now haha. It may be weather stripping which I noticed, but I also heard that people were having issues with the small triangular windows on the passenger and driver side doors. How was this resolved for y'all?

---

Okay! Phew! Grateful for whatever information you can provide so I can have a useful service center appointment. That appointment isn't available until 5/16 (which I scheduled last week and think is way too long). Thank you!
I've got issues 1 and 6. Currently at SC. When I get it back I will let you know what they found.

OP
OP
CarterGee

CarterGee

Well-Known Member
First Name
Carter
Joined
Jan 12, 2020
Threads
6
Messages
120
Reaction score
904
Location
San Francisco
First Name
Carter
Vehicles
Toyota 4Runner Limited '16
I've got issues 1 and 6. Currently at SC. When I get it back I will let you know what they found.
YAY! Someone else in my same boat. Please do report back! How long is your truck in the shop for?


omamatt

Well-Known Member
First Name
Matt
Joined
Dec 28, 2021
Threads
0
Messages
134
Reaction score
206
Location
Nebraska
First Name
Matt
Vehicles
2022 Rivian R1T Adventure; 2020 BMW X5
YAY! Someone else in my same boat. Please do report back! How long is your truck in the shop for?
Since Thursday and hoping to have back by end of week.


rydb

Well-Known Member
First Name
Ryan
Joined
Jan 29, 2020
Threads
3
Messages
58
Reaction score
94
Location
Tallahassee, FL
First Name
Ryan
Vehicles
2022 R1T LE
my suspension is squeeky, too. since it's an air suspension, does it have some sort of lubrication on the shaft that's maybe under applied or not applied at all?

i've got some weird some noises coming from the defrost vent motor on the windshield and sometimes it seems to blow cold air on the windshield when that would make zero sense (so I think that servo motor is failing to fully shut).


Zoidz

Well-Known Member
First Name
Gil
Joined
Feb 28, 2021
Threads
34
Messages
829
Reaction score
1,980
Location
PA
First Name
Gil
Vehicles
Chevy Avalanche, BMWs-X3,330cic,K1200RS bike
Occupation
Engineer
Intrigue. Very helpful, and sounds like a software issue?
Possibly a software issue, but the odds are more likely a hardware issue. Assuming that it is a homing issue, there's a couple of ways to sense home, so there's the possibility that a home sensor could be bad. Or the vane actuator mechanism could be jammed, so the motor can't drive to home, and it keeps retrying. All educated guesses..... 🤔.


omamatt

Well-Known Member
First Name
Matt
Joined
Dec 28, 2021
Threads
0
Messages
134
Reaction score
206
Location
Nebraska
First Name
Matt
Vehicles
2022 Rivian R1T Adventure; 2020 BMW X5
my suspension is squeeky, too. since it's an air suspension, does it have some sort of lubrication on the shaft that's maybe under applied or not applied at all?

i've got some weird some noises coming from the defrost vent motor on the windshield and sometimes it seems to blow cold air on the windshield when that would make zero sense (so I think that servo motor is failing to fully shut).
My 2020 Ram 1500 Limited w/ air suspension was squeaky too, however, my 2020 BMW X5 w/ air suspension is NOT squeaky. Not sure if it's just a symptom of air suspension or not. Also, when lightly accelerating, I hear a "click". Need to get in my neighbors and see if I hear the same thing.

OP
OP
CarterGee

CarterGee

Well-Known Member
First Name
Carter
Joined
Jan 12, 2020
Threads
6
Messages
120
Reaction score
904
Location
San Francisco
First Name
Carter
Vehicles
Toyota 4Runner Limited '16
Since Thursday and hoping to have back by end of week.
Oh damn haha Okay I will brace to not have a truck for that long. When I chatted with support, they were like, "Oh yeah we'll tell you how long it will take the day before you bring it in." That wasn't like... my favorite piece of news, but they did say that they give rental car credits. So... cool? We'll see.

---

As for the squeaky suspension... Had heard that one other person had a similar issue that was mostly resolved by replacing some small missing parts. The reason I'm bringing this up is because I hadn't heard any of this in any other R1T I've driven, so I definitely don't think it's normal / what they want.


rhuber

Well-Known Member
Joined
Sep 14, 2021
Threads
5
Messages
87
Reaction score
609
Location
Peoria, IL
Vehicles
Model S Plaid, 64 Mustang
I had a pretty annoying squeak that was easy to replicate by tapping the accelerator over and over. Sounded like a creak and was clearly audible inside and outside. They said they relubricated the half shafts to fix and that definitely made it go away.

OP
OP
CarterGee

CarterGee

Well-Known Member
First Name
Carter
Joined
Jan 12, 2020
Threads
6
Messages
120
Reaction score
904
Location
San Francisco
First Name
Carter
Vehicles
Toyota 4Runner Limited '16

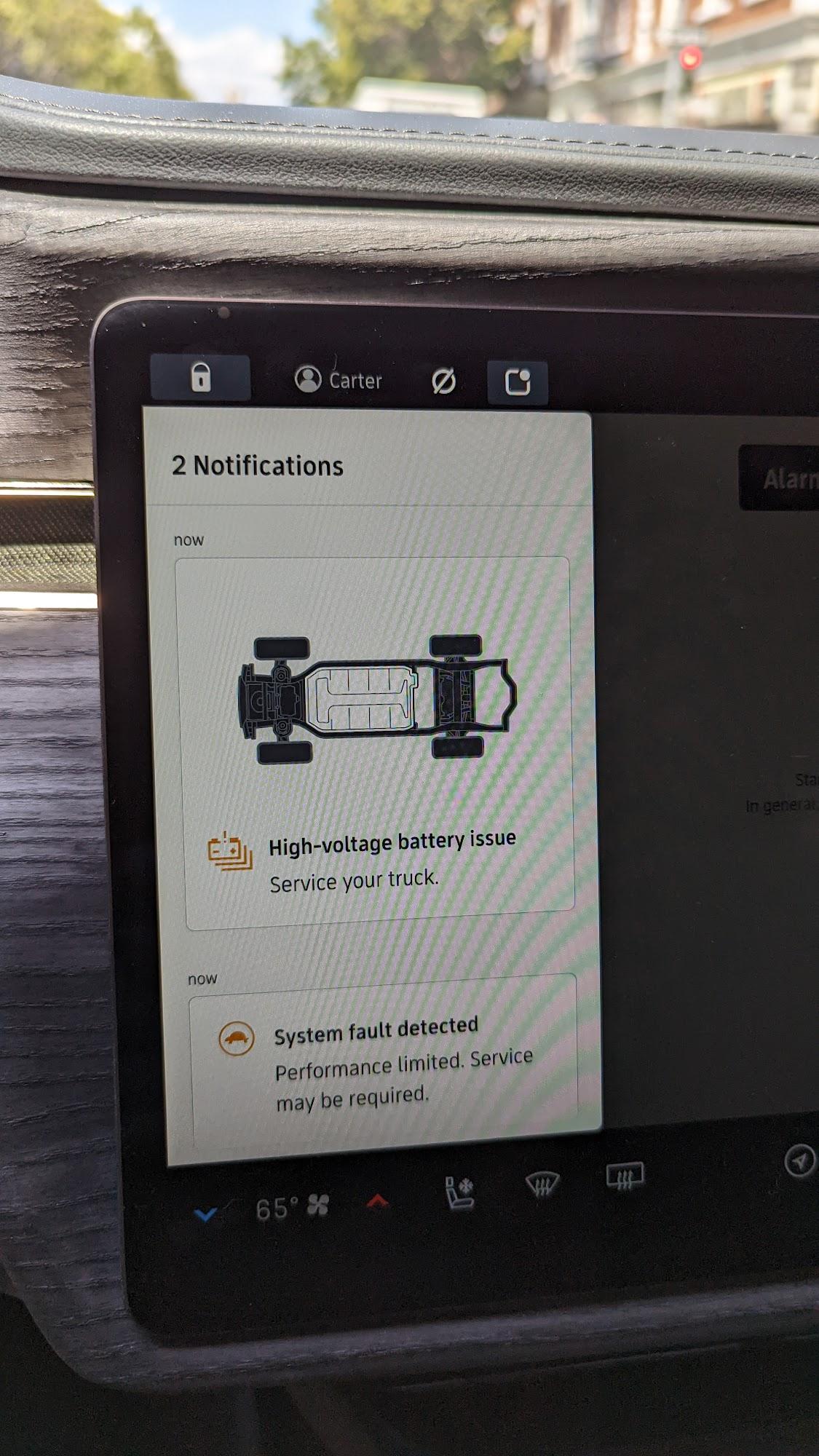

Alright, the latest from support is that I probably have a faulty sensor. I got this terrifying notification today and called back haha



I'm still a little (a lot) annoyed that a service appointment takes >2weeks to get, but they'll take a look next Monday.


Scoiatael

Well-Known Member
Joined
Sep 20, 2021
Threads
12
Messages
509
Reaction score
894
Location
Southern CA
Vehicles
Tesla Model Y
Alright, the latest from support is that I probably have a faulty sensor. I got this terrifying notification today and called back haha



I'm still a little (a lot) annoyed that a service appointment takes >2weeks to get, but they'll take a look next Monday.
Hate to break it to you, but I think your truck is totaled. I'll give you $20 to take it off your hands.


Aardvark

Active Member
Joined
Dec 29, 2021
Threads
0
Messages
44
Reaction score
118
Location
Colorado
Vehicles
Model X, Model 3
Alright, the latest from support is that I probably have a faulty sensor. I got this terrifying notification today and called back haha



I'm still a little (a lot) annoyed that a service appointment takes >2weeks to get, but they'll take a look next Monday.
I will be interested to hear if the high temperature issues and high-voltage battery issues are related. Thanks for posting your updates.
Good luck on getting an earlier service appointment!


SASSquatch

Well-Known Member
Joined
Feb 3, 2022
Threads
3
Messages
210
Reaction score
394
Location
Washington DC
Vehicles
BMW i3s Ford C-Max Hybrid
Occupation
Semi-Autonomous Yeti
To the OP: Good luck with getting all these little annoying issues resolved and thanks for being a beta tester for the rest of us sad truckless reservation holders still holding onto our dreams of an Ocean Coast interior...
