Just need to get hold of that spare wheel and then I'm in! Nice job.
If you have the 20"s.. Dodge 2363 wheel on ebay...
Sponsored



joelster

Well-Known Member
First Name
Joel
Joined
Jul 1, 2022
Threads
5
Messages
138
Reaction score
176
Location
PDX
Vehicles
R1T
I dunno... Looks kinda sketch to me. An 8" riser on an 'imported' off the shelf bottle jack. I'd rather have a larger bottle jack or put some dunnage under the jack


NY_Rob

Well-Known Member
First Name
Rob
Joined
Feb 9, 2022
Threads
10
Messages
1,569
Reaction score
2,016
Location
long island
Vehicles
2021 Model 3 LR AWD, 2017 BMW i3 REX, 2023 R1T
Occupation
IT
You're lifting one corner of a 7,000lb vehicle with a 12'000lb capacity jack. As long as the Rivian's wheels are properly blocked/chocked and you use jack stands this set should work great.


jjswan33

Well-Known Member
First Name
Joshua
Joined
Sep 17, 2021
Threads
68
Messages
1,870
Reaction score
3,633
Location
Sandy, OR
Vehicles
Rivian R1T LE
Occupation
Engineer
I like the idea of this, a lighter jack would free up 80-90lbs over what I have now but I wouldn't want to use this offroad, needs some kind of plate to sit it on for loose surfaces something similar to what ARB offers as an accessory to their hydraulic recovery jack.



Sponsored

Gavinmcc

Well-Known Member
First Name
Gavin
Joined
Jan 26, 2022
Threads
29
Messages
369
Reaction score
508
Location
New Mexico
Vehicles
Rivian R1T!
Occupation
Medical
how long is the sale price for? I too am waiting for a spare tire, but will jump on this as soon as I know I have one coming


mikysee

Member
Joined
Sep 20, 2021
Threads
1
Messages
6
Reaction score
1
Location
USA
Vehicles
R1t
Can the bottle jack be store horizontally or will it leak?


Sgt Beavis

Well-Known Member
First Name
Rick
Joined
Sep 28, 2021
Threads
43
Messages
1,103
Reaction score
2,088
Location
Colorado
Vehicles
2022 Rivian R1T, 2021 Jeep Wrangler Rubicon
Occupation
Overpaid Computer Nerd
I dunno... Looks kinda sketch to me. An 8" riser on an 'imported' off the shelf bottle jack. I'd rather have a larger bottle jack or put some dunnage under the jack

A riser really isn't an issue. SafeJack uses a riser and I've had no problems using that on my Jeep. My jeep has a 3.5" lift and 37s.

The quality of the jack itself is something I'd be interested in knowing more about. SafeJack has a great reputation but bottle jacks in general are pretty simple devices.

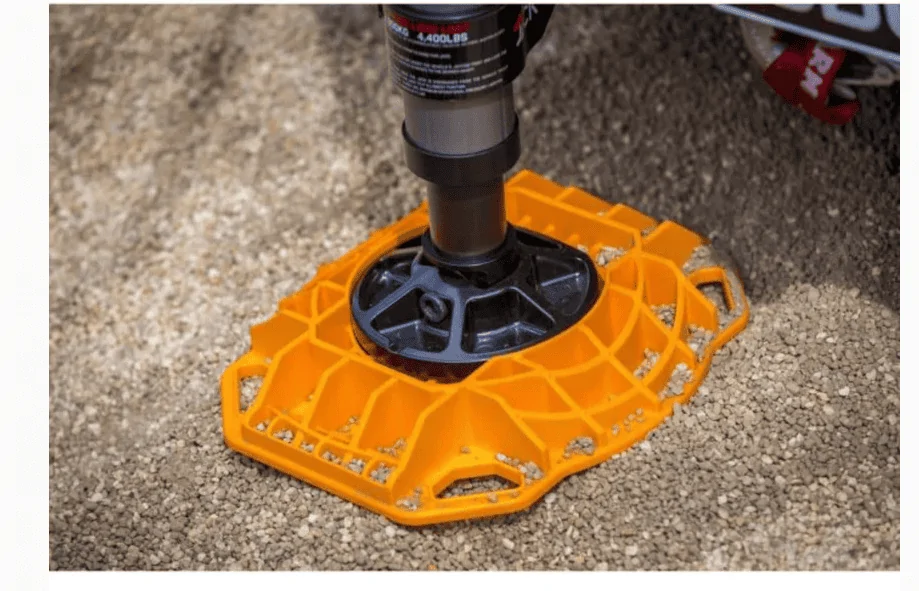

For me, I'd like to just have that custom riser for the SafeJack I already own. SafeJack offers a steel plate base that is also useful for off road jacking since it distributes the weight over softer surfaces like mud or sand.


Ralph

Well-Known Member
First Name
Ralph
Joined
Jun 14, 2021
Threads
1
Messages
388
Reaction score
398
Location
Fayetteville, AR
Vehicles
R1T, Outback
A very nice stabilizer for a bottle jack or "farm" jack can be used with virtually any bottle jack including this one: Safe Jack base plate.


Ralph

Well-Known Member
First Name
Ralph
Joined
Jun 14, 2021
Threads
1
Messages
388
Reaction score
398
Location
Fayetteville, AR
Vehicles
R1T, Outback
Since I already have this Safe Jack kit, I'd really like to find just the Rivian puck to fit over the jack. Somebody will offer the puck by itself at some point.


Sponsored

dp351

Well-Known Member
Joined
Aug 17, 2022
Threads
6
Messages
127
Reaction score
149
Location
California
Vehicles
Ariel Atom, R1T
Our engineers never rest! Check this out - after creating the very first Rivian spec jack pucks, and by the way still the ONLY Made in the USA Rivian Jack Puck, our engineers have developed a jack kit specifically for Rivian!

To all our loyal customers, once again you're rewarded! Use code EVSPORTLINE to claim 10% off pre-orders! (anyone who has ordered anything from us already is eligible!)

Features

  • Extension Jack Pad Puck is Precision CNC Machined from Billet Aluminum
    • Sides feature grip texture finish
  • 6 Ton (12,000 lbs) hydraulic bottle jack includes blow molded storage case
  • Designed and Engineered by Team 1EV Specifically for Rivian R1T / R1S usage
  • Works with Rivian in full height suspension setting (offroad / jack mode)

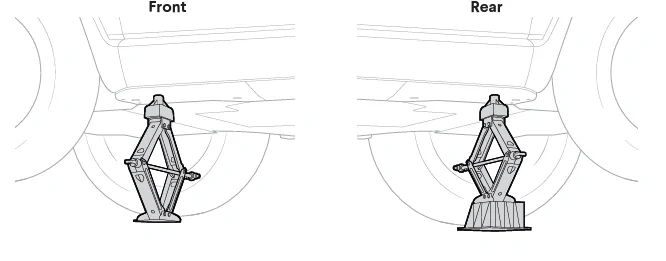

  • Works in front or rear Rivian jack positions
  • Convenient kit can be stored in Rivian for easy tire change / flat tire service
  • DIY friendly - easy to operate, light weight versus traditional floor jacks

https://evsportline.com/products/ri...-aluminum-heavy-duty-lifting-jack-by-team-1ev


This looks like a great product. I tried to buy it with the discount code and got shot down with this message: “EVSPORTLINE discount code isn’t available to you right now”.


SeaGeo

Well-Known Member
First Name
Brice
Joined
Jan 12, 2021
Threads
45
Messages
4,633
Reaction score
8,816
Location
Seattle
Vehicles
Xc60 T8
Occupation
Engineer
A riser really isn't an issue.
It could be. I obviously haven't run the calculations for the bottle jack, but taller columns reduce buckling stress by the length squared when all other things are equal (particularly the cross section of the column). Adding height also increases the likelihood of eccentricity causing problems and reducing stability.

OP
OP
EV Sportline

EV Sportline

Well-Known Member
Site Sponsor
Joined
May 31, 2022
Threads
30
Messages
375
Reaction score
964
Location
Los Angeles
Website
evsportline.com
Vehicles
Rivian R1T, Tesla S, 3, X, Y, Porsche & More
Occupation
Upgrading Electric Vehicles

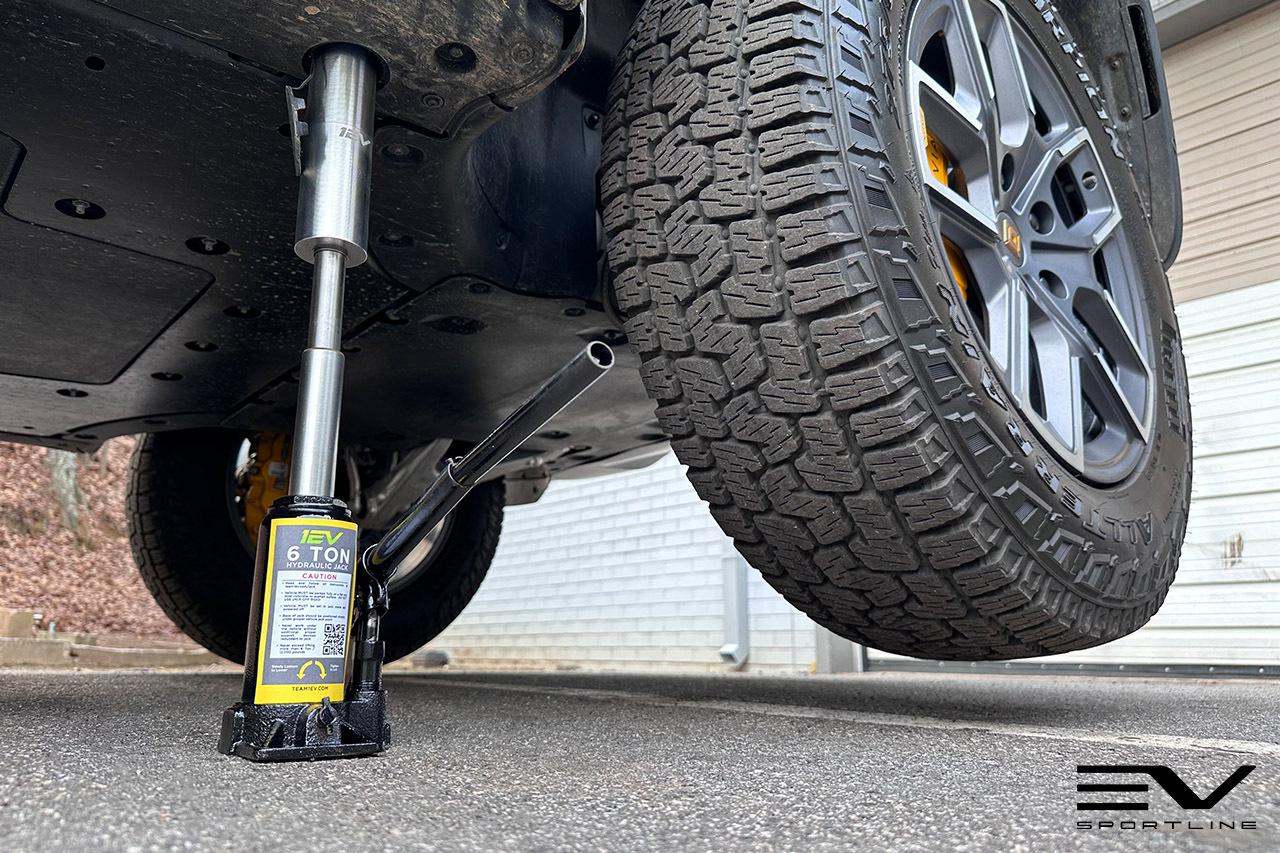

Stability is not a concern. Check this video, shaking the truck on the Team 1EV bottle jack...it's not going anywhere! The jack can be stored on it's side, yes. The jack comes with a storage case, if it weeps a little hydraulic fluid - which is normal, the case catches it. Our puck is engineered specifically for our jack - the jack screw shaft fits inside our puck -- it is not just sitting on top of the jack top! This is a safety thing - that is why the two are sold together, as a matched kit engineered to work properly.

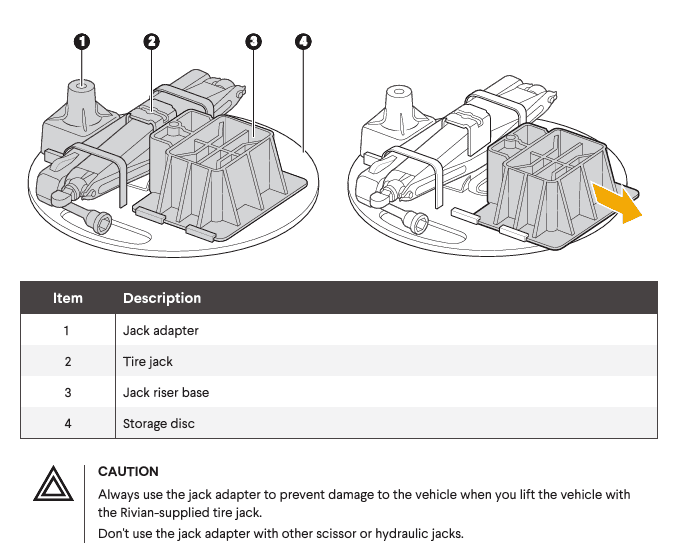

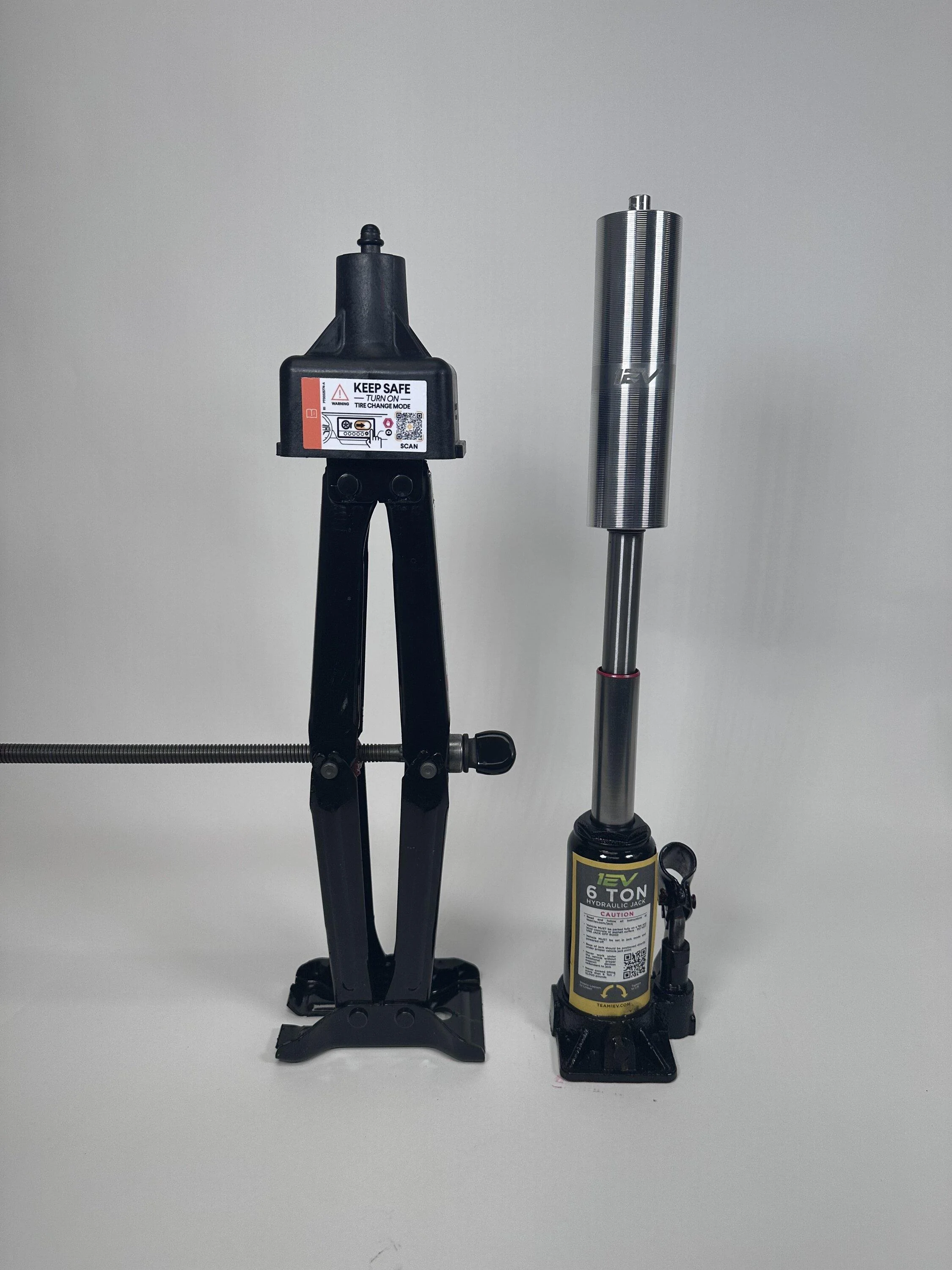

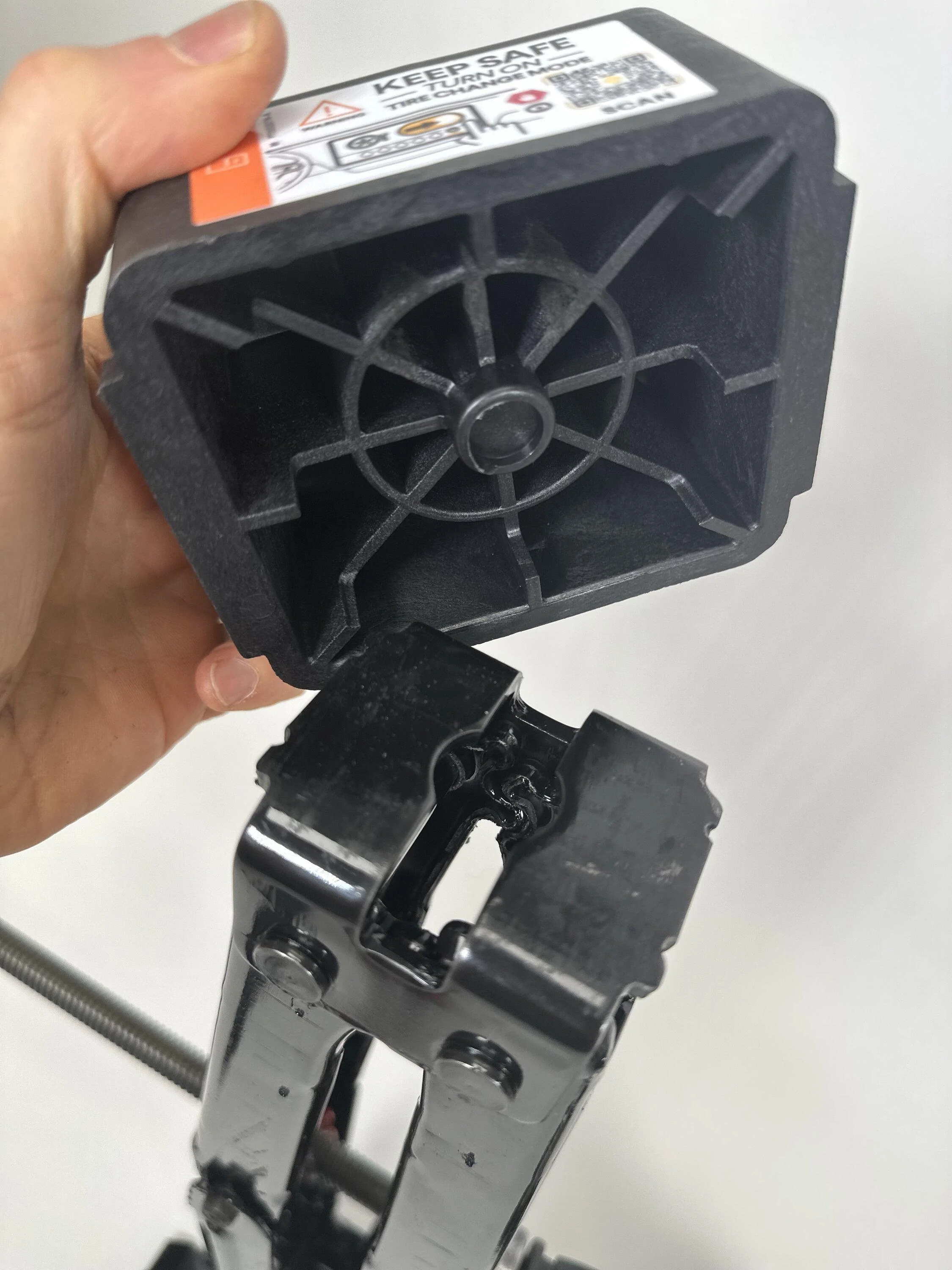

BTW, have you looked at the optional Rivian oem scissor jack and puck? The puck is just sitting on the top with only 3/8" of plastic nipple holding it in place. Our bottle jack has several inches of the jack steel shaft secured inside a 2" thick aluminum puck, by comparison....you're not knocking the puck off our jack. The Team 1EV Bottle Jack Kit gives +1" versus the Rivian scissor jack too.


OP
OP
EV Sportline

EV Sportline

Well-Known Member
Site Sponsor
Joined
May 31, 2022
Threads
30
Messages
375
Reaction score
964
Location
Los Angeles
Website
evsportline.com
Vehicles
Rivian R1T, Tesla S, 3, X, Y, Porsche & More
Occupation
Upgrading Electric Vehicles
Since I already have this Safe Jack kit, I'd really like to find just the Rivian puck to fit over the jack. Somebody will offer the puck by itself at some point.
PM me the details on the Safe Jack shaft, we can make a Rivian adapter for it ;). We will make it right & safe 👍


Dark-Fx

Well-Known Member
First Name
Brian
Joined
Jul 15, 2020
Threads
55
Messages
3,783
Reaction score
6,239
Location
Michigan
Vehicles
Polestar 2, Volt, R1T, Livewire One
Occupation
Engineering
Stability is not a concern. Check this video, shaking the truck on the Team 1EV bottle jack...it's not going anywhere! The jack can be stored on it's side, yes. The jack comes with a storage case, if it weeps a little hydraulic fluid - which is normal, the case catches it. Our puck is engineered specifically for our jack - the jack screw shaft fits inside our puck -- it is not just sitting on top of the jack top! This is a safety thing - that is why the two are sold together, as a matched kit engineered to work properly.





BTW, have you looked at the optional Rivian oem scissor jack and puck? The puck is just sitting on the top with only 3/8" of plastic nipple holding it in place. Our bottle jack has several inches of the jack steel shaft secured inside a 2" thick aluminum puck, by comparison....you're not knocking the puck off our jack. The Team 1EV Bottle Jack Kit gives +1" versus the Rivian scissor jack too.

You're missing a piece of your Rivian jack if you think this is all it can do.
