After picking up R1S 2 weeks ago was shocked by the lame single horn. Couldn't find anything on web showing resolution.

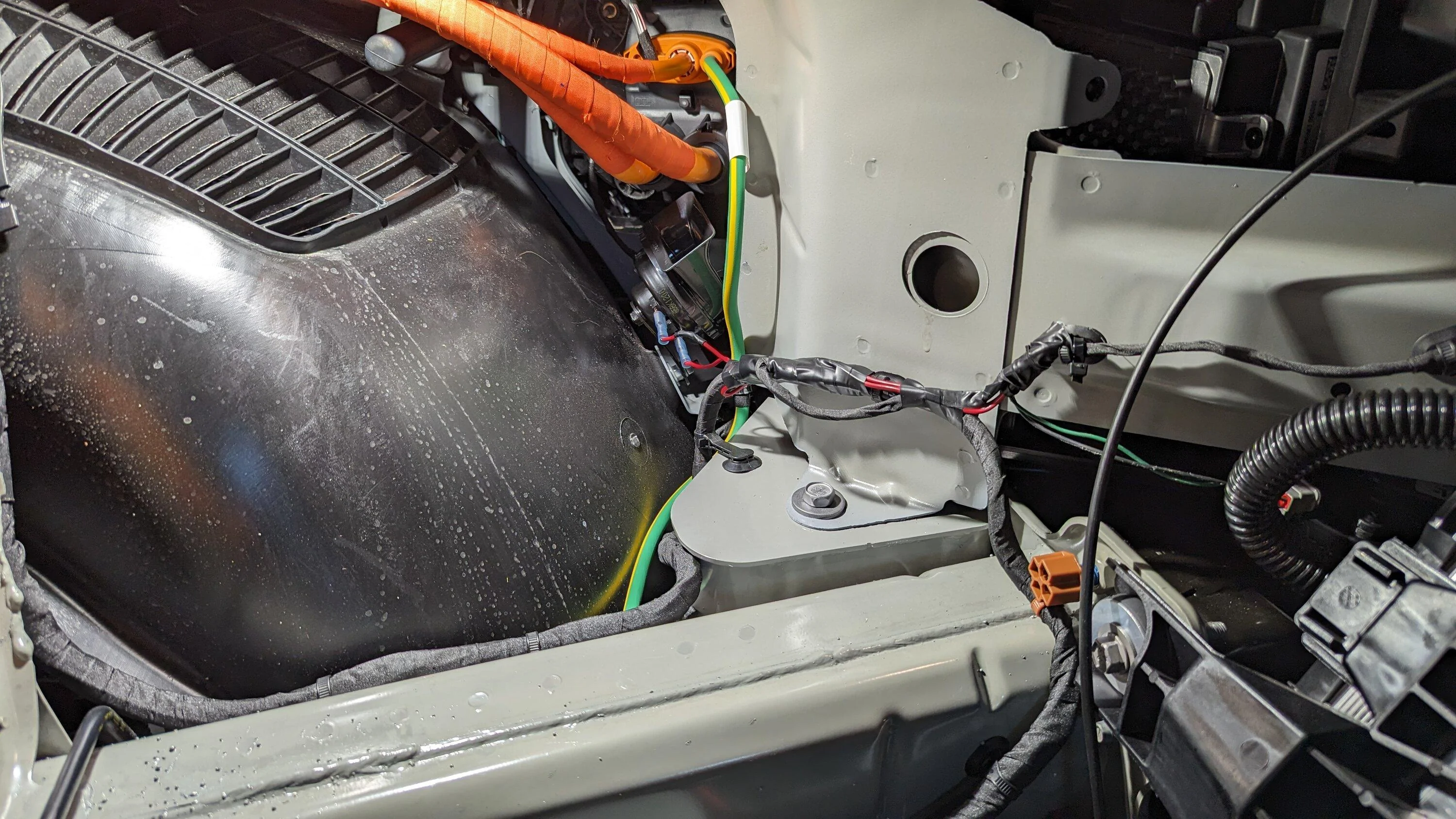

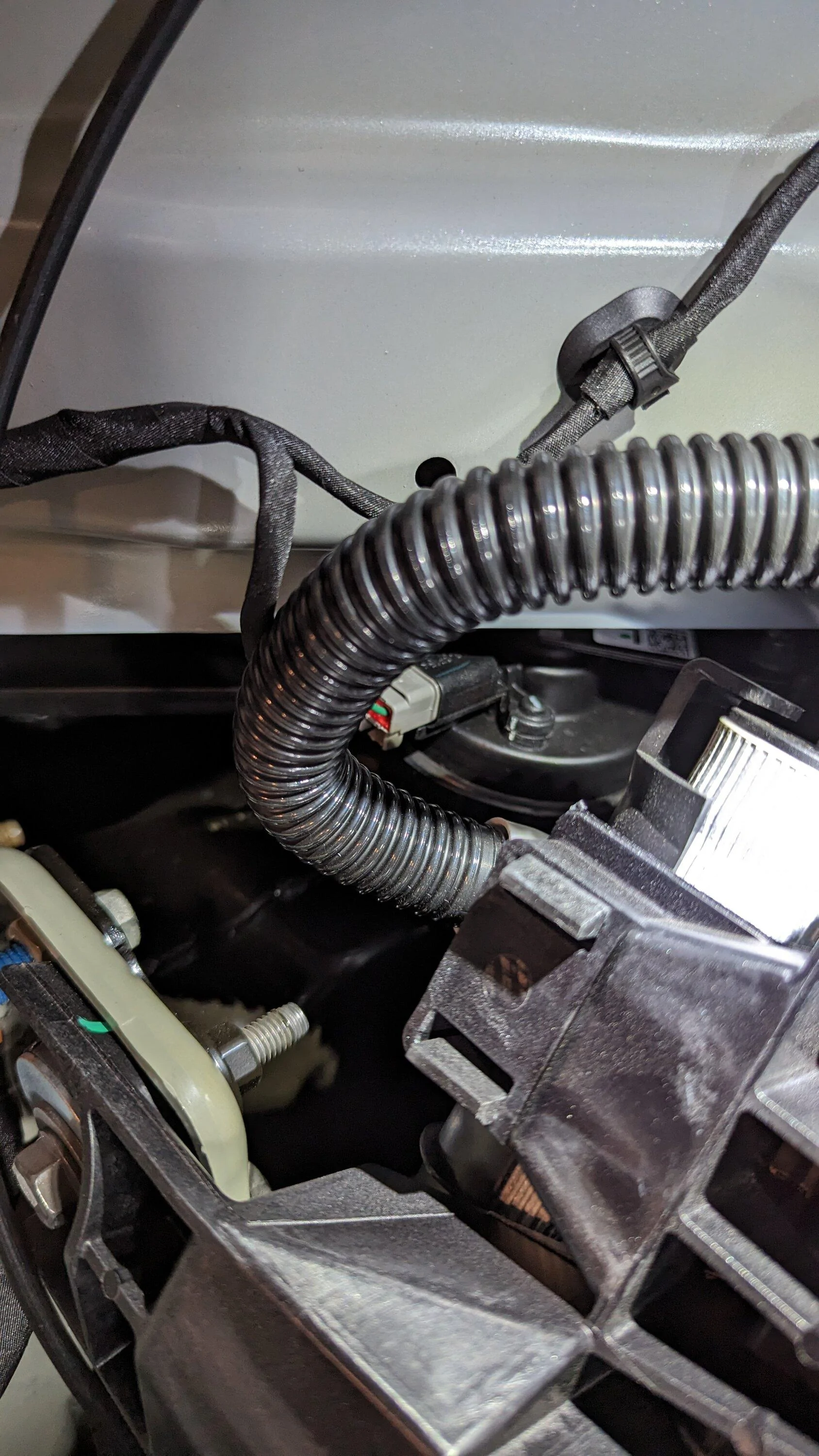

Figured the 2nd location for horn was there and empty. Pulled out frunk tub and was correct. Easy to get to from inside frunk area. Drivers horn there and standard 12v. Passenger side empty. Was hoping wire was there just tied up, but couldnt find. So instead just added a 2nd Hella horn to drivers side. Simple splice into factory wire. Mounted to open bolt on fender well. Cost $30.

Works great. As it should have been from factory. Will experiment more for best frequency of 2nd horn.

Rivian R1T R1S Installed Second Horn (Hella) on my Rivian PXL_20230913_231157650
Rivian R1T R1S Installed Second Horn (Hella) on my Rivian PXL_20230913_210231171
Rivian R1T R1S Installed Second Horn (Hella) on my Rivian PXL_20230913_210231171
Sponsored



invernite

Well-Known Member
Joined
Jan 31, 2023
Threads
2
Messages
164
Reaction score
199
Location
NW Chicago
Vehicles
2015 Honday Odyssey
Occupation
Clicking refresh in the R1 Shop
Clubs

Awesome! I'm looking to do the same since the horn sounds so weak.

Share the Hella horn model you went with along with any other tips that might be helpful for someone trying the same?


Sponsored

SoCal Rob

Well-Known Member
First Name
Rob
Joined
Apr 19, 2021
Threads
35
Messages
2,540
Reaction score
5,409
Location
Southern California
Vehicles
Rivian R1S & VW ID.4
Occupation
Information Technology
Clubs

I donā€™t use my horn often but the single horn setup is not fit for purpose. If youā€™re trying to alert someone in another vehicle it is completely ineffective. I wish Rivian would just sell an upgrade kit so you could buy the previously-included 2nd horn with bracket and wiring to make it plug-and-play by owners or a 15-minute job for a service center.

OP
OP

zschicago

Member
First Name
Z
Joined
Oct 28, 2022
Threads
1
Messages
9
Reaction score
36
Location
Chicago
Vehicles
Range rover, Jeep, F250, Alfa, Maserati, Aston
Hi, purchased the horns from Amazon. HELLA 011225831 Black 12V BX Trumpet Horn Kit(Universal Fit) . Try one at time with existing factory horn to find your happy sound. I soldered the wires, but you can use a spice connector. If you ever installed a car stereo you can do this. Super easy.


SoCal Rob

Well-Known Member
First Name
Rob
Joined
Apr 19, 2021
Threads
35
Messages
2,540
Reaction score
5,409
Location
Southern California
Vehicles
Rivian R1S & VW ID.4
Occupation
Information Technology
Clubs

Hi, purchased the horns from Amazon. HELLA 011225831 Black 12V BX Trumpet Horn Kit(Universal Fit) . Try one at time with existing factory horn to find your happy sound. I soldered the wires, but you can use a spice connector. If you ever installed a car stereo you can do this. Super easy.
Itā€™s a simple enough job, but I donā€™t like modifying a brand new vehicle with non-standard parts. Iā€™m even less likely to do this because we donā€™t have an official fuse layout from Rivian and, IIRC, some fuses are not standard. This means if we end up blowing the fuse it could require scheduling a service appointment for some time in the (distant?) future that we have to pay for out-of-pocket.


BadKarma!

Active Member
First Name
Mike
Joined
Feb 8, 2021
Threads
0
Messages
41
Reaction score
67
Location
CT
Vehicles
2023 Rivian R1S & 2017 Ford Shelby GT350R
Occupation
Cyber Security
Clubs


Sponsored

MidnightRivian

Well-Known Member
Site Sponsor
Joined
Jun 21, 2021
Threads
90
Messages
1,996
Reaction score
3,224
Location
USA
Vehicles
Rivian R1S
Clubs

After picking up R1S 2 weeks ago was shocked by the lame single horn. Couldn't find anything on web showing resolution.

Figured the 2nd location for horn was there and empty. Pulled out frunk tub and was correct. Easy to get to from inside frunk area. Drivers horn there and standard 12v. Passenger side empty. Was hoping wire was there just tied up, but couldnt find. So instead just added a 2nd Hella horn to drivers side. Simple splice into factory wire. Mounted to open bolt on fender well. Cost $30.

Works great. As it should have been from factory. Will experiment more for best frequency of 2nd horn.

Do you have any issues with the latest update and installing the horn?

Also if you use the horn for more than 30 seconds, do you have any issues with fault codes or CAN bus protocol / system?

Did you install both horn or just one hella horn for passenger side and left the OEM horn for driver side.

Thanks for your post.


JeremyMKE

Well-Known Member
First Name
Jeremy
Joined
Sep 15, 2020
Threads
30
Messages
495
Reaction score
1,257
Location
Milwaukee, WI
Vehicles
Toyota Sienna, 2001 Yamaha Vino, 2022 Rivian R1T
Occupation
Riviot
After picking up R1S 2 weeks ago was shocked by the lame single horn. Couldn't find anything on web showing resolution.

Figured the 2nd location for horn was there and empty. Pulled out frunk tub and was correct. Easy to get to from inside frunk area. Drivers horn there and standard 12v. Passenger side empty. Was hoping wire was there just tied up, but couldnt find. So instead just added a 2nd Hella horn to drivers side. Simple splice into factory wire. Mounted to open bolt on fender well. Cost $30.

Works great. As it should have been from factory. Will experiment more for best frequency of 2nd horn.

Flashbacks to all the custom horns from the 80s installed in Conversion vans... So many possibilities!!!!!!

OP
OP

zschicago

Member
First Name
Z
Joined
Oct 28, 2022
Threads
1
Messages
9
Reaction score
36
Location
Chicago
Vehicles
Range rover, Jeep, F250, Alfa, Maserati, Aston
Do you have any issues with the latest update and installing the horn?

Also if you use the horn for more than 30 seconds, do you have any issues with fault codes or CAN bus protocol / system?

Did you install both horn or just one hella horn for passenger side and left the OEM horn for driver side.

Thanks for your post.

Just the one. Both horns on driver side, plenty of space. Rivian is just using standard 12v horns. Looking at the stock horn it very much resembles the Hella ford horn. No Telsa crazy yet.

Rivian R1T R1S Installed Second Horn (Hella) on my Rivian 71I0rltPTgL._AC_SL1500_


PappaBolt

Well-Known Member
First Name
Don
Joined
Aug 20, 2022
Threads
41
Messages
1,132
Reaction score
1,620
Location
Bainbridge Island, WA
Vehicles
R1S, Corvette, 911
Occupation
Tech
Clubs

Itā€™s a simple enough job, but I donā€™t like modifying a brand new vehicle with non-standard parts. Iā€™m even less likely to do this because we donā€™t have an official fuse layout from Rivian and, IIRC, some fuses are not standard. This means if we end up blowing the fuse it could require scheduling a service appointment for some time in the (distant?) future that we have to pay for out-of-pocket.
Valid. Iā€˜ll check my early VIN, but Iā€™m guessing it has all the horns along with all the 12v outlets as originally designed. If Iā€™m missing a horn Iā€™m prolly going to live without it. I donā€™t think Iā€™ve ever used it more than once anyway. Now if I lived in NYC thatā€™d be different. But then I doubt Iā€™d be rolling through times square in an R1S either.
