[UPDATED 9/26/22]

While I don't tow everyday, it seems like I hitch something up to the R1T at least once a week. The cover is nice and I like to remove the hitch and replace the cover when I'm not towing. But it's a PIA to have to grab a screwdriver anytime it is removed and installed. That little screw thing is called a Quarter Turn Fastener. I went to McMaster-Carr and came up with a simple, cheap, thumb-turned quarter turn fastener fix.

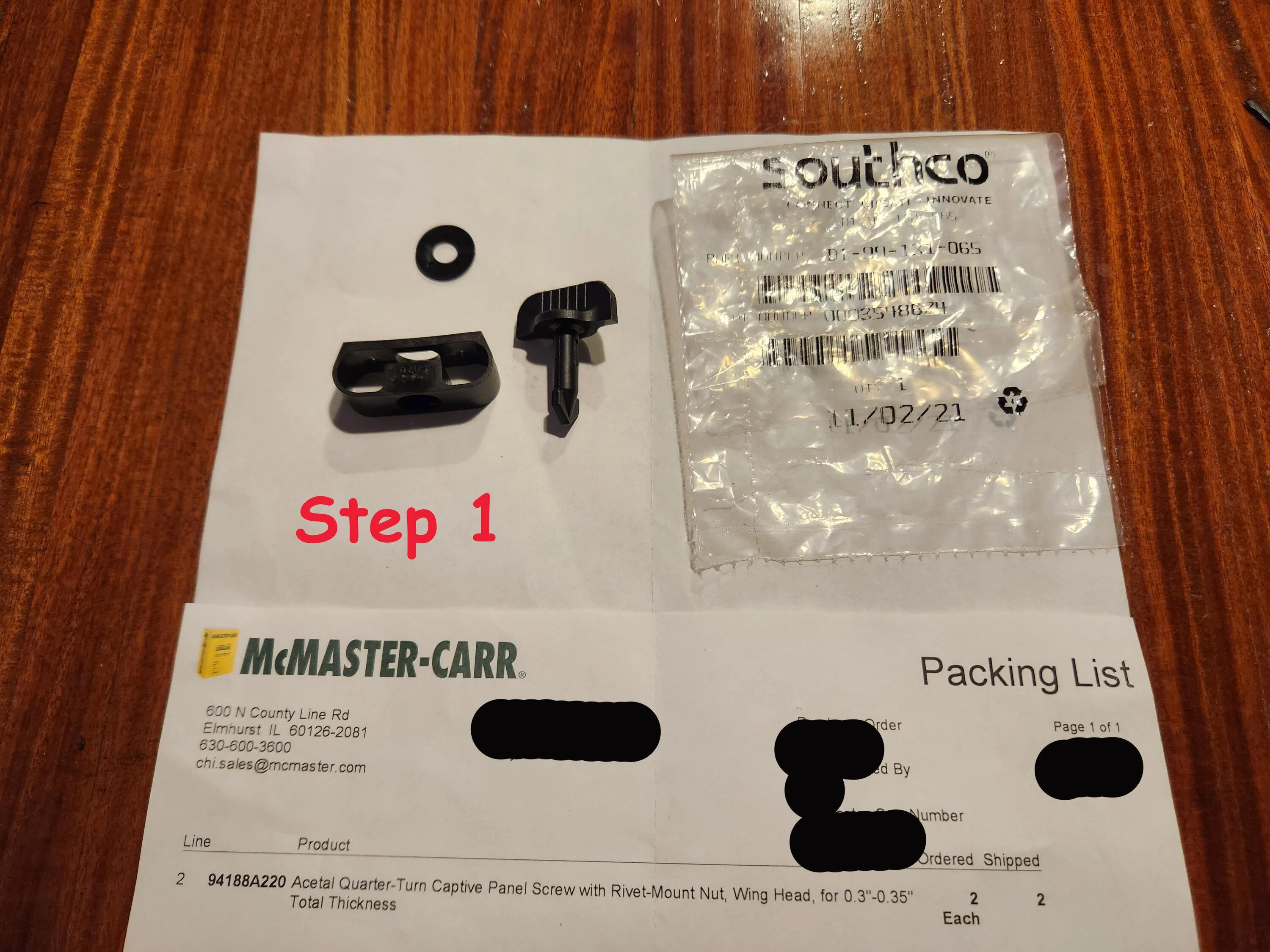

Step 1. Go to McMaster-Carr and buy TWO of these. Not two of each...but two of either/or. The preferred part is 94188A210, it is the exact same length as the fastener you are replacing. 94188A220 is slightly longer and requires you to use a washer (see step 3). I listed both because availability could vary and both work perfectly.

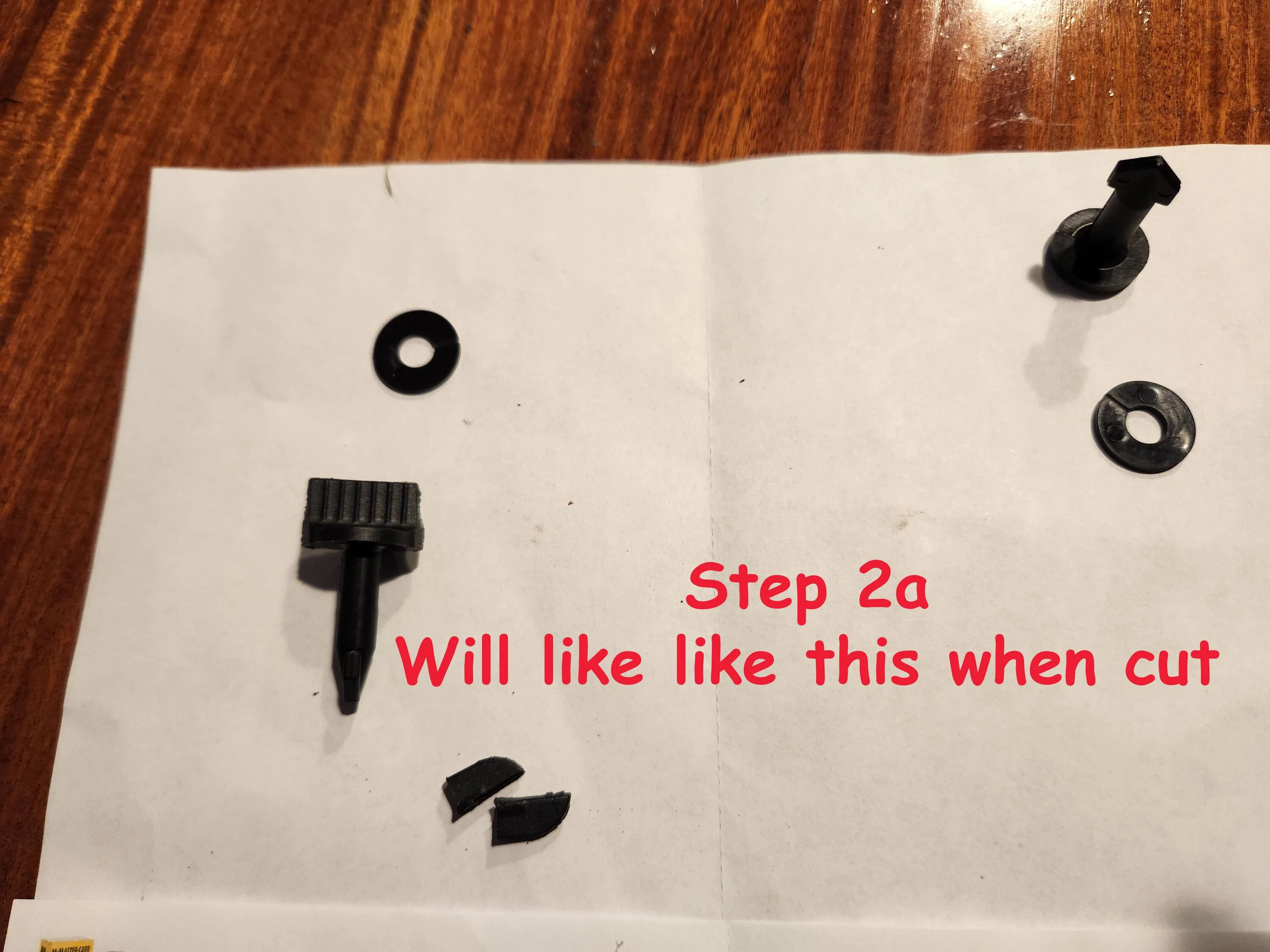

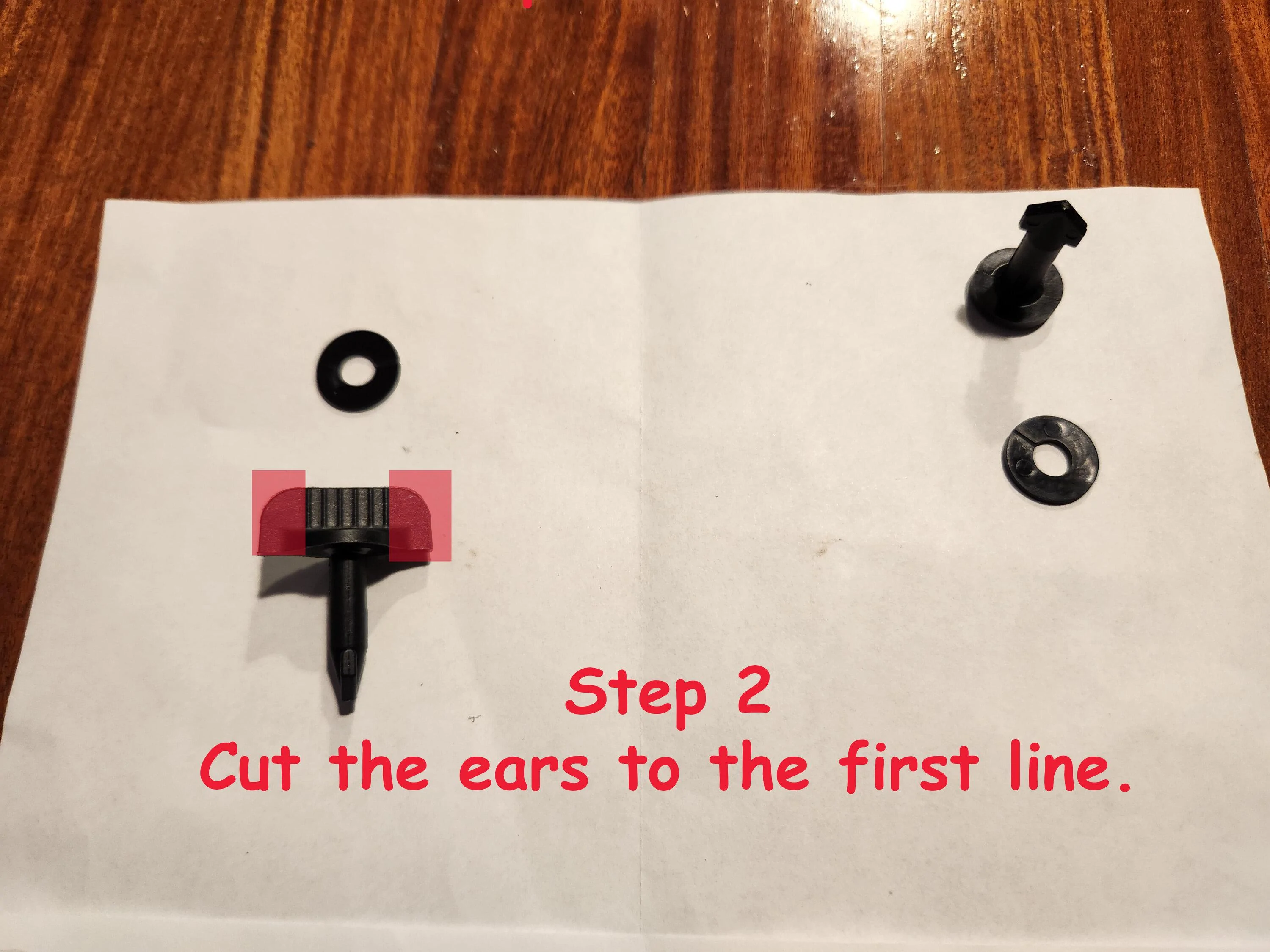

Step 2. Discard the female part of the new fastener. All you need is the retainer clip and the male part. Cut the ears off the new fastener to the first line as indicated in the pics.

Step 3: If you bought part # 94188A210...you're done! Put it all back together reattach the cover.

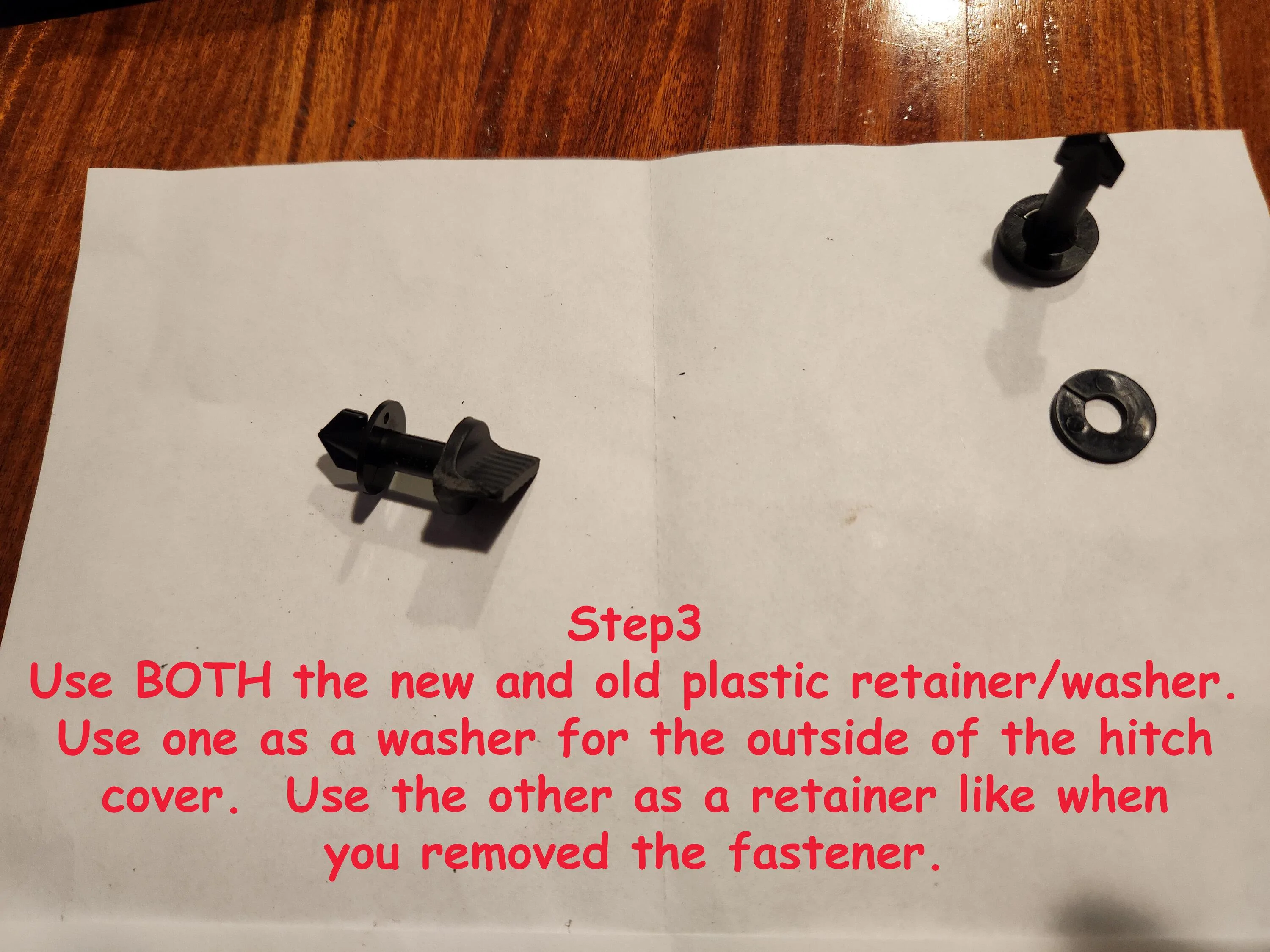

IF YOU BOUGHT PART # 94188A220. Use BOTH the old plastic retainer/washer and the new one. One as a washer, and the other as retainer. The reason you need the old washer in addition to the new washer is that the shaft of the new fastener is very slightly longer than the old one. Without the additional washer on the outside to reduce the effective length, it won't hold as well.

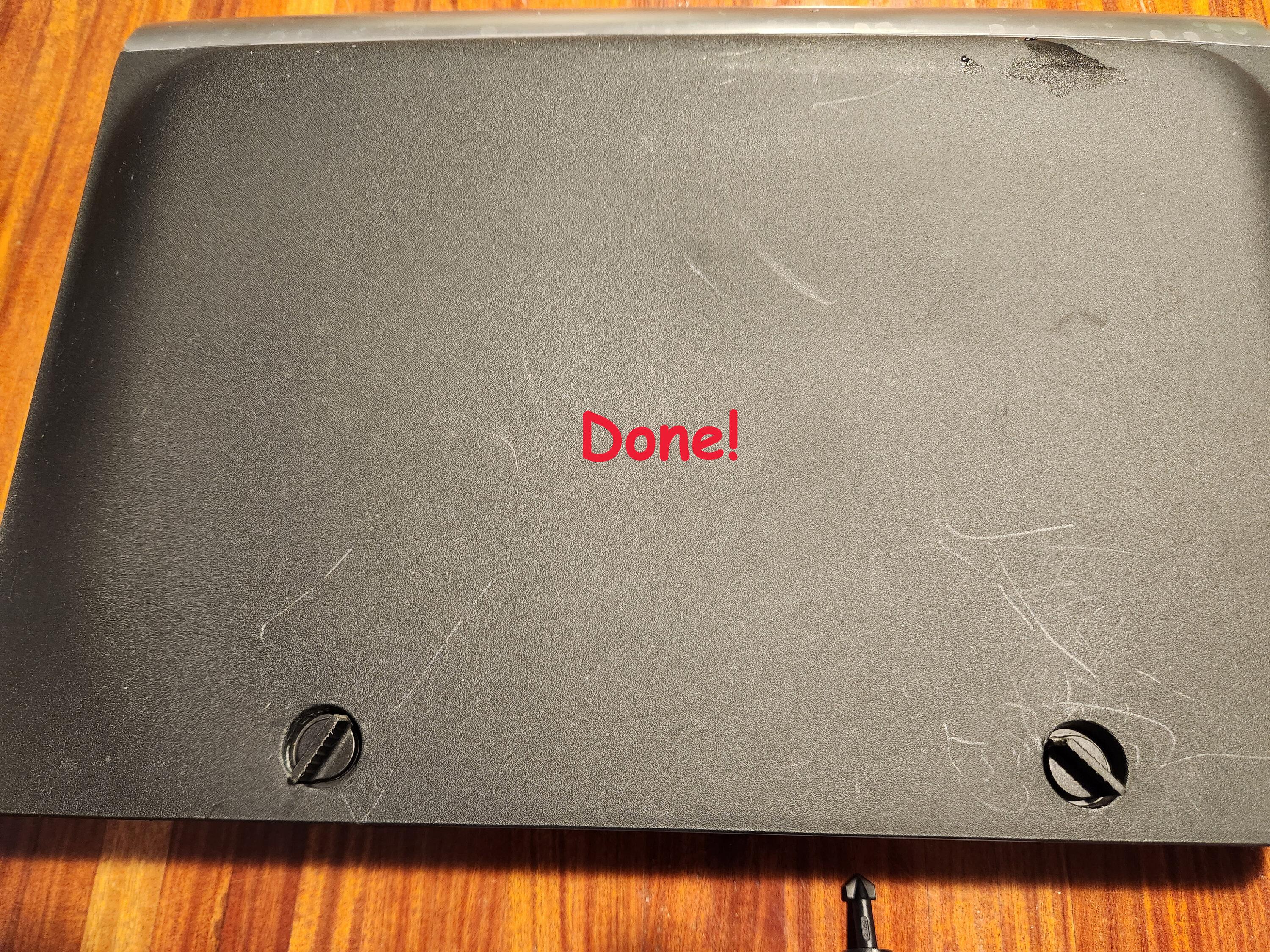

Step 4. Done. Now you have a thumb(able) quarter turn fastener and you can ditch the screw driver.


20220920_190831 (1) copy.jpg

20220920_191830 copy.jpg

20220920_191931 copy.jpg

20220920_192001 copy.jpg

20220920_192041 copy.jpg


Last edited:

Jafresh

Active Member
First Name
Jason
Joined
Sep 8, 2021
Threads
4
Messages
35
Reaction score
67
Location
Red Hook, NY
First Name
Jason
Vehicles
2017 Tesla MS, 2022 R1T Launch Green
Occupation
Concrete Polisher
I like this! I tow a lot and already the screwdriver has tore up the existing plastic screw.


atebit

Well-Known Member
First Name
Bob
Joined
May 3, 2022
Threads
9
Messages
406
Reaction score
426
Location
PA
First Name
Bob
Vehicles
R1T, Porsche Boxster
McMaster-Carr FTW!


Dark-Fx

Well-Known Member
First Name
Brian
Joined
Jul 15, 2020
Threads
42
Messages
2,142
Reaction score
3,610
Location
Michigan
First Name
Brian
Vehicles
Polestar 2, Volt, R1T, Livewire One
Occupation
Engineering
I took my cover off the first time I needed to use the hitch months ago and haven't put it back on since. Not even sure where I set it.



SolartoEV

Well-Known Member
Joined
Dec 30, 2021
Threads
7
Messages
73
Reaction score
131
Location
NY
Vehicles
WK2 Hemi
Probably losing out on the .001 Extra kw/mi

The edit on this is leaving the cover off might actually effect areo under the truck

Last edited:

Zoidz

Well-Known Member
First Name
Gil
Joined
Feb 28, 2021
Threads
40
Messages
1,117
Reaction score
2,478
Location
PA
First Name
Gil
Vehicles
Chevy Avalanche, BMWs-X3,330cic,K1200RS bike
Occupation
Engineer

crashmtb

Well-Known Member
Joined
Jul 11, 2021
Threads
0
Messages
3,569
Reaction score
5,519
Location
Man oh Manitoba
Vehicles
2002 aluminium garden shed TD5
If McMaster-Carr doesn't have it, you don't really need it. 😆

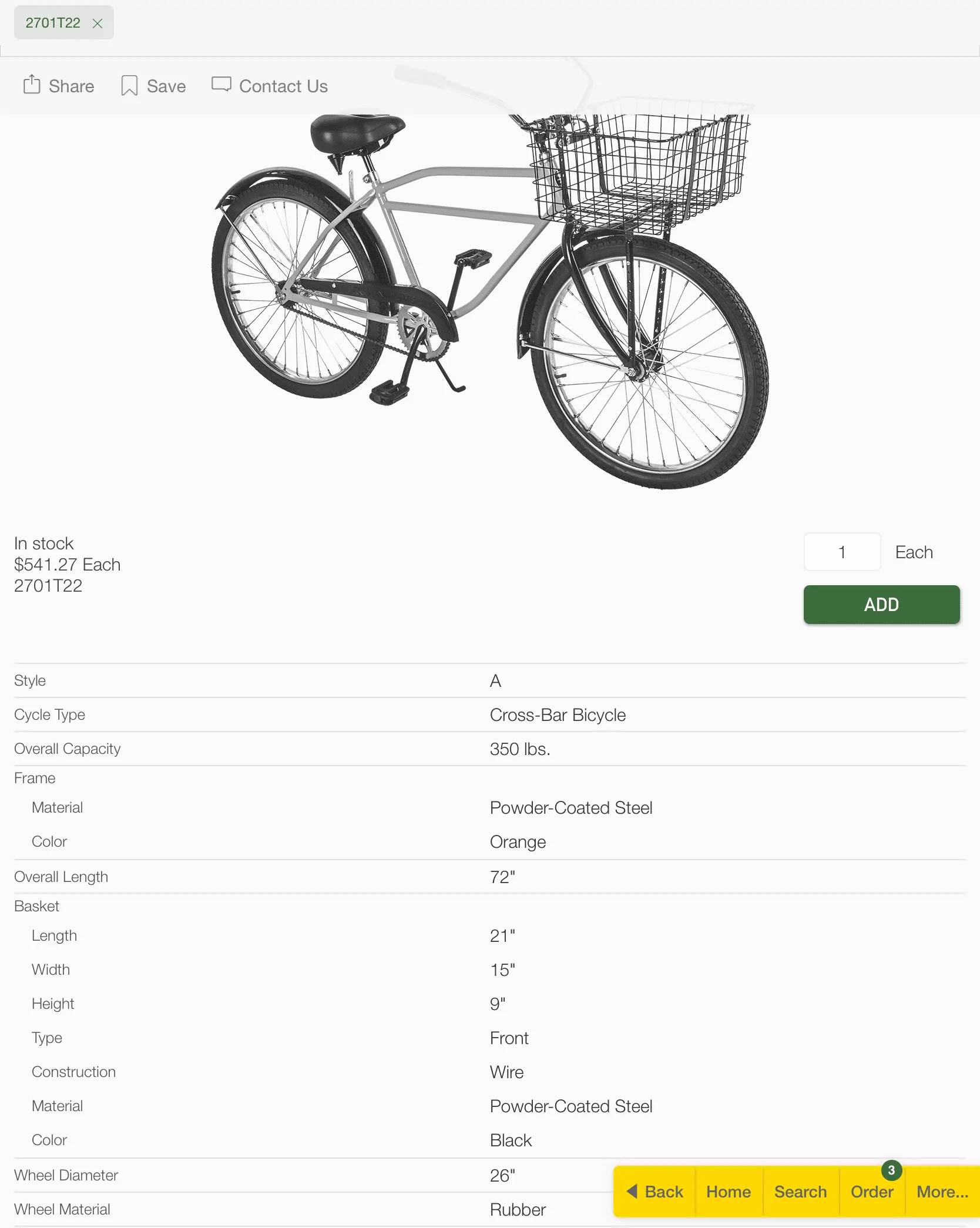

even bicycles!



I did a job once where the customer engineer spec’d McMaster Carr PNs for everything. even a piece of schedule pipe. Threaded rod. The sheet metal. All of it McMaster.

I think I did end up getting the pipe from them, as it was a funny wall thickness and stainless, and only needed a foot of it.


Zoidz

Well-Known Member
First Name
Gil
Joined
Feb 28, 2021
Threads
40
Messages
1,117
Reaction score
2,478
Location
PA
First Name
Gil
Vehicles
Chevy Avalanche, BMWs-X3,330cic,K1200RS bike
Occupation
Engineer
even bicycles!



I did a job once where the customer engineer spec’d McMaster Carr PNs for everything. even a piece of schedule pipe. Threaded rod. The sheet metal. All of it McMaster.

I think I did end up getting the pipe from them, as it was a funny wall thickness and stainless, and only needed a foot of it.
I don't think I've ever not found what I was looking for in the inventory, and there is a warehouse about 50 miles from us, so we order by 3 PM and have it at 9 AM the next day.

A few weeks ago I needed a 6mm pneumatic speed control valve for our bottle filler. That's a pretty obscure, low demand product and size. They had several different designs, all in stock.



frostbit3

Well-Known Member
Joined
Nov 2, 2021
Threads
4
Messages
223
Reaction score
441
Location
Allen, Texas
Vehicles
Grand Cherokee
Occupation
Engineer
I took my cover off the first time I needed to use the hitch months ago and haven't put it back on since. Not even sure where I set it.
Same, It's a truck and has a hitch opening. Not sure why I would need to cover that, it's more of a pain taking it on and off.


yizzung

Well-Known Member
Joined
Jul 30, 2020
Threads
42
Messages
715
Reaction score
1,320
Location
California / Colorado
Vehicles
R1T | Audi allroad
Occupation
Tech
Same, It's a truck and has a hitch opening. Not sure why I would need to cover that, it's more of a pain taking it on and off.
It’s only there to reduce drag. Or maybe to keep squirrels out of there… 🐿


CharonPDX

Well-Known Member
First Name
Charon
Joined
Jul 12, 2021
Threads
5
Messages
240
Reaction score
330
Location
Cascadia
First Name
Charon
Vehicles
R1T LE, Mach-E, Arcimoto FUV, Going: F-250/Model S
Occupation
InfoSec Geek
I took my cover off the first time I needed to use the hitch months ago and haven't put it back on since. Not even sure where I set it.
Mine's in the "under the flap" part of the frunk, along with the portable charge cable, a bed cargo net, a bottle jack, some bungee cords, a couple ratchet straps, and two different hitches. (One drop hitch, one "3 ball" in case I ever rent a U-haul trailer or similar and my big ball on the drop hitch won't work.)


IRun

Well-Known Member
First Name
Julian
Joined
Jan 3, 2022
Threads
6
Messages
84
Reaction score
65
Location
Perrysburg, OH
First Name
Julian
Vehicles
R1T Adventure, Model 3
Occupation
Analyst
How does this affect the efficiency? Can you tell us what kind of range loss you're getting with the increased drag?


CharonPDX

Well-Known Member
First Name
Charon
Joined
Jul 12, 2021
Threads
5
Messages
240
Reaction score
330
Location
Cascadia
First Name
Charon
Vehicles
R1T LE, Mach-E, Arcimoto FUV, Going: F-250/Model S
Occupation
InfoSec Geek
No clue. I took the hitch cover off immediately upon delivery (to inspect and plug in to the trailer wire plug and make sure it worked) and haven't put it back on.

And with only a smidge over 1000 miles on the odometer, nearly half of that towing, I have no good "baseline" yet for range/efficiency. (And this weekend I'll be towing again, further "wrecking" my long-term efficiency.) Most of the non-towing driving has been "in town," with only sporadic in-town-freeway highway driving.

If I am going to go on a longer mostly-highway road trip when not towing, I'll put the cover back on and see what difference it makes.
