Finally had a day to rip up from Denver at 5,280’ up over Berthoud Pass at 11,307’ elevation and down into Tabernash to our cabin which is roughly at 8,300’. Covered roughly 90 miles each way and a ton of elevation gains and losses.

Berthoud Pass crosses the Continental Divide and has 10+ hairpin turns plus a bunch of high speed S curves. We’ve driven it roughly 40-60 times per year both winter and summer in both a Cayenne GTS, highly modified Audi S7, and other vehicles so a great litmus test for the Rivian.

Rivian R1T R1S High Alpine Run in Limestone R1T to 11,307’ With Lots of Elevation Changes 42EE981A-470F-4788-A32B-4CF6325C8FEB


The Rivian shows her heft and height as compared to the sports cars, but otherwise is no slouch and has way more in it than I was willing to press on the first high alpine outing. I was not comfortable pushing it to breaking the rubber loose but will eventually get there. Regardless, anyone I passed was shocked to see a truck blowing by.

Rivian R1T R1S High Alpine Run in Limestone R1T to 11,307’ With Lots of Elevation Changes A402940F-3D80-4D0E-8EF8-8EAF65EFE586


Rivian R1T R1S High Alpine Run in Limestone R1T to 11,307’ With Lots of Elevation Changes 1FFCE3B3-D2C2-4540-BEAD-153558414F60


Rivian R1T R1S High Alpine Run in Limestone R1T to 11,307’ With Lots of Elevation Changes E1E43603-3F08-4A96-9C28-C8FA3E86AB84


The rule of thumb for ICE vehicles is 3% horsepower loss for every 1k’ elevation above sea level, so we feel it in all our vehicles plus a ski boat, especially above 8k’. No such loss for EV’s so I was a bit blown away by the responsiveness in the high mountains. It took awhile to get used to one pedal driving at speed in the curves and hills but it quickly became intuitive. I just set it in Sport and rocked.

Rivian R1T R1S High Alpine Run in Limestone R1T to 11,307’ With Lots of Elevation Changes DDD7F2AE-DBB3-469C-9E5F-8B78FAC8690E


Rivian R1T R1S High Alpine Run in Limestone R1T to 11,307’ With Lots of Elevation Changes 14B98B6B-C39A-408F-9A30-0C648DD37898


Will report some basic wattage and mileage for both climb and descent sections. Overall was thrilled with the R1T and look forward to both heavy snow driving and towing the boat up and over the same route next season.
Sponsored



Khaos

Well-Known Member
Joined
Aug 30, 2022
Threads
8
Messages
105
Reaction score
59
Location
Ontario, Canada
Vehicles
Tesla Model Y
Clubs

Let us know how those 22s do on snow!

OP
OP
moosehead

moosehead

Well-Known Member
Joined
Sep 16, 2021
Threads
63
Messages
2,058
Reaction score
4,483
Location
Denver, CO
Vehicles
‘22 Ioniq 5, ‘78 Jeep Wagoneer
Started with 100% SOC at 286 miles range in all-purpose mode. Covered total 187 actual miles, ton of elevation gains and losses, and finished day at 39% SOC with 116 mile range remaining. Carried a few items in half closed tonneau so not completely aero and drove without efficiency in mind.

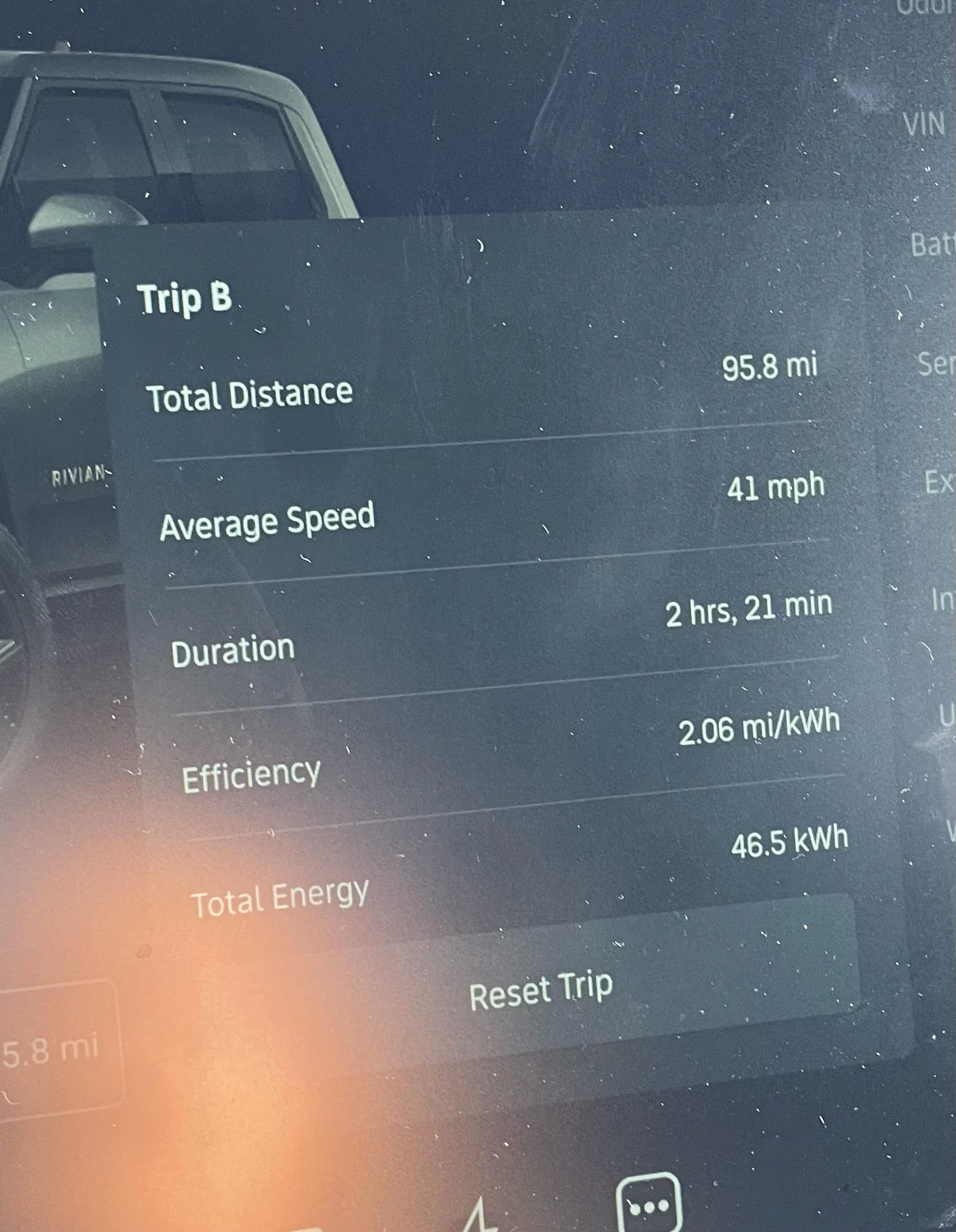

First half of trip up from Denver including some errands covered in Tabernash was roughly 95 miles and 6,027’+ of elevation gains and approx 3k’ descent after Berthoud Pass. I was in Sport mode for roughly 18 miles and heavy foot up the section from I-70 up to the top of the pass, and then in traffic and all-purpose mode the rest of the route.

Rivian R1T R1S High Alpine Run in Limestone R1T to 11,307’ With Lots of Elevation Changes E9BEB058-23A6-40D6-BAC8-AC44C57F1DD6

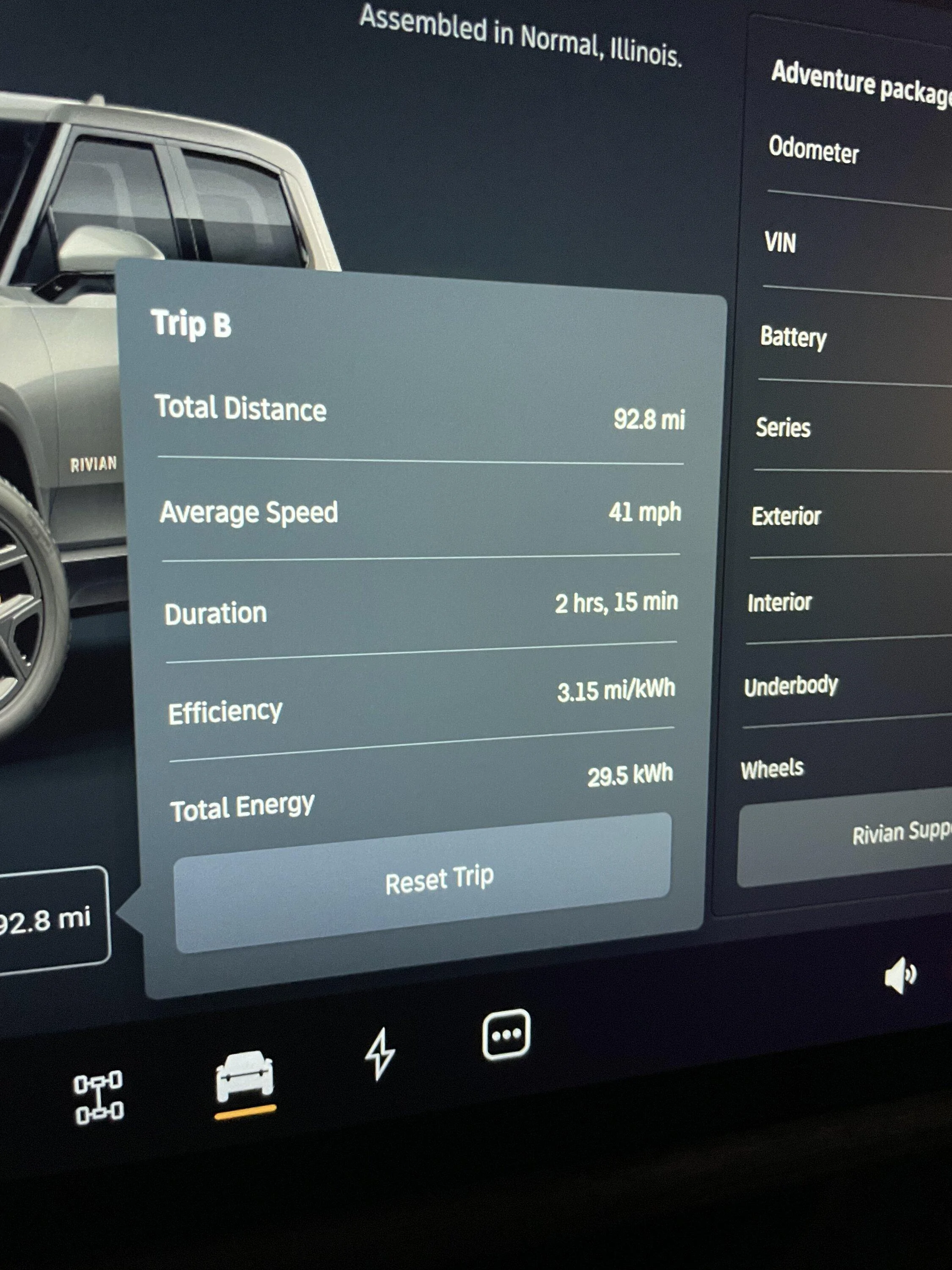

On the way back covered roughly 92 miles, 3k elevation ascent, and 6k+ descent so the kWh used was quite different as expected.

Rivian R1T R1S High Alpine Run in Limestone R1T to 11,307’ With Lots of Elevation Changes 5879CEC9-BECB-445F-B388-D524FB71995E

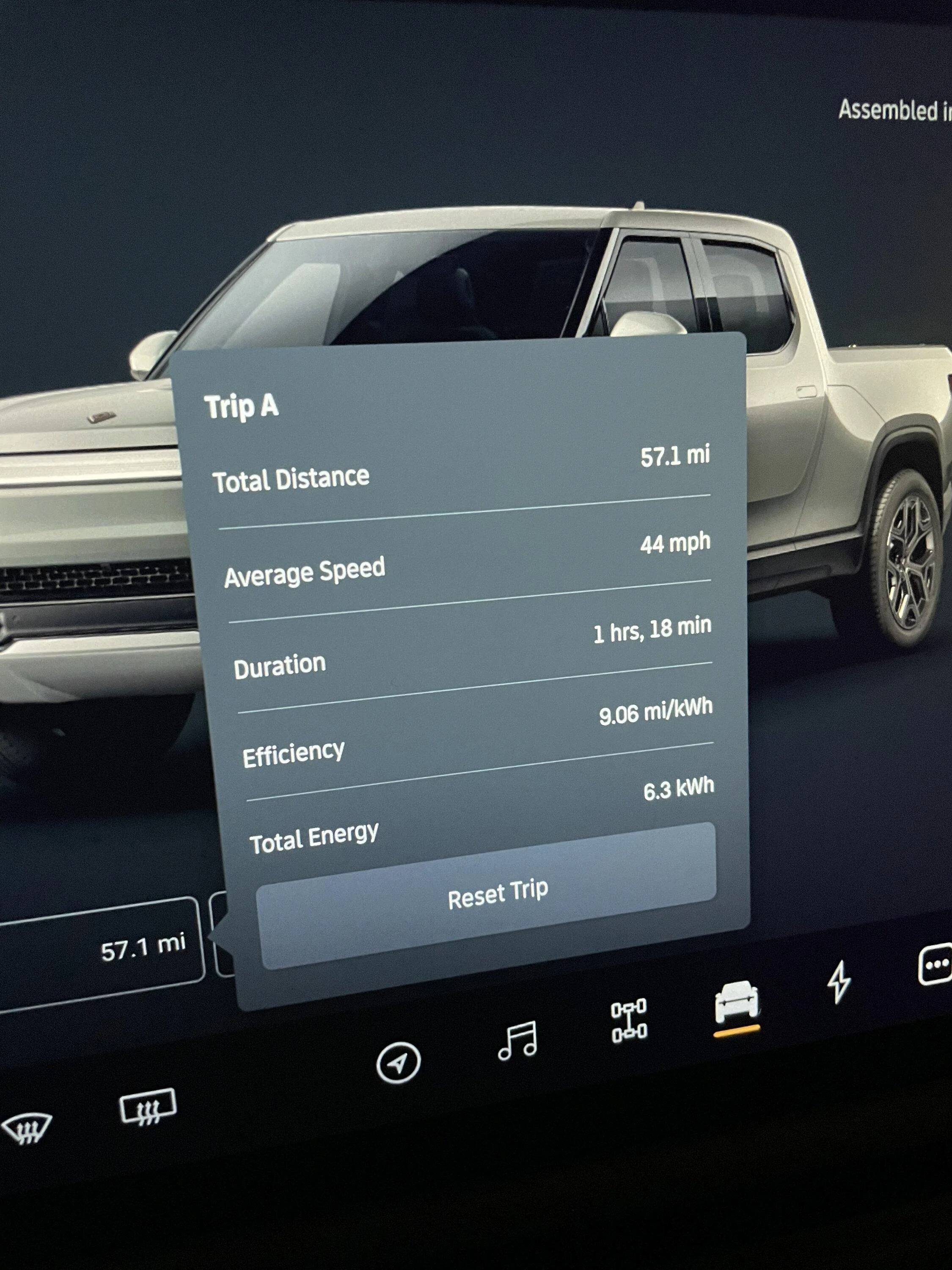

Below shows steepest downhill from top of Berthoud Pass to east side of Denver once foothills flatten out. Tons of regen, pretty cool.

Rivian R1T R1S High Alpine Run in Limestone R1T to 11,307’ With Lots of Elevation Changes 0DDDDFA7-43D8-4AEA-98D2-D2812989250C

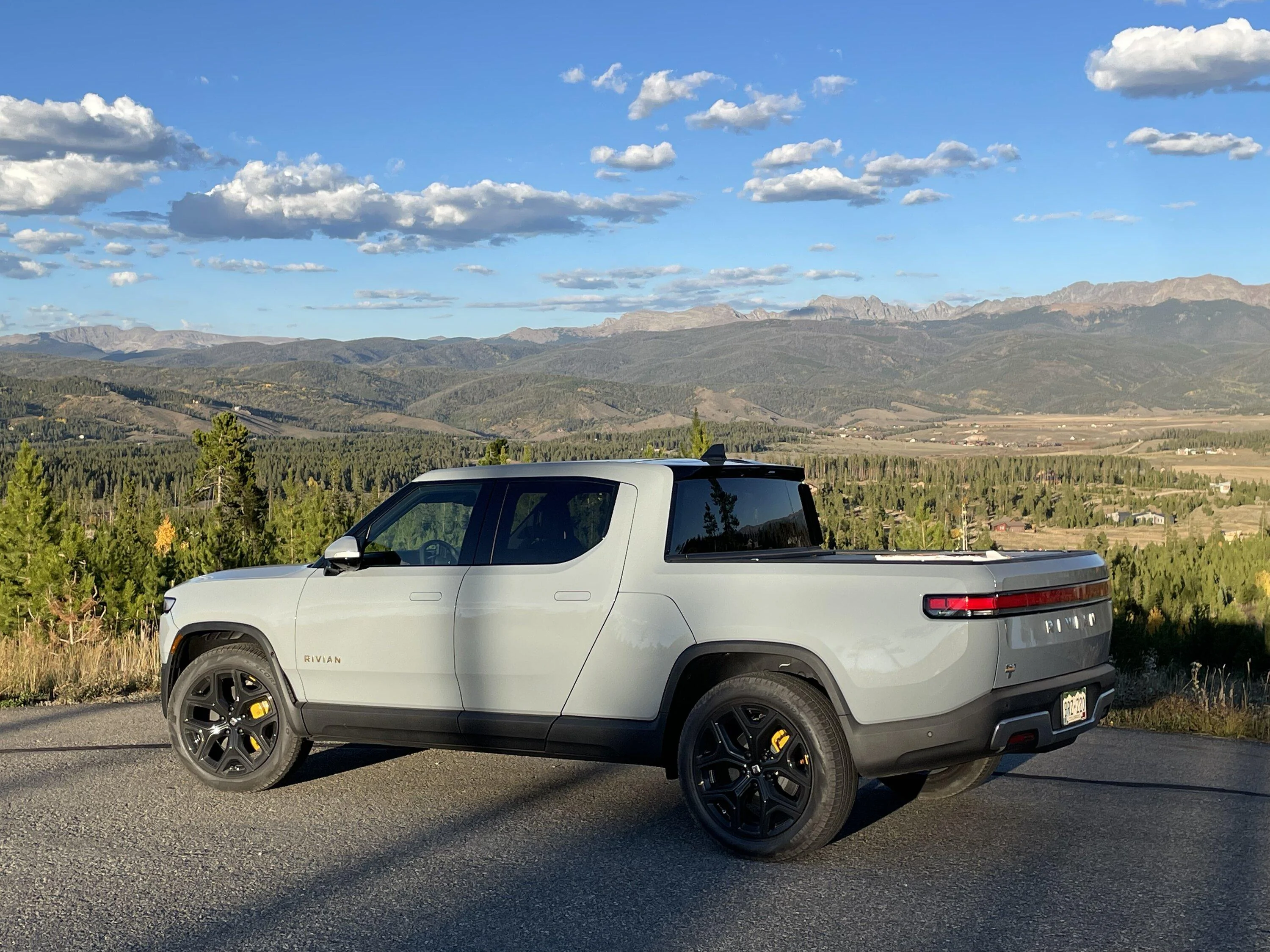

The R1T is a joy and once she gets snow mode, should be the perfect CO rig.

Rivian R1T R1S High Alpine Run in Limestone R1T to 11,307’ With Lots of Elevation Changes 2A0E7BF8-3A2B-4B89-BBAA-C19C9317BBB2


Rivian R1T R1S High Alpine Run in Limestone R1T to 11,307’ With Lots of Elevation Changes 10F0D283-C2D6-4AFA-BA92-6BE26DC4C668

Last edited:

Ravenron

Well-Known Member
First Name
James
Joined
Oct 24, 2021
Threads
4
Messages
344
Reaction score
421
Location
Colorado
Vehicles
2022 Rivian R1T, 2020 Jeep Gladiator Mojave
Occupation
Engineer/Retired Military
Moose, congrats on your truck and the successful roadtrip. I'm particularly interested your opinion of the 22" ATs as, my config appears to be very similar to yours (different color, otherwise same) but I will end up with the 22"s where I've always figured 20"s. Winter will be a bit different for me this year...

Take care...


COdogman

Well-Known Member
First Name
Brian
Joined
Jan 21, 2022
Threads
29
Messages
7,412
Reaction score
19,882
Location
Colorado
Vehicles
2023 R1T
Occupation
Dog Wrangler
Thanks for the trip report! I bet lots of CO folks who frequent Winter Park will love to hear about how well it did…not that we should be surprised!


Sponsored

iansriv

Well-Known Member
First Name
Ian
Joined
Feb 12, 2022
Threads
9
Messages
1,246
Reaction score
1,500
Location
US
Vehicles
R1S
Congrats on the R1! That trip looks great. I drove there a couple of years ago. Hope to go back with a R1, once I get it. Thanks for sharing.

OP
OP
moosehead

moosehead

Well-Known Member
Joined
Sep 16, 2021
Threads
63
Messages
2,058
Reaction score
4,483
Location
Denver, CO
Vehicles
‘22 Ioniq 5, ‘78 Jeep Wagoneer
@Khaos and @Ravenron, the twenny twens are pretty impressive, absolute pavement pounders with no harshness even in sport, and actually look to have semi-decent siping. Their range also seems under rated. Also did some mild trail and had no issues even at full 45 PSI though puncture resistance may be an issue. The wheels themselves are a bit flat with no real dish or concave presumably for aero design, so they may be exposed to trail scrapes.

While the snow ratings for the Rivian 22" tires are only above average, I'm actually way more concerned about regen braking in winter with no snow mode yet for the Rivians which is a whiff for an adventure rig. Surely we will have snow mode in an OTA update by November, eh Rivian?

Temps during the trip yesterday were mid 70's at lower elevation and 50F at top of pass. It will be interesting to log range loss at subzero temps and with a tow load, both will be updated here later as we get into those seasons.

@mitchel674, you should have no issue with the MC Prostar towing given its lighter setup, lower aero profile, and flatter terrain. While range loss while towing is real my guess is you won't have the same incremental loss as the TFL tow reports given their larger tow rigs and ascents. We have a 2015 MC X10 which fully loaded is around 6,100 lbs on the trailer. Will definitely report back here next season on the boat tow on this same route. Gratuitious pic of home port Lake Granby, CO, headwaters of the CO River.

Rivian R1T R1S High Alpine Run in Limestone R1T to 11,307’ With Lots of Elevation Changes A5966BA7-2E03-48A2-86A8-2C19D53F98F4

Last edited:

WSea

Well-Known Member
First Name
Patrick
Joined
Mar 6, 2022
Threads
39
Messages
1,589
Reaction score
1,898
Location
West seattle
Vehicles
R1T, Outback
Occupation
Architect
Great pics! Black wheels look awesome. I may try that if one of those vinyl companies make sets for the 22s


DTown3011

Well-Known Member
Joined
Jun 7, 2022
Threads
28
Messages
1,660
Reaction score
2,190
Location
Denver, CO
Vehicles
Rivian R1T
I have Limestone with the 22" brights on order and can't wait to drive MINE over Berthod Pass to ski this season with the kiddos!


sherold

Well-Known Member
Joined
Jan 7, 2022
Threads
0
Messages
100
Reaction score
143
Location
Indiana
Vehicles
Audi S3, VW Atlas
So glad to read your post as we just returned from CO a few weeks ago. Being my first trip there and to those elevations and quick changes, driving an ICE car (modified S3) I noticed the power drop was SUBSTANTIAL. My normal 350hp @ 3,500 lbs. pass without downshifting, required me to downshift at least 1, usually 2 gears and, to keep it about 1.5K higher in the rpm range to keep the turbo moving enough air to make any useful power.

My first thoughts were, "man I wouldn't notice any of this in the Rivian" :p


Sponsored

DynoSaur

Well-Known Member
First Name
Keith
Joined
Feb 5, 2021
Threads
7
Messages
103
Reaction score
225
Location
Austin, Texas
Vehicles
2021 Bronco Wildtrak
Occupation
Network Engineer
Awesome pics, great looking rig.

That steep downhill efficiency section is pretty kewl to see too.

Thanks for sharing results in segments as well. :)

OP
OP
moosehead

moosehead

Well-Known Member
Joined
Sep 16, 2021
Threads
63
Messages
2,058
Reaction score
4,483
Location
Denver, CO
Vehicles
‘22 Ioniq 5, ‘78 Jeep Wagoneer
Did a near identical run today up and down in winter conditions, 20” Rivian wheels and tires, temps 0F - 20F, about 5” of snow on top of plowed mountain roads.

Efficiency dropped quite a big both up and down due largely to lower temps.

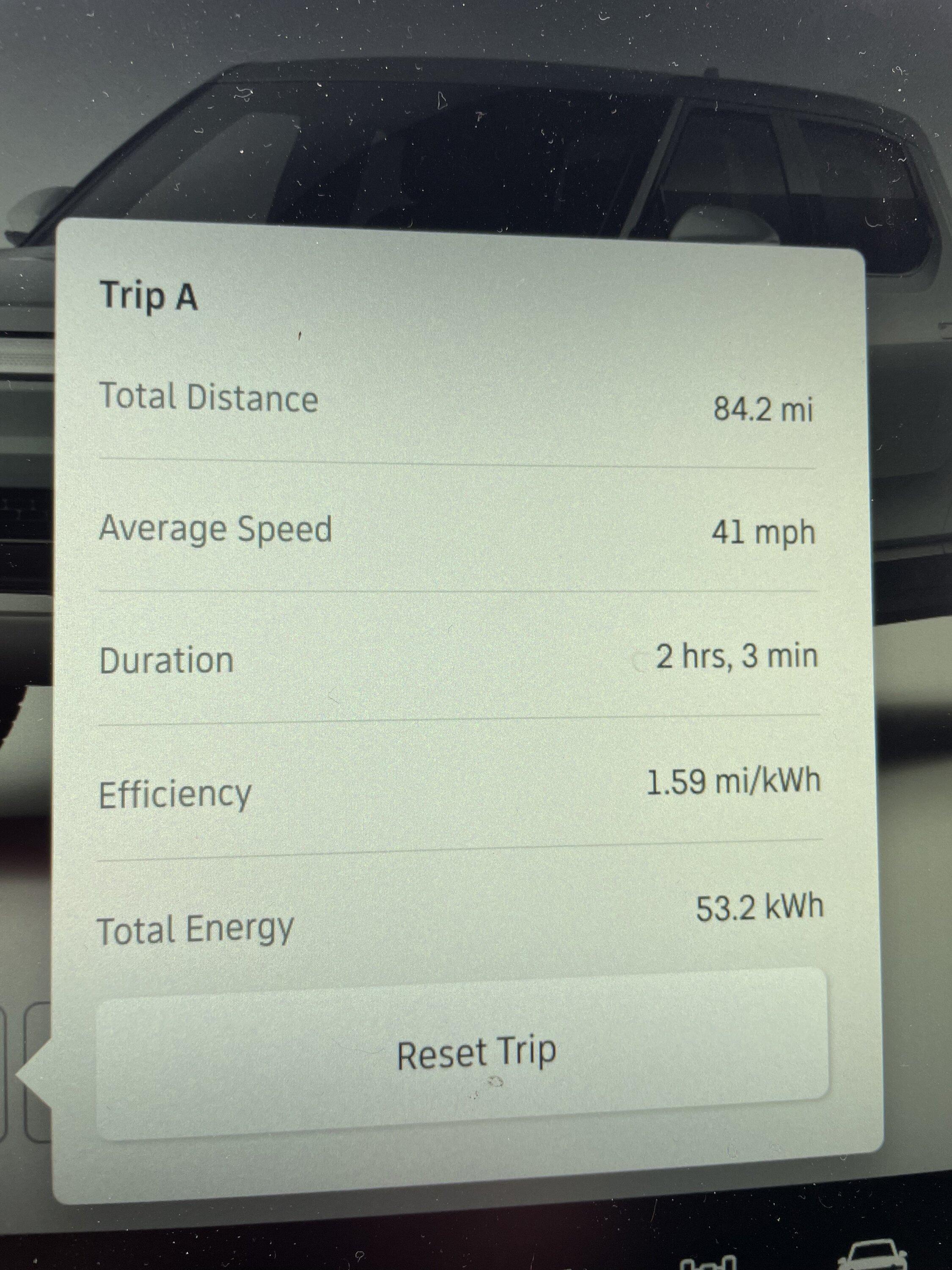

Uphill winter run was 1.59 mi/kWh and 53.2 KWh total vs uphill summer run at 2.06 mi/kWh and 46.5 kWh total.

Uphill Winter Run Denver - Tabernash CO.

Rivian R1T R1S High Alpine Run in Limestone R1T to 11,307’ With Lots of Elevation Changes 3098758E-97D0-4A3D-8FD4-135873994EFC

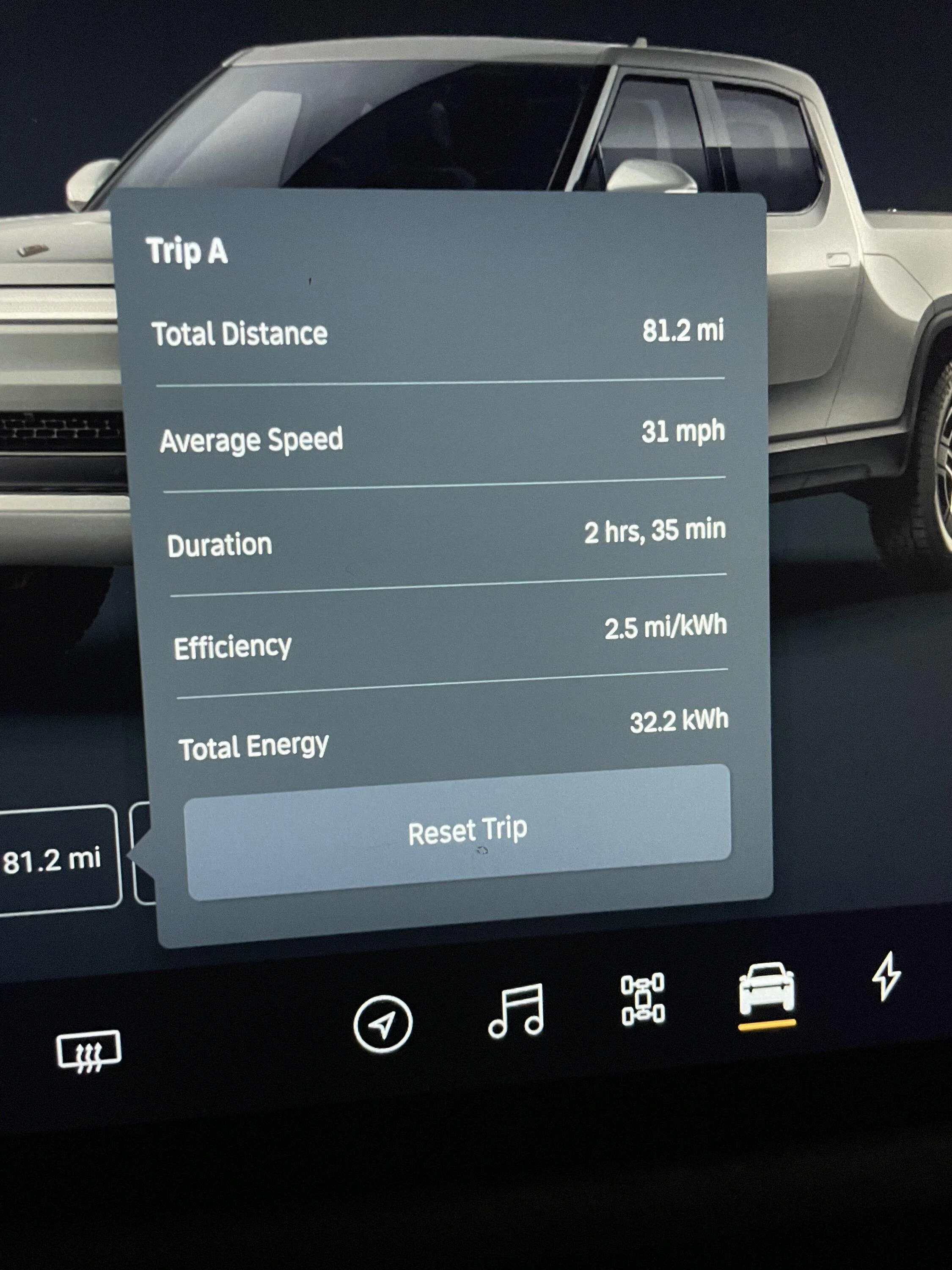

Downhill winter return was 2.5 mi/kWh and 32.2 kWh total vs summer 3.15 mi/kWh and 29.5 kWh total.

Downhill Winter Run Tabernash - Denver:

Rivian R1T R1S High Alpine Run in Limestone R1T to 11,307’ With Lots of Elevation Changes 131A8503-AAE7-43BB-ACF9-BFD47420F82D

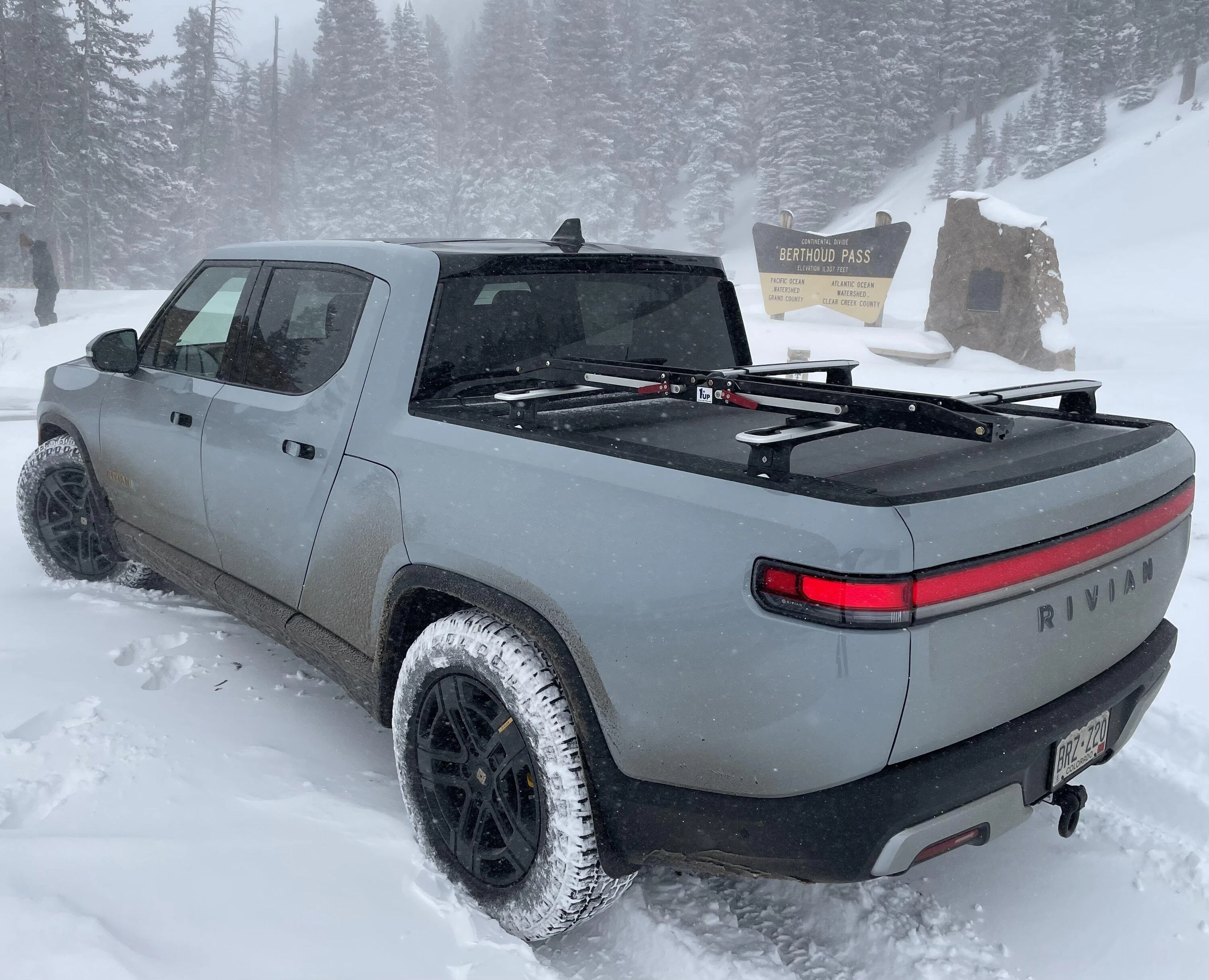

Berthoud Pass summit @ 11,300’ elevation top of Conti Divide.

Rivian R1T R1S High Alpine Run in Limestone R1T to 11,307’ With Lots of Elevation Changes FE80A488-5984-4070-9BA0-A6057A5D9C9B

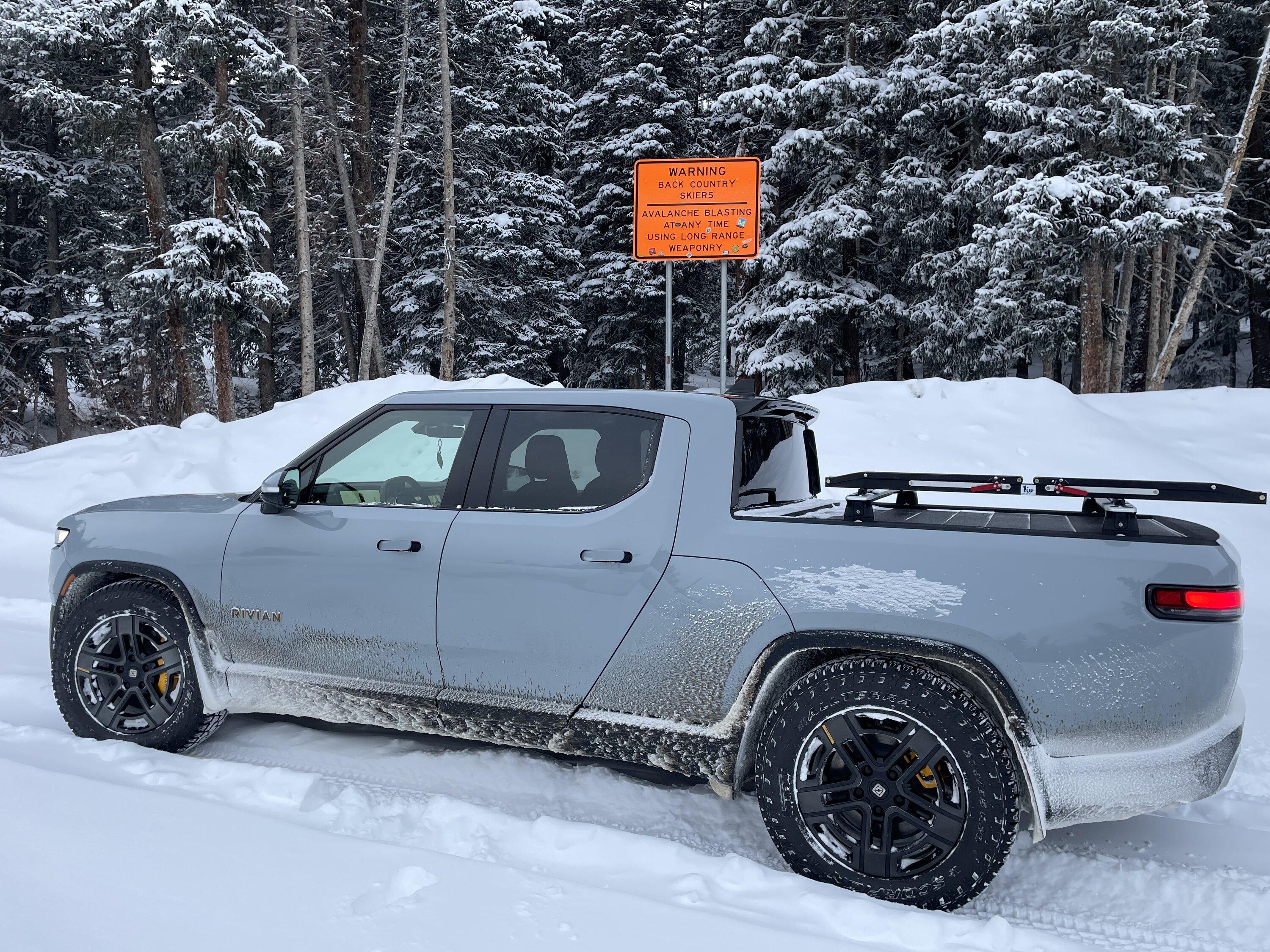

Fire in the hole!

Rivian R1T R1S High Alpine Run in Limestone R1T to 11,307’ With Lots of Elevation Changes 0F38B5A8-43F2-40CB-9AA4-49FDF6416191


Fine line between feathering regen vs pucker factor with downhill exposure.

Rivian R1T R1S High Alpine Run in Limestone R1T to 11,307’ With Lots of Elevation Changes 602E7082-1C77-4FAC-9632-A9440D15F4DC


Lysdexic

Well-Known Member
First Name
Scott
Joined
Oct 1, 2021
Threads
2
Messages
257
Reaction score
254
Location
North Carolina
Vehicles
04 Tundra
God, that looks fun!


DTown3011

Well-Known Member
Joined
Jun 7, 2022
Threads
28
Messages
1,660
Reaction score
2,190
Location
Denver, CO
Vehicles
Rivian R1T
Did a near identical run today up and down in winter conditions, 20” Rivian wheels and tires, temps 0F - 20F, about 5” of snow on top of plowed mountain roads.

Efficiency dropped quite a big both up and down due largely to lower temps.

Uphill winter run was 1.59 mi/kWh and 53.2 KWh total vs uphill summer run at 2.06 mi/kWh and 46.5 kWh total.

Uphill Winter Run Denver - Tabernash CO.



Downhill winter return was 2.5 mi/kWh and 32.2 kWh total vs summer 3.15 mi/kWh and 29.5 kWh total.

Downhill Winter Run Tabernash - Denver:



Berthoud Pass summit @ 11,300’ elevation top of Conti Divide.



Fire in the hole!



Fine line between feathering regen vs pucker factor with downhill exposure.

Going to be driving that road a LOT coming up over the next few months....same limestone...plan to put Michelin X-Ice on my 22" brights for the winter. THanks for posting!
