Hi guys, I've been reading these forums for advice and tips on troubleshooting wind noise, and I have come up with a DIY fix that works really well!

First off, I would like to thank Hamdan's post for getting me started:
https://www.rivianforums.com/forum/threads/wind-noise-solved-at-last-using-tube-rubber-seal.17797/

I would definitely read through what he's done as my fix is somewhat based on that
However, I will try to make a more concise guide here with pictures to help streamline the process.
FYI, I have a 2024 R1S build/VIN.

Part 1: Figure out what kind of wind noise you have

-If you have very obvious wind noise coming from one spot (most likely the seal from the A pillar window), then Rivian Service can actually replace that seal and fix it

-However, if it's the more general "the car just seems loud at highway speeds", then Rivian Service will say "it's within spec", and leave you frustrated. I, like many others, have taken my car in for wind noise only for them to tell me that. If this is the type of wind noise that you have, then we can move on to our DIY fix

Part 2: The Fix

From my extensive testing using painter's tape to seal areas, I've found 3 common areas that seem to really help remove the wind noise.
They are:
1. The door frame seal (on car frame, and on door),
2. The seal around the edge of the door
3. The seals INSIDE the window

Additional Areas:
4. Rear door seals and rear window seals
5. Windshield and Roof

These additional areas weren't "high yield" for me, which is why I initially didn't do them. What I mean by that is doing #1-3 got rid of 85-90% of the windnoise and were very high yield. The car became just as quiet as a BMW X5e (see below for dB measurements). However, as a tinkerer/DIY guy, I couldn't resist more experimentation. Doing the rear doors, and windshield helped get that 10-15% windnoise that was left, and made the car DEAD quiet (my wife says the BMW X5e is louder now)

Amazon Parts:
Door Frame Seal (buy 2):

https://www.amazon.com/dp/B07H89G7D1?ref=ppx_yo2ov_dt_b_product_details&th=1
Car Weather Stripping,Universal Self Adhesive Auto Door Rubber Draft Seal Strip,Car Window Door Engine Cover Noise Insulation(47/100 Inch Wide X 2/5 Inch Thick X 33 Feet Long)

Door Edge Seal and Inside Window Seals (buy 2):
https://www.amazon.com/dp/B00NL4D2T8?ref=ppx_yo2ov_dt_b_product_details&th=1
Trim-LOK Rubber Cord Seal for Gun and Pistol Cases, Tackle Boxes, Cooler Lids, Replacement O-Ring Watertight Weatherstripping Seal - 0.25

Door Frame Fix
For the door frame, I used the L shaped weather stripping and placed it around the existing seal on the car frame, and behind the existing seal on the door itself. The idea is basically to puff up the existing seal on the door, and to give more rubber surface area on the door frame to make a tighter seal

Doing this helped make the car quieter, but the buffeting kind of wind noise was still apparent at highway speeds. The rubber can be inserted around the existing seal quite snugly. I was able to make it look pretty good, with only minimal adhesive use. You do not need to buy adhesive, the seal comes with an adhesive back arleady. I used one solid piece all the way around the door and put the ends towards the front bottom of the door, so you really can't see any gaps.

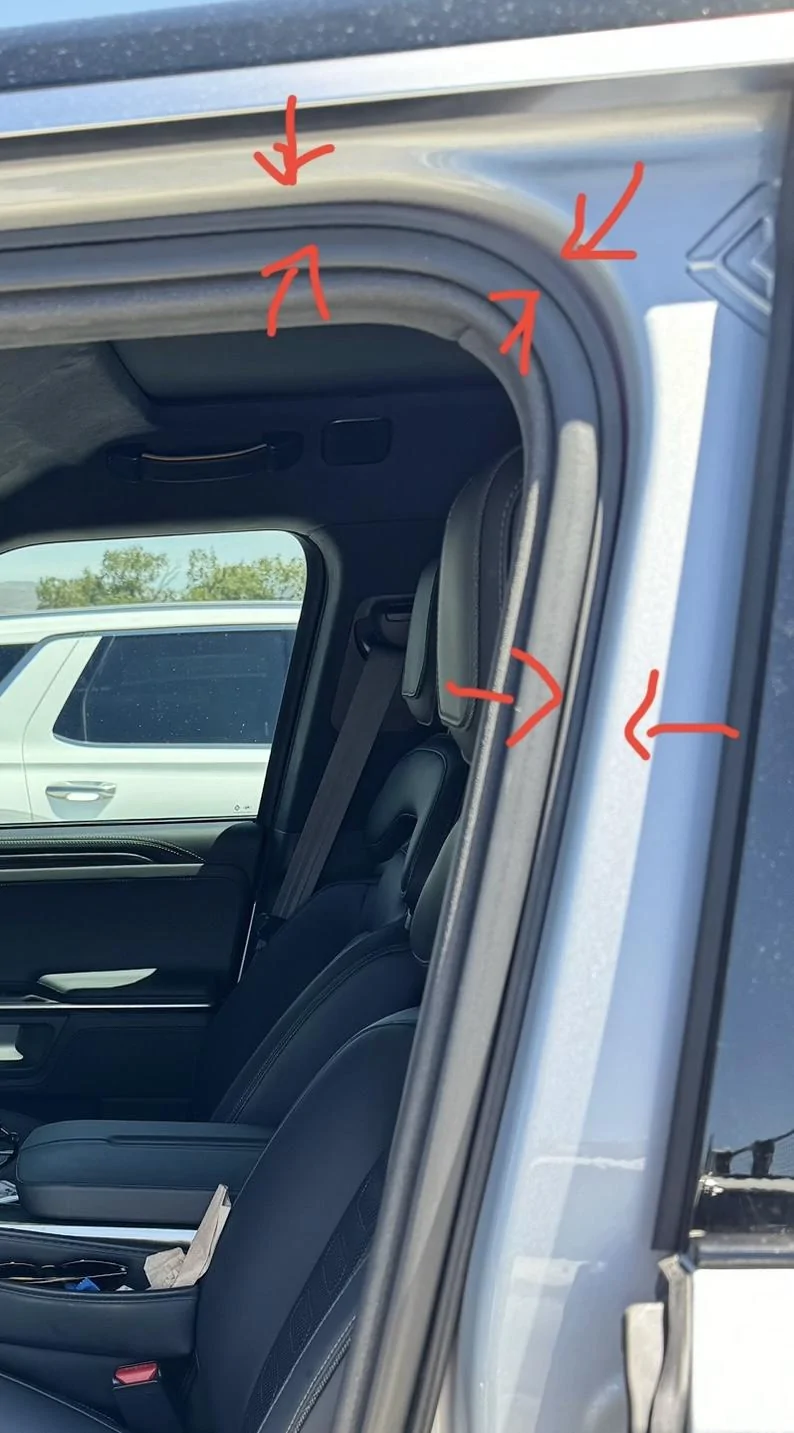

Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! door frame L seal

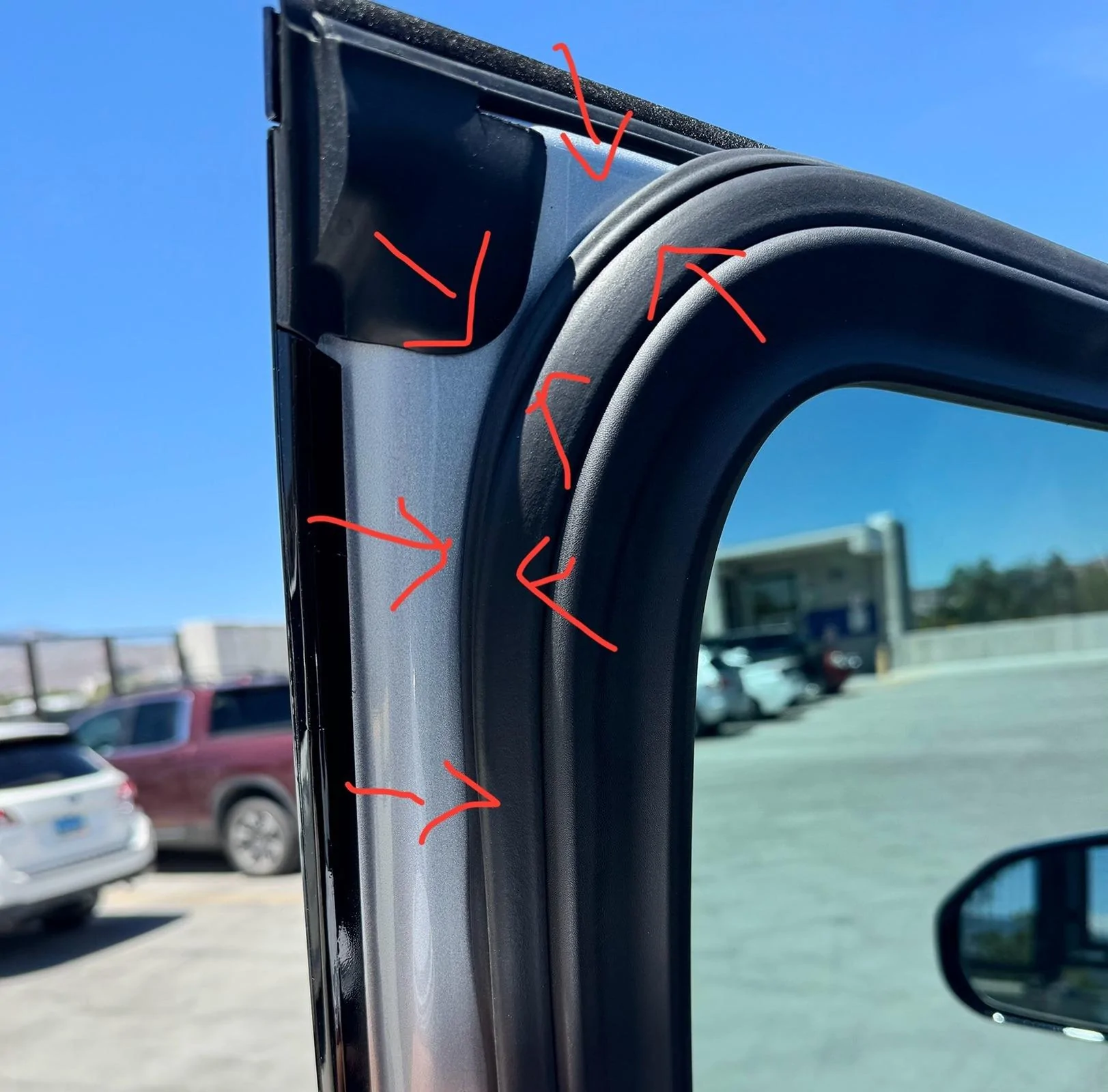

Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! door L shaped seal


Outer Door Seal Fix

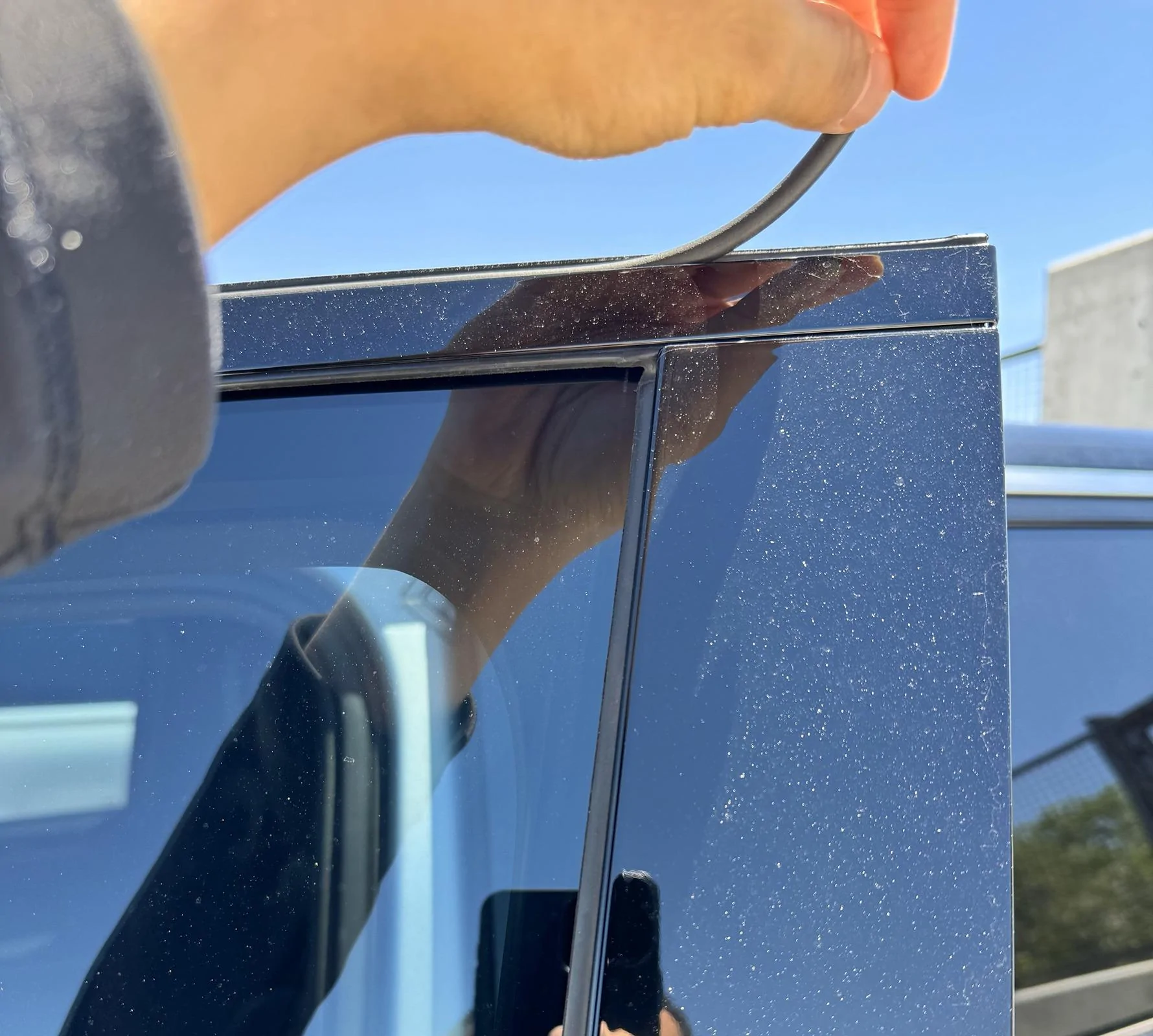

The leading front edge and top of each door also has a rubber seal. However, due to the door tolerances not being great, I think a lot of wind noise slips in here, especially at highway speeds. I would recommend placing a continuous Trim-Lok cord seal along the entire seal. FYI, it does shrink a little bit in the sun, so I would cut the piece a little long initially.

Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! door outer seal


Inside Window Fix
After adding rubber seals to the door frame and outer door seals, I would say my wind noise went from a B- to a B+. However, I would still get some buffeting noise at high speeds. To put it in terms of numbers, I used to hear significant wind noise above 60mph. After the Door Frame Fix and Outer Door Seal Fix, I would hear wind noise around 75mph (quieter, but still noticeable).

My windows do close all the way (this was verified by Rivian Service), but listening carefully, I could still hear wind noise coming through the window. Once I rolled down the window, I saw the same type of seal as on the outer door seal. There are two layers, but again - I guess the manufacturing tolerances aren't great yet, and I don't think the seal is making a tight contact with the window glass.

I also placed a continuous Trim-Lok cord seal along the entire path, and one for each track inside the window. I used a guitar pick (or you can cut a plastic strip from an old credit card) to pry the seal more open to stick the Trim-Lok underneath it. I verified that the windows roll up and down without any interference

Seal Locations:

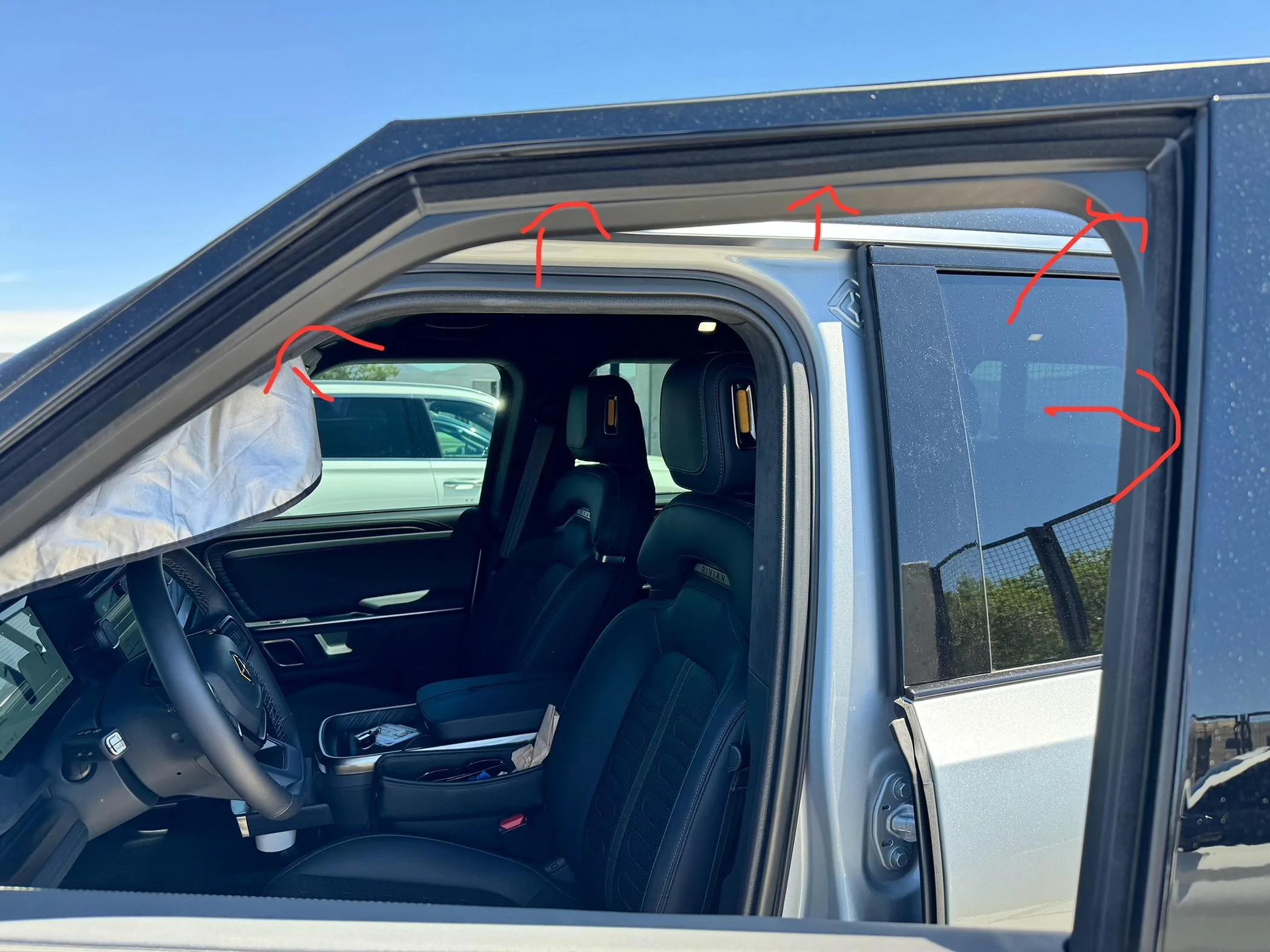

Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! inside window seals 3

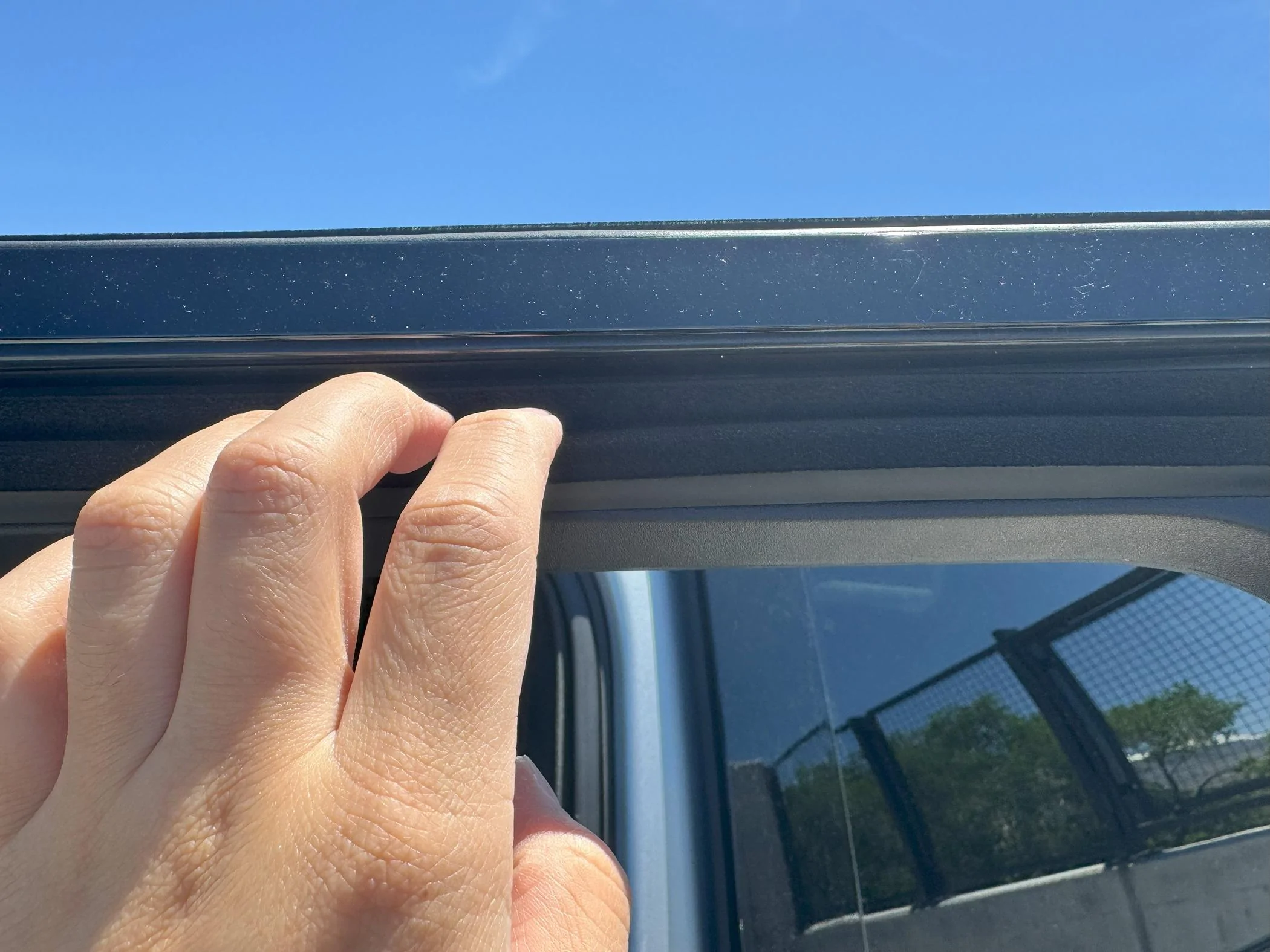

Pry these open a bit to insert the trim-lok cord seal:
Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! inside window seal openin


Results:

After applying all 3 fixes, my R1S is dead silent at speeds less than 75mph. I hear a tiny bit of wind noise at 80mph. And I have to go 85-90mph before I would say the wind noise forces me to increase my speaker volume to 12. Even at 85-90mph, the wind noise is MUCH quieter than the stock configuration

In terms of comparison, I a hybrid BMW X5 and I would say the Rivian is now on par with it. I would give it an A- in terms of wind noise. Other cars I've driven that are quieter (rating A) would be an i4 or E-tron.

I've attached pictures to help visualize my DIY fix.

Hope this helps everyone who's sick of hearing wind noise!

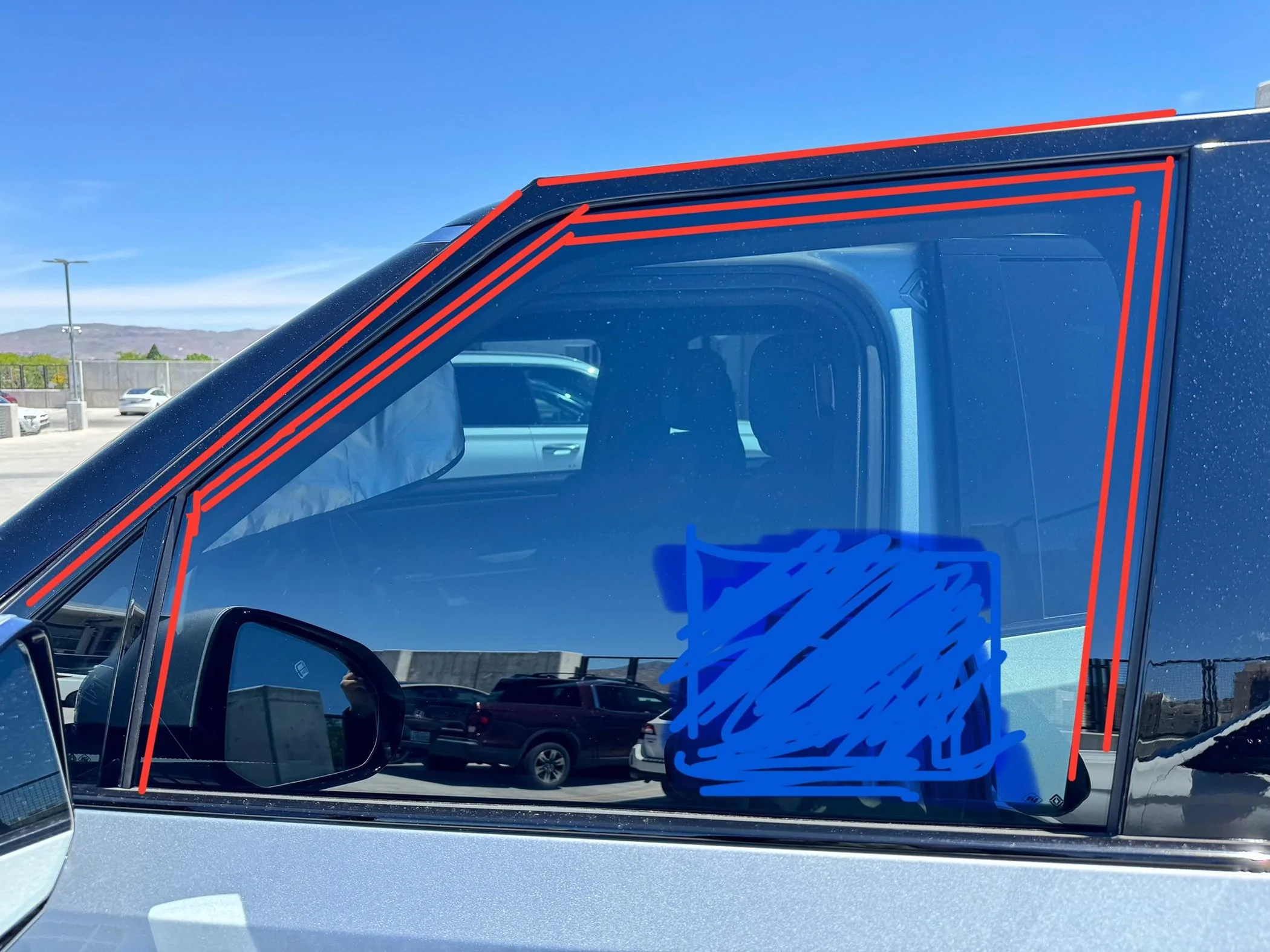

completed trim-lok round seals:
Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! inside window seals


--------
Overall Appearance Post DIY Fix:

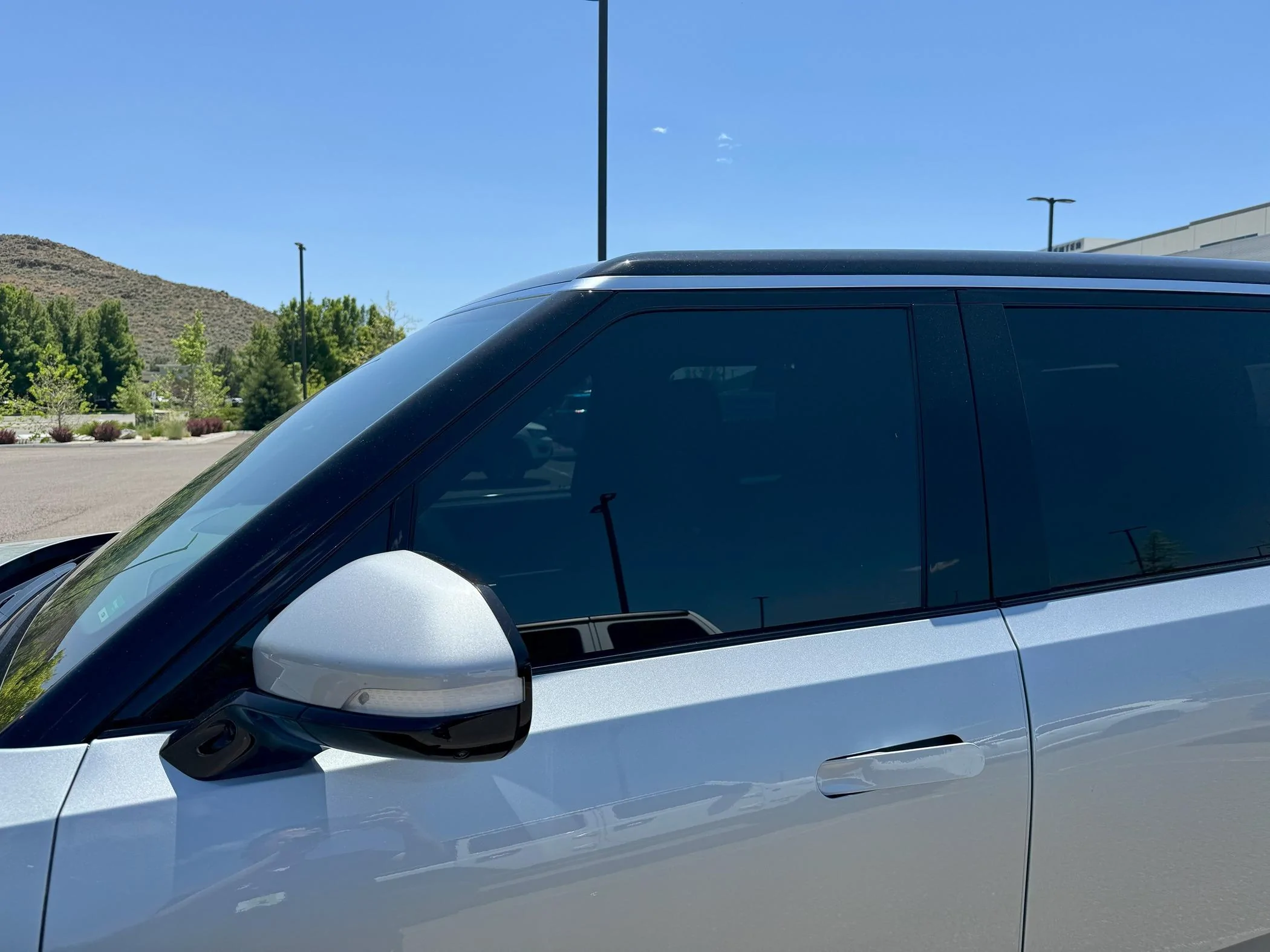

From the outside, you really can't tell I did anything. Looks very factory, and the trim-lok round seals disappear into the existing seals:
Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! outer view with trim lok seals

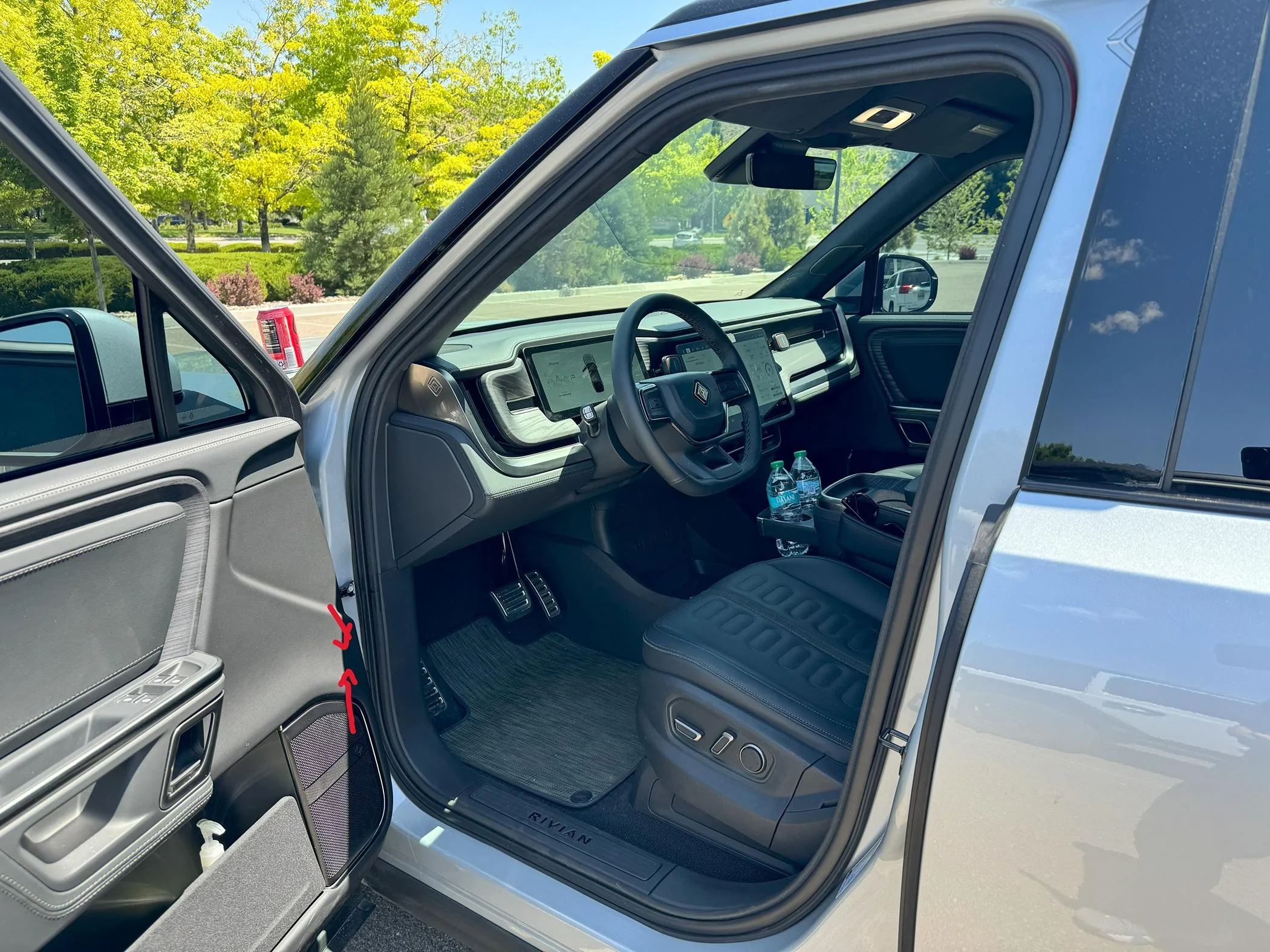

The door frame seals also blend in pretty well. And I started and ended the loop on the inner most part of the frame, so you really have to look for it to see it wasn't factory (see the red arrow):
Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! door frame seal full view


--------
***Sound Measurement Update*** (before rear doors and windshield)

A forum member requested dB readings as well, so I'm providing them here.
Unfortunately, I do not have any "before" readings (and FYI I'm not going to remove everything and re-do it at this point). I do have an apple watch (series 7), and I recorded readings of my R1S vs my BMW X5 45e hybrid (in electric only mode). The AC fan was off, same stretch of highway, and roughly the same speeds (hard to drive, monitor traffic and snap a quick photo)

For those unfamiliar with the decibel (dB) scale, it is logarithmic. Meaning an increase of 10db is 2x the loudness. so 60db->70dlb is not 16% increased loudness, but 100% increased loudness.

Rivian R1S w added seals:
61mph - 60db
76mph - 65db
82mph -65db

BMW X5 45e
64mph - 61db
76mph - 65db
81mph - 66db

Keep in mind this is an apple watch and not some special sound testing equipment. the 1 db difference is probably well within margin of error, but it shows my initial assessment was correct in saying the Rivian is on par with the BMW in terms of quietness now. See pictures below for proof

--------
Addendum - What about the windshield, rear doors and roof? **Updated 6/13/2024**

Personally, my testing of the windshield and roof did not yield any changes in the wind noise. I used painter's tape to first cover up the panel gaps, and had no effect. I put trim lock cord seal and even bought the T shaped rubber seal that Hamdan's post used, but no change in wind noise for me.

While Rivian's build quality is impressive considering it's short history, I think there is still a lot of variance between each car, so maybe adding windshield and roof seals may help you.


So I initially said that the windshield and roof didn't do much for me, but that was at the start - before I did my fix. I think the vast majority of wind noise is coming from the front doors and door windows, but after you address those issues, you can hear where the remaining windnoise is coming from. Keep in mind, my rivian went from loud to the same as a BMW X5e after just doing the front doors and windows. However, I couldn't stop tinkering, and found some more places that can help. After adding the additional seals, my wife says the Rivian is now quieter than the X5. It is probably the quietest car I've driven now.

Your mileage and results may vary, as people's variances between VINs is quite high, but here's some additional areas to tackle:

Rear Doors
Do the same as the front doors, with the seals around the frame, and behind the door seal. I also put the trim-lok round seals inside the window seal. My car was quiet after doing the fronts, but I could hear some faint wind noise coming from behind me. Putting these in pretty much eliminated that.

Windshield/Roof:
The only windnoise that was left was some mild noise coming from above me. I thought it was the roof, so i taped it up, but it did nothing for me. Still, some people have success, so where you can try to seal it is where the applique meets the glass moonroof. The applique should sit a little higher than the moonroof (so that it blocks the wind). If it does, sealing it or taping it up really won't do anything.

Use a 0.25inch trim-lok to wedge in the gap, or you can buy this :
https://www.amazon.com/gp/product/B0BYSNVCFS
and use the 14mm "T" shaped seal to bridge that gap

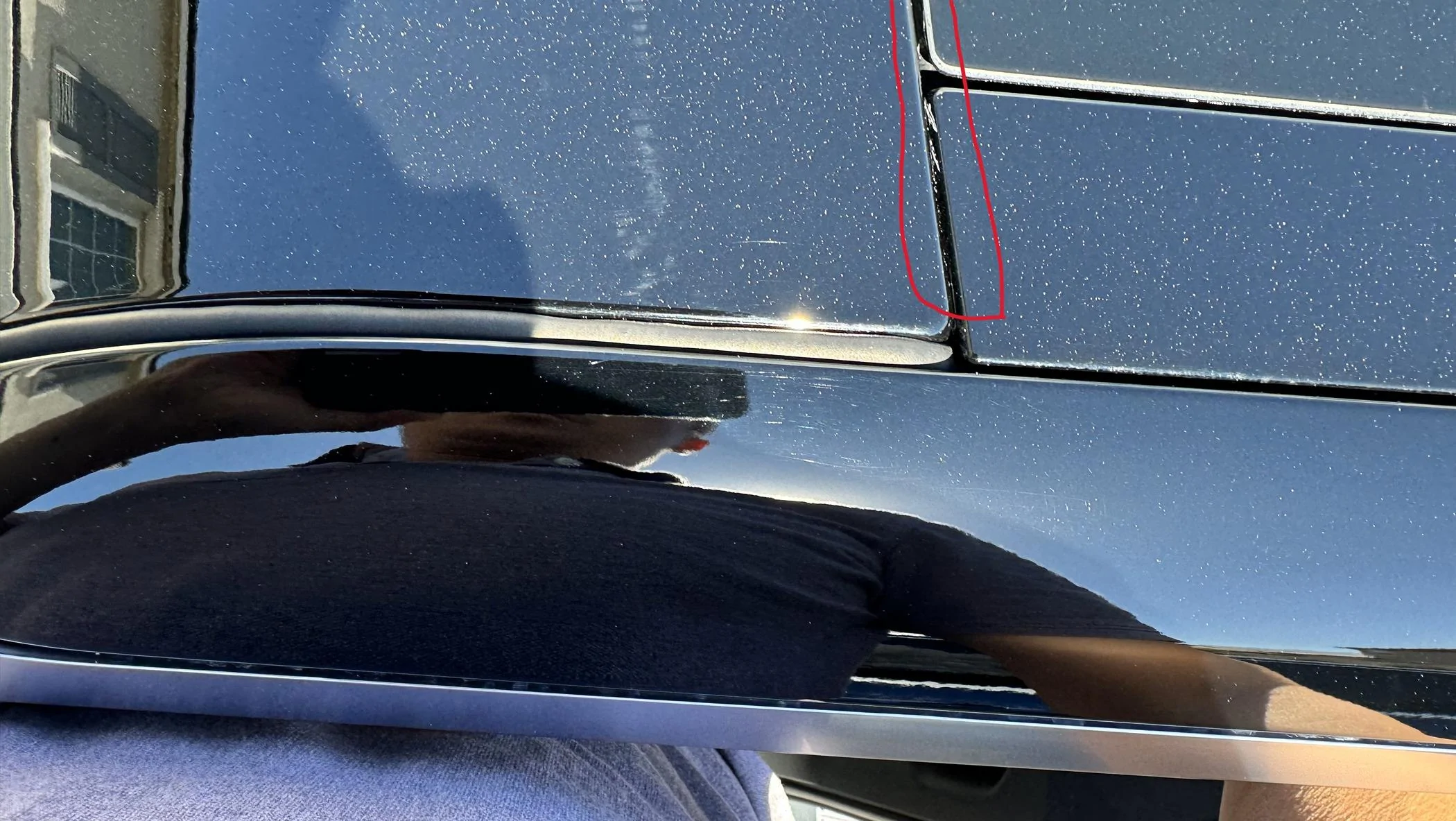

Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! roof insert


What did help get rid of the wind noise above me was actually the windshield. I think the grooves along the windshield funnel the wind up to the top, where it is catching and causing some noise.

What helped for me, was the vertical sides of the windshield. On the BMW, there is no groove between the car frame and the windshield, but there's a trench on each side with the Rivian. I bought this uxcell 8mm (0.31inch) round seal, that wedged perfectly into that groove.
https://www.amazon.com/uxcell-Rubber-Weather-Diameter-Meters/dp/B07ZNH29FH/

you can see how it fits nicely along the windshield groove and then I have to wedge it in at the top of the roof (see above picture)

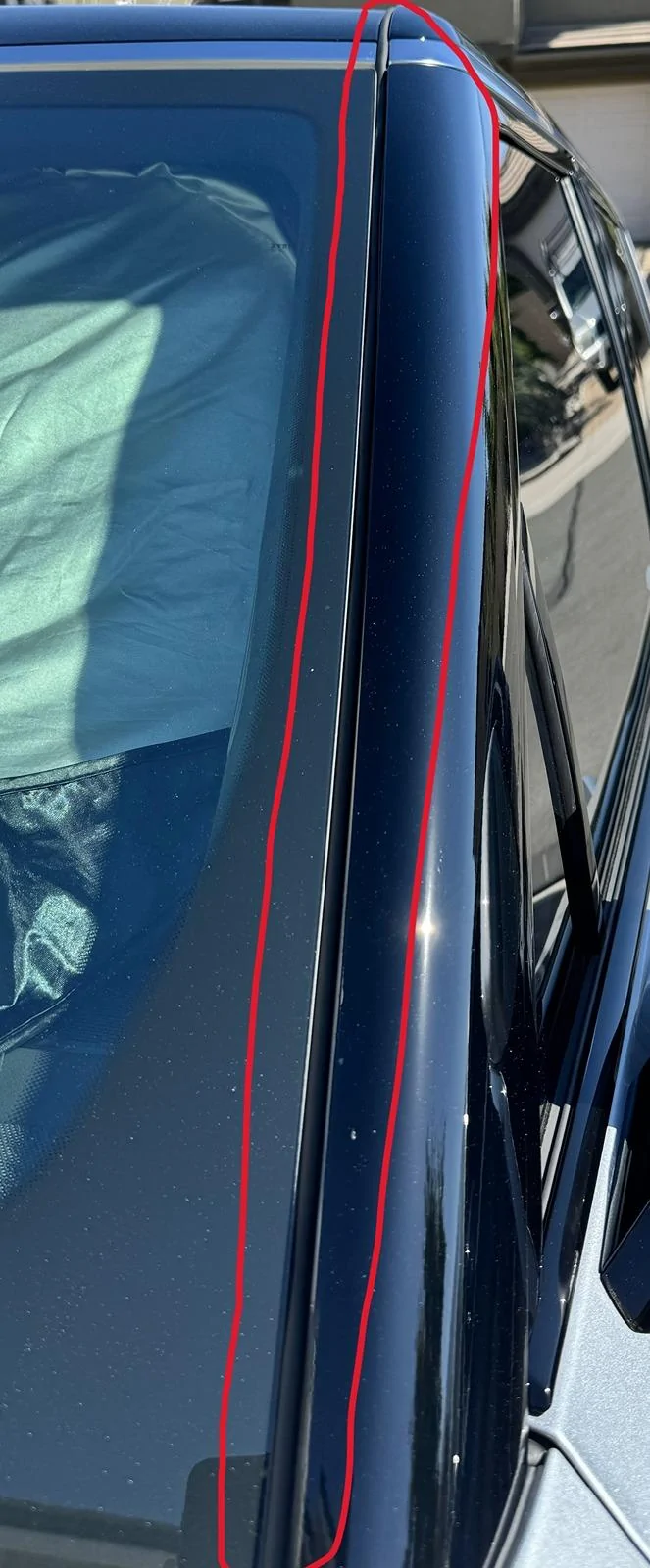

Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! windshield vertical 1

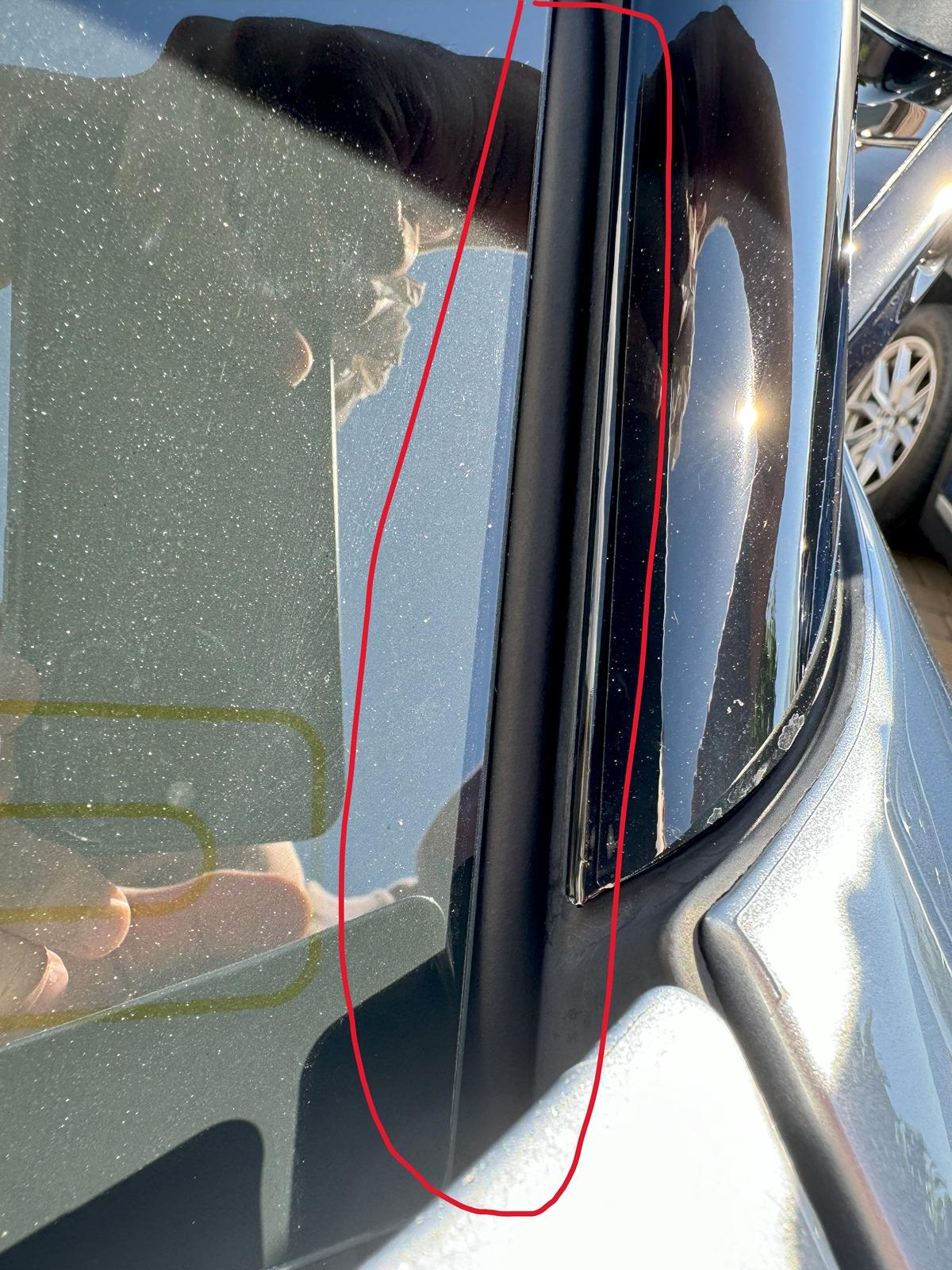

you can snug in the round seal at the bottom of the windshield
Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! windshield vertical 2 detail


Finally, I tried the top strip of the windshield. It didn't do much for me, but in case it works for you, this is where wind noise might be coming from:

The item is the same as the "T"shaped seal used for the roof (https://www.amazon.com/gp/product/B0BYSNVCFS), but since the gap is wider, you need to use the 19mm size (it comes with it).

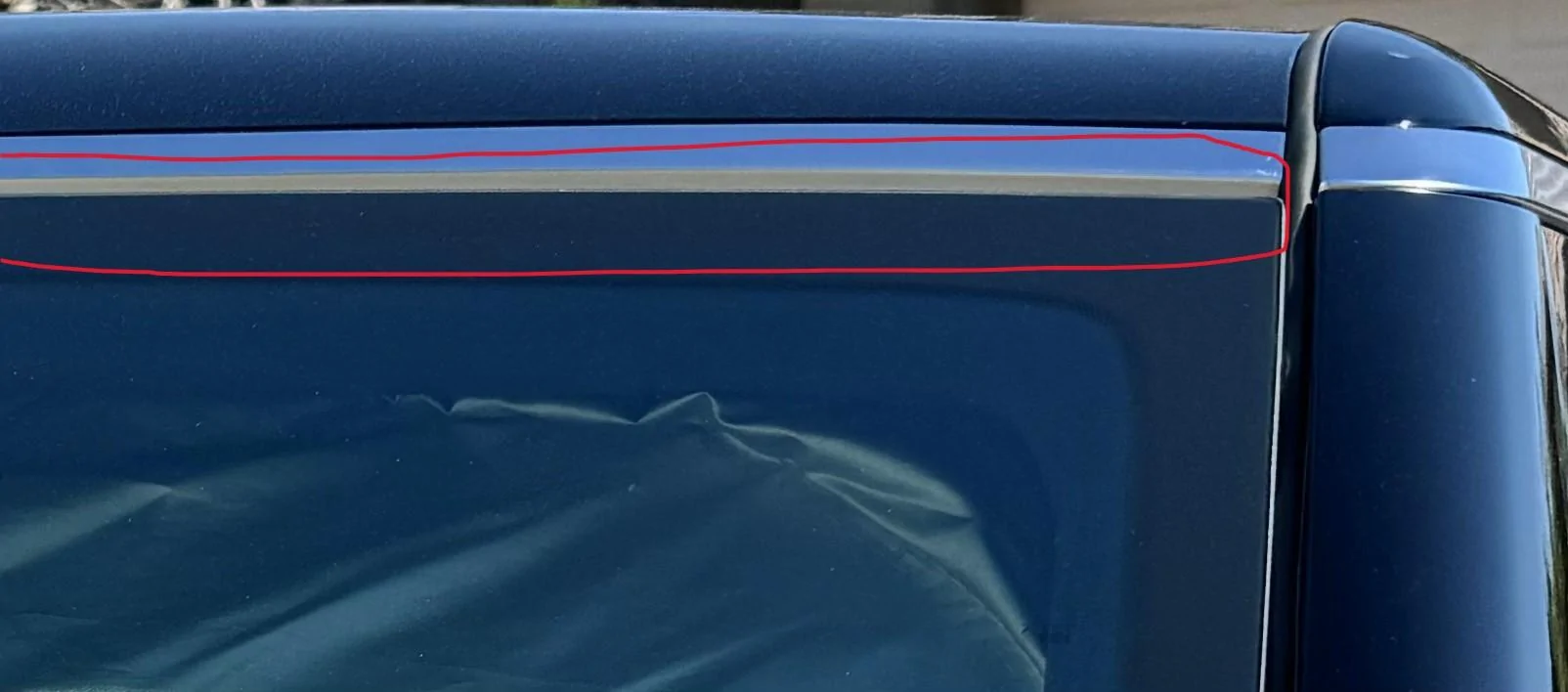

Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! windshield stri


-----
dB measurement snapshots (prior to windshield and rear door seals being added)
Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! Rivian 61mph 60db

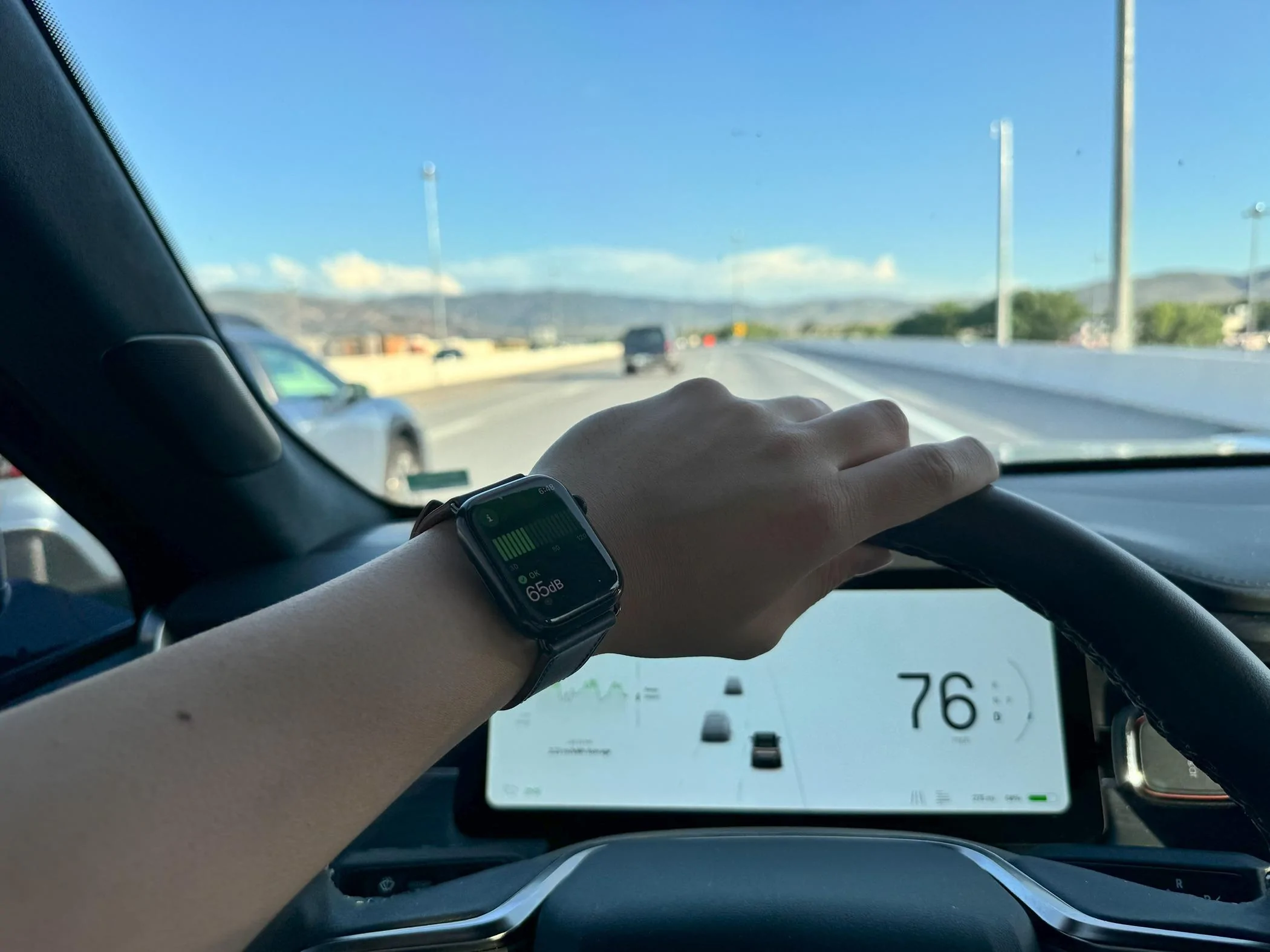

Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! Rivian 76mph 65db

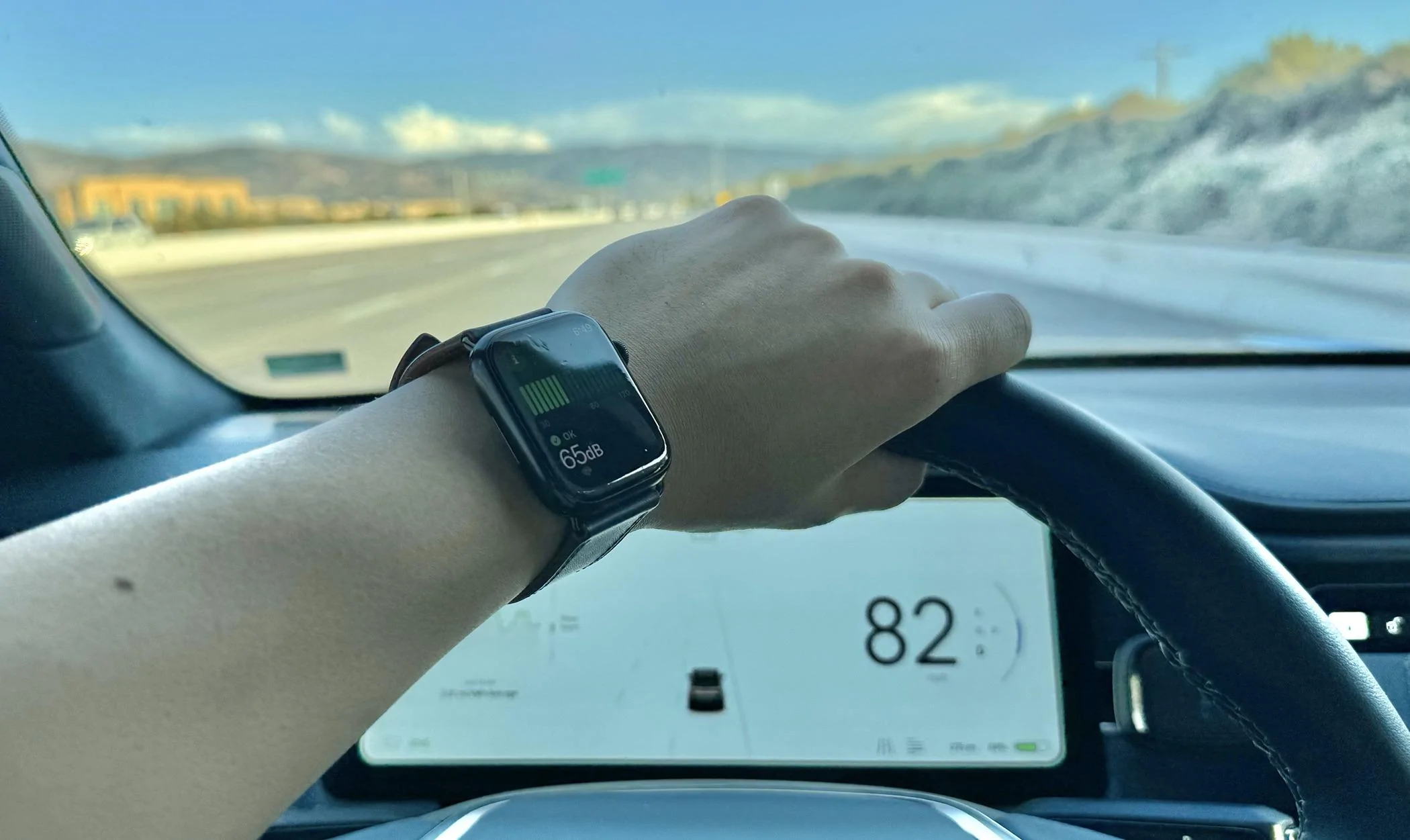

Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! Rivian 82mph 65db

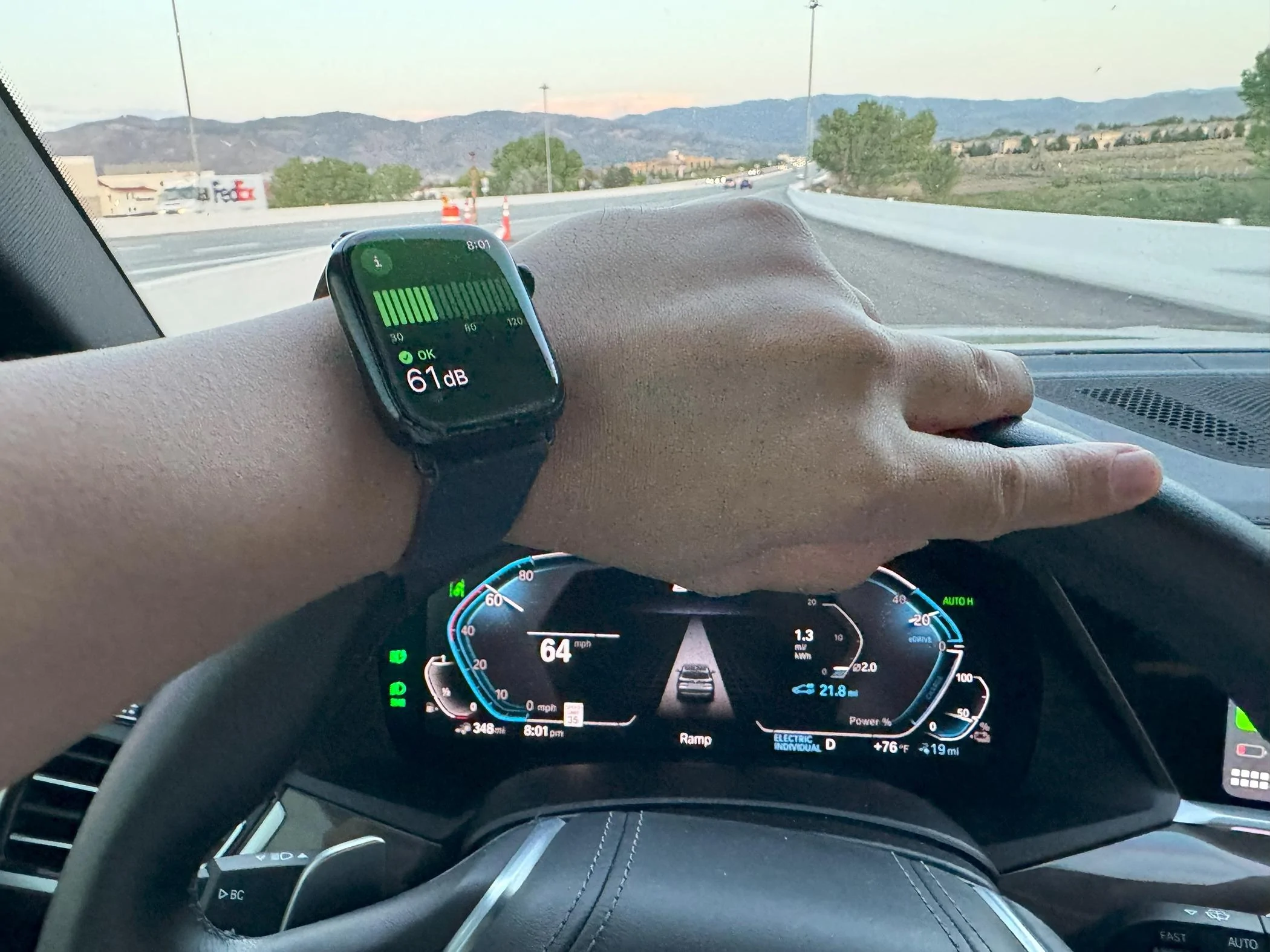

Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! BMW 64mph 61db
Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! BMW 76mph 65db
Rivian R1T R1S Guide: R1S / R1T Wind Noise FIX! BMW 81mph 66db
Sponsored


Last edited:

Freddie

Well-Known Member
First Name
800VSlowCharger
Joined
Mar 1, 2022
Threads
5
Messages
85
Reaction score
85
Location
San Francisco
Vehicles
R1S
Clubs

Hi guys, I've been reading these forums for advice and tips on troubleshooting wind noise, and I have come up with a DIY fix that works really well!

First off, I would like to thank Hamdan's post for getting me started:
https://www.rivianforums.com/forum/threads/wind-noise-solved-at-last-using-tube-rubber-seal.17797/

I would definitely read through what he's done as my fix is somewhat based on that
However, I will try to make a more concise guide here with pictures to help streamline the process.
FYI, I have a 2024 R1S build/VIN.

Part 1: Figure out what kind of wind noise you have

-If you have very obvious wind noise coming from one spot (most likely the seal from the A pillar window), then Rivian Service can actually replace that seal and fix it

-However, if its the more general "the car just seems loud at highway speeds", then Rivian Service will say "it's within spec", and leave you frustrated. I, like many others, have taken my car in for wind noise only for them to tell me that. If this is the type of wind noise that you have, then we can move on to our DIY fix

Part 2: The Fix

From my extensive testing using painter's tape to seal areas, I've found 3 common areas that seem to really help remove the wind noise.
They are:
1. The door frame seal (on car frame, and on door),
2. The seal around the edge of the door
3. The seals INSIDE the window

Amazon Parts:
Door Frame Seal:

https://www.amazon.com/dp/B07H89G7D1?ref=ppx_yo2ov_dt_b_product_details&th=1
Car Weather Stripping,Universal Self Adhesive Auto Door Rubber Draft Seal Strip,Car Window Door Engine Cover Noise Insulation(47/100 Inch Wide X 2/5 Inch Thick X 33 Feet Long)

Door Edge Seal and Inside Window Seals:
https://www.amazon.com/dp/B00NL4D2T8?ref=ppx_yo2ov_dt_b_product_details&th=1
Trim-LOK Rubber Cord Seal for Gun and Pistol Cases, Tackle Boxes, Cooler Lids, Replacement O-Ring Watertight Weatherstripping Seal - 0.25

Door Frame Fix
For the door frame, I used the L shaped weather stripping and placed it around the existing seal on the car frame, and behind the existing seal on the door itself. The idea is basically to puff up the existing seal on the door, and to give more rubber surface area on the door frame to make a tighter seal

Doing this helped make the car quieter, but the buffeting kind of wind noise was still apparent at highway speeds. The rubber can be inserted around the existing seal quite snugly. I was able to make it look pretty good, with only minimal adhesive use. I used one solid piece all the way around the door and put the ends towards the front bottom of the door, so you really can't see any gaps.

door frame L seal.jpg
door L shaped seal.jpg


Outer Door Seal Fix
The leading front edge and top of each door also has a rubber seal. However, due to the door tolerances not being great, I think a lot of wind noise slips in here, especially at highway speeds. I would recommend placing a continuous Trim-Lok cord seal along the entire seal. FYI, it does shrink a little bit in the sun, so I would cut the piece a little long initially.

door outer seal.jpeg


Inside Window Fix
After adding rubber seals to the door frame and outer door seals, I would say my wind noise went from a B- to a B+. However, I would still get some buffeting noise at high speeds. To put it in terms of numbers, I used to hear significant wind noise above 60mph. After the Door Frame Fix and Outer Door Seal Fix, I would hear wind noise around 75mph (quieter, but still noticeable).

My windows do close all the way (this was verified by Rivian Service), but listening carefully, I could still hear wind noise coming through the window. Once I rolled down the window, I saw the same type of seal as on the outer door seal. There are two layers, but again - I guess the manufacturing tolerances aren't great yet, and I don't think the seal is making a tight contact with the window glass.

I also placed a continuous Trim-Lok cord seal along the entire path, and one for each track inside the window. I used a guitar pick (or you can cut a plastic strip from an old credit card) to pry the seal more open to stick the Trim-Lok underneath it. I verified that the windows roll up and down without any interference

Seal Locations:
inside window seals 3.jpg


Pry these open a bit to insert the trim-lok cord seal:
inside window seal opening.jpg


Results:

After applying all 3 fixes, my R1S is dead silent at speeds less than 75mph. I hear a tiny bit of wind noise at 80mph. And I have to go 85-90mph before I would say the wind noise forces me to increase my speaker volume to 12. Even at 85-90mph, the wind noise is MUCH quieter than the stock configuration

In terms of comparison, I a hybrid BMW X5 and I would say the Rivian is now on par with it. I would give it an A- in terms of wind noise. Other cars I've driven that are quieter (rating A) would be an i4 or E-tron.

I've attached pictures to help visualize my DIY fix.

Hope this helps everyone who's sick of hearing wind noise!


completed seals:
inside window seals.jpg


--------
Addendum - What about the windshield and roof?

Personally, my testing of the windshield and roof did not yield any changes in the wind noise. I used painter's tape to first cover up the panel gaps, and had no effect. I put trim lock cord seal and even bought the T shaped rubber seal that Hamdan's post used, but no change in wind noise for me.

While Rivian's build quality is impressive considering it's short history, I think there is still a lot of variance between each car, so maybe adding windshield and roof seals may help you.
Great write up, thank you! For the material you have mentioned, how many of these we need?


DoubleTake

Well-Known Member
First Name
Anthony
Joined
Oct 8, 2023
Threads
10
Messages
182
Reaction score
225
Location
New York
Vehicles
2022 Rivian R1T
Occupation
Military
Volume at 10-12 lol I wish. Using Spotify anything below 15 is basically off. I run it at 15-20 to be able to enjoy and listen to my music. It has nothing to do with wind noise either. Meridian volume is way to low from factory


240vPlug

Well-Known Member
Site Sponsor
First Name
Ken
Joined
Jan 30, 2023
Threads
34
Messages
2,110
Reaction score
2,209
Location
Mount Airy, Maryland
Website
www.ElectrifiedOutdoors.com
Vehicles
2023 Rivian R1T Quad, 2024 Rivian R1S Quad
Occupation
Real Estate
Clubs

Volume at 10-12 lol I wish. Using Spotify anything below 15 is basically off. I run it at 15-20 to be able to enjoy and listen to my music. It has nothing to do with wind noise either. Meridian volume is way to low from factory
Spotify sucks both in Tesla and in Rivian. I use Tidal and it works great.


Sponsored

OP
OP
ne0phyte

ne0phyte

Member
Joined
May 15, 2024
Threads
1
Messages
21
Reaction score
98
Location
Nevada
Vehicles
2024 R1S Max Pack 21' Road Wheels
Great write up, thank you! For the material you have mentioned, how many of these we need?
2 L shaped seals and 2 of the round trim lok seals, ill update my original post too.

OP
OP
ne0phyte

ne0phyte

Member
Joined
May 15, 2024
Threads
1
Messages
21
Reaction score
98
Location
Nevada
Vehicles
2024 R1S Max Pack 21' Road Wheels
Volume at 10-12 lol I wish. Using Spotify anything below 15 is basically off. I run it at 15-20 to be able to enjoy and listen to my music. It has nothing to do with wind noise either. Meridian volume is way to low from factory
I have the new in-house speaker system, for better or worse. My setting is with dynamic volume set to low, as that sounds best to me. With it off, I do have to use 15-20 even at low speeds.

Previously, with dynamic volume set too, I needed at least 14-16 to cover the wind noise at even 70mph, and closer to 20 at 80mph but deadening the wind noise really made a difference!


CGM55082

Well-Known Member
Joined
Nov 5, 2021
Threads
29
Messages
247
Reaction score
430
Location
San Luis Obispo, CA
Vehicles
Tesla Model 3
Occupation
PR
Thanks for this awesome write up. Much appreciated. Two clarifying questions:

1) You mentioned in your post that you needed to use minimal adhesive. Does that mean we need to also purchase and use adhesive to do this job? If so, what adhesive do you recommend?

2) Probably a dumb question, but just to clarify, you did this fix on all four doors, not just the fronts?

Thanks again for the great post.

Last edited:

Batman

Well-Known Member
Joined
Dec 1, 2021
Threads
7
Messages
424
Reaction score
442
Location
Dallas
Vehicles
2023 R1S Launch Edition; Kia Telluride SX-P
Hi guys, I've been reading these forums for advice and tips on troubleshooting wind noise, and I have come up with a DIY fix that works really well!

First off, I would like to thank Hamdan's post for getting me started:
https://www.rivianforums.com/forum/threads/wind-noise-solved-at-last-using-tube-rubber-seal.17797/

I would definitely read through what he's done as my fix is somewhat based on that
However, I will try to make a more concise guide here with pictures to help streamline the process.
FYI, I have a 2024 R1S build/VIN.

Part 1: Figure out what kind of wind noise you have

-If you have very obvious wind noise coming from one spot (most likely the seal from the A pillar window), then Rivian Service can actually replace that seal and fix it

-However, if its the more general "the car just seems loud at highway speeds", then Rivian Service will say "it's within spec", and leave you frustrated. I, like many others, have taken my car in for wind noise only for them to tell me that. If this is the type of wind noise that you have, then we can move on to our DIY fix

Part 2: The Fix

From my extensive testing using painter's tape to seal areas, I've found 3 common areas that seem to really help remove the wind noise.
They are:
1. The door frame seal (on car frame, and on door),
2. The seal around the edge of the door
3. The seals INSIDE the window

Amazon Parts:
Door Frame Seal (buy 2):

https://www.amazon.com/dp/B07H89G7D1?ref=ppx_yo2ov_dt_b_product_details&th=1
Car Weather Stripping,Universal Self Adhesive Auto Door Rubber Draft Seal Strip,Car Window Door Engine Cover Noise Insulation(47/100 Inch Wide X 2/5 Inch Thick X 33 Feet Long)

Door Edge Seal and Inside Window Seals (buy 2):
https://www.amazon.com/dp/B00NL4D2T8?ref=ppx_yo2ov_dt_b_product_details&th=1
Trim-LOK Rubber Cord Seal for Gun and Pistol Cases, Tackle Boxes, Cooler Lids, Replacement O-Ring Watertight Weatherstripping Seal - 0.25

Door Frame Fix
For the door frame, I used the L shaped weather stripping and placed it around the existing seal on the car frame, and behind the existing seal on the door itself. The idea is basically to puff up the existing seal on the door, and to give more rubber surface area on the door frame to make a tighter seal

Doing this helped make the car quieter, but the buffeting kind of wind noise was still apparent at highway speeds. The rubber can be inserted around the existing seal quite snugly. I was able to make it look pretty good, with only minimal adhesive use. I used one solid piece all the way around the door and put the ends towards the front bottom of the door, so you really can't see any gaps.

door frame L seal.jpg
door L shaped seal.jpg


Outer Door Seal Fix
The leading front edge and top of each door also has a rubber seal. However, due to the door tolerances not being great, I think a lot of wind noise slips in here, especially at highway speeds. I would recommend placing a continuous Trim-Lok cord seal along the entire seal. FYI, it does shrink a little bit in the sun, so I would cut the piece a little long initially.

door outer seal.jpeg


Inside Window Fix
After adding rubber seals to the door frame and outer door seals, I would say my wind noise went from a B- to a B+. However, I would still get some buffeting noise at high speeds. To put it in terms of numbers, I used to hear significant wind noise above 60mph. After the Door Frame Fix and Outer Door Seal Fix, I would hear wind noise around 75mph (quieter, but still noticeable).

My windows do close all the way (this was verified by Rivian Service), but listening carefully, I could still hear wind noise coming through the window. Once I rolled down the window, I saw the same type of seal as on the outer door seal. There are two layers, but again - I guess the manufacturing tolerances aren't great yet, and I don't think the seal is making a tight contact with the window glass.

I also placed a continuous Trim-Lok cord seal along the entire path, and one for each track inside the window. I used a guitar pick (or you can cut a plastic strip from an old credit card) to pry the seal more open to stick the Trim-Lok underneath it. I verified that the windows roll up and down without any interference

Seal Locations:
inside window seals 3.jpg


Pry these open a bit to insert the trim-lok cord seal:
inside window seal opening.jpg


Results:

After applying all 3 fixes, my R1S is dead silent at speeds less than 75mph. I hear a tiny bit of wind noise at 80mph. And I have to go 85-90mph before I would say the wind noise forces me to increase my speaker volume to 12. Even at 85-90mph, the wind noise is MUCH quieter than the stock configuration

In terms of comparison, I a hybrid BMW X5 and I would say the Rivian is now on par with it. I would give it an A- in terms of wind noise. Other cars I've driven that are quieter (rating A) would be an i4 or E-tron.

I've attached pictures to help visualize my DIY fix.

Hope this helps everyone who's sick of hearing wind noise!


completed seals:
inside window seals.jpg


--------
Addendum - What about the windshield and roof?

Personally, my testing of the windshield and roof did not yield any changes in the wind noise. I used painter's tape to first cover up the panel gaps, and had no effect. I put trim lock cord seal and even bought the T shaped rubber seal that Hamdan's post used, but no change in wind noise for me.

While Rivian's build quality is impressive considering it's short history, I think there is still a lot of variance between each car, so maybe adding windshield and roof seals may help you.
I did everything you did. I also tackled the windshield and roof area as well. Overall it reduced wind noise imo. I don't have technical data to back that up just my ears


akc5247

Well-Known Member
First Name
AKC
Joined
Dec 28, 2023
Threads
2
Messages
92
Reaction score
68
Location
NJ
Vehicles
2023 Subaru Ascent Touring, 2024 R1S dual motor
Occupation
Engineer
Clubs

Thanks for this awesome write up. Much appreciated. Two clarifying questions:

1) You mentioned in your post that you needed to use minimal adhesive. Does that mean we need to also purchase and use adhesive to do this job? If so, what adhesive do you recommend?

2) Probably a dumb question, but just to clarify, you did this fix on all four doors, not just the fronts?

Thanks again for the great post.

Would like to know this as well.thanks in advance, OP


Sponsored

Prime

Well-Known Member
Joined
Jul 18, 2022
Threads
11
Messages
1,154
Reaction score
1,160
Location
SoCali
Vehicles
Tesla MY(P), Rivian R1T
I recently did just the interior door seal (on body of vehicle not door). I did it on all 4 doors. It made a noticeable quieter interior overall. The rest of the wind is I think just due to the shape of the vehicle. G wagons have the same issue (wind noise) even with all their seals and double glazed glass.

OP
OP
ne0phyte

ne0phyte

Member
Joined
May 15, 2024
Threads
1
Messages
21
Reaction score
98
Location
Nevada
Vehicles
2024 R1S Max Pack 21' Road Wheels
Thanks for this awesome write up. Much appreciated. Two clarifying questions:

1) You mentioned in your post that you needed to use minimal adhesive. Does that mean we need to also purchase and use adhesive to do this job? If so, what adhesive do you recommend?

2) Probably a dumb question, but just to clarify, you did this fix on all four doors, not just the fronts?

Thanks again for the great post.

1. you dont need to purchase any adhesive. the L shaped rubber seal comes with an adhesive back already. What I meant is you dont even need to use all of that, because a lot of times you can just wedge the L shaped seal in. I only peeled off and exposed the adhesive at the end of the strip to keep it in place.

The trim lock round seal sits pretty tightly just being wedged inside the existing seal crevices. I can use my garden hose to clean the car and it all stays in place. Haven't tried a car wash though.

2. not a dumb question! I havent done the rear doors yet because most of the wind noise is gone now, but you certainly can do them too. I'll update this post if I notice a difference, and please share your results too!


dleewla

Well-Known Member
Joined
May 13, 2021
Threads
100
Messages
2,406
Reaction score
2,622
Location
WA
Vehicles
Rivian, Toyota, Lexus
Clubs

Hi guys, I've been reading these forums for advice and tips on troubleshooting wind noise, and I have come up with a DIY fix that works really well!

First off, I would like to thank Hamdan's post for getting me started:
https://www.rivianforums.com/forum/threads/wind-noise-solved-at-last-using-tube-rubber-seal.17797/

I would definitely read through what he's done as my fix is somewhat based on that
However, I will try to make a more concise guide here with pictures to help streamline the process.
FYI, I have a 2024 R1S build/VIN.

Part 1: Figure out what kind of wind noise you have

-If you have very obvious wind noise coming from one spot (most likely the seal from the A pillar window), then Rivian Service can actually replace that seal and fix it

-However, if its the more general "the car just seems loud at highway speeds", then Rivian Service will say "it's within spec", and leave you frustrated. I, like many others, have taken my car in for wind noise only for them to tell me that. If this is the type of wind noise that you have, then we can move on to our DIY fix

Part 2: The Fix

From my extensive testing using painter's tape to seal areas, I've found 3 common areas that seem to really help remove the wind noise.
They are:
1. The door frame seal (on car frame, and on door),
2. The seal around the edge of the door
3. The seals INSIDE the window

Amazon Parts:
Door Frame Seal (buy 2):

https://www.amazon.com/dp/B07H89G7D1?ref=ppx_yo2ov_dt_b_product_details&th=1
Car Weather Stripping,Universal Self Adhesive Auto Door Rubber Draft Seal Strip,Car Window Door Engine Cover Noise Insulation(47/100 Inch Wide X 2/5 Inch Thick X 33 Feet Long)

Door Edge Seal and Inside Window Seals (buy 2):
https://www.amazon.com/dp/B00NL4D2T8?ref=ppx_yo2ov_dt_b_product_details&th=1
Trim-LOK Rubber Cord Seal for Gun and Pistol Cases, Tackle Boxes, Cooler Lids, Replacement O-Ring Watertight Weatherstripping Seal - 0.25

Door Frame Fix
For the door frame, I used the L shaped weather stripping and placed it around the existing seal on the car frame, and behind the existing seal on the door itself. The idea is basically to puff up the existing seal on the door, and to give more rubber surface area on the door frame to make a tighter seal

Doing this helped make the car quieter, but the buffeting kind of wind noise was still apparent at highway speeds. The rubber can be inserted around the existing seal quite snugly. I was able to make it look pretty good, with only minimal adhesive use. I used one solid piece all the way around the door and put the ends towards the front bottom of the door, so you really can't see any gaps.

door frame L seal.jpg
door L shaped seal.jpg


Outer Door Seal Fix
The leading front edge and top of each door also has a rubber seal. However, due to the door tolerances not being great, I think a lot of wind noise slips in here, especially at highway speeds. I would recommend placing a continuous Trim-Lok cord seal along the entire seal. FYI, it does shrink a little bit in the sun, so I would cut the piece a little long initially.

door outer seal.jpeg


Inside Window Fix
After adding rubber seals to the door frame and outer door seals, I would say my wind noise went from a B- to a B+. However, I would still get some buffeting noise at high speeds. To put it in terms of numbers, I used to hear significant wind noise above 60mph. After the Door Frame Fix and Outer Door Seal Fix, I would hear wind noise around 75mph (quieter, but still noticeable).

My windows do close all the way (this was verified by Rivian Service), but listening carefully, I could still hear wind noise coming through the window. Once I rolled down the window, I saw the same type of seal as on the outer door seal. There are two layers, but again - I guess the manufacturing tolerances aren't great yet, and I don't think the seal is making a tight contact with the window glass.

I also placed a continuous Trim-Lok cord seal along the entire path, and one for each track inside the window. I used a guitar pick (or you can cut a plastic strip from an old credit card) to pry the seal more open to stick the Trim-Lok underneath it. I verified that the windows roll up and down without any interference

Seal Locations:
inside window seals 3.jpg


Pry these open a bit to insert the trim-lok cord seal:
inside window seal opening.jpg


Results:

After applying all 3 fixes, my R1S is dead silent at speeds less than 75mph. I hear a tiny bit of wind noise at 80mph. And I have to go 85-90mph before I would say the wind noise forces me to increase my speaker volume to 12. Even at 85-90mph, the wind noise is MUCH quieter than the stock configuration

In terms of comparison, I a hybrid BMW X5 and I would say the Rivian is now on par with it. I would give it an A- in terms of wind noise. Other cars I've driven that are quieter (rating A) would be an i4 or E-tron.

I've attached pictures to help visualize my DIY fix.

Hope this helps everyone who's sick of hearing wind noise!


completed seals:
inside window seals.jpg


--------
Addendum - What about the windshield and roof?

Personally, my testing of the windshield and roof did not yield any changes in the wind noise. I used painter's tape to first cover up the panel gaps, and had no effect. I put trim lock cord seal and even bought the T shaped rubber seal that Hamdan's post used, but no change in wind noise for me.

While Rivian's build quality is impressive considering it's short history, I think there is still a lot of variance between each car, so maybe adding windshield and roof seals may help you.
nice work.

i think one key missing piece is testing the wind noise difference using a sounds meter. it would be more objective and quantifiable if you had measured the sound before and after.

ive done that in my R1T and i was averaging in the mid to high 60db at 75mph. to my surprise my Lexus was in the same range but "seemed" quieter. i think in my case the noise in my Lexus is mainly wind noise and engine noise while in the R1T its wind noise and road noise. maybe its perception on what seems louder to my brain.

OP
OP
ne0phyte

ne0phyte

Member
Joined
May 15, 2024
Threads
1
Messages
21
Reaction score
98
Location
Nevada
Vehicles
2024 R1S Max Pack 21' Road Wheels
nice work.

i think one key missing piece is testing the wind noise difference using a sounds meter. it would be more objective and quantifiable if you had measured the sound before and after.

ive done that in my R1T and i was averaging in the mid to high 60db at 75mph. to my surprise my Lexus was in the same range but "seemed" quieter. i think in my case the noise in my Lexus is mainly wind noise and engine noise while in the R1T its wind noise and road noise. maybe its perception on what seems louder to my brain.
I can use the db meter on my apple watch later.

one thing to note is the type of noise also affects our comfort. like you mentioned, your lexus may have the same db, but a smooth engine drone or constant road noise will be "nicer" than the a buffeting (like some one blowing into your ear periodically) type of wind noise which fluctuates in loudness and frequency.
Sponsored







Top
