Joel&Sue

New Member
First Name
Joel&Sue
Joined
May 15, 2021
Threads
2
Messages
4
Reaction score
20
Location
Dallas
First Name
Joel&Sue
Vehicles
Chevy Volt, Lexus Rx450, Corvette
We had our First Mile today, and it was a blast…. Everything we had hoped for was delivered. We were the third drive for Dallas area.

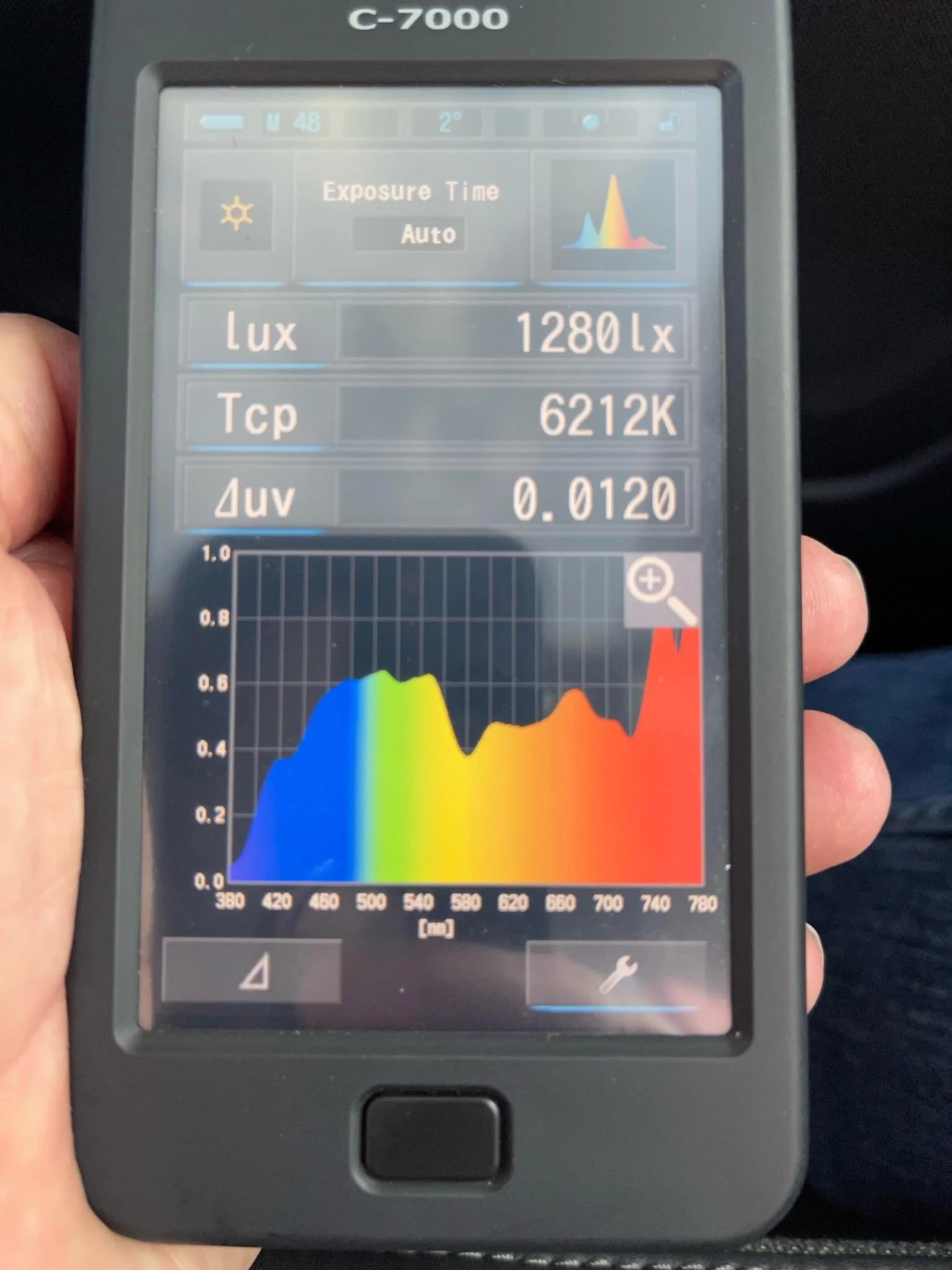

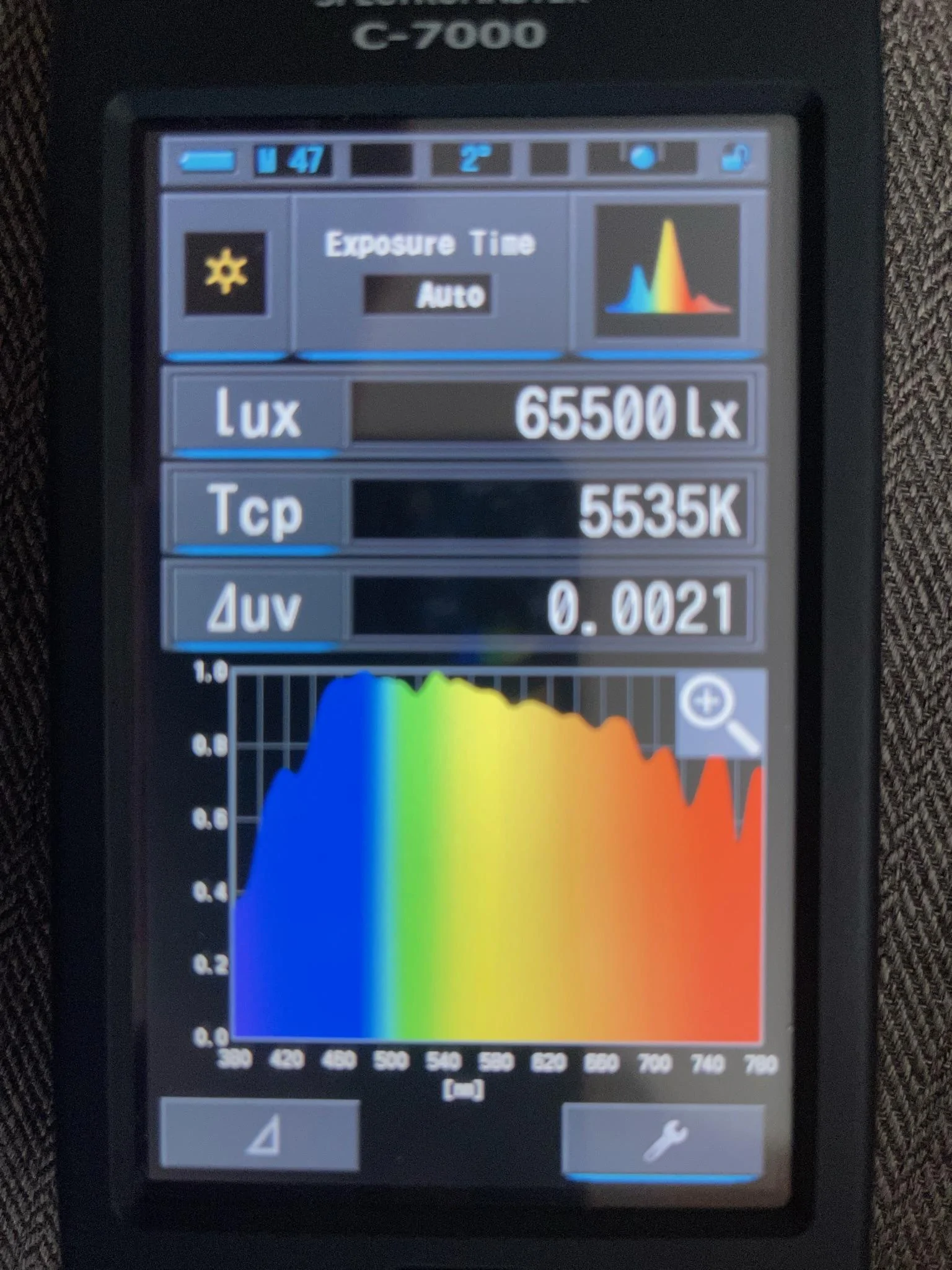

I did a light spectrum analysis of the outside versus the inside to measure the efficiency of the glass top. While the data confirms the glass certainly reduces the UV (Below 400nm) it also reduced the intensity from outside = 65,500 lux to 1280 lux inside. The data is attached.

While the intensity was certainly reduced, the heat radiating from the glass top could certainly be felt. Temperature today was about mid 70’s during our drive. We will need to engineer some type of insulated insert.






Last edited by a moderator:

LoneStar

Well-Known Member
Joined
Aug 2, 2020
Threads
46
Messages
1,173
Reaction score
2,734
Location
San Diego
Vehicles
son's CrossTrek beast, awaiting my R1T L.E.
Occupation
Engineer
maybe consider renaming thread to "NASA investigates Rivian roof pane" :like:


zefram47

Well-Known Member
First Name
Aaron
Joined
Feb 6, 2022
Threads
2
Messages
311
Reaction score
510
Location
Denver, CO
First Name
Aaron
Vehicles
MINI Cooper SE, 4Runner, C6 Corvette GS
Occupation
Software Engineer
While the intensity was certainly reduced, the heat radiating from the glass top could certainly be felt. Temperature today was about mid 70’s during our drive. We will need to engineer some type of insulated insert.
So am I reading that chart correctly that it doesn't knock down the IR pretty much at all? That's disappointing if they didn't put ceramic tint on it from the factory.


DaveA

Well-Known Member
First Name
David
Joined
Nov 17, 2020
Threads
2
Messages
572
Reaction score
1,273
Location
Texas
First Name
David
Vehicles
2022 Mazda CX-5, 2005 Acura TSX, 2022 Rivian R1T
We had our First Mile today, and it was a blast…. Everything we had hoped for was delivered. We were the third drive for Dallas area.

I did a light spectrum analysis of the outside versus the inside to measure the efficiency of the glass top. While the data confirms the glass certainly reduces the UV (Below 400nm) it also reduced the intensity from outside = 65,500 lux to 1280 lux inside. The data is attached.

While the intensity was certainly reduced, the heat radiating from the glass top could certainly be felt. Temperature today was about mid 70’s during our drive. We will need to engineer some type of insulated insert.




Yes, the day they delivered mine it was 90 outside and full sun and it can be felt...I worry for the 100 degree days.


kanundrum

Well-Known Member
Joined
May 2, 2020
Threads
150
Messages
2,861
Reaction score
9,385
Location
Washington, DC
Vehicles
Giulia QV, R1S (S00N)
Occupation
IT
Ceramic Tint the Roof essentially should reduce a great amount, if you get a light tint it can still let light in.


Scoiatael

Well-Known Member
Joined
Sep 20, 2021
Threads
12
Messages
509
Reaction score
894
Location
Southern CA
Vehicles
Tesla Model Y
Yes, the day they delivered mine it was 90 outside and full sun and it can be felt...I worry for the 100 degree days.
I can definitely feel the heat in my Model Y when temperatures go above 90.


electruck

Well-Known Member
Joined
Oct 6, 2019
Threads
56
Messages
2,188
Reaction score
4,224
Location
Dallas, TX
Vehicles
2018 Volvo XC60
Someone needs to get ceramic tint on the windows, windshield and roof and let me know if its worth it.
Based on experience with previous vehicles, it is absolutely worth it. I've never had to worry about doing the roof before and I'm not sure how film on the windshield works with registration stickers. But I've had ceramic tint on the side/back windows and the difference is freaking amazing vs without. I also use a Covercraft UVS100 sunshade in the front windshield whenever I'm parked which also makes a huge difference. The tint+sunshade make getting in a parked car in the Texas summer sun pretty much a non-issue (edit: even with a black interior).

Last edited:

Batman

Active Member
Joined
Dec 1, 2021
Threads
0
Messages
37
Reaction score
22
Location
Dallas
Vehicles
BMW X5; Kia Telluride SX-P
We had our First Mile today, and it was a blast…. Everything we had hoped for was delivered. We were the third drive for Dallas area.

I did a light spectrum analysis of the outside versus the inside to measure the efficiency of the glass top. While the data confirms the glass certainly reduces the UV (Below 400nm) it also reduced the intensity from outside = 65,500 lux to 1280 lux inside. The data is attached.

While the intensity was certainly reduced, the heat radiating from the glass top could certainly be felt. Temperature today was about mid 70’s during our drive. We will need to engineer some type of insulated insert.




Where in Dallas is this happening? I just want to see some Rivians in person. Any RS1s?


JGard18

Active Member
Joined
Mar 8, 2022
Threads
0
Messages
37
Reaction score
44
Location
Acton MA
Vehicles
2018 Tesla M3, 2014 Subaru Outback
Occupation
Consultant
Based on experience with previous vehicles, it is absolutely worth it. I've never had to worry about doing the roof before and I'm not sure how film on the windshield works with registration stickers. But I've had ceramic tint on the side/back windows and the difference is freaking amazing vs without. I also use a Covercraft UVS100 sunshade in the front windshield whenever I'm parked which also makes a huge difference. The tint+sunshade make getting in a parked car in the Texas summer sun pretty much a non-issue.
They put a piece of PPF where the reg sticker goes so you can just remove and re-apply new ones easily. I had my windshield tinted on my Model 3 when I was living in Austin. 95% tint, so you couldn't see it much, but it certainly helped reduce the feeling of the heat coming through.


ResidualReality

Well-Known Member
Joined
Mar 12, 2022
Threads
0
Messages
45
Reaction score
67
Location
Dallas,TX
Vehicles
Ram 1500 Limited
Occupation
CTO
Where in Dallas is this happening? I just want to see some Rivians in person. Any RS1s?
This was the First Mile Mobile event, where you sign up via your account page (I think it was only available to a certain number of pre-order holders, probably by order date), and they brought the vehicle to your house for a demo and test drive.

Apparently, I was the very first in Dallas Tuesday morning, and it was a LA Silver R1T. No R1Ss.

If you want to see a truck in person they are staging at 6100 Peeler St, near Love Field. You can't go on the property and they wont talk to you because they don't have a dealer license in Texas, but you can see them!


Akay07

Well-Known Member
Joined
Jan 4, 2021
Threads
0
Messages
95
Reaction score
87
Location
United States
Vehicles
Mustang Mache
That's disappointing. we will need to add something to the roof window? Would ceramic tinting be the way to go? My mustang does well at this and I don't feel the need additional methods to block out the sun in summer here.


SoCalTravels

Well-Known Member
Joined
Mar 18, 2021
Threads
5
Messages
75
Reaction score
185
Location
Southern California
Vehicles
Hyundai Nexo, Lexus RX450h
On our last panoramic roof we asked 3 different tint shops about doing our roof and none of them would do it. They all said adding tint to the inside of the glass roof pushes too much heat back through the glass and we risk the whole roof shattering on a hot day. We were firmly told not to do it.

I’m not an engineer or a scientist. So can’t speak to if what we were told is correct or not. But if Southern California tint shops won’t do it, I will probably not do it.


SANZC02

Well-Known Member
First Name
Bob
Joined
Feb 11, 2021
Threads
14
Messages
1,739
Reaction score
3,484
Location
California
First Name
Bob
Vehicles
Tesla Model S, Jeep Grand Cherokee; (LE - R1S)
Occupation
Retired
On our last panoramic roof we asked 3 different tint shops about doing our roof and none of them would do it. They all said adding tint to the inside of the glass roof pushes too much heat back through the glass and we risk the whole roof shattering on a hot day. We were firmly told not to do it.

I’m not an engineer or a scientist. So can’t speak to if what we were told is correct or not. But if Southern California tint shops won’t do it, I will probably not do it.
My take on this is if they are turning down a job there must be a good reason.
