I was inspired to do a write up by SacramentoElectric on a fridge slide install writeup for the R1T (https://www.rivianforums.com/forum/...dge-slide-diy-installation-walkthrough.18923/).

Rivian R1T R1S Fridge Slide for R1S Cargo Area Install (could maybe work for induction burner camp kitchen too?) 20230909_082951


I have used a fridge slide in my 4Runner for years and it is very useful, especially as it is often difficult to load in the storage area. I also did a write up on wiring back the missing 12v in the frunk and using a Bodega 36L fridge in the frunk. that setup works, but it seems to tax the Bodega and would be fine for grocery runs, but probably not able to keep stuff cold on longer drives due to the heat in the frunk. that writeup is here: ()

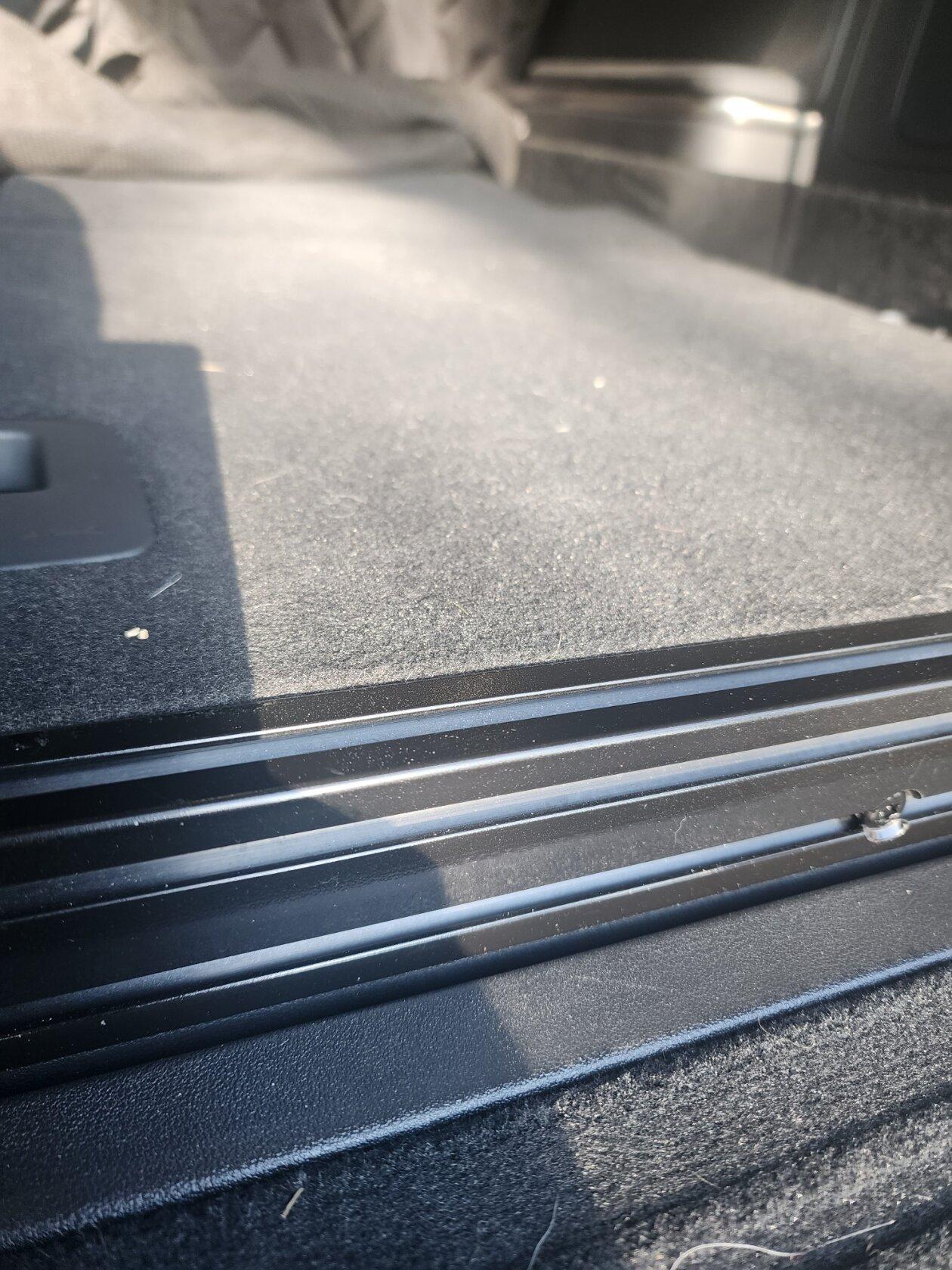

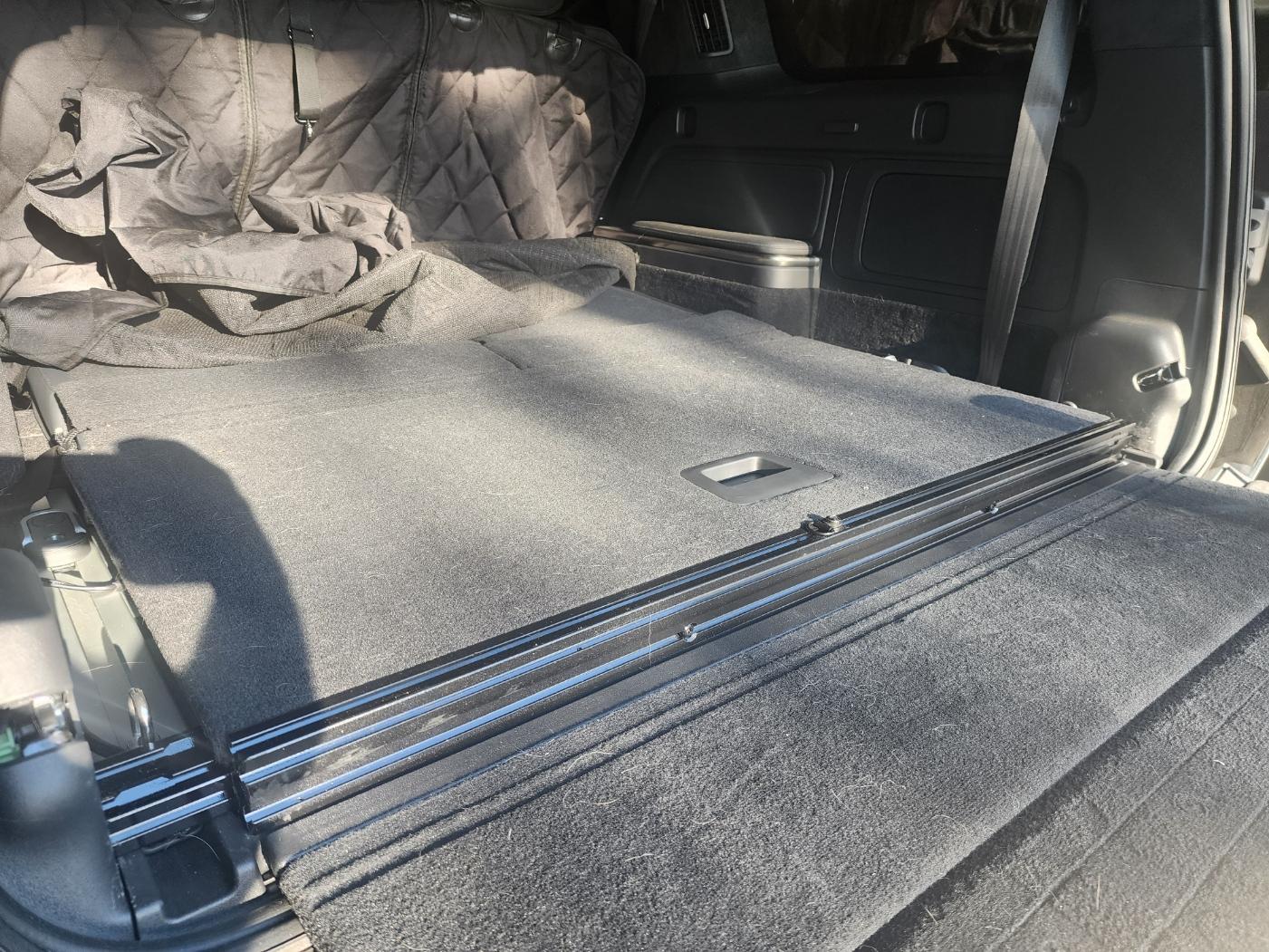

Anyways, I installed two pieces of extrusion to make the back of the R1S level with the 3rd row seat step. Im fine losing an inch or two for a flat rear area. Bottom piece is 43", vertical piece is 40.5

Rivian R1T R1S Fridge Slide for R1S Cargo Area Install (could maybe work for induction burner camp kitchen too?) 20230909_081811
Rivian R1T R1S Fridge Slide for R1S Cargo Area Install (could maybe work for induction burner camp kitchen too?) 20230909_081758

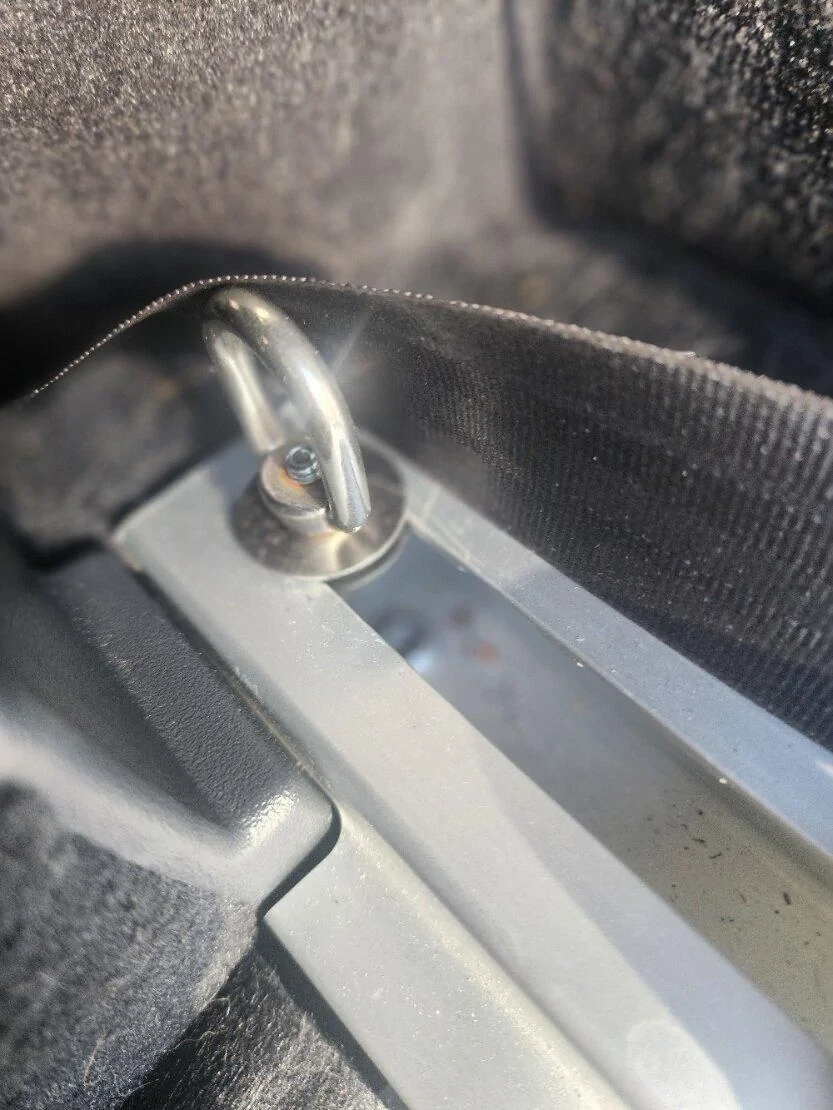

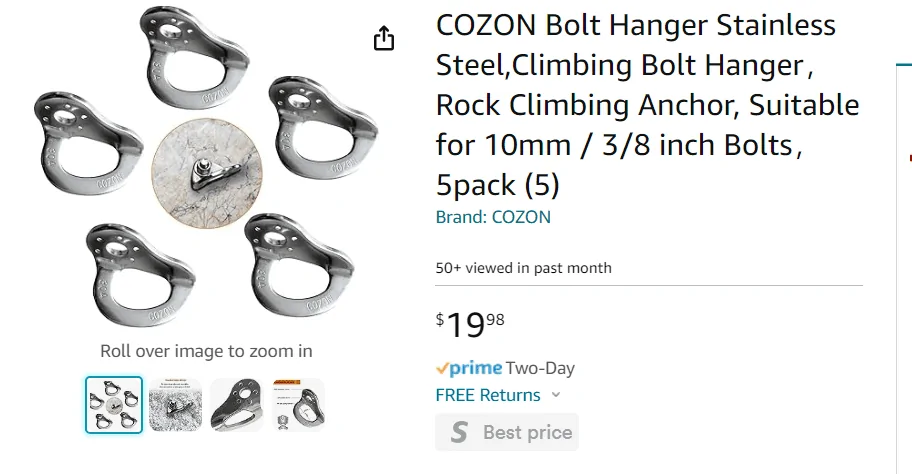

Next, you can drill a small hole in the driver side 3rd row seat channel at the very end. bolting in a bolt hanger (link for amazon https://www.amazon.com/dp/B0C16KTK9B?ref=ppx_yo2ov_dt_b_product_details&th=1). results in an anchor point just below the crack between the two 3rd row seats to attach a strap.

Rivian R1T R1S Fridge Slide for R1S Cargo Area Install (could maybe work for induction burner camp kitchen too?) 1694279479128
Rivian R1T R1S Fridge Slide for R1S Cargo Area Install (could maybe work for induction burner camp kitchen too?) 20230909_081920
Rivian R1T R1S Fridge Slide for R1S Cargo Area Install (could maybe work for induction burner camp kitchen too?) 20230909_081953

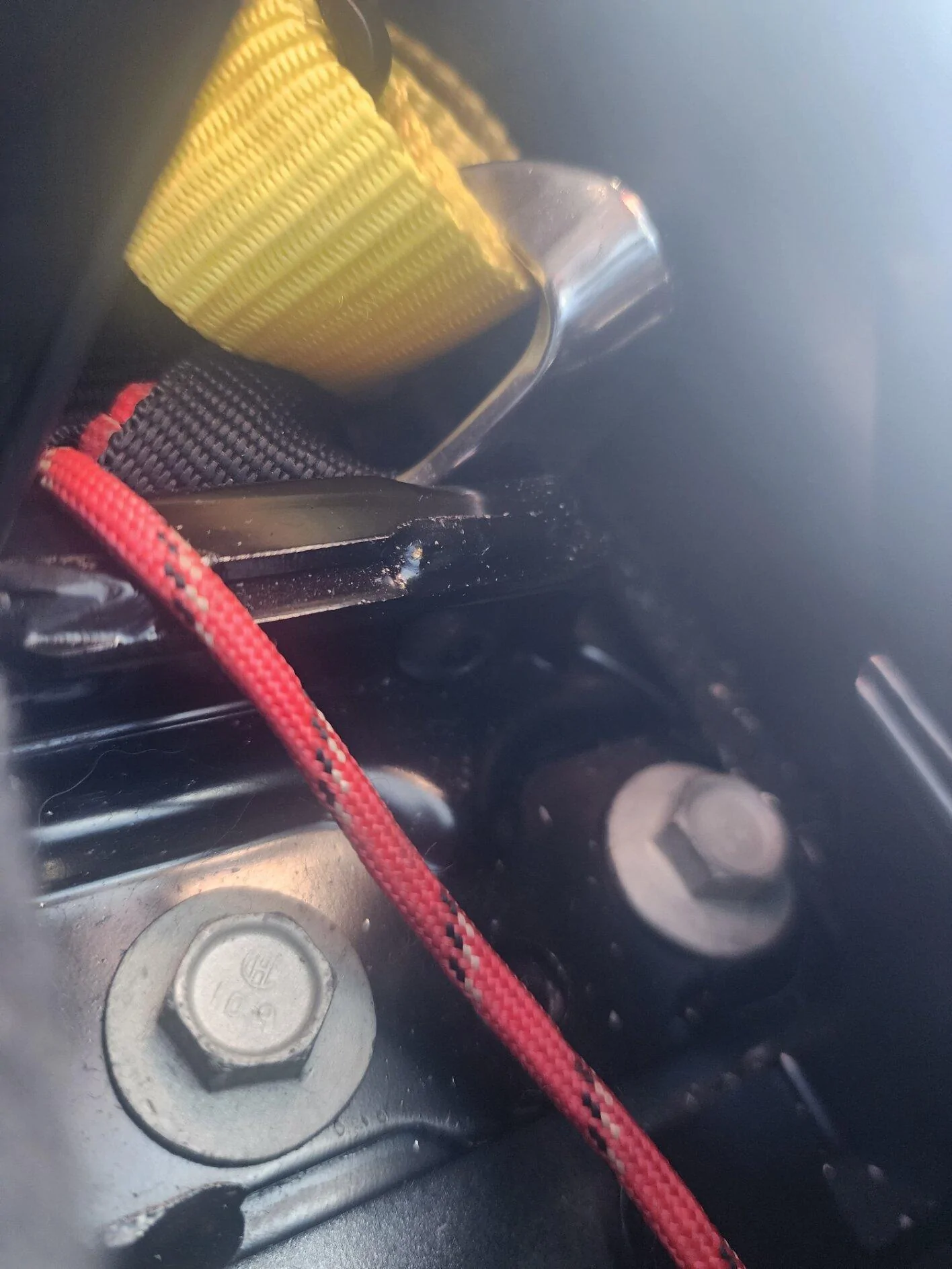

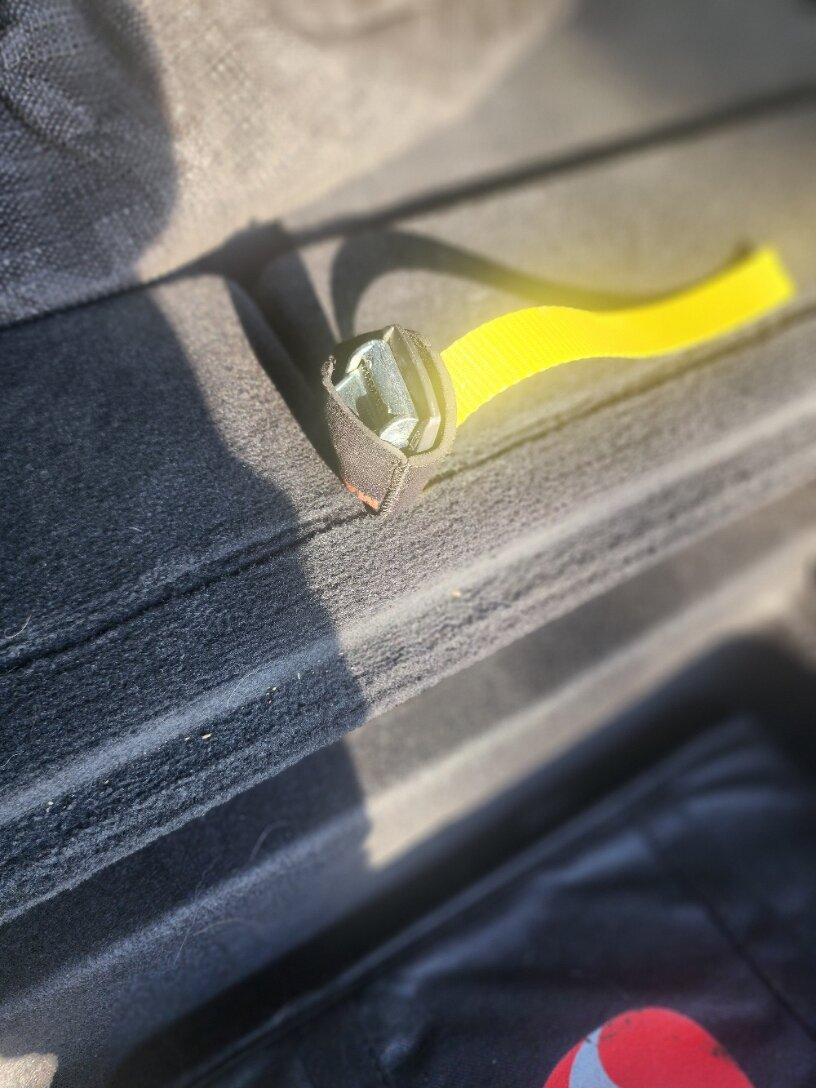

this strap can be kept under the flap and in unnoticable if not in use. Using a bolt with an eyebolt on the passenger side u channel makes another anchor point on the passenger side.

Rivian R1T R1S Fridge Slide for R1S Cargo Area Install (could maybe work for induction burner camp kitchen too?) 20230909_082000
Rivian R1T R1S Fridge Slide for R1S Cargo Area Install (could maybe work for induction burner camp kitchen too?) 20230909_082319

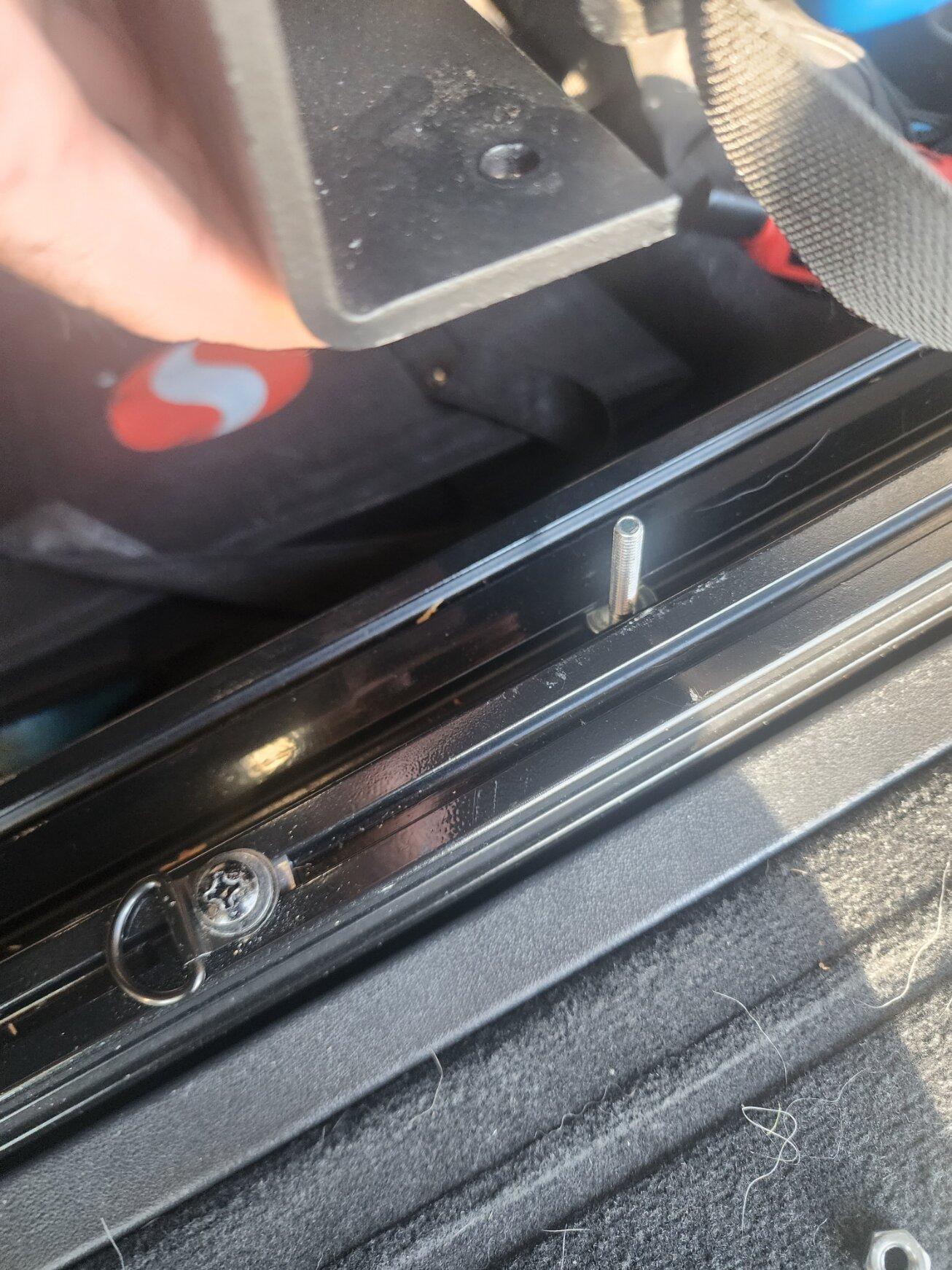

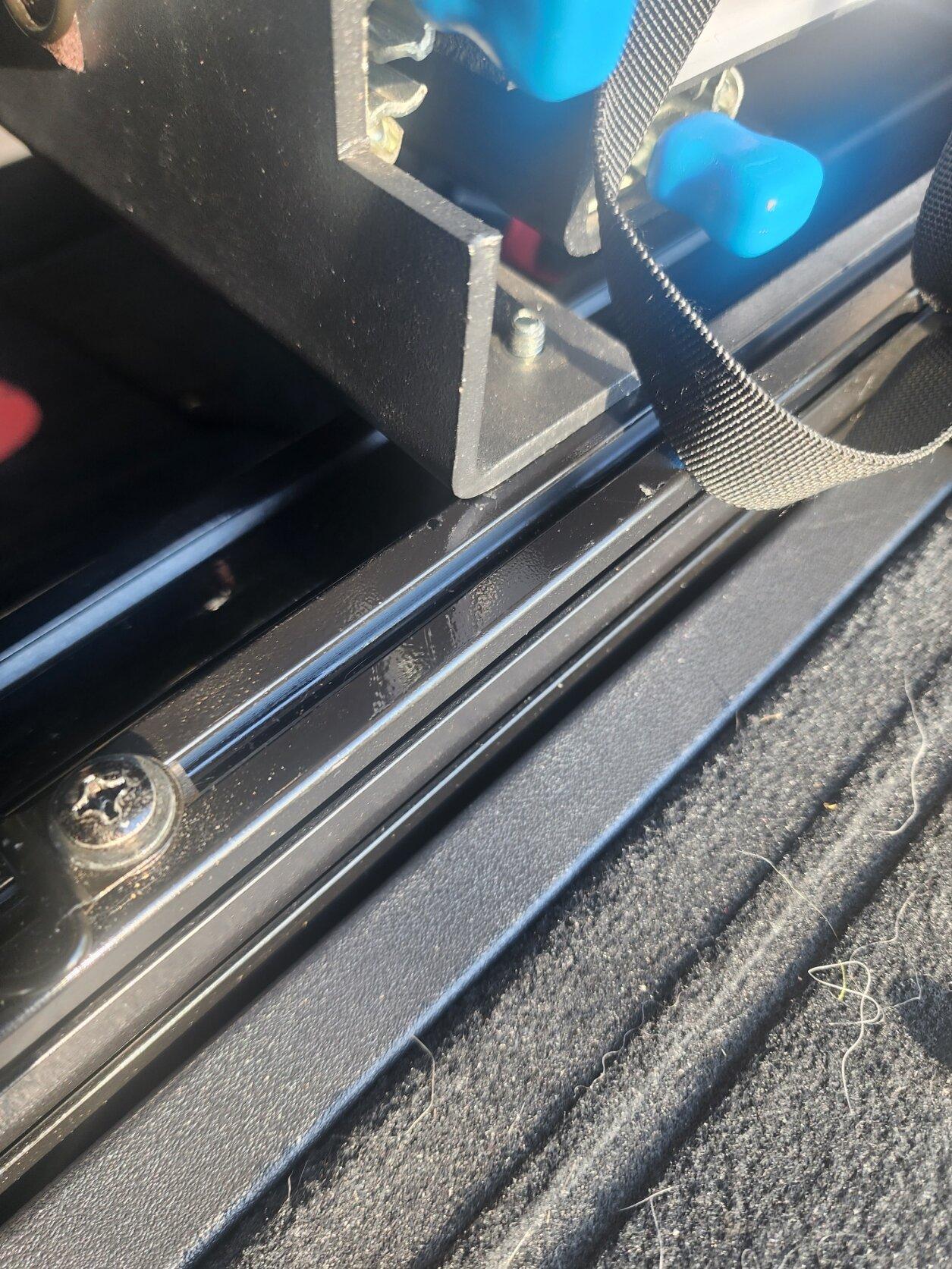

The extrusion makes for an easy anchor point at the rear of the vehicle w/ channel bolts:

Rivian R1T R1S Fridge Slide for R1S Cargo Area Install (could maybe work for induction burner camp kitchen too?) 20230909_082325

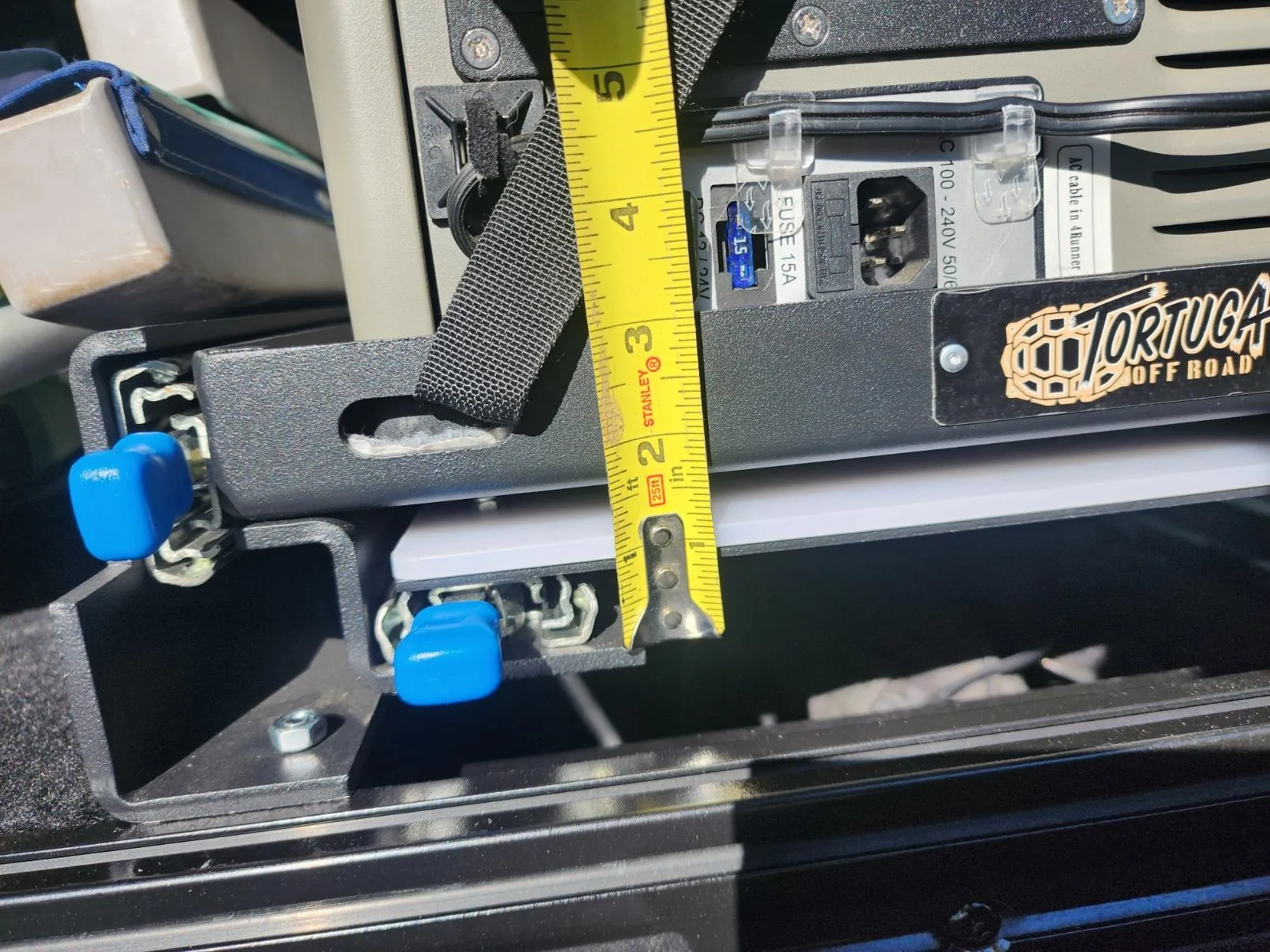

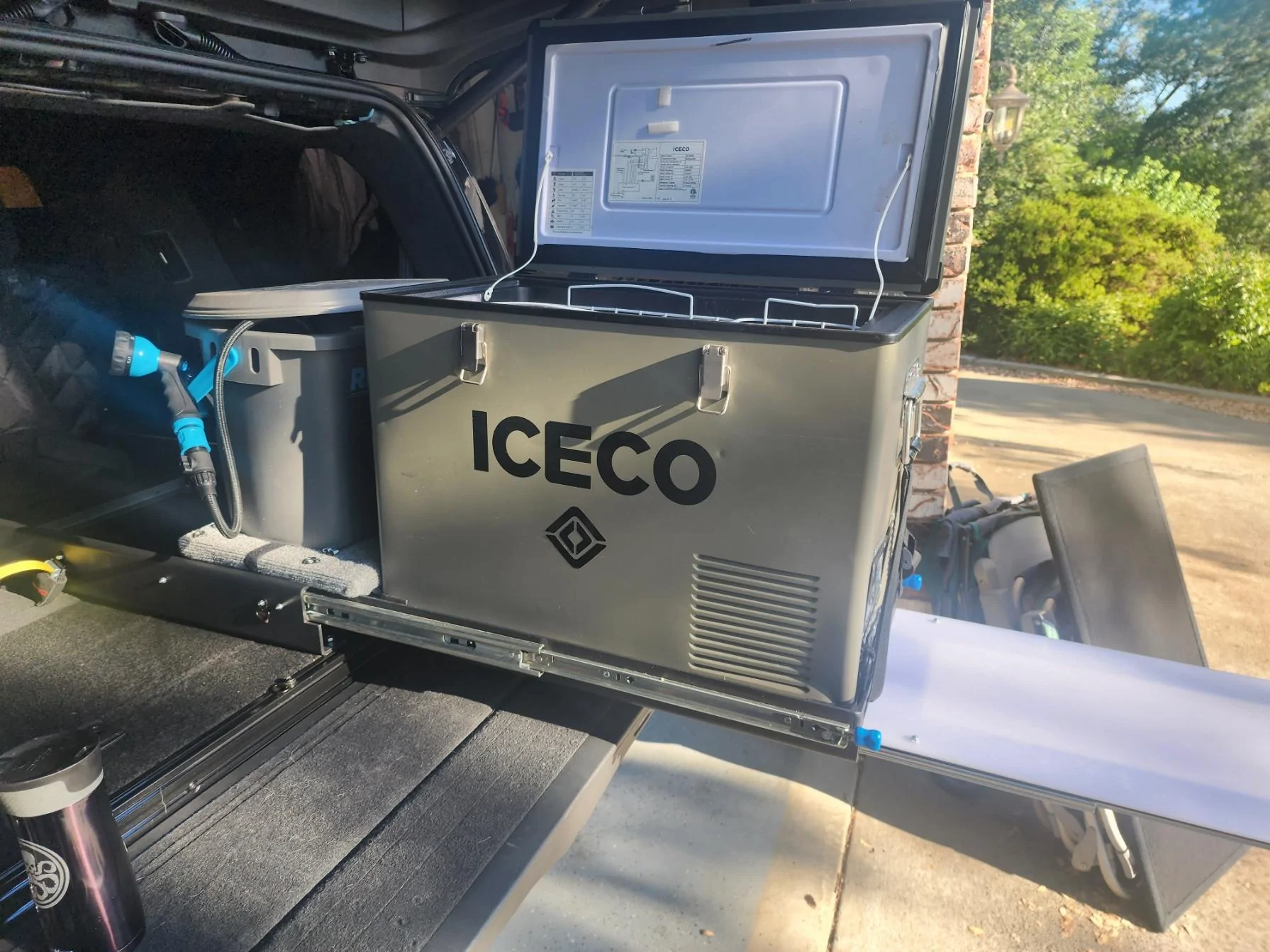

I'm using a Tortuga fridge slide (https://www.tortugaoffroad.com/coll...m-overland-fridge-slide-from-tortuga-off-road). it has a cutting board that slides out under the fridge slide that I suspect could be modified to fit an induction cooking top for people looking to do a R1S camp kitchen.

Rivian R1T R1S Fridge Slide for R1S Cargo Area Install (could maybe work for induction burner camp kitchen too?) 20230909_093808
Rivian R1T R1S Fridge Slide for R1S Cargo Area Install (could maybe work for induction burner camp kitchen too?) 20230909_093839
Rivian R1T R1S Fridge Slide for R1S Cargo Area Install (could maybe work for induction burner camp kitchen too?) 20230909_083209
Rivian R1T R1S Fridge Slide for R1S Cargo Area Install (could maybe work for induction burner camp kitchen too?) 20230909_082916

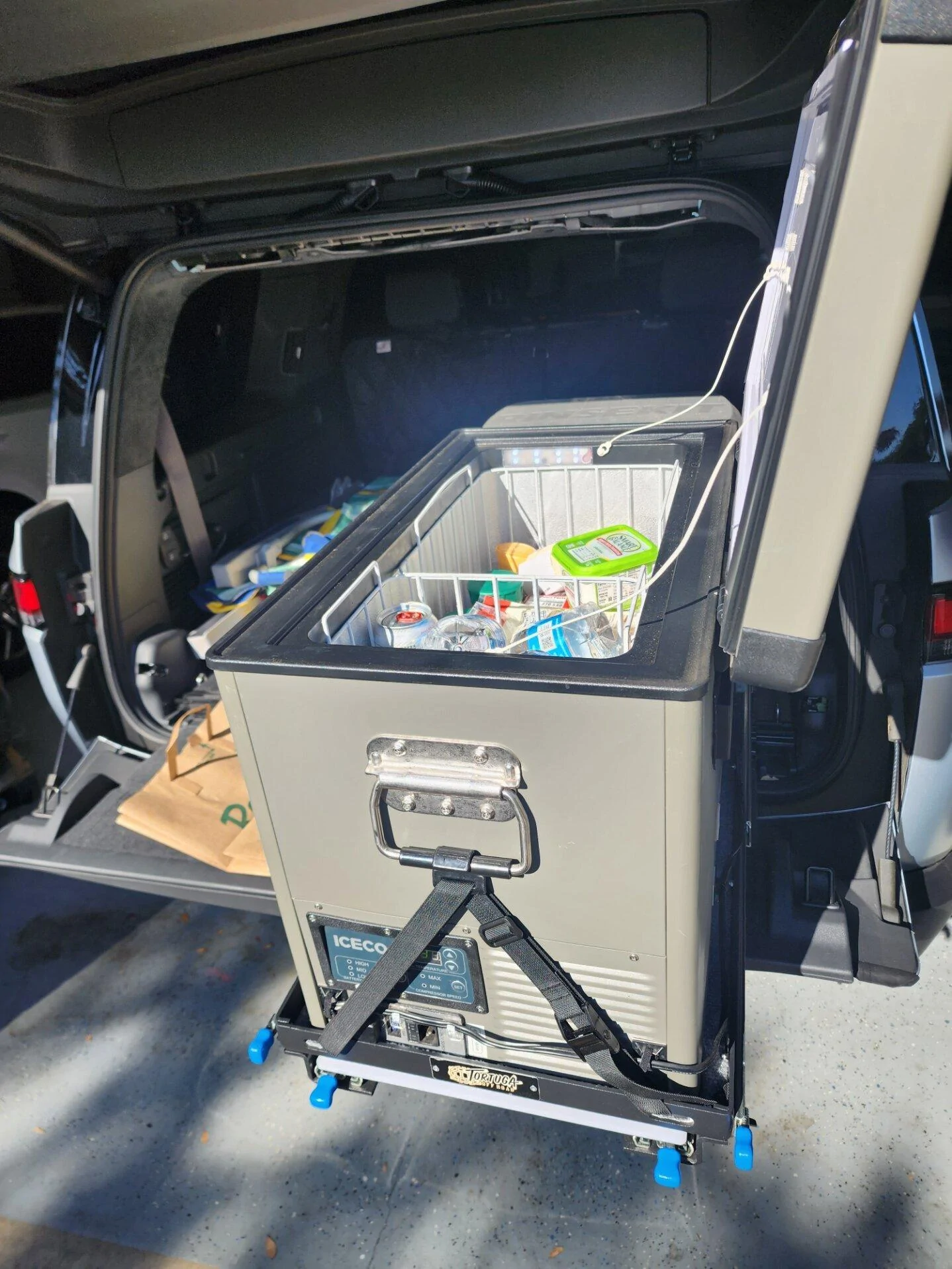

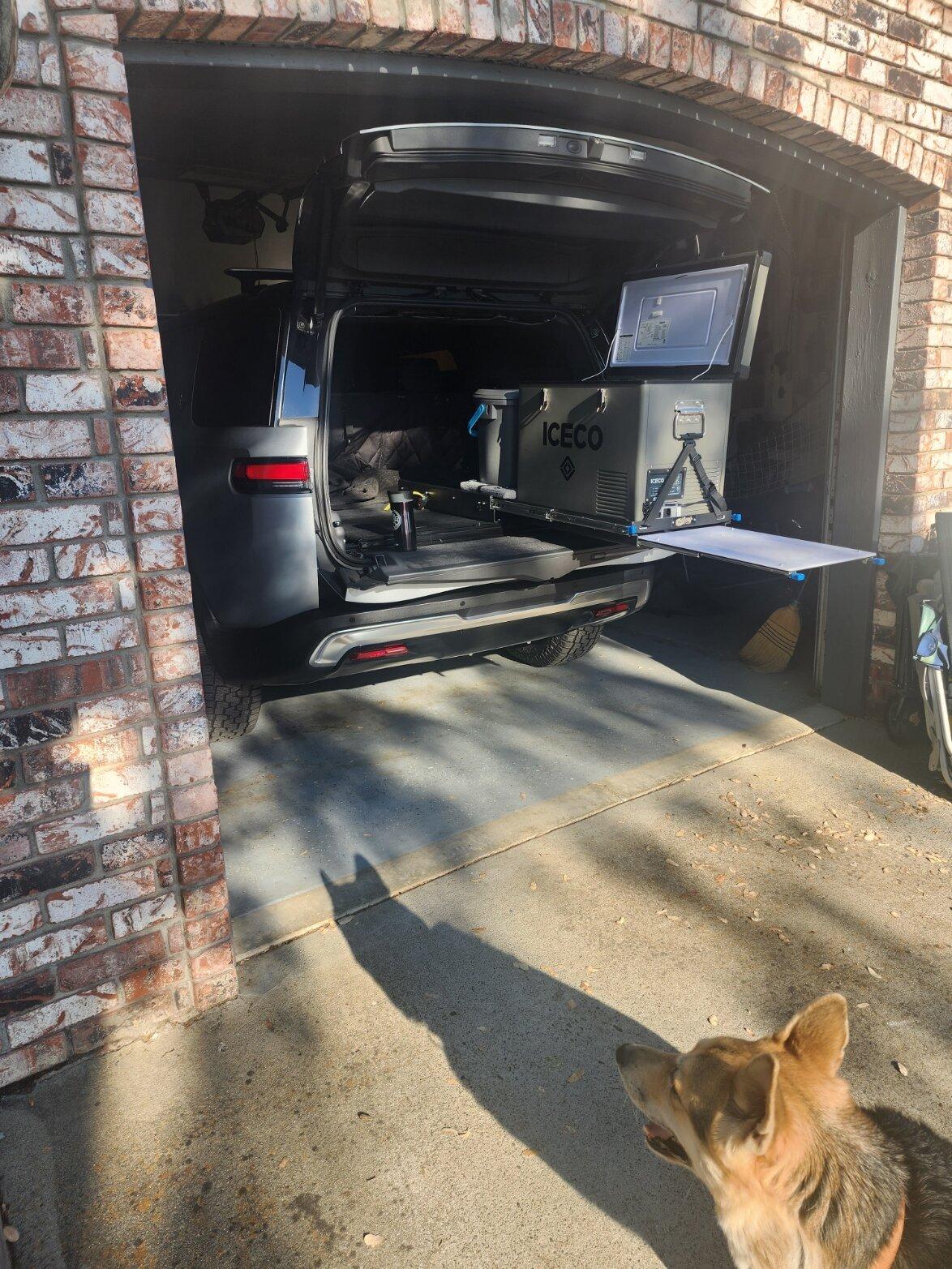

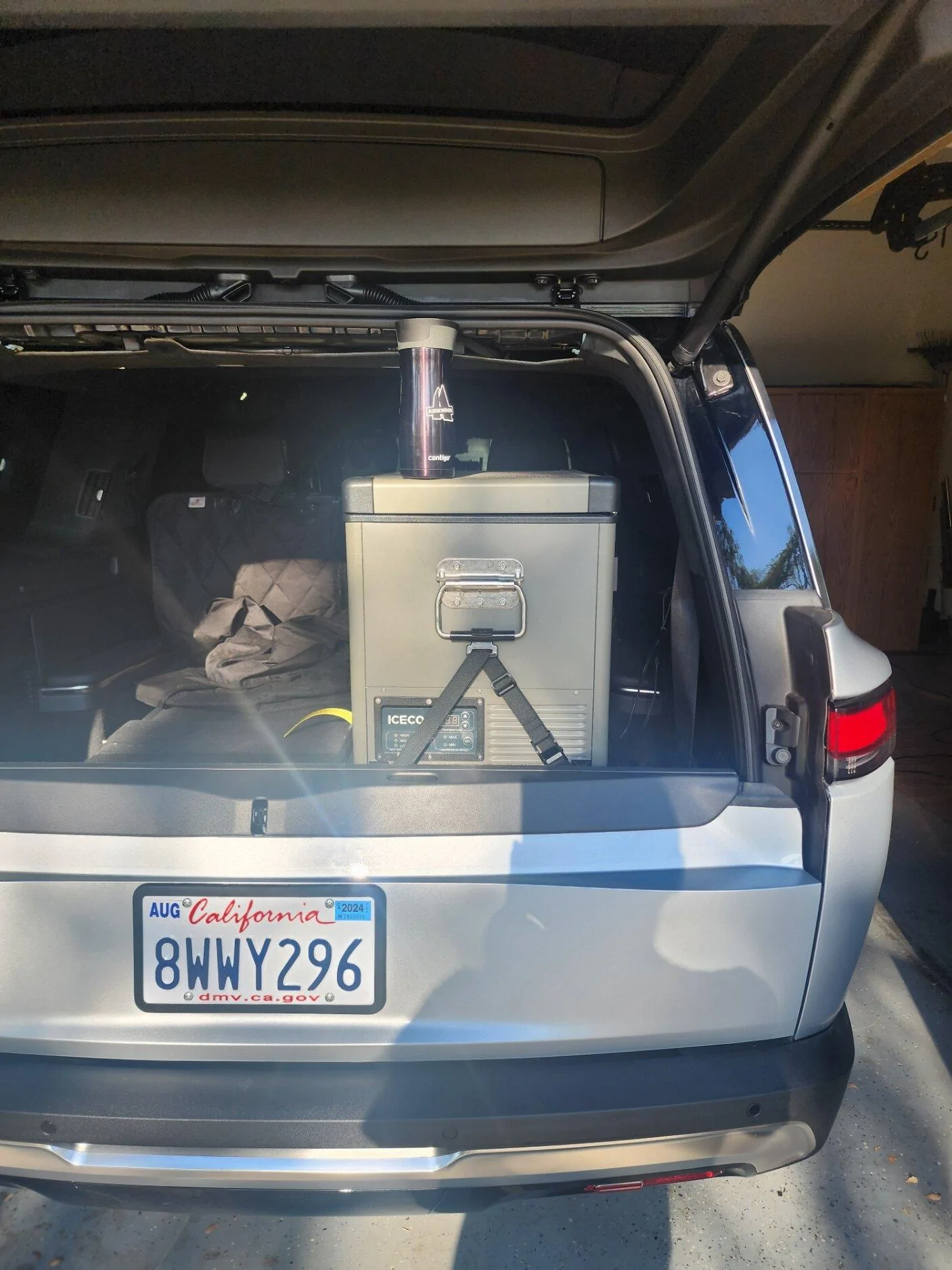

Straps hold down the back of the fridge and it works great. The platform on the back is added to have the RinseKit slide out. My dog loves to jump in any water or mud she can find, so it is great to hose her off.

I'm no engineer and know this is not very clean and can certainly be done better, but im posting this to give other's ideas on their own mods. Im open to suggestions to improve it. I only use it occasionally and is NOT a permenant install. I want it to be stock-ish looking when the fridge is not there. It is except for the extrusion at the end, but I dont mind that.

Hope this provides some people inspiration.

(ps. the missing trim on the roof is due to Rivain messing up a seal. they are coming next week to replace that part via mobile servce.)
Sponsored



Kgautam28

Well-Known Member
First Name
Gautam
Joined
Oct 17, 2021
Threads
3
Messages
75
Reaction score
58
Location
Seattle
Vehicles
2023 R1S Quad, Mustang mache GT, Range Rover Velar
Occupation
Software
Question, why a slide? Why not just put in on the floor of the trunk?


moosetags

Well-Known Member
First Name
SuEllyn & Brian
Joined
Dec 25, 2021
Threads
77
Messages
1,531
Reaction score
2,458
Location
Santa Rosa Beach, Florida
Vehicles
2023 R1T; 2020 Chevy Duramax; 1956 Ford Tbird
Occupation
Retired
Clubs

Very nice install for maximum use.

Brian

OP
OP
sac602

sac602

Well-Known Member
First Name
ray
Joined
Feb 4, 2022
Threads
5
Messages
205
Reaction score
173
Location
el dorado hills
Vehicles
4Runner, Lexus NX Hybrid
Clubs

Question, why a slide? Why not just put in on the floor of the trunk?
it's really hard to get the door open/install&remove the baskets in the back. just ease of access.


theadonnan

Active Member
Joined
May 26, 2022
Threads
0
Messages
32
Reaction score
23
Location
USA
Vehicles
🏎

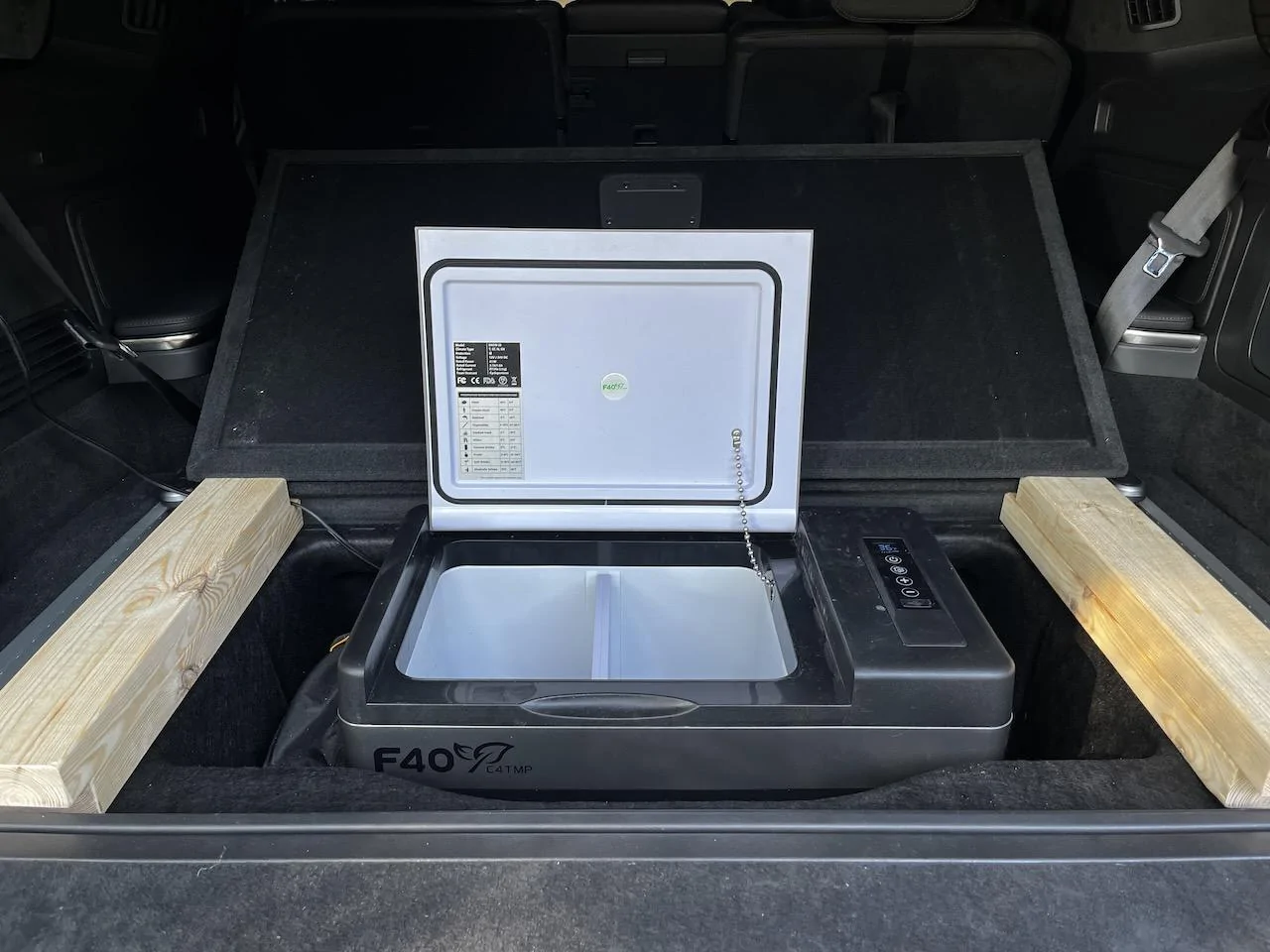

I opted to put our fridge in the spare tire well and simply use 2x4's to raise the floor up enough for ventilation and a level floor. I'd love to stuff it in the front trunk, but yeah it gets hot up there.

Rivian R1T R1S Fridge Slide for R1S Cargo Area Install (could maybe work for induction burner camp kitchen too?) r1s-raised-platform - 7
