My bikes might barely fit.
My gravel bike is a little shorter.
My hardtail a little longer.
Sponsored



petemill

New Member
First Name
Pete
Joined
Apr 4, 2022
Threads
0
Messages
3
Reaction score
3
Location
CA
Vehicles
f150 powerboost
Occupation
software
I wonder why rivian suggest to use the Yakima HighRoad instead, which doesn't even fit facing forwards.


mikehmb

Well-Known Member
First Name
Mike
Joined
Jan 12, 2022
Threads
92
Messages
1,299
Reaction score
2,671
Location
SF Bay Area
Vehicles
eGolf, i3, R1T
Hello! My first post, but I wanted to share this: I think I found a good solution for mounting bikes on the racks over the Rivian truck bed. I used a Yakima Frontloader (which I've had previously and is a very durable bike mount) and placed the front of the bike mount facing the cab. The Frontloader mounting mechanism is very close to the center of the front wheel, so it allows my 29'er bike to fit if the mounts are in the widest position on each side. I don't think this bike would fit in the middle. Smaller bikes, or maybe 26/27.5" bikes would fit in the middle if you wanted to load more than 2 bikes.

Some numbers: my bike has a 45.5" long wheels base (wheel center to center) and is 74" from the furthest from rubber to the back of the rear tire. There is about a 1-1.5" gap to the roof of the cab. I'm pretty excited that I found a solution- I was not looking forward to bikes on the roof or a hitch mount. Am I missing something?

rear full.jpeg


angle rear_45.5 in wheel to wheel.jpeg


gap-1.5 in.jpeg


angle front.jpeg




angle rear_74 in total length.jpeg
Thanks for posting!

I’m going to need to go 3-wide for road trips if we want to maintain the bed / tonneau for gear. Do you think another rack would fit on the center of the crossbars (since they’re thinner on the extension piece)?


Dark-Fx

Well-Known Member
First Name
Brian
Joined
Jul 15, 2020
Threads
96
Messages
9,358
Reaction score
17,746
Location
Michigan
Vehicles
Polestar 2, R1T, R1S, Livewire One, Fisker Ocean
Occupation
Engineering
Clubs

Thanks for posting!

I’m going to need to go 3-wide for road trips if we want to maintain the bed / tonneau for gear. Do you think another rack would fit on the center of the crossbars (since they’re thinner on the extension piece)?
Tire will hit the spoiler, there's not enough room except on the very outer edge of the rails.


Sponsored

Shawnkaplan00

Member
First Name
Shawn
Joined
Apr 1, 2022
Threads
0
Messages
15
Reaction score
6
Location
Philadelphia
Vehicles
R1T
Occupation
TechSales

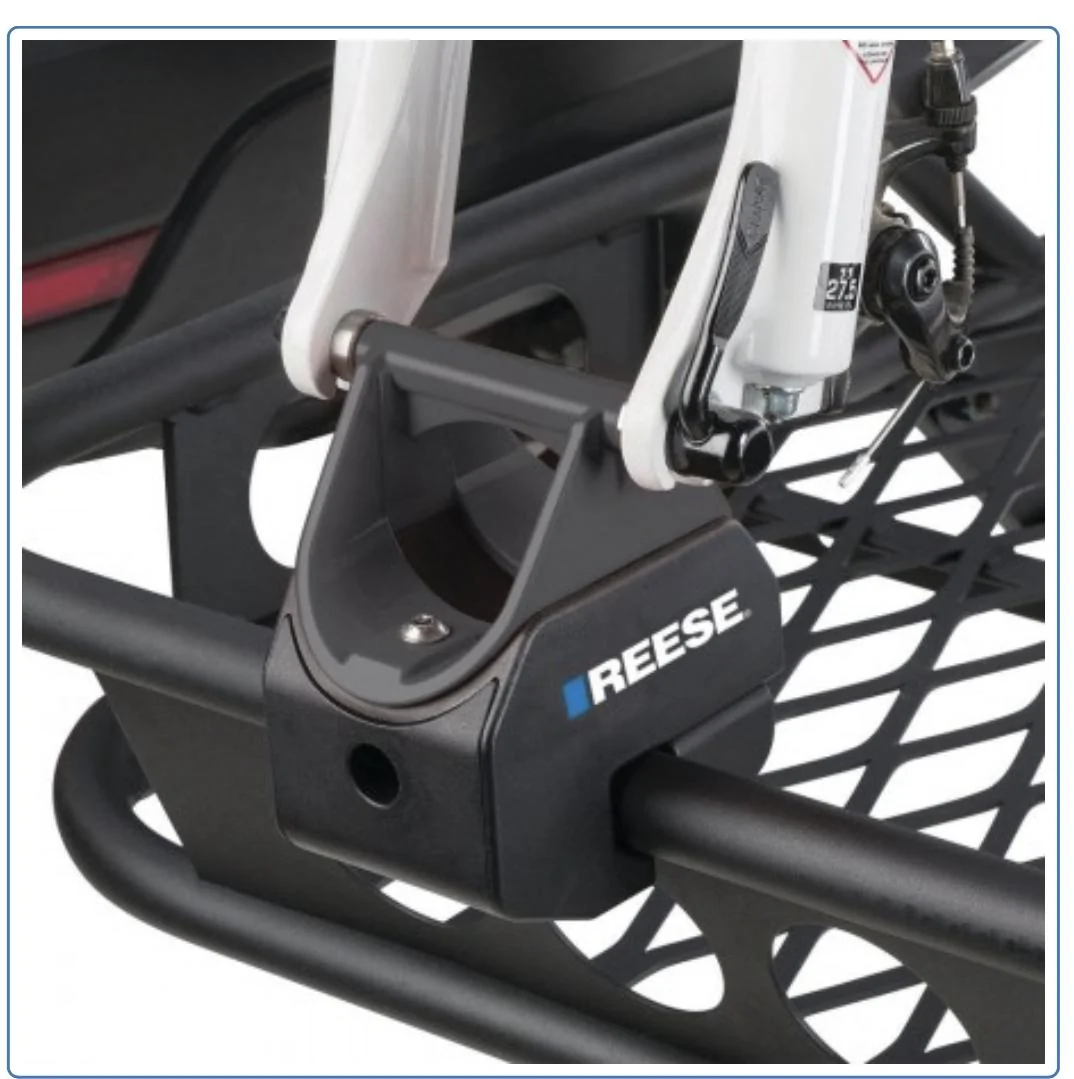

Maybe add on something like these fork mounts. I don’t see a reason for the long “tray” for the tires.

Rivian R1T R1S Found good bike mount option for Rivian R1T using Yakima Frontloader D6D3BC03-1D1D-4F1A-AE64-FC7406ED1A3A

OP
OP
thoracle

thoracle

Member
First Name
David
Joined
May 3, 2022
Threads
1
Messages
13
Reaction score
26
Location
Portland, OR
Vehicles
Rivian R1T LE
Occupation
Founder, Strategy Director
Thanks for posting!

I’m going to need to go 3-wide for road trips if we want to maintain the bed / tonneau for gear. Do you think another rack would fit on the center of the crossbars (since they’re thinner on the extension piece)?
Yes, another of the Frontloaders would fit there, but it might be really close to a 29er tire touching the top edge of the cab. The rear top edge of the cab has a curve on it that reduces the space for the front wheel. You could probably fit a 27.5 wheel more easily. You could also just shift the bike in the mount back slightly if it's tight. At that point it really is on a case by case basis based on the bike you have, the wheelbase and type of tire.

OP
OP
thoracle

thoracle

Member
First Name
David
Joined
May 3, 2022
Threads
1
Messages
13
Reaction score
26
Location
Portland, OR
Vehicles
Rivian R1T LE
Occupation
Founder, Strategy Director
I wonder why rivian suggest to use the Yakima HighRoad instead, which doesn't even fit facing forwards.
I bet the people at Rivian that worked on it have shorter wheelbase bikes like 27.5 or a cross or road bike that fits that way. It's the long wheel base 29ers that are the biggest challenge. They should offer the Frontloader as an option too. A lot of these secondary/tertiary features and accessories were probably rushed so they could get the truck into the market, but there will be better options over time. Welcome to the bleeding edge...

OP
OP
thoracle

thoracle

Member
First Name
David
Joined
May 3, 2022
Threads
1
Messages
13
Reaction score
26
Location
Portland, OR
Vehicles
Rivian R1T LE
Occupation
Founder, Strategy Director
Maybe add on something like these fork mounts. I don’t see a reason for the long “tray” for the tires.

Long tray is just for convenience getting your bike on and off and not having to store your front wheel(s) in the car/truck. If you have 4 riders, the front wheels start to take up a lot of space and after a muddy ride you have to put them on/near the rest of your gear. Taking the wheel off is a legit solution though, I used a rack like that for years when I was riding solo. :)


Sponsored

mikehmb

Well-Known Member
First Name
Mike
Joined
Jan 12, 2022
Threads
92
Messages
1,299
Reaction score
2,671
Location
SF Bay Area
Vehicles
eGolf, i3, R1T
Yes, another of the Frontloaders would fit there, but it might be really close to a 29er tire touching the top edge of the cab. The rear top edge of the cab has a curve on it that reduces the space for the front wheel. You could probably fit a 27.5 wheel more easily. You could also just shift the bike in the mount back slightly if it's tight. At that point it really is on a case by case basis based on the bike you have, the wheelbase and type of tire.
That’s great info, thanks. We’d be doing 2 29ers and a 24 (for now, until he grows more). Looks like it might work out, at least for a few years until he graduates to a 27/29er.


kurtlikevonnegut

Well-Known Member
Joined
Sep 1, 2021
Threads
24
Messages
2,093
Reaction score
5,632
Location
SC/TX
Vehicles
R1T QM, Honda Odyssey
Clubs

let us know if you take your bike on a longer road trip. I am curious to see what the range impact is when you carry the bike like that since you are messing with the truck's aerodynamics.

I a planning to use a trailer hitch for my bikes just to minimize the range impact.

thank you in advance.
I recently got a Frontloader and mounted my 29" hybrid OTB and did a highway run of 200 miles that I have done several times already to get a decent comparison point for efficiency. I got essentially the same mi/kwh with the bike as I did without it, however I did have a few pockets of traffic that may have inflated my efficiency. Even so, the hit likely is pretty negligible based on this specific instance. I'll certainly continue collecting data to verify.

OP
OP
thoracle

thoracle

Member
First Name
David
Joined
May 3, 2022
Threads
1
Messages
13
Reaction score
26
Location
Portland, OR
Vehicles
Rivian R1T LE
Occupation
Founder, Strategy Director
I wonder why rivian suggest to use the Yakima HighRoad instead, which doesn't even fit facing forwards.
Ya, no idea. I think they were just focused on actually getting the truck out. Or maybe the people that spec'ed it aren't real mountain bikers- who doesn't have a 29'er these days? :)

OP
OP
thoracle

thoracle

Member
First Name
David
Joined
May 3, 2022
Threads
1
Messages
13
Reaction score
26
Location
Portland, OR
Vehicles
Rivian R1T LE
Occupation
Founder, Strategy Director
Thanks for posting!

I’m going to need to go 3-wide for road trips if we want to maintain the bed / tonneau for gear. Do you think another rack would fit on the center of the crossbars (since they’re thinner on the extension piece)?
Yes, I another rack should fit in the middle, but because of the curved spoiler on the back of the cab, it might have to be a 27.5 or 26" wheel/bike.

OP
OP
thoracle

thoracle

Member
First Name
David
Joined
May 3, 2022
Threads
1
Messages
13
Reaction score
26
Location
Portland, OR
Vehicles
Rivian R1T LE
Occupation
Founder, Strategy Director

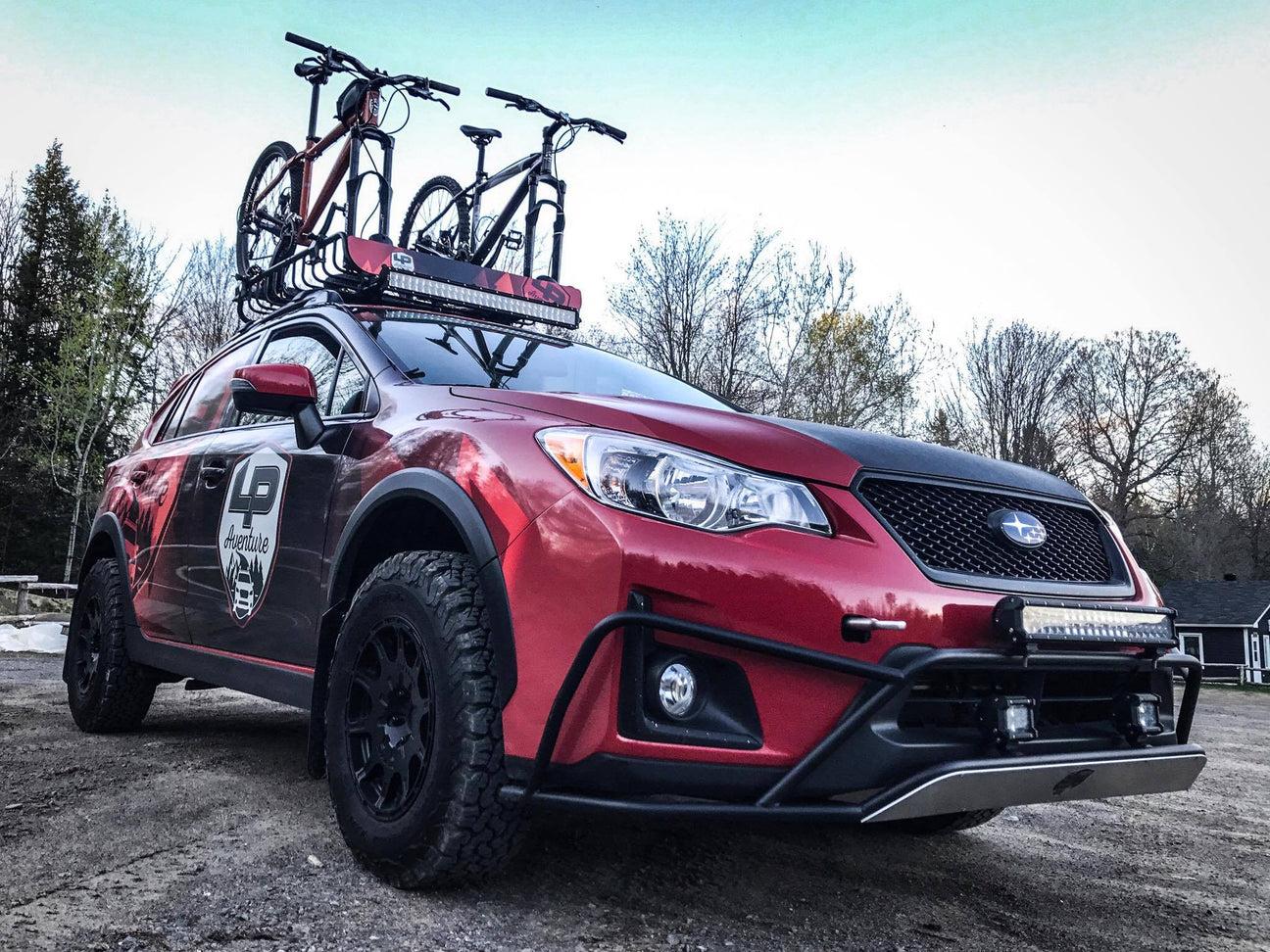

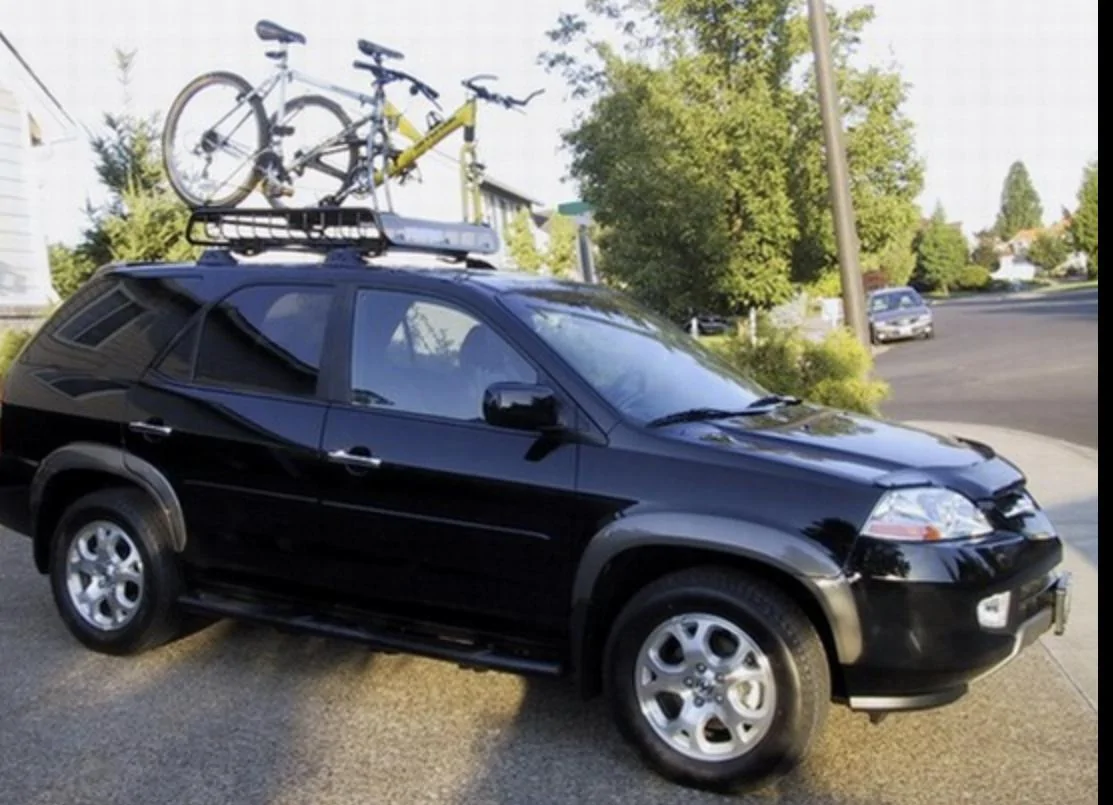

Thinking of incorporating bike racks with a tray. Any thoughts on this idea?



Might work, but I'm not familiar with trays enough. The key would be a tray that allows you to put the bike mount further back from the top of the cab.
