Here's my take on an interim camp kitchen I built ahead of our road trip through the Southwest. I've had a great time building it and drawing inspiration from others, so sharing here in the hopes someone gets some ideas flowing.

The goals were:

• Keep cost reasonable since we plan to get the Rivian kitchen eventually.
• Be relatively easy to remove (tool less) in the event of a flat for spare access.
• No modifications to the truck.
• Be 100% useable with the tonneau permanently closed and a RTT over the bed.

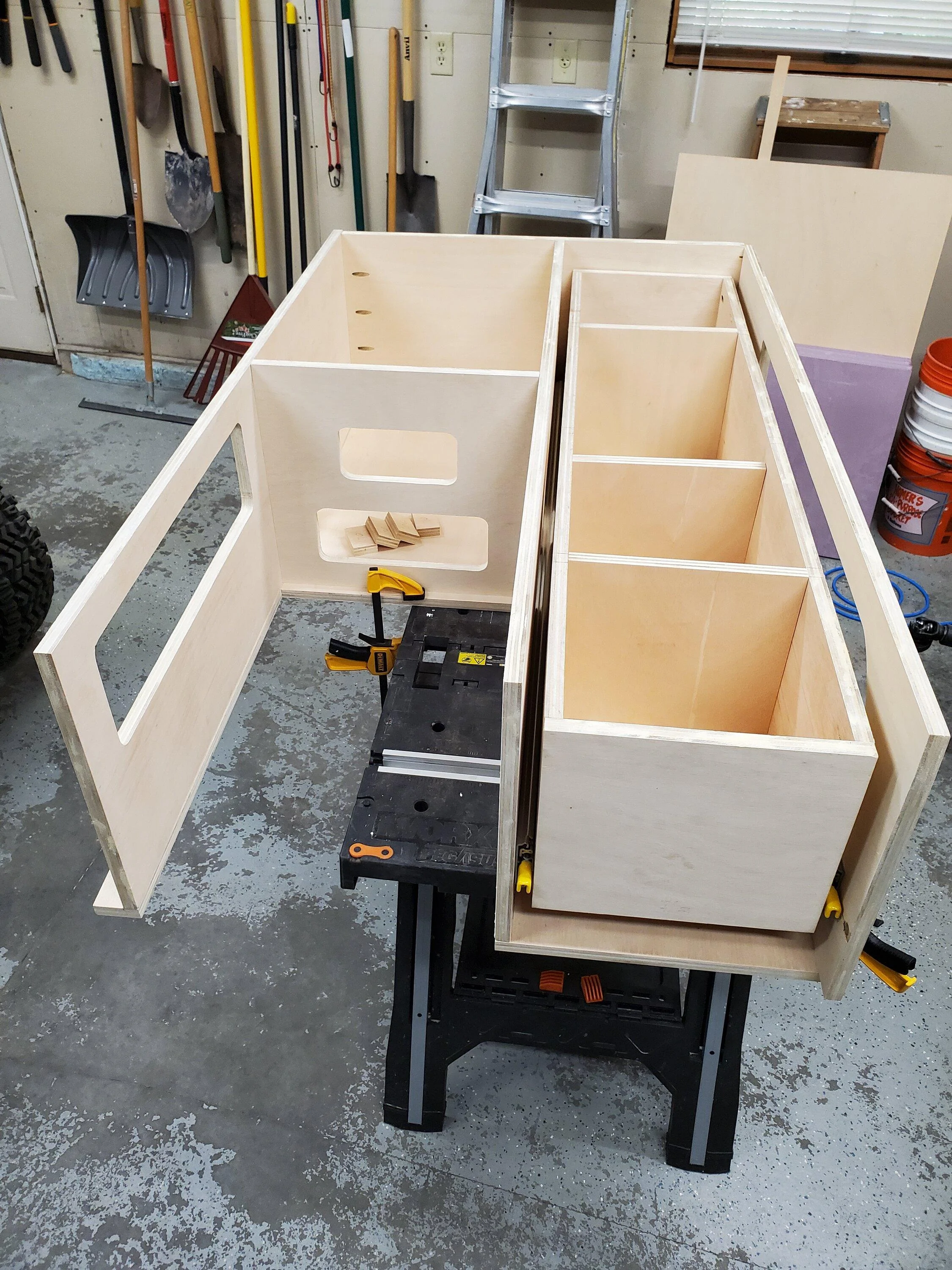

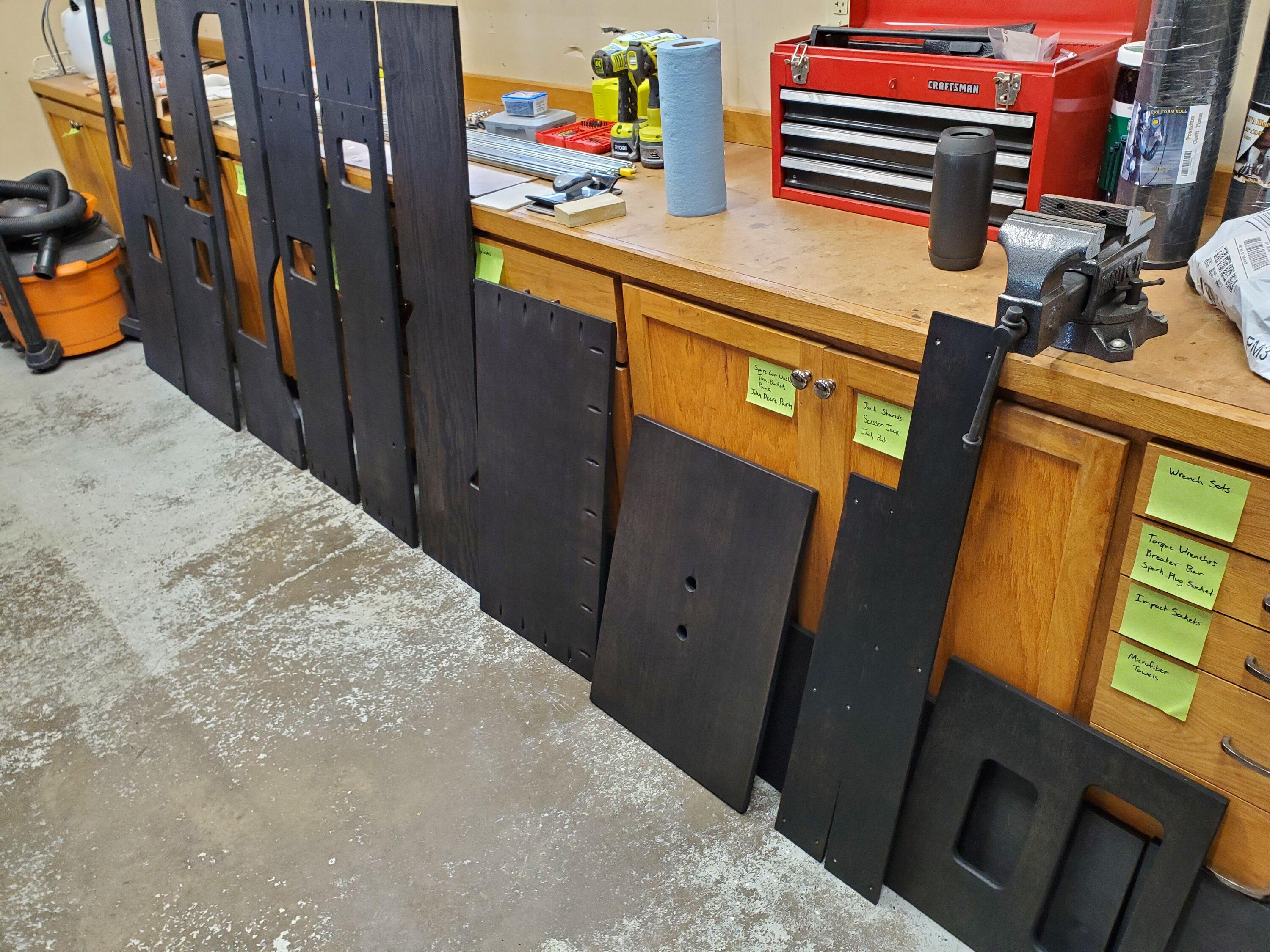

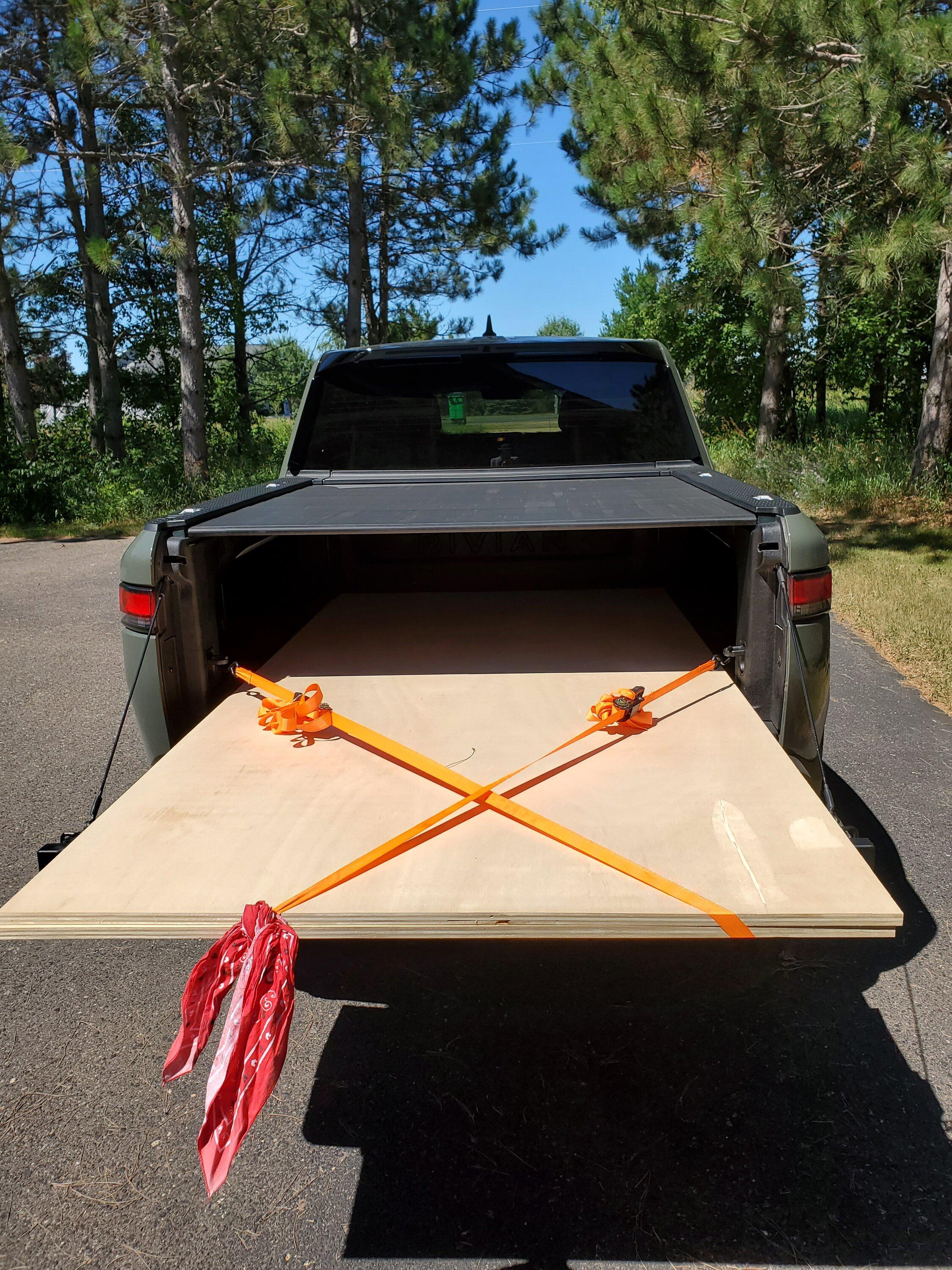

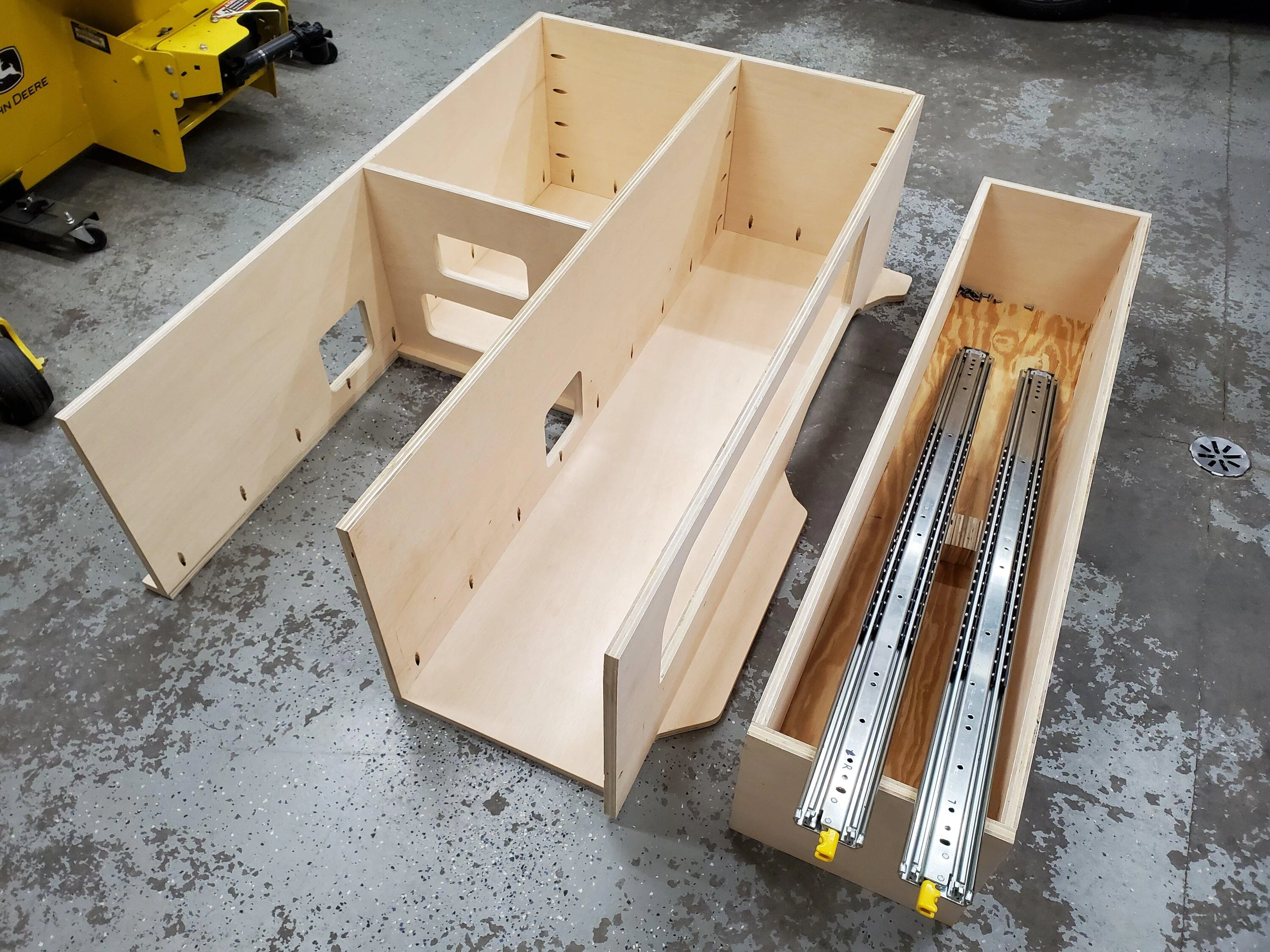

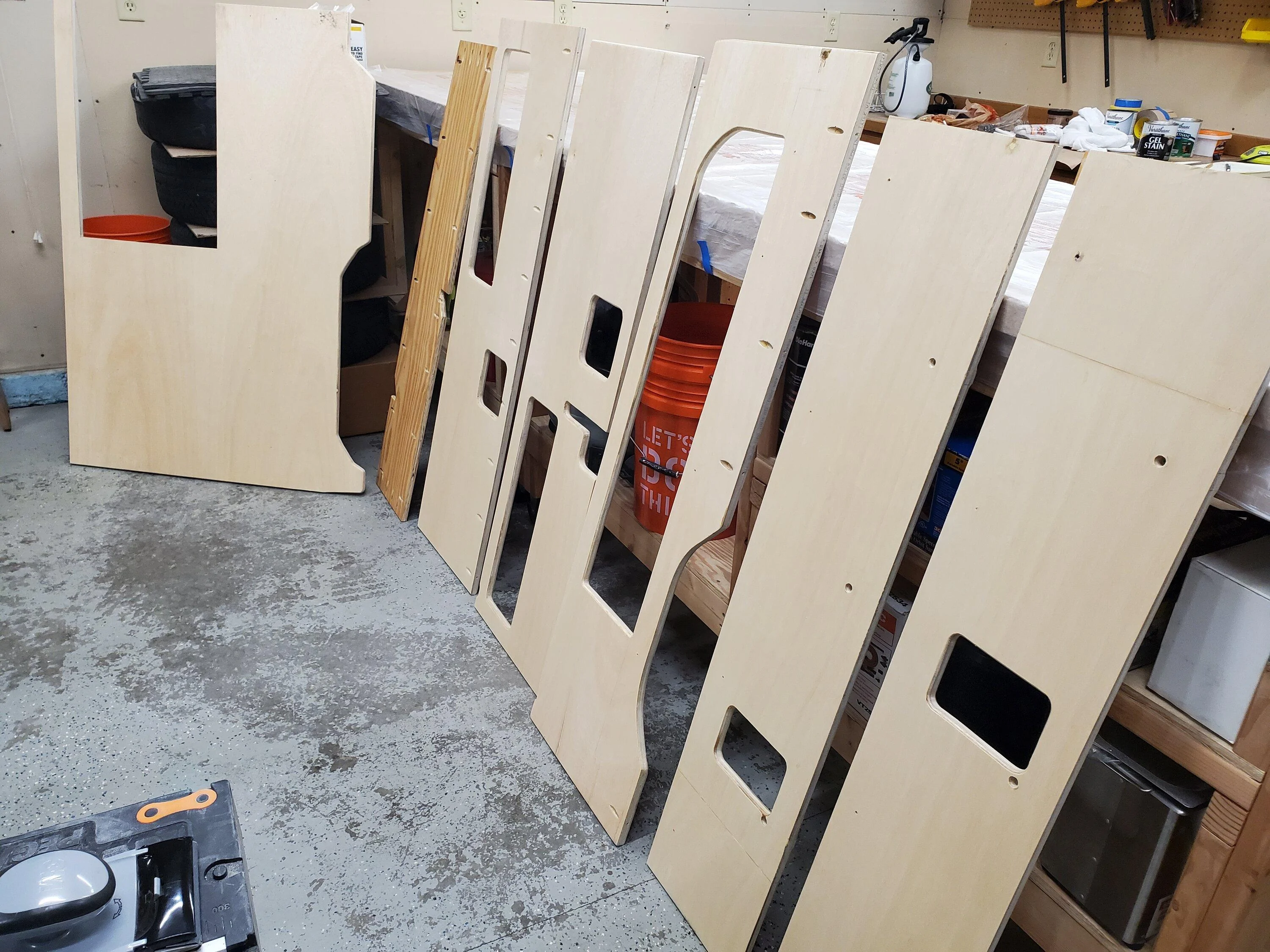

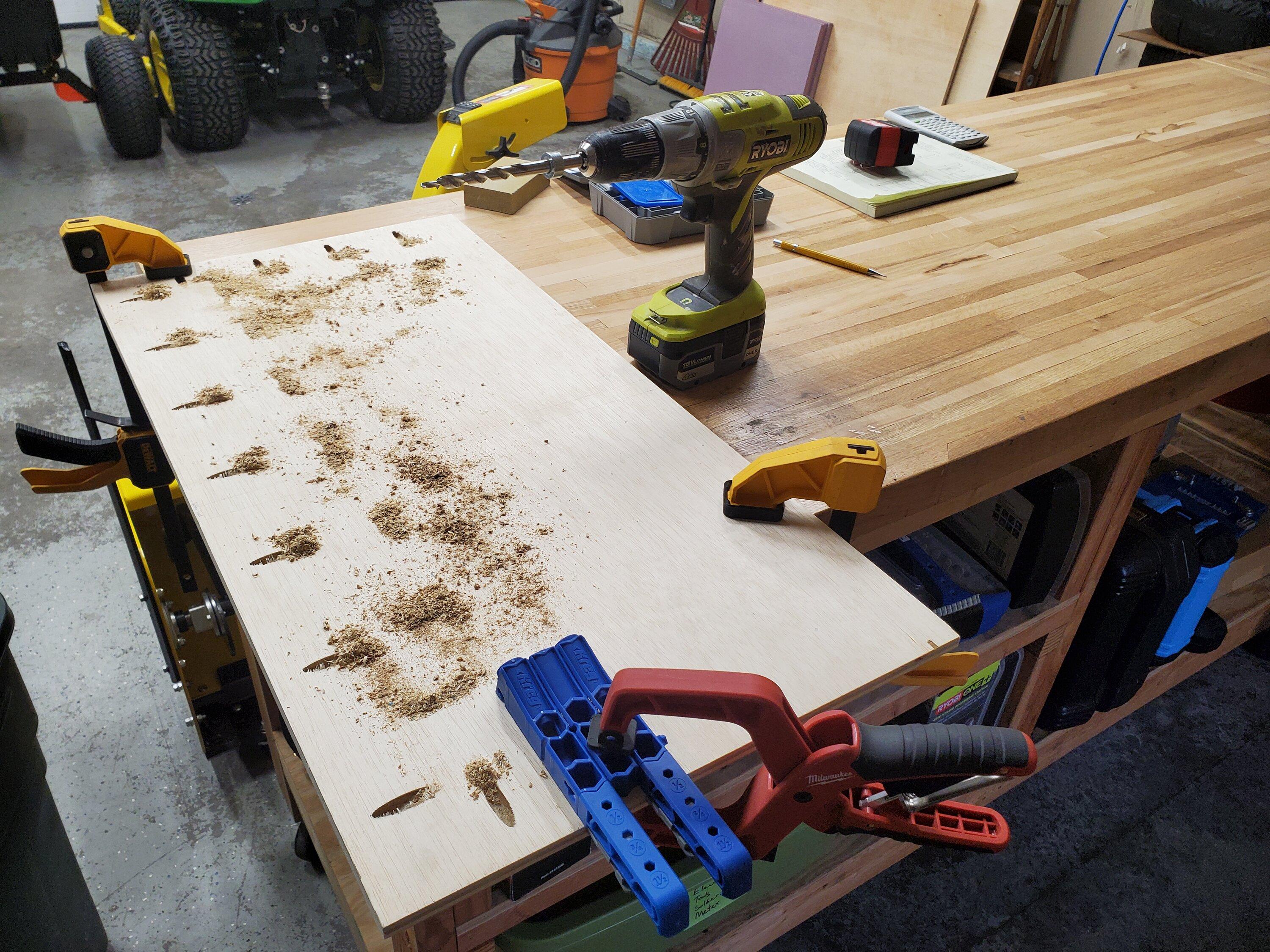

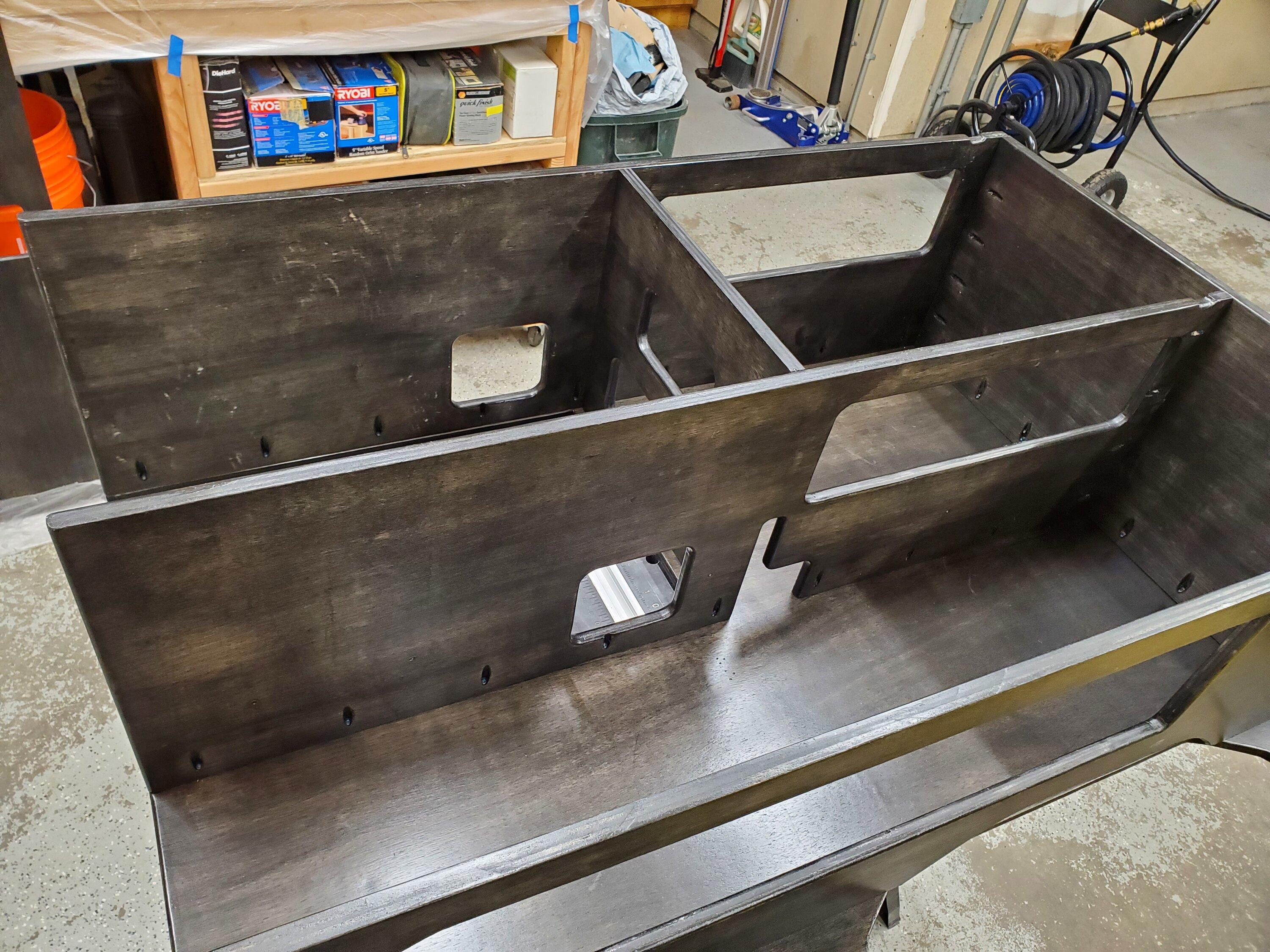

The majority of the insert is made out of 3/4" plywood with a drawer on locking heavy duty slides. To install the whole insert you just push it in empty and then it falls into the tall ridges in the bed to stop lateral movement. Then one ratchet strap goes across the back of it to keep it locked down when the fully loaded drawer is extended. When the tailgate is closed the insert can't move forward or back.

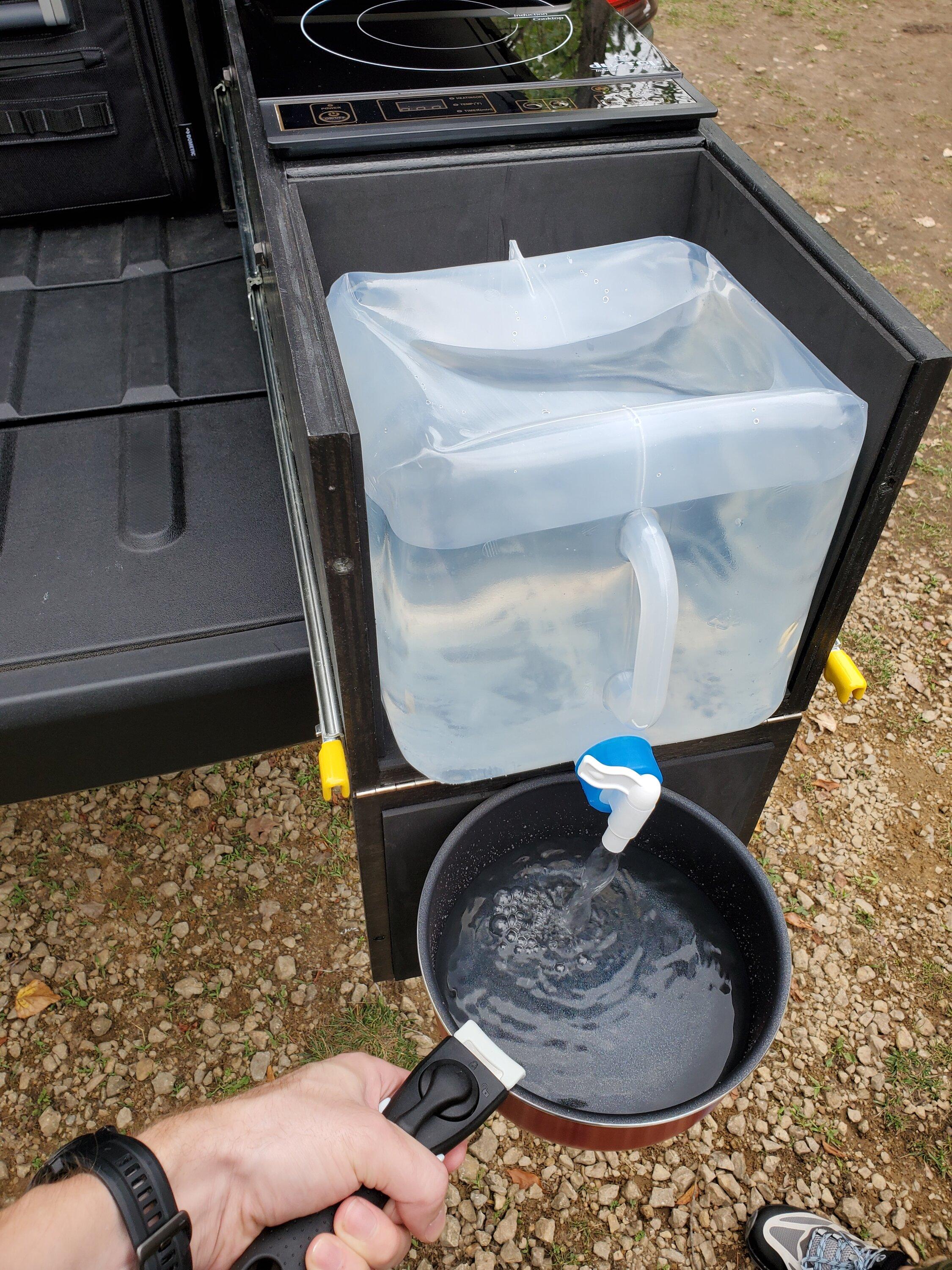

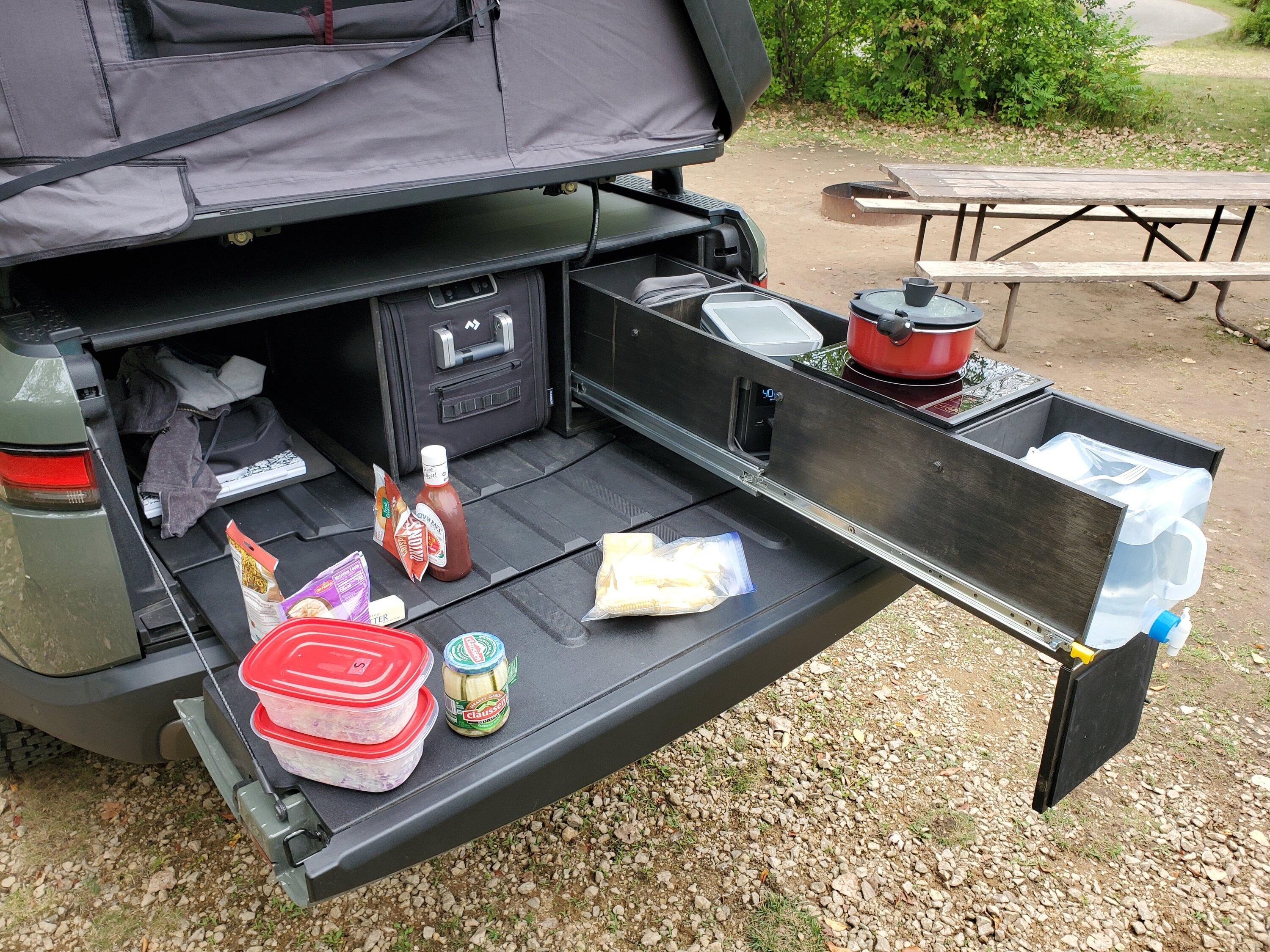

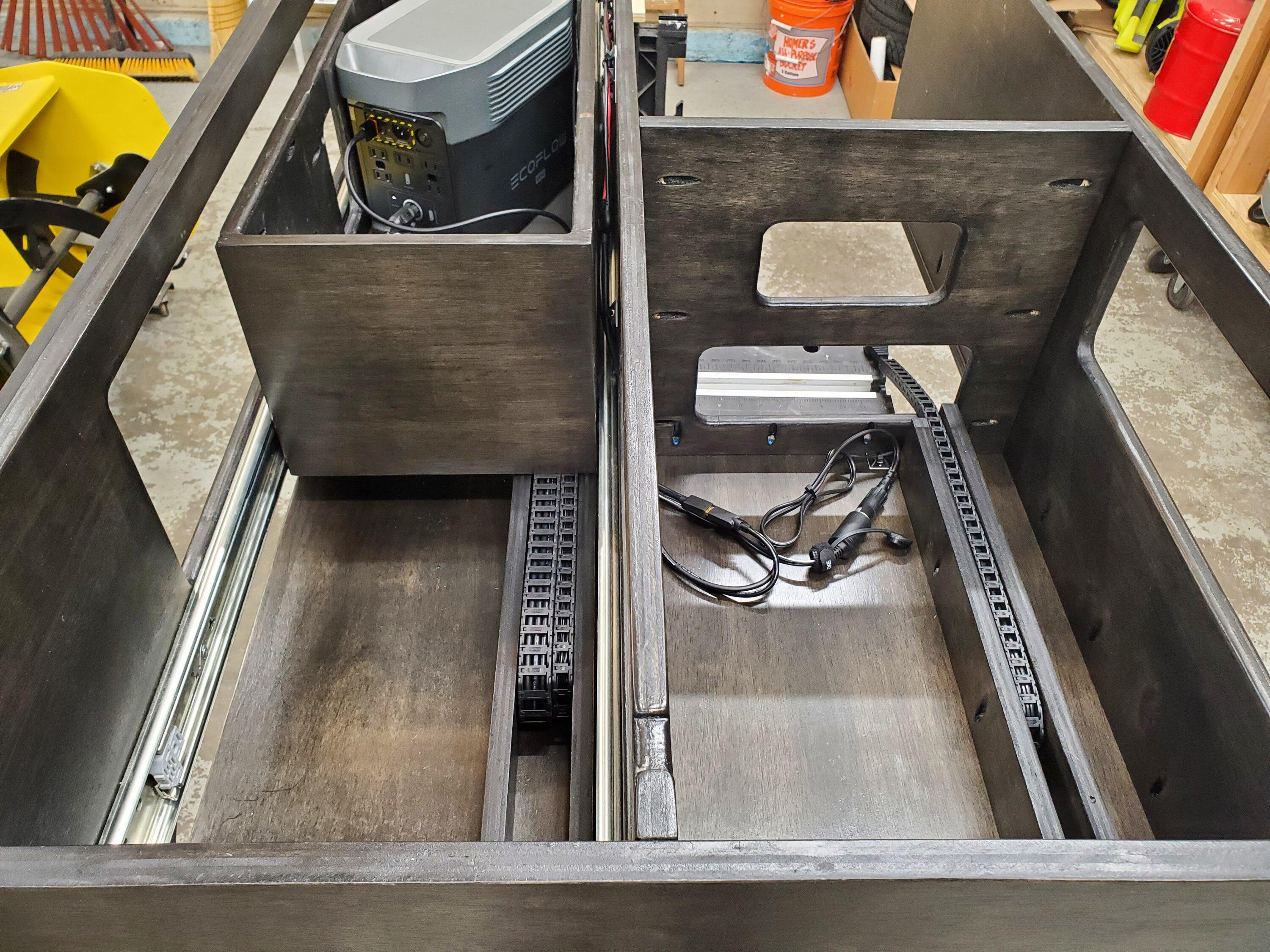

The drawer holds 30L of water, an induction cooktop, pots and pans and utensils and an Ecoflow Delta Mini (for grabbing solar and sending power to the fridge, tent and cooktop.) The Ecoflow is not necessary but I really wanted to experiment with solar. All the cables running to the drawer are housed in drag chains so the drawer fully extends with everything attached.

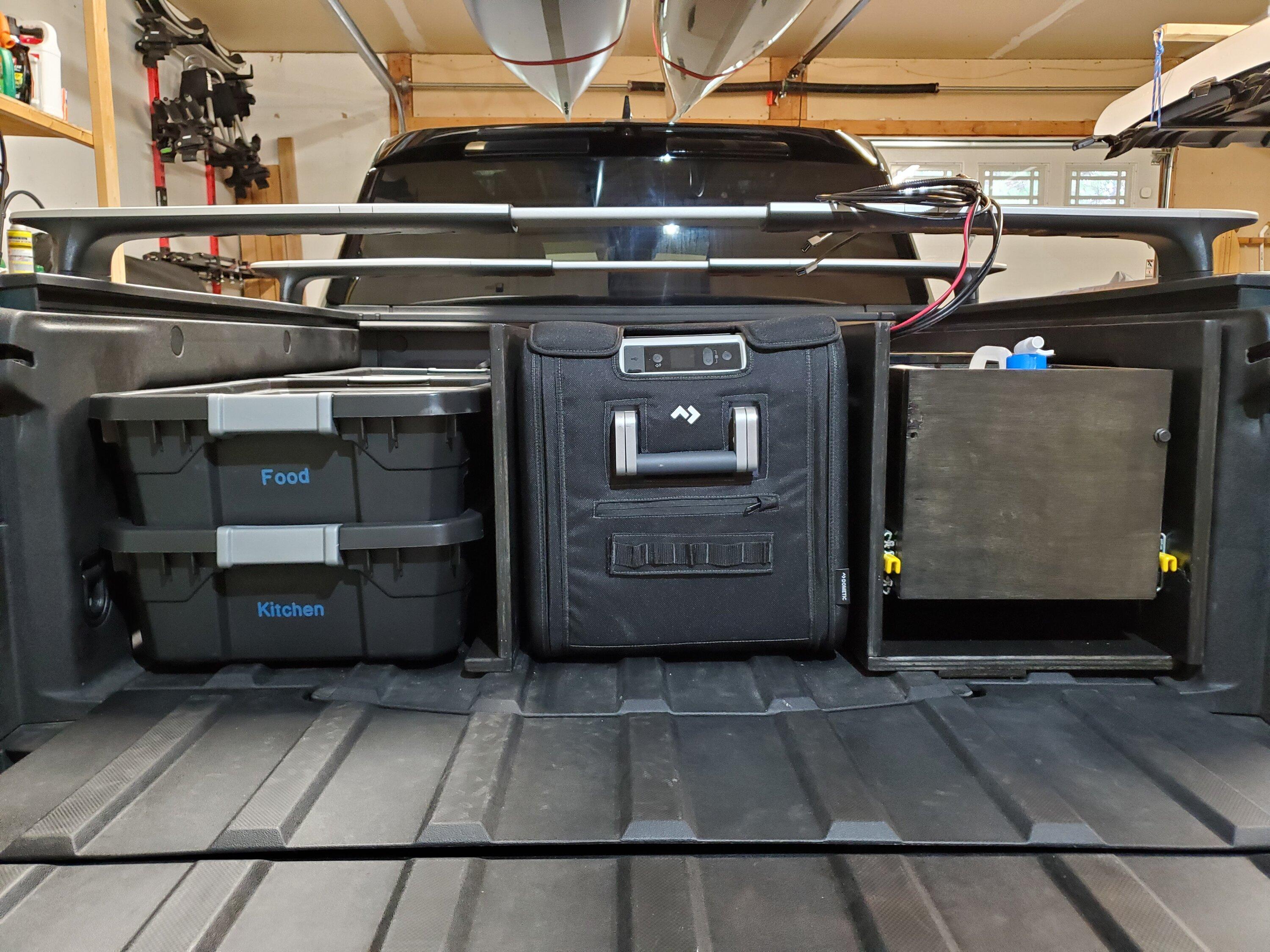

The fridge is a Dometic CFX3 35 that just clears the tonneau with the insulation cover. It also has a drag chain to manage it's power cable and allow us to slide it in and out for access.

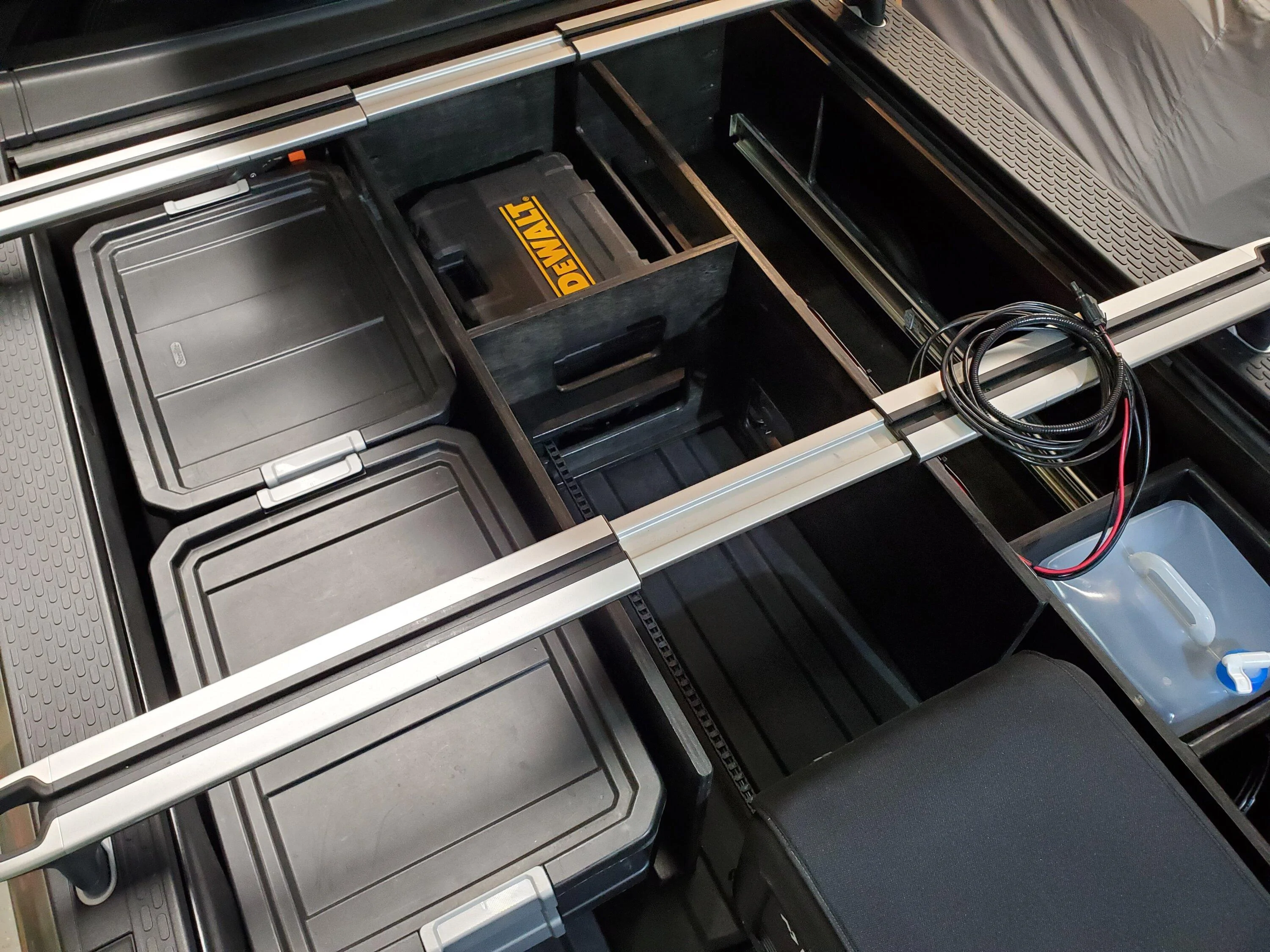

Behind the fridge is a storage cubby for miscellaneous tools and a small area for cable management. To the left of the insert is room for totes to hold assorted gear.

Now for pictures:

Edit 8/23/22:
A list of main components used in the bed insert build if you wanted to try your own:
- battery bank = Ecoflow Delta Mini
- cooler = Dometic CFX3 35
- cooktop = Duxtop Portable 1800W
- water containers = two GSI 15L water cubes
- drawer slides = 48" Vevor heavy duty locking 500 lbs
- plywood = two sheets of 4'x8'x3/4“ sanded birch
- plywood runners on underside of base plate that lock into bed ridges = 1/4" plywood (only need a 4' x 4' sheet)
- pocket screws = 100ct Kreg 1.25" indoor/outdoor blue kote
- wire drag chains = 2m of 10x10mm openable chain and 2m of 10x20mm openable chain
- 12V wire extension for cooler = 6ft 14awg 12V socket extension
- USB extension cables for power into tent = four 6' USB-A 3.0 extension cables (for power to each person in tent)
- 120V extension cables for truck outlets that get blocked by insert = two 15A rated 10' extension cords with low profile plug
- foam for lining drawers = 12 sqft of 5mm EVA foam
- 1 ratchet strap to hold back of insert down
- hinge for water compartment = 12" stainless piano hinge
