There is a YouTube video for this mod from a vendor that helped, but thought would add some info here as actually even easier then might be thought. This in general is a really easy install for those willing and surprised more are not doing this so will go into some details. Priced well and I personally like that it is steel too:
https://dirtyhookerdiesel.com/i-24077904-dhd-600-625-rivian-r1t-r1s-steel-tie-rod-sleeves.html



Install tips:
- You don't need to remove wheel or lift the vehicle. If tires are on smooth flat surface you can turn them by hand even with weight of vehicle on them. If want to make it easier just use simple bottle jack to partially jack it up with jack puck on frame location, but certainly don't need it all the way off ground.
- Use 21 mm wrench to break loose the outer tie rod jam nut while holding the tie rod end with another wrench (adjustable works good for this ... the outer tie rod has a molded square section for this wrench). Its not torqued too much.
- Use 21mm deep socket to break loose the nut on the steering knuckle using a breaker bar as it is heavily torqued
- Just push the tire out a little by turning it with hand on each side of the tire. It moves fairly easily. This gives you some clearance to pull the tie rod end all the way out of the knuckle. Mine sat loose in the knuckle so was no need to shock the tapered ends out of knuckle.
- Might need to push/turn tire out more to get the ends all the way off as is just enough clearance to do this without removing wheels.
- The tie rod ends usually already have a green marking on them from factory ... this just helps to count the number of turns to remember when removing them.
- On the YouTube install video for the sleeves noticed the guy mentioned found his tie rods were screwed in 19 turns. When I took mine out found it was 21.5 turns on driver and just shy of a full 22 turns on passenger side (the difference is basically where the threads start to engage). So basically ~3 turns difference between his and mine. This was suspicious to me so I certainly made note of this, but each vehicle can be a bit different. If having any steering wheel shake/feedback on minor road imperfections but no shake on smooth pavement, see this post I just created as good chance can fix this now too if want to experiment:
https://www.rivianforums.com/forum/...e-feedback-on-minor-road-imperfections.28853/
- When DHD sleeve is installed it will then be a 7/8in wrench to tighten the sleeve in the place of the jam nut it replaces. Hold the tie rod end straight with another wrench

I know what the first reply will likely be in these EV forums, so I will address the "elephant in the room" now. I always upgrade tie rods, radius rods, and other various suspension components on my more dedicated off road vehicles I have as none of the OEMs make these strong enough (even in dedicated off-road industries). None of these have damaged steering racks, frame, mounting tabs, etc. after a lot of abuse. After seeing the multiple bent tie rods and some that have happened for no obvious reason, I am not going to risk it out on remote forest roads and similar. I know from many years of experience in true off-roading, the whole fear mongering thing of "then the forces get transmitted to the rack" is just not reality. The tie rods are simply weak parts that need upgraded for confidence and where they machine in the threads (where they almost always bend at) is just too weak and has nothing to do with an "engineered weak point to save other components". I have seen entire wheels and suspension completely sheered off of vehicles and barrel rolled my stuff multiple times and still never seen the actual steering rack be bad. It certainly can happen, but that is usually the last thing that goes. The cases where factory replaces the steering racks saying was damaged is usually a last ditch effort to try and resolve something they have no other ideas for. The ball joint or even the steering knuckle connection point will usually sheer before steering rack gets damaged and its extremely hard to break those unless factory defect. The bulk of leverage is on the outer tie rod and the forces are not inline with the rack so does not transmit much to the rack itself. Anyways ...

Related to the above, it might be worth noting these sleeves actually float over the stock tie rods a little. I should have measured but it felt like maybe 1/16in clearance between the sleeve and rod. So, the rod will still "flex" vs a full rod replacement or clamped on sleeve. I personally don't think this is much of a true "benefit" and would have no problem with even a beefier full end to end tie rod replacement directly to the rack, but perhaps this info makes some more comfortable with this mod as it is allowed to naturally flex a little but stops it before bending essentially. Also, there is still a small section of non-sleeved rod exposed that is also the smaller diameter section of rod (but does not have threads) before the inner boot, so if you still want to go with whole "its engineered to break before damaging other parts" thing, it still has an opportunity to do just that in theory. I am not associated with manufacturer and none of this is is even mentioned as a feature on their site ... just an observation. They probably designed it this way in reality to help ensure easy installation, even over a slightly tweaked tie rod. Again, the threads on the rod to allow adjusting toe/alignment is where the true weakness is that is not accounted for by the OEMs and this mod takes care of that. If you are really cheap, just add a couple extra lock nuts to cover the bulk of exposed threaded area and that too would help with each thread covered/supported.

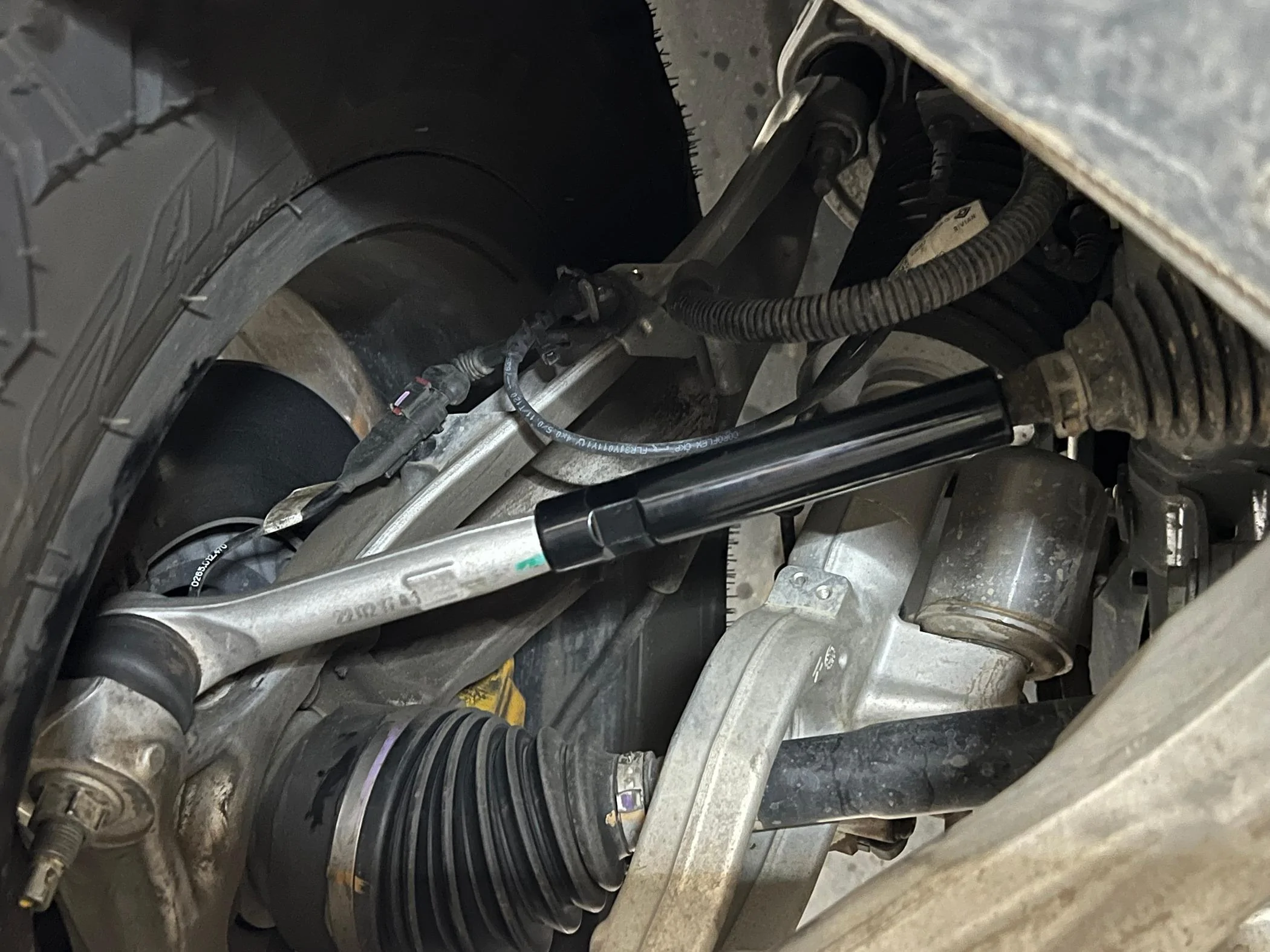

Rivian R1T R1S DHD Tie Rod Sleeves Upgrade - Install Tips and Info IMG_0574.JPG
Sponsored


Last edited:

Mark_AZR1T

Well-Known Member
Site Sponsor
First Name
Mark
Joined
May 28, 2021
Threads
31
Messages
1,398
Reaction score
2,060
Location
Gilbert, AZ
Website
jackpucks.com
Vehicles
R1T Launch, R1S Canyon Red
Clubs

Interesting update on the Tie Rod End upgrade.....thanks.


Riviot

Well-Known Member
Joined
Mar 29, 2021
Threads
81
Messages
4,001
Reaction score
6,667
Location
Kitsap, WA
Vehicles
R1T
Clubs

I'm very interested in this upgrade, but I'm waiting for the devil's advocate to speak up here!


kyunam

Well-Known Member
Joined
Nov 14, 2020
Threads
19
Messages
293
Reaction score
412
Location
SoCal
Vehicles
1999 LS 400, 2023 Rivian R1S
Occupation
not sure what I'm doing
Clubs

I learned something new on Sunday morning. Thanks!


Sponsored

OP
OP

twvette

Well-Known Member
First Name
Todd
Joined
May 14, 2023
Threads
8
Messages
54
Reaction score
144
Location
Phoenix, AZ
Vehicles
R1S
If you don’t bend the tie rod, you will stress something else..

Lesser of two evils is the question.

Interesting approach to solve ‘a problem’, I guess…
You are not wrong. It’s simply continues to send the stress to go the components that are much beefier like the knuckle, suspension arms, and ultimately frame. The tie rods are just the weak link stuck in middle. Nothing really interesting about this mod as many people been doing this for many decades with beefier rods, braces/support clamps, or sleeves … this steering system is nothing new.

Last edited:

Mark_AZR1T

Well-Known Member
Site Sponsor
First Name
Mark
Joined
May 28, 2021
Threads
31
Messages
1,398
Reaction score
2,060
Location
Gilbert, AZ
Website
jackpucks.com
Vehicles
R1T Launch, R1S Canyon Red
Clubs

You are not wrong. It’s simply continues to send the stress to go the components that are much beefier like the knuckle, suspension arms, and ultimately frame. The tie rods are just the weak link stuck in middle. Nothing really interesting about this mod as many people been doing this for many decades with beefier rods, braces/support clamps, or sleeves … this steering system is nothing new.
For an ICE vehicle suspension components are likely less expensive then a Rivian, so the tie rod may literally act like a fuse on the system. Won't know until someone checks price and availability on the other components in the suspension system.....


Riviot

Well-Known Member
Joined
Mar 29, 2021
Threads
81
Messages
4,001
Reaction score
6,667
Location
Kitsap, WA
Vehicles
R1T
Clubs

I carry a spare tie-rod with me. IF I ever break one and have to do a trail replacement, I might consider this upgrade.
How much was the spare tie rod? Did you get directly from Rivian?


Dark-Fx

Well-Known Member
First Name
Brian
Joined
Jul 15, 2020
Threads
105
Messages
10,158
Reaction score
19,586
Location
Michigan
Vehicles
Polestar 2, R1T, R1S, Livewire One, Fisker Ocean
Occupation
Engineering
Clubs


Sponsored

WattTruckMatt

Well-Known Member
First Name
Matt
Joined
Oct 4, 2021
Threads
7
Messages
309
Reaction score
487
Location
Austin
Vehicles
2022 Rivian R1T
How much was the spare tie rod? Did you get directly from Rivian?
Yes I ordered straight from Rivian and picked up at local SC. It wasn't cheap... can't imagine what a replacement rack/install would cost.

Rivian R1T R1S DHD Tie Rod Sleeves Upgrade - Install Tips and Info IMG_2866

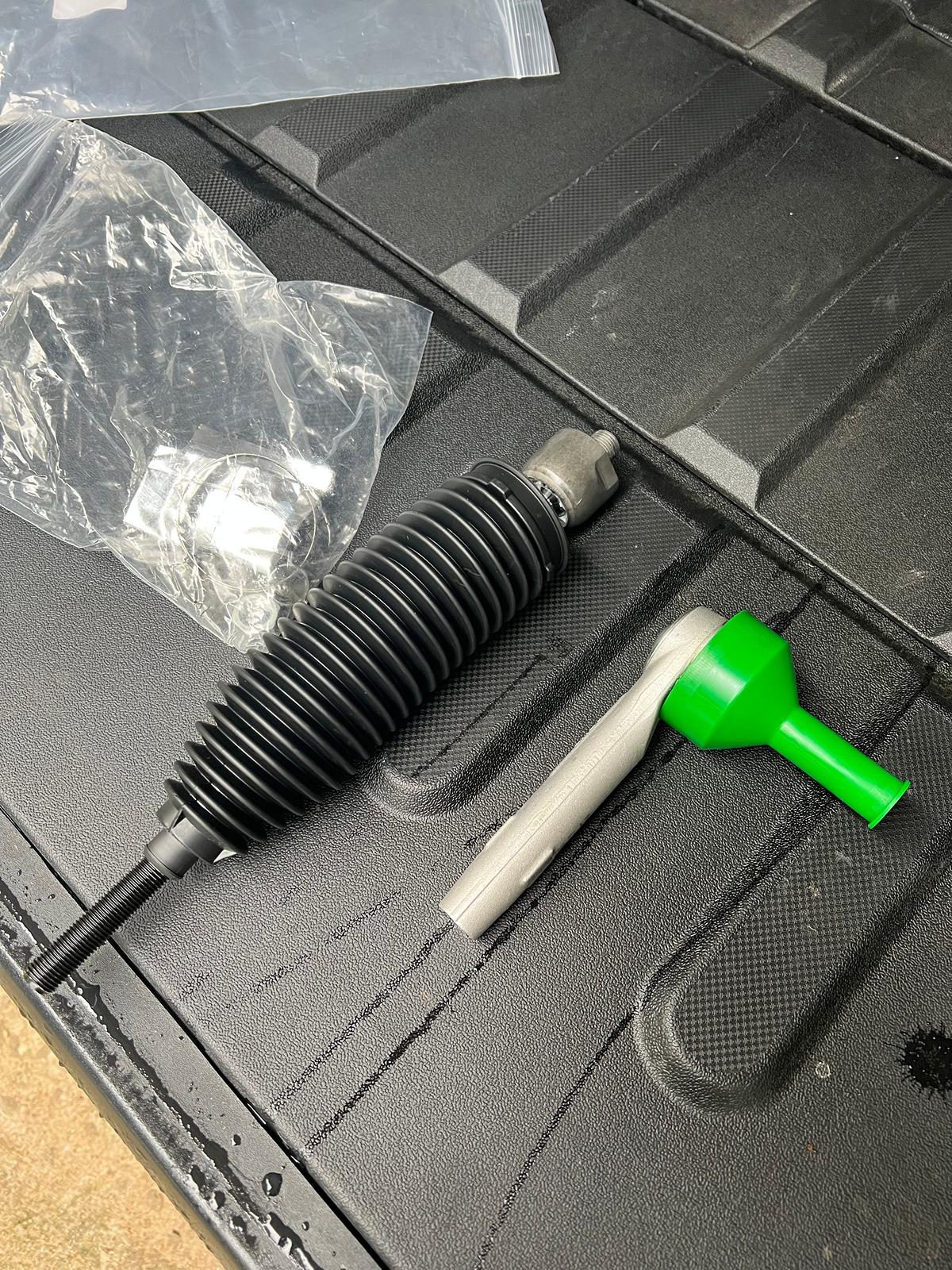

Rivian R1T R1S DHD Tie Rod Sleeves Upgrade - Install Tips and Info IMG_2867


Cycliste

Well-Known Member
First Name
Scott
Joined
Jul 7, 2023
Threads
5
Messages
648
Reaction score
895
Location
Solano County, California
Vehicles
R1T/20AT/2DNU, BMC TMR01/SRAM AXS/454 NSW
Occupation
Amateur aero weenie
Clubs

Today I learned tie rods have an innie and an outie.


Lmoore101

Member
Joined
Mar 16, 2024
Threads
1
Messages
5
Reaction score
1
Location
Los Angeles, CA
Vehicles
2024 R1S
Occupation
IT
Thanks for this write up, just got my DHD parts today and will install tomorrow.

Did yours come with a small packet of grease? Mine came unpainted so I am thinking it is to prevent rust on the inside and outside if I don’t paint it?

OP
OP

twvette

Well-Known Member
First Name
Todd
Joined
May 14, 2023
Threads
8
Messages
54
Reaction score
144
Location
Phoenix, AZ
Vehicles
R1S
Thanks for this write up, just got my DHD parts today and will install tomorrow.

Did yours come with a small packet of grease? Mine came unpainted so I am thinking it is to prevent rust on the inside and outside if I don’t paint it?
No grease with mine and think were powder coated. Usually no grease needed on rod ends so that is interestIng.
