Cargo storage patent (R3 / R3X)

Katsudon

Well-Known Member
First Name
Tim
Joined
Feb 20, 2019
Threads
37
Messages
84
Reaction score
363
Location
NY
Vehicles
2022 R1T, Macan
Cargo storage patent posted by @Hilbe

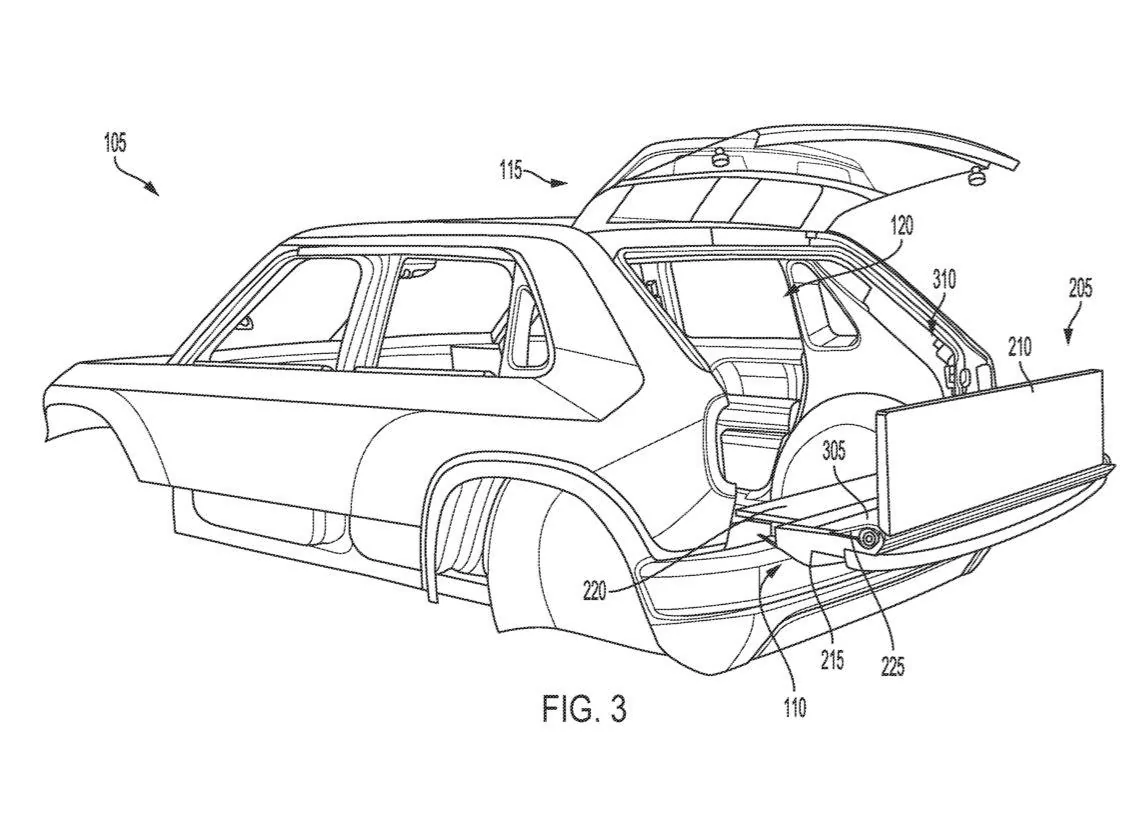

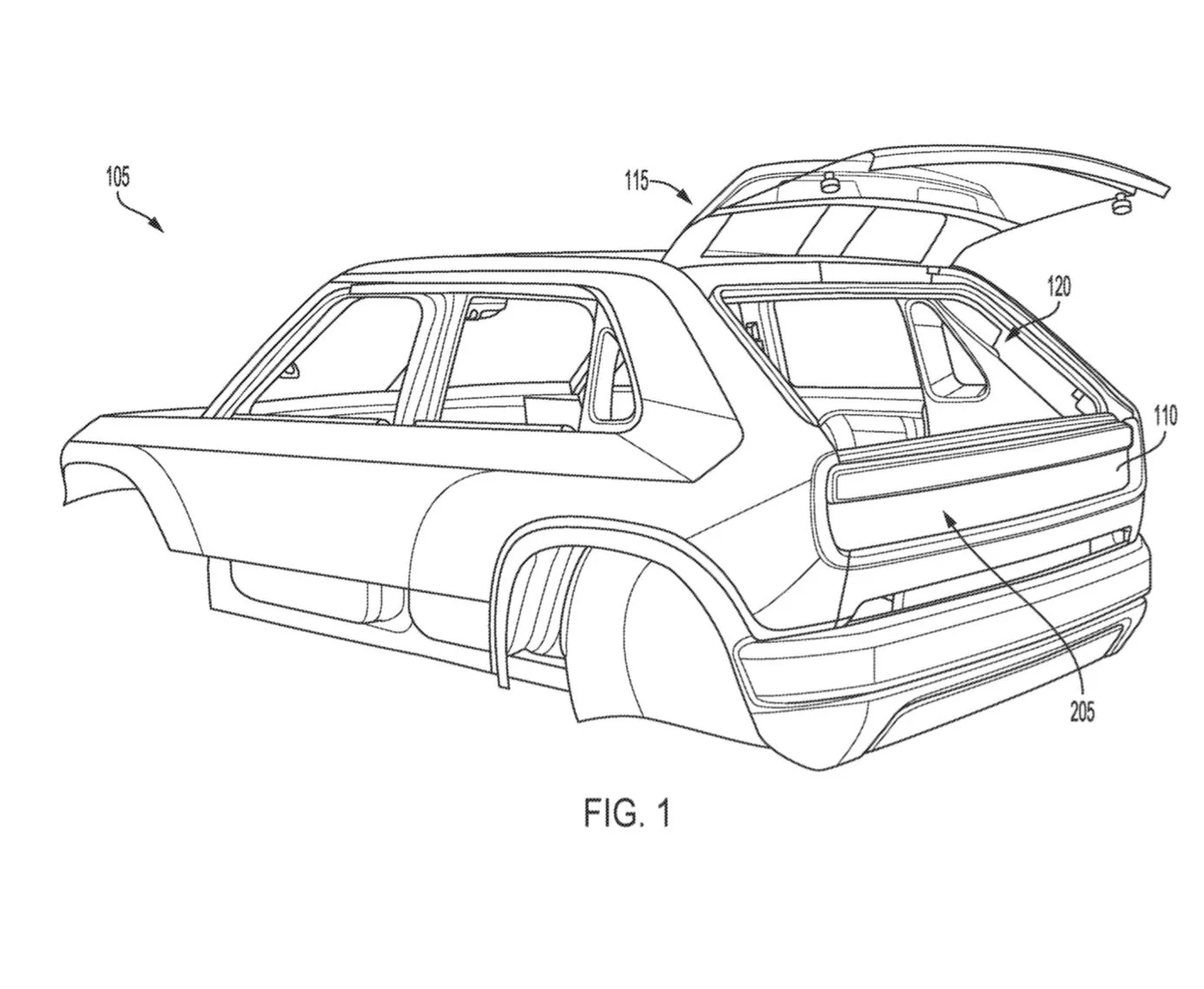

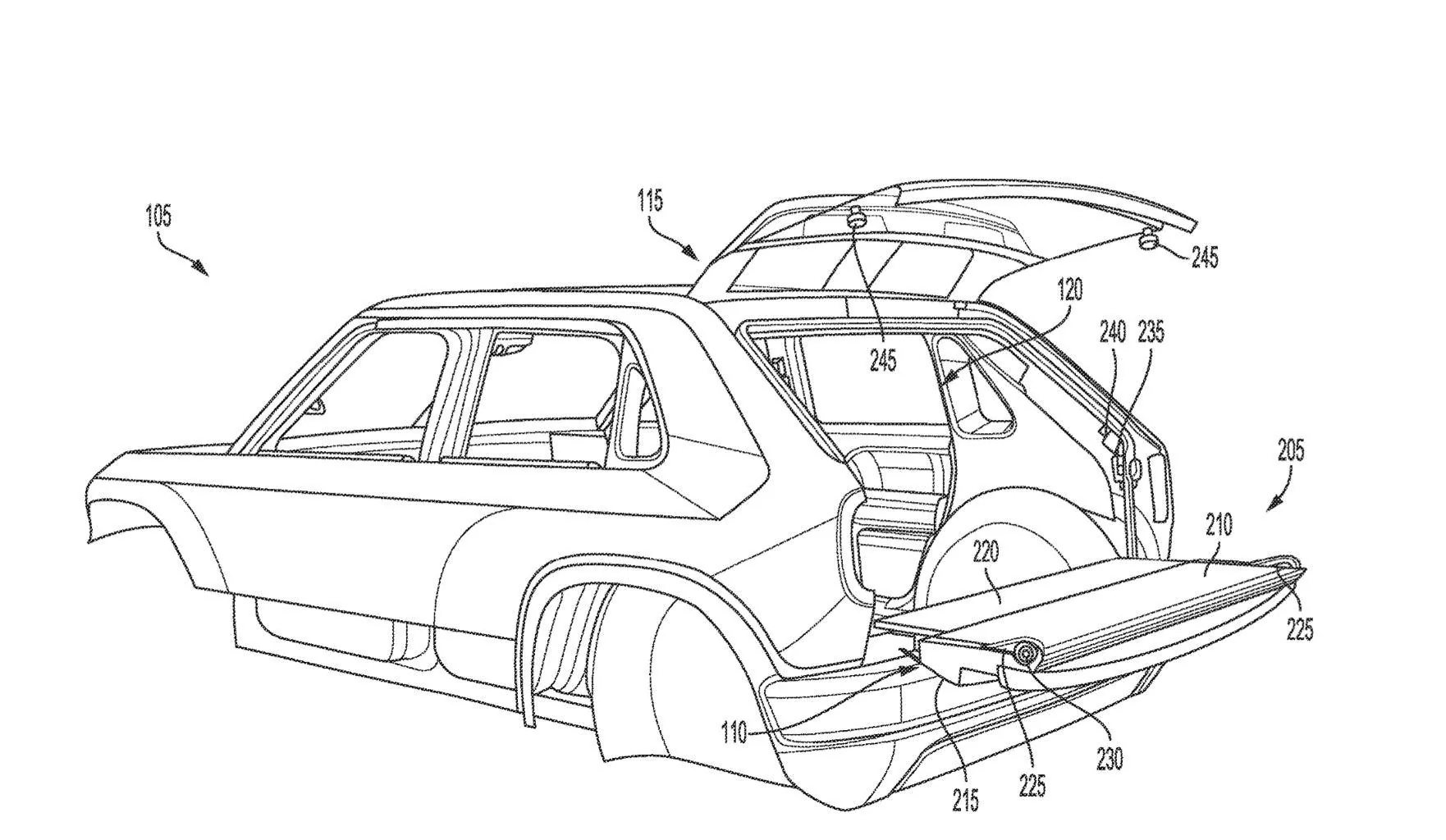

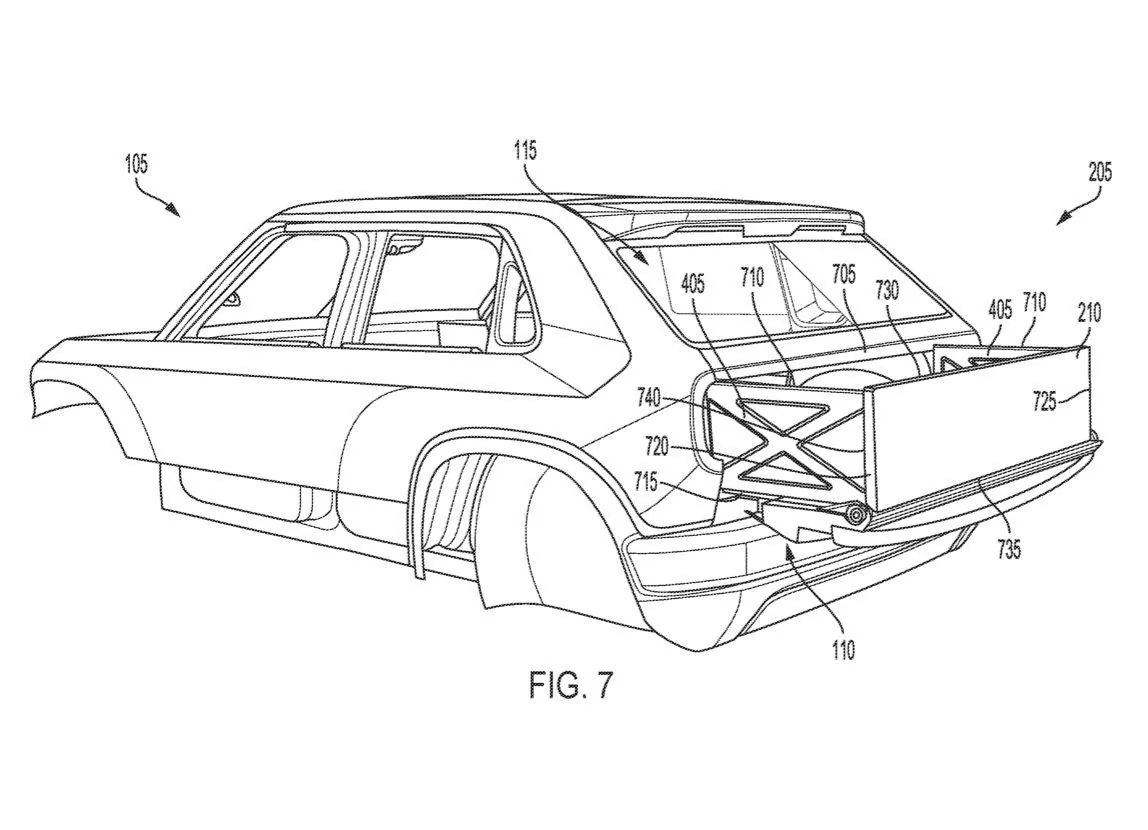

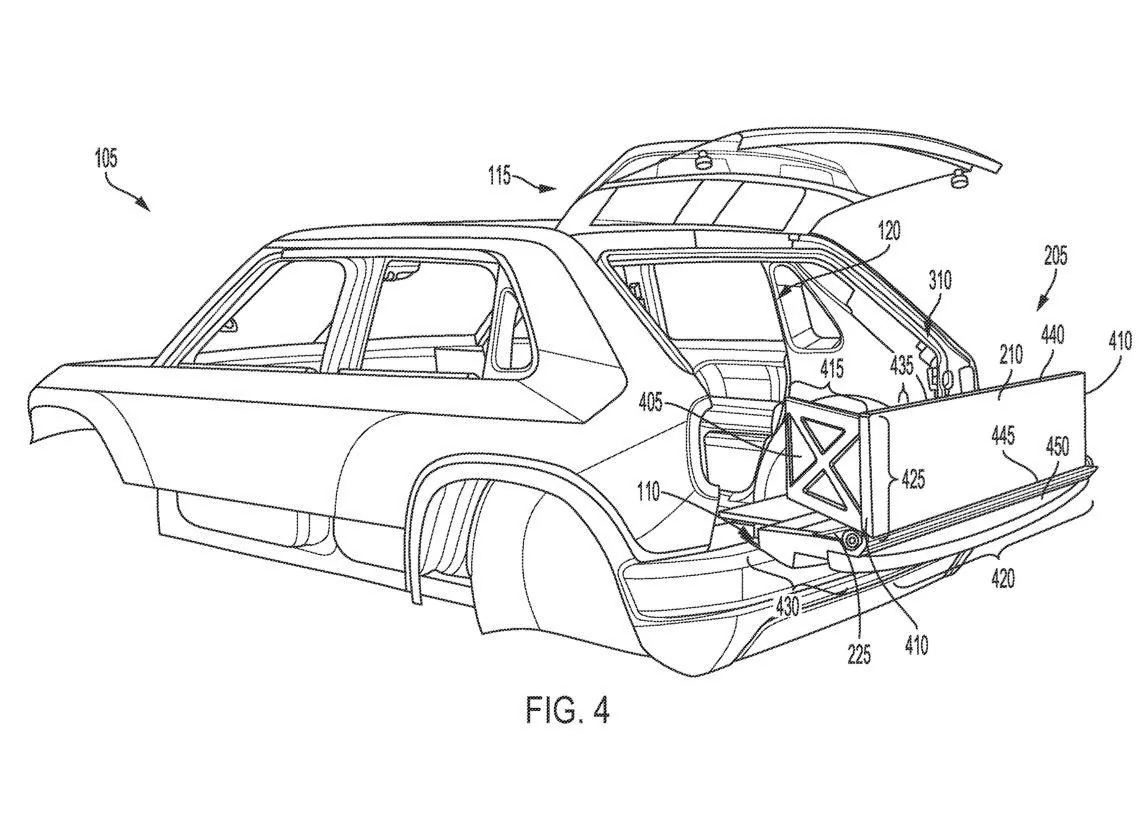

Rivian has a patent application made public which appears to feature an R3. The filing is for a "vehicle cargo storage apparatus". This could be used to make the R3 a much more capable vehicle by giving additional storage. 🔥







Sponsored



Hilbe

Well-Known Member
First Name
Chris
Joined
Jul 22, 2021
Threads
18
Messages
157
Reaction score
261
Location
Fishers, IN
Vehicles
Rivian R1S, Tesla MS P100D
This is my favorite picture…



CharonPDX

Well-Known Member
First Name
Charon
Joined
Jul 12, 2021
Threads
27
Messages
1,742
Reaction score
2,723
Location
Cascadia
Vehicles
R1T LE, Mach-E, Arcimoto FUV, Repl: F-250/Model S
Occupation
InfoSec Geek
Clubs

While the body design looks like an R3, that's now how the R3-as-demoed rear hatch works. That's closer to the R2/R1S hatch.

On R3, the whole hatch opens up, it's just that the glass can also open up separately. (Like my old Ford Explorer could.)


MountainBikeDude

Well-Known Member
First Name
Adam
Joined
Jun 20, 2019
Threads
47
Messages
2,631
Reaction score
5,566
Location
Vancouver
Vehicles
2023 El Cap Quad Motor R1T (Selling the Xterra)
Clubs

While the body design looks like an R3, that's now how the R3-as-demoed rear hatch works. That's closer to the R2/R1S hatch.

On R3, the whole hatch opens up, it's just that the glass can also open up separately. (Like my old Ford Explorer could.)
This style of hatch is more functional than the demo model. Also eliminates the multi strut system it would have required


Zoidz

Well-Known Member
First Name
Gil
Joined
Feb 28, 2021
Threads
169
Messages
4,489
Reaction score
9,981
Location
PA
Vehicles
23 R1S Adv, Avalanche, BMWs-X3,330cic,K1200RS bike
Occupation
Engineer
As we have discussed before, don't get overly optimistic about a patent becoming an actual product. Rivian has a bunch of patents that have never made it to production.

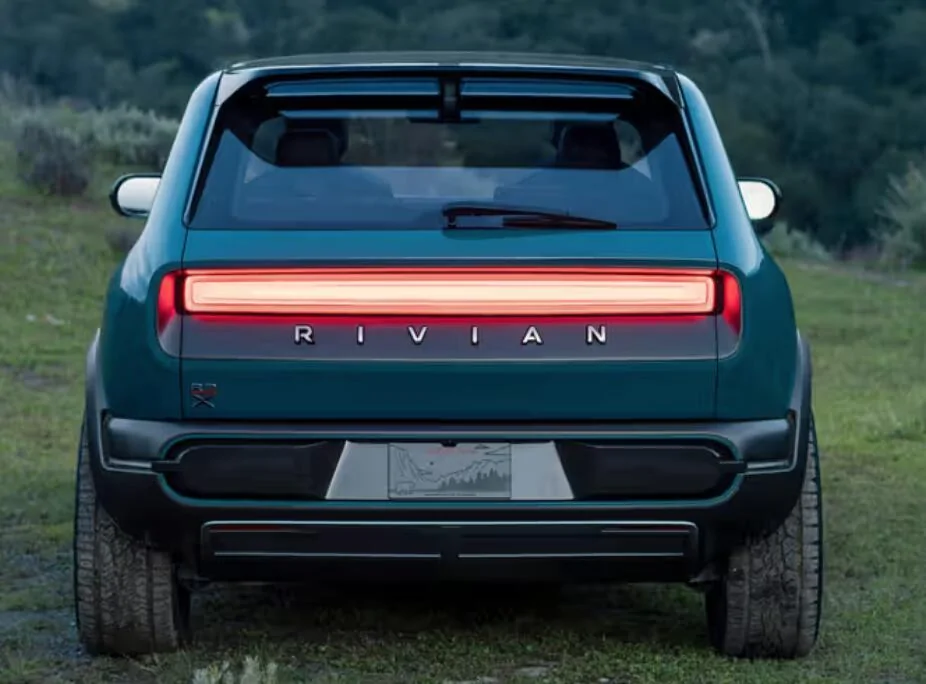

This image prompts another puzzle. I have not seen an R3 in person, just photos. In the patent drawing and in photos it appears the turn/brake lights are only built into the foldable tailgate, which does not meet US safety requirements for fixed lighting. If so, it seems to me the rear design will have to change, unless they have brake/turn indicators in the lower bumper/fasica area?



Sponsored

Mathme

Well-Known Member
First Name
Matt
Joined
Jul 25, 2022
Threads
3
Messages
1,117
Reaction score
1,427
Location
Los Altos, CA
Vehicles
R1T: El Cap, OC, 20AT, Off road package
Occupation
High Tech
My first thought was, "oh the rock chips on that tailgate when down...."


bike123.com

Well-Known Member
First Name
Larry
Joined
Feb 22, 2021
Threads
26
Messages
264
Reaction score
160
Location
Maryland
Vehicles
2 bolt 1 Kona ev
Occupation
Bicycle store proprietor
Clubs

Rock chips……
Though we’d like to have an easy enough life to even think about those let alone let it bother us, we’ve learned to live with cracked glass and taillights, dents front to rear head to toe, and some ripped upholstery.
The T is a workhorse and we’re excited about the R3 to live the 70’s again when we had a ‘77 Rabbit to abuse.
A dinged up tailgate is something we never see when driving.


gtpowell

New Member
First Name
Gary
Joined
Mar 17, 2025
Threads
0
Messages
4
Reaction score
1
Location
California
Vehicles
Tacoma, RX350
Occupation
Retired Motorsports Engineer
I suspect this concept will have very limited use. I say this because, as everyone who has ever driven a vehicle having a rear glass or rear hatch open in this manner will attest to, the excessive amount of exhaust and road debris/dirt which enters through an open rear window/hatch can quickly become overwhelming. Granted this vehicle has no exhaust fumes, but there is always road film/dirt in addition to exhaust from nearby ICE vehicles. Even worse than the on-pavement driving experience, the massive volumes of dust kicked up behind the vehicle when driving in an off-pavement situation, will make driving in this manner practically impossible. Been there and done that..!!

Last edited:

MaskedRacerX

Well-Known Member
First Name
DT
Joined
Nov 27, 2022
Threads
3
Messages
224
Reaction score
414
Location
Vilano Beach, FL
Vehicles
'24 BMW iX50 / '24 Jeep Wrangler 4xe
Occupation
Software Dev / Architect / Product Designer

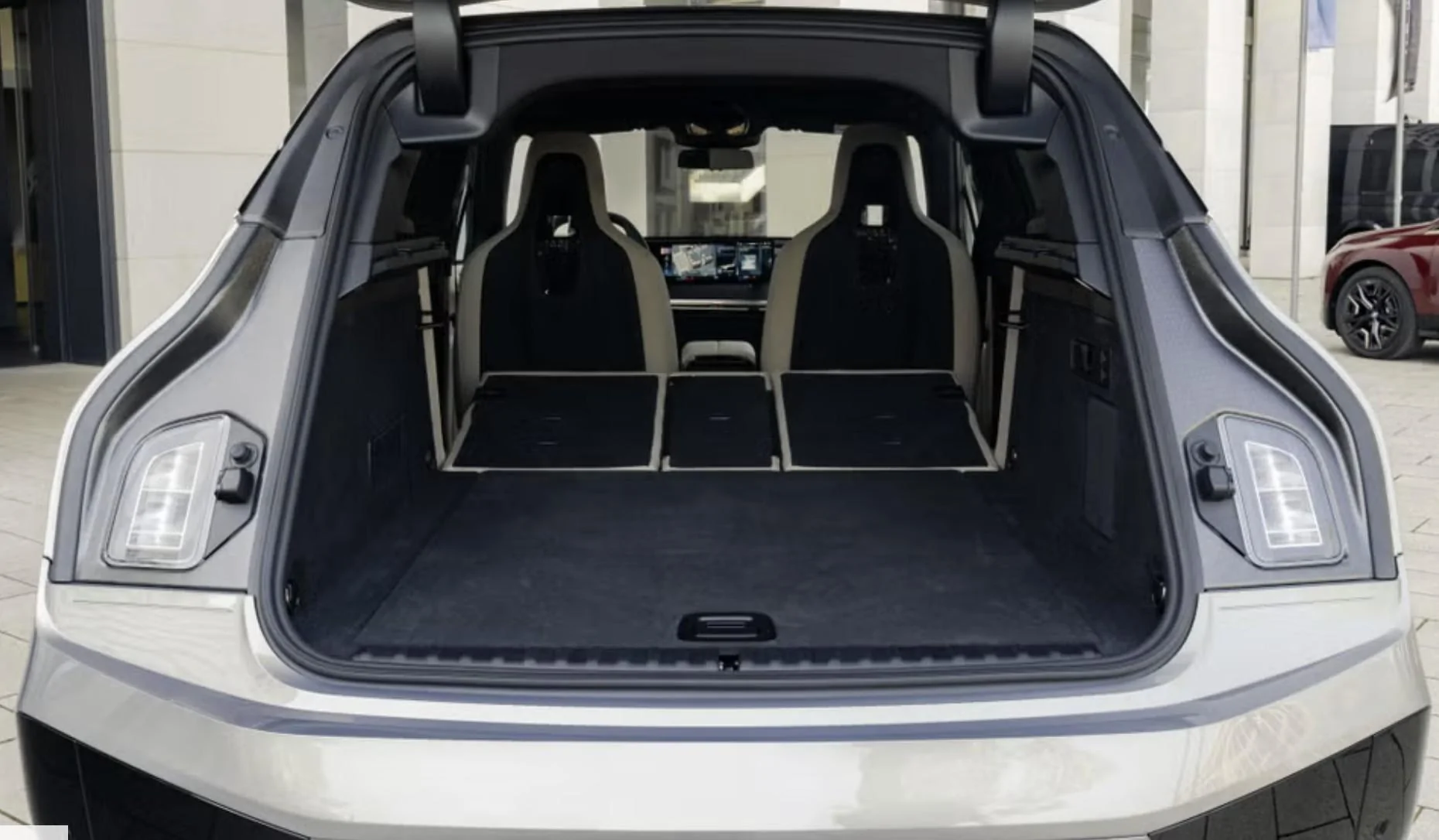

The requirement is for when the hatch might be open on side of road, others can still see hazards. BMW iX has lights behind the tailgate to meet this.
