Anyone buying the $500 Rivian Wall Charger?

Tampa R1T

Member
First Name
Charlie
Joined
Dec 28, 2021
Messages
6
Reaction score
1
Location
Tampa Florida
First Name
Charlie
Vehicles
C-max energi
I have a Juicebox 40 for my Ford C-Max energia. The charger has a terrible wifi subsystem. It will periodically drop off my home wifi for weeks at a time, then spontaneously rejoin weeks later. Unplugging the charger and then re-configuring the wifi interface every time is just ridiculous. I had purchased it last year to take advantage of the tax break on the charger and electrician's installation of the Nema plug, but should have chosen a different vendor

Juicebox support suggested adding a wifi-extender, which didn't change the behavior. And yet the Rachio wifi-sprinkler controller 2 feet away never drops offline. So I can't recommend Juicebox.

I would like to know if the Rivian charger has V2H capabilities at $500 when the ClipperCreek is priced at $329.
Advertisement



ajdelange

Well-Known Member
First Name
A. J.
Joined
Aug 1, 2019
Messages
2,212
Reaction score
1,788
Location
Virginia/Quebec
First Name
A. J.
Vehicles
Tesla X Extended Range Plus 2019, Lexus, Landcruiser, SR5
Occupation
EE Retired
$500 is about an order of magnitude low for V2H (see WallBox Quasar).


Tampa R1T

Member
First Name
Charlie
Joined
Dec 28, 2021
Messages
6
Reaction score
1
Location
Tampa Florida
First Name
Charlie
Vehicles
C-max energi
Reply from ClipperCreek about Rivian support:

Thank you for reaching out.
We have not added the Rivian Vehicles to our vehicle selector tool yet, but will be adding them once all information is available.

If you have any questions about charging for the Rivian vehicles I am more than happy to assist.

ClipperCreek, Inc.
Innovative Infrastructure for
Electric and Hybrid Vehicles


turbome

Active Member
First Name
Adam
Joined
Oct 11, 2020
Messages
26
Reaction score
19
Location
San Marcos, California
First Name
Adam
Vehicles
Ram 1500 Ecodiesel
When I was at the first mile, I specifically asked why the Rivian wall charger was better than the standard charger it came with. She said the Rivian wall charger has wifi capabilities so that you can control the charger with your app or wifi home system where the standard charger you would just plug in and go. The wall charger can be set to only charge at certain times, say off-peak hours for us in lame CA so that your charging costs the least possible. As far as the charging speeds, I think either is the same but based on your electrical supply. Anything less than 60A will charger slower than max the truck can handle.


CommodoreAmiga

Well-Known Member
Joined
Dec 30, 2020
Messages
1,858
Reaction score
3,798
Location
USA
Vehicles
N/A
As far as the charging speeds, I think either is the same but based on your electrical supply. Anything less than 60A will charger slower than max the truck can handle.
Definitely not the same charging speed.

The portable EVSE supports a maximum of 32A @ 240V, which would give you 16 miles of range gained per hour.

The Wall EVSE supports a maximum of 48A @ 240V, which would give you 24 miles of range gained per hour.

The Rivian R1 platform maxes out at 11.5 kWh charging, which is 48A @ 240V.


Cosmacelf

Active Member
Joined
Nov 11, 2020
Messages
44
Reaction score
62
Location
San Diego, CA
Vehicles
Tesla Model X, Infiniti QX80
Occupation
Software
Has anyone actually received a Rivian Wall Charger yet? Any ETA?


turbome

Active Member
First Name
Adam
Joined
Oct 11, 2020
Messages
26
Reaction score
19
Location
San Marcos, California
First Name
Adam
Vehicles
Ram 1500 Ecodiesel
Thanks for the clarification Commodore. I emailed Rivian customer servcie and they said their hope is to be able to send out or make the wall chargers available prior to the R1T deliveries so people have time to get them installed once their truck arrvies.


Cosmacelf

Active Member
Joined
Nov 11, 2020
Messages
44
Reaction score
62
Location
San Diego, CA
Vehicles
Tesla Model X, Infiniti QX80
Occupation
Software
My delivery window is "First half of 2023" but I ordered it the day the gear shop opened up for my model Y.

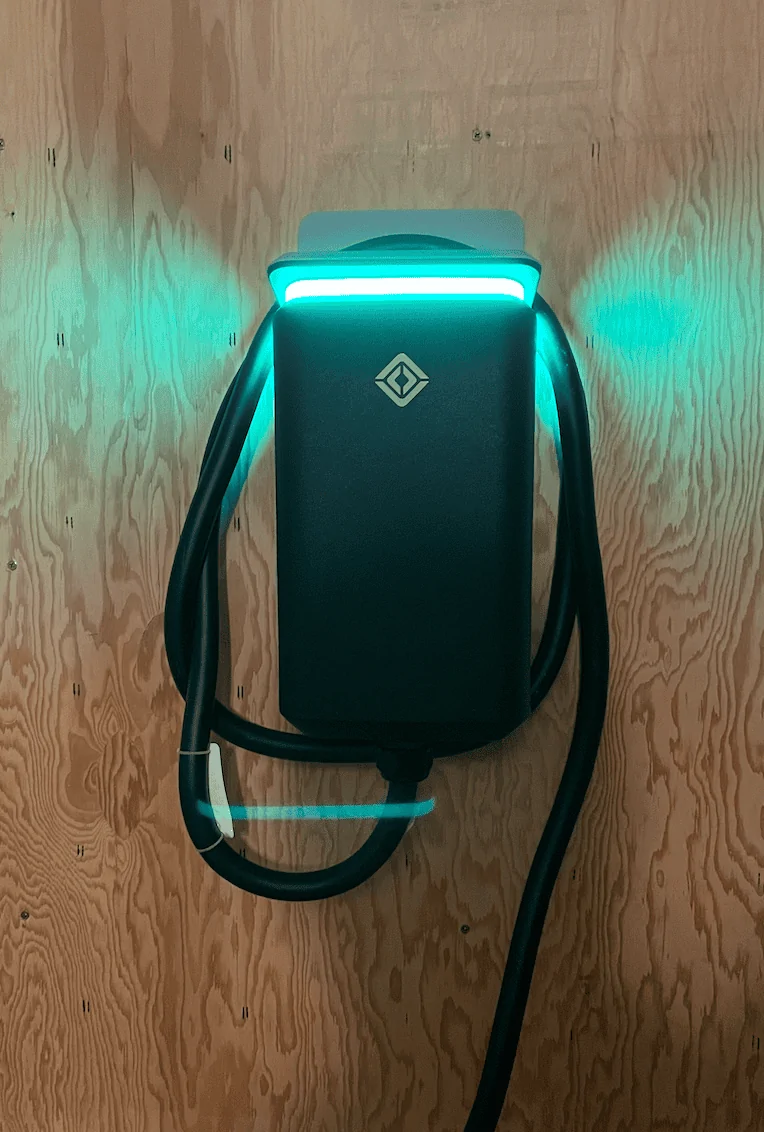

Screen Shot 2022-01-06 at 10.04.09 PM.png
Nice! So, direct wired? or NEMA 14-50 plug? Dip switches inside for setting amperage? Can you share the manual?


SANZC02

Well-Known Member
First Name
Bob
Joined
Feb 11, 2021
Messages
1,048
Reaction score
2,222
Location
California
First Name
Bob
Vehicles
Tesla Model S, Jeep Grand Cherokee; (LE - R1S)
Occupation
IT

jdk24

New Member
Joined
Jan 6, 2022
Messages
4
Reaction score
5
Location
Denver
Vehicles
Tesla Model Y Performance
Nice! So, direct wired? or NEMA 14-50 plug? Dip switches inside for setting amperage? Can you share the manual?
It's direct wired. Not sure about switches inside. But it's running 48A to my Tesla no problem


camaroz1985

Well-Known Member
Joined
Oct 5, 2021
Messages
146
Reaction score
166
Location
Carlisle, PA
Vehicles
Volt, Suburban, Atlas
Occupation
Engineer
It's direct wired. Not sure about switches inside. But it's running 48A to my Tesla no problem
Is it showing up in your Rivian app? If so, what info does it give you when using with a non-Rivian?


jdk24

New Member
Joined
Jan 6, 2022
Messages
4
Reaction score
5
Location
Denver
Vehicles
Tesla Model Y Performance
Is it showing up in your Rivian app? If so, what info does it give you when using with a non-Rivian?
It shows up and I started to connect it, but at the end it fails. I'm guessing it's because I don't have an actual Rivian. But on the positive side, it works fine without using the app


turbome

Active Member
First Name
Adam
Joined
Oct 11, 2020
Messages
26
Reaction score
19
Location
San Marcos, California
First Name
Adam
Vehicles
Ram 1500 Ecodiesel
Did they send you the wall charger prior to any payment for it? Just asking because I have a LE and have only had to pay the deposit. I have the wall charger added in my configuration but guessing they wouldn't ship anything until the $500 has been paid. If you did pay for it, how did you do that transaction?


jdk24

New Member
Joined
Jan 6, 2022
Messages
4
Reaction score
5
Location
Denver
Vehicles
Tesla Model Y Performance
Did they send you the wall charger prior to any payment for it? Just asking because I have a LE and have only had to pay the deposit. I have the wall charger added in my configuration but guessing they wouldn't ship anything until the $500 has been paid. If you did pay for it, how did you do that transaction?
No, I purchased it from the gear shop separate from my R1S order. I think they shut down the ordering of it shortly after it went live tho
