That sucks. I suggest do a test run with shipping mode before your trip.

I probably misunderstand what yo are saying but how can you leave it at 100% if there are no chargers around? I do the math with the charge you need to get to the closes charger and assume you loose 3KWh a day and add 10 KW additional safety and see how much you have to leave it at.
yeah, the 100% question was sort of unrelated. If I am ever in a position where i have to leave it off a charger for a month or more and a worried that it will drain to 0 and need towing, how do I handle it. In the case of my camping trip, it looks like I will have to do some slow charging closer to my destination so I have some wiggle room on the way home with my reduced SOC. I don’t need gear guard or anything exciting when I leave my car, I but I will be out of cell range and far away from a tow truck, so I don’t want to be bricked out in the desert.


  • Like
Reactions: Max

momo3605

Well-Known Member
Joined
Mar 25, 2022
Threads
4
Messages
112
Reaction score
87
Location
SF Bay Area
Vehicles
Bolt EUV, model 3 LR AWD, 718 GTS 4.0
Mine has been in my garage (unplugged, around 68F) since 6/7, left with 59% (176 miles), today (10 days later) it is 39% (117). Not loving that, but I can deal, but it makes me REALLY nervous for my week long canoe trip in Utah next month where there are no chargers near by and my truck has to sit in the sun for 7 days (I might try shipping mode when I leave it). That being said, if leaving it at 100% is bad, but it drains at over 2%/day on its own, is leaving it at 100% really bad?
Were you in a situation where for the past 10 days, everytime you walk past the car in the garage your phone key wakes it up?


cnr1089

Member
First Name
Christopher
Joined
Feb 9, 2021
Threads
1
Messages
9
Reaction score
5
Location
New Hampshire
First Name
Christopher
Vehicles
2018 Ford F-150 Raptor
Occupation
Software Engineer
Were you in a situation where for the past 10 days, everytime you walk past the car in the garage your phone key wakes it up?
Out of town, not near car.


Max

Well-Known Member
Joined
Aug 31, 2021
Threads
34
Messages
1,390
Reaction score
2,162
Location
Maryland
Vehicles
Nissan Truck
yeah, the 100% question was sort of unrelated. If I am ever in a position where i have to leave it off a charger for a month or more and a worried that it will drain to 0 and need towing, how do I handle it. In the case of my camping trip, it looks like I will have to do some slow charging closer to my destination so I have some wiggle room on the way home with my reduced SOC. I don’t need gear guard or anything exciting when I leave my car, I but I will be out of cell range and far away from a tow truck, so I don’t want to be bricked out in the desert.
I think the way R1 is today, it is not for the independent minded. You have to think of it as a pet that you will have your neighbor with a ligtning come and feed while you are out. However if 100% charging, keeps you from being stranded, I would do it. My understanding is the level of damage is directly related to how much time battery spends at higher state of charge. If you charge everyday to 100%, it is like putting a 1000 electrons one one side of the wall kicking it every day, after couple of years that wall is going to look mighty rough. But if you do it only once before your trip, thanks to R1’s big leak, by day 5, you only have 900 electrons kicking the wall, 800 by day 10. So there are not as many days on high SOC. I am not a chemist or electrical engineer but this is how my simple mind makes sense of it.


ajdelange

Well-Known Member
First Name
A. J.
Joined
Aug 1, 2019
Threads
9
Messages
2,758
Reaction score
2,171
Location
Virginia/Quebec
First Name
A. J.
Vehicles
Tesla XLR+2019, Lexus, Landcruiser, SR5, R1T
Occupation
EE Retired
Not loving that, but I can deal, but it makes me REALLY nervous for my week long canoe trip in Utah next month where there are no chargers near by and my truck has to sit in the sun for 7 days (I might try shipping mode when I leave it). That being said, if leaving it at 100% is bad, but it drains at over 2%/day on its own, is leaving it at 100% really bad?
Don't worry about it as there is no way you can get it to your campsite with 100% charge on it unless you have it brought in on a trailer. We'd need to see some actual numbers e.g. how far it is from the campsite to the nearest charger. Let's say it's 50 mi. You would stop at the nearest charger and charge it to 100% then drive to the campsite. To be conservative let's assume that this takes 500 Wh/mi so you will use 25 kWh getting there meaning you will have 120 - 25 = 95 kWh which is 79% SoC when you get there. Now go fishing for 7 d the chargeratays and assume vampire loss of 2.5 kWh/da for a total of 17.5 kWh and you will have 120 - 25 - 17.5 kWh left upon departing from the campsite to return to the charger. That trip will use another 25 so you arrive back at the charger with 120 - 25 - 17.5 - 25 = 52.5 kWh margin. That's 44% SoC.

If you want to live dangerously; the distance from charger to campsite that would get you back to the charger at 0% SoC is 102.5 miles at 2.5 kWh/da. Thus it appears that as long as the campsite is less than 100 miles from the nearest charger it's feasible but, of course, you need to be certain of what your phantom drain is and you need to be certain that you consume less than 500 Wh/mi in getting between campsite and charger.



nc10

Well-Known Member
Joined
Sep 24, 2021
Threads
18
Messages
321
Reaction score
394
Location
South Carolina
Vehicles
Outback
Occupation
Engineer
I am wondering if there have been any (comprehensive) testing of vampire battery drain when a Rivian is parked for an expanded period of time (over 2 weeks)?

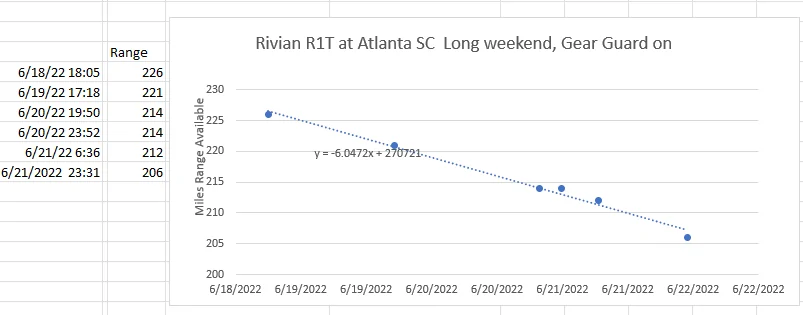

Rivian took my R1T back to the Atlanta Service center last weekend, to work on the A/C. Tracked the battery range from the app from Saturday - Tuesday 6/18 to 6/21. From the tracking in the app, the truck set in the parking lot over that time, always in the same spot. (its not painful at all to see your new R1T setting in a parking lot for 4 days untouched, 250 miles away......)

When I checked on 6/22, the tracking map showed the truck in a building, the app showed it being hooked to charger, apparently Rivian was working on the A/C at this time. (The service tech texted me to tell me the freon was low later that afternoon, and they were checking for leaks.) I left the Gear guard turned on, but don't know for sure that Rivian didn't turn it off, will check for videos when I get the truck back tomorrow.

Over these 3 days, I lost ~6 miles of range per day. Data is a little noisy, prob should have taken more data points.



  • Like
Reactions: Max

NeuronBasher

Active Member
Joined
Apr 5, 2022
Threads
0
Messages
29
Reaction score
78
Location
Apex, NC
Vehicles
BMW X7, VW Taos
Another random data point. I charged to 70% and unplugged my truck last Wednesday before going on a trip. Truck has been sitting in my garage since then and is at 62% right now after roughly 5 days so I'm losing around 1.6% per day. That seems to track pretty well with what other folks are reporting at this point.


Scoiatael

Well-Known Member
Joined
Sep 20, 2021
Threads
23
Messages
669
Reaction score
1,096
Location
Southern CA
Vehicles
Rivian R1T
So my truck has been sitting in my garage plugged in since Saturday night. It charged up Sunday morning and hasn't been used since. According to my chargepoint app, the truck has had almost 10 KW added between Monday morning and today. So its losing a little more than 3.3 KW per day.

  • Sad
Reactions: Max

Max

Well-Known Member
Joined
Aug 31, 2021
Threads
34
Messages
1,390
Reaction score
2,162
Location
Maryland
Vehicles
Nissan Truck
So my truck has been sitting in my garage plugged in since Saturday night. It charged up Sunday morning and hasn't been used since. According to my chargepoint app, the truck has had almost 10 KW added between Monday morning and today. So its losing a little more than 3.3 KW per day.
Do you lose the same amount unplugged or it has a tendency to nibble on electrons more frequently sitting at a all you can eat buffet table?

p.s. You mean 10 KW since Sunday morning, right?


Scoiatael

Well-Known Member
Joined
Sep 20, 2021
Threads
23
Messages
669
Reaction score
1,096
Location
Southern CA
Vehicles
Rivian R1T
Do you lose the same amount unplugged or it has a tendency to nibble on electrons more frequently sitting at a all you can eat buffet table?

p.s. You mean 10 KW since Sunday morning, right?
I'm not counting Sunday morning because it added almost 40 KW from the drive on Saturday. I haven't tested it unplugged yet.

  • Like
Reactions: Max


Scoiatael

Well-Known Member
Joined
Sep 20, 2021
Threads
23
Messages
669
Reaction score
1,096
Location
Southern CA
Vehicles
Rivian R1T
Didn't touch the truck at all yesterday, and confirmed it charged 3.4 kW this morning.


ajdelange

Well-Known Member
First Name
A. J.
Joined
Aug 1, 2019
Threads
9
Messages
2,758
Reaction score
2,171
Location
Virginia/Quebec
First Name
A. J.
Vehicles
Tesla XLR+2019, Lexus, Landcruiser, SR5, R1T
Occupation
EE Retired
I kept getting e-mails saying that wall box was initiating charges. Check showed a charge starting every 5 - 7 minutes but each charge was only a few hudred Wh. I also noticed that these charges started at about the time I was showing the truck to my landscaping guy. Aha! Turns out we walked away from it without ever shutting the doors or gear tunnel. So that's one way to get phantom drain of 10 kWh per day.

Make sure everything is closed and latched!
