Amazon Rivian Delivery Van Charger

AleCS

Member
First Name
Alejandro
Joined
Feb 11, 2021
Messages
22
Reaction score
48
Location
WA
First Name
Alejandro
Vehicles
2015 Audi SQ5
Occupation
Business Owner

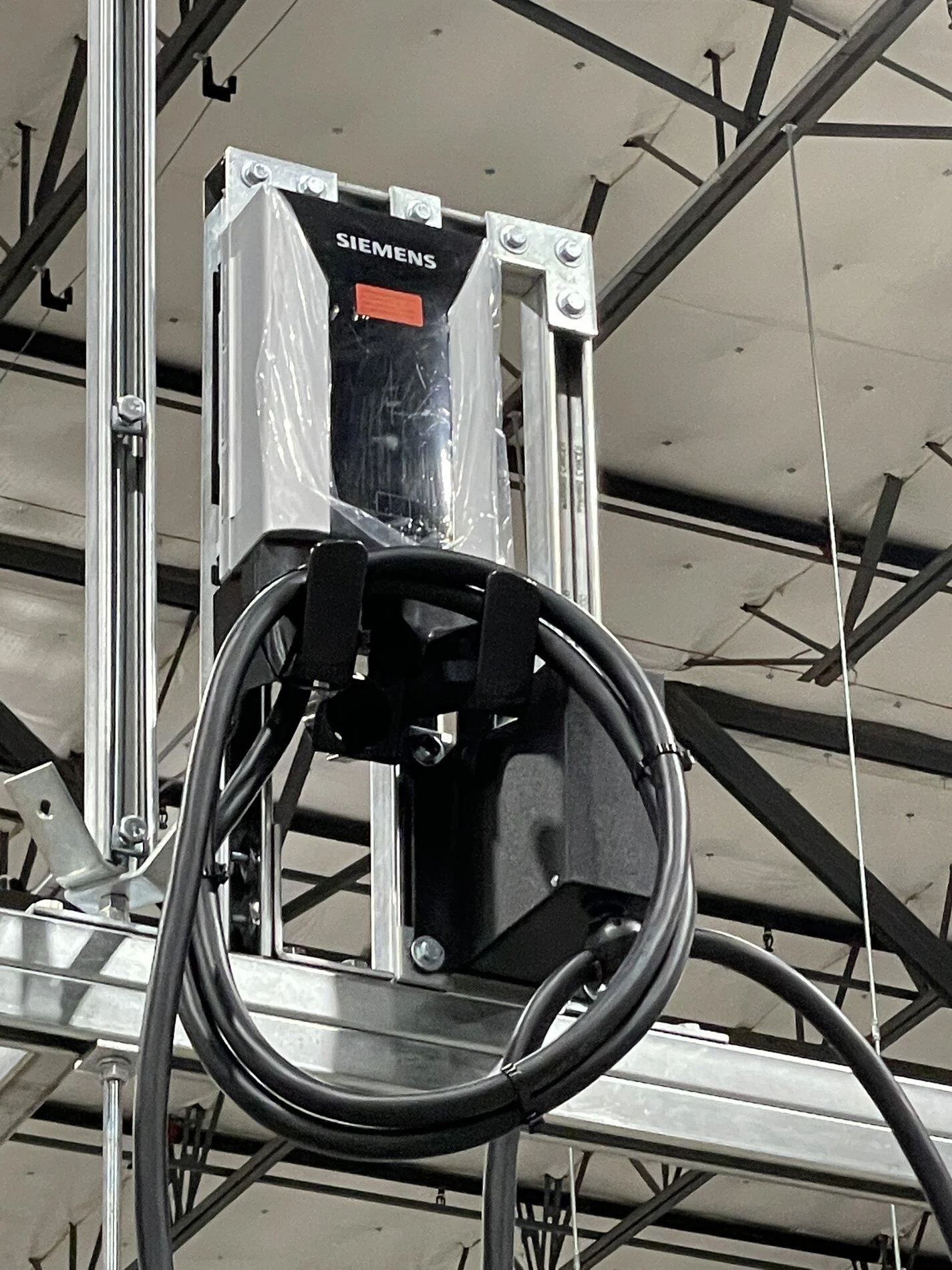

I saw this evening what is going to be the charger for the new Rivian Delivery vans at an Amazon delivery station. I am no expert when it comes to the different options to charge an EV, nor I own or have owned an EV. My LG R1T will be my first EV. So having said all that, what do you expert fellow Rivian future owners think about this charger? Is is better, worse, more or less powerful than the Rivian charger? After a quick Google search I think this it's a Siemens VersiCharge commercial unit.
Advertisement



sub

Well-Known Member
Joined
Jul 23, 2021
Messages
77
Reaction score
137
Location
USA
Vehicles
Tesla Model 3, Chevy Suburban

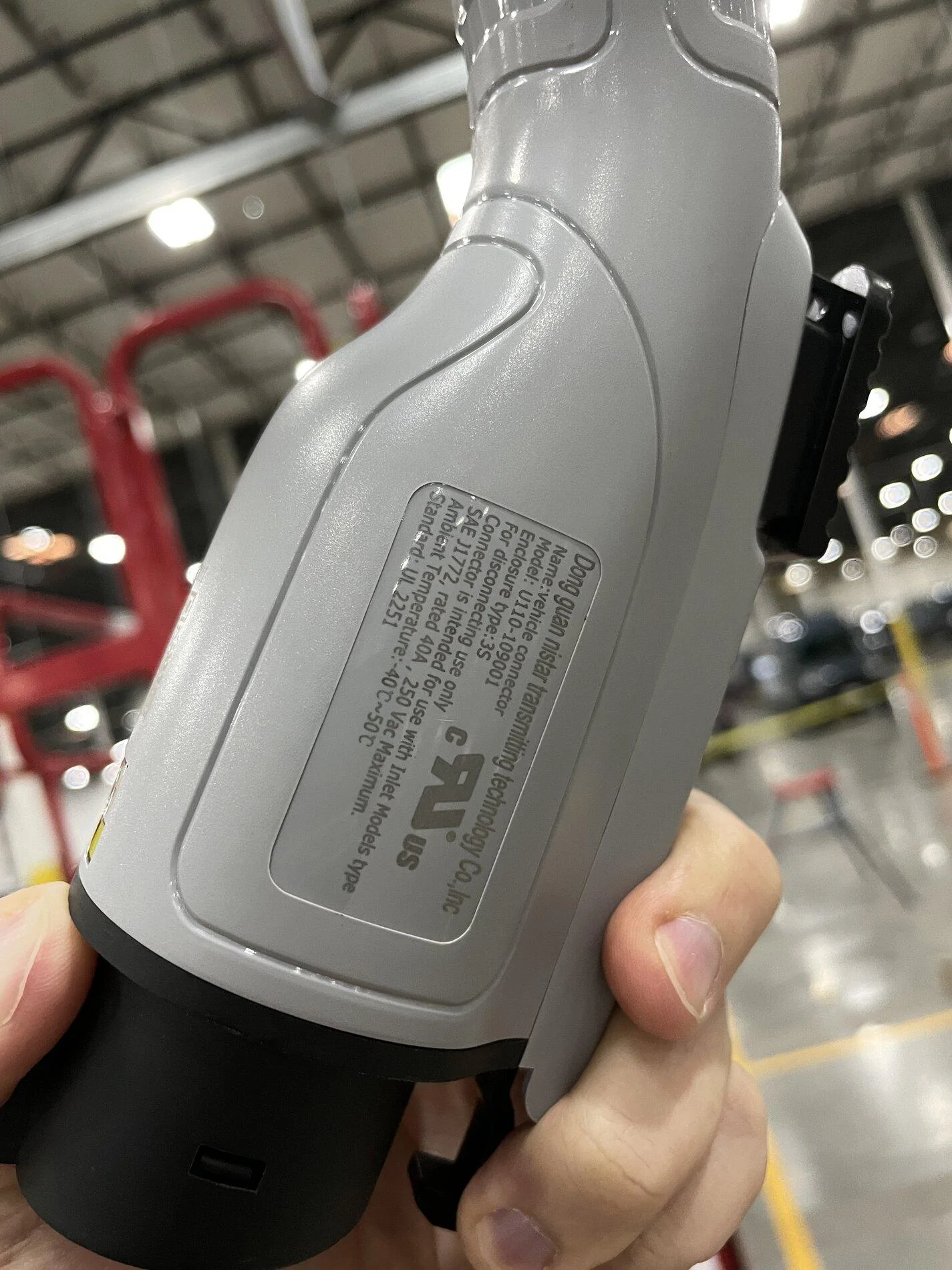

According to your 3rd picture, that charger maxes out at 40 amp.

That is faster than the charger that comes with the R1T/R1S (32A), but slower than the optional $500 hardwired charger that Rivian sells (48A).


Viperssd

Member
Joined
Oct 2, 2021
Messages
10
Reaction score
14
Location
USA
Vehicles
BMW M3, Audi Q7, Tesla Model 3
I saw this evening what is going to be the charger for the new Rivian Delivery vans at an Amazon delivery station. I am no expert when it comes to the different options to charge an EV, nor I own or have owned an EV. My LG R1T will be my first EV. So having said all that, what do you expert fellow Rivian future owners think about this charger? Is is better, worse, more or less powerful than the Rivian charger? After a quick Google search I think this it's a Siemens VersiCharge commercial unit.
Nothing terribly special, they're most likely planning to have a charger for each truck and leave them plugged in overnight. Siemens also sells a home version


DB-EV

Well-Known Member
Joined
Jan 17, 2021
Messages
111
Reaction score
108
Location
NY
Vehicles
Rivian R1s
Hey! My two cents: combine youtube reviews (search Tom Mulvaney (sp)? and charger) with what your utility gives an incentive on.

I think my utitlity will sell a chargepoint L2 for like 250, and then if I charge between 11 and 7 they will give me a very good rate. They only way they do that is if you use a charger they are aligned with. YMMV.

Adelange has good info on this stuff.


ajdelange

Well-Known Member
First Name
A. J.
Joined
Aug 1, 2019
Messages
1,999
Reaction score
1,536
Location
Virginia/Quebec
First Name
A. J.
Vehicles
Tesla X Extended Range Plus 2019, Lexus, Landcruiser, SR5
Occupation
EE Retired

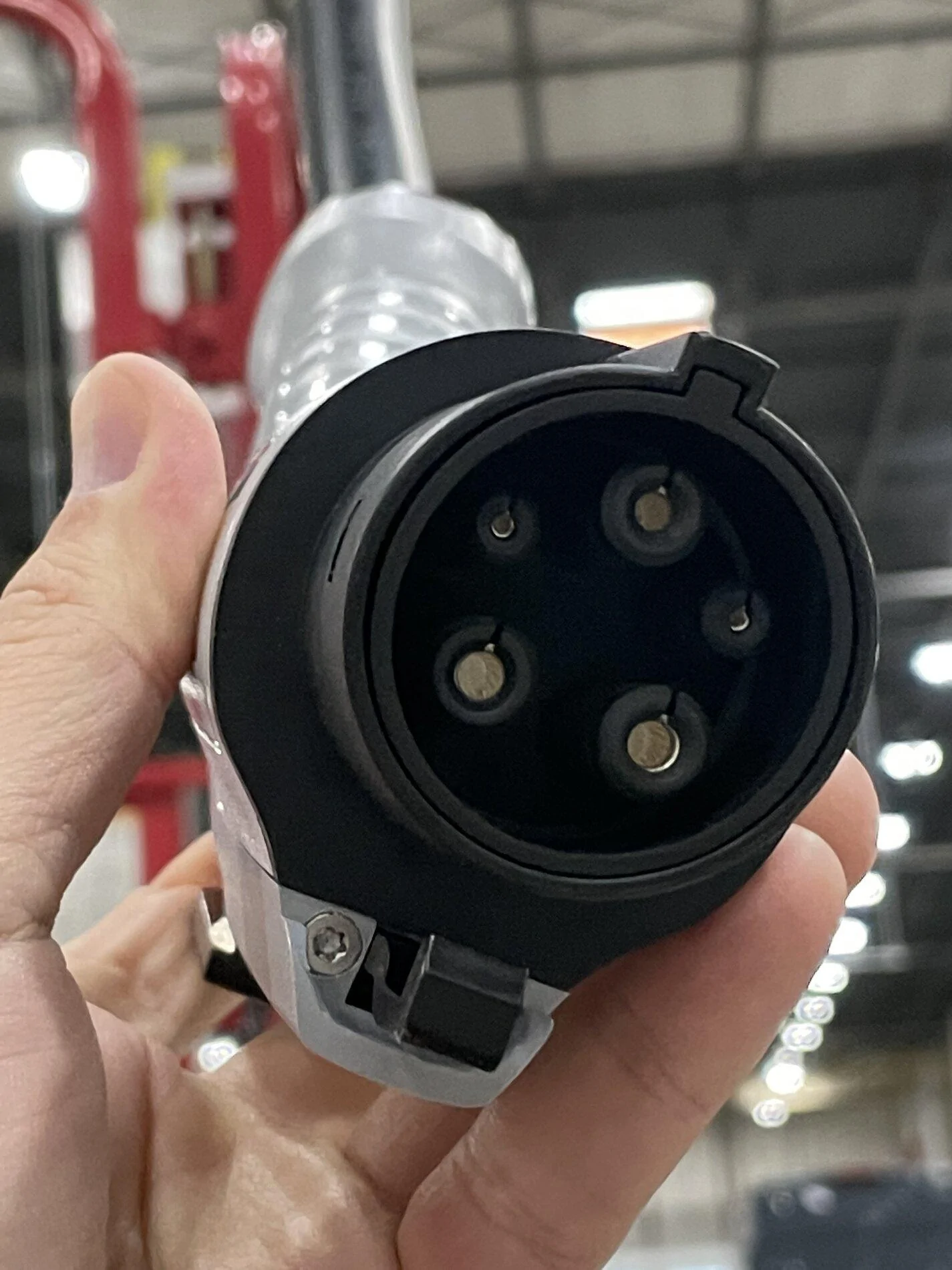

That's a J1772 plug good for up to 80A if installed on a 100A circuit. You would only be able to charge your R1T or Tesla up to 48A with it but if the van has an 80A charger this EVSE will feed it.


DucRider

Well-Known Member
First Name
Gary
Joined
Oct 21, 2019
Messages
1,614
Reaction score
2,919
Location
rRegon
First Name
Gary
Vehicles
Clarity Electric
That's a J1772 plug good for up to 80A if installed on a 100A circuit. You would only be able to charge your R1T or Tesla up to 48A with it but if the van has an 80A charger this EVSE will feed it.

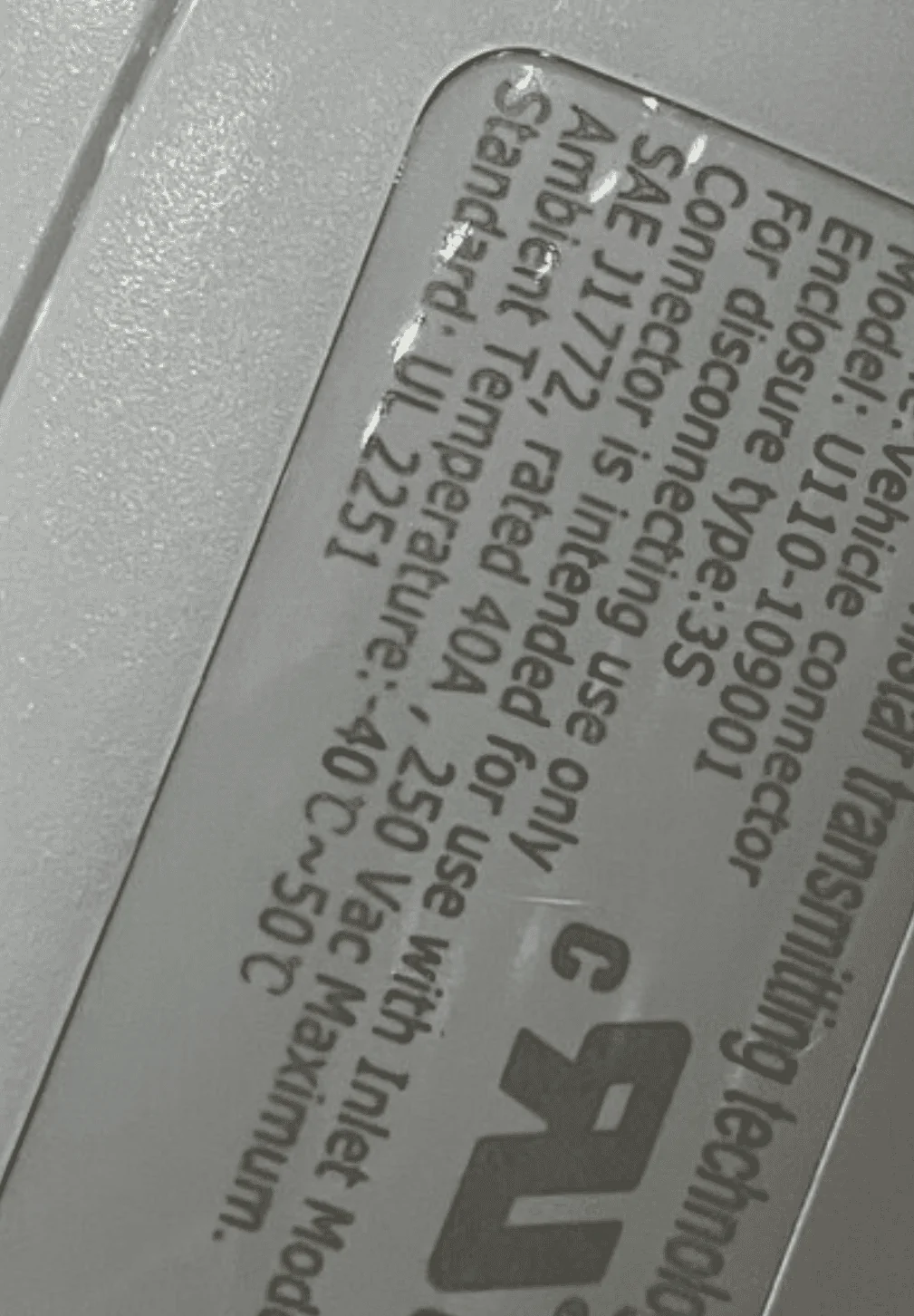

This particular plug is only rated for 40A


The J1772 standard allows for up to 80A, but this unit maxes at 40A


ajdelange

Well-Known Member
First Name
A. J.
Joined
Aug 1, 2019
Messages
1,999
Reaction score
1,536
Location
Virginia/Quebec
First Name
A. J.
Vehicles
Tesla X Extended Range Plus 2019, Lexus, Landcruiser, SR5
Occupation
EE Retired
Indeed it is! Should have checked the fine print.


ajdelange

Well-Known Member
First Name
A. J.
Joined
Aug 1, 2019
Messages
1,999
Reaction score
1,536
Location
Virginia/Quebec
First Name
A. J.
Vehicles
Tesla X Extended Range Plus 2019, Lexus, Landcruiser, SR5
Occupation
EE Retired
Of course this makes us wonder why they would change their working vans at 40A when they could just as easily install the 48 A unit being offered to R1T buyers. It certainly does look more industrial.


Craigins

Well-Known Member
Joined
Jun 10, 2021
Messages
138
Reaction score
213
Location
Chicago Suburbs
Vehicles
RAM Rebel 1500, Prius c 3
Occupation
Software engineer
Of course this makes us wonder why they would change their working vans at 40A when they could just as easily install the 48 A unit being offered to R1T buyers. It certainly does look more industrial.
Any loss of efficiency at the higher amps? Lose more to heating perhaps? If 40A can do the job and saves you 1% then why go to 48? 1% may not be a lot for a single vehicle, but with a fleet it could add up.


ajdelange

Well-Known Member
First Name
A. J.
Joined
Aug 1, 2019
Messages
1,999
Reaction score
1,536
Location
Virginia/Quebec
First Name
A. J.
Vehicles
Tesla X Extended Range Plus 2019, Lexus, Landcruiser, SR5
Occupation
EE Retired
Possibly. I was thinking mostly about time. I assume that they want these vans out on the street - not sitting in the warehouse charging. 40/48 is only 20% faster but I thought it might be significant in Amazon's ops. Guess it isn't.


DucRider

Well-Known Member
First Name
Gary
Joined
Oct 21, 2019
Messages
1,614
Reaction score
2,919
Location
rRegon
First Name
Gary
Vehicles
Clarity Electric
Any loss of efficiency at the higher amps? Lose more to heating perhaps? If 40A can do the job and saves you 1% then why go to 48? 1% may not be a lot for a single vehicle, but with a fleet it could add up.
Any difference between 40 and 48 efficiency will be insignificant.
Only study I've seen comparing efficiency shows L2 is very slightly more efficient than L1.

The Amazon Vans have smaller battery packs than the R1 vehicles and virtually will be parked overnight. As long as they have a full charge in the AM, charging speed is a non-issue. Reduced cost of the chargers and the EVSEs might be a driving factor, as well as being able to charge 20% more vehicles from a given service size. Demand charges could also be lower at slower charge rates. I'm sure they modeled all of this before arriving at the 40A (or maybe less) charge rate.

Edit: We don't actually know what the Vans are capable of, only that the EVSE shown for this use case is a 40A max unit. The Vans could be fitted with 80A chargers.


kurtlikevonnegut

Well-Known Member
Joined
Sep 1, 2021
Messages
183
Reaction score
562
Location
Charleston, SC
Vehicles
Mazda CX 5, Jeep Cherokee (XJ)
So if these vans have V2V charging enabled....any chance we see Amazon spin up a side gig with some of these vans going roadside assistance type recharging when they aren't on delivery runs?

OP
OP

AleCS

Member
First Name
Alejandro
Joined
Feb 11, 2021
Messages
22
Reaction score
48
Location
WA
First Name
Alejandro
Vehicles
2015 Audi SQ5
Occupation
Business Owner
Any difference between 40 and 48 efficiency will be insignificant.
Only study I've seen comparing efficiency shows L2 is very slightly more efficient than L1.

The Amazon Vans have smaller battery packs than the R1 vehicles and virtually will be parked overnight. As long as they have a full charge in the AM, charging speed is a non-issue. Reduced cost of the chargers and the EVSEs might be a driving factor, as well as being able to charge 20% more vehicles from a given service size. Demand charges could also be lower at slower charge rates. I'm sure they modeled all of this before arriving at the 40A (or maybe less) charge rate.

Edit: We don't actually know what the Vans are capable of, only that the EVSE shown for this use case is a 40A max unit. The Vans could be fitted with 80A chargers.
We should get those vans in the next month or so. So I will share some details and photos when they arrive. At this point they are being very secretive, but for sure I will get a couple of them this year. Stay tuned!
