It's finally happened, I found some Ram 2363 wheels for a reasonable price! I'm picking up tomorrow and taking them to a local powdercoating shop to get blasted and painted satin black.

Edit: updated prices and picked some tires!

Wheels: $150
Sandblast/Powdercoat: $550
TPMS: $107
Center cap: $25
Hub centric rings: $15
Falken Wildpeak A/T3W 275/60R20: $1107
Mount/Balance: $116
TOTAL: $2070

I bought the TPMS sensor programmer and plan on keeping it for at least a year, so if anyone needs it, PM me and we can arrange pickup or shipping. It fits in a small flat rate box, so round-trip shipping is $20.

Update: These TPMS sensors have successfully been used by other members without any programming needed, https://a.co/d/gV1P2dE

Thanks to @SeaGeo for previously posting this:
Screenshot_20221120_092534_Mighty Networks.jpg


Step 1: Get some cheap wheels
Rivian R1T R1S Affordable Winter Wheels Setup: Ram 2363 PXL_20230822_193623811


Step 2: Strip and prime
Rivian R1T R1S Affordable Winter Wheels Setup: Ram 2363 IMG_20230829_130319


Step 3: Spray in satin black (only acceptable finish/color)
Rivian R1T R1S Affordable Winter Wheels Setup: Ram 2363 IMG_20230829_130317


Step 4: Take new tires to be mounted a week later because Amazon/Simple Tire took a while to correct your order after sending half of the wrong size 🙄
Rivian R1T R1S Affordable Winter Wheels Setup: Ram 2363 PXL_20230830_020357752


Step 5: Clone the sensors with the Smart Sensor Pro+ TPMS sensor programmer.
Rivian R1T R1S Affordable Winter Wheels Setup: Ram 2363 PXL_20230910_204650750


Step 6: Come home a happy camper and patiently wait for winter!
Rivian R1T R1S Affordable Winter Wheels Setup: Ram 2363 PXL_20230830_230712363~2


Step 7: Install at winter and hit the trails
Rivian R1T R1S Affordable Winter Wheels Setup: Ram 2363 PXL_20231026_004734158~2


Rivian R1T R1S Affordable Winter Wheels Setup: Ram 2363 PXL_20231026_003745604~2


Step 8: Find another cheap set of wheels and a good deal on tires, get addicted to the project, and start it again!
Sponsored


Last edited:

SeaGeo

Well-Known Member
First Name
Brice
Joined
Jan 12, 2021
Threads
47
Messages
5,281
Reaction score
9,705
Location
Seattle
Vehicles
Xc60 T8
Occupation
Engineer
These hankooks ipike X are what I plan to get on our R1S this winter. They are 275 60r20 and 116T. General grabber also has a winter tire in that size IIRC. Les Schwab has these in stock but for like $50 more per tire. Discount doesn't currently seem to have them.

https://simpletire.com/brands/hanko...=Del2&curationSource=none&productPos=4&rad=AC

Yokohama has a winter tire with the 116 load index in that size as well.
https://simpletire.com/brands/yokoh...=Del3&curationSource=none&productPos=5&rad=CE

Last year I for the Nokians Hakapelitta LT3, which performed well obviously, but they are LT's and this weigh a fair amount more. They're also about $100 more per tire. Plenty of LTs available, but I think the efficiency hit was more than I initially observed. No luck finding a winter 116 in the 275/65 size yet.

OP
OP
Riviot

Riviot

Well-Known Member
Joined
Mar 29, 2021
Threads
79
Messages
3,873
Reaction score
6,467
Location
Kitsap, WA
Vehicles
R1T
Clubs

These hankooks ipike X are what I plan to get on our R1S this winter. They are 275 60r20 and 116T. General grabber also has a winter tire in that size IIRC. Les Schwab has these in stock but for like $50 more per tire. Discount doesn't currently seem to have them.

https://simpletire.com/brands/hanko...=Del2&curationSource=none&productPos=4&rad=AC

Yokohama has a winter tire with the 116 load index in that size as well.
https://simpletire.com/brands/yokoh...=Del3&curationSource=none&productPos=5&rad=CE

Last year I for the Nokians Hakapelitta LT3, which performed well obviously, but they are LT's and this weigh a fair amount more. They're also about $100 more per tire. Plenty of LTs available, but I think the efficiency hit was more than I initially observed. No luck finding a winter 116 in the 275/65 size yet.
Thanks!

I looked at the Hankook Winter iPike X as well, but read they get stiff and wear out sooner in the PNW since they're a true cold icy winter tire. Our temperate damp winters in the 30s-40s make it hard to find something that'll do well tackling street ice and mountain snow part-time, but living downhill most of the time.


CardiacR1S

Well-Known Member
Joined
Jul 22, 2023
Threads
4
Messages
54
Reaction score
36
Location
22031
Vehicles
2023 R1S
Thanks @Riviot for the details. Have 21”all seasons and will do the same as you and get Ram wheels and 20” snows. Have used Tirerack for years, but after a quick glance like what I see of simpletire.


Puttyandnapalm

Well-Known Member
First Name
David
Joined
Dec 3, 2021
Threads
5
Messages
153
Reaction score
151
Location
Illinois
Vehicles
R1T, 2008 Ram 1500, 2013 Triumph Trophy
Occupation
Casino
Those with 21s or 22s can use the 275/60/20 tires with the ram wheels, but if you had 20s already, I’d stick with 275/65/20 winter tires (if they exist). Having the speedometer be 3-4 mph off would drive me nuts.

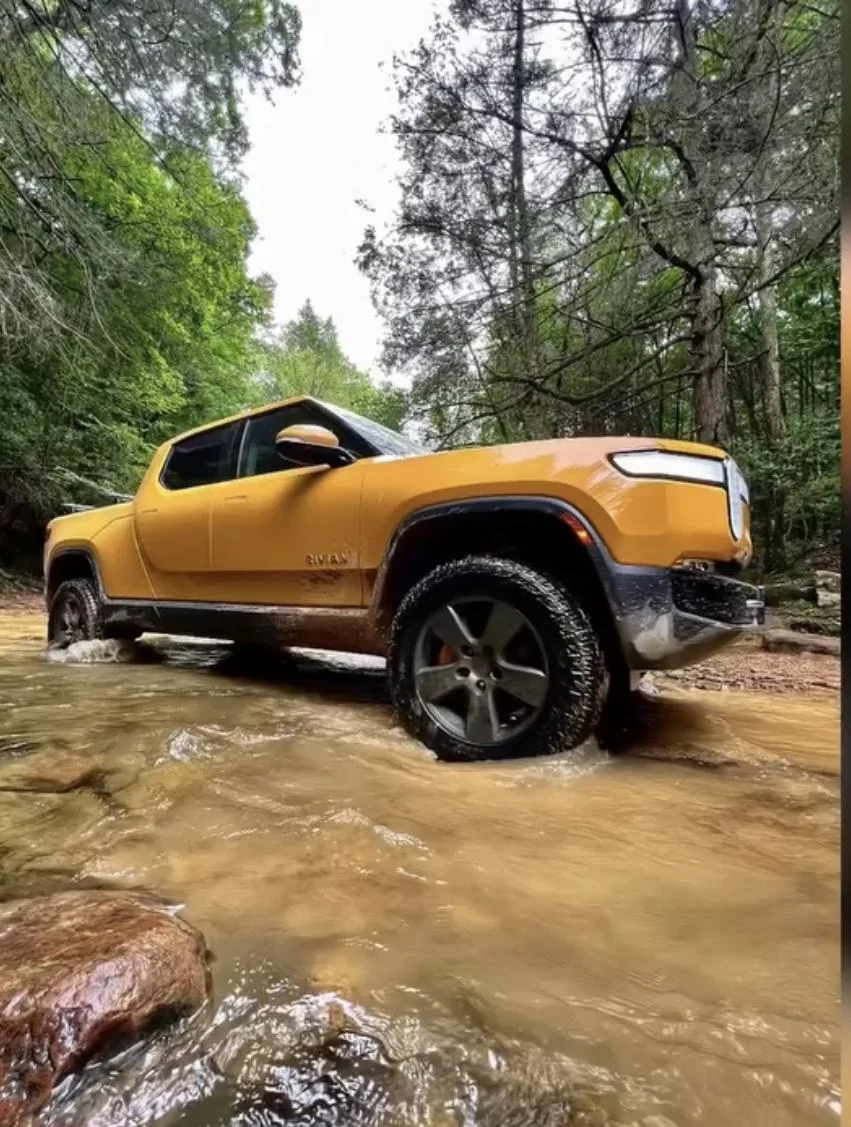

im happy with my dodge wheels, I put highway tires on my Rivian wheels and the ATs on the dodge wheels. Was a good idea since I scratched one on the trail last week

Rivian R1T R1S Affordable Winter Wheels Setup: Ram 2363 IMG_1004


Sponsored

OP
OP
Riviot

Riviot

Well-Known Member
Joined
Mar 29, 2021
Threads
79
Messages
3,873
Reaction score
6,467
Location
Kitsap, WA
Vehicles
R1T
Clubs

Those with 21s or 22s can use the 275/60/20 tires with the ram wheels, but if you had 20s already, I’d stick with 275/65/20 winter tires (if they exist). Having the speedometer be 3-4 mph off would drive me nuts.

im happy with my dodge wheels, I put highway tires on my Rivian wheels and the ATs on the dodge wheels. Was a good idea since I scratched one on the trail last week

Damn it, man! You've got me liking the idea of Falken Wildpeak AT3W more and more. After a slippery back roads drive last weekend on the AS+3s, it would be nice to have ATs ready when I want them. X-Ice and Wildpeak both meet winter needs, but do I go with range or off-road flexibility?


Puttyandnapalm

Well-Known Member
First Name
David
Joined
Dec 3, 2021
Threads
5
Messages
153
Reaction score
151
Location
Illinois
Vehicles
R1T, 2008 Ram 1500, 2013 Triumph Trophy
Occupation
Casino
Damn it, man! You've got me liking the idea of Falken Wildpeak AT3W more and more. After a slippery back roads drive last weekend on the AS+3s, it would be nice to have ATs ready when I want them. X-Ice and Wildpeak both meet winter needs, but do I go with range or off-road flexibility?
Can always have 3 sets of wheels/tires: highway, snow, and AT.:champagne:


909phillyman

Well-Known Member
First Name
Sean
Joined
Jan 26, 2023
Threads
0
Messages
176
Reaction score
242
Location
California
Vehicles
Rivian r1S
Occupation
IT
Clubs

Damn it, man! You've got me liking the idea of Falken Wildpeak AT3W more and more. After a slippery back roads drive last weekend on the AS+3s, it would be nice to have ATs ready when I want them. X-Ice and Wildpeak both meet winter needs, but do I go with range or off-road flexibility?
I told you those 275/60/20 Wildpeaks are the way to go!!! And those Ram 2363 wheels were my first off-road wheel choice, but I couldn't ever find them for a reasonable price. Ended up getting the ones I have for cheaper than what used Ram 2363 wheels would have cost me. I assume people like you @Puttyandnapalm found those wheels pretty cheap. All-in-all...this is a great low-cost, off-road setup!


909phillyman

Well-Known Member
First Name
Sean
Joined
Jan 26, 2023
Threads
0
Messages
176
Reaction score
242
Location
California
Vehicles
Rivian r1S
Occupation
IT
Clubs

I followed that post above for my set of dodge wheels, but I will add that tpms247 wasn’t the most reliable.
I bought a programmer detailed here.
https://www.rivianforums.com/forum/threads/diy-how-to-copy-clone-tpms.9852/
FYI to all: These are the sensors that I picked up for these wheels. The truck picked them up and registered them after about 20 miles of driving...no programming needed: BH SENS 433MHz OE Quality TPMS Sensor for Rivian https://a.co/d/eHkZOTI


Sponsored

shap

Well-Known Member
Joined
Nov 18, 2021
Threads
2
Messages
295
Reaction score
220
Location
Austin,TX
Vehicles
BMW 45e, R1T
It's finally happened, I found some Ram 2363 wheels for a reasonable price! I'm picking up tomorrow and taking them to a local powdercoating shop to get blasted and painted satin black.
I'm looking for advice on winter tires: is there a season to buy? Am I too early? I can't find many 275/6x/20 options. I'm willing to go 65 or 60.

Wheels: $150
Sandblast/Powdercoat: $500
TPMS: $107
Center cap: $25
Hub centric rings: $15
Michelin X-Ice Snow tires in 275/60/20: $1148
Mount/Balance: $100
TOTAL: $2045

Thanks to @SeaGeo for previously posting this:
Screenshot_20221120_092534_Mighty Networks.jpg

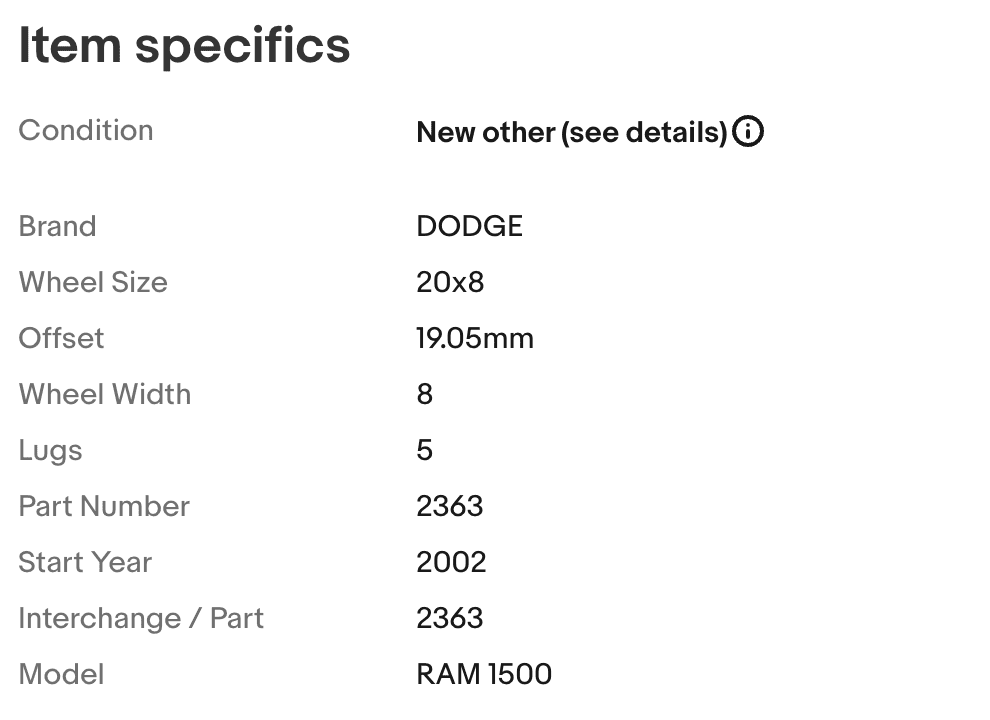

What puzzles me is the 2363 wheels I see are showing 19.5mm offset. Kind of all of them. Am I missing something?

Rivian R1T R1S Affordable Winter Wheels Setup: Ram 2363 1692728718425

OP
OP
Riviot

Riviot

Well-Known Member
Joined
Mar 29, 2021
Threads
79
Messages
3,873
Reaction score
6,467
Location
Kitsap, WA
Vehicles
R1T
Clubs

What puzzles me is the 2363 wheels I see are showing 19.5mm offset. Kind of all of them. Am I missing something?

Correct, but not enough to interfere with calipers. The overhang is slight. Someone else has a pic of it, barely noticeable.

All I know is someone smarter than me did this and it's working well. I've seen a couple in person and really like them. Mine are in the bed now and headed to the shop! Now, what tires to get...

OP
OP
Riviot

Riviot

Well-Known Member
Joined
Mar 29, 2021
Threads
79
Messages
3,873
Reaction score
6,467
Location
Kitsap, WA
Vehicles
R1T
Clubs

Can always have 3 sets of wheels/tires: highway, snow, and AT.:champagne:
FULL SEND AT WHEEL SET! @909phillyman convinced me, so I pulled the trigger and got the Wildpeaks. I found them shipped and sold by Amazon so I used my tax-exempt business account and saved $100!

Hopefully my wife gets the R1S before Christmas and we can make that the longer road trip rig with some winter tires. Or Rivian gets its RAN sh*t together and opens St. Regis!


shap

Well-Known Member
Joined
Nov 18, 2021
Threads
2
Messages
295
Reaction score
220
Location
Austin,TX
Vehicles
BMW 45e, R1T
Correct, but not enough to interfere with calipers. The overhang is slight. Someone else has a pic of it, barely noticeable.

All I know is someone smarter than me did this and it's working well. I've seen a couple in person and really like them. Mine are in the bed now and headed to the shop! Now, what tires to get...
Sorry, I meant to say - everybody talking about 2363 wheels as 18 offset wheels. While I see that when somebody sells them 19.05mm is mentioned.

So the question - are these the same 2363 wheels you were talking about or not...

OP
OP
Riviot

Riviot

Well-Known Member
Joined
Mar 29, 2021
Threads
79
Messages
3,873
Reaction score
6,467
Location
Kitsap, WA
Vehicles
R1T
Clubs

Sorry, I meant to say - everybody talking about 2363 wheels as 18 offset wheels. While I see that when somebody sells them 19.05mm is mentioned.

So the question - are these the same 2363 wheels you were talking about or not...
Got a link? They're either not 2363 or they have the wrong info. That pic of yours says year: 2002 which is suspicious. You want the 2009-2012 set.
