Weekend of Wiring - Complete

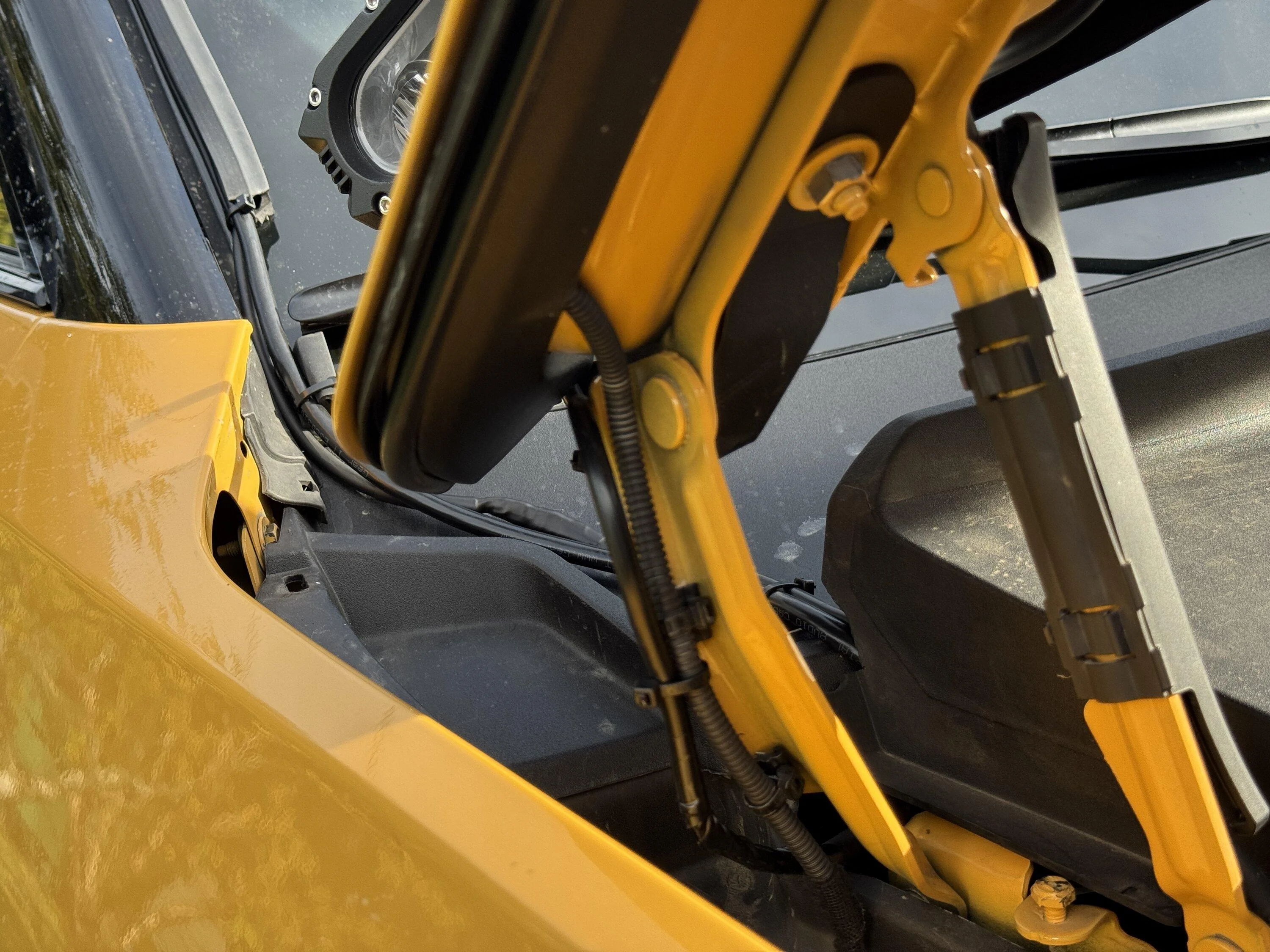

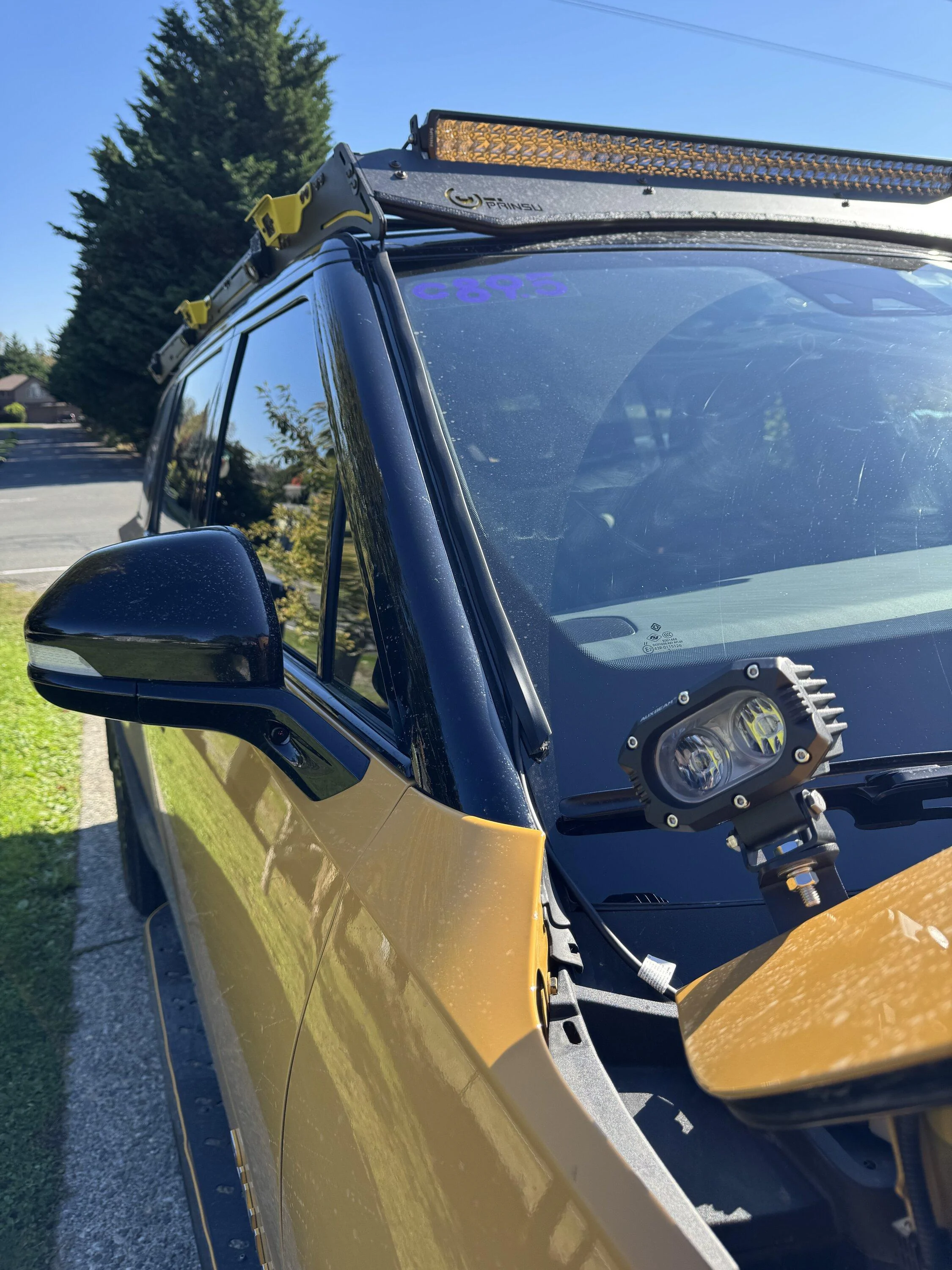

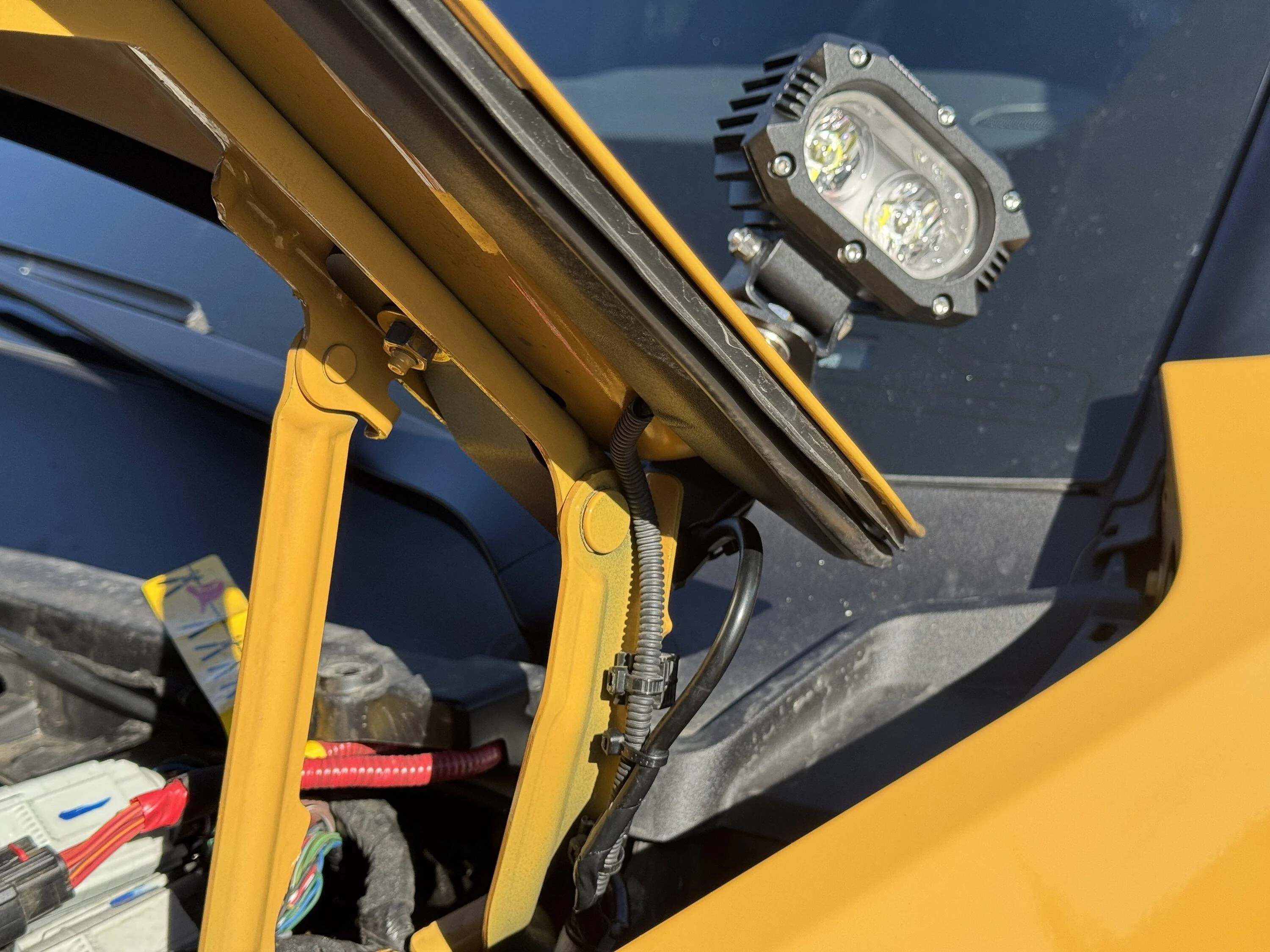

In addition to the 12V in the frunk I installed the backlog of lights I’ve had sitting around - light bar, ditch lights, fog lights, camp lights on rock rack. SolderSeal connections made wiring a bit more straightforward but still took a long time to route (especially the front fogs and roof rack mounted camp lights) and secure.

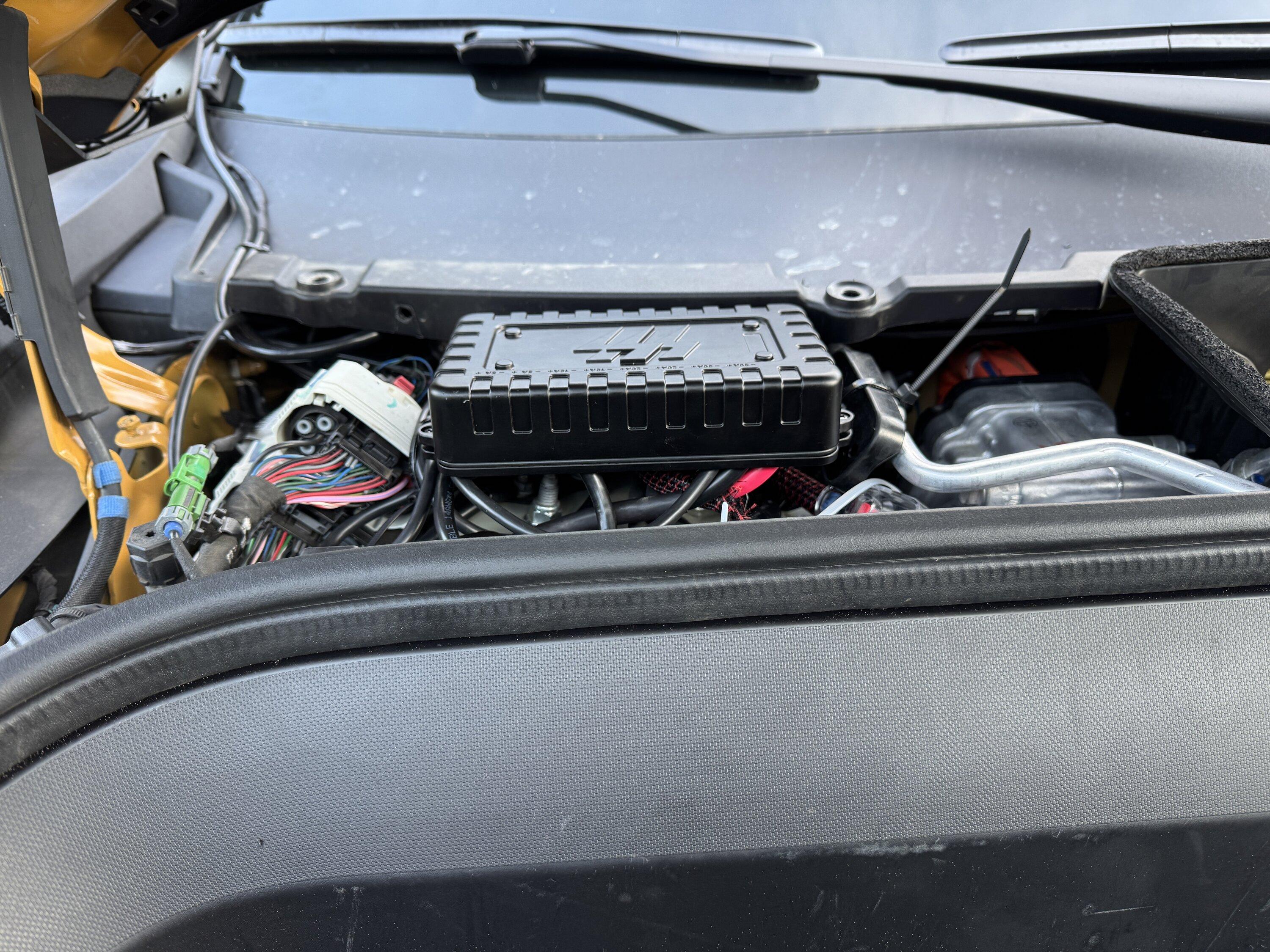

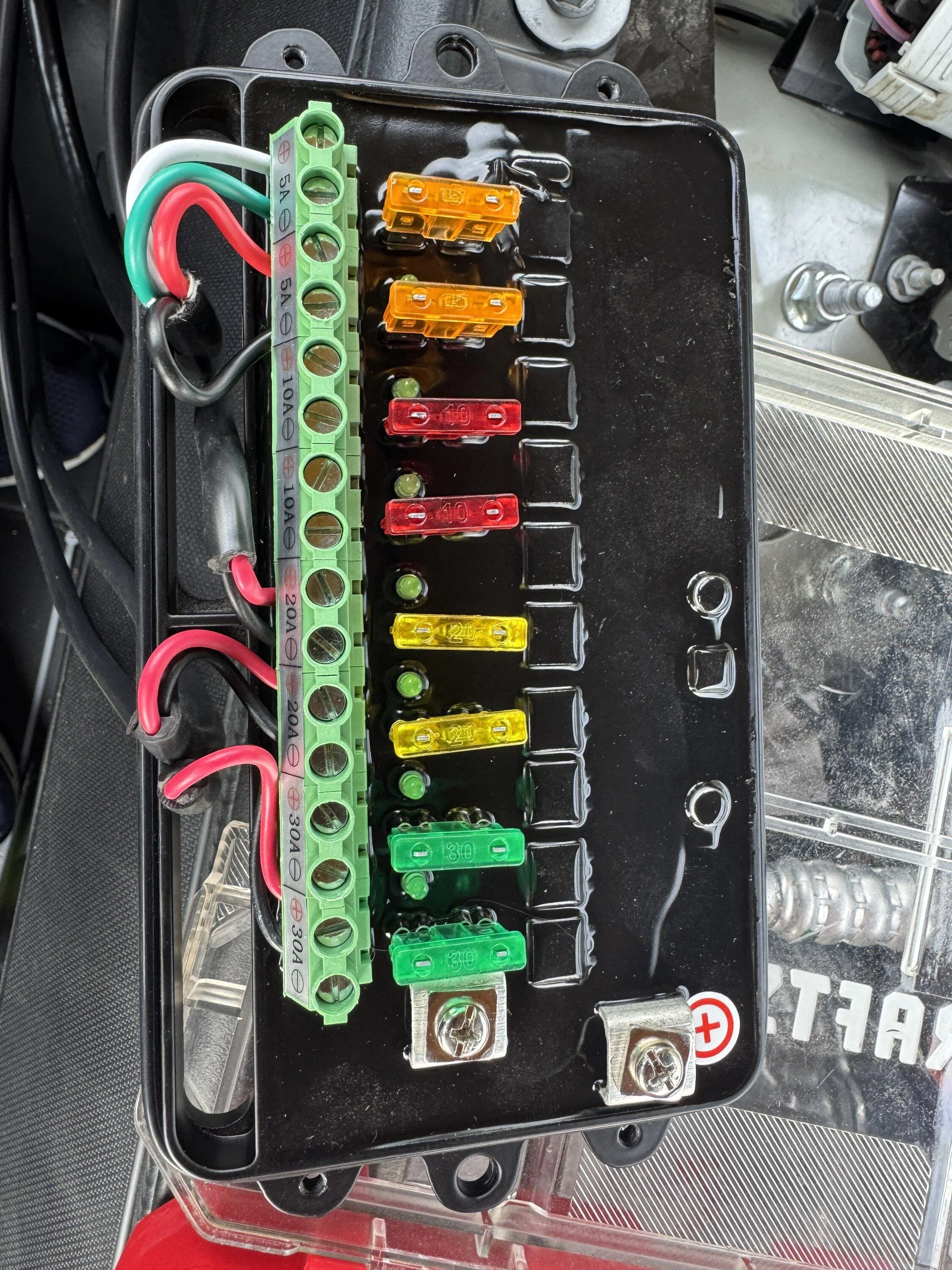

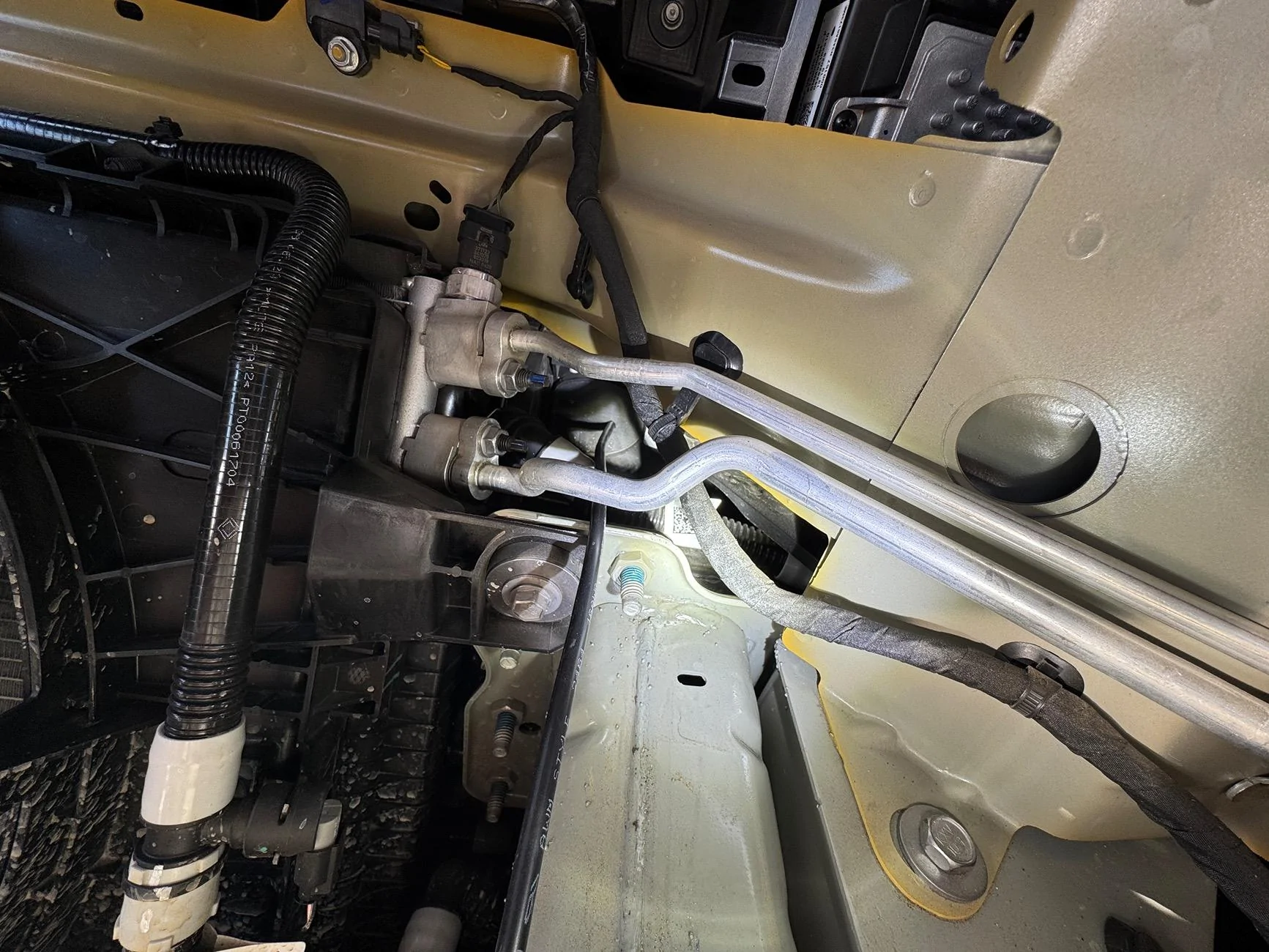

All are switched by an 8 channel RF light controller - took some work to fit it next to the AC compressor but it’s secure now.

I have rock lights to install as well; but need to routthose wires and install the lights themselves still. At least I have space in my controller to make powering them simple.

Rivian R1T R1S Accessory Lighting - All of the accessory lighting IMG_9657
Rivian R1T R1S Accessory Lighting - All of the accessory lighting IMG_9662

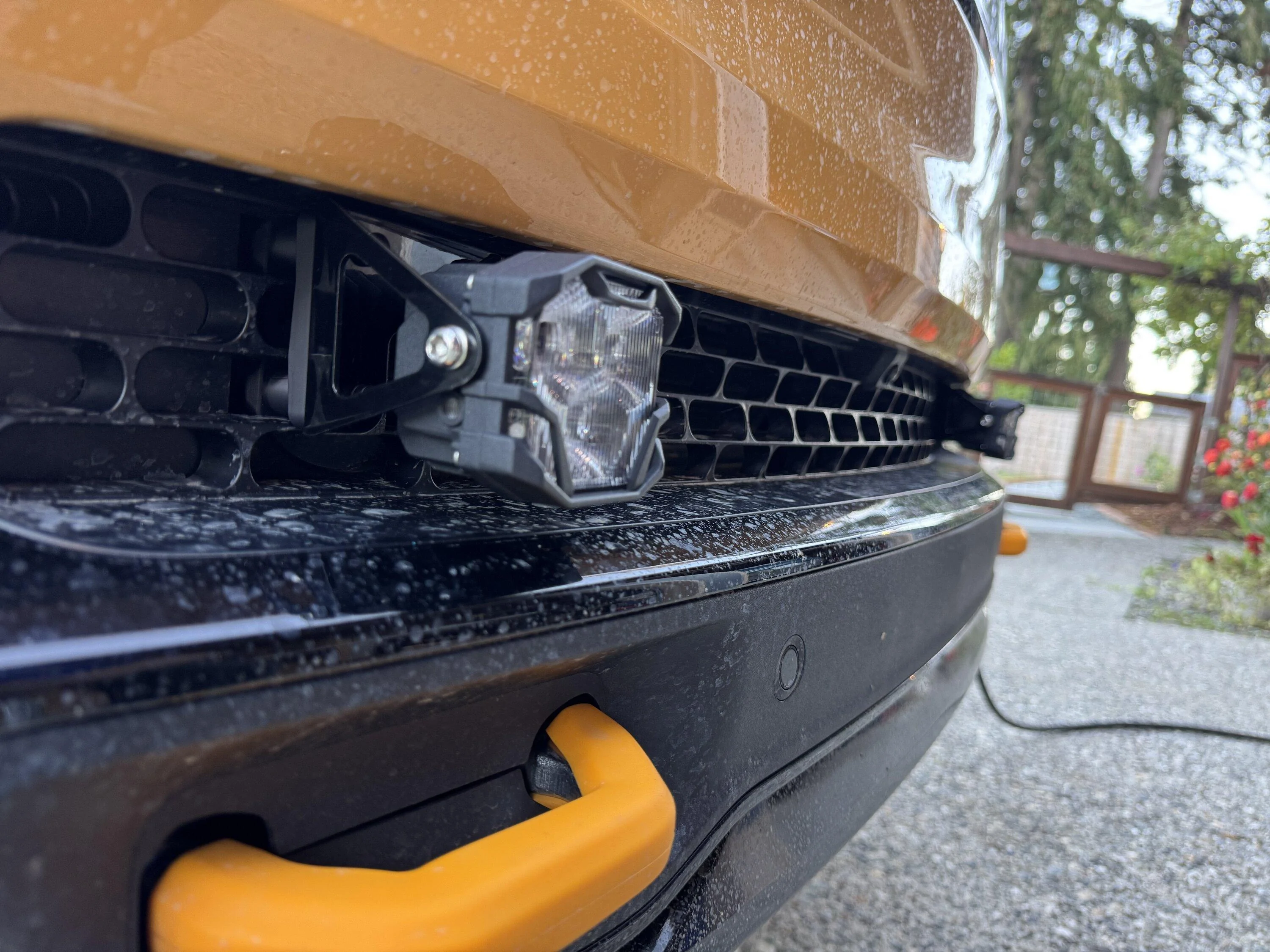

Rivian R1T R1S Accessory Lighting - All of the accessory lighting IMG_9616

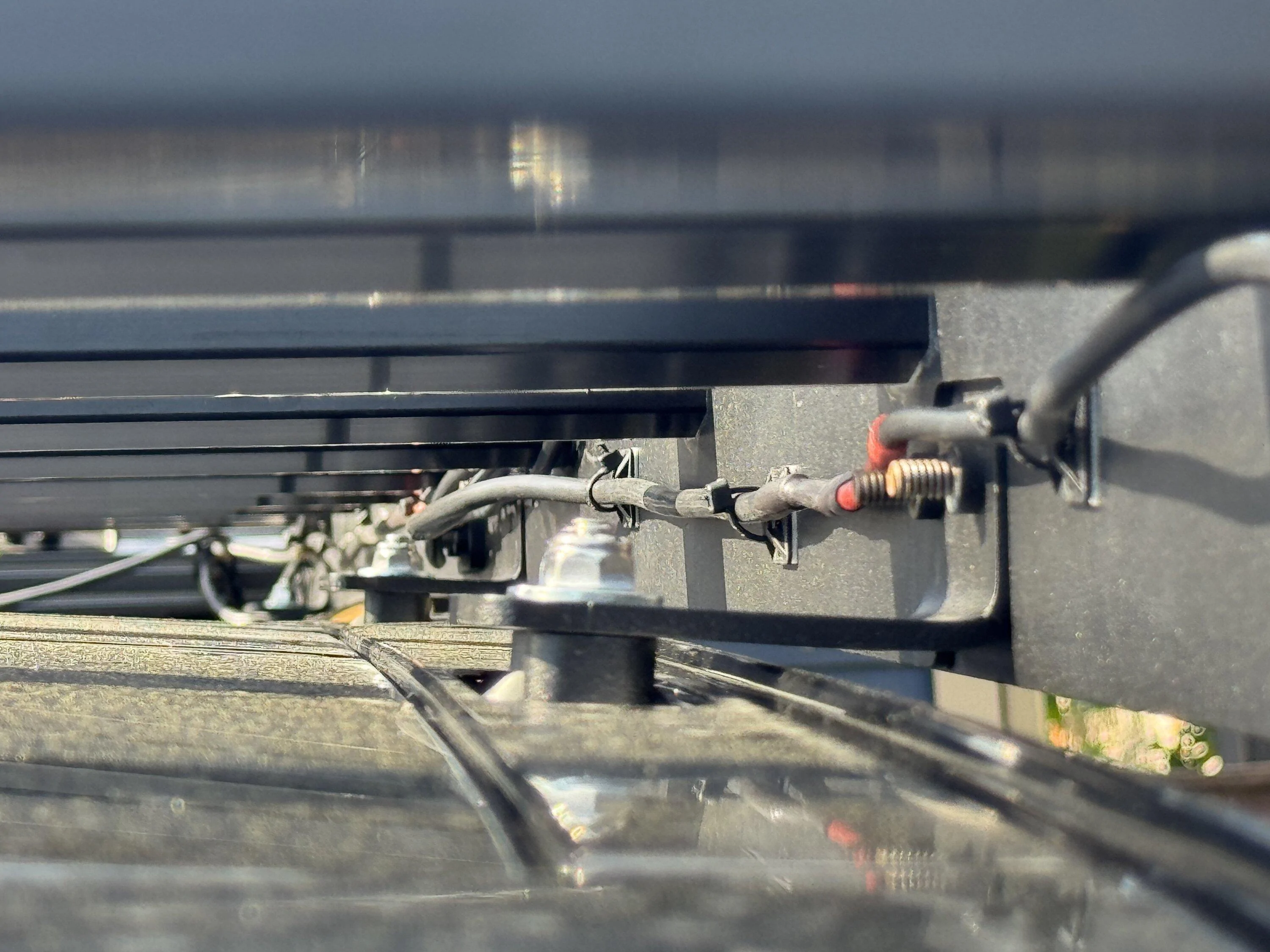

Rivian R1T R1S Accessory Lighting - All of the accessory lighting IMG_9687


Rivian R1T R1S Accessory Lighting - All of the accessory lighting IMG_9698
Rivian R1T R1S Accessory Lighting - All of the accessory lighting IMG_9700

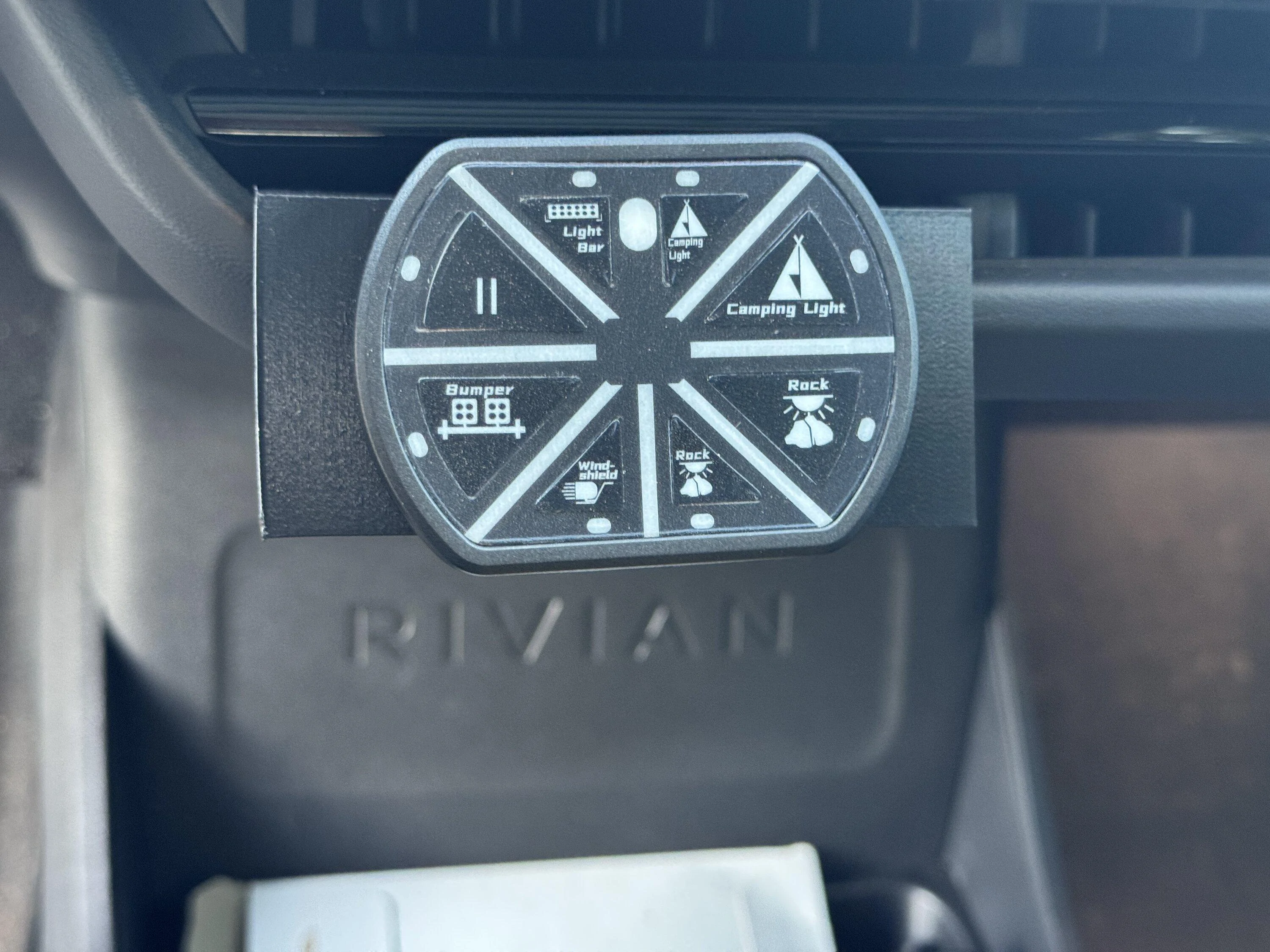

Rivian R1T R1S Accessory Lighting - All of the accessory lighting IMG_9704


Rivian R1T R1S Accessory Lighting - All of the accessory lighting IMG_9695

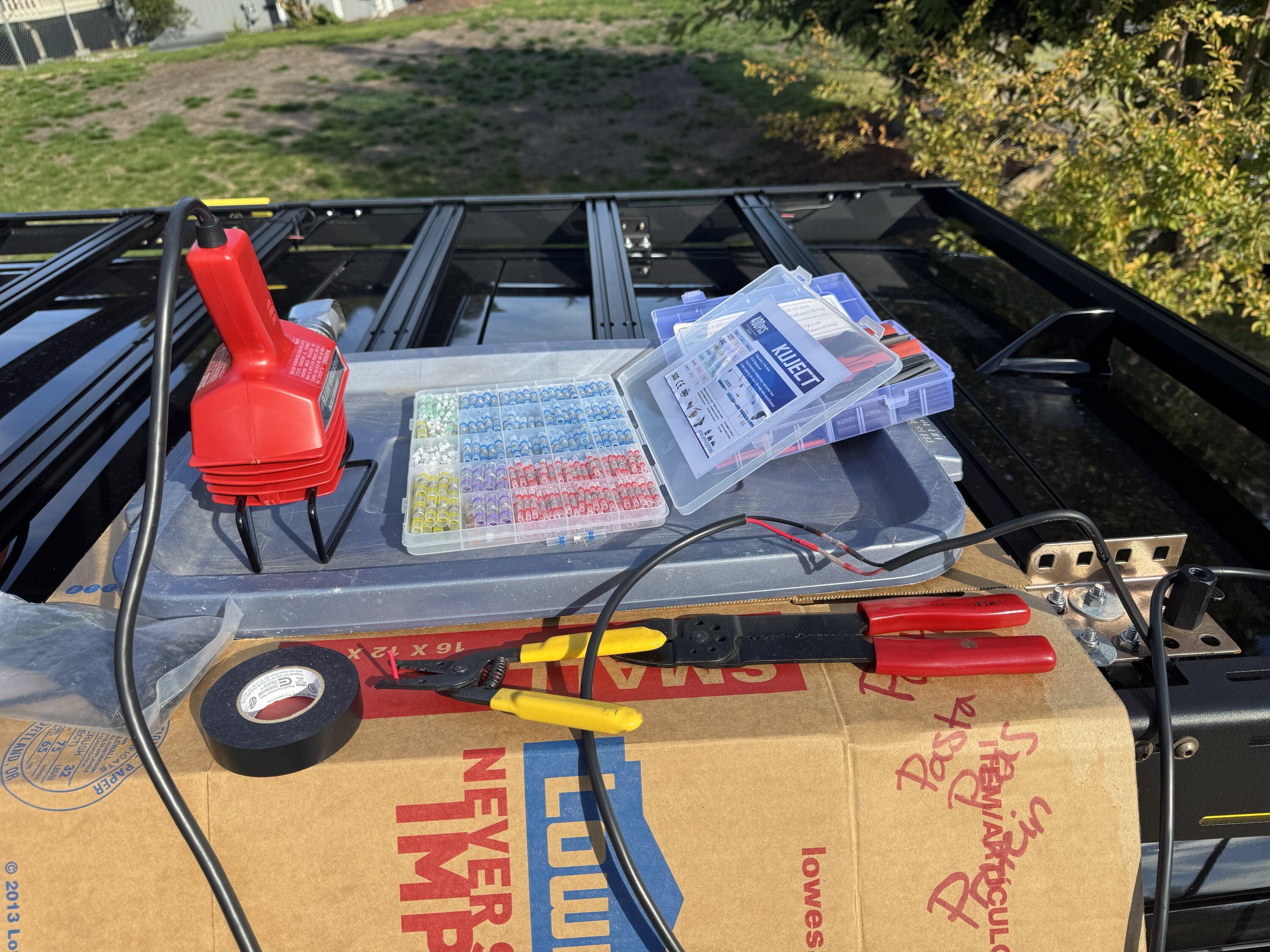

Rivian R1T R1S Accessory Lighting - All of the accessory lighting IMG_9680
Sponsored



ttphhi

Well-Known Member
Joined
Nov 26, 2021
Threads
2
Messages
60
Reaction score
22
Location
Hawaii
Vehicles
Gen1 R1S Quad Large, Tesla MY, Chevy Avalanche
Occupation
Consultant
Unreal looking setup, nice work. What kind of fogs are those? Are they available in amber?

OP
OP
Polar

Polar

Well-Known Member
First Name
Scott
Joined
Feb 16, 2022
Threads
28
Messages
811
Reaction score
1,424
Location
WA
Vehicles
C40, LE CY R1S
Occupation
IT
Clubs

Morimoto Fourbangers - and yes they are available in amber as well other throw patterns.


the.phd

Well-Known Member
Joined
May 25, 2024
Threads
1
Messages
84
Reaction score
56
Location
Las Vegas, NV
Vehicles
2023 R1T Performance Max Pack
Clubs

Nice. I'm so drained after my work week that my light bar and ditch lights have just been sitting on the floor since I got them. One day I'll have the energy....

OP
OP
Polar

Polar

Well-Known Member
First Name
Scott
Joined
Feb 16, 2022
Threads
28
Messages
811
Reaction score
1,424
Location
WA
Vehicles
C40, LE CY R1S
Occupation
IT
Clubs

Nice. I'm so drained after my work week that my light bar and ditch lights have just been sitting on the floor since I got them. One day I'll have the energy....
That is why mine had too had sat uninstalled for so long. Necessary not really, but certainly enjoyable. Hope you find that energy.


Sponsored

tak5builder

New Member
First Name
Travis
Joined
Dec 5, 2024
Threads
0
Messages
1
Reaction score
0
Location
Vista, CA
Vehicles
R1T
Occupation
Project Manager
What did you use to mount the fog lights to the grill?
Also, is the controller always on, meaning if you leave the truck will your aftermarket lights stay on?
Thanks

OP
OP
Polar

Polar

Well-Known Member
First Name
Scott
Joined
Feb 16, 2022
Threads
28
Messages
811
Reaction score
1,424
Location
WA
Vehicles
C40, LE CY R1S
Occupation
IT
Clubs

What did you use to mount the fog lights to the grill?
Also, is the controller always on, meaning if you leave the truck will your aftermarket lights stay on?
Thanks

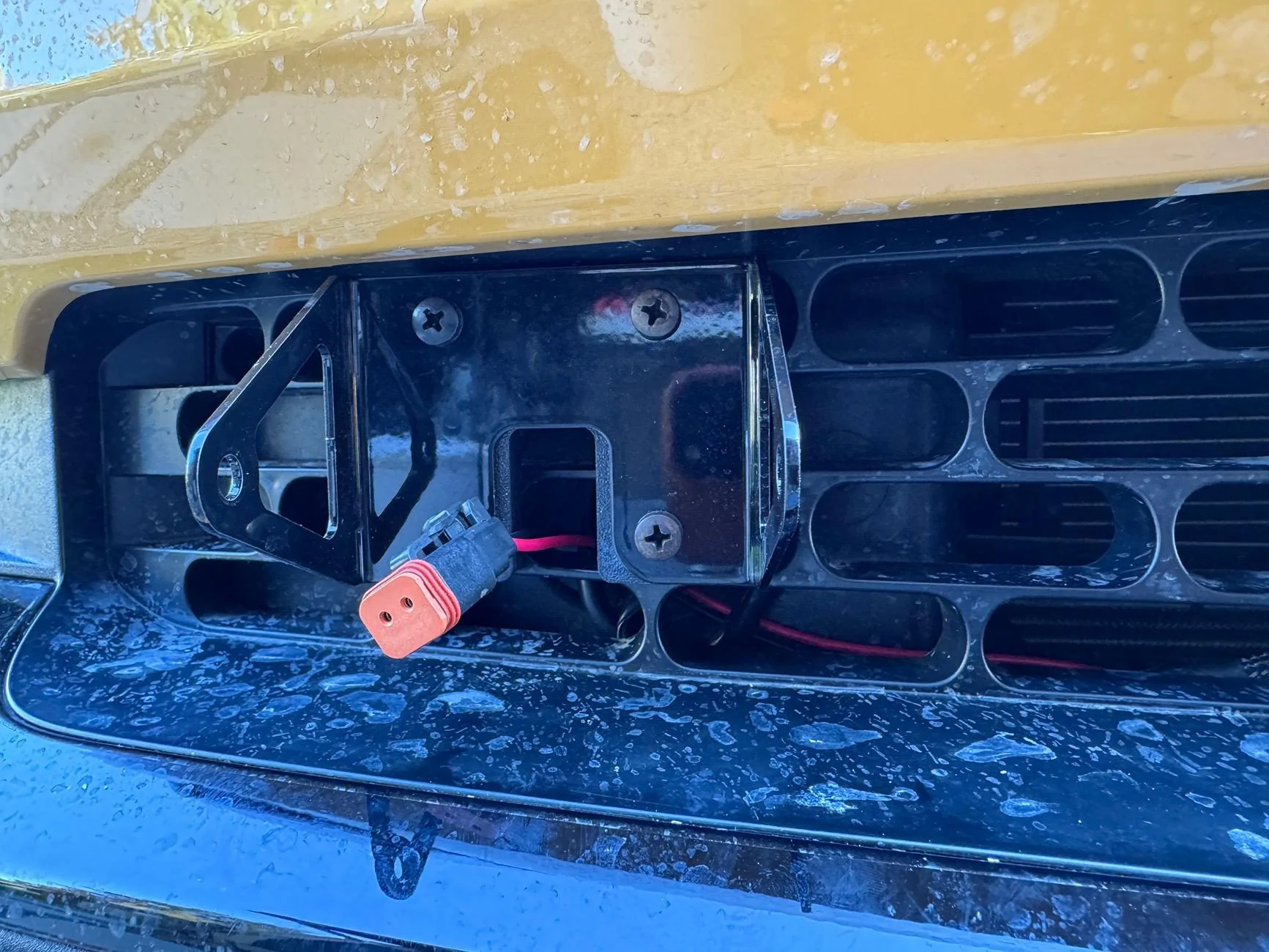

Skookum Racing brackets

and sadly yes it is… 😕


-0-coach-0-

Well-Known Member
First Name
Greg
Joined
Jan 22, 2024
Threads
24
Messages
84
Reaction score
118
Location
Orange County, CA
Website
x.com
Vehicles
R1T
Occupation
Educator
Clubs

Weekend of Wiring - Complete

In addition to the 12V in the frunk I installed the backlog of lights I’ve had sitting around - light bar, ditch lights, fog lights, camp lights on rock rack. SolderSeal connections made wiring a bit more straightforward but still took a long time to route (especially the front fogs and roof rack mounted camp lights) and secure.

All are switched by an 8 channel RF light controller - took some work to fit it next to the AC compressor but it’s secure now.

I have rock lights to install as well; but need to routthose wires and install the lights themselves still. At least I have space in my controller to make powering them simple.










I am about to start installing the ditch light and bumper light with the same switch panel you have. Did you zip-tie the switch panel in that location, and have you found that it stays in place? Eventually, I will get that same roof rack and a light bar, but I need a few other things before I add any more lights.

Great looking setup!

OP
OP
Polar

Polar

Well-Known Member
First Name
Scott
Joined
Feb 16, 2022
Threads
28
Messages
811
Reaction score
1,424
Location
WA
Vehicles
C40, LE CY R1S
Occupation
IT
Clubs

I am about to start installing the ditch light and bumper light with the same switch panel you have. Did you zip-tie the switch panel in that location, and have you found that it stays in place? Eventually, I will get that same roof rack and a light bar, but I need a few other things before I add any more lights.

Great looking setup!
Yes - it’s secured there. I’ve not found a better location yet. It has not moved, and I like that it’s high and mostly out of the way.


scooby

Member
First Name
William
Joined
Apr 28, 2022
Threads
0
Messages
10
Reaction score
12
Location
Northern California
Vehicles
RT1, F250, Just sold Plaid
Occupation
Finance
Weekend of Wiring - Complete

In addition to the 12V in the frunk I installed the backlog of lights I’ve had sitting around - light bar, ditch lights, fog lights, camp lights on rock rack. SolderSeal connections made wiring a bit more straightforward but still took a long time to route (especially the front fogs and roof rack mounted camp lights) and secure.

All are switched by an 8 channel RF light controller - took some work to fit it next to the AC compressor but it’s secure now.

I have rock lights to install as well; but need to routthose wires and install the lights themselves still. At least I have space in my controller to make powering them simple.










Absolutley love this setup. For my purposes, I mainly want to install some REALLY bright reverse lights. Did you happen to mount any under the rear bumper? Or have you seen any threads that you can recall that did? I would love to have a detailed write-up like yours with mount and wiring routing methods.

Thanks again for sharing!


Sponsored

OP
OP
Polar

Polar

Well-Known Member
First Name
Scott
Joined
Feb 16, 2022
Threads
28
Messages
811
Reaction score
1,424
Location
WA
Vehicles
C40, LE CY R1S
Occupation
IT
Clubs

Absolutley love this setup. For my purposes, I mainly want to install some REALLY bright reverse lights. Did you happen to mount any under the rear bumper? Or have you seen any threads that you can recall that did? I would love to have a detailed write-up like yours with mount and wiring routing methods.

Thanks again for sharing!
I’ll be adding rock lights this spring; should be able to run under the aero covers along the driver or passenger side under the body edges.
Then it’s just as simple as running and securing the lights - possibly inside the rear fascia?

Last edited:

CaptTrev

Member
First Name
Trevor
Joined
Dec 26, 2024
Threads
0
Messages
12
Reaction score
3
Location
Roslyn, NY
Vehicles
R1T, 1996 Jeep Cherokee Sport

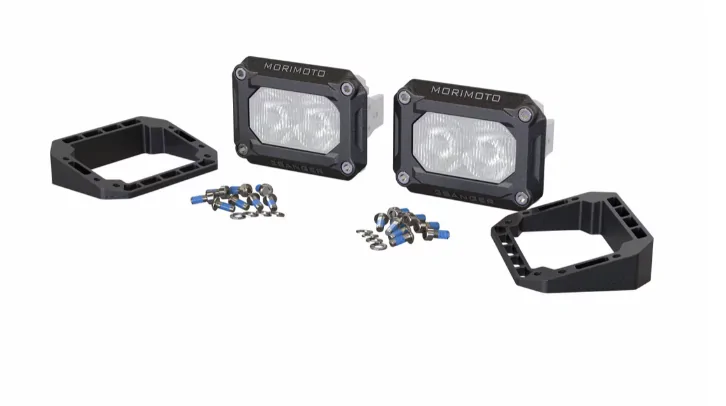

I am also considering installing extra reverse lighting . has anyone installed any recessed/flush mount lights like the Morimotos, Rigids or Black Oak?

does anybody know if there is a void/space behiund the plastic on either side of the license plate to mount these?

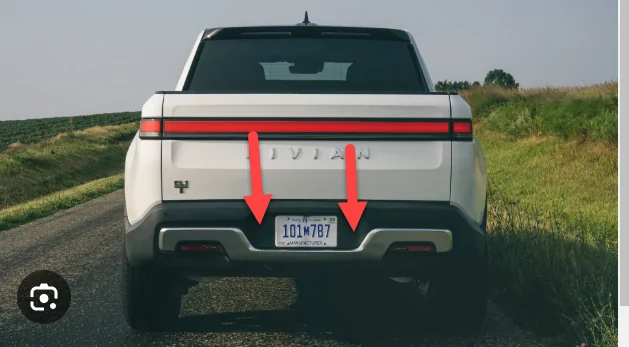

Rivian R1T R1S Accessory Lighting - All of the accessory lighting 1738711694716-rv

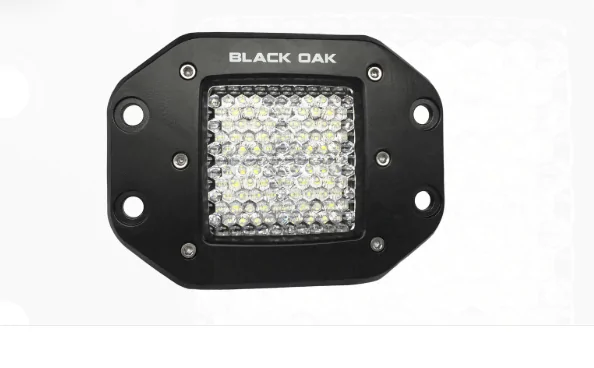

Rivian R1T R1S Accessory Lighting - All of the accessory lighting 1738711527242-jl


Rivian R1T R1S Accessory Lighting - All of the accessory lighting 1738711459553-h6

OP
OP
Polar

Polar

Well-Known Member
First Name
Scott
Joined
Feb 16, 2022
Threads
28
Messages
811
Reaction score
1,424
Location
WA
Vehicles
C40, LE CY R1S
Occupation
IT
Clubs

I am also considering installing extra reverse lighting . has anyone installed any recessed/flush mount lights like the Morimotos, Rigids or Black Oak?

does anybody know if there is a void/space behiund the plastic on either side of the license plate to mount these?
On my R1S - I have dropped a piece of gear into the large plastic void, but I know our rear ends are very different.
