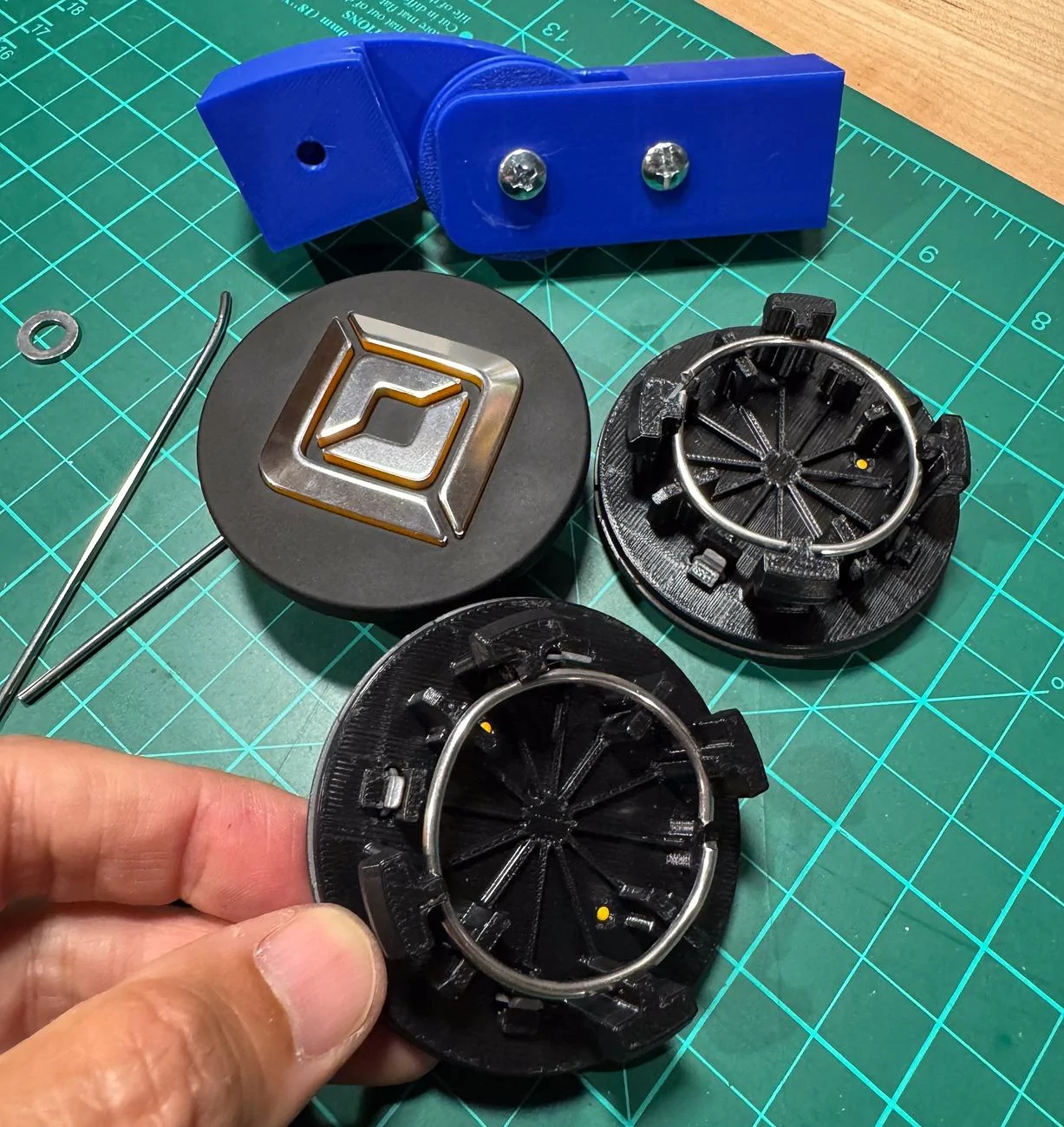

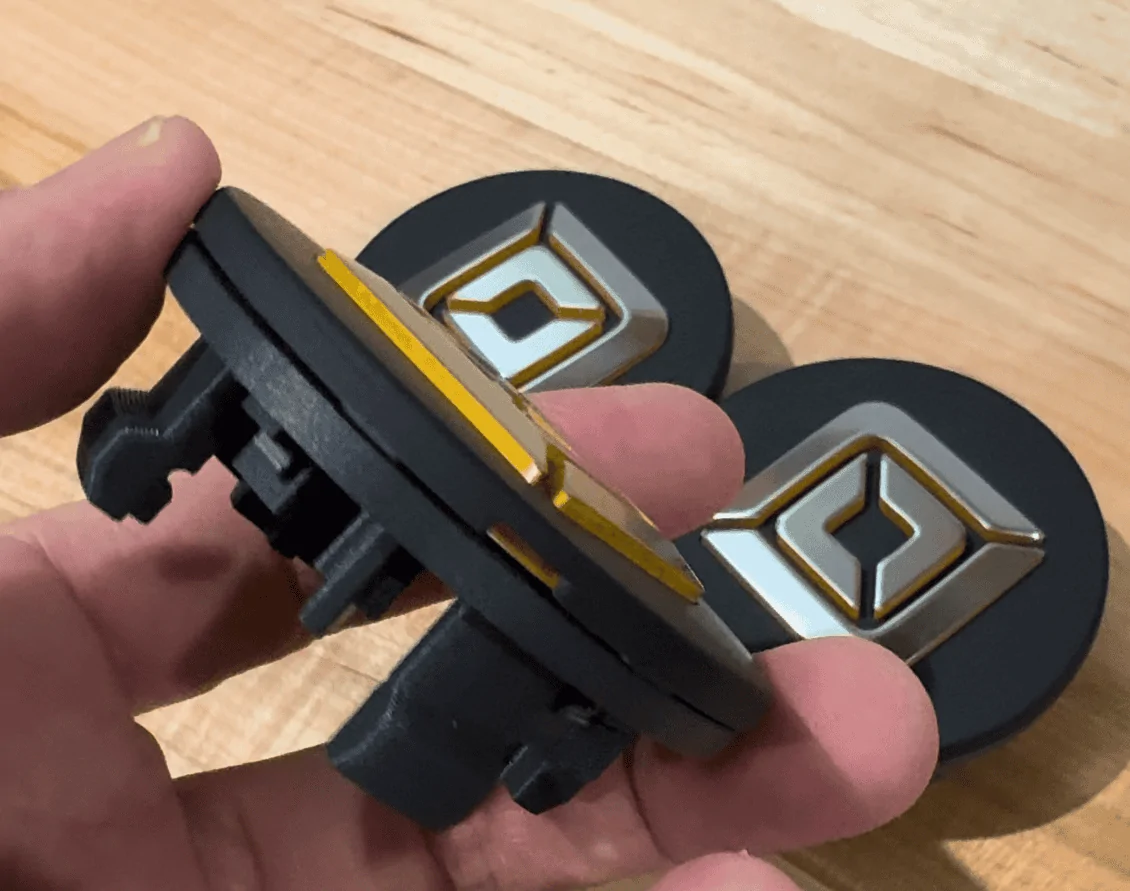

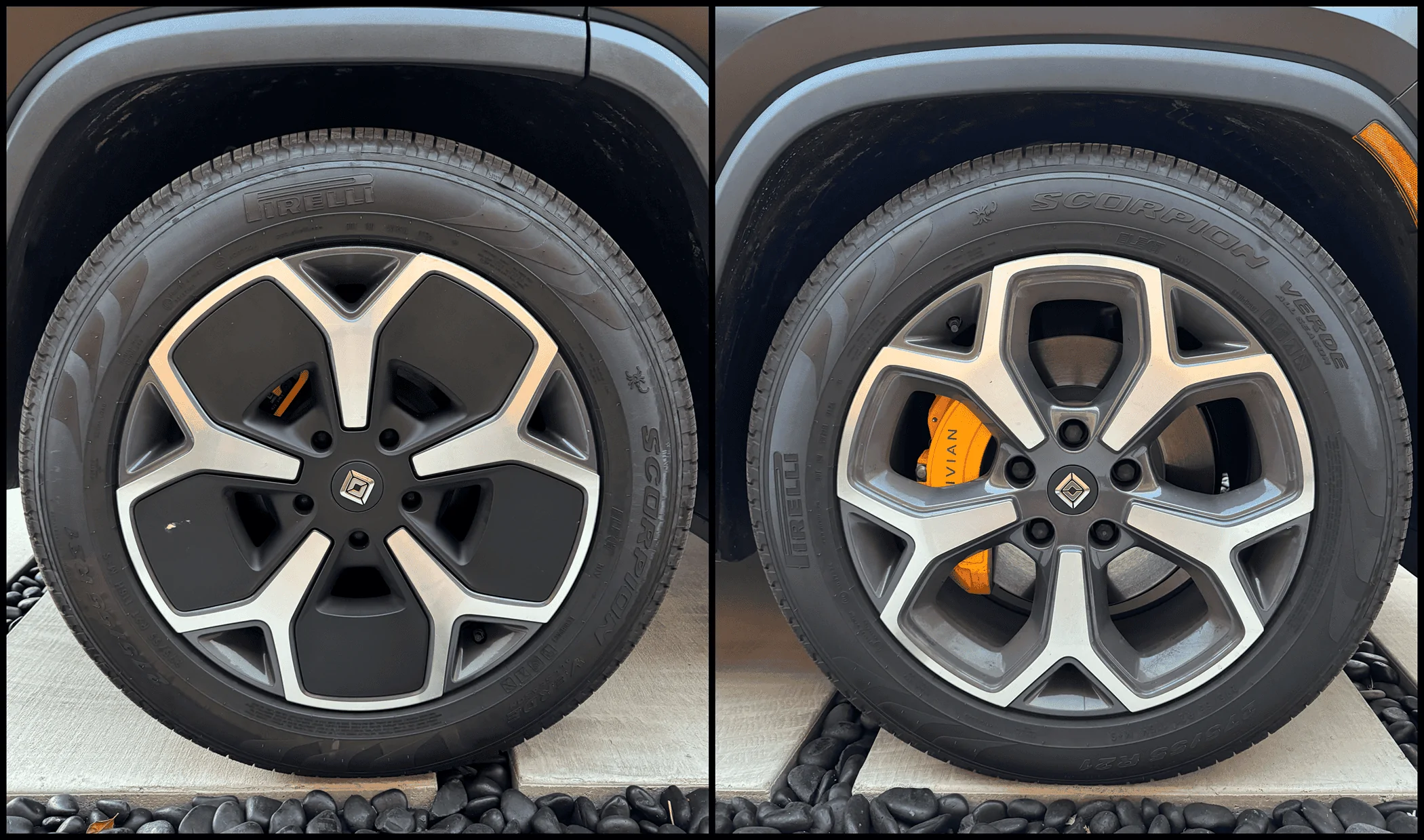

After getting the run around from CS and lack of gear shop availability for 21" center caps. I decided to take some inspiration from many other forum members and make some 3D printed versions. I am a plastics engineer so I decided to take a slightly different approach. The color center caps on the aero covers are easily removed with snap fit tabs. I then reversed engineered the snap fit design from the center section of the aero covers and added locking tabs on the back side that matched existing off the shelf center caps. I think the design came out pretty good.

The Link to download this file is here: https://grabcad.com/library/rivian-21-wheel-center-caps-1.

I used a u/formlabs SLA printer to make this part. But I am sure FDM printers will work too.

Rivian R1T R1S 3D Printed 21" Center Caps IMG_4160


Rivian R1T R1S 3D Printed 21" Center Caps IMG_4161

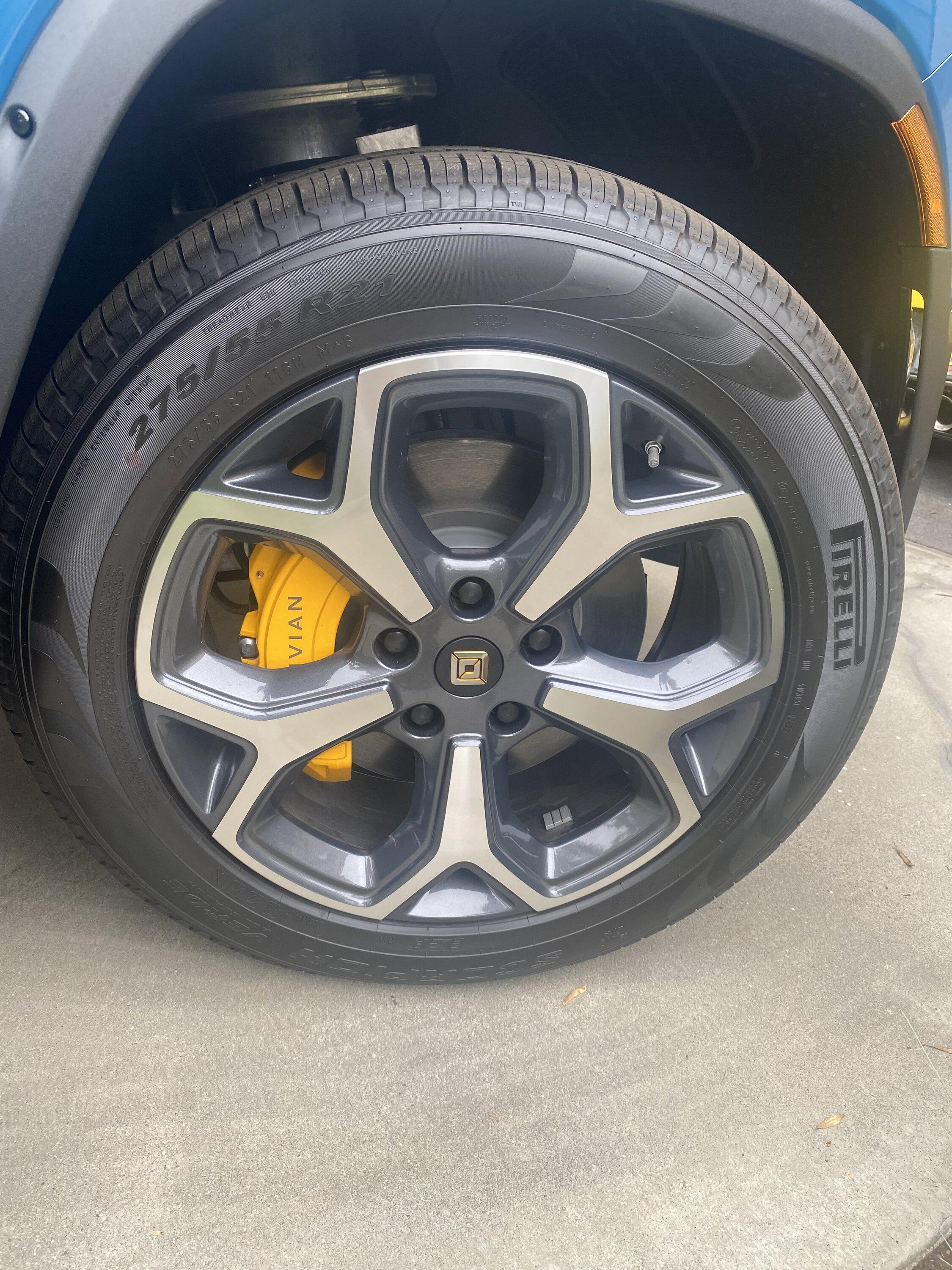

Rivian R1T R1S 3D Printed 21" Center Caps IMG_4162

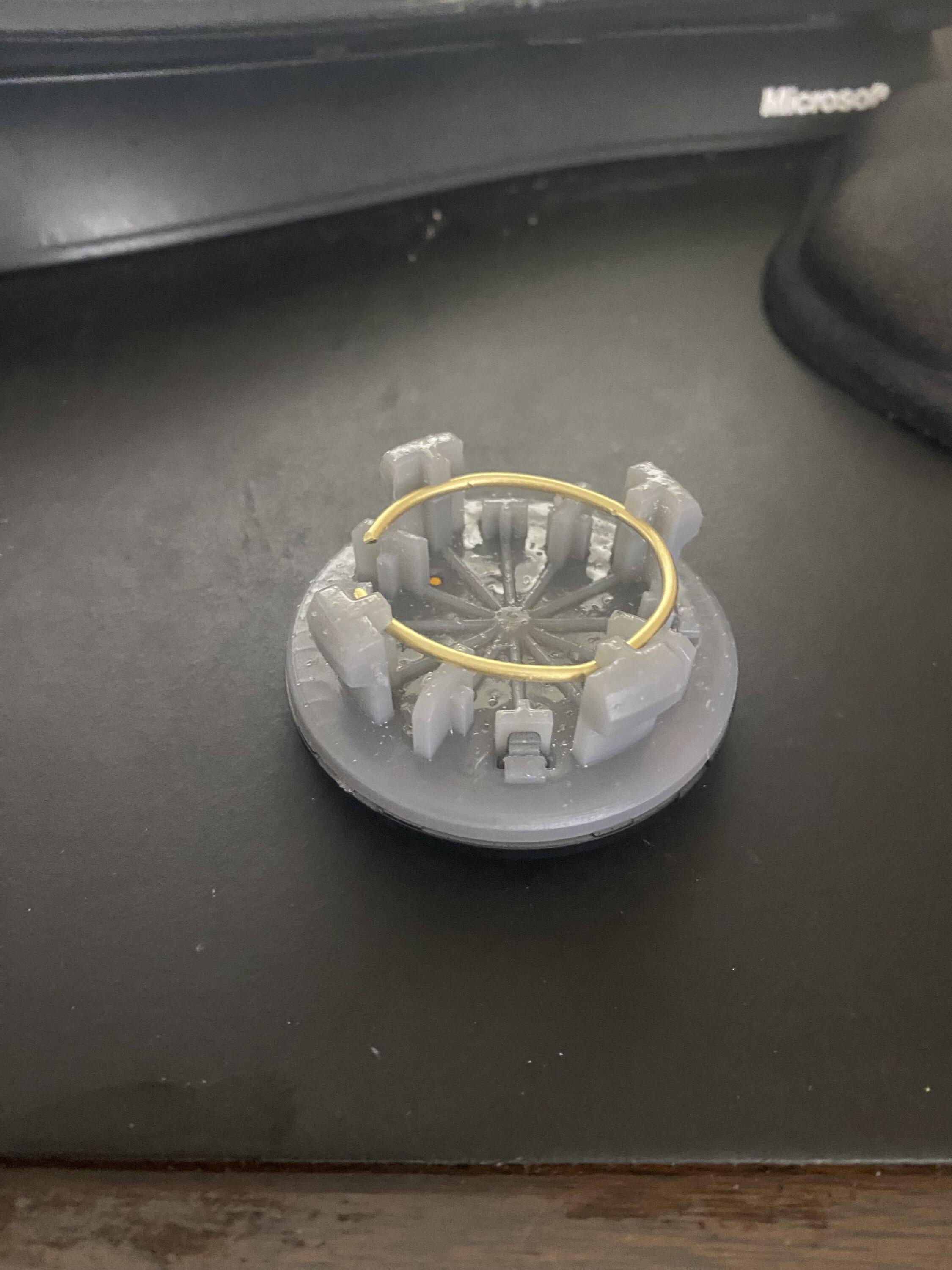

Rivian R1T R1S 3D Printed 21" Center Caps IMG_4163

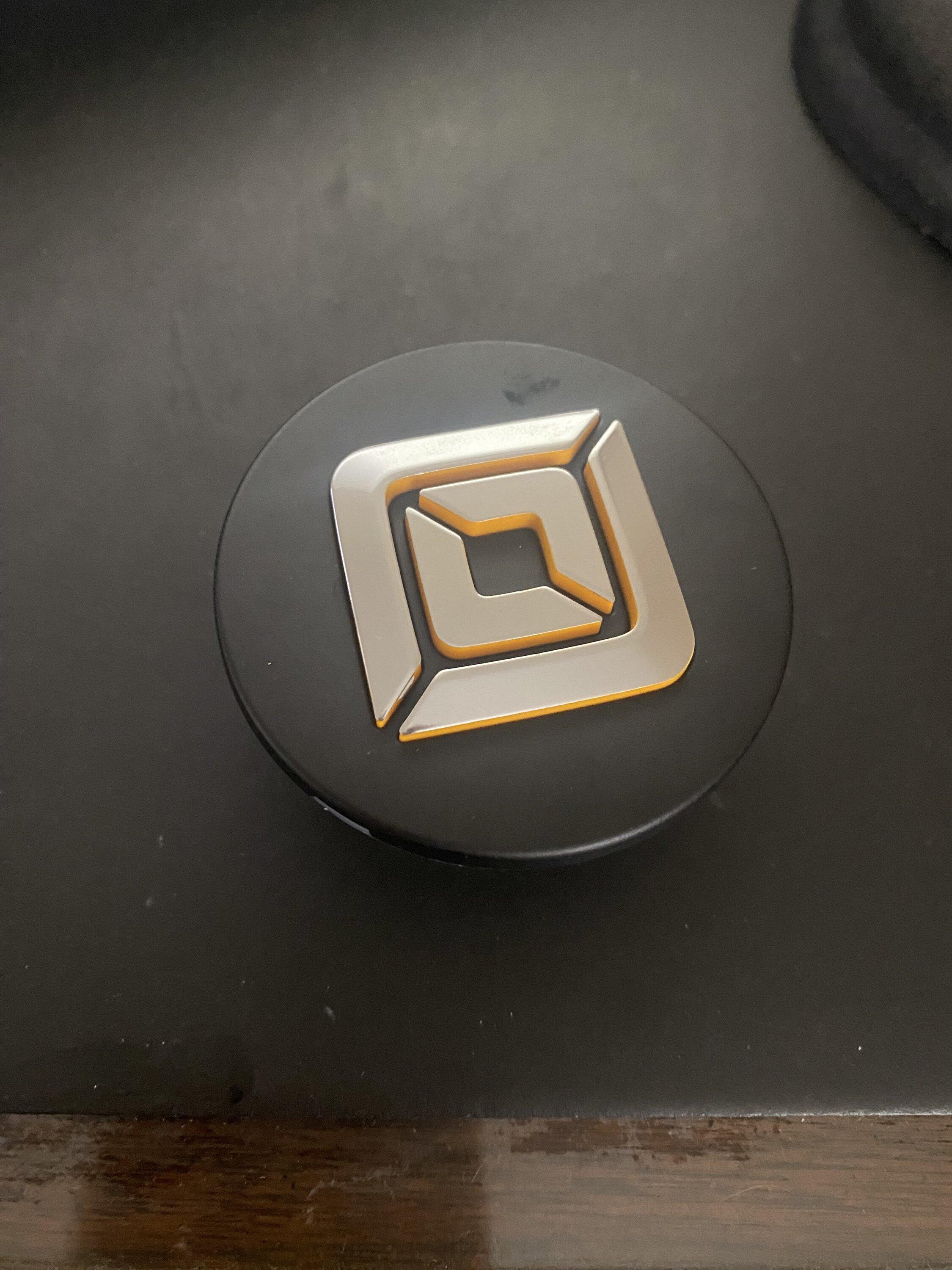

Rivian R1T R1S 3D Printed 21" Center Caps IMG_4164


Rivian R1T R1S 3D Printed 21" Center Caps IMG_4165
Sponsored



TheIglu

Well-Known Member
First Name
Clayton
Joined
Apr 6, 2022
Threads
23
Messages
299
Reaction score
417
Location
North Central MA
Vehicles
2022 Rivian R1T, 2004 Mazdaspeed Miata
Occupation
IT
Is the metal snap ring necessary?


Lpotter86

Active Member
First Name
Lee
Joined
Sep 17, 2022
Threads
1
Messages
37
Reaction score
55
Location
Swartz Creek, MI
Vehicles
R1T
Clubs

I’m going to try these tonight with FDM printer with PETG. Will post results.


Lpotter86

Active Member
First Name
Lee
Joined
Sep 17, 2022
Threads
1
Messages
37
Reaction score
55
Location
Swartz Creek, MI
Vehicles
R1T
Clubs

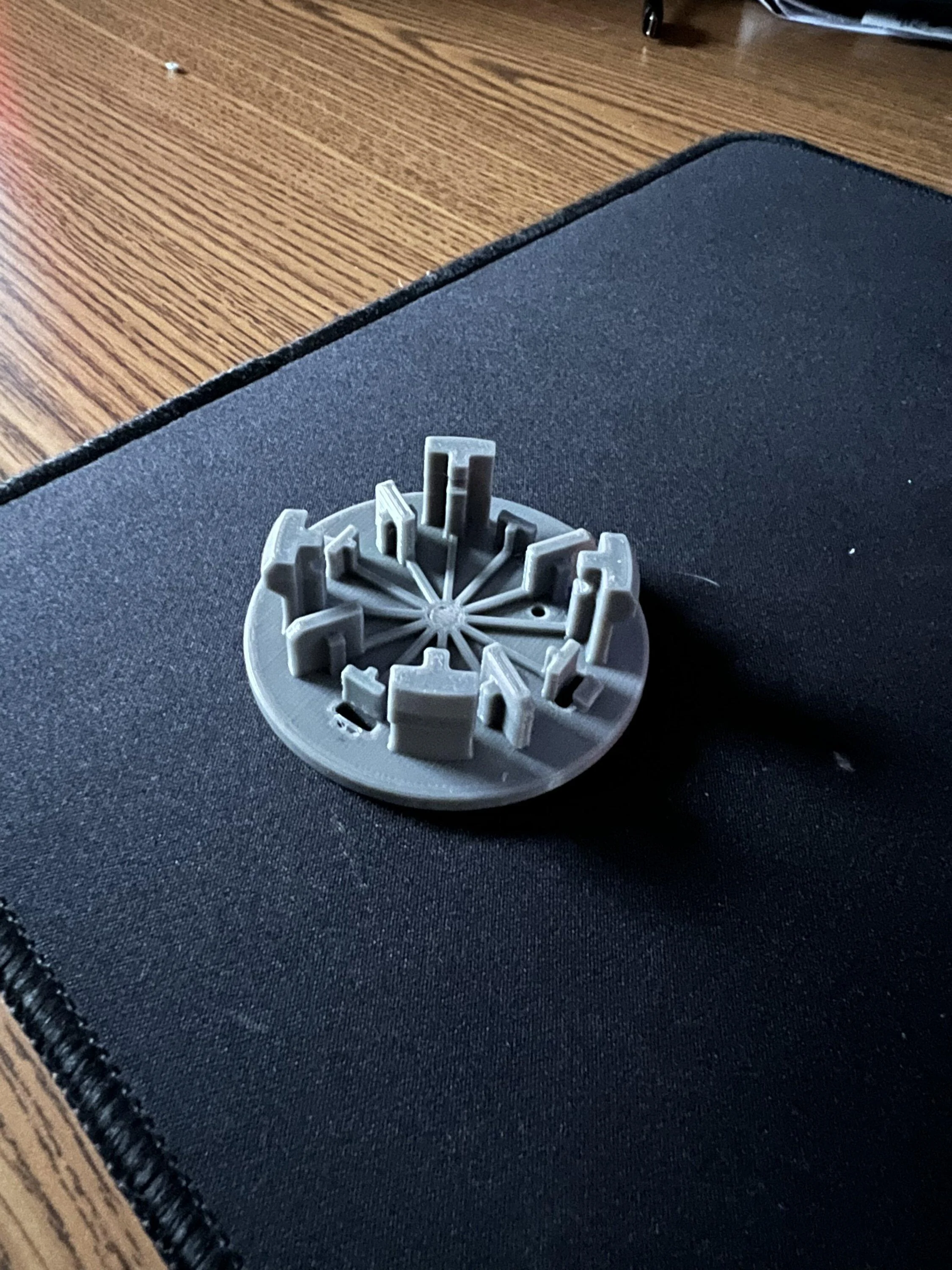

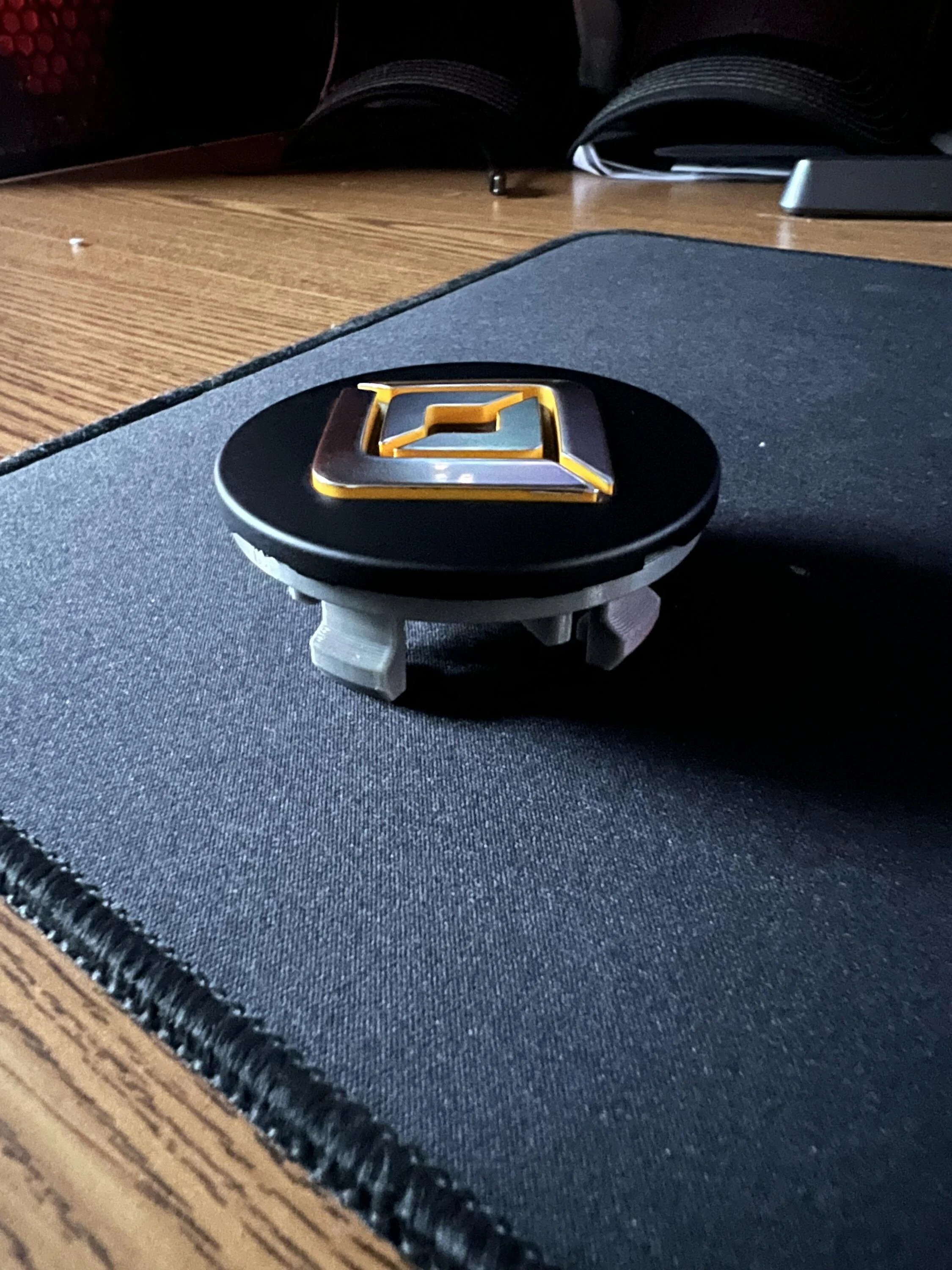

Couldn’t get the printer to get the PETG right. Used PLA. Tested on my spare tire. Snaps into place well. Had to scale it up in Cura. Still unsure if I'll use but printing the other 3 right now.

Rivian R1T R1S 3D Printed 21" Center Caps BE859313-DB1A-4539-8F15-44EE32405376
Rivian R1T R1S 3D Printed 21" Center Caps 9FAEC2B3-8038-4E4B-9E79-763273858C3B


RWerksman

Well-Known Member
Site Sponsor
First Name
Rob
Joined
Nov 13, 2020
Threads
57
Messages
1,391
Reaction score
3,119
Location
Pittsburgh
Vehicles
Jeep & R1T
Couldn’t get the printer to get the PETG right. Used PLA. Tested on my spare tire. Snaps into place well. Had to scale it up in Cura. Still unsure if I'll use but printing the other 3 right now.
You very much do not want to use PLA for this application. It will get hot, deform, and likely send your center cap zinging off when taking a corner at high speed.

PETG or ABS is what you want to use here. ABS puts off noxious fumes when printing though.


Sponsored

RalphB

Member
First Name
Ralph
Joined
Oct 29, 2022
Threads
1
Messages
13
Reaction score
15
Location
Reno, Nevada, United States
Vehicles
Audi eTron, Lexus RX450h
Couldn’t get the printer to get the PETG right. Used PLA. Tested on my spare tire. Snaps into place well. Had to scale it up in Cura. Still unsure if I'll use but printing the other 3 right now.

It's opening as 2.4mm in Cura. What size do you scale it to?


johnjackson99

Well-Known Member
Joined
Oct 18, 2023
Threads
3
Messages
47
Reaction score
21
Location
New Jersey
Vehicles
Hyundai Ioniq 5
Occupation
IT
After getting the run around from CS and lack of gear shop availability for 21" center caps. I decided to take some inspiration from many other forum members and make some 3D printed versions. I am a plastics engineer so I decided to take a slightly different approach. The color center caps on the aero covers are easily removed with snap fit tabs. I then reversed engineered the snap fit design from the center section of the aero covers and added locking tabs on the back side that matched existing off the shelf center caps. I think the design came out pretty good.

The Link to download this file is here: https://grabcad.com/library/rivian-21-wheel-center-caps-1.

I used a u/formlabs SLA printer to make this part. But I am sure FDM printers will work too.











Please answer the scale question!


baron130

New Member
First Name
Brandon
Joined
Feb 2, 2024
Threads
0
Messages
2
Reaction score
3
Location
Abilene, TX
Vehicles
2024 Rivian R1T
Occupation
Instructor

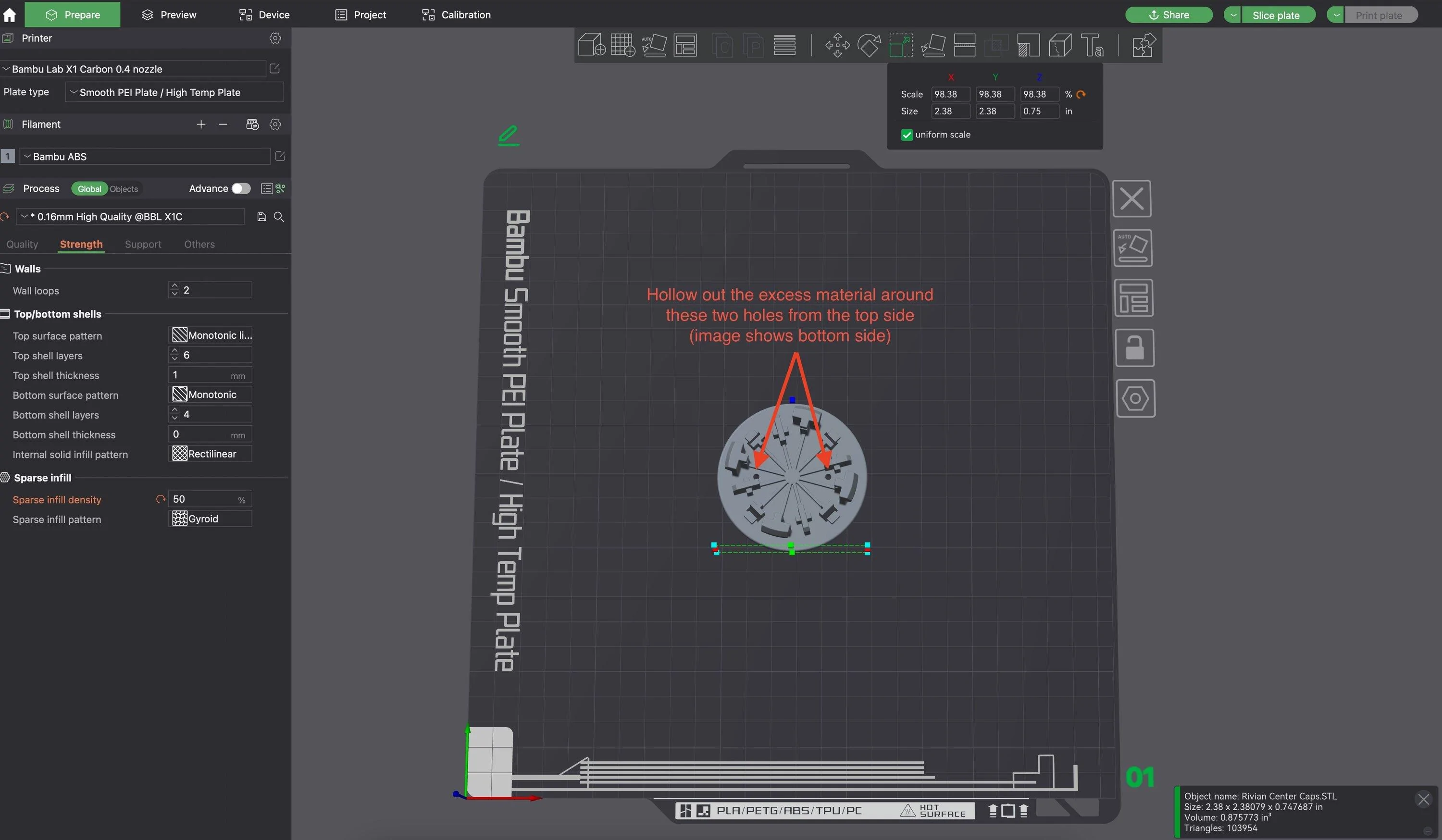

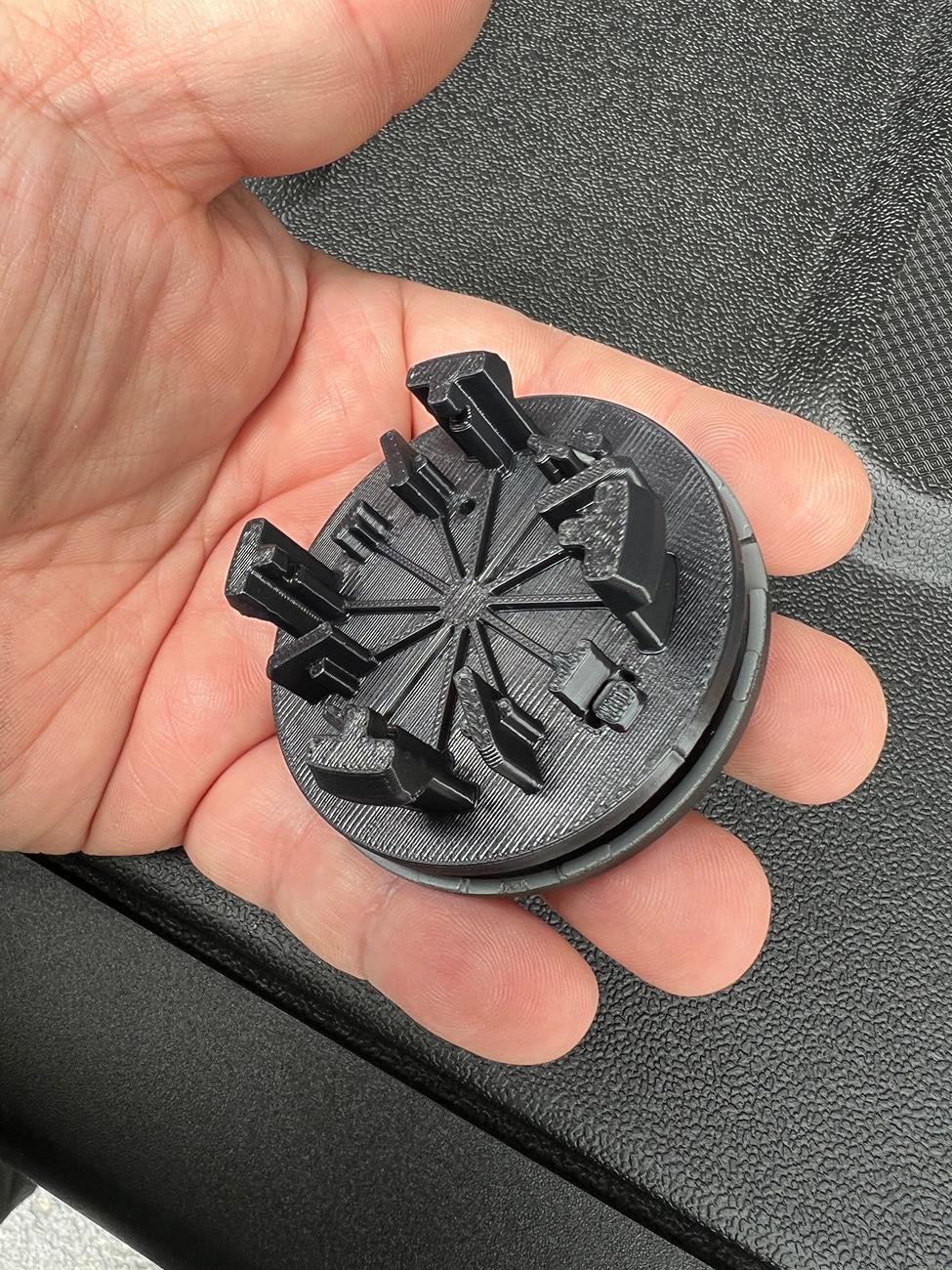

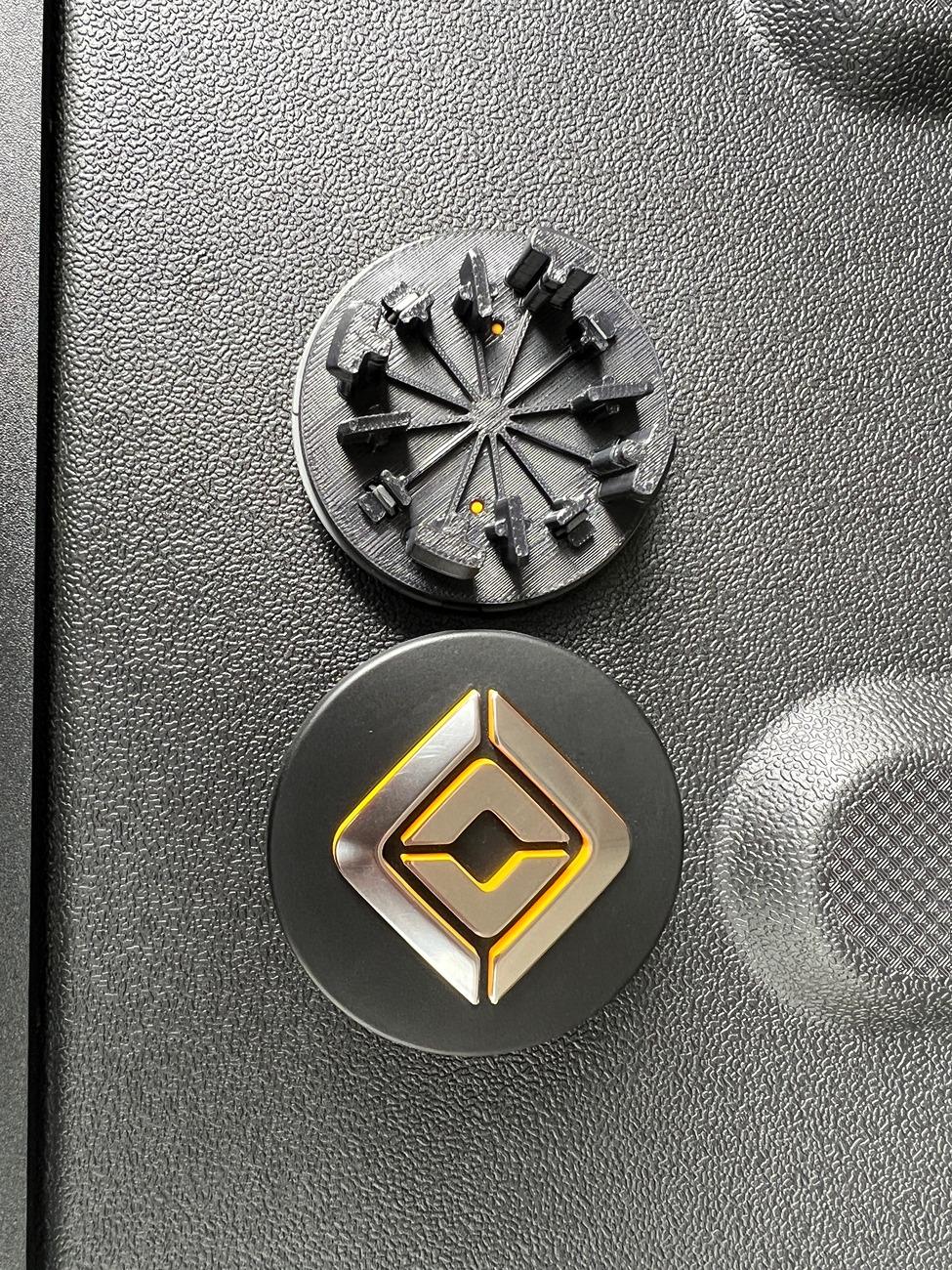

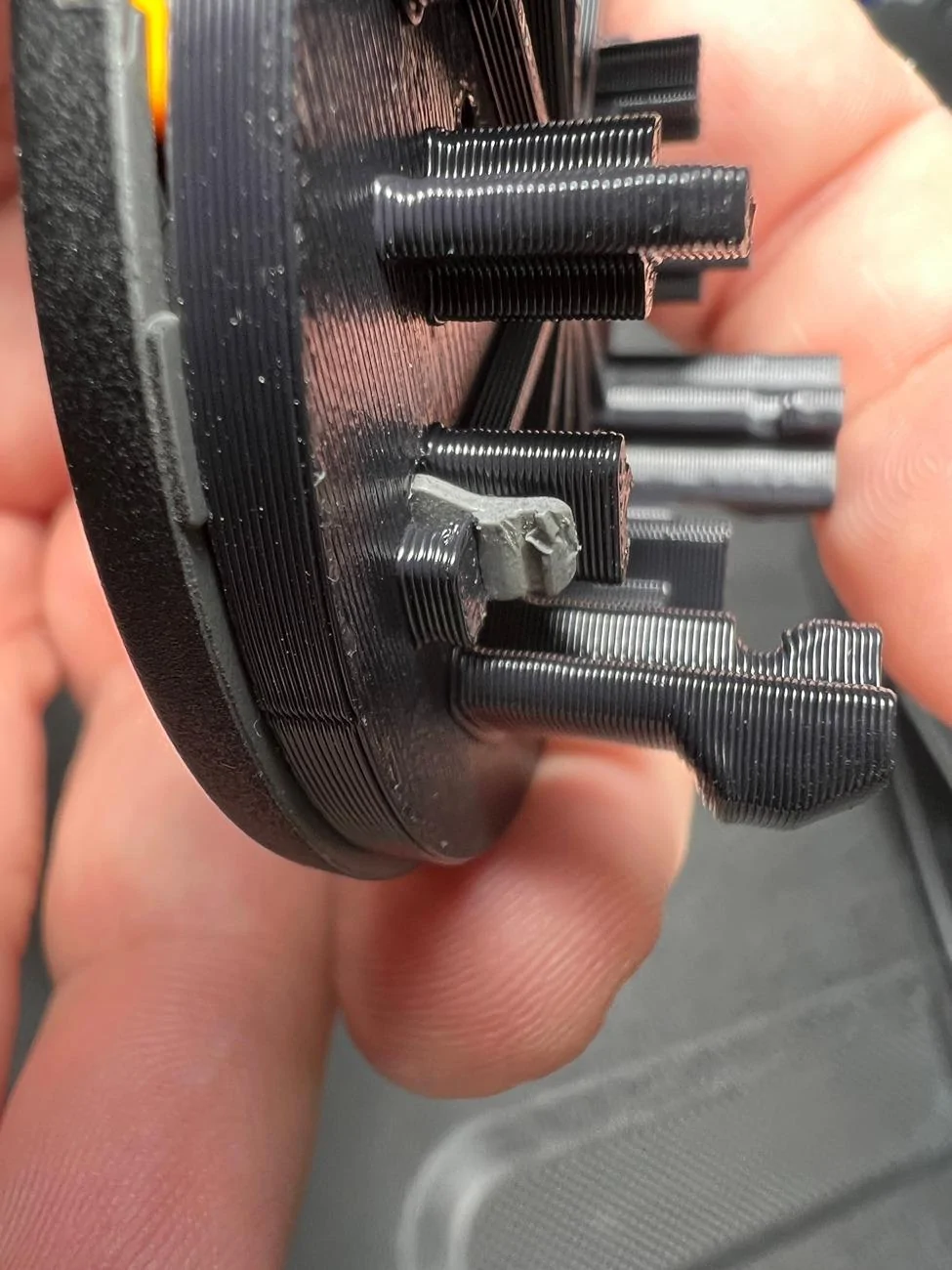

After a few failed prints, I settled on 2.38 in. as spot on. You will need to hollow out the two circles that hold the center cap pins just a little to fit the pins properly. I’ve been printing in ABS using Bambu Studio on my X1C Carbon.

Rivian R1T R1S 3D Printed 21" Center Caps IMG_2406


Rivian R1T R1S 3D Printed 21" Center Caps Image 2-14-24 at 18.08
